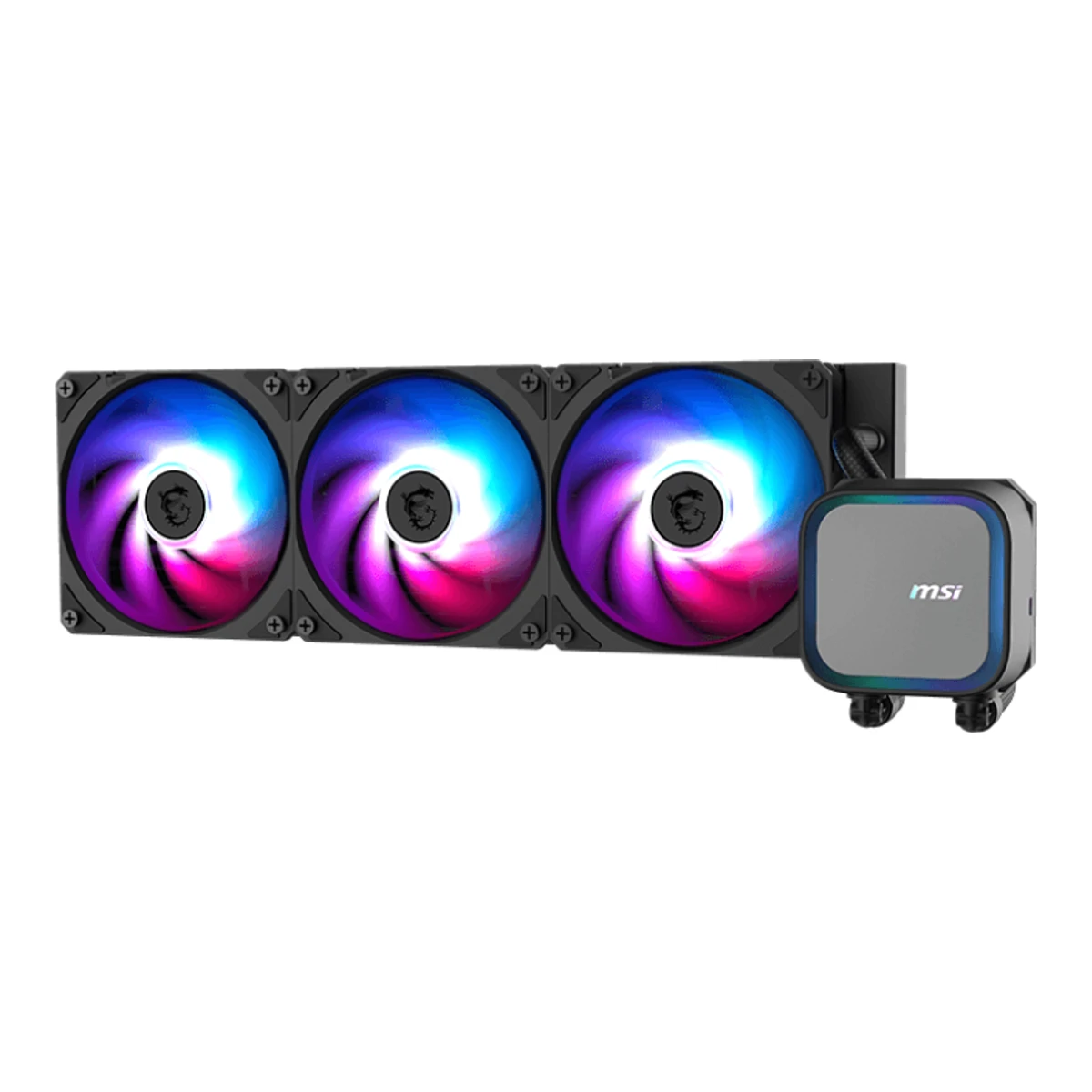

MSI MAG CoreLiquid A13 360

MSICPU cooler

MAG CoreLiquid A13 360

Released January 2025.3Reviewtomshardware.com/pc-components/liquid-cooling/msi-mag-coreliquid-a13-aio-liquid-cooler-reviewRead 15 October 2026Review published 2025-01-03 with a US MSRP for both sizes, so the cooler was on sale by early January 2025. No MSI launch announcement was found. The PL store created its page 2025-01-15 and the FR store 2025-02-03. A search summary of the blocked Newegg page gives a first listing on 2024-11-18 for the 240 mm model, so the first sales may be two months earlier. The page was not opened. Last checked 15 October 2026.

Cooler type
AIO liquid
Fans
3
Rated TDP
Not available
CPU sockets
AM5, AM4, LGA1851, LGA1700

28 of 54 fields known.

Compare with another CPU coolerDownload JSONDownload CSVGet it from the API

All specs

SourceCalculated

General

Series
MAG CoreLiquid1Maker product pagede-store.msi.com/products/mag-coreliquid-a13-360Read 15 October 2026Product family MAG CORELIQUID A13, with a 240 and a 360 size.
Model numbers
MAG CORELIQUID A13 360, 306-7ZWDA11-L80, MAG CORELIQUID A13 360 WHITE, 306-7ZWDA21-L801Maker product pagede-store.msi.com/products/mag-coreliquid-a13-360Read 15 October 2026MSI order code 306-7ZWDA11-L80 for the black model and 306-7ZWDA21-L80 for the white model (the DE store, the other MSI stores and Amazon use these codes). The model names are MAG CORELIQUID A13 360 and MAG CORELIQUID A13 360 WHITE.
GTIN / EAN
8241423877717Retailer pageamazon.com/MSI-MAG-Coreliquid-A13-360/dp/B0DM4BRSV5Read 15 October 2026Item details: UPC 824142387771, model CLA13360, for the black MAG Coreliquid A13 360.
Announced
Not available
Status
Available1Maker product pagede-store.msi.com/products/mag-coreliquid-a13-360Read 15 October 2026The store feed shows the product as available on 2026-10-15 at EUR 89. The MSI UK store also lists it.
Predecessor
Not available
Successor
Not available
Launch price (US)
$99.993Reviewtomshardware.com/pc-components/liquid-cooling/msi-mag-coreliquid-a13-aio-liquid-cooler-reviewRead 15 October 2026Spec table: MSRP $99.99 for the A13 360mm and $79.99 for the 240mm. The text says $99 and $79. The review covers the black model. Tax is not stated.
Launch price (EU)
Not available
Markets
Not available
Colours
Black, White2Maker product pagede-store.msi.com/products/mag-coreliquid-a13-360-whiteRead 15 October 2026The store page names the model MAG CORELIQUID A13 360 WHITE with a white design. The black model is the base MAG CORELIQUID A13 360.
Cooler type
AIO liquid1Maker product pagede-store.msi.com/products/mag-coreliquid-a13-360Read 15 October 2026Sealed all-in-one with a 360 mm radiator, pump block and three fans.
Air cooler layout
Not available
Rated TDP (claimed)
Not available
Base material
Copper1Maker product pagede-store.msi.com/products/mag-coreliquid-a13-360Read 15 October 2026Cold Plate Material: Copper. The text says a full-plane copper base with 0.1 mm micro-channels and no screw holes.
Thermal paste
Included1Maker product pagede-store.msi.com/products/mag-coreliquid-a13-360Read 15 October 2026Accessories: Thermal paste x 1. Pokde says the small tube of paste is not pre-applied to the pump block.6Reviewpokde.net/review/msi-mag-coreliquid-a13-360-reviewRead 15 October 2026A small tube of paste is in the box and is not pre-applied to the pump block.

Compatibility

CPU sockets
AM5, AM4, LGA1851, LGA17001Maker product pagede-store.msi.com/products/mag-coreliquid-a13-360Read 15 October 2026Intel Socket LGA 1700 / 1851 and AMD Socket AM5 / AM4. The text says the Intel bracket (1700/1851) is pre-installed.4Reviewclub386.com/msi-mag-coreliquid-a13-360-reviewRead 15 October 2026Spec table: AMD AM5 / AM4, Intel LGA1851 / LGA1700. The text says there is no LGA115X support.
RAM height clearance
Not available
Offset mounting
Not available

Heatsink

We could not find any of these 3 fields. Show them
Heat pipes
Not available
Heat pipe diameter
Not available
Direct-contact heat pipes
Not available

Liquid cooling

Radiator size
360mm1Maker product pagede-store.msi.com/products/mag-coreliquid-a13-360Read 15 October 2026Radiator Size: 360 mm.
Radiator dimensions
Length394Width119.6Thickness27mm(15.5 × 4.7 × 1.1 in)1Maker product pagede-store.msi.com/products/mag-coreliquid-a13-360Read 15 October 2026Radiator Dimensions: 394 x 119.6 x 27 mm. Length runs along the three fans, so length 394, width 119.6 and thickness 27.
Radiator material
Aluminium1Maker product pagede-store.msi.com/products/mag-coreliquid-a13-360Read 15 October 2026Radiator Material: Aluminum.
Tube length
390mm7Retailer pageamazon.com/MSI-MAG-Coreliquid-A13-360/dp/B0DM4BRSV5Read 15 October 2026About this item: 390mm water cooling tubes. The text is MSI's feature bullet on the Amazon page. MSI's own tables do not give a tube length.
Max pump speed
3,800rpm1Maker product pagede-store.msi.com/products/mag-coreliquid-a13-360Read 15 October 2026Pump Speed: 3800 RPM +/- 10%. Tom's Hardware prints +/- 300 RPM. The rated top speed 3800 is stored.
Pump power connector
3-pin fan header1Maker product pagede-store.msi.com/products/mag-coreliquid-a13-360Read 15 October 2026Pump Connector: 3-PIN Header, and 5V ARGB 3-PIN Header (female) for the pump block lighting. Pokde confirms the pump has a 3-pin PWM-style lead with no fourth pin for speed control, so it is stored as a 3-pin DC connector.6Reviewpokde.net/review/msi-mag-coreliquid-a13-360-reviewRead 15 October 2026The pump has two cables: one PWM 3-pin for the pump with no fourth pin for speed control, and one for RGB.
VRM fan
No6Reviewpokde.net/review/msi-mag-coreliquid-a13-360-reviewRead 15 October 2026Walkaround and spec table: the pump block has a PWM 3-pin lead and an RGB lead, and the spec table lists the block with no fan and no display. The box contents list no VRM fan.

Fans

Included fans
ModelSize (mm)FansMin speed (rpm)Max speed (rpm)Airflow (CFM)Static pressure (mmH₂O)Noise (claimed) (dB(A))BearingConnector
CycloBlade 712035002,00062.62.3631.1Rifle4-pin PWM
Source1Maker product pagede-store.msi.com/products/mag-coreliquid-a13-360Read 15 October 2026Number of Fans 3, fan size 120 x 120 x 25 mm, Fan Air Flow 62.6 CFM, Fan Bearing Rifle Bearing, PWM Mode Yes, Fan Connector 5V ARGB 3-PIN Header (for the lighting), fan life 40,000 hrs at 40 C. Speed, static pressure and noise are not in this table and come from Club386 and Tom's Hardware. The 5 V ARGB 3-pin entry is the lighting lead. The fan power lead is PWM 4-pin, see Pokde. The airflow is read as one fan at full speed.3Reviewtomshardware.com/pc-components/liquid-cooling/msi-mag-coreliquid-a13-aio-liquid-cooler-reviewRead 15 October 2026Fan table: 120 x 120 x 25 mm, up to 2000 RPM, up to 62.6 CFM, up to 2.36 mmH2O, rifle bearings, ARGB.4Reviewclub386.com/msi-mag-coreliquid-a13-360-reviewRead 15 October 2026Spec table: fan speed 500~2,000 +/- 10% RPM, airflow 62.6 CFM, static pressure 2.36 mmH2O, fan noise level 31.1 dBA. The text rates the fans at 62.6 CFM and 2.36 mmH2O at up to 2,000 RPM. The 31.1 dBA is the maker's rating for one fan. A few retailers list 60.78 CFM and 30.39 dBA, which look like another datasheet revision and are not stored.5Reviewgamerant.com/msi-mag-coreliquid-a13-240-360-reviewRead 15 October 2026The radiator fans run at 500~2000 +/- 10% RPM with a noise level of 31.1 dBA, matching the Club386 table. The pump runs up to 3800 RPM.6Reviewpokde.net/review/msi-mag-coreliquid-a13-360-reviewRead 15 October 2026The fans connect to the motherboard with the standard PWM 4-pin plus 3-pin ARGB design, daisy-chained. The reviewer measured about 2080 RPM maximum.
Fans
3

Display and lighting

RGB lighting
Yes1Maker product pagede-store.msi.com/products/mag-coreliquid-a13-360Read 15 October 2026Block Lighting ARGB GEN2 and Fan Lighting ARGB Gen2.
Lighting standard
ARGB 5 V1Maker product pagede-store.msi.com/products/mag-coreliquid-a13-360Read 15 October 2026Fan Connector: 5V ARGB 3-PIN Header.
Built-in screen
None6Reviewpokde.net/review/msi-mag-coreliquid-a13-360-reviewRead 15 October 2026Spec table: Onboard display None, RGB lighting only. The block has a plastic RGB cover.
Screen size
Not available
Screen resolution
Not available
Software
MSI Center1Maker product pagede-store.msi.com/products/mag-coreliquid-a13-360Read 15 October 2026The text says the ARGB GEN2 lighting is controlled through MSI CENTER, which also gives Silent, Game Mode and Balanced cooling profiles through an MSI motherboard.4Reviewclub386.com/msi-mag-coreliquid-a13-360-reviewRead 15 October 2026ARGB is controlled through MSI Center and also works with other brands' 5 V ARGB headers.
Needs a USB header
No3Reviewtomshardware.com/pc-components/liquid-cooling/msi-mag-coreliquid-a13-aio-liquid-cooler-reviewRead 15 October 2026Installation step 4: connect the ARGB and PWM connections to the motherboard. No USB connection is mentioned.6Reviewpokde.net/review/msi-mag-coreliquid-a13-360-reviewRead 15 October 2026The cables are PWM, ARGB and the pump lead. No USB cable is listed.

Measured

Cybenetics THETA, AMD AM5
Not available
Cybenetics THETA, Intel LGA1851
Not available
Overall performance at 30 dB(A), AM5 (measured)
Not available
Overall performance at 30 dB(A), LGA1851 (measured)
Not available
Noise at 100% fan setting (Cybenetics)
Not available
Thermal tests (measured)
Test CPULoadCPU power (W)Fan settingNoise (dB(A))CPU temperature (°C)
Intel Core i7-14700KCinebench, no power limit, throttling at TJ Max, average package power the cooler held259Not availableNot availableNot available
Intel Core i7-14700KCinebench, no power limit, noise normalized, average package power the cooler held24938.9 dB(A)38.9Not available
Intel Core i7-14700KCinebench, 120 W CPU power limit, noise only120Not available38.2Not available
Intel Core Ultra 9 285KCinebench, no power limitNot availableNot availableNot available95
Intel Core Ultra 9 285K135 W CPU power limit with a 290 W GPU load135Not available40.9Not available
Intel Core i9-13900KCinebench multi-core, 253 W253600 rpmNot available93.6
Intel Core i9-13900KCinebench multi-core, 253 W2531200 rpm34.380.2
Intel Core i9-13900KCinebench multi-core, 253 W2532000 rpm (maximum)50.476.8
Intel Core i9-13900KCinebench multi-core, 153 W153600 rpmNot available70.5
Intel Core i9-13900KCinebench multi-core, 153 W1531200 rpm34.359
Intel Core i9-13900KCinebench multi-core, 153 W1532000 rpm (maximum)50.455.8
Source3Reviewtomshardware.com/pc-components/liquid-cooling/msi-mag-coreliquid-a13-aio-liquid-cooler-reviewRead 15 October 2026Albert Thomas, review of 2025-01-03. Two systems. Intel Core i7-14700K on an MSI Z790 Project Zero in an MSI Pano 100L PZ Black case with Iceberg Thermal IceGale Silent system fans. Intel Core Ultra 9 285K on an MSI Z890 Carbon WiFi in an MSI MPG Gungnir 300R with its pre-installed case fans. A Thermalright LGA1700 contact frame is fitted on the 14700K system, the included thermal paste is used and ambient is not stated on this page. Noise is read with a sound meter, distance not stated. Rows: 14700K without a power limit throttles at TJ Max, so the reviewer records the package power the cooler held (259 W, the spec table says over 259 W). 14700K noise normalized to 38.9 dBA, 249 W. 14700K with a 120 W load, 38.2 dBA for both A13 sizes. Core Ultra 9 285K Cinebench with no power limit, average CPU temperature 95 C, CPU power not stated. 285K with 135 W CPU and 290 W GPU, 40.9 dBA for the 360 mm. The reviewer's 253 W, 165 W + 275 W and 85 W + 290 W results are in chart images or give one temperature for two cooler sizes, so they are not stored.4Reviewclub386.com/msi-mag-coreliquid-a13-360-reviewRead 15 October 2026Damien Mason, review of 2025-07-08. Intel Core i9-13900K on the Club386 test bench, Cinebench multi-core held as a sustained load, fans locked to 600 rpm, 1,200 rpm and the maximum of 2,000 rpm. The table gives temperatures at 253 W and at 153 W, in degrees Celsius. The review gives no ambient temperature, case or paste. Noise at 600 rpm is printed as <30.2 dBA, a reading limit, so it is not stored. Noise at 1,200 rpm is 34.3 dBA and at the maximum 50.4 dBA, with the meter distance not stated. The noise belongs to the fan speed, so it is repeated in the 253 W and 153 W rows.

Dimensions and weight

We could not find any of these 4 fields. Show them
Dimensions
Not available
Heatsink dimensions
Not available
Weight
Not available
Heatsink weight
Not available

In the box

In the box
Radiator with pump block and 3 pre-installed 120 mm fans, Intel bracket (2-part, pre-installed), Intel backplate, AMD bracket (2-part), Thermal paste x 1, Screws x 121Maker product pagede-store.msi.com/products/mag-coreliquid-a13-360Read 15 October 2026Accessories: Thermal paste x 1 and Screws x 12. The bracket and backplate items come from the Pokde review, which lists the contents.6Reviewpokde.net/review/msi-mag-coreliquid-a13-360-reviewRead 15 October 2026Included accessories: 12x case screws, 1x Intel bracket (2-part, pre-installed), 1x Intel backplate, 1x AMD bracket (2-part), 1x MSI thermal paste.

Warranty

Manufacturer warranty (source market)
3years3Reviewtomshardware.com/pc-components/liquid-cooling/msi-mag-coreliquid-a13-aio-liquid-cooler-reviewRead 15 October 2026Spec table: Warranty 3 Years.7Retailer pageamazon.com/MSI-MAG-Coreliquid-A13-360/dp/B0DM4BRSV5Read 15 October 2026Warranty Description: 3 Year Manufacturer. The market is the US.

Compare with

Pick a CPU cooler to see both side by side. Differences are marked yellow.

More CPU cooler comparisons

Variants

Each variant lists only what differs from the specs above.

Model numberGTINLaunch price (US)Colours
306-7ZWDA11-L80824142387771$99.99Black
306-7ZWDA21-L80Not availableNot availableWhite

Sources

We read 7 sources for this CPU cooler. The numbers match the markers in the sheet.

  1. Read 15 October 2026Backs 19 fields
  2. Read 15 October 2026Backs 2 fields
  3. Read 15 October 2026Backs 6 fields
  4. Read 15 October 2026Backs 4 fields
  5. Read 15 October 2026Backs 2 fields
  6. Read 15 October 2026Backs 7 fields
  7. Read 15 October 2026Backs 3 fields

See a wrong value? Tell us and name the field.
