PC parts / CPU coolers

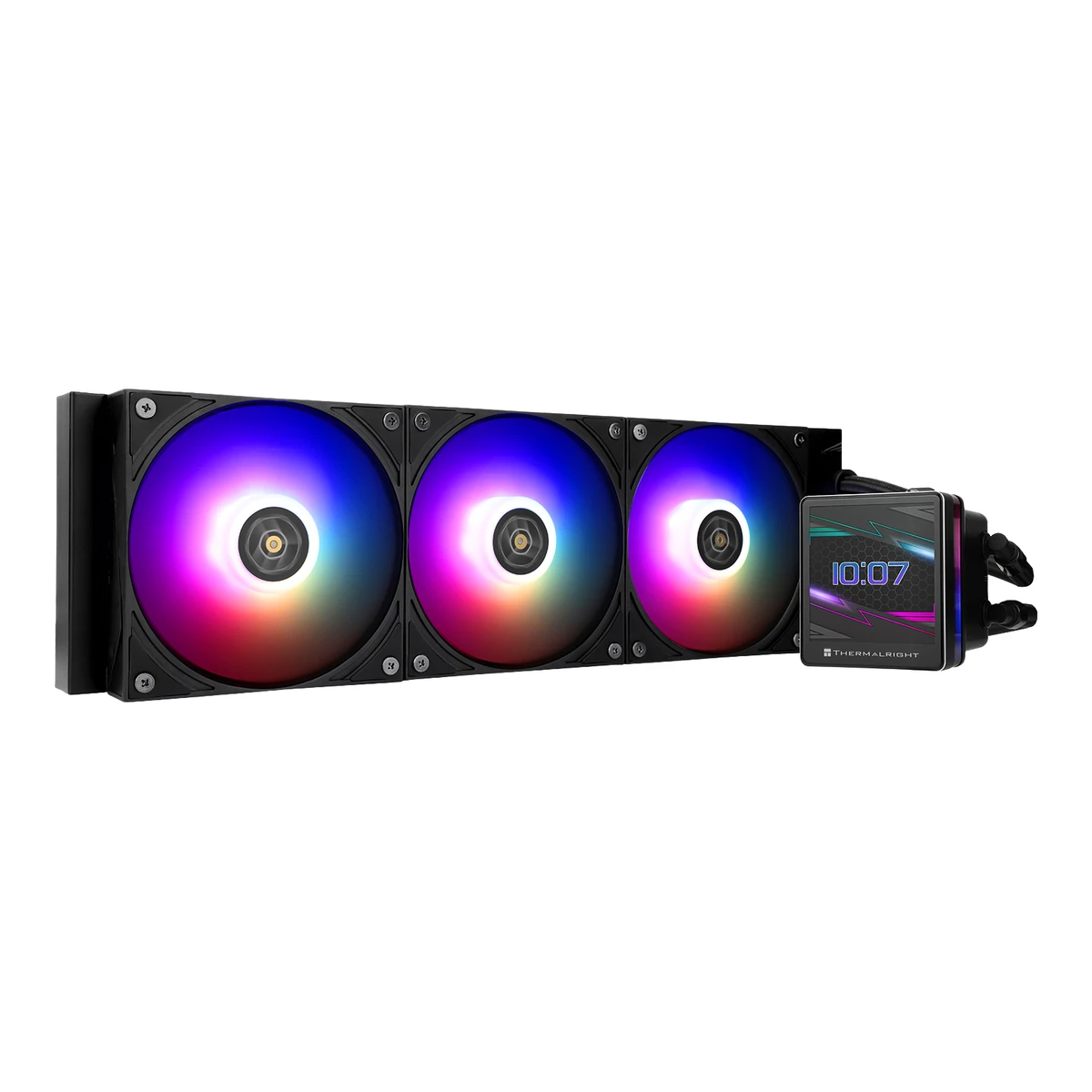

Thermalright Grand Vision 360 ARGB

ThermalrightCPU cooler

Grand Vision 360 ARGB

Released October 2024.1Maker product pagethermalright.com/product/grand-vision-360-black-argbRead 15 October 2026The page record in the WordPress REST API is dated 2024-10-13. The white page is dated 2024-10-18. Thermalright issued no press release that could be read. Tom's Hardware published the first review on 2025-01-17 and LDLC France first listed the black model on 2025-01-13, so the month may be up to three months early. Last checked 15 October 2026.

Cooler type
AIO liquid
Fans
3
Rated TDP
Not available
CPU sockets
AM5, AM4, LGA1851, LGA1700, LGA1200, LGA1150, LGA1151, LGA1155, LGA1156, LGA2011, LGA2066

30 of 54 fields known.

Compare with another CPU coolerDownload JSONDownload CSVGet it from the API

All specs

SourceCalculated

General

Series
Grand Vision1Maker product pagethermalright.com/product/grand-vision-360-black-argbRead 15 October 2026Listed under the Grand Vision tag in Hydro Cooling.
Model numbers
GRANVISAR36-BK8Retailer pageldlc.com/en/product/PB00661511.htmlRead 15 October 2026Model GRANVISAR36-BK for the black model. Topachat prints the same manufacturer reference. The white model number was not found.
GTIN / EAN
Not available
Announced
Not available
Status
Available7Reviewtomshardware.com/best-picks/best-aio-coolersRead 15 October 2026Tom's Hardware best AIO coolers 2026, updated 2026-10-05: ranked as best 360 mm alternative at about $130 with a price of $127.69 on the access date. The Thermalright product page is live and was modified on 2026-09-07.
Predecessor
Not available
Successor
Not available
Launch price (US)
$1295Reviewtomshardware.com/pc-components/liquid-cooling/thermalright-grand-vision-360-reviewRead 15 October 2026Tom's Hardware, review of 2025-01-17: MSRP $129 (U.S.) in the specification table, for the black model as reviewed. The review gives no tax note.
Launch price (EU)
Not available
Markets
Not available
Colours
Black, White1Maker product pagethermalright.com/product/grand-vision-360-black-argbRead 15 October 2026Black on this page. White on the Grand Vision 360 ARGB WHITE page.2Maker product pagethermalright.com/product/grand-vision-360-white-argbRead 15 October 2026The white edition has its own page, Grand Vision 360 ARGB WHITE.9Retailer pagecomputerlounge.co.nz/products/thermalright-grand-vision-360-argb-white-360mm-lcd-aio-cpu-liquid-coolerRead 15 October 2026White edition sold with the same pump, 403 mm radiator and a TL-H12W-X28-S fan.
Cooler type
AIO liquid1Maker product pagethermalright.com/product/grand-vision-360-black-argbRead 15 October 2026Listed as Hydro Cooling with a water block, a radiator and fans.
Air cooler layout
Not available
Rated TDP (claimed)
Not available
Base material
Copper5Reviewtomshardware.com/pc-components/liquid-cooling/thermalright-grand-vision-360-reviewRead 15 October 2026Specification table: Base, Copper cold plate. No plating is stated.
Thermal paste
Included3Owner's manualdownload.thermalright.com/manuals/GRANDVISION360ARGBBLACK.pdfRead 15 October 2026Component list item E: Thermal Compound X1, drawn as a syringe. It is a separate tube. Tom's Hardware names it TF7 paste.5Reviewtomshardware.com/pc-components/liquid-cooling/thermalright-grand-vision-360-reviewRead 15 October 2026Review: included with the AIO is a small tube of Thermalright TF7 thermal paste.

Compatibility

CPU sockets
AM5, AM4, LGA1851, LGA1700, LGA1200, LGA1150, LGA1151, LGA1155, LGA1156, LGA2011, LGA20661Maker product pagethermalright.com/product/grand-vision-360-black-argbRead 15 October 2026Page header: Intel LGA115X/1200/1700/1851/2011/2066 and AMD AM4/AM5. LGA115X is written as LGA1150, LGA1151, LGA1155 and LGA1156. The page says 2011 with no suffix, so it is stored as LGA2011. The manual includes the LGA20XX screws in the box. Tom's Hardware lists only 1851, 1700, 1200, 115x, AM5 and AM4.3Owner's manualdownload.thermalright.com/manuals/GRANDVISION360ARGBBLACK.pdfRead 15 October 2026Installation pages show AMD AM4/AM5, Intel LGA1700/1851, LGA115X/1200 and LGA20XX with the 2011 mounting hole.5Reviewtomshardware.com/pc-components/liquid-cooling/thermalright-grand-vision-360-reviewRead 15 October 2026Specification table: Intel LGA 1851/1700/1200/115x and AMD AM5/AM4. It does not name 2011 or 2066.8Retailer pageldlc.com/en/product/PB00661511.htmlRead 15 October 2026Processor support lists AMD AM4/AM5 and Intel 1150, 1151, 1155, 1156, 1200, 1700, 1851, 2011, 2011-v3 and 2066. Only the sockets Thermalright names are stored, so 2011-v3 is not.
RAM height clearance
Not available
Offset mounting
Not available

Heatsink

We could not find any of these 3 fields. Show them
Heat pipes
Not available
Heat pipe diameter
Not available
Direct-contact heat pipes
Not available

Liquid cooling

Radiator size
360mm3Owner's manualdownload.thermalright.com/manuals/GRANDVISION360ARGBBLACK.pdfRead 15 October 2026The component list gives Fan 360X3, so the 360 mm size class has three fans. The size also comes from the product name and the 403 mm radiator.
Radiator dimensions
Length403Width120Thickness27mm(15.9 × 4.7 × 1.1 in)1Maker product pagethermalright.com/product/grand-vision-360-black-argbRead 15 October 2026Radiator Dimensions: L403 mm x W120 mm x H27 mm. The blueprint on the page prints 403.00 +/-2.00, 120.00 +/-1.00 and 27.00 +/-1.00. Some retailers print 55 mm, which is the thickness with fans.
Radiator material
Aluminium1Maker product pagethermalright.com/product/grand-vision-360-black-argbRead 15 October 2026Radiator: Aluminum.
Tube length
400mm1Maker product pagethermalright.com/product/grand-vision-360-black-argbRead 15 October 2026The blueprint drawing on the page prints 400.00 +/-10 for the tube side view. LDLC France lists a hose length of 400 mm. The page does not label the figure as the tube length.8Retailer pageldlc.com/en/product/PB00661511.htmlRead 15 October 2026Key features: hose length 400 mm.
Max pump speed
6,400rpm1Maker product pagethermalright.com/product/grand-vision-360-black-argbRead 15 October 2026Pump Rated Speed: 6400 RPM +/-10% (MAX).
Pump power connector
4-pin PWM fan header1Maker product pagethermalright.com/product/grand-vision-360-black-argbRead 15 October 2026Connector: 4 PIN PWM, in the pump specification next to the 3 PIN 5V ARGB connector.
VRM fan
No3Owner's manualdownload.thermalright.com/manuals/GRANDVISION360ARGBBLACK.pdfRead 15 October 2026The component list has the fans, brackets, standoffs, screws, one USB cable and one fan ARGB splitter cable. It has no pump block fan, and the pump block drawings show none.

Fans

Included fans
ModelSize (mm)FansMax speed (rpm)Airflow (CFM)Static pressure (mmH₂O)Noise (claimed) (dB(A))BearingConnector
TL-H12-X28-S12032,15080.452.6529.4Fluid dynamic (FDB)4-pin PWM
Source1Maker product pagethermalright.com/product/grand-vision-360-black-argbRead 15 October 2026TL-H12-X28-S SPECIFICATION: 120 x 120 x 28 mm, rated speed 2150 RPM +/-10% (MAX), noise 29.4 dBA (MAX), air flow 80.45 CFM (MAX), air pressure 2.65 mm H2O (MAX), 4 PIN PWM connector, S-FDB V2 bearing. S-FDB is stored as fluid dynamic. The page does not state the fan count. The count of 3 comes from the manual. No minimum speed is published.3Owner's manualdownload.thermalright.com/manuals/GRANDVISION360ARGBBLACK.pdfRead 15 October 2026Component list: Fan 240X2, 280X2, 360X3, 420X3. The 360 has three fans.5Reviewtomshardware.com/pc-components/liquid-cooling/thermalright-grand-vision-360-reviewRead 15 October 2026Review fan table: TL-H12-X28-S, 120 x 120 x 28 mm, up to 2150 RPM, up to 80.45 CFM, up to 2.65 mmH2O, S-FDB V2. Three fans.8Retailer pageldlc.com/en/product/PB00661511.htmlRead 15 October 2026Three TL-H12-X28-S fans listed with 2150 RPM, 80.45 CFM, 2.65 mm H2O and 29.4 dB.
Fans
3

Display and lighting

RGB lighting
Yes1Maker product pagethermalright.com/product/grand-vision-360-black-argbRead 15 October 2026The fan specification lists an ARGB Connector of 3 PIN 5V, and the product name says ARGB. Tom's Hardware lists ARGB on the fans and a diffused lighting strip on the CPU block.5Reviewtomshardware.com/pc-components/liquid-cooling/thermalright-grand-vision-360-reviewRead 15 October 2026Specification table: Lighting ARGB on fans, diffused lighting strip on CPU block.
Lighting standard
ARGB 5 V1Maker product pagethermalright.com/product/grand-vision-360-black-argbRead 15 October 2026ARGB Connector: 3 PIN 5V, for the pump block and the fans.
Built-in screen
LCD3Owner's manualdownload.thermalright.com/manuals/GRANDVISION360ARGBBLACK.pdfRead 15 October 2026The cover says Customizable LCD Screen, High Performance Fan and Pump, Addressable RGB Lighting. A Grand Vision Display User Guide follows, with a rotatable waterblock panel and an LCD screen wiring page.5Reviewtomshardware.com/pc-components/liquid-cooling/thermalright-grand-vision-360-reviewRead 15 October 2026
Screen size
3.4in(8.6 cm)5Reviewtomshardware.com/pc-components/liquid-cooling/thermalright-grand-vision-360-reviewRead 15 October 2026Review: a 3.4-inch, 480x480-resolution screen. Computer Lounge, 01comp and a Japanese retailer also say 3.4 inch. LDLC France prints 3.95 inch, which cannot fit a square panel inside a 70.5 mm wide water block, so 3.4 is stored. The maker states no size.9Retailer pagecomputerlounge.co.nz/products/thermalright-grand-vision-360-argb-white-360mm-lcd-aio-cpu-liquid-coolerRead 15 October 2026Page text: 3.4 Inch LCD Screen, IPS square screen.
Screen resolution
480 × 480px5Reviewtomshardware.com/pc-components/liquid-cooling/thermalright-grand-vision-360-reviewRead 15 October 2026Review: 480x480. LDLC France and Computer Lounge print the same.9Retailer pagecomputerlounge.co.nz/products/thermalright-grand-vision-360-argb-white-360mm-lcd-aio-cpu-liquid-coolerRead 15 October 2026Page text: IPS LCD display with 480x480 resolution.
Software
TRCC4Maker product pagethermalright.com/support/downloadRead 15 October 2026TRCC Control Software, applicable to new V2 series and liquid coolers with digital displays, version V2.1.8 on the access date, with Grand Vision in its list of compatible models. Windows only. Tom's Hardware says the cooler runs without it and the software is needed to customize the display.5Reviewtomshardware.com/pc-components/liquid-cooling/thermalright-grand-vision-360-reviewRead 15 October 2026
Needs a USB header
Yes3Owner's manualdownload.thermalright.com/manuals/GRANDVISION360ARGBBLACK.pdfRead 15 October 2026Display guide step 1 and the LCD wiring page: connect the 9 pin USB cable to the 9 pin USB socket on the motherboard, and the screen power cable to a SATA socket on the power supply. The USB cable is in the box.5Reviewtomshardware.com/pc-components/liquid-cooling/thermalright-grand-vision-360-reviewRead 15 October 2026Installation step 5: to use the display, connect the USB cable to the CPU block on one end and to a USB and SATA power header on the other ends.

Measured

Cybenetics THETA, AMD AM5
Not available
Cybenetics THETA, Intel LGA1851
Not available
Overall performance at 30 dB(A), AM5 (measured)
Not available
Overall performance at 30 dB(A), LGA1851 (measured)
Not available
Noise at 100% fan setting (Cybenetics)
Not available
Thermal tests (measured)
Test CPULoadCPU power (W)Fan settingNoise (dB(A))CPU temperature (°C)
Intel Core i7-14700KPower limits removedNot availablemaximum48.988
Intel Core i7-14700KPower limits removed, average watts cooled with noise normalized25838.9 dB(A)38.9Not available
Intel Core i7-14700KHeavy gaming workload, 165 W CPU plus 275 W GPU, CPU temperature after 10 minutes165default motherboard fan curve42.967
Intel Core Ultra 9 285KCinebench R23 multi-core, power limits removedNot availableNot availableNot available89
Intel Core Ultra 9 285KCinebench R23 multi-core, 253 W power limit253Not availableNot available76
Intel Core Ultra 9 285K135 W CPU plus 290 W GPU135default motherboard fan curve40.359
Intel Core Ultra 9 285K85 W CPU plus 290 W GPU85default motherboard fan curve39.350
Source6Reviewtomshardware.com/pc-components/liquid-cooling/thermalright-grand-vision-360-review/2Read 15 October 2026Tom's Hardware, Albert Thomas, review of 2025-01-17, values read from the bar charts. Ambient 23 C. Intel LGA1700 rig: Core i7-14700K on an MSI Z790 Project Zero in an MSI Pano 100L PZ case, noise from 81.5 cm. Intel LGA1851 rig: Core Ultra 9 285K on an MSI Z890 Carbon WiFi in an MSI Gungnir 300R case, noise from about 1 m. Noise is the system noise level in the case with the GPU load, not the cooler alone. Thermalright's LGA1700 contact frame was installed on the 14700K rig. Paste is not stated. Row 1: power limits removed, 88 C average, with 48.9 dBA from the maximum noise chart, which the text ties to the fans at full speed. Row 2: average 258 W cooled with noise normalized to 38.9 dBA, no temperature published. Row 3: Radeon RX 7900 GRE at 275 W, temperature after 10 minutes. Row 4: Cinebench R23 multi-core without power limits, 89 C average, power and noise not published. Row 5: Cinebench R23 at the 253 W limit, no noise chart. Rows 6 and 7: Core Ultra 9 285K at 135 W and 85 W with an RTX 4070 Ti Super at 290 W and the default fan curve of the motherboard.

Dimensions and weight

We could not find any of these 4 fields. Show them
Dimensions
Not available
Heatsink dimensions
Not available
Weight
Not available
Heatsink weight
Not available

In the box

In the box
Fan x3, INTEL Bracket x2, INTEL 115X/1700 Backplate x1, AMD Bracket x2, Thermal Compound x1, 115X Plastic Stands x4, 1700 Plastic Stands x4, LGA20XX Screw x4, INTEL nuts x4, Fan screw x12, Radiator screw x12, USB Cable x1, Fan ARGB Splitter Cable x1, AM4 Screw x4, AM4 Plastic Stands x43Owner's manualdownload.thermalright.com/manuals/GRANDVISION360ARGBBLACK.pdfRead 15 October 2026Component list items A to O for the 360: fan x3, Intel bracket x2, Intel 115X/1700 backplate x1, AMD bracket x2, thermal compound x1, 115X and 1700 plastic stands x4 each, LGA20XX screw x4, Intel nuts x4, fan screw x12, radiator screw x12, USB cable x1, fan ARGB splitter cable x1 for the 360, AM4 screw x4 and AM4 plastic stands x4. The labels are small and were read from an image. The page is the series guide, so the 240, 280 and 420 counts differ.5Reviewtomshardware.com/pc-components/liquid-cooling/thermalright-grand-vision-360-reviewRead 15 October 2026Review contents: three 120 mm fans, 360 mm radiator and CPU block, thermal paste, LCD screen and mounting accessories. The manual gives the item list.

Warranty

Manufacturer warranty (source market)
5years1Maker product pagethermalright.com/product/grand-vision-360-black-argbRead 15 October 2026Specification table: Warranty 5 Years, with no market named. Computer Orbit UK and Topachat also list 5 years. Tom's Hardware prints 3 years from the packaging. LDLC France prints a 2 year seller warranty and Computer Lounge New Zealand 1 year, so the maker's 5 years is stored.

Compare with

Pick a CPU cooler to see both side by side. Differences are marked yellow.

More CPU cooler comparisons

Variants

Each variant lists only what differs from the specs above.

Model numberColours
GRANVISAR36-BKBlack
Not availableWhite

Sources

We read 9 sources for this CPU cooler. The numbers match the markers in the sheet.

  1. Read 15 October 2026Backs 16 fields
  2. Read 15 October 2026Backs 2 fields
  3. Read 15 October 2026Backs 9 fields
  4. Read 15 October 2026Backs 1 field
  5. Read 15 October 2026Backs 12 fields
  6. Read 15 October 2026Backs 1 field
  7. Read 15 October 2026Backs 1 field
  8. Read 15 October 2026Backs 4 fields
  9. Read 15 October 2026Backs 4 fields

See a wrong value? Tell us and name the field.
