PC parts / CPU coolers

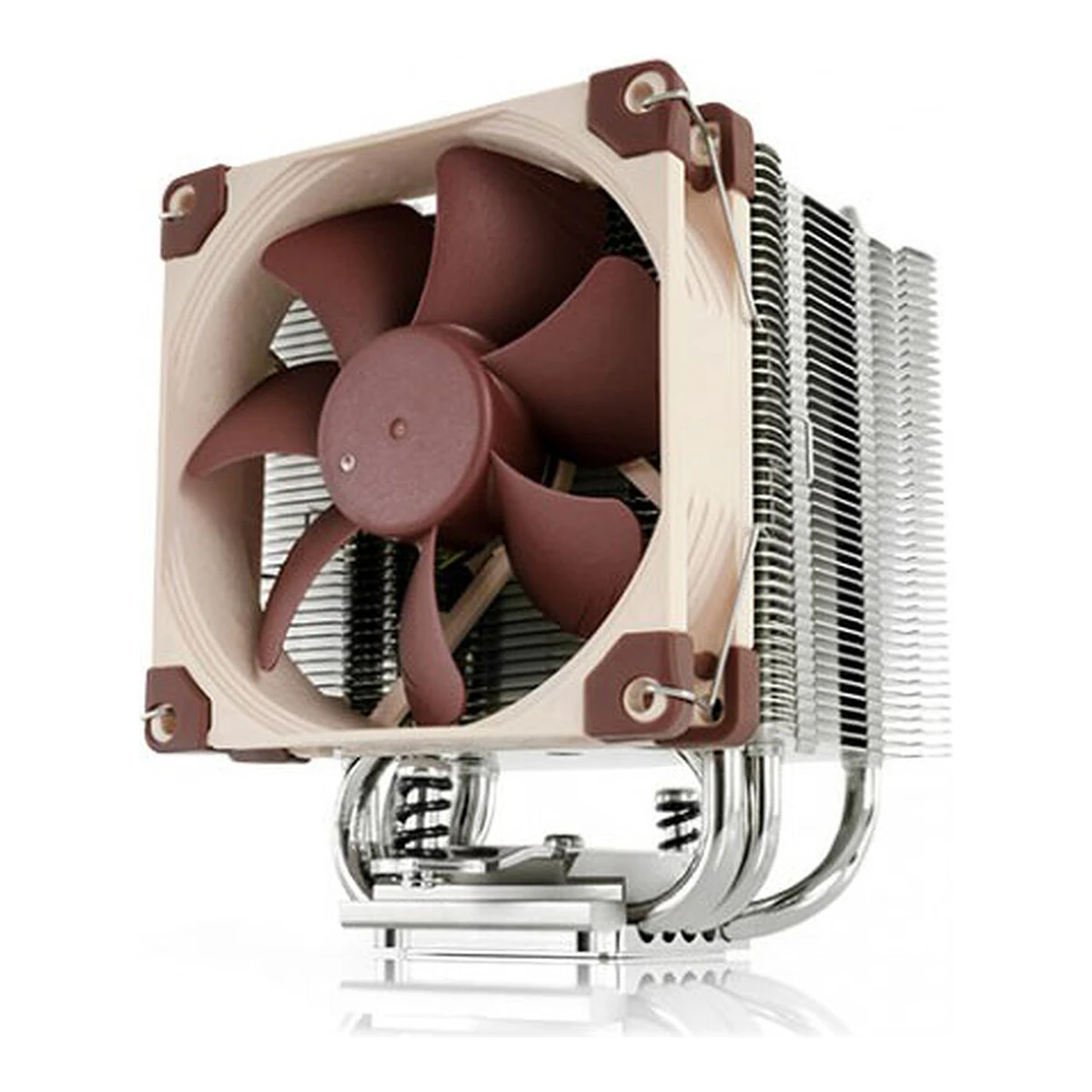

Noctua NH-U9S

NoctuaCPU cooler

NH-U9S

Released November 2014.8Press articlepcper.com/2014/11/noctua-announces-three-new-92mm-cpu-coolers-with-pwm-fansRead 15 October 2026Posted 12 Nov 2014 with Noctua's launch press release: the NH-U9S, NH-D9L and NH-D9DX i4 3U are shipping now and will be available shortly. Retailer listings (LDLC from 19 Jan 2015) follow. Last checked 16 October 2026.

Cooler type
Air
Fans
1
Rated TDP
Not available
CPU sockets
AM5, AM4, LGA1954, LGA1851, LGA1700, LGA1200, LGA1156, LGA1155, LGA1151, LGA1150

29 of 54 fields known.

Compare with another CPU coolerDownload JSONDownload CSVGet it from the API

All specs

SourceCalculated

General

Series
NH-U91Retailer pagecomputerlounge.co.nz/products/noctua-nh-u9s-cpu-cooler-w-nf-a9-pwmRead 15 October 2026The text says the NH-U9S stems from Noctua's NH-U9 series.
Model numbers
NH-U9S, NH-U9S chromax.black2Retailer pagequietpc.com/nh-u9sRead 15 October 2026Noctua gives no separate model codes. The model names are NH-U9S and NH-U9S chromax.black.
GTIN / EAN
4716123315575, 90100180002522Retailer pagequietpc.com/nh-u9sRead 15 October 2026EAN barcode 4716123315575 for the NH-U9S. The chromax.black EAN is on its own page.3Retailer pagequietpc.com/nh-u9s-ch-bkRead 15 October 2026EAN barcode 9010018000252 for the NH-U9S chromax.black. Assmann's product PDF carries the same EAN.4Maker spec sheet (PDF)cdn.inet.se/pdf/6308879_0.pdfRead 15 October 2026Noctua datasheet copy hosted by inet.se: EAN-No. 4716123315575 and UPC 842431012463.6Retailer pageassmann.com/product-pdf/aat/4716123315575Read 15 October 2026EAN 4716123315575.7Retailer pageassmann.com/product-pdf/aat/9010018000252Read 15 October 2026EAN 9010018000252.
Announced
12 November 20148Press articlepcper.com/2014/11/noctua-announces-three-new-92mm-cpu-coolers-with-pwm-fansRead 15 October 2026Noctua announced the NH-U9S on 12 November 2014 (Vienna press release).
Status
Available15Retailer pageldlc.com/en/product/PB00181734.htmlRead 15 October 2026Listed as in stock on the access date. LDLC first referenced the product on 19 Jan 2015.
Predecessor
Not available
Successor
Not available
Launch price (US)
$59.98Press articlepcper.com/2014/11/noctua-announces-three-new-92mm-cpu-coolers-with-pwm-fansRead 15 October 2026Noctua's suggested retail price for the NH-U9S is USD 59.90. Tax treatment is not stated.9Reviewguru3d.com/review/noctua-nh-d9l-and-nh-u9s-cpu-cooler-review/page-11Read 15 October 2026The same pricing section: USD 59.90.
Launch price (EU)
€54.94Maker spec sheet (PDF)cdn.inet.se/pdf/6308879_0.pdfRead 15 October 2026MSPR 54.90 EUR on the datasheet. Tax treatment is not stated.9Reviewguru3d.com/review/noctua-nh-d9l-and-nh-u9s-cpu-cooler-review/page-11Read 15 October 2026Pricing section: manufacturer suggested retail price NH-U9S EUR 54.90 / USD 59.90. HEXUS prints the same figures from the press release. Whether VAT is included is not stated.
Markets
Not available
Colours
Brown, Black3Retailer pagequietpc.com/nh-u9s-ch-bkRead 15 October 2026The text calls it an all-black version with a black coated heatsink, black fan, black fan clips and black mounting parts.
Cooler type
Air1Retailer pagecomputerlounge.co.nz/products/noctua-nh-u9s-cpu-cooler-w-nf-a9-pwmRead 15 October 2026Air cooler: a heatsink with one NF-A9 fan.
Air cooler layout
Single tower13Reviewenostech.com/noctua-nh-u9s-chromax-black-cooler-reviewRead 15 October 2026Review of the chromax.black: a single-tower compact cooler with 92 mm sizing.
Rated TDP (claimed)
Not available
Base material
Nickel-plated copper1Retailer pagecomputerlounge.co.nz/products/noctua-nh-u9s-cpu-cooler-w-nf-a9-pwmRead 15 October 2026Material: copper (base and heat-pipes), aluminium (cooling fins), soldered joints and nickel plating. Guru3D and Relaxedtech state the base is nickel-plated copper.10Reviewguru3d.com/review/noctua-nh-d9l-and-nh-u9s-cpu-cooler-review/page-4Read 15 October 2026Review text: an all copper nickel plated base tied to five heatpipes.12Reviewrelaxedtech.com/reviews/noctua/nh-u9s/1Read 15 October 2026The nickel plated copper base plate measures 40 x 38 mm and is 4.5 mm thick.
Thermal paste
Included1Retailer pagecomputerlounge.co.nz/products/noctua-nh-u9s-cpu-cooler-w-nf-a9-pwmRead 15 October 2026Scope of delivery: NT-H1 high-grade thermal compound, a tube in the box.

Compatibility

CPU sockets
AM5, AM4, LGA1954, LGA1851, LGA1700, LGA1200, LGA1156, LGA1155, LGA1151, LGA11501Retailer pagecomputerlounge.co.nz/products/noctua-nh-u9s-cpu-cooler-w-nf-a9-pwmRead 15 October 2026Copy of Noctua's spec table: Intel LGA1851, LGA1700, LGA1200, LGA1156, LGA1155, LGA1151, LGA1150 and AMD AM5, AM4, valid for coolers purchased since Q4 2021. Older tables and the datasheet copies (Assmann, inet.se) list LGA2011, AM3 and others with a backplate, which are not in the current table. LGA1954 comes from the Club386 source.2Retailer pagequietpc.com/nh-u9sRead 15 October 2026Spec table: Intel LGA1851, LGA1700, LGA1200, LGA1150, LGA1151, LGA1155, LGA1156 and AMD AM5, AM4.15Retailer pageldlc.com/en/product/PB00181734.htmlRead 15 October 2026Processor support lists AMD AM4 and AM5 and Intel 1150, 1151, 1155, 1156, 1200, 1700 and 1851.16Press articleclub386.comRead 15 October 2026Article of 2025-11-27 quoting Noctua's FAQ: all Noctua CPU coolers compatible with LGA1851 and LGA1700 are also compatible with Intel's LGA1954, and no additional mounting parts are needed. The NH-U9S is listed for LGA1851 and LGA1700, so LGA1954 is stored.
RAM height clearance
Not available
Offset mounting
Not available

Heatsink

Heat pipes
58Press articlepcper.com/2014/11/noctua-announces-three-new-92mm-cpu-coolers-with-pwm-fansRead 15 October 2026The NH-U9S has an asymmetrical design with 5 heatpipes.10Reviewguru3d.com/review/noctua-nh-d9l-and-nh-u9s-cpu-cooler-review/page-4Read 15 October 2026The base is tied to five heatpipes.12Reviewrelaxedtech.com/reviews/noctua/nh-u9s/1Read 15 October 2026Five heatpipes of 6 mm.
Heat pipe diameter
6mm12Reviewrelaxedtech.com/reviews/noctua/nh-u9s/1Read 15 October 2026Review of the NH-U9S: the NH-U9B SE2 had four 6mm heatpipes while the NH-U9S has five 6mm heatpipes.13Reviewenostech.com/noctua-nh-u9s-chromax-black-cooler-reviewRead 15 October 2026The chromax.black has 5x 6 mm copper heat pipes, the same heatsink as the brown model.
Direct-contact heat pipes
No10Reviewguru3d.com/review/noctua-nh-d9l-and-nh-u9s-cpu-cooler-review/page-4Read 15 October 2026The base is a plated copper plate tied to the heatpipes. No direct-touch pipes are described. Relaxedtech measures the base plate at 4.5 mm thick.12Reviewrelaxedtech.com/reviews/noctua/nh-u9s/1Read 15 October 2026The review describes a separate copper base plate with soldered joints, and no direct-touch pipes.

Liquid cooling

We could not find any of these 7 fields. Show them
Radiator size
Not available
Radiator dimensions
Not available
Radiator material
Not available
Tube length
Not available
Max pump speed
Not available
Pump power connector
Not available
VRM fan
Not available

Fans

Included fans
ModelSize (mm)FansMin speed (rpm)Max speed (rpm)Airflow (CFM)Static pressure (mmH₂O)Noise (claimed) (dB(A))BearingConnector
NF-A9 PWM9214002,00046.42.2822.8SSO or SSO24-pin PWM
Source1Retailer pagecomputerlounge.co.nz/products/noctua-nh-u9s-cpu-cooler-w-nf-a9-pwmRead 15 October 2026Fan specification: Noctua NF-A9 PWM, SSO2 bearing, max 2000 RPM (+/-10%), 1550 RPM with the L.N.A., min 400 RPM at 20% PWM (+/-20%), 78.9 m3/h, 22.8 dB(A) (16.3 dB(A) with the L.N.A.). The standalone NF-A9 PWM listing at QuietPC prints a 450 RPM minimum, and the cooler table's 400 RPM is stored. The page has no static pressure, see QuietPC and the datasheet. The max values are for one fan without the L.N.A.2Retailer pagequietpc.com/nh-u9sRead 15 October 2026Fan table: Noctua NF-A9 PWM, SSO2, 2000 RPM, 400 RPM min, 46.4 CFM (36.8 CFM with the L.N.A.), 22.8 dB(A), RGB No. The page has no static pressure.4Maker spec sheet (PDF)cdn.inet.se/pdf/6308879_0.pdfRead 15 October 2026Fan specifications: NF-A9 PWM, 4-pin PWM, SSO2 bearing, max static pressure 2.28 mmH2O (1.53 with the L.N.A.), 78.9 m3/h, 22.8 dB(A). This is an older copy of the datasheet. Its socket list and its 97 mm depth with fan differ from the current table.5Retailer pagequietpc.com/nf-a9-pwmRead 15 October 2026Standalone NF-A9 PWM table: static pressure 2.28 mm H2O (1.53 with the L.N.A.), the fan supplied with the NH-U9S. It also prints a 450 RPM minimum.
Fans
1

Display and lighting

RGB lighting
No2Retailer pagequietpc.com/nh-u9sRead 15 October 2026Fan table: RGB No.
Lighting standard
Not available
Built-in screen
None2Retailer pagequietpc.com/nh-u9sRead 15 October 2026The spec table lists no screen or lighting.
Screen size
Not available
Screen resolution
Not available
Software
Not available
Needs a USB header
No13Reviewenostech.com/noctua-nh-u9s-chromax-black-cooler-reviewRead 15 October 2026The NF-A9 PWM fan uses a 4-pin PWM connector. No USB cable or software is mentioned for the cooler.

Measured

Cybenetics THETA, AMD AM5
Not available
Cybenetics THETA, Intel LGA1851
Not available
Overall performance at 30 dB(A), AM5 (measured)
Not available
Overall performance at 30 dB(A), LGA1851 (measured)
Not available
Noise at 100% fan setting (Cybenetics)
Not available
Thermal tests (measured)
Test CPULoadFan settingCPU temperature (°C)
Intel Core i7-4790KwPrime 1000M, two full runs, CPU at default settings, peak package temperature1 fan, default66
Intel Core i7-4790KwPrime 1000M, three full runs, all cores at 4.6 GHz and 1.3 V, peak package temperature1 fan, default78
Source11Reviewguru3d.com/review/noctua-nh-d9l-and-nh-u9s-cpu-cooler-review/page-8Read 15 October 2026Guru3D review, values from the text and bar charts of pages 8 and 9. Core i7-4790K on a Z97 board, room temperature about 21 C. Load is wPrime 1000M and the value is the hottest package temperature after the last run. At default settings the NH-U9S reached 66 C and at 4600 MHz and 1.3 V it reached 78 C. The chart also shows 63 C and 75 C with an optional second fan, which is not stored. CPU power and the thermal paste are not stated. Guru3D measures noise at 75 cm and its load chart shows 35 dBA, but the page does not say which CPU state it covers, so no noise value is stored.

Dimensions and weight

Front and side, drawn to scale.

Dimensions
Width95Height125Depth95mm(3.7 × 4.9 × 3.7 in)1Retailer pagecomputerlounge.co.nz/products/noctua-nh-u9s-cpu-cooler-w-nf-a9-pwmRead 15 October 2026Spec table, with fan: height 125 mm, width 95 mm, depth 95 mm. The older Noctua datasheet copy at inet.se prints 97 mm depth with fan. Noctua's text says the NH-U9S does not overhang the RAM slots on current Intel and most AMD boards, so it has no RAM height limit and ram_clearance_mm is left out. A footnote says some AMD boards violate AMD's keep-out zone, so only RAM up to 30 mm fits on these boards.6Retailer pageassmann.com/product-pdf/aat/4716123315575Read 15 October 2026Height, width, depth with fan: 125, 95, 95 mm.10Reviewguru3d.com/review/noctua-nh-d9l-and-nh-u9s-cpu-cooler-review/page-4Read 15 October 2026The review says 125(H) x 95(W) x 95(D) mm with the fan included.
Heatsink dimensions
Width95Height125Depth68mm(3.7 × 4.9 × 2.7 in)1Retailer pagecomputerlounge.co.nz/products/noctua-nh-u9s-cpu-cooler-w-nf-a9-pwmRead 15 October 2026Spec table, without fan: height 125 mm, width 95 mm, depth 68 mm.2Retailer pagequietpc.com/nh-u9sRead 15 October 2026Spec table, without fan: 125 x 95 x 68 mm.
Weight
618g(1.4 lb)1Retailer pagecomputerlounge.co.nz/products/noctua-nh-u9s-cpu-cooler-w-nf-a9-pwmRead 15 October 2026Spec table: Weight (with fan) 618 g.6Retailer pageassmann.com/product-pdf/aat/4716123315575Read 15 October 2026Weight (with fan): 618 g, without fan 524 g.10Reviewguru3d.com/review/noctua-nh-d9l-and-nh-u9s-cpu-cooler-review/page-4Read 15 October 2026The review says 618 g including the fan.12Reviewrelaxedtech.com/reviews/noctua/nh-u9s/1Read 15 October 2026618 g with one fan installed.15Retailer pageldlc.com/en/product/PB00181734.htmlRead 15 October 2026Weight 618 g.
Heatsink weight
524g(1.2 lb)2Retailer pagequietpc.com/nh-u9sRead 15 October 2026Spec table: Weight (without fan) 524 g.4Maker spec sheet (PDF)cdn.inet.se/pdf/6308879_0.pdfRead 15 October 2026Weight / Weight with NF-A9 PWM: 524 g / 618 g.12Reviewrelaxedtech.com/reviews/noctua/nh-u9s/1Read 15 October 2026524 g without the fan and 618 g with one fan.

In the box

In the box
NH-U9S heatsink, NF-A9 PWM premium fan, NA-RC7 Low-Noise Adaptor (L.N.A.), NT-H1 high-grade thermal compound, SecuFirm2 Mounting Kit, Fan-clips for second NF-A9, Noctua Metal Case-Badge1Retailer pagecomputerlounge.co.nz/products/noctua-nh-u9s-cpu-cooler-w-nf-a9-pwmRead 15 October 2026Scope of delivery: NF-A9 PWM premium fan, NA-RC7 Low-Noise Adaptor (L.N.A.), NT-H1 high-grade thermal compound, SecuFirm2 Mounting Kit, Fan-clips for second NF-A9 and Noctua Metal Case-Badge. The heatsink itself is listed in the datasheet copy at inet.se.4Maker spec sheet (PDF)cdn.inet.se/pdf/6308879_0.pdfRead 15 October 2026Scope of delivery: NH-U9S heatsink, NF-A9 PWM premium fan, Low-Noise Adaptor (L.N.A.), NT-H1 high-grade thermal compound, SecuFirm2 Mounting Kit and an installation kit for a second NF-A9 fan (optional).6Retailer pageassmann.com/product-pdf/aat/4716123315575Read 15 October 2026Package contents of the NH-U9S: NF-A9 PWM premium fan, Low-Noise Adaptor (L.N.A.), NT-H1 high-grade thermal compound, SecuFirm2 Mounting Kit, Fan-clips for second NF-A9 and Noctua Metal Case-Badge.7Retailer pageassmann.com/product-pdf/aat/9010018000252Read 15 October 2026Package contents of the chromax.black: Black NH-U9S heatsink, NF-A9 PWM chromax.black premium fan, NA-RC7 Low-Noise Adaptor (L.N.A), NT-H1 high-grade thermal compound, Black SecuFirm2 mounting kit, Black fan-clips for second NF-A9 and Noctua Metal Case-Badge.

Warranty

Manufacturer warranty (source market)
6years1Retailer pagecomputerlounge.co.nz/products/noctua-nh-u9s-cpu-cooler-w-nf-a9-pwmRead 15 October 2026Specification table: Warranty 6 Years. QuietPC prints 72 months.

Compare with

Pick a CPU cooler to see both side by side. Differences are marked yellow.

More CPU cooler comparisons

Variants

Each variant lists only what differs from the specs above.

Model numberGTINLaunch price (US)Launch price (EU)ColoursIn the box
NH-U9S4716123315575$59.9€54.9BrownNH-U9S heatsink, NF-A9 PWM premium fan, NA-RC7 Low-Noise Adaptor (L.N.A.), NT-H1 high-grade thermal compound, SecuFirm2 Mounting Kit, Fan-clips for second NF-A9, Noctua Metal Case-Badge
NH-U9S chromax.black9010018000252$64.9€64.9BlackBlack NH-U9S heatsink, NF-A9 PWM chromax.black premium fan, NA-RC7 Low-Noise Adaptor (L.N.A), NT-H1 high-grade thermal compound, Black SecuFirm2 mounting kit, Black fan-clips for second NF-A9, Noctua Metal Case-Badge

Sources

We read 17 sources for this CPU cooler. The numbers match the markers in the sheet.

  1. Read 15 October 2026Backs 11 fields
  2. Retailer pagequietpc.com/nh-u9s
    Read 15 October 2026Backs 9 fields
  3. Read 15 October 2026Backs 3 fields
  4. Maker spec sheet (PDF)cdn.inet.se/pdf/6308879_0.pdf
    Read 15 October 2026Backs 5 fields
  5. Read 15 October 2026Backs 1 field
  6. Read 15 October 2026Backs 4 fields
  7. Read 15 October 2026Backs 3 fields
  8. Read 15 October 2026Backs 4 fields
  9. Read 15 October 2026Backs 2 fields
  10. Read 15 October 2026Backs 5 fields
  11. Read 15 October 2026Backs 1 field
  12. Read 15 October 2026Backs 6 fields
  13. Read 15 October 2026Backs 3 fields
  14. Read 15 October 2026Backs 1 field
  15. Read 15 October 2026Backs 3 fields
  16. Press articleclub386.com
    Read 15 October 2026Backs 1 field
  17. Maker product pagenoctua.at/en/nh-u9s
    Read 15 October 2026Backs 1 field

See a wrong value? Tell us and name the field.
