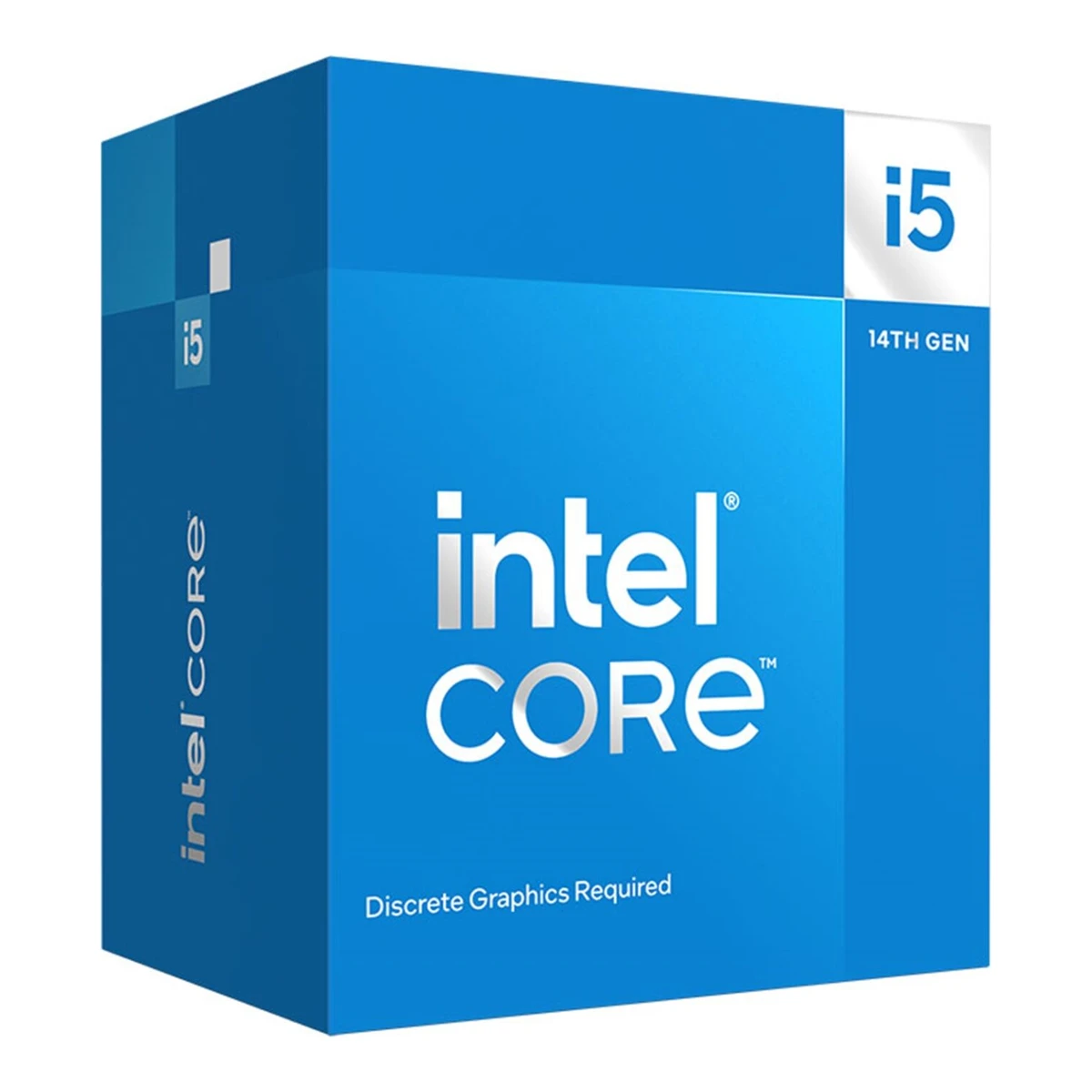

Intel Core i5-14400F

IntelDesktop CPU

Core i5-14400F

Released January 2024.6Press releaseintel.com/content/www/us/en/newsroom/news/ces-2024-client-processor-news.htmlRead 15 October 2026The release says the full 14th Gen desktop processor lineup is now available online and in stores. ARK lists Launch Date Q1'24. A launch-day shop listing for this exact code was not checked. Last checked 15 October 2026.

Cores
10
Max boost clock
4.7GHz
L3 cache
20MB
Socket or package
LGA1700

41 of 74 fields known.

Compare with another CPUDownload JSONDownload CSVGet it from the API

All specs

SourceCalculated

General

Series
Core 14th Gen1Maker product pageintel.com/content/www/us/en/products/sku/236777/intel-core-i5-processor-14400f-20m-cache-up-to-4-70-ghz/specifications.htmlRead 15 October 2026Product Collection row: Intel Core i5 processors (14th gen), stored as Core 14th Gen like the other 14th Gen desktop chips.
Model numbers
BX8071514400F, BXC8071514400F, CM8071505093011, CM80715048211132Maker product pageintel.com/content/www/us/en/products/sku/236777/intel-core-i5-processor-14400f-20m-cache-up-to-4-70-ghz/ordering.htmlRead 15 October 2026Ordering codes: BX8071514400F (box, spec codes SRN3R stepping C0 and SRN47 stepping B0), BXC8071514400F (China box, same two spec codes), CM8071505093011 (tray, SRN3R, C0) and CM8071504821113 (tray, SRN47, B0). All are package FC-LGA16A.
GTIN / EAN
73585854758110Spec databasebuildcores.com/products/CPU/byp602jm1/Intel-Core-i5-14400FRead 15 October 2026BuildCores lists UPC 735858547581 and EAN 0735858547581 with part number BX8071514400F. It also lists two EAN-13 codes starting 5032037279, which a Latvian shop pairs with the same part number. Those are not stored. Overclockers UK and Tsukumo use 0735858547581 for the same part.
Announced
8 January 20246Press releaseintel.com/content/www/us/en/newsroom/news/ces-2024-client-processor-news.htmlRead 15 October 2026Intel's CES 2024 release of 8 January 2024 introduces the 14th Gen desktop processors at 65 W and 35 W, 18 new processors.
Status
Available1Maker product pageintel.com/content/www/us/en/products/sku/236777/intel-core-i5-processor-14400f-20m-cache-up-to-4-70-ghz/specifications.htmlRead 15 October 2026Marketing Status: Launched. Launch Date: Q1'24. Product Collection: Intel Core i5 processors (14th gen). Vertical Segment: Desktop.
Predecessor
Not available
Successor
Not available
Launch price (US)
$1964Maker spec sheet (PDF)download.intel.com/newsroom/2024/client-computing/Media-Deck-Intel-Core-Processors-HXU-Mobile-65-35W-Desktop.pdfRead 15 October 2026Intel launch media deck, embargoed until 8 January 2024 at 3 PM PT, slide 26 (Intel Core 14th Gen Desktop Processors, F series): the i5-14400F row lists 10 cores (6+4), 16 threads, 20 MB Smart Cache, 9.5 MB L2, 65 W base power, 148 W max turbo power and an RCP of $196. RCP is Intel's recommended customer price in USD and is quoted before sales tax. Tom's Hardware lists $210 for the F model as a street or MSRP figure, which is not stored.
Launch price (EU)
Not available
Markets
Not available
Colours
Not available
Segment
Desktop1Maker product pageintel.com/content/www/us/en/products/sku/236777/intel-core-i5-processor-14400f-20m-cache-up-to-4-70-ghz/specifications.htmlRead 15 October 2026Vertical Segment row reads Desktop.
Instruction set
x86-641Maker product pageintel.com/content/www/us/en/products/sku/236777/intel-core-i5-processor-14400f-20m-cache-up-to-4-70-ghz/specifications.htmlRead 15 October 2026Instruction Set: 64-bit, with Intel 64. Intel's 64-bit processors are x86-64.
Codename
Raptor Lake1Maker product pageintel.com/content/www/us/en/products/sku/236777/intel-core-i5-processor-14400f-20m-cache-up-to-4-70-ghz/specifications.htmlRead 15 October 2026Code Name row reads Products formerly Raptor Lake. ARK lists two steppings for this processor, C0 and B0. Intel's launch material calls the family Raptor Lake Refresh.
CPU process (as published)
Intel 71Maker product pageintel.com/content/www/us/en/products/sku/236777/intel-core-i5-processor-14400f-20m-cache-up-to-4-70-ghz/specifications.htmlRead 15 October 2026Lithography row: Intel 7.
CPU process node
10nm1Maker product pageintel.com/content/www/us/en/products/sku/236777/intel-core-i5-processor-14400f-20m-cache-up-to-4-70-ghz/specifications.htmlRead 15 October 2026Intel 7 is stored as 10 nm by the field rule. Intel prints no nm figure.
AVX-512
No1Maker product pageintel.com/content/www/us/en/products/sku/236777/intel-core-i5-processor-14400f-20m-cache-up-to-4-70-ghz/specifications.htmlRead 15 October 2026Instruction Set Extensions lists Intel SSE4.1, SSE4.2 and AVX2 only.

Cores and clocks

Core configuration
Core typeCountBase clock (GHz)Max clock (GHz)
Performance62.54.7
Efficiency41.83.5
Source1Maker product pageintel.com/content/www/us/en/products/sku/236777/intel-core-i5-processor-14400f-20m-cache-up-to-4-70-ghz/specifications.htmlRead 15 October 2026# of Performance-cores 6 with base 2.5 GHz and Max Turbo 4.7 GHz. # of Efficient-cores 4 with base 1.8 GHz and Max Turbo 3.5 GHz. Total cores 10. ARK and the launch deck name no core architectures. The two steppings come from different dies, so no core name is stored.
Cores
10
Cores labelled performance
6
Cores labelled efficiency
4
Threads
161Maker product pageintel.com/content/www/us/en/products/sku/236777/intel-core-i5-processor-14400f-20m-cache-up-to-4-70-ghz/specifications.htmlRead 15 October 2026Total Threads 16. Intel Hyper-Threading Technology is Yes.
Max boost clock
4.7GHz1Maker product pageintel.com/content/www/us/en/products/sku/236777/intel-core-i5-processor-14400f-20m-cache-up-to-4-70-ghz/specifications.htmlRead 15 October 2026Max Turbo Frequency 4.7 GHz, the same as the Performance-core Max Turbo Frequency.
Unlocked for overclocking
No9Reviewtomshardware.com/pc-components/cpus/intel-core-i5-14400-cpu-reviewRead 15 October 2026Tom's Hardware review of the Core i5-14400, 18 April 2024. Its table covers the Core i5-14400 and 14400F as one row, and the text says Intel allows memory overclocking on its Core i5 models but you cannot overclock via the multiplier. Intel's processor numbers page describes the K suffix as unlocked and gives no unlocked status to other suffixes. The review does not repeat the statement for the F model alone.

Cache

L2 cache
9.5MB1Maker product pageintel.com/content/www/us/en/products/sku/236777/intel-core-i5-processor-14400f-20m-cache-up-to-4-70-ghz/specifications.htmlRead 15 October 2026Total L2 Cache 9.5 MB.
L3 cache
20MB1Maker product pageintel.com/content/www/us/en/products/sku/236777/intel-core-i5-processor-14400f-20m-cache-up-to-4-70-ghz/specifications.htmlRead 15 October 202620 MB Intel Smart Cache.
AMD 3D V-Cache
No1Maker product pageintel.com/content/www/us/en/products/sku/236777/intel-core-i5-processor-14400f-20m-cache-up-to-4-70-ghz/specifications.htmlRead 15 October 2026AMD technology. ARK lists only the 20 MB Smart Cache and no stacked cache.

Power and thermals

Base power (TDP)
65W1Maker product pageintel.com/content/www/us/en/products/sku/236777/intel-core-i5-processor-14400f-20m-cache-up-to-4-70-ghz/specifications.htmlRead 15 October 2026Processor Base Power 65 W.
Max turbo power
148W1Maker product pageintel.com/content/www/us/en/products/sku/236777/intel-core-i5-processor-14400f-20m-cache-up-to-4-70-ghz/specifications.htmlRead 15 October 2026Maximum Turbo Power 148 W.
Configurable power range
Not available
Max operating temperature
100°C1Maker product pageintel.com/content/www/us/en/products/sku/236777/intel-core-i5-processor-14400f-20m-cache-up-to-4-70-ghz/specifications.htmlRead 15 October 2026Max Operating Temperature 100 C. TJUNCTION 100 C.

Memory

Memory support
Memory typeMax speed (MT/s)
DDR54,800
DDR43,200
Source1Maker product pageintel.com/content/www/us/en/products/sku/236777/intel-core-i5-processor-14400f-20m-cache-up-to-4-70-ghz/specifications.htmlRead 15 October 2026Memory Types: Up to DDR5 4800 MT/s and up to DDR4 3200 MT/s. ARK names no module type, rank or configuration, so those keys are left out. The launch deck table gives the same speeds. Intel's product brief gives DDR5 5600 for the Core i5 column of the family, which applies to other Core i5 chips such as the 14600K and not to this one.
Max memory speed (official)
4,800MT/s
Memory channels
21Maker product pageintel.com/content/www/us/en/products/sku/236777/intel-core-i5-processor-14400f-20m-cache-up-to-4-70-ghz/specifications.htmlRead 15 October 2026Max # of Memory Channels: 2.
Memory bandwidth (claimed)
76.8GB/s1Maker product pageintel.com/content/www/us/en/products/sku/236777/intel-core-i5-processor-14400f-20m-cache-up-to-4-70-ghz/specifications.htmlRead 15 October 2026Max Memory Bandwidth 76.8 GB/s.
Max memory
192GB1Maker product pageintel.com/content/www/us/en/products/sku/236777/intel-core-i5-processor-14400f-20m-cache-up-to-4-70-ghz/specifications.htmlRead 15 October 2026Max Memory Size: 192 GB.
ECC memory support
Not available

Platform

Socket or package
LGA17001Maker product pageintel.com/content/www/us/en/products/sku/236777/intel-core-i5-processor-14400f-20m-cache-up-to-4-70-ghz/specifications.htmlRead 15 October 2026Sockets Supported: FCLGA1700. Stored without the FC prefix.
Compatible chipsets
Intel B760, Intel H770, Intel Z790, Intel W680, Intel Q670, Intel H610, Intel H670, Intel B660, Intel Z6903Maker product pageintel.com/content/www/us/en/products/sku/236777/intel-core-i5-processor-14400f-20m-cache-up-to-4-70-ghz/compatible.htmlRead 15 October 2026Compatible products tab lists the Intel 700 series chipsets B760, H770 and Z790 and the Intel 600 series chipsets W680, Q670, H610, H670, B660 and Z690.
CPU PCIe lanes
PCIe generationLanes
516
44
Source1Maker product pageintel.com/content/www/us/en/products/sku/236777/intel-core-i5-processor-14400f-20m-cache-up-to-4-70-ghz/specifications.htmlRead 15 October 2026PCI Express Revision 5.0 and 4.0, Max # of PCI Express Lanes 20, configurations up to 1x16+4 and 2x8+4. The Gen 5 and Gen 4 split comes from Intel's product brief.5Maker spec sheet (PDF)download.intel.com/newsroom/2024/client-computing/Product-Brief-Intel-Core-Desktop-Processor.pdfRead 15 October 2026SKU table: CPU PCIe 5.0 lanes up to 16 and CPU PCIe 4.0 lanes 4. Together they match the 20 lanes on ARK and in the launch deck.
CPU PCIe lanes in total
20
Highest PCIe generation
5
Native USB ports
Not available
Native USB4 or Thunderbolt
Not available

Integrated graphics

Integrated graphics
No1Maker product pageintel.com/content/www/us/en/products/sku/236777/intel-core-i5-processor-14400f-20m-cache-up-to-4-70-ghz/specifications.htmlRead 15 October 2026ARK has no processor graphics rows for the 14400F, and the launch deck lists Processor Graphics as n/a. Intel's F suffix means Requires discrete graphics. The box also reads Discrete Graphics Required.
Integrated GPU
Not available
GPU cores
Not available
Max GPU clock
Not available
Max displays
Not available
DisplayPort version
Not available
HDMI version
Not available
Hardware video encode
Not available
Hardware video decode
Not available

NPU

We could not find any of these 2 fields. Show them
NPU performance
Not available
Total AI performance
Not available

Measured performance

We could not find any of these 7 fields. Show them
Cinebench 2024 single-core
Not available
Cinebench 2024 multi-core
Not available
Cinebench 2026 single-thread
Not available
Cinebench 2026 multi-core
Not available
Geekbench 6 single-core
Not available
Geekbench 6 multi-core
Not available
Game frame rates
Not available

Measured power and temperature

We could not find any of these 5 fields. Show them
CPU power in multi-thread load (measured)
Not available
CPU power while gaming (measured)
Not available
CPU power at idle (measured)
Not available
CPU temperature in stress test
Not available
All-core clock in stress test
Not available

In the box

Cooler in the box
Yes7Maker product pageintel.com/content/www/us/en/support/articles/000089190/processors/intel-core-processors.htmlRead 15 October 2026Intel's Laminar RM1 article says the cooler is shipped with the box for the listed 12th, 13th and 14th Gen boxed processors. The 14th Gen list names i7-14700, i7-14700F, i5-14500, i5-14400, i5-14400F, i3-14100 and i3-14100F. Tray processors have no cooler.
Included cooler
Intel Laminar RM17Maker product pageintel.com/content/www/us/en/support/articles/000089190/processors/intel-core-processors.htmlRead 15 October 2026Cooler named Intel Laminar RM1.

Warranty

Manufacturer warranty (source market)
3years8Maker product pageintel.com/content/www/us/en/support/articles/000024255/processors.htmlRead 15 October 2026Intel's warranty policy: Intel generally offers a three-year limited warranty for boxed processors. The two-year extension table's Core i5 entries are K and KF models and do not name the i5-14400F, so 3 years is stored. Tray processors are covered through the seller. Global terms with consumer-law exceptions outside the US.

Compare with

Pick a CPU to see both side by side. Differences are marked yellow.

More CPU comparisons

Variants

Each variant lists only what differs from the specs above.

Model numberGTINLaunch price (US)MarketsCooler in the boxIncluded cooler
BX8071514400F735858547581Not availableNot availableYesIntel Laminar RM1
BXC8071514400FNot availableNot availableCNNot availableNot available
CM8071505093011Not available$196Not availableNoNot available
CM8071504821113Not available$196Not availableNoNot available

Sources

We read 10 sources for this CPU. The numbers match the markers in the sheet.

  1. Read 15 October 2026Backs 25 fields
  2. Read 15 October 2026Backs 2 fields
  3. Read 15 October 2026Backs 1 field
  4. Read 15 October 2026Backs 1 field
  5. Read 15 October 2026Backs 2 fields
  6. Read 15 October 2026Backs 2 fields
  7. Read 15 October 2026Backs 3 fields
  8. Read 15 October 2026Backs 1 field
  9. Read 15 October 2026Backs 1 field
  10. Read 15 October 2026Backs 2 fields
