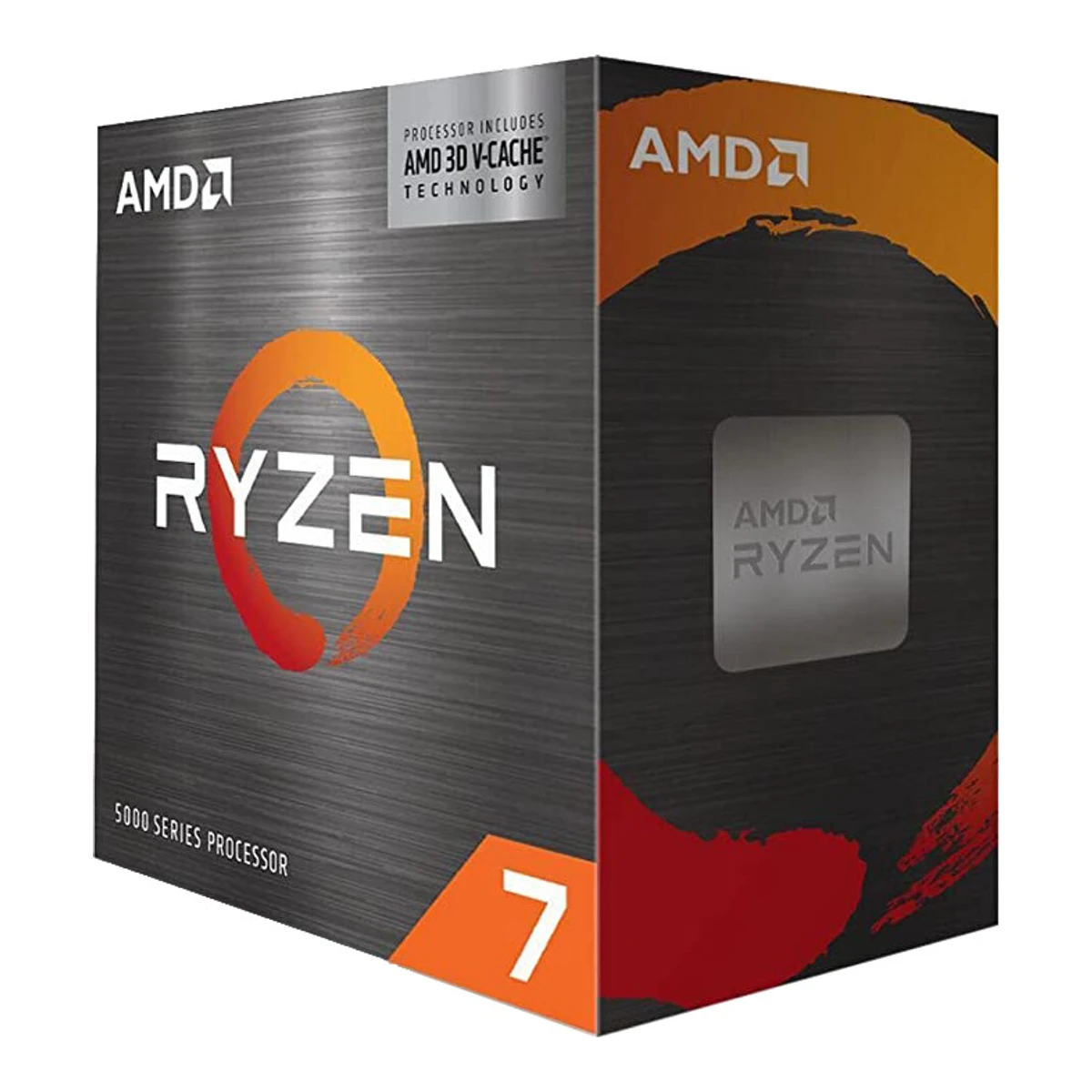

AMD Ryzen 7 5700X3D

AMDDesktop CPU

Ryzen 7 5700X3D

Released January 2024.1Maker product pageamd.com/en/support/downloads/drivers.html/processors/ryzen/ryzen-5000-series/amd-ryzen-7-5700x3d.htmlRead 15 October 2026Launch Date 01/08/2024 in the full specification table on AMD's Drivers and Downloads page. The US retail launch was 31 January 2024. Last checked 16 October 2026.

Cores
8
Max boost clock
4.1GHz
L3 cache
96MB
Socket or package
AM4

42 of 74 fields known.

Compare with another CPUDownload JSONDownload CSVGet it from the API

All specs

SourceCalculated

General

Series
Ryzen 5000 Series1Maker product pageamd.com/en/support/downloads/drivers.html/processors/ryzen/ryzen-5000-series/amd-ryzen-7-5700x3d.htmlRead 15 October 2026Series row: Ryzen 5000 Series.
Model numbers
100-100001503WOF, 100-100001503, 100-0000015031Maker product pageamd.com/en/support/downloads/drivers.html/processors/ryzen/ryzen-5000-series/amd-ryzen-7-5700x3d.htmlRead 15 October 2026Product ID Boxed lists 100-100001503WOF and 100-100001503. Product ID Tray lists 100-000001503. Only the WOF code and the tray code have variant rows. No retailer listing was found for the plain 100-100001503 code.
GTIN / EAN
7301433160889Retailer pageamazon.com/AMD-Ryzen-5700X3D-16-Thread-Processor/dp/B0CQ4H4H7XRead 15 October 2026Amazon US lists UPC 730143316088, ASIN B0CQ4H4H7X. BuildCores lists UPC 730143316088 and EAN 0730143316088 for part number 100-100001503WOF, and an eBay catalog page shows the same code. The UPC belongs to the boxed product ID. The tray version has no GTIN.10Spec databasebuildcores.com/products/CPU/dk42732fi/AMD-Ryzen-7-5700X3D-3.0-GHz-8-Core-AM4Read 15 October 2026Page metadata: UPC 730143316088, EAN 0730143316088, retailer part number 100-100001503WOF.
Announced
8 January 20242Press articletomshardware.com/pc-components/cpus/amd-launches-dollar249-ryzen-7-5700x3d-with-game-boosting-3d-v-cache-tech-arrive-january-21-amd-also-updates-am4-platform-with-new-ryzen-5000-gt-processors-for-2024Read 15 October 2026Tom's Hardware, 8 January 2024: AMD announced the four new Ryzen 5000 models at CES 2024. AMD's table lists Launch Date 01/08/2024.
Status
Discontinued7Press articletomshardware.com/pc-components/cpus/ryzen-7-5700x3d-reportedly-reaches-end-of-life-amds-last-eight-core-zen-3-3d-v-cache-cpu-ends-productionRead 15 October 2026Tom's Hardware, 11 August 2025: Tweakers reports that retailers can no longer buy the Ryzen 7 5700X3D from AMD, which Tom's says confirms end-of-life status. The chip is gone from Newegg, Amazon, B&H, Best Buy and Micro Center, and only used and third-party listings remain. AMD has not published a notice, and AMD's spec table still lists the chip.8Retailer pagecoolblue.de/en/product/947623/amd-ryzen-7-5700x3d.htmlRead 15 October 2026The Coolblue page marks the chip Never available again and No longer available.
Predecessor
Not available
Successor
Not available
Launch price (US)
$2492Press articletomshardware.com/pc-components/cpus/amd-launches-dollar249-ryzen-7-5700x3d-with-game-boosting-3d-v-cache-tech-arrive-january-21-amd-also-updates-am4-platform-with-new-ryzen-5000-gt-processors-for-2024Read 15 October 2026The article names the $249 eight-core 16-thread Ryzen 7 5700X3D and its table lists $249. Club386 also reports a $249 launch price. It is an AMD suggested price before sales tax. AMD's press release is no longer online. The article text says the chips reach retail on 31 January 2024. The headline says 21 January, which is a typo. No euro launch price was found, so none is stored.
Launch price (EU)
Not available
Markets
Not available
Colours
Not available
Segment
Desktop1Maker product pageamd.com/en/support/downloads/drivers.html/processors/ryzen/ryzen-5000-series/amd-ryzen-7-5700x3d.htmlRead 15 October 2026Market Segment row: Enthusiast Desktop. Form Factor: Desktops, Boxed Processor.
Instruction set
x86-641Maker product pageamd.com/en/support/downloads/drivers.html/processors/ryzen/ryzen-5000-series/amd-ryzen-7-5700x3d.htmlRead 15 October 2026Instruction Set row: x86-64.
Codename
Vermeer1Maker product pageamd.com/en/support/downloads/drivers.html/processors/ryzen/ryzen-5000-series/amd-ryzen-7-5700x3d.htmlRead 15 October 2026Former Codename row reads Vermeer.
CPU process (as published)
TSMC 7nm FinFET1Maker product pageamd.com/en/support/downloads/drivers.html/processors/ryzen/ryzen-5000-series/amd-ryzen-7-5700x3d.htmlRead 15 October 2026Processor Technology for CPU Cores: TSMC 7nm FinFET. The I/O die is 12nm (Globalfoundries).
CPU process node
7nm1Maker product pageamd.com/en/support/downloads/drivers.html/processors/ryzen/ryzen-5000-series/amd-ryzen-7-5700x3d.htmlRead 15 October 2026
AVX-512
No1Maker product pageamd.com/en/support/downloads/drivers.html/processors/ryzen/ryzen-5000-series/amd-ryzen-7-5700x3d.htmlRead 15 October 2026The Supported Extensions list names AVX and AVX2 and has no AVX512.

Cores and clocks

Core configuration
CountCoreBase clock (GHz)Max clock (GHz)
8Zen 334.1
Source1Maker product pageamd.com/en/support/downloads/drivers.html/processors/ryzen/ryzen-5000-series/amd-ryzen-7-5700x3d.htmlRead 15 October 2026AMD names no core roles. Processor Architecture is Zen 3 and # of CPU Cores is 8. Base Clock 3 GHz is AMD's average effective base frequency of all cores. Max. Boost Clock Up to 4.1 GHz is the highest single-core clock.
Cores
8
Cores labelled performance
Not available
Cores labelled efficiency
Not available
Threads
161Maker product pageamd.com/en/support/downloads/drivers.html/processors/ryzen/ryzen-5000-series/amd-ryzen-7-5700x3d.htmlRead 15 October 2026# of Threads 16 with Multithreading (SMT) Yes.
Max boost clock
4.1GHz1Maker product pageamd.com/en/support/downloads/drivers.html/processors/ryzen/ryzen-5000-series/amd-ryzen-7-5700x3d.htmlRead 15 October 2026
Unlocked for overclocking
No3Reviewtomshardware.com/pc-components/cpus/amd-ryzen-7-5700x3d-cpu-reviewRead 15 October 2026Review text: AMD doesn't officially support multiplier-based overclocking, adjusting the 5700X3D's core voltages, or Precision Boost Overdrive on its X3D chips. The review adds that you cannot alter the power limits or the CPU voltage. AMD's page has no Unlocked for Overclocking row for this chip.

Cache

L2 cache
4MB1Maker product pageamd.com/en/support/downloads/drivers.html/processors/ryzen/ryzen-5000-series/amd-ryzen-7-5700x3d.htmlRead 15 October 2026
L3 cache
96MB1Maker product pageamd.com/en/support/downloads/drivers.html/processors/ryzen/ryzen-5000-series/amd-ryzen-7-5700x3d.htmlRead 15 October 2026L3 Cache 96 MB. L2 is 4 MB and L1 is 512 KB.
AMD 3D V-Cache
Yes3Reviewtomshardware.com/pc-components/cpus/amd-ryzen-7-5700x3d-cpu-reviewRead 15 October 2026Tom's Hardware review of 6 May 2024: 3D V-Cache fuses an additional 64 MB of 7nm SRAM on top of the Ryzen compute chiplet, which gives a total of 96 MB of L3 for the Ryzen 7 5700X3D. AMD's page lists no 3D V-Cache row under Supported Technologies for this chip. The Amazon listing also names AMD 3D V-Cache technology.

Power and thermals

Base power (TDP)
105W1Maker product pageamd.com/en/support/downloads/drivers.html/processors/ryzen/ryzen-5000-series/amd-ryzen-7-5700x3d.htmlRead 15 October 2026Default TDP 105W.
Max turbo power
141W4Reviewtomshardware.com/pc-components/cpus/amd-ryzen-7-5700x3d-cpu-review/4Read 15 October 2026Power page of the review: the chip's measured peak in its tests is much lower than the theoretical PPT (peak) of 141W for AMD's 105W TDP rating. Tom's lists 142W for the Ryzen 7 5800X3D, so the 1 W gap is probably rounding. The 141 W figure is stored as the source states it for this exact chip.
Configurable power range
Not available
Max operating temperature
90°C1Maker product pageamd.com/en/support/downloads/drivers.html/processors/ryzen/ryzen-5000-series/amd-ryzen-7-5700x3d.htmlRead 15 October 2026Max. Operating Temperature (Tjmax) 90C.

Memory

Memory support
Memory typeModule typeModulesMax speed (MT/s)
DDR4UDIMM2x1R3,200
DDR4UDIMM2x2R3,200
DDR4UDIMM4x1R2,933
DDR4UDIMM4x2R2,667
Source1Maker product pageamd.com/en/support/downloads/drivers.html/processors/ryzen/ryzen-5000-series/amd-ryzen-7-5700x3d.htmlRead 15 October 2026Max Memory Speed rows: 2x1R DDR4-3200, 2x2R DDR4-3200, 4x1R DDR4-2933, 4x2R DDR4-2667. System Memory Subtype is UDIMM.
Max memory speed (official)
3,200MT/s
Memory channels
21Maker product pageamd.com/en/support/downloads/drivers.html/processors/ryzen/ryzen-5000-series/amd-ryzen-7-5700x3d.htmlRead 15 October 2026
Memory bandwidth (claimed)
Not available
Max memory
128GB1Maker product pageamd.com/en/support/downloads/drivers.html/processors/ryzen/ryzen-5000-series/amd-ryzen-7-5700x3d.htmlRead 15 October 2026Max. Memory 128 GB.
ECC memory support
Yes1Maker product pageamd.com/en/support/downloads/drivers.html/processors/ryzen/ryzen-5000-series/amd-ryzen-7-5700x3d.htmlRead 15 October 2026ECC Support: Yes (Requires mobo support).

Platform

Socket or package
AM41Maker product pageamd.com/en/support/downloads/drivers.html/processors/ryzen/ryzen-5000-series/amd-ryzen-7-5700x3d.htmlRead 15 October 2026CPU Socket: AM4.
Compatible chipsets
AMD X570, AMD X470, AMD B550, AMD B450, AMD A5201Maker product pageamd.com/en/support/downloads/drivers.html/processors/ryzen/ryzen-5000-series/amd-ryzen-7-5700x3d.htmlRead 15 October 2026Supporting Chipsets: X570, X470, B550, B450, A520.
CPU PCIe lanes
PCIe generationLanes
420
Source1Maker product pageamd.com/en/support/downloads/drivers.html/processors/ryzen/ryzen-5000-series/amd-ryzen-7-5700x3d.htmlRead 15 October 2026PCI Express Version is PCIe 4.0. Native PCIe Lanes (Total/Usable) is 24 and 20. The 20 usable lanes are stored.
CPU PCIe lanes in total
20
Highest PCIe generation
4
Native USB ports
StandardCount
USB 3.2 Gen 2 (10 Gbps)4
Source1Maker product pageamd.com/en/support/downloads/drivers.html/processors/ryzen/ryzen-5000-series/amd-ryzen-7-5700x3d.htmlRead 15 October 2026Native USB 3.2 Gen 2 (10Gbps) 4. The page lists 0 for Native USB 3.2 Gen 1 and 0 for Native USB 2.0, so those rows are not stored.
Native USB4 or Thunderbolt
No

Integrated graphics

Integrated graphics
No1Maker product pageamd.com/en/support/downloads/drivers.html/processors/ryzen/ryzen-5000-series/amd-ryzen-7-5700x3d.htmlRead 15 October 2026Graphics Model: Discrete Graphics Card Required.
Integrated GPU
Not available
GPU cores
Not available
Max GPU clock
Not available
Max displays
Not available
DisplayPort version
Not available
HDMI version
Not available
Hardware video encode
Not available
Hardware video decode
Not available

NPU

We could not find any of these 2 fields. Show them
NPU performance
Not available
Total AI performance
Not available

Measured performance

Cinebench 2024 single-core
87points5Reviewtomshardware.com/pc-components/cpus/amd-ryzen-7-5700x3d-cpu-review/3Read 15 October 2026Cinebench 2024 Single-Core Performance chart, CB Marks: 87 for the Ryzen 7 5700X3D, stock configuration, review of 6 May 2024. Test system: MSI MEG X570 Godlike, 2x 8 GB G.Skill Trident Z Royal DDR4-3600 run at the stock DDR4-3200, Corsair iCue Link H150i RGB cooler, Windows 11 Pro with secure boot, virtualization and fTPM off, open bench table, RTX 2080 Ti Founders Edition for application tests. The chart subtitle reads Version 1.3.3, 1.5GB .MKV to MP4, which looks like a copy error from the HandBrake charts. The result is from an older test bench than Tom's 2026 reviews, which use a newer platform and a newer GPU.
Cinebench 2024 multi-core
811points5Reviewtomshardware.com/pc-components/cpus/amd-ryzen-7-5700x3d-cpu-review/3Read 15 October 2026Cinebench 2024 Multi-Core Performance chart, CB Marks: 811 for the Ryzen 7 5700X3D, stock configuration. Same test system. Tom's 2024 charts show 858 for the Ryzen 7 5800X3D, while its 2026 re-review shows 863 on a different setup.
Cinebench 2026 single-thread
Not available
Cinebench 2026 multi-core
Not available
Geekbench 6 single-core
Not available
Geekbench 6 multi-core
Not available
Game frame rates
GameGraphics cardWidth (px)Height (px)PresetAverage FPS1 % low FPS
Borderlands 3ASUS ROG Strix GeForce RTX 4090 OC19201080Ultra177.9128.5
Cyberpunk 2077ASUS ROG Strix GeForce RTX 4090 OC19201080Ultra168.9103
F1 2023ASUS ROG Strix GeForce RTX 4090 OC19201080Ultra208.5167.6
Far Cry 6ASUS ROG Strix GeForce RTX 4090 OC19201080Ultra159.9117.2
Hitman 3ASUS ROG Strix GeForce RTX 4090 OC19201080Ultra165.465.7
Microsoft Flight Simulator 2021ASUS ROG Strix GeForce RTX 4090 OC19201080Ultra100.378.7
Watch Dogs LegionASUS ROG Strix GeForce RTX 4090 OC19201080Ultra153.4119.9
Source6Reviewtomshardware.com/pc-components/cpus/amd-ryzen-7-5700x3d-cpu-review/2Read 15 October 2026Per-game CPU Gaming Performance charts at 1920x1080 Ultra, stock Ryzen 7 5700X3D bars without PBO or memory overclock. Review of 6 May 2024, ASUS ROG Strix RTX 4090 OC. Memory DDR4-3200 stock, MSI MEG X570 Godlike, Windows 11 Pro. Average and the black 99th bar, which is stored as the 1 percent low: Borderlands 3 (DX11) 177.9 and 128.5, Cyberpunk 2077 (DX12) 168.9 and 103.0, F1 2023 (DX12) 208.5 and 167.6, Far Cry 6 (DX12) 159.9 and 117.2, Hitman 3 (DX12, chart label Hitman 3 Dartmoor) 165.4 and 65.7, Flight Simulator (DX11) 100.3 and 78.7, Watch Dogs Legion (DX12) 153.4 and 119.9. The Flight Simulator chart is under the Microsoft Flight Simulator 2021 heading. Upscaling and ray tracing are not stated. The Minecraft chart is not stored because the source does not say whether ray tracing is on. Intel Binary Optimization does not apply to an AMD chip.

Measured power and temperature

We could not find any of these 5 fields. Show them
CPU power in multi-thread load (measured)
Not available
CPU power while gaming (measured)
Not available
CPU power at idle (measured)
Not available
CPU temperature in stress test
Not available
All-core clock in stress test
Not available

In the box

Cooler in the box
No1Maker product pageamd.com/en/support/downloads/drivers.html/processors/ryzen/ryzen-5000-series/amd-ryzen-7-5700x3d.htmlRead 15 October 2026Thermal Solution (PIB): Not Included.
Included cooler
Not available

Warranty

Manufacturer warranty (source market)
3years11Maker product pageamd.com/en/resources/support-articles/warranty/PIB.htmlRead 15 October 2026AMD Processor in a Box (PIB) 3-Year Limited Warranty for boxed processors bought new at retail. A tray processor is handled by the seller, not AMD. Global.

Compare with

Pick a CPU to see both side by side. Differences are marked yellow.

More CPU comparisons

Variants

Each variant lists only what differs from the specs above.

Model numberGTINLaunch price (US)
100-100001503WOF730143316088$249
100-000001503Not availableNot available

Sources

We read 11 sources for this CPU. The numbers match the markers in the sheet.

  1. Read 15 October 2026Backs 28 fields
  2. Read 15 October 2026Backs 2 fields
  3. Read 15 October 2026Backs 2 fields
  4. Read 15 October 2026Backs 1 field
  5. Read 15 October 2026Backs 2 fields
  6. Read 15 October 2026Backs 1 field
  7. Read 15 October 2026Backs 1 field
  8. Read 15 October 2026Backs 1 field
  9. Read 15 October 2026Backs 1 field
  10. Read 15 October 2026Backs 1 field
  11. Read 15 October 2026Backs 1 field

See a wrong value? Tell us and name the field.
