Computers / Desktop PCs

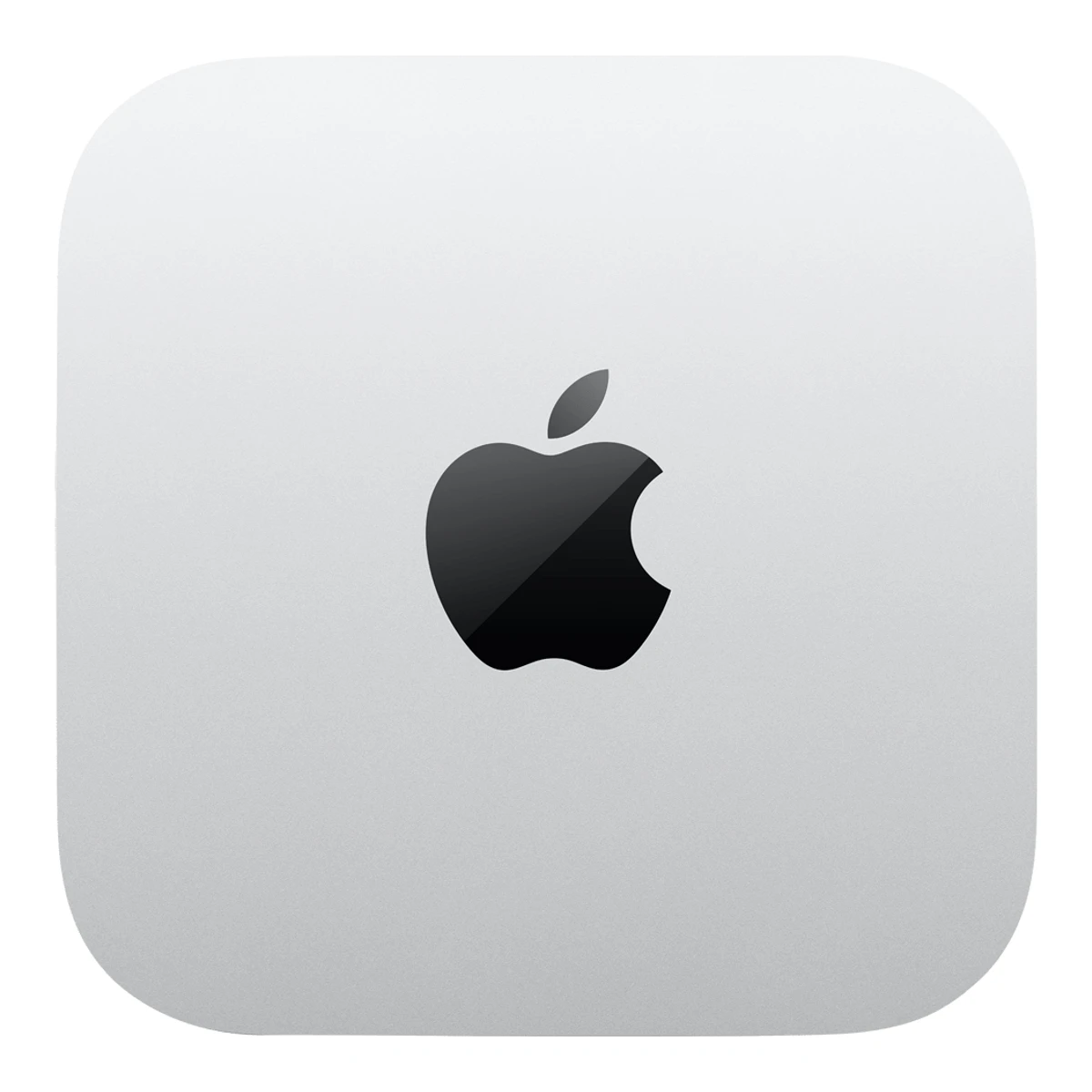

Apple Mac mini (M5 Pro, 2026)

AppleMini PC desktop PC

Mac mini (M5 Pro, 2026)

Released 22 September 2026.3Press releaseapple.com/newsroom/2026/09/the-new-mac-mini-and-mac-studio-are-available-todayRead 5 October 2026September 22 available-today publication confirms actual retail, matching August 25 announcement availability date. Last checked 16 October 2026.

Form factor
Mini PC
Processor
Apple M5 Pro
GPU
Apple M5 Pro 16-core GPU
RAM
24GB

76 of 160 fields known.

Compare with another desktop PCDownload JSONDownload CSVGet it from the API

At a glance

Ports

  • 2 USB-C USB 3
  • 3.5 mm audio
  • 3 USB-C Thunderbolt 5
  • HDMI
  • Ethernet (RJ45)

All specs

SourceCalculated

General

Series
Mac mini2Press releaseapple.com/newsroom/2026/08/apple-unveils-a-more-powerful-mac-mini-featuring-the-all-new-m6-and-m5-proRead 5 October 2026
Model numbers
MHQN4LL/A7Retailer pageabt.com/Apple-Mac-mini-Desktop-M5-Pro-24GB-Unified-Memory-512GB-SSD-in-Silver-MHQN4LLA/p/248222.htmlRead 7 October 2026Model # MHQN4LL/A. Exact retail reference: M5 Pro 15-core CPU, 16-core GPU, 24 GB and 512 GB SSD. Apple identifies the family as Mac17,16, but that identifier also covers the 18-core CPU option and is not the exact SKU.
GTIN / EAN
1959510222537Retailer pageabt.com/Apple-Mac-mini-Desktop-M5-Pro-24GB-Unified-Memory-512GB-SSD-in-Silver-MHQN4LLA/p/248222.htmlRead 7 October 2026UPC # 195951022253 on the exact MHQN4LL/A retail listing. Corroborated by Micro Center.
Announced
25 August 20262Press releaseapple.com/newsroom/2026/08/apple-unveils-a-more-powerful-mac-mini-featuring-the-all-new-m6-and-m5-proRead 5 October 2026
Status
Available8Press releaseapple.com/newsroom/2026/09/the-new-mac-mini-and-mac-studio-are-available-todayRead 7 October 2026September 22, 2026 available-today announcement names Mac mini with M5 Pro.
Predecessor
Apple Mac mini (M4 Pro, 2024)2Press releaseapple.com/newsroom/2026/08/apple-unveils-a-more-powerful-mac-mini-featuring-the-all-new-m6-and-m5-proRead 5 October 2026M5 Pro delivers significant gains in AI compute compared to the previous Mac mini. Workload claims compare against M4 Pro, for example up to 1.4x faster in Blender.
Successor
Not available
Launch price (US)
$1,6992Press releaseapple.com/newsroom/2026/08/apple-unveils-a-more-powerful-mac-mini-featuring-the-all-new-m6-and-m5-proRead 5 October 2026Pricing and Availability: M5 Pro US starts at $1699 for base 15-core CPU / 16-core GPU, 24 GB / 512 GB. Excluding sales tax. Education and upgrades excluded.
Launch price (EU)
€1,99916Press releaseapple.com/de/newsroom/2026/08/apple-unveils-a-more-powerful-mac-mini-featuring-the-all-new-m6-and-m5-proRead 7 October 2026German August 25 launch announcement, Prices and Availability: Mac mini with M5 Pro starts at 1,999 EUR including VAT. Base 15-core CPU, 16-core GPU, 24 GB, 512 GB tier. Education pricing excluded. This price applies to Germany, not every euro market.
Markets
US2Press releaseapple.com/newsroom/2026/08/apple-unveils-a-more-powerful-mac-mini-featuring-the-all-new-m6-and-m5-proRead 5 October 2026
Colours
Silver1Maker product pagesupport.apple.com/en-us/128108Read 5 October 2026
Segment
Mini PC2Press releaseapple.com/newsroom/2026/08/apple-unveils-a-more-powerful-mac-mini-featuring-the-all-new-m6-and-m5-proRead 5 October 2026
Form factor
Mini PC2Press releaseapple.com/newsroom/2026/08/apple-unveils-a-more-powerful-mac-mini-featuring-the-all-new-m6-and-m5-proRead 5 October 2026

Case

Front and side, drawn to scale.

Case dimensions
Width127Height50Depth127mm(5 × 2 × 5 in)1Maker product pagesupport.apple.com/en-us/128108Read 5 October 2026
Case volume
Not available
Weight
0.73kg(1.6 lb)1Maker product pagesupport.apple.com/en-us/128108Read 5 October 2026Size and Weight: M5 Pro 0.73 kg, not M6 0.67 kg. Configuration and manufacturing variation footnote retained.
Case model
Not available
Case materials
Aluminium1Maker product pagesupport.apple.com/en-us/128108Read 5 October 2026Materials: aluminium enclosure.
Side panel
Solid18Owner's manualsupport.apple.com/en-us/127958Read 8 October 2026Item 13 lists one Housing, part 923-15433, for M6 and M5 Pro. Ars Technica describes the design as a fully aluminium box with ports cut into it.23Reviewarstechnica.com/apple/2024/11/review-m4-and-m4-pro-mac-minis-are-probably-apples-best-mac-minis-everRead 10 October 2026Design section: a fully aluminum box with ports cut directly into the aluminum. The 2026 Ars review of the M6 model says the design is unchanged.
Front panel
Solid18Owner's manualsupport.apple.com/en-us/127958Read 8 October 2026Same Housing item. The front USB-C ports and the headphone jack are openings in the solid aluminium wall.23Reviewarstechnica.com/apple/2024/11/review-m4-and-m4-pro-mac-minis-are-probably-apples-best-mac-minis-everRead 10 October 2026Design section: front and rear ports are cut directly into the aluminum.
Tool-less side panel
No13Owner's manualsupport.apple.com/en-us/127961Read 7 October 2026M6 or M5 Pro Bottom Cover removal lists a suction cup and nylon probe and requires the probe to release clips. This is bottom-cover access, not a tower side panel.
Dust filters
Not available
VESA mount
Not available

Display

We could not find any of these 6 fields. Show them
Screen size
Not available
Native resolution
Not available
Panel type
Not available
Max refresh rate
Not available
Touchscreen
Not available
Brightness (SDR, claimed)
Not available

Motherboard

Motherboard
Not available
Chipset
Not available
Motherboard form factor
Proprietary18Owner's manualsupport.apple.com/en-us/127958Read 8 October 2026Item 11 lists the logic board only as Apple service assemblies by CPU, GPU, memory and storage. There is no standard board size.
CPU socket
Not available
Expansion slots
Not available
PCIe x16 slots
Not available
Free expansion slots
Not available
Fan headers
117Owner's manualsupport.apple.com/en-us/127967Read 8 October 2026Fan Removal steps 3 to 6 identify one fan flex-cable connector on the logic board. Counts the documented physical fan connector, not a chassis-fan table or extra case fan.
Overclocking in BIOS
Not available

Processor

Processor
Apple M5 Pro1Maker product pagesupport.apple.com/en-us/128108Read 5 October 2026
Processor brand
Apple1Maker product pagesupport.apple.com/en-us/128108Read 5 October 2026
Processor codename
Not available
Core configuration
Core typeCountCoreMax core turbo clock (GHz)
Super5Super4.6
Performance10PerformanceNot available
Source1Maker product pagesupport.apple.com/en-us/128108Read 5 October 2026M5 Pro Chip section: base 15-core CPU with 5 super and 10 performance cores. 18-core option excluded.24Spec databaseeverymac.com/systems/apple/mac_mini/specs/mac-mini-m5-pro-15-core-cpu-16-core-gpu-2026-specs.htmlRead 10 October 2026Processor section: third-party software reports a variable clock around 4.6 GHz. Stored as the super cluster maximum. hmc-tech lists 4.61 GHz. The ENERGY STAR record lists 4.2 GHz as its own declared figure on a different basis. The performance cluster clock is not stated.
CPU cores
15
Performance cores
10
Efficiency cores
0
Threads
1520Spec databaseminipcbench.com/mini-pcs/apple-mac-mini-m5-proRead 10 October 2026Spec table for MHQN4LL/A states 15 cores and 15 threads. The CPU has five super cores and ten performance cores and no multithreading. hmc-tech lists the same 15 threads. No benchmark from this site is used.
Max core turbo clock
4.6GHz
L3 cache
Not available
CPU core process node
3nm10Press releaseapple.com/newsroom/2026/03/apple-debuts-m5-pro-and-m5-max-to-supercharge-the-most-demanding-pro-workflowsRead 7 October 2026All-New Fusion Architecture: M5 Pro joins two third-generation 3-nanometer dies. The selected Mac mini specification identifies this exact SoC family. No foundry-node variant name is inferred.
CPU base power (chip rating)
Not available
Peak CPU power (configured)
Not available
Unlocked multiplier
Not available
NPU performance
Not available
Integrated GPU
Apple M5 Pro 16-core GPU1Maker product pagesupport.apple.com/en-us/128108Read 5 October 2026

Cooling

CPU cooler
Air14Owner's manualsupport.apple.com/en-us/127971Read 7 October 2026Logic-board removal requires removing the Fan and instructs holding the heat sink. Separate fan procedure documents the fitted fan. Air cooler classification describes this documented fan and heat sink, without assigning a case-fan count.
CPU cooler model
Not available
Radiator size
Not available
Radiator position
Not available
Case fans
Fan rotors
1
Source18Owner's manualsupport.apple.com/en-us/127958Read 8 October 2026Exploded view item 9 lists one Fan, part 923-15425, for Mac mini (M6 or M5 Pro). It is the shared chassis blower. Diameter, position, PWM and lighting are not published.
Number of case fans
1

Graphics

Discrete GPU
No1Maker product pagesupport.apple.com/en-us/128108Read 5 October 2026M5 Pro integrated 16-core GPU in the SoC, no discrete graphics card.
GPU
Not available
GPU brand
Not available
Graphics card
Not available
VRAM
Not available
VRAM type
Not available
GPU board power
Not available
GPU boost clock
Not available
Graphics card length
Not available
Graphics card thickness
Not available
GPU power connector
Not available

Memory

RAM
24GB1Maker product pagesupport.apple.com/en-us/128108Read 5 October 2026M5 Pro Memory: standard 24 GB. Purchase maximum omitted without proof for unchanged base chip.
RAM type
LPDDR5X21Spec databaseen.wikipedia.org/wiki/Apple_M5Read 10 October 2026Memory section says all M5 chips share one pool of LPDDR5X unified memory. Apple publishes only the words unified memory.22Spec databasehmc-tech.com/desktops/mac-mini-m5-pro-mid-2026Read 10 October 2026Summary table for the 15-core CPU, 16-core GPU model lists 24GB LPDDR5X-9600.
Configured RAM speed
9,600MT/s21Spec databaseen.wikipedia.org/wiki/Apple_M5Read 10 October 2026Chip table lists LPDDR5X-9600 for the M5 family and 307 GB/s for M5 Pro. 9600 MT/s on a 256-bit bus gives 307.2 GB/s, which matches the maker bandwidth figure. hmc-tech lists 24 GB LPDDR5X-9600 for this exact configuration. Apple does not publish the transfer rate.22Spec databasehmc-tech.com/desktops/mac-mini-m5-pro-mid-2026Read 10 October 2026Same table lists LPDDR5X-9600 with 307.2 GB/s bandwidth. Other values on the page, such as the 39 W maximum power draw, are not used.
Rated kit speed
Not available
Memory kit
Not available
RAM upgrade
Integrated into chip package5Maker product pagesupport.apple.com/en-us/102328Read 5 October 20262026 Mac mini section: memory integrated into chip package and cannot be upgraded. Purchase-time configurations only.
Memory slots
Not available
RAM slots
Not available
Free RAM slots
Not available
Max RAM for this CPU and GPU
64GB9Maker product pagesupport.apple.com/en-us/128108Read 7 October 2026Memory: Apple M5 Pro chip, 24GB unified memory, configurable to 48GB or 64GB. The separate chip upgrade is not required for the memory choices. This is a purchase-time maximum, not a later upgrade.18Owner's manualsupport.apple.com/en-us/127958Read 8 October 2026Row 11 lists logic-board assemblies with 15-core CPU/16-core GPU and 64GB RAM, including 512GB storage 661-63771/661-63772. This corroborates the 64GB purchase-time maximum without a CPU/GPU upgrade. Two board IDs describe each configuration without resolving Ethernet variants, so no motherboard_model is inferred.
ECC memory
Not available

Storage

Storage
512GB
Installed drives
Capacity (GB)
512
Source1Maker product pagesupport.apple.com/en-us/128108Read 5 October 2026M5 Pro Storage: standard 512 GB SSD. Interface and physical media part are not published, so type and PCIe cells are omitted. Alternatives up to 8 TB are not installed drives.
Storage slots and bays
Not available
M.2 slots
Not available
Free M.2 slots
Not available
Free drive bays
Not available
Fastest storage-slot PCIe generation
Not available

Power supply

PSU rated output
155W7Retailer pageabt.com/Apple-Mac-mini-Desktop-M5-Pro-24GB-Unified-Memory-512GB-SSD-in-Silver-MHQN4LLA/p/248222.htmlRead 7 October 2026Specifications, General: Power Supply 155W for MHQN4LL/A.25Certification listdata.energystar.gov/resource/rxdj-2c88.jsonRead 10 October 2026ENERGY STAR record 4693496 (A3535, Mac mini M5 Pro) lists internal power supply rated power 155 W. The retailer spec table also lists Power Supply 155W. The maker maximum continuous power is 155 W as well.
PSU form factor
Proprietary26Owner's manualsupport.apple.com/en-us/127972Read 10 October 2026The power supply is one Apple service part, 661-65487, shared by M6 and M5 Pro. It is removed with four T25 screws after the logic board is out and mounts to the housing with the AC inlet. No ATX, SFX or external adapter format applies. The M6 teardown shows a custom Lite-On power board of the same design.27Reviewchargerlab.com/teardown-of-the-apple-mac-mini-m6-a3534Read 10 October 2026Teardown of the M6 (A3534) shows a Lite-On PA-1161-1A power board inside the chassis with 12.6 V and 12.3 A output. Apple lists one power supply part for M6 and M5 Pro.
PSU efficiency
Not available
Modular cables
Not available
PSU model
Apple service assembly 661-6548718Owner's manualsupport.apple.com/en-us/127958Read 8 October 2026Exploded View and Orderable Parts, row 12. Apple repair-order identifier for the power-supply assembly. This is a service assembly ID, not a discovered supplier model. No output wattage or proprietary form-factor enum is inferred.
ATX version
Not available
Native 12V-2x6 cable
Not available

Ports

User-facing I/O position
Front4Owner's manualsupport.apple.com/mr-in/guide/mac-mini/apd4e7055d3cmm/2026/mac/27Read 5 October 2026Tour labels front USB-C pair and audio jack. Current guide covers M6 and M5 Pro.
User-facing ports
TypeVersionCountMax stated link rate (Gbps)
USB-CUSB 3210
3.5 mm audioNot available1Not available
Source1Maker product pagesupport.apple.com/en-us/128108Read 5 October 2026
Rear ports
TypeVersionCountMax stated link rate (Gbps)Thunderbolt or USB4DP Alt ModeConnected to
USB-CThunderbolt 5380Thunderbolt 5YesMotherboard
HDMINot available1Not availableNot availableNot availableMotherboard
Ethernet (RJ45)Not available12.5Not availableNot availableMotherboard
Source1Maker product pagesupport.apple.com/en-us/128108Read 5 October 2026M5 Pro Connections and Expansion: 3 Thunderbolt 5 USB-C, HDMI and standard 2.5 Gb Ethernet. Optional 10 Gb Ethernet excluded. Up to 120 Gbps is omitted as symmetric data maximum.6Measurementadamtalks.tech/reviews/m6-mac-mini-vs-m5-pro-mac-mini-testedRead 5 October 2026Thunderbolt and external displays section explicitly separates Thunderbolt 5 data transfer at 80 Gbps from display Bandwidth Boost at 120 Gbps for this tested base M5 Pro model.
User-facing USB ports
2
User-facing USB-C ports
2
Rear USB ports
3
Thunderbolt
Yes
Ethernet speed
2.5Gbps
Discrete GPU output ports
0

Wireless

Wi-Fi
Wi-Fi 71Maker product pagesupport.apple.com/en-us/128108Read 5 October 2026
Wi-Fi bands
2.4 GHz, 5 GHz, 6 GHz11Maker product pagesupport.apple.com/en-us/148165Read 7 October 2026Opening paragraph names 2.4 GHz, 5 GHz and 6 GHz bands. Device list explicitly includes Mac mini with M5 Pro. 6 GHz operation is restricted to regions with regulatory approval. Reference SKU is US.
Wi-Fi module
Apple N11Maker product pagesupport.apple.com/en-us/128108Read 5 October 2026
Wi-Fi antenna
Internal12Owner's manualsupport.apple.com/en-us/127966Read 7 October 2026M6 or M5 Pro Wi-Fi Antennas: remove Bottom cover and Antenna plate before the internal three antenna coaxial cables and antennas. This establishes internal placement.
Bluetooth
61Maker product pagesupport.apple.com/en-us/128108Read 5 October 2026
Ethernet controller
Not available

Camera and audio

Webcam
Not available
Built-in speaker drivers
11Maker product pagesupport.apple.com/en-us/128108Read 5 October 2026Audio section names a built-in speaker in the singular. The repair manual confirms one speaker part.18Owner's manualsupport.apple.com/en-us/127958Read 8 October 2026Item 10 lists one Speaker, part 923-15424. The Speaker repair procedure refers to the speaker cone in the singular.
Total speaker power
Not available
Microphones
024Spec databaseeverymac.com/systems/apple/mac_mini/specs/mac-mini-m5-pro-15-core-cpu-16-core-gpu-2026-specs.htmlRead 10 October 2026Ports table lists Microphone None. The maker tech specs page names no built-in microphone.
Audio features
3.5 mm headphone jack with support for high-impedance headphones, HDMI port with multichannel audio output1Maker product pagesupport.apple.com/en-us/128108Read 5 October 2026Audio section: built-in speaker, 3.5 mm headphone jack with advanced support for high-impedance headphones and HDMI multichannel audio output.

Lighting

RGB lighting
No22Spec databasehmc-tech.com/desktops/mac-mini-m5-pro-mid-2026Read 10 October 2026Enclosure table: Decor Lights No. The maker repair manual shows only a status indicator light on the audio board, which is not decorative lighting.
Lit parts
Not available
Lighting standard
Not available
Lighting software
Not available

Software

Operating system
macOS 27 Golden Gate2Press releaseapple.com/newsroom/2026/08/apple-unveils-a-more-powerful-mac-mini-featuring-the-all-new-m6-and-m5-proRead 5 October 2026Launch names macOS 27 Golden Gate.
OS family
macOS1Maker product pagesupport.apple.com/en-us/128108Read 5 October 2026
Control software
Not available

Upgradeability

Proprietary parts
PSU, Fan connectors17Owner's manualsupport.apple.com/en-us/127967Read 8 October 2026Fan procedure: the fan connects with a flat flex cable and a locking-lever connector on the logic board. This is not a standard 3 or 4 pin fan header.26Owner's manualsupport.apple.com/en-us/127972Read 10 October 2026Power supply: Apple-only service part with no standard format. Fan connector: see the fan procedure.
Max graphics card length
Not available
Max CPU cooler height
Not available
Warranty kept after upgrade
Not available

Measured performance

Cinebench 2024 single-core
Not available
Cinebench 2024 multi-core
Not available
Geekbench single-core
3,513points6Measurementadamtalks.tech/reviews/m6-mac-mini-vs-m5-pro-mac-mini-testedRead 5 October 2026CPU and GPU section: Geekbench 7 single-core. Specs and price explicitly identifies the tested base 15-core CPU / 16-core GPU, 24 GB / 512 GB system. The author explicitly has not tested the 18-core upgrade. Version 7 scores are not directly comparable to version 6. Power profile is not stated.
Geekbench multi-core
26,454points6Measurementadamtalks.tech/reviews/m6-mac-mini-vs-m5-pro-mac-mini-testedRead 5 October 2026CPU and GPU section: Geekbench 7 multi-core, same base test configuration. No Cinebench 2026 scores are stored in the Cinebench 2024 fields. Power profile is not stated.
3DMark Time Spy graphics
Not available
3DMark Steel Nomad
Not available
SSD sequential read (measured)
Not available
Game frame rates
Not available

Measured noise and temperature

We could not find any of these 6 fields. Show them
Fan noise per load
Not available
Highest measured fan noise
Not available
Measured fan noise at idle
Not available
CPU temperature in stress test
Not available
CPU clock in stress test
Not available
GPU temperature while gaming
Not available

Measured power

We could not find any of these 6 fields. Show them
Power draw idle
Not available
Power draw gaming
Not available
Power draw max
Not available
Power draw sleep or off
Not available
Sustained CPU power (measured)
Not available
GPU power while gaming (measured)
Not available

Certifications

ENERGY STAR
Yes1Maker product pagesupport.apple.com/en-us/128108Read 5 October 2026
EPEAT
Gold19Certification listepeat.net/product-details/a4a4ff89480b4434ba8b35ee9f7a1af6Read 8 October 2026Active US EPEAT Gold registration for Apple Mac mini (M6, M5 Pro), hardware identifiers A3534/A3535, registered 23 September 2026. The official registry takes precedence over retailer EPEAT Registered No entries.
Copilot+ PC
Not available
Typical annual energy consumption (TEC)
19.2kWh25Certification listdata.energystar.gov/resource/rxdj-2c88.jsonRead 10 October 2026TEC of model 19.2 kWh, certified 2026-08-17, United States and Canada. The record lists the base UPC 195951022253. Its test configuration is the highest one in the family (18-core CPU, 64 GB, 10 Gb Ethernet), so the base model TEC may be lower. Standardized TEC, not a reviewer measurement.
Other certifications
Not available

In the box

In the box
Mac mini, Power cord (1.8 m)1Maker product pagesupport.apple.com/en-us/128108Read 5 October 2026
Included extras
Not available

Warranty

Manufacturer warranty (source market)
1year15Maker product pageapple.com/legal/warranty/products/embedded-mac-warranty-us.htmlRead 7 October 2026Current April 22, 2022-present US Mac limited warranty: ONE (1) YEAR from original retail purchase. Applies to the selected US SKU. Statutory rights and AppleCare are excluded.
Warranty service
Carry-in, Mail-in15Maker product pageapple.com/legal/warranty/products/embedded-mac-warranty-us.htmlRead 7 October 2026Warranty Service Options: (i) Carry-in service and (ii) Mail-in service. Apple determines eligibility and the service method. DIY parts service has no corresponding schema option.

Compare with

Pick a desktop PC to see both side by side. Differences are marked yellow.

More desktop PC comparisons

Sources

We read 27 sources for this desktop PC. The numbers match the markers in the sheet.

  1. Read 5 October 2026Backs 22 fields
  2. Read 5 October 2026Backs 9 fields
  3. Read 5 October 2026Backs 1 field
  4. Read 5 October 2026Backs 2 fields
  5. Read 5 October 2026Backs 1 field
  6. Read 5 October 2026Backs 3 fields
  7. Read 7 October 2026Backs 3 fields
  8. Read 7 October 2026Backs 1 field
  9. Read 7 October 2026Backs 1 field
  10. Read 7 October 2026Backs 1 field
  11. Read 7 October 2026Backs 1 field
  12. Read 7 October 2026Backs 1 field
  13. Read 7 October 2026Backs 1 field
  14. Read 7 October 2026Backs 1 field
  15. Read 7 October 2026Backs 2 fields
  16. Read 7 October 2026Backs 1 field
  17. Read 8 October 2026Backs 2 fields
  18. Read 8 October 2026Backs 7 fields
  19. Read 8 October 2026Backs 1 field
  20. Read 10 October 2026Backs 1 field
  21. Read 10 October 2026Backs 2 fields
  22. Read 10 October 2026Backs 3 fields
  23. Read 10 October 2026Backs 2 fields
  24. Read 10 October 2026Backs 2 fields
  25. Read 10 October 2026Backs 2 fields
  26. Read 10 October 2026Backs 2 fields
  27. Read 10 October 2026Backs 1 field

See a wrong value? Tell us and name the field.
