Computers / Desktop PCs

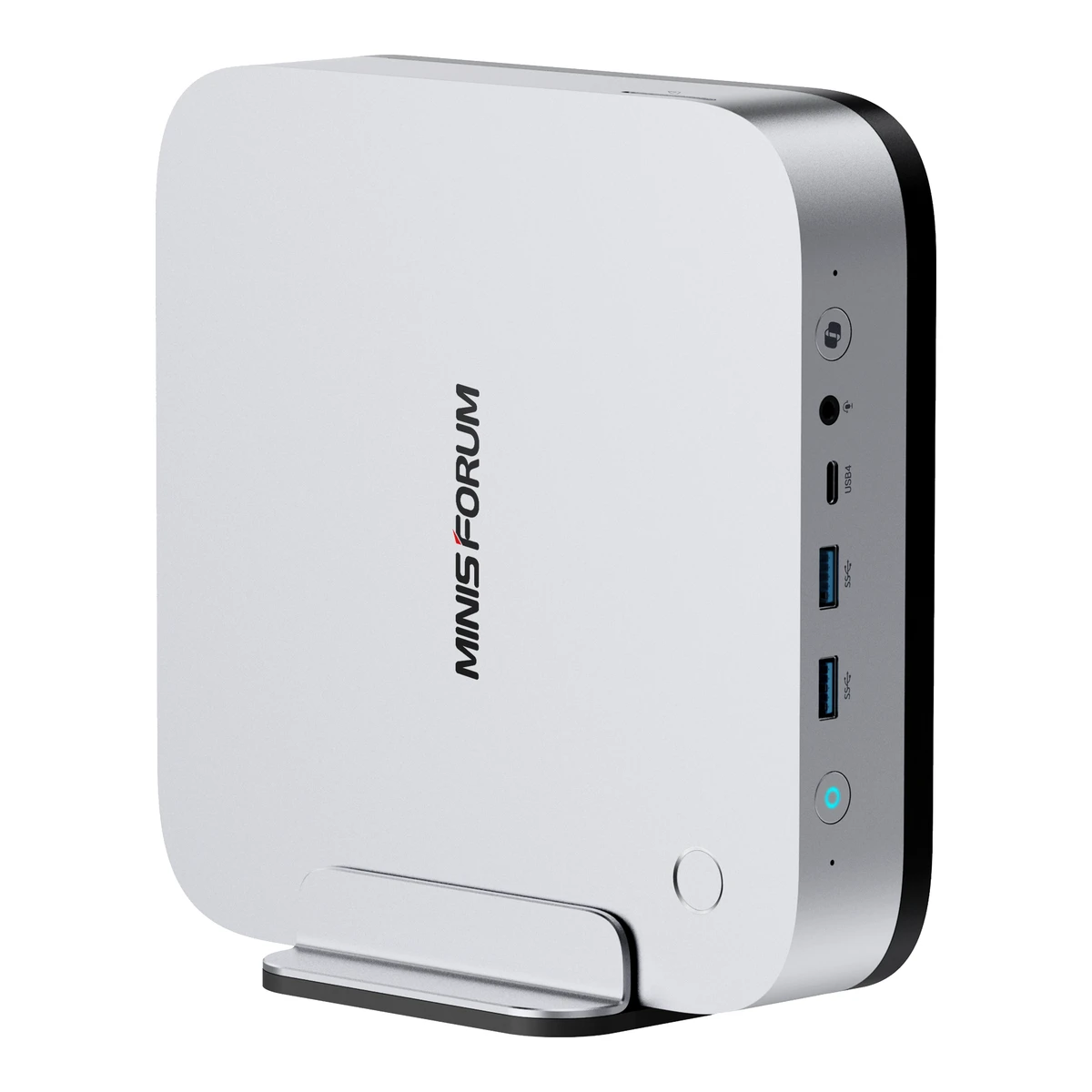

MINISFORUMMini PC desktop PC
AI X1 Pro-470
Released February 2026.2Retailer pagepc-canada.com/item/minisforum-ai-x1-pro-470-mini-desktop-computer/x1-pro-470-32-1t-Read 5 October 2026Exact retailer Date first available is February 7, 2026. Store month 2026-02, not January CES announcement or January 23 preorder. Contemporary reports scheduled shipping for February 10 or 12, so those planned dates are not claimed as actual retail days. The independent retailer first-availability date is the dated retail evidence. Last checked 16 October 2026.
- Form factor
- Mini PC
- Processor
- AMD Ryzen AI 9 HX 470
- GPU
- AMD Radeon 890M
- RAM
- 32GB
72 of 160 fields known.
At a glance
Ports
- 2 USB-A USB 3.2 Gen 2
- USB-C USB4User-facing ports
- 3.5 mm audio Headphone and microphone combo
- USB-A USB 2.0
- USB-C USB4Rear ports
- HDMI 2.1 FRL
- DisplayPort 2.0
- 2 Ethernet (RJ45) 2.5 Gigabit Ethernet
- OCuLink
- AC power input
General
- Model numbers
- AI X1 Pro-470, X1 PRO-470(32+1T)1Maker product pageminisforum.com/products/ai-x1-pro-470Read 8 October 2026Maker calls the product AI X1 Pro 470. Exact retail manufacturer part is X1 PRO-470(32+1T).
- GTIN / EAN
- Not available
- Announced
- Not available
- Predecessor
- Not available
- Successor
- Not available
- Launch price (US)
- Not available
- Launch price (EU)
- Not available
Case
Front and side, drawn to scale.
- Case dimensions
- Width195Height47.5Depth195mm(7.7 × 1.9 × 7.7 in)1Maker product pageminisforum.com/products/ai-x1-pro-470Read 8 October 2026Maker states LWH 195 x 195 x 42.5/47.5 mm. The published larger height 47.5 mm is retained for the assembled system, also stated by the matching review. The maker does not explain the height alternatives or bracket/feet scope, so no extra exclusion is inferred. Upright stand orientation is separate.8Reviewtechradar.com/computing/minisforum-ai-x1-pro-470-mini-pc-reviewRead 5 October 2026Design section independently states 195 x 195 x 47.5 mm assembled size.
- Case volume
- Not available
- Case model
- Not available
- Case materials
- Other, Plastic3Maker spec sheet (PDF)cdn.shopify.com/s/files/1/0900/3319/3266/files/MINISFORUM_Product_Manual_2026.pdfRead 5 October 2026Original maker spread explicitly calls the body metal. Metal type is unspecified, so use other. Matching reviewer additionally identifies the plastic bottom panel.7Reviewtomshardware.com/desktops/mini-pcs/minisforum-ai-x1-pro-470-reviewRead 5 October 2026Matching hands-on review identifies a metal alloy shell. TechRadar Design section additionally explicitly identifies the plastic bottom. Precise alloy remains unstated.8Reviewtechradar.com/computing/minisforum-ai-x1-pro-470-mini-pc-reviewRead 5 October 2026Design section explicitly describes metal top/sides and plastic base for the 32 GB/1 TB unit. Its wireless table says Intel BE200 while Tom's actual fitted card is MediaTek MT7925, so wifi_module remains omitted. Benchmarks are excluded because this reviewer added a 4 TB Samsung SSD and does not clearly separate all benchmark results before/after that change. Cinebench version is also unstated.
- Side panel
- Not available
- Front panel
- Not available
- Dust filters
- Not available
- VESA mount
- Not available
Display
We could not find any of these 6 fields. Show them
- Screen size
- Not available
- Native resolution
- Not available
- Panel type
- Not available
- Max refresh rate
- Not available
- Touchscreen
- Not available
- Brightness (SDR, claimed)
- Not available
Motherboard
- Motherboard
- Not available
- Chipset
- Not available
- Motherboard form factor
- Not available
- Expansion slots
Mechanical slot type Count Occupied M.2 E-key 1 Yes - PCIe x16 slots
- 0
- Free expansion slots
- 0
- Fan headers
- Not available
- Overclocking in BIOS
- Not available
Processor
- Processor
- AMD Ryzen AI 9 HX 4701Maker product pageminisforum.com/products/ai-x1-pro-470Read 8 October 2026
- Processor brand
- AMD5Maker product pageamd.com/en/products/processors/laptop/ryzen/ai-400-series/amd-ryzen-ai-9-hx-470.htmlRead 5 October 2026
- Processor codename
- Gorgon Point5Maker product pageamd.com/en/products/processors/laptop/ryzen/ai-400-series/amd-ryzen-ai-9-hx-470.htmlRead 5 October 2026
- Core configuration
Core type Count Core Base clock (GHz) Max core turbo clock (GHz) Performance 4 Zen 5 2 5.2 Efficiency 8 Zen 5c 2 3.3 Source5Maker product pageamd.com/en/products/processors/laptop/ryzen/ai-400-series/amd-ryzen-ai-9-hx-470.htmlRead 5 October 2026AMD architecture is 4x Zen 5 plus 8x Zen 5c. Zen 5 and Zen 5c base clocks are explicitly 2 GHz. AMD states Max Zen 5c Clock 3.3 GHz. Notebookcheck exact chip specification independently states 4x5.2 GHz Zen 5 and 8x3.3 GHz Zen 5c, rather than assigning an unrelated favored-core boost. It describes smaller Zen 5c as the more power-efficient version.6Spec databasenotebookcheck.net/AMD-Ryzen-AI-9-HX-470-Processor-Benchmarks-and-Specs.1197753.0.htmlRead 5 October 2026Chip specification table explicitly lists 4x5.2 GHz Zen 5 and 8x3.3 GHz Zen 5c. Architecture text distinguishes the smaller, more power-efficient Zen 5c cores. No aggregate benchmark from other PCs is transferred.- CPU cores
- 12
- Performance cores
- 4
- Efficiency cores
- 8
- Max core turbo clock
- 5.2GHz
- CPU core process node
- 4nm5Maker product pageamd.com/en/products/processors/laptop/ryzen/ai-400-series/amd-ryzen-ai-9-hx-470.htmlRead 5 October 2026
- CPU base power (chip rating)
- 28W5Maker product pageamd.com/en/products/processors/laptop/ryzen/ai-400-series/amd-ryzen-ai-9-hx-470.htmlRead 5 October 2026AMD Default TDP 28 W, separate from configurable 15-54 W range and the PC default BIOS PL2. Do not store 54 W cTDP as the chip base rating.
- Unlocked multiplier
- Not available
- NPU performance
- 55TOPS5Maker product pageamd.com/en/products/processors/laptop/ryzen/ai-400-series/amd-ryzen-ai-9-hx-470.htmlRead 5 October 2026Exact NPU throughput 55 TOPS. Notebookcheck specifies INT8. Maker page mislabels system-wide 86 TOPS as NPU, so that figure is excluded.6Spec databasenotebookcheck.net/AMD-Ryzen-AI-9-HX-470-Processor-Benchmarks-and-Specs.1197753.0.htmlRead 5 October 2026NPU / AI row explicitly 55 TOPS INT8.
Cooling
- CPU cooler
- Air1Maker product pageminisforum.com/products/ai-x1-pro-470Read 8 October 2026Cool, Quiet, Consistent section explicitly states Phase-Change Material (PCM), dual copper heatpipes and active airflow, sustaining peak loads. Claimed idle 37 C, full-load below 80 C and below 45 dB are maker claims, not transferred to measured fields.4Owner's manualpc-file.s3.us-west-1.amazonaws.com/AI+X1+Pro-470/user+manual/%E7%94%B5%E5%AD%90%E6%A1%A3%E8%AF%B4%E6%98%8E%E4%B9%A6+GPBAC-%E7%94%A8%E6%88%B7%E6%89%8B%E5%86%8C-%E5%A4%9A%E8%AF%AD%E8%A8%80-V1.0.pdfRead 5 October 2026Original manual installation drawings and maker cooling section show active air cooling, copper heat pipes and thermal interface material. CPU-cooler and PSU-attached secondary fan are not assigned to chassis-fan table rows.
- CPU cooler model
- Not available
- Radiator size
- Not available
- Radiator position
- Not available
- Case fans
- Not available
- Number of case fans
- Not available
Graphics
- GPU
- Not available
- GPU brand
- Not available
- Graphics card
- Not available
- VRAM
- Not available
- VRAM type
- Not available
- GPU board power
- Not available
- GPU boost clock
- Not available
- Graphics card length
- Not available
- Graphics card thickness
- Not available
- GPU power connector
- Not available
Memory
- Configured RAM speed
- 5,600MT/s7Reviewtomshardware.com/desktops/mini-pcs/minisforum-ai-x1-pro-470-reviewRead 5 October 2026Matching factory supplied single DDR5-5600 module, before reviewer upgrade. Maker maximum 5600 matches this configuration.
- Rated kit speed
- Not available
- Memory kit
- Not available
- Memory slots
Slot Count Occupied Module size (GB) SO-DIMM 1 Yes 32 SO-DIMM 1 No Not available - RAM slots
- 2
- Free RAM slots
- 1
- Max RAM for this CPU and GPU
- 128GB1Maker product pageminisforum.com/products/ai-x1-pro-470Read 8 October 2026Maker current specification and original 2026 catalogue state up to 128 GB in two SO-DIMM slots. Older launch reports state 96 GB. Use the current maker supported maximum for the unchanged HX470 system.
Storage
- Storage
- 1TB
- Installed drives
Capacity (GB) Type PCIe generation 1,000 NVMe SSD 4 - Storage slots and bays
Form factor Interface PCIe generation Count Occupied M.2 2280 PCIe NVMe 4 1 Yes M.2 2280 PCIe NVMe 4 2 No - M.2 slots
- 3
- Free M.2 slots
- 2
- Free drive bays
- 0
- Fastest storage-slot PCIe generation
- 4
Power supply
- PSU form factor
- Not available
- PSU efficiency
- Not available
- Modular cables
- Not available
- PSU model
- Not available
- ATX version
- Not available
- Native 12V-2x6 cable
- Not available
Ports
- User-facing I/O position
- Front1Maker product pageminisforum.com/products/ai-x1-pro-470Read 8 October 2026
- User-facing ports
Type Version Count Max stated link rate (Gbps) Thunderbolt or USB4 Power out (W) USB-A USB 3.2 Gen 2 2 10 Not available Not available USB-C USB4 1 40 USB4 15 3.5 mm audio Headphone and microphone combo 1 Not available Not available Not available - Rear ports
Type Version Count Max stated link rate (Gbps) Thunderbolt or USB4 Power out (W) DP Alt Mode Connected to USB-A USB 2.0 1 0.48 Not available Not available Not available Motherboard USB-C USB4 1 40 USB4 15 Yes Motherboard HDMI 2.1 FRL 1 Not available Not available Not available Not available Motherboard DisplayPort 2.0 1 Not available Not available Not available Not available Motherboard Ethernet (RJ45) 2.5 Gigabit Ethernet 2 2.5 Not available Not available Not available Motherboard OCuLink OCuLink 1 Not available Not available Not available Not available Motherboard AC power input Not available 1 Not available Not available Not available Not available Motherboard - User-facing USB ports
- 3
- User-facing USB-C ports
- 1
- Rear USB ports
- 2
- Thunderbolt
- No
- Ethernet speed
- 2.5Gbps
- Discrete GPU output ports
- 0
Wireless
- Wi-Fi bands
- Not available
- Wi-Fi module
- Not available
- Wi-Fi antenna
- Not available
- Ethernet controller
- Not available
Camera and audio
We could not find any of these 5 fields. Show them
- Webcam
- Not available
- Built-in speaker drivers
- Not available
- Total speaker power
- Not available
- Microphones
- Not available
- Audio features
- Not available
Lighting
We could not find any of these 4 fields. Show them
- RGB lighting
- Not available
- Lit parts
- Not available
- Lighting standard
- Not available
- Lighting software
- Not available
Software
- Operating system
- Windows 11 Pro2Retailer pagepc-canada.com/item/minisforum-ai-x1-pro-470-mini-desktop-computer/x1-pro-470-32-1t-Read 5 October 2026Installed Windows 11 Pro in the completed 32 GB / 1 TB reference. Barebone OS support is not treated as an installed license.
- OS family
- Windows2Retailer pagepc-canada.com/item/minisforum-ai-x1-pro-470-mini-desktop-computer/x1-pro-470-32-1t-Read 5 October 2026
- Control software
- Not available
Upgradeability
We could not find any of these 4 fields. Show them
- Proprietary parts
- Not available
- Max graphics card length
- Not available
- Max CPU cooler height
- Not available
- Warranty kept after upgrade
- Not available
Measured performance
- Cinebench 2024 single-core
- Not available
- Cinebench 2024 multi-core
- Not available
- Geekbench multi-core
- 11,319points7Reviewtomshardware.com/desktops/mini-pcs/minisforum-ai-x1-pro-470-reviewRead 5 October 2026Same factory 1x32 GB reference and test conditions as the single-core result.
- 3DMark Time Spy graphics
- Not available
- 3DMark Steel Nomad
- Not available
- SSD sequential read (measured)
- Not available
- Game frame rates
Game Width (px) Height (px) Preset Average FPS Borderlands 3 1920 1080 Medium 29.45 Shadow of the Tomb Raider 1920 1080 Medium 25 Far Cry 5 1920 1080 Normal 28 Cyberpunk 2077 1920 1080 Steam Deck 27.2
Measured noise and temperature
We could not find any of these 6 fields. Show them
- Fan noise per load
- Not available
- Highest measured fan noise
- Not available
- Measured fan noise at idle
- Not available
- CPU temperature in stress test
- Not available
- CPU clock in stress test
- Not available
- GPU temperature while gaming
- Not available
Measured power
We could not find any of these 6 fields. Show them
- Power draw idle
- Not available
- Power draw gaming
- Not available
- Power draw max
- Not available
- Power draw sleep or off
- Not available
- Sustained CPU power (measured)
- Not available
- GPU power while gaming (measured)
- Not available
Certifications
We could not find any of these 5 fields. Show them
- ENERGY STAR
- Not available
- EPEAT
- Not available
- Copilot+ PC
- Not available
- Typical annual energy consumption (TEC)
- Not available
- Other certifications
- Not available
In the box
- In the box
- Mini PC, Power cord, HDMI cable, Mounting screws, Monitor mounting bracket, Vertical stand, SSD heat sink, User manual4Owner's manualpc-file.s3.us-west-1.amazonaws.com/AI+X1+Pro-470/user+manual/%E7%94%B5%E5%AD%90%E6%A1%A3%E8%AF%B4%E6%98%8E%E4%B9%A6+GPBAC-%E7%94%A8%E6%88%B7%E6%89%8B%E5%86%8C-%E5%A4%9A%E8%AF%AD%E8%A8%80-V1.0.pdfRead 5 October 2026Printed pages 2-4 list PC, power cord, HDMI cable, mounting screw set, Mini PC suspension stand, base bracket, SSD heat sink and manual. Power cord varies with region. Matching reviewed 32/1 TB device explicitly includes vertical and VESA mounts. PC-Canada says Power Adapter and Cable, but the maker guide and actual PC have an internal supply and no external power brick.
Warranty
- Manufacturer warranty (source market)
- 2years9Maker product pagestore.minisforum.com/products/minisforum-ai-x1-pro-470-mini-pcRead 8 October 2026Exact US maker listing states a standard two-year seller warranty. The general maker policy also gives mini PCs two years. A separate direct-store promotion adds a year for eligible purchases after March 9, 2026. That conditional extension is excluded.10Maker product pageminisforum.com/pages/warranty-policyRead 8 October 2026Warranty table: MINI PC, two years. Standard manufacturer coverage for the represented US model. Retailer B&H independently lists a limited two-year manufacturer warranty for X1 PRO-470(32+1T).
Links
- Product page
- www.minisforum.com/products/ai-x1-pro-4701Maker product pageminisforum.com/products/ai-x1-pro-470Read 8 October 2026Reference is the sold 32 GB / 1 TB Windows 11 Pro configuration with one 32 GB SO-DIMM. It is not the HX370 model, the AI X1 non-Pro model, barebone kit, or reviewer-upgraded 64 GB system. The maker lists it under AI Mini PC. Processor, Memory, Storage and I/O specification sections reopened.
- Spec sheet
- cdn.shopify.com/s/files/1/0900/3319/3266/files/MINISFORUM_Product_Manual_2026.pdf3Maker spec sheet (PDF)cdn.shopify.com/s/files/1/0900/3319/3266/files/MINISFORUM_Product_Manual_2026.pdfRead 5 October 2026Original maker Product Manual 2026 catalogue AI X1 Pro-470 spread. Product photograph/heading and detailed table fully read. HX470, two SO-DIMMs, 128 GB max, two Gen4x4 and one Gen4x1 M.2, Wi-Fi 7 / Bluetooth 5.4, 2.5G ports and built-in supply are published.
- Manual
- pc-file.s3.us-west-1.amazonaws.com/AI+X1+Pro-470/user+manual/%E7%94%B5%E5%AD%90%E6%A1%A3%E8%AF%B4%E6%98%8E%E4%B9%A6+GPBAC-%E7%94%A8%E6%88%B7%E6%89%8B%E5%86%8C-%E5%A4%9A%E8%AF%AD%E8%A8%80-V1.0.pdf4Owner's manualpc-file.s3.us-west-1.amazonaws.com/AI+X1+Pro-470/user+manual/%E7%94%B5%E5%AD%90%E6%A1%A3%E8%AF%B4%E6%98%8E%E4%B9%A6+GPBAC-%E7%94%A8%E6%88%B7%E6%89%8B%E5%86%8C-%E5%A4%9A%E8%AF%AD%E8%A8%80-V1.0.pdfRead 5 October 2026Original maker multilingual GPBAC User Manual V1.0, copyright 2025-2026, directly linked under AI X1 Pro-470 on the manufacturer Drivers and Downloads page. Full PDF downloaded and read. This is not an AI-generated manual or the older HX370 page.
- EPREL registration number
- Not available
Compare with
Pick a desktop PC to see both side by side. Differences are marked yellow.
Sources
We read 11 sources for this desktop PC. The numbers match the markers in the sheet.
- Maker product pageminisforum.com/products/ai-x1-pro-470
- Maker spec sheet (PDF)cdn.shopify.com/s/files/1/0900/3319/3266/files/MINISFORUM_Product_Manual_2026.pdf
- Maker product pagestore.minisforum.com/products/minisforum-ai-x1-pro-470-mini-pc
- Maker product pageminisforum.com/pages/warranty-policy
See a wrong value? Tell us and name the field.
