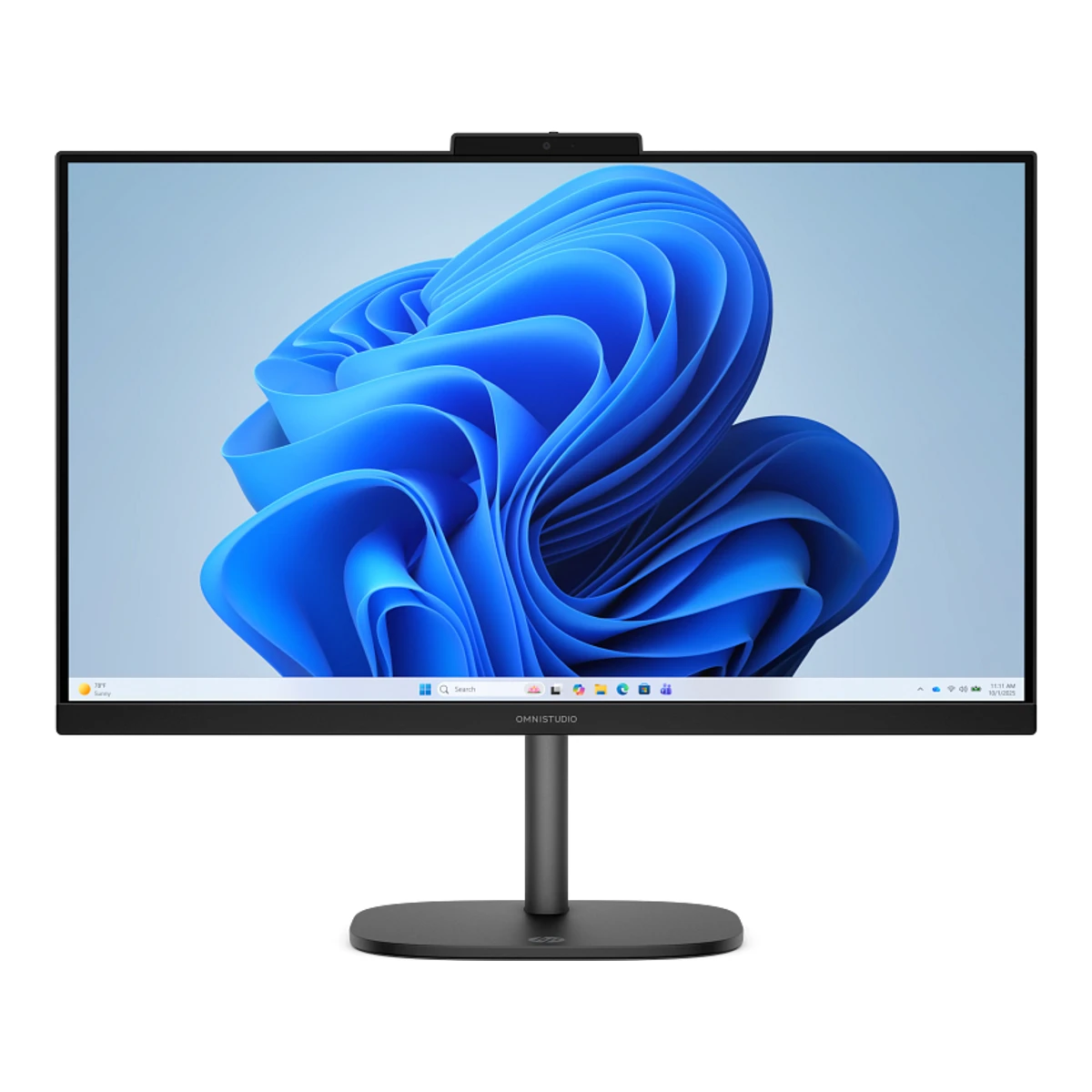

HP OmniStudio All-in-One 24-cv0000m (Ryzen 3 30)

HPMainstream desktop PC

OmniStudio All-in-One 24-cv0000m (Ryzen 3 30)

Released December 2025.4Certification listdata.energystar.gov/resource/rxdj-2c88.jsonRead 16 October 2026ENERGY STAR record for the HP OmniStudio 23.8 inch All-in-One Desktop PC 24-cv family: certified 2025-11-14 and available on the market 2025-12-30. The date covers the family and its tested Ryzen 5 configuration, not the Ryzen 3 30 SKU. AMD's Ryzen 3 30 launched on 2025-10-01. No HP launch announcement for this SKU was found. Last checked 16 October 2026.

Form factor
All-in-one
Processor
AMD Ryzen 3 30
GPU
AMD Radeon 610M
RAM
8GB

61 of 160 fields known.

Compare with another desktop PCDownload JSONDownload CSVGet it from the API

At a glance

Ports

  • 2 USB-C USB Type-C 10Gbps signaling rate
  • USB-A USB Type-A 10Gbps signaling rate
  • 2 USB-A USB 2.0
  • 3.5 mm audio Headphone/microphone combo
  • Ethernet (RJ45) Gigabit Ethernet
  • HDMI 2.0b output
  • DC in 90 W AC power adapter input

All specs

SourceCalculated

General

Series
OmniStudio1Maker product pagehp.com/us-en/shop/pdp/hp-omnistudio-all-in-one-desktop-24-cv0000m-pc-24-c17tqav-1Read 16 October 2026Page family HP OmniStudio, line HP OmniStudio 23.8 inch All-in-One Desktop PC 24-cv000.
Model numbers
24-cv0000m, C17TQAV1Maker product pagehp.com/us-en/shop/pdp/hp-omnistudio-all-in-one-desktop-24-cv0000m-pc-24-c17tqav-1Read 16 October 2026Page product # C17TQAV_1 and title 24-cv0000m. The HP spec sheet names the base unit C17TQAV.2Maker spec sheet (PDF)pcb.inc.hp.com/dc/api/spec-sheet/us-en/2103624975/pdf/C17TQAV.pdfRead 16 October 2026Title: HP W/K PHTM 24-cv0000m Base DT PC (C17TQAV).
GTIN / EAN
1994850311561Maker product pagehp.com/us-en/shop/pdp/hp-omnistudio-all-in-one-desktop-24-cv0000m-pc-24-c17tqav-1Read 16 October 2026Embedded product data: upc 199485031156 and gtin 0199485031156 for C17TQAV_1.
Announced
Not available
Status
Available1Maker product pagehp.com/us-en/shop/pdp/hp-omnistudio-all-in-one-desktop-24-cv0000m-pc-24-c17tqav-1Read 16 October 2026The page is live with a customize and buy button and is not marked out of stock. HP shows promotional prices that are not stored as a launch price.
Predecessor
Not available
Successor
Not available
Launch price (US)
Not available
Launch price (EU)
Not available
Markets
US1Maker product pagehp.com/us-en/shop/pdp/hp-omnistudio-all-in-one-desktop-24-cv0000m-pc-24-c17tqav-1Read 16 October 2026US store page.
Colours
Jet black, Cotton white, Denim blue, Amethyst haze1Maker product pagehp.com/us-en/shop/pdp/hp-omnistudio-all-in-one-desktop-24-cv0000m-pc-24-c17tqav-1Read 16 October 2026Embedded colour options for this product: jet black (default), cotton white, denim blue and amethyst haze. HP writes the names in lower case.
Segment
Mainstream1Maker product pagehp.com/us-en/shop/pdp/hp-omnistudio-all-in-one-desktop-24-cv0000m-pc-24-c17tqav-1Read 16 October 2026HP files it under HP Home Desktop PCs.
Form factor
All-in-one2Maker spec sheet (PDF)pcb.inc.hp.com/dc/api/spec-sheet/us-en/2103624975/pdf/C17TQAV.pdfRead 16 October 2026Specifications table: form factor All-in-One.

Case

Front and side, drawn to scale.

Case dimensions
Width540.3Height446.6Depth184.8mm(21.3 × 17.6 × 7.3 in)2Maker spec sheet (PDF)pcb.inc.hp.com/dc/api/spec-sheet/us-en/2103624975/pdf/C17TQAV.pdfRead 16 October 2026Specifications table: 54.03 x 18.48 x 44.66 cm W x D x H with the Fix Height Stand, which is 540.3 mm wide, 184.8 mm deep and 446.6 mm high. With the Height Adjustable Stand the height is 48.56 cm at maximum and 38.56 cm at minimum. The sheet lists Stand type Entry and the overview says tiltable stand, so the fixed-height stand figures are stored.
Case volume
Not available
Weight
4.98kg(11 lb)2Maker spec sheet (PDF)pcb.inc.hp.com/dc/api/spec-sheet/us-en/2103624975/pdf/C17TQAV.pdfRead 16 October 2026Specifications table: 4.98 kg (Fix Height Stand) and 5.05 kg (Height Adjustable stand). The fixed-height figure is stored for the same reason as the size. The packed weight is 10.15 kg.
Case model
Not available
Case materials
Not available
Side panel
Not available
Front panel
Not available
Tool-less side panel
Not available
Dust filters
Not available
VESA mount
Not available

Display

Screen size
23.8in(60.5 cm)1Maker product pagehp.com/us-en/shop/pdp/hp-omnistudio-all-in-one-desktop-24-cv0000m-pc-24-c17tqav-1Read 16 October 2026Key points: 23.8" diagonal. The sibling spec sheets write 60.5 cm (23.8").
Native resolution
1920 × 1080px1Maker product pagehp.com/us-en/shop/pdp/hp-omnistudio-all-in-one-desktop-24-cv0000m-pc-24-c17tqav-1Read 16 October 2026Key points: FHD (1920 x 1080).
Panel type
IPS1Maker product pagehp.com/us-en/shop/pdp/hp-omnistudio-all-in-one-desktop-24-cv0000m-pc-24-c17tqav-1Read 16 October 2026Key points: UWVA, IPS. HP calls the panel UWVA IPS, so the IPS option is used.
Max refresh rate
100Hz1Maker product pagehp.com/us-en/shop/pdp/hp-omnistudio-all-in-one-desktop-24-cv0000m-pc-24-c17tqav-1Read 16 October 2026Key points: 100 Hz.
Touchscreen
Not available
Brightness (SDR, claimed)
350nits1Maker product pagehp.com/us-en/shop/pdp/hp-omnistudio-all-in-one-desktop-24-cv0000m-pc-24-c17tqav-1Read 16 October 2026Key points: 350 nits, anti-glare, Low Blue Light, 100% sRGB. HP does not state the measurement conditions, so it is taken as the ordinary rating.

Motherboard

Motherboard
Not available
Chipset
AMD integrated SoC2Maker spec sheet (PDF)pcb.inc.hp.com/dc/api/spec-sheet/us-en/2103624975/pdf/C17TQAV.pdfRead 16 October 2026Specifications table: chipset AMD integrated SoC.
Motherboard form factor
Not available
CPU socket
FT63Maker product pageamd.com/en/products/processors/laptop/ryzen/10-series/amd-ryzen-3-30.htmlRead 16 October 2026CPU Socket: FT6. The HP spec sheet lists the socket as BGA.
Expansion slots
Mechanical slot typeCountOccupied
M.2 E-key1Yes
Source2Maker spec sheet (PDF)pcb.inc.hp.com/dc/api/spec-sheet/us-en/2103624975/pdf/C17TQAV.pdfRead 16 October 2026Specifications table: expansion slots 2 M.2 (1 for SSD loaded, 1 for WLAN loaded). The WLAN slot is stored as the E-key slot, which the sheet does not name.
PCIe x16 slots
0
Free expansion slots
0
Fan headers
Not available
Overclocking in BIOS
Not available

Processor

Processor
AMD Ryzen 3 301Maker product pagehp.com/us-en/shop/pdp/hp-omnistudio-all-in-one-desktop-24-cv0000m-pc-24-c17tqav-1Read 16 October 2026Key points: AMD Ryzen 3 30 with up to 4.1 GHz max boost clock, 4 MB L3 cache, 4 cores and 8 threads, plus AMD Radeon Graphics.
Processor brand
AMD3Maker product pageamd.com/en/products/processors/laptop/ryzen/10-series/amd-ryzen-3-30.htmlRead 16 October 2026
Processor codename
Mendocino3Maker product pageamd.com/en/products/processors/laptop/ryzen/10-series/amd-ryzen-3-30.htmlRead 16 October 2026Former Codename: Mendocino. Processor Architecture: Zen 2. Launch Date 10/1/2025.
Core configuration
Core typeCountCoreBase clock (GHz)Max core turbo clock (GHz)
Performance4Zen 22.44.1
Source3Maker product pageamd.com/en/products/processors/laptop/ryzen/10-series/amd-ryzen-3-30.htmlRead 16 October 20264 CPU cores, base clock 2.4 GHz and up to 4.1 GHz max boost. All cores are one Zen 2 type. HP's store line (4 cores, 8 threads, up to 4.1 GHz, 4 MB L3) matches.
CPU cores
4
Performance cores
4
Efficiency cores
0
Threads
83Maker product pageamd.com/en/products/processors/laptop/ryzen/10-series/amd-ryzen-3-30.htmlRead 16 October 20268 threads with SMT.
Max core turbo clock
4.1GHz
L3 cache
4MB3Maker product pageamd.com/en/products/processors/laptop/ryzen/10-series/amd-ryzen-3-30.htmlRead 16 October 2026L3 cache 4 MB.
CPU core process node
6nm3Maker product pageamd.com/en/products/processors/laptop/ryzen/10-series/amd-ryzen-3-30.htmlRead 16 October 2026Processor Technology for CPU Cores: TSMC 6nm FinFET.
CPU base power (chip rating)
15W3Maker product pageamd.com/en/products/processors/laptop/ryzen/10-series/amd-ryzen-3-30.htmlRead 16 October 2026Default TDP 15W. This is AMD's chip rating, not the PC maker's configured limit.
Peak CPU power (configured)
Not available
Unlocked multiplier
No3Maker product pageamd.com/en/products/processors/laptop/ryzen/10-series/amd-ryzen-3-30.htmlRead 16 October 2026Unlocked for Overclocking: No.
NPU performance
Not available
Integrated GPU
AMD Radeon 610M3Maker product pageamd.com/en/products/processors/laptop/ryzen/10-series/amd-ryzen-3-30.htmlRead 16 October 2026Graphics Model: AMD Radeon 610M, 2 graphics cores at 1900 MHz. HP's store line says AMD Radeon Graphics.

Cooling

We could not find any of these 6 fields. Show them
CPU cooler
Not available
CPU cooler model
Not available
Radiator size
Not available
Radiator position
Not available
Case fans
Not available
Number of case fans
Not available

Graphics

Discrete GPU
No1Maker product pagehp.com/us-en/shop/pdp/hp-omnistudio-all-in-one-desktop-24-cv0000m-pc-24-c17tqav-1Read 16 October 2026Key points list only AMD Radeon Graphics with the processor.
GPU
Not available
GPU brand
Not available
Graphics card
Not available
VRAM
Not available
VRAM type
Not available
GPU board power
Not available
GPU boost clock
Not available
Graphics card length
Not available
Graphics card thickness
Not available
GPU power connector
Not available

Memory

RAM
8GB1Maker product pagehp.com/us-en/shop/pdp/hp-omnistudio-all-in-one-desktop-24-cv0000m-pc-24-c17tqav-1Read 16 October 2026Key points: 8GB LPDDR5X 5500 MT/s (onboard).
RAM type
LPDDR5X1Maker product pagehp.com/us-en/shop/pdp/hp-omnistudio-all-in-one-desktop-24-cv0000m-pc-24-c17tqav-1Read 16 October 2026Key points: LPDDR5X.
Configured RAM speed
5,500MT/s1Maker product pagehp.com/us-en/shop/pdp/hp-omnistudio-all-in-one-desktop-24-cv0000m-pc-24-c17tqav-1Read 16 October 2026Key points: 5500 MT/s. This is the memory transfer rate HP lists, and no separate configured speed is given.
Rated kit speed
Not available
Memory kit
Not available
RAM upgrade
Soldered1Maker product pagehp.com/us-en/shop/pdp/hp-omnistudio-all-in-one-desktop-24-cv0000m-pc-24-c17tqav-1Read 16 October 2026Key points: the memory is onboard, which is soldered to the board.
Memory slots
Not available
RAM slots
Not available
Free RAM slots
Not available
Max RAM for this CPU and GPU
Not available
ECC memory
Not available

Storage

Storage
256GB
Installed drives
Capacity (GB)Type
256NVMe SSD
Source1Maker product pagehp.com/us-en/shop/pdp/hp-omnistudio-all-in-one-desktop-24-cv0000m-pc-24-c17tqav-1Read 16 October 2026Key points: 256 GB PCIe NVMe M.2 SSD. Stored as 256 decimal GB. The drive make and PCIe generation are not stated.
Storage slots and bays
InterfaceCountOccupied
PCIe NVMe1Yes
Source2Maker spec sheet (PDF)pcb.inc.hp.com/dc/api/spec-sheet/us-en/2103624975/pdf/C17TQAV.pdfRead 16 October 2026Same row: one M.2 slot holds the SSD. The slot form factor and PCIe generation are not stated.
M.2 slots
Not available
Free M.2 slots
0
Free drive bays
0
Fastest storage-slot PCIe generation
Not available

Power supply

PSU rated output
90W2Maker spec sheet (PDF)pcb.inc.hp.com/dc/api/spec-sheet/us-en/2103624975/pdf/C17TQAV.pdfRead 16 October 2026Specifications table: power supply type 90 W AC power adapter.
PSU form factor
External adapter2Maker spec sheet (PDF)pcb.inc.hp.com/dc/api/spec-sheet/us-en/2103624975/pdf/C17TQAV.pdfRead 16 October 2026An external AC adapter. ENERGY STAR also lists an external power supply of 90 W.
PSU efficiency
Not available
Modular cables
Not available
PSU model
Not available
ATX version
Not available
Native 12V-2x6 cable
Not available

Ports

User-facing I/O position
Not available
User-facing ports
Not available
Rear ports
TypeVersionCountMax stated link rate (Gbps)Connected to
USB-CUSB Type-C 10Gbps signaling rate210Motherboard
USB-AUSB Type-A 10Gbps signaling rate110Motherboard
USB-AUSB 2.020.48Motherboard
3.5 mm audioHeadphone/microphone combo1Not availableNot available
Ethernet (RJ45)Gigabit Ethernet11Motherboard
HDMI2.0b output1Not availableMotherboard
DC in90 W AC power adapter input1Not availableNot available
Source2Maker spec sheet (PDF)pcb.inc.hp.com/dc/api/spec-sheet/us-en/2103624975/pdf/C17TQAV.pdfRead 16 October 2026Specifications table: video connector 1 HDMI-out 2.0b. Ports: 2 USB Type-C 10Gbps signaling rate, 1 USB Type-A 10Gbps signaling rate, 2 USB 2.0 Type-A, 1 headphone/microphone combo and 1 RJ-45. I/O port location: Rear. Additional specifications: USB Type-A 3 and USB Type-C 2. The 90 W AC power adapter implies a DC input jack, which the sheet does not list, so one dc_in is added. The sheet does not state video modes for the USB-C ports.
User-facing USB ports
Not available
User-facing USB-C ports
Not available
Rear USB ports
5
Thunderbolt
Not available
Ethernet speed
1Gbps
Discrete GPU output ports
Not available

Wireless

Wi-Fi
Wi-Fi 61Maker product pagehp.com/us-en/shop/pdp/hp-omnistudio-all-in-one-desktop-24-cv0000m-pc-24-c17tqav-1Read 16 October 2026Overview text says fast Wi-Fi with a footnote that describes Wi-Fi 6 (802.11ax). The wireless module and Bluetooth version are not listed for this SKU. Other regional OmniStudio 24 models list Wi-Fi 6 or Wi-Fi 7 with different modules, so no module is stored.
Wi-Fi bands
Not available
Wi-Fi module
Not available
Wi-Fi antenna
Not available
Bluetooth
Not available
Ethernet controller
Realtek RTL8111HSH-CG2Maker spec sheet (PDF)pcb.inc.hp.com/dc/api/spec-sheet/us-en/2103624975/pdf/C17TQAV.pdfRead 16 October 2026Specifications table: network interface Realtek RTL8111HSH-CG GbE NIC. The GbE label gives the 1 Gbps rate.

Camera and audio

Webcam
1080p webcam with camera privacy shutter1Maker product pagehp.com/us-en/shop/pdp/hp-omnistudio-all-in-one-desktop-24-cv0000m-pc-24-c17tqav-1Read 16 October 2026Overview text: 1080p webcam. The spec sheet adds a camera privacy shutter. Whether the camera has an IR sensor is not stated for this SKU.2Maker spec sheet (PDF)pcb.inc.hp.com/dc/api/spec-sheet/us-en/2103624975/pdf/C17TQAV.pdfRead 16 October 2026Specifications table: security management Camera privacy shutter.
Built-in speaker drivers
22Maker spec sheet (PDF)pcb.inc.hp.com/dc/api/spec-sheet/us-en/2103624975/pdf/C17TQAV.pdfRead 16 October 2026Specifications table: Audio Dual 3 W speakers, so two drivers.
Total speaker power
6W2Maker spec sheet (PDF)pcb.inc.hp.com/dc/api/spec-sheet/us-en/2103624975/pdf/C17TQAV.pdfRead 16 October 2026Dual 3 W speakers: two speakers of 3 W each, 6 W combined. HP states the per-speaker figure.
Microphones
Not available
Audio features
Dual 3 W stereo speakers2Maker spec sheet (PDF)pcb.inc.hp.com/dc/api/spec-sheet/us-en/2103624975/pdf/C17TQAV.pdfRead 16 October 2026Specifications table: Audio Dual 3 W speakers. The features list names dual stereo speakers.

Lighting

We could not find any of these 4 fields. Show them
RGB lighting
Not available
Lit parts
Not available
Lighting standard
Not available
Lighting software
Not available

Software

Operating system
Windows 11 Home1Maker product pagehp.com/us-en/shop/pdp/hp-omnistudio-all-in-one-desktop-24-cv0000m-pc-24-c17tqav-1Read 16 October 2026Key points: Windows 11 Home.2Maker spec sheet (PDF)pcb.inc.hp.com/dc/api/spec-sheet/us-en/2103624975/pdf/C17TQAV.pdfRead 16 October 2026Specifications table: Windows 11 Home.
OS family
Windows1Maker product pagehp.com/us-en/shop/pdp/hp-omnistudio-all-in-one-desktop-24-cv0000m-pc-24-c17tqav-1Read 16 October 2026Windows 11 Home is preinstalled.
Control software
Not available

Upgradeability

We could not find any of these 4 fields. Show them
Proprietary parts
Not available
Max graphics card length
Not available
Max CPU cooler height
Not available
Warranty kept after upgrade
Not available

Measured performance

We could not find any of these 8 fields. Show them
Cinebench 2024 single-core
Not available
Cinebench 2024 multi-core
Not available
Geekbench single-core
Not available
Geekbench multi-core
Not available
3DMark Time Spy graphics
Not available
3DMark Steel Nomad
Not available
SSD sequential read (measured)
Not available
Game frame rates
Not available

Measured noise and temperature

We could not find any of these 6 fields. Show them
Fan noise per load
Not available
Highest measured fan noise
Not available
Measured fan noise at idle
Not available
CPU temperature in stress test
Not available
CPU clock in stress test
Not available
GPU temperature while gaming
Not available

Measured power

We could not find any of these 6 fields. Show them
Power draw idle
Not available
Power draw gaming
Not available
Power draw max
Not available
Power draw sleep or off
Not available
Sustained CPU power (measured)
Not available
GPU power while gaming (measured)
Not available

Certifications

ENERGY STAR
Yes1Maker product pagehp.com/us-en/shop/pdp/hp-omnistudio-all-in-one-desktop-24-cv0000m-pc-24-c17tqav-1Read 16 October 2026Page tag ENERGY STAR | Home and the overview text say ENERGY STAR registered.2Maker spec sheet (PDF)pcb.inc.hp.com/dc/api/spec-sheet/us-en/2103624975/pdf/C17TQAV.pdfRead 16 October 2026Specifications table: Energy Star certified, ENERGY STAR certified.4Certification listdata.energystar.gov/resource/rxdj-2c88.jsonRead 16 October 2026The record covers model number 24-cv and names the OmniStudio 24-cv in its model list. The TEC of its tested Ryzen 5 and 64 GB configuration is not this SKU's value and is not stored.
EPEAT
Not available
Copilot+ PC
Not available
Typical annual energy consumption (TEC)
Not available
Other certifications
Not available

In the box

We could not find any of these 2 fields. Show them
In the box
Not available
Included extras
Not available

Warranty

Manufacturer warranty (source market)
1year1Maker product pagehp.com/us-en/shop/pdp/hp-omnistudio-all-in-one-desktop-24-cv0000m-pc-24-c17tqav-1Read 16 October 2026Embedded data: 1-year limited hardware warranty support.2Maker spec sheet (PDF)pcb.inc.hp.com/dc/api/spec-sheet/us-en/2103624975/pdf/C17TQAV.pdfRead 16 October 2026Specifications table: manufacturer warranty 1-year limited hardware warranty support.
Warranty service
Not available

Compare with

Pick a desktop PC to see both side by side. Differences are marked yellow.

More desktop PC comparisons

Sources

We read 4 sources for this desktop PC. The numbers match the markers in the sheet.

  1. Read 16 October 2026Backs 26 fields
  2. Read 16 October 2026Backs 19 fields
  3. Read 16 October 2026Backs 10 fields
  4. Read 16 October 2026Backs 2 fields

See a wrong value? Tell us and name the field.
