HPWorkstation desktop PC

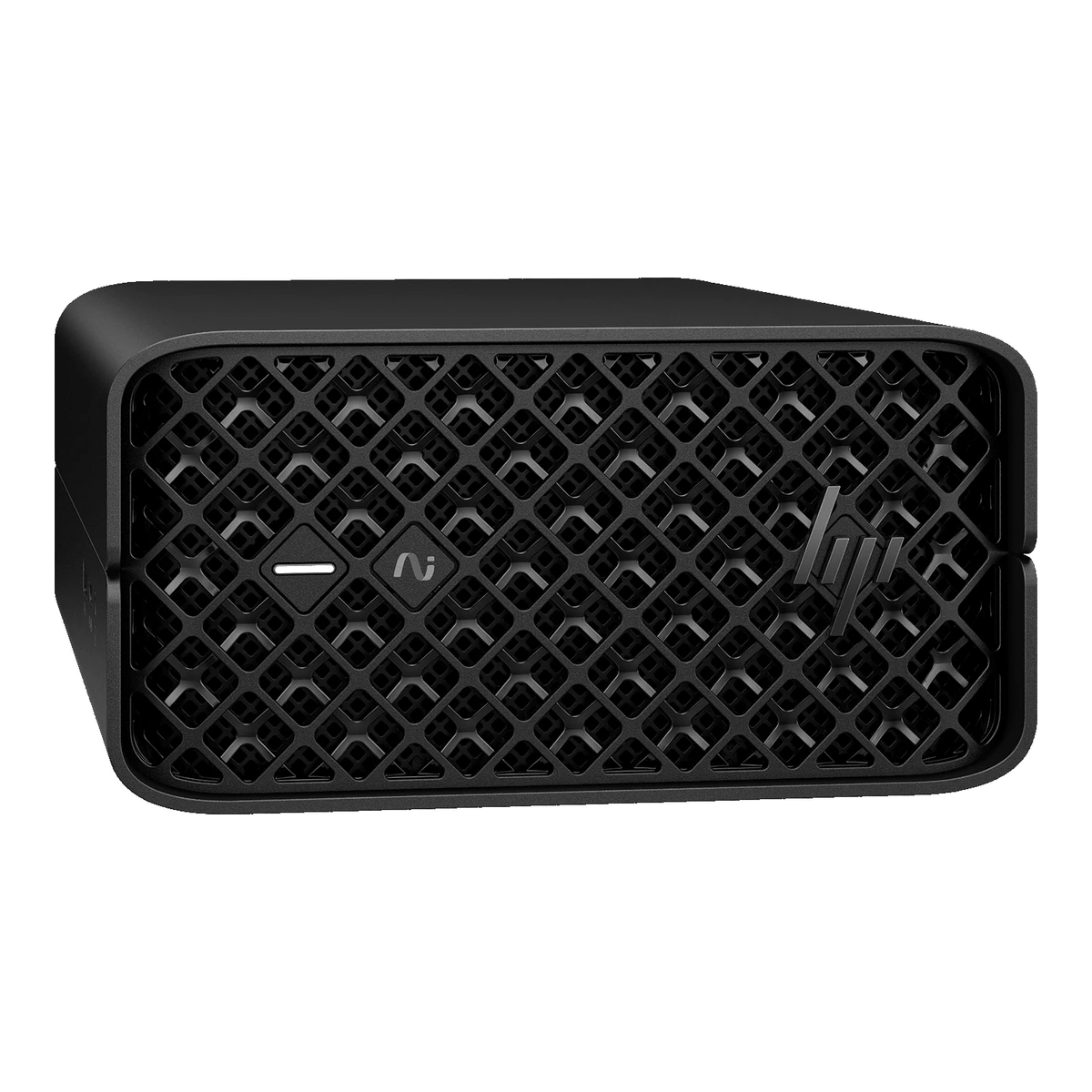

Z2 Mini G1a Workstation
- Form factor
- Mini PC
- Processor
- AMD Ryzen AI Max+ PRO 395
- GPU
- AMD Radeon 8060S
- RAM
- 64GB
68 of 160 fields known.
At a glance
Ports
- USB-A USB 3.2 Gen 2User-facing ports
- USB-C USB 3.2 Gen 2, DisplayPort 2.1 Alt Mode
- 3.5 mm audio Headphone and microphone combo
- Ethernet (RJ45) 2.5GbE
- 2 Mini DisplayPort DisplayPort 2.1 UHBR10
- 2 USB-A USB 3.2 Gen 2Rear ports
- 2 USB-A USB 2.0
- 2 USB-C Thunderbolt 4
- Other Power connector
General
- Predecessor
- Not available
- Successor
- Not available
- Launch price (US)
- Not available
- Launch price (EU)
- Not available
Case
Front and side, drawn to scale.
- Case dimensions
- Width168Height85.5Depth200mm(6.6 × 3.4 × 7.9 in)1Maker spec sheet (PDF)cdn.iceshop.nl/objects/mmo_131041810_1786031924_7283_887348.pdfRead 15 October 2026Chassis dimensions H 3.4 in (8.55 cm), W 6.6 in (16.8 cm), D 7.9 in (20 cm) in standard desktop orientation. HP rounds to 0.1 cm. Stored as 85.5 x 168 x 200 mm.
- Case volume
- Not available
- Case model
- Not available
- Case materials
- Not available
- Side panel
- Not available
- Front panel
- Not available
- Dust filters
- Not available
- VESA mount
- Not available
Display
We could not find any of these 6 fields. Show them
- Screen size
- Not available
- Native resolution
- Not available
- Panel type
- Not available
- Max refresh rate
- Not available
- Touchscreen
- Not available
- Brightness (SDR, claimed)
- Not available
Motherboard
- Motherboard
- Not available
- Chipset
- Not available
- Motherboard form factor
- Proprietary1Maker spec sheet (PDF)cdn.iceshop.nl/objects/mmo_131041810_1786031924_7283_887348.pdfRead 15 October 2026System board is 182 x 160.57 mm, which is a HP-specific size and not a standard class.
- CPU socket
- FP111Maker spec sheet (PDF)cdn.iceshop.nl/objects/mmo_131041810_1786031924_7283_887348.pdfRead 15 October 2026HP: Processor Socket Single BGA-2077. AMD names the package FP11.5Maker product pageamd.com/en/products/processors/laptop/ryzen-pro/ai-max-pro-300-series/amd-ryzen-ai-max-plus-pro-395.htmlRead 15 October 2026CPU Socket FP11.
- Expansion slots
Mechanical slot type Electrical lanes PCIe generation Count Occupied M.2 E-key 2 3 1 Yes - PCIe x16 slots
- 0
- Free expansion slots
- 0
- Overclocking in BIOS
- Not available
Processor
- Processor
- AMD Ryzen AI Max+ PRO 3951Maker spec sheet (PDF)cdn.iceshop.nl/objects/mmo_131041810_1786031924_7283_887348.pdfRead 15 October 2026Processors table: AMD Ryzen AI MAX+ PRO 395, 16 cores, 32 threads, 5.10/3.00 GHz, 64 MB cache, Radeon 8060S.
- Processor brand
- AMD5Maker product pageamd.com/en/products/processors/laptop/ryzen-pro/ai-max-pro-300-series/amd-ryzen-ai-max-plus-pro-395.htmlRead 15 October 2026
- Processor codename
- Strix Halo5Maker product pageamd.com/en/products/processors/laptop/ryzen-pro/ai-max-pro-300-series/amd-ryzen-ai-max-plus-pro-395.htmlRead 15 October 2026
- Core configuration
Core type Count Core Base clock (GHz) Max core turbo clock (GHz) Performance 16 Zen 5 3 5.1 - CPU cores
- 16
- Performance cores
- 16
- Efficiency cores
- 0
- Max core turbo clock
- 5.1GHz
- CPU base power (chip rating)
- 55W5Maker product pageamd.com/en/products/processors/laptop/ryzen-pro/ai-max-pro-300-series/amd-ryzen-ai-max-plus-pro-395.htmlRead 15 October 2026Default TDP 55W. AMD cTDP is 45-120W. HP's configured power is in cpu_power_max_w.
- Unlocked multiplier
- Not available
- NPU performance
- 50TOPS2Maker product pagehp.com/us-en/workstations/z2-mini-a.htmlRead 15 October 2026Copilot+ PC: up to 50 NPU TOPS. AMD also lists NPU TOPS up to 50 and overall TOPS up to 126. The precision is not stated.5Maker product pageamd.com/en/products/processors/laptop/ryzen-pro/ai-max-pro-300-series/amd-ryzen-ai-max-plus-pro-395.htmlRead 15 October 2026AI Engine: NPU TOPS up to 50, overall TOPS up to 126.
Cooling
- CPU cooler
- Air1Maker spec sheet (PDF)cdn.iceshop.nl/objects/mmo_131041810_1786031924_7283_887348.pdfRead 15 October 2026Cooling Solution: Air cooled forced convection. HP's page calls the APU cooling phase change. No fan model or fan count is published.2Maker product pagehp.com/us-en/workstations/z2-mini-a.htmlRead 15 October 2026Cool and Quiet: phase change APU cooling, 3D mesh air intake and fans. The stored enum is air because QuickSpecs says air cooled forced convection.
- CPU cooler model
- Not available
- Radiator size
- Not available
- Radiator position
- Not available
- Case fans
- Not available
- Number of case fans
- Not available
Graphics
- GPU
- Not available
- GPU brand
- Not available
- Graphics card
- Not available
- VRAM
- Not available
- VRAM type
- Not available
- GPU board power
- Not available
- GPU boost clock
- Not available
- Graphics card length
- Not available
- Graphics card thickness
- Not available
- GPU power connector
- Not available
Memory
- RAM type
- LPDDR5X1Maker spec sheet (PDF)cdn.iceshop.nl/objects/mmo_131041810_1786031924_7283_887348.pdfRead 15 October 2026Solder-down LPDDR5x.
- Rated kit speed
- Not available
- Memory kit
- Not available
- Memory slots
- Not available
- RAM slots
- Not available
- Free RAM slots
- Not available
- Max RAM for this CPU and GPU
- 128GB1Maker spec sheet (PDF)cdn.iceshop.nl/objects/mmo_131041810_1786031924_7283_887348.pdfRead 15 October 2026Maximum Memory 128GB for the 395. It is a purchase-time limit.2Maker product pagehp.com/us-en/workstations/z2-mini-a.htmlRead 15 October 2026Up to 128 GB unified memory, with up to 96 GB assignable to the GPU.
- ECC memory
- Not available
Storage
- Storage
- 1TB
- Installed drives
Capacity (GB) Type PCIe generation Drive 1,000 NVMe SSD 4 HP 1TB 2280 PCIe-4x4 Value M.2 SSD - Storage slots and bays
Form factor Interface PCIe generation PCIe lanes Count Occupied M.2 2280 PCIe NVMe 4 4 1 Yes M.2 2280 PCIe NVMe 4 4 1 No Source1Maker spec sheet (PDF)cdn.iceshop.nl/objects/mmo_131041810_1786031924_7283_887348.pdfRead 15 October 2026Internal Slot M.2-M: 2 PCIe Gen4 x4. HP's SSD options are all 2280. The stored configuration has one drive installed and one slot free.2Maker product pagehp.com/us-en/workstations/z2-mini-a.htmlRead 15 October 2026Up to 8TB with dual NVMe modules and RAID.7Reviewcreativebloq.com/tech/laptops/hp-z2-mini-g1a-workstation-review-jumbo-sized-computing-performanceRead 15 October 2026Review opened a 128GB and 2TB unit: the removable casing shows an extra M.2 slot that can take a second SSD. This matches QuickSpecs two M.2-M slots with one drive installed.- M.2 slots
- 2
- Free M.2 slots
- 1
- Free drive bays
- 0
- Fastest storage-slot PCIe generation
- 4
Power supply
- PSU rated output
- 300W1Maker spec sheet (PDF)cdn.iceshop.nl/objects/mmo_131041810_1786031924_7283_887348.pdfRead 15 October 2026Power Supply: 300W 92% efficiency wide-range with active PFC, internal. HP gives no 80 PLUS level, so the efficiency enum is left out. Form factor is not published.2Maker product pagehp.com/us-en/workstations/z2-mini-a.htmlRead 15 October 2026The 300W internal PSU supports the highest power CPU and GPU rich configurations.
- PSU form factor
- Not available
- PSU efficiency
- Not available
- Modular cables
- Not available
- PSU model
- Not available
- ATX version
- Not available
- Native 12V-2x6 cable
- Not available
Ports
- User-facing I/O position
- Side1Maker spec sheet (PDF)cdn.iceshop.nl/objects/mmo_131041810_1786031924_7283_887348.pdfRead 15 October 2026HP calls the panel Side I/O.
- User-facing ports
Type Version Count Max stated link rate (Gbps) Power out (W) USB-A USB 3.2 Gen 2 1 10 Not available USB-C USB 3.2 Gen 2, DisplayPort 2.1 Alt Mode 1 10 15 3.5 mm audio Headphone and microphone combo 1 Not available Not available - Rear ports
Type Version Count Max stated link rate (Gbps) Thunderbolt or USB4 DP Alt Mode Connected to Ethernet (RJ45) 2.5GbE 1 2.5 Not available Not available Motherboard Mini DisplayPort DisplayPort 2.1 UHBR10 2 Not available Not available Not available Motherboard USB-A USB 3.2 Gen 2 2 10 Not available Not available Motherboard USB-A USB 2.0 2 0.48 Not available Not available Motherboard USB-C Thunderbolt 4 2 40 Thunderbolt 4 Yes Motherboard Other Power connector 1 Not available Not available Not available Not available Source1Maker spec sheet (PDF)cdn.iceshop.nl/objects/mmo_131041810_1786031924_7283_887348.pdfRead 15 October 2026Rear I/O: 1 RJ-45 (2.5GbE), 2 Mini DisplayPort 2.1, 2 SuperSpeed USB Std-A 10Gbps, 2 Hi-Speed USB Std-A 480Mbps, 2 Thunderbolt 4 USB Type-C 40Gbps and the power connector. Two optional Flex IO modules add ports and are not counted. The stored model number lists no Flex IO option. The Mini DisplayPort, USB-C and Thunderbolt outputs come from the APU graphics. The HP page names the Mini DisplayPort version as 2.1 UHBR10.2Maker product pagehp.com/us-en/workstations/z2-mini-a.htmlRead 15 October 2026Packed with Ports lists 2 x Mini DP 2.1 UHBR10, 2 x USB2-A, 2 x USB3-A 10Gbps, USB4-C 40 Gbps/TBT4, 2.5GbE DASH and two Flex IO slots on the back, plus USB-C 10 Gbps with alt DP mode and USB-A 10 Gbps on the side.- User-facing USB ports
- 2
- User-facing USB-C ports
- 1
- Rear USB ports
- 6
- Thunderbolt
- Yes
- Ethernet speed
- 2.5Gbps
- Discrete GPU output ports
- Not available
Wireless
- Wi-Fi bands
- Not available
- Wi-Fi module
- MediaTek MT79251Maker spec sheet (PDF)cdn.iceshop.nl/objects/mmo_131041810_1786031924_7283_887348.pdfRead 15 October 2026Networking and Communications: MediaTek Wi-Fi 7 MT7925 BT 5.4 wireless card M.2 AIM-T. Only one wireless card option is listed.6Retailer pagecompsource.com/buy/BN4G0UTABA/Hp-195/HP-Z2-Mini-G1a-Workstation--1-x-AMD-Ryzen-AI-MAX-PRO-395--64-GB--1-TB-SSD--Mini-PC--Jet-Black--BN4G0UTABARead 15 October 2026
- Wi-Fi antenna
- Not available
Camera and audio
We could not find any of these 5 fields. Show them
- Webcam
- Not available
- Built-in speaker drivers
- Not available
- Total speaker power
- Not available
- Microphones
- Not available
- Audio features
- Not available
Lighting
We could not find any of these 4 fields. Show them
- RGB lighting
- Not available
- Lit parts
- Not available
- Lighting standard
- Not available
- Lighting software
- Not available
Software
- Operating system
- Windows 11 Pro1Maker spec sheet (PDF)cdn.iceshop.nl/objects/mmo_131041810_1786031924_7283_887348.pdfRead 15 October 2026Preinstalled options Windows 11 Pro 64, Windows 11 Home 64, Linux-ready and Ubuntu 24.04. The stored SKU ships with Windows 11 Pro 64 per the retailer description.6Retailer pagecompsource.com/buy/BN4G0UTABA/Hp-195/HP-Z2-Mini-G1a-Workstation--1-x-AMD-Ryzen-AI-MAX-PRO-395--64-GB--1-TB-SSD--Mini-PC--Jet-Black--BN4G0UTABARead 15 October 2026Windows 11 Pro 64 in the HP SmartBuy description.
- Control software
- Not available
Upgradeability
We could not find any of these 4 fields. Show them
- Proprietary parts
- Not available
- Max graphics card length
- Not available
- Max CPU cooler height
- Not available
- Warranty kept after upgrade
- Not available
Measured performance
We could not find any of these 8 fields. Show them
- Cinebench 2024 single-core
- Not available
- Cinebench 2024 multi-core
- Not available
- Geekbench single-core
- Not available
- Geekbench multi-core
- Not available
- 3DMark Time Spy graphics
- Not available
- 3DMark Steel Nomad
- Not available
- SSD sequential read (measured)
- Not available
- Game frame rates
- Not available
Measured noise and temperature
We could not find any of these 6 fields. Show them
- Fan noise per load
- Not available
- Highest measured fan noise
- Not available
- Measured fan noise at idle
- Not available
- CPU temperature in stress test
- Not available
- CPU clock in stress test
- Not available
- GPU temperature while gaming
- Not available
Measured power
We could not find any of these 6 fields. Show them
- Power draw idle
- Not available
- Power draw gaming
- Not available
- Power draw max
- Not available
- Power draw sleep or off
- Not available
- Sustained CPU power (measured)
- Not available
- GPU power while gaming (measured)
- Not available
Certifications
- ENERGY STAR
- Not available
- Typical annual energy consumption (TEC)
- Not available
- Other certifications
- Not available
In the box
We could not find any of these 2 fields. Show them
- In the box
- Not available
- Included extras
- Not available
Warranty
- Warranty service
- On-site1Maker spec sheet (PDF)cdn.iceshop.nl/objects/mmo_131041810_1786031924_7283_887348.pdfRead 15 October 2026Service, Support, and Warranty: on-site, next business-day service for parts and labor.6Retailer pagecompsource.com/buy/BN4G0UTABA/Hp-195/HP-Z2-Mini-G1a-Workstation--1-x-AMD-Ryzen-AI-MAX-PRO-395--64-GB--1-TB-SSD--Mini-PC--Jet-Black--BN4G0UTABARead 15 October 2026Bundled support is on-site, matching QuickSpecs on-site next business-day service.
Links
- Product page
- www.hp.com/us-en/workstations/z2-mini-a.html2Maker product pagehp.com/us-en/workstations/z2-mini-a.htmlRead 15 October 2026HP's Z2 Mini G1a workstation page. HP's US store product page was not reachable, so the stored SKU's availability comes from the retailer listing.
- Spec sheet
- cdn.iceshop.nl/objects/mmo_131041810_1786031924_7283_887348.pdf1Maker spec sheet (PDF)cdn.iceshop.nl/objects/mmo_131041810_1786031924_7283_887348.pdfRead 15 October 2026HP QuickSpecs c09133726, a reseller-hosted copy of the HP document. Its first pages are stamped Version 10 (February 24, 2026) and later pages Version 11 (July 31, 2026). HP's own download link was not reachable.
- Manual
- Not available
- EPREL registration number
- Not available
