Computers / Desktop PCs

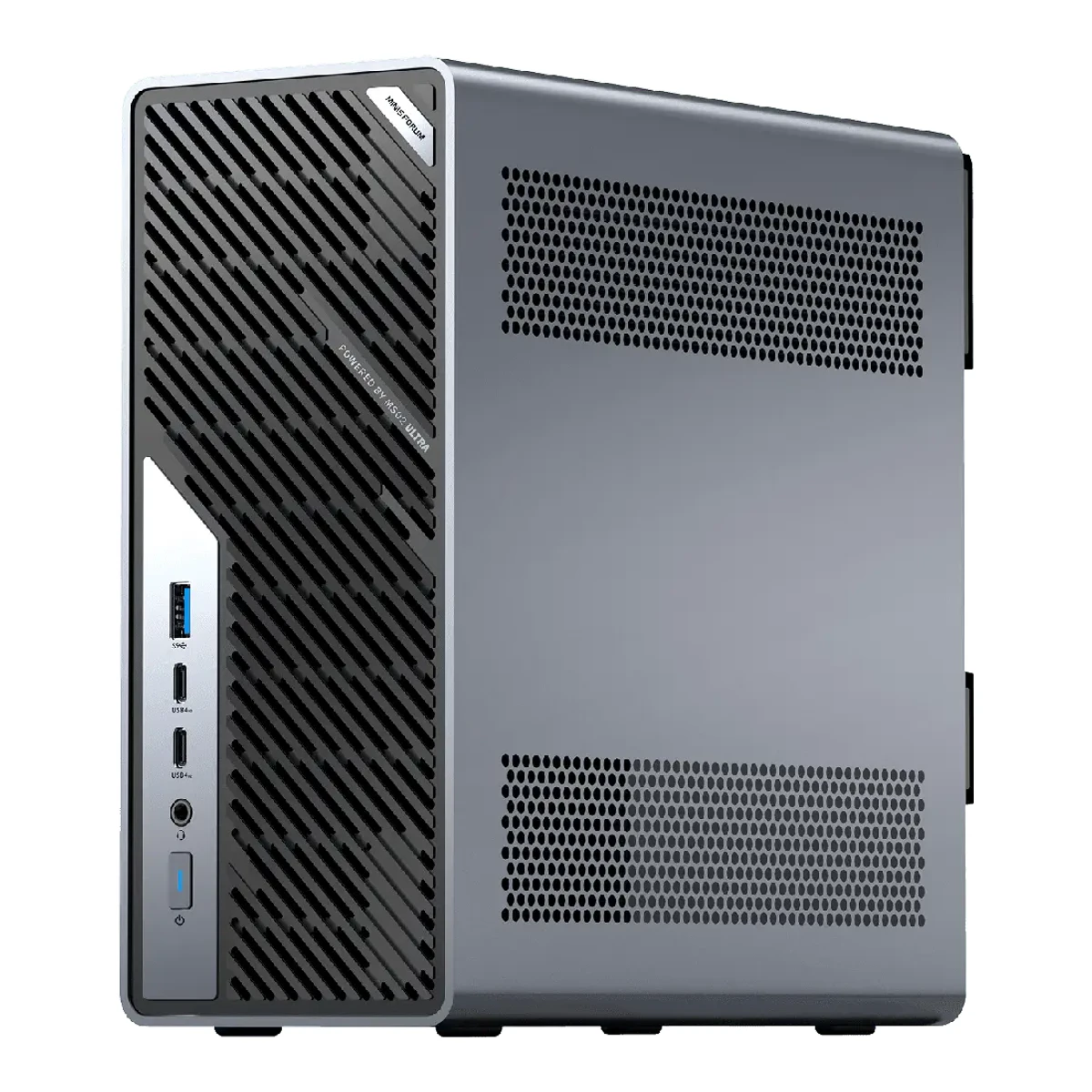

MINISFORUMWorkstation desktop PC
MS-02 Ultra
- Form factor
- Mini PC
- Processor
- Intel Core Ultra 9 285HX
- GPU
- Intel Graphics
- RAM
- 32GB
71 of 160 fields known.
At a glance
Max RAM
Higher than 95% of other desktop PCs.
Ports
- 2 USB-C USB4 V2
- USB-A USB 3.2 Gen 2User-facing ports
- 3.5 mm audio
- USB-C USB4
- 3 USB-A USB 3.2 Gen 2Rear ports
- HDMI 2.1 FRL
- 2 Ethernet (RJ45)
- 2 Other SFP28
General
- Series
- Mini Workstation1Maker product pagestore.minisforum.com/products/minisforum-ms-02-ultra-workstationRead 5 October 2026
- GTIN / EAN
- Not available
- Announced
- Not available
- Status
- Available1Maker product pagestore.minisforum.com/products/minisforum-ms-02-ultra-workstationRead 5 October 2026
- Predecessor
- Not available
- Successor
- Not available
- Launch price (US)
- Not available
- Launch price (EU)
- Not available
- Colours
- Not available
Case
- Case dimensions
- Not available
- Case volume
- 4.8L1Maker product pagestore.minisforum.com/products/minisforum-ms-02-ultra-workstationRead 5 October 20262Maker spec sheet (PDF)cdn.shopify.com/s/files/1/0900/3319/3266/files/MINISFORUM_Product_Manual_2026.pdfRead 5 October 2026
- Weight
- Not available
- Case model
- Not available
- Side panel
- Not available
- Front panel
- Not available
- Tool-less side panel
- Yes3Owner's manualpc-file.s3.us-west-1.amazonaws.com/MS-02+Ultra/user+manual/MS-02+Ultra+-+User+Manual+-+10+Languages+-+V1.0.zipRead 5 October 2026
- Dust filters
- Not available
- VESA mount
- Not available
Display
We could not find any of these 6 fields. Show them
- Screen size
- Not available
- Native resolution
- Not available
- Panel type
- Not available
- Max refresh rate
- Not available
- Touchscreen
- Not available
- Brightness (SDR, claimed)
- Not available
Motherboard
- Motherboard
- Not available
- Motherboard form factor
- Not available
- CPU socket
- FCBGA21145Maker product pageintel.com/content/www/us/en/products/sku/242297/intel-core-ultra-9-processor-285hx-36m-cache-up-to-5-50-ghz/specifications.htmlRead 5 October 2026
- Expansion slots
Mechanical slot type Electrical lanes PCIe generation Count Occupied PCIe x16 16 5 1 No PCIe x8 4 4 1 No PCIe x16 Not available 4 1 Yes M.2 E-key 1 4 1 Yes - PCIe x16 slots
- 2
- Free expansion slots
- 2
- Fan headers
- Not available
- Overclocking in BIOS
- Not available
Processor
- Processor
- Intel Core Ultra 9 285HX1Maker product pagestore.minisforum.com/products/minisforum-ms-02-ultra-workstationRead 5 October 2026
- Processor brand
- Intel5Maker product pageintel.com/content/www/us/en/products/sku/242297/intel-core-ultra-9-processor-285hx-36m-cache-up-to-5-50-ghz/specifications.htmlRead 5 October 2026
- Processor codename
- Arrow Lake5Maker product pageintel.com/content/www/us/en/products/sku/242297/intel-core-ultra-9-processor-285hx-36m-cache-up-to-5-50-ghz/specifications.htmlRead 5 October 2026
- Core configuration
Core type Count Base clock (GHz) Max core turbo clock (GHz) Performance 8 2.8 5.5 Efficiency 16 2.1 4.6 - CPU cores
- 24
- Performance cores
- 8
- Efficiency cores
- 16
- Max core turbo clock
- 5.5GHz
- CPU core process node
- 3nm5Maker product pageintel.com/content/www/us/en/products/sku/242297/intel-core-ultra-9-processor-285hx-36m-cache-up-to-5-50-ghz/specifications.htmlRead 5 October 2026
- CPU base power (chip rating)
- 55W5Maker product pageintel.com/content/www/us/en/products/sku/242297/intel-core-ultra-9-processor-285hx-36m-cache-up-to-5-50-ghz/specifications.htmlRead 5 October 2026
- Unlocked multiplier
- Not available
Cooling
- CPU cooler model
- Not available
- Radiator size
- Not available
- Radiator position
- Not available
- Case fans
- Not available
- Number of case fans
- Not available
Graphics
- GPU
- Not available
- GPU brand
- Not available
- Graphics card
- Not available
- VRAM
- Not available
- VRAM type
- Not available
- GPU board power
- Not available
- GPU boost clock
- Not available
- Graphics card length
- Not available
- Graphics card thickness
- Not available
- GPU power connector
- Not available
Memory
- RAM type
- DDR51Maker product pagestore.minisforum.com/products/minisforum-ms-02-ultra-workstationRead 5 October 2026
- Configured RAM speed
- 4,800MT/s6Reviewcronista.com/infotechnology/gadgets/probamos-la-minisforum-ms-02-ultra-una-pc-ultra-compacta-con-mucha-potenciaRead 5 October 2026
- Rated kit speed
- Not available
- Memory kit
- Not available
- RAM upgrade
- Slots1Maker product pagestore.minisforum.com/products/minisforum-ms-02-ultra-workstationRead 5 October 2026
- Memory slots
Slot Count Occupied Module size (GB) SO-DIMM 2 Yes 16 SO-DIMM 2 No Not available - RAM slots
- 4
- Free RAM slots
- 2
- Max RAM for this CPU and GPU
- 256GB1Maker product pagestore.minisforum.com/products/minisforum-ms-02-ultra-workstationRead 5 October 2026
Storage
- Storage
- 1TB
- Installed drives
Capacity (GB) Type 1,000 NVMe SSD - Storage slots and bays
Form factor Interface Count Occupied M.2 2280 PCIe NVMe 1 Yes M.2 2280 PCIe NVMe 3 No - M.2 slots
- 4
- Free M.2 slots
- 3
- Free drive bays
- 0
- Fastest storage-slot PCIe generation
- Not available
Power supply
- PSU rated output
- 350W4Owner's manualgithub.com/minisforum-docs/MS-02-Ultra/blob/main/Docs/English/02-Ultra-BaseGuide.mdRead 5 October 2026
- PSU form factor
- Not available
- PSU efficiency
- Not available
- Modular cables
- Not available
- PSU model
- Not available
- ATX version
- Not available
- Native 12V-2x6 cable
- Not available
Ports
- User-facing I/O position
- Front1Maker product pagestore.minisforum.com/products/minisforum-ms-02-ultra-workstationRead 5 October 2026
- User-facing ports
Type Version Count Max stated link rate (Gbps) Power out (W) USB-C USB4 V2 2 80 15 USB-A USB 3.2 Gen 2 1 10 Not available 3.5 mm audio Not available 1 Not available Not available - Rear ports
Type Version Count Max stated link rate (Gbps) Thunderbolt or USB4 Power out (W) DP Alt Mode Connected to USB-C USB4 1 40 USB4 15 Yes Motherboard USB-A USB 3.2 Gen 2 3 10 Not available Not available Not available Motherboard HDMI 2.1 FRL 1 Not available Not available Not available Not available Motherboard Ethernet (RJ45) Not available 1 10 Not available Not available Not available Motherboard Ethernet (RJ45) Not available 1 2.5 Not available Not available Not available Motherboard Other SFP28 2 25 Not available Not available Not available Add-in card Source1Maker product pagestore.minisforum.com/products/minisforum-ms-02-ultra-workstationRead 5 October 2026Full rear table plus maker catalogue identify four motherboard USB ports, HDMI 2.1 FRL, 10 GbE and 2.5 GbE RJ45, and two 25 GbE connectors on the included add-in card. Manual identifies these as SFP28, supporting 25 GbE with SFP28 modules and 10 GbE with SFP+ modules. Schema has no SFP28 enum, so other plus precise version is used.2Maker spec sheet (PDF)cdn.shopify.com/s/files/1/0900/3319/3266/files/MINISFORUM_Product_Manual_2026.pdfRead 5 October 20263Owner's manualpc-file.s3.us-west-1.amazonaws.com/MS-02+Ultra/user+manual/MS-02+Ultra+-+User+Manual+-+10+Languages+-+V1.0.zipRead 5 October 2026- User-facing USB ports
- 3
- User-facing USB-C ports
- 2
- Rear USB ports
- 4
- Thunderbolt
- No
- Ethernet speed
- 10Gbps
- Discrete GPU output ports
- 0
Wireless
- Wi-Fi
- Wi-Fi 71Maker product pagestore.minisforum.com/products/minisforum-ms-02-ultra-workstationRead 5 October 2026
- Wi-Fi bands
- Not available
- Wi-Fi module
- Intel BE2001Maker product pagestore.minisforum.com/products/minisforum-ms-02-ultra-workstationRead 5 October 2026
- Wi-Fi antenna
- Not available
- Bluetooth
- 5.41Maker product pagestore.minisforum.com/products/minisforum-ms-02-ultra-workstationRead 5 October 2026
- Ethernet controller
- Realtek RTL8127 (10 GbE), Intel I226-LM (2.5 GbE), Intel E810-XXV2 (dual 25 GbE)4Owner's manualgithub.com/minisforum-docs/MS-02-Ultra/blob/main/Docs/English/02-Ultra-BaseGuide.mdRead 5 October 2026
Camera and audio
We could not find any of these 5 fields. Show them
- Webcam
- Not available
- Built-in speaker drivers
- Not available
- Total speaker power
- Not available
- Microphones
- Not available
- Audio features
- Not available
Lighting
We could not find any of these 4 fields. Show them
- RGB lighting
- Not available
- Lit parts
- Not available
- Lighting standard
- Not available
- Lighting software
- Not available
Software
- Operating system
- Windows 11 Pro6Reviewcronista.com/infotechnology/gadgets/probamos-la-minisforum-ms-02-ultra-una-pc-ultra-compacta-con-mucha-potenciaRead 5 October 2026
- OS family
- Windows6Reviewcronista.com/infotechnology/gadgets/probamos-la-minisforum-ms-02-ultra-una-pc-ultra-compacta-con-mucha-potenciaRead 5 October 2026
- Control software
- Not available
Upgradeability
We could not find any of these 4 fields. Show them
- Proprietary parts
- Not available
- Max graphics card length
- Not available
- Max CPU cooler height
- Not available
- Warranty kept after upgrade
- Not available
Measured performance
- Cinebench 2024 single-core
- Not available
- Cinebench 2024 multi-core
- Not available
- Geekbench multi-core
- 22,832points6Reviewcronista.com/infotechnology/gadgets/probamos-la-minisforum-ms-02-ultra-una-pc-ultra-compacta-con-mucha-potenciaRead 5 October 2026
- 3DMark Steel Nomad
- Not available
- Game frame rates
Game Width (px) Height (px) Preset Upscaling Average FPS Shadow of the Tomb Raider 1920 1080 Low XeSS Balanced 41 Grand Theft Auto V 1920 1080 Normal Not available 76
Measured noise and temperature
We could not find any of these 6 fields. Show them
- Fan noise per load
- Not available
- Highest measured fan noise
- Not available
- Measured fan noise at idle
- Not available
- CPU temperature in stress test
- Not available
- CPU clock in stress test
- Not available
- GPU temperature while gaming
- Not available
Measured power
We could not find any of these 6 fields. Show them
- Power draw idle
- Not available
- Power draw gaming
- Not available
- Power draw max
- Not available
- Power draw sleep or off
- Not available
- Sustained CPU power (measured)
- Not available
- GPU power while gaming (measured)
- Not available
Certifications
We could not find any of these 5 fields. Show them
- ENERGY STAR
- Not available
- EPEAT
- Not available
- Copilot+ PC
- Not available
- Typical annual energy consumption (TEC)
- Not available
- Other certifications
- Not available
In the box
We could not find any of these 2 fields. Show them
- In the box
- Not available
- Included extras
- Not available
Warranty
- Manufacturer warranty (source market)
- 2years1Maker product pagestore.minisforum.com/products/minisforum-ms-02-ultra-workstationRead 5 October 2026US maker store explicitly advertises two-year seller warranty. No worldwide statutory warranty or service mode is inferred. Current store price and discounts are not launch prices.
- Warranty service
- Not available
Links
- Product page
- store.minisforum.com/products/minisforum-ms-02-ultra-workstation1Maker product pagestore.minisforum.com/products/minisforum-ms-02-ultra-workstationRead 5 October 2026
- Spec sheet
- cdn.shopify.com/s/files/1/0900/3319/3266/files/MINISFORUM_Product_Manual_2026.pdf2Maker spec sheet (PDF)cdn.shopify.com/s/files/1/0900/3319/3266/files/MINISFORUM_Product_Manual_2026.pdfRead 5 October 2026Opened complete MINISFORUM Product Manual 2026 catalogue and its MS-02 Ultra two-page specification section. Documents dual 25 GbE card as installed and unavailable for further card expansion. Chassis volume is maker-published 4.8 L. Dimension triplet 221.5 x 97 x 225 mm is not axis-labelled, so dimensions_mm is omitted. Product page says PCIe 4.0 storage, while the user manual states an onboard PCIe 5.0 maximum. Slot generations and storage_pcie_gen_max are omitted rather than resolve this silently.
- Manual
- pc-file.s3.us-west-1.amazonaws.com/MS-02+Ultra/user+manual/MS-02+Ultra+-+User+Manual+-+10+Languages+-+V1.0.zip3Owner's manualpc-file.s3.us-west-1.amazonaws.com/MS-02+Ultra/user+manual/MS-02+Ultra+-+User+Manual+-+10+Languages+-+V1.0.zipRead 5 October 2026Official support-page download opened and English PDF inside read in full. Printed pages 1 and 13 describe tool-free slide-out chassis after hand-tightened screws. Page 10 says the electrical PCIe x4 slot is physically x8. The second mechanical x16 slot uses proprietary signals and is occupied by the included 25G plus two-NVMe card, so no generic electrical lane count is assigned. M.2 E-key WLAN slot and its PCIe 4.0 x1 support appear on pages 9-10. No SATA drive bay is inferred from support for SATA on one M.2 connector. SFP28 text is on page 8. Package items marked optional by region are omitted.
- EPREL registration number
- Not available
Compare with
Pick a desktop PC to see both side by side. Differences are marked yellow.
Sources
We read 7 sources for this desktop PC. The numbers match the markers in the sheet.
- Maker product pagestore.minisforum.com/products/minisforum-ms-02-ultra-workstation
- Maker spec sheet (PDF)cdn.shopify.com/s/files/1/0900/3319/3266/files/MINISFORUM_Product_Manual_2026.pdf
See a wrong value? Tell us and name the field.
