Computers / Desktop PCs

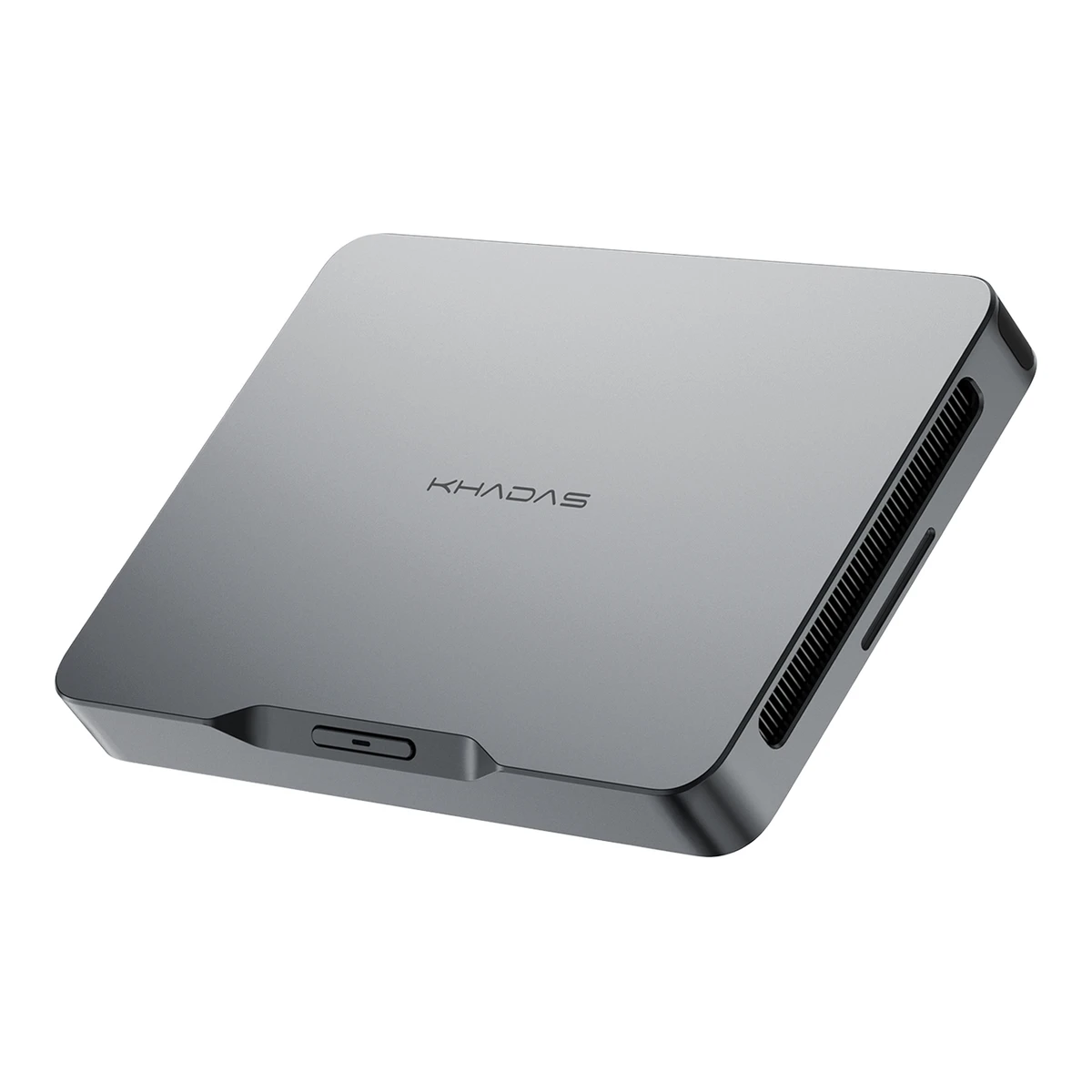

Khadas Mind 2s

KhadasMini PC desktop PC

Mind 2s

Released February 2025.5Press releasekhadas.com/post/khadas-mind-2s-launch-still-stunning-now-even-more-powerfulRead 15 October 2026Launch post dated Feb 19, 2025 says Khadas Mind 2s is now available. Last checked 15 October 2026.

Form factor
Mini PC
Processor
Intel Core Ultra 7 255H
GPU
Intel Arc 140T
RAM
64GB

69 of 160 fields known.

Compare with another desktop PCDownload JSONDownload CSVGet it from the API

At a glance

Ports

  • USB-C Thunderbolt 4 with DisplayPort output and USB-C power input
  • USB-C USB4 with DisplayPort output and USB-C power input
  • HDMI 2.1 TMDS (18 Gbps)
  • 2 USB-A USB 3.2 Gen 2

All specs

SourceCalculated

General

Series
Mind1Maker product pagekhadas.com/mind-2Read 15 October 2026The page sits in the Mind family menu next to Mind 1, Mind Pro and the Mind expansion modules.
Model numbers
Not available
GTIN / EAN
Not available
Announced
10 January 20256Press releasekhadas.com/post/khadasces2025Read 15 October 2026Press release dated January 10, 2025 from CES 2025: Khadas unveiled the Mind 2s with the Core Ultra 7 255H.
Status
Available1Maker product pagekhadas.com/mind-2Read 15 October 2026The page shows Buy Now for the Mind 2s.
Predecessor
Not available
Successor
Not available
Launch price (US)
$1,5999Reviewtechradar.com/computing/khadas-mind-2s-mini-pc-reviewRead 15 October 2026Review of 3 July 2025: the Mind 2S comes in one version at $1599 in the US. Tom's Guide gives the same price. Treated as US list price, tax not included. Neither review calls it a launch MSRP.10Reviewtomsguide.com/computing/mini-pcs/khadas-mind-2s-reviewRead 15 October 2026Review of 15 February 2026: the Mind 2S costs $1,599 and that is the only configuration.
Launch price (EU)
Not available
Markets
Not available
Colours
Not available
Segment
Mini PC1Maker product pagekhadas.com/mind-2Read 15 October 2026The maker sells it as a Mind 2/2s Portable Workstation and the factsheet calls the line a Modular Mini PC. It is stored under the mini PC segment.
Form factor
Mini PC1Maker product pagekhadas.com/mind-2Read 15 October 2026Page text: palm-sized mini PC that weighs 435 grams and is as thin as 2.0 cm.

Case

Front and side, drawn to scale.

Case dimensions
Width146Height20Depth105mm(5.7 × 0.8 × 4.1 in)2Maker product pagekhadas.com/mind/specsRead 15 October 2026Size and Weight: 146 x 105 x 20 mm. The page does not name the axes. Height is the smallest value and width and depth follow the written order.3Maker product pagekhadas.com/product-page/mind-2Read 15 October 2026Dimensions: 146 x 105 x 20 mm.
Case volume
Not available
Weight
0.435kg(1 lb)1Maker product pagekhadas.com/mind-2Read 15 October 2026Page text: weighs 435 grams.2Maker product pagekhadas.com/mind/specsRead 15 October 2026Size and Weight: 435 g.3Maker product pagekhadas.com/product-page/mind-2Read 15 October 2026Weight: Net 435 g.
Case model
Not available
Case materials
Aluminium1Maker product pagekhadas.com/mind-2Read 15 October 2026Page text: CNC unibody design with an anodized aluminum casing.
Side panel
Not available
Front panel
Not available
Tool-less side panel
Not available
Dust filters
Not available
VESA mount
Not available

Display

We could not find any of these 6 fields. Show them
Screen size
Not available
Native resolution
Not available
Panel type
Not available
Max refresh rate
Not available
Touchscreen
Not available
Brightness (SDR, claimed)
Not available

Motherboard

We could not find any of these 9 fields. Show them
Motherboard
Not available
Chipset
Not available
Motherboard form factor
Not available
CPU socket
Not available
Expansion slots
Not available
PCIe x16 slots
Not available
Free expansion slots
Not available
Fan headers
Not available
Overclocking in BIOS
Not available

Processor

Processor
Intel Core Ultra 7 255H1Maker product pagekhadas.com/mind-2Read 15 October 2026The Mind 2s card names the Intel Core Ultra 7 processor, 16 cores, 16 threads, 24 MB cache and 5.1 GHz max turbo. The Mind 2s spec table names the 255H.2Maker product pagekhadas.com/mind/specsRead 15 October 2026Processor: Intel Core Ultra 7 255H, 5.1GHz turbo frequency, 16 cores, 16 threads, 24MB cache.
Processor brand
Intel7Maker product pageintel.com/content/www/us/en/products/sku/241751/intel-core-ultra-7-processor-255h-24m-cache-up-to-5-10-ghz/specifications.htmlRead 15 October 2026
Processor codename
Arrow Lake7Maker product pageintel.com/content/www/us/en/products/sku/241751/intel-core-ultra-7-processor-255h-24m-cache-up-to-5-10-ghz/specifications.htmlRead 15 October 2026Code Name: Products formerly Arrow Lake.
Core configuration
Core typeCountBase clock (GHz)Max core turbo clock (GHz)
Performance625.1
Efficiency81.54.4
Low-power efficiency20.72.5
Source5Press releasekhadas.com/post/khadas-mind-2s-launch-still-stunning-now-even-more-powerfulRead 15 October 2026Launch post: 16-core, 16-thread configuration with a 6P+8E+2LP combination.7Maker product pageintel.com/content/www/us/en/products/sku/241751/intel-core-ultra-7-processor-255h-24m-cache-up-to-5-10-ghz/specifications.htmlRead 15 October 20266 Performance-cores (2 GHz base, 5.1 GHz max turbo), 8 Efficient-cores (1.5 GHz base, 4.4 GHz max turbo) and 2 Low Power Efficient-cores (700 MHz base, 2.5 GHz max turbo).
CPU cores
16
Performance cores
6
Efficiency cores
10
Threads
162Maker product pagekhadas.com/mind/specsRead 15 October 2026Processor: 16 cores, 16 threads.7Maker product pageintel.com/content/www/us/en/products/sku/241751/intel-core-ultra-7-processor-255h-24m-cache-up-to-5-10-ghz/specifications.htmlRead 15 October 2026
Max core turbo clock
5.1GHz
L3 cache
24MB2Maker product pagekhadas.com/mind/specsRead 15 October 2026Processor: 24MB cache.7Maker product pageintel.com/content/www/us/en/products/sku/241751/intel-core-ultra-7-processor-255h-24m-cache-up-to-5-10-ghz/specifications.htmlRead 15 October 2026
CPU core process node
3nm7Maker product pageintel.com/content/www/us/en/products/sku/241751/intel-core-ultra-7-processor-255h-24m-cache-up-to-5-10-ghz/specifications.htmlRead 15 October 2026Lithography: TSMC N3B.
CPU base power (chip rating)
28W7Maker product pageintel.com/content/www/us/en/products/sku/241751/intel-core-ultra-7-processor-255h-24m-cache-up-to-5-10-ghz/specifications.htmlRead 15 October 2026Processor Base Power: 28 W. Maximum turbo power 115 W and minimum assured power 20 W are not the PC maker's configured limit.
Peak CPU power (configured)
Not available
Unlocked multiplier
Not available
NPU performance
13TOPS7Maker product pageintel.com/content/www/us/en/products/sku/241751/intel-core-ultra-7-processor-255h-24m-cache-up-to-5-10-ghz/specifications.htmlRead 15 October 2026NPU: Intel AI Boost, 13 TOPS (Int8). The maker's 96 TOPS total adds the CPU and a 74 TOPS GPU.
Integrated GPU
Intel Arc 140T2Maker product pagekhadas.com/mind/specsRead 15 October 2026Graphics: Intel Arc 140T GPU, 2.25GHz dynamic frequency.

Cooling

CPU cooler
Air1Maker product pagekhadas.com/mind-2Read 15 October 2026Page text: a Vapor Chamber liquid cooling heatsink with pure copper fins and a magnetic levitation fan. It is a heatsink and fan cooler, so it is stored as air.
CPU cooler model
Vapor chamber heatsink with pure copper fins and magnetic levitation fan1Maker product pagekhadas.com/mind-2Read 15 October 2026Wording taken from the page. The maker gives no cooler model name.
Radiator size
Not available
Radiator position
Not available
Case fans
Fan rotors
1
Source1Maker product pagekhadas.com/mind-2Read 15 October 2026Page text names one magnetic levitation fan with dual inlet and single outlet airflow. The fan cools the processor and moves air through the case, so it is the only fan. Position and size are not stated.
Number of case fans
1

Graphics

Discrete GPU
No2Maker product pagekhadas.com/mind/specsRead 15 October 2026Graphics lists only the integrated Intel Arc 140T GPU. A discrete GPU is an optional Mind Graphics module and is not part of the Mind 2s.
GPU
Not available
GPU brand
Not available
Graphics card
Not available
VRAM
Not available
VRAM type
Not available
GPU board power
Not available
GPU boost clock
Not available
Graphics card length
Not available
Graphics card thickness
Not available
GPU power connector
Not available

Memory

RAM
64GB2Maker product pagekhadas.com/mind/specsRead 15 October 2026Memory: 64GB LPDDR5X memory. The Mind 2s has only this configuration.
RAM type
LPDDR5X1Maker product pagekhadas.com/mind-2Read 15 October 2026Page text: up to 64GB LPDDR5X memory.2Maker product pagekhadas.com/mind/specsRead 15 October 2026Memory: LPDDR5X.
Configured RAM speed
8,400MT/s2Maker product pagekhadas.com/mind/specsRead 15 October 2026Memory: maximum frequency 8400MHz, which the factsheet and Intel's page give as MT/s. The maker states no separate configured speed.3Maker product pagekhadas.com/product-page/mind-2Read 15 October 2026Model Comparison: Mind 2s Ultra 7 64GB Version has 64GB LPDDR5X 8400MHz.4Maker spec sheet (PDF)dl.khadas.com/products/mind-series/factsheet/mind-family-factsheet-en.pdfRead 15 October 2026Factsheet: 64GB LPDDR5X (8400MHz).
Rated kit speed
Not available
Memory kit
SK hynix H58G78BK8BX114N11Reviewixbt.com/platform/khadas-mind-2s-review.htmlRead 15 October 2026Hardware table: 64 GB memory made of eight SK hynix H58G78BK8BX114N chips. The review calls it LPDDR5-8400, while the maker says LPDDR5X.
RAM upgrade
Soldered4Maker spec sheet (PDF)dl.khadas.com/products/mind-series/factsheet/mind-family-factsheet-en.pdfRead 15 October 2026Factsheet: 64GB LPDDR5X (8400MHz) Onboard Memory. The memory is on the board and iXBT lists eight memory chips.
Memory slots
Not available
RAM slots
Not available
Free RAM slots
Not available
Max RAM for this CPU and GPU
64GB2Maker product pagekhadas.com/mind/specsRead 15 October 2026Memory: 64GB LPDDR5X memory is the only configuration, so 64 GB is the purchase-time limit. The memory is soldered.
ECC memory
No7Maker product pageintel.com/content/www/us/en/products/sku/241751/intel-core-ultra-7-processor-255h-24m-cache-up-to-5-10-ghz/specifications.htmlRead 15 October 2026ECC Memory Supported: No.

Storage

Storage
2TB
Installed drives
Capacity (GB)TypePCIe generationDrive
2,000NVMe SSD4WD PC SN740
Source2Maker product pagekhadas.com/mind/specsRead 15 October 2026Storage: 2TB PCIe 4.0 M.2 2230 SSD. The drive make comes from iXBT.11Reviewixbt.com/platform/khadas-mind-2s-review.htmlRead 15 October 2026Published 28 October 2025. Hardware table: 2 x M.2 2230 PCIe Gen4 x4 slots and one WD PC SN740 2 TB SSD fitted.
Storage slots and bays
Form factorInterfacePCIe generationPCIe lanesCountOccupied
M.2 2230PCIe NVMe441Yes
M.2 2230PCIe NVMe441No
Source1Maker product pagekhadas.com/mind-2Read 15 October 2026Page text: up to a 2TB PCIe 4.0 SSD and an M.2 2230 SSD expansion slot behind a magnetic cover.2Maker product pagekhadas.com/mind/specsRead 15 October 2026Storage: 2TB PCIe 4.0 M.2 2230 SSD and an expandable PCIe 4.0 M.2 2230 SSD x 1.
M.2 slots
2
Free M.2 slots
1
Free drive bays
0
Fastest storage-slot PCIe generation
4

Power supply

PSU rated output
65W2Maker product pagekhadas.com/mind/specsRead 15 October 2026Battery and Power: 65W USB-C power adapter.4Maker spec sheet (PDF)dl.khadas.com/products/mind-series/factsheet/mind-family-factsheet-en.pdfRead 15 October 2026Mind 2s tech specs: 65W USB-C power adapter.
PSU form factor
External adapter2Maker product pagekhadas.com/mind/specsRead 15 October 2026An external USB-C power adapter.
PSU efficiency
Not available
Modular cables
Not available
PSU model
Not available
ATX version
Not available
Native 12V-2x6 cable
Not available

Ports

User-facing I/O position
Not available
User-facing ports
Not available
Rear ports
TypeVersionCountMax stated link rate (Gbps)Thunderbolt or USB4DP Alt ModeConnected to
USB-CThunderbolt 4 with DisplayPort output and USB-C power input140Thunderbolt 4YesMotherboard
USB-CUSB4 with DisplayPort output and USB-C power input140USB4YesMotherboard
HDMI2.1 TMDS (18 Gbps)1Not availableNot availableNot availableMotherboard
USB-AUSB 3.2 Gen 2210Not availableNot availableMotherboard
Source2Maker product pagekhadas.com/mind/specsRead 15 October 2026I/O Ports: Thunderbolt 4 x 1, USB4 x 1, HDMI 2.1 TMDS x 1 and USB-A 3.2 Gen2 (10Gbps) x 2. Display output: Thunderbolt 4 or USB4 up to 8K 60Hz, 5K 72Hz or 4K 240Hz. The store page gives 40 Gbps for both USB-C ports and 18 Gbps for HDMI.3Maker product pagekhadas.com/product-page/mind-2Read 15 October 2026Interface: Thunderbolt 4 (40Gbps) x 1, USB4 (40Gbps) x 1, HDMI 2.1 TMDS (18Gbps) x 1, USB-A 3.2 Gen2 (10Gbps) x 2.11Reviewixbt.com/platform/khadas-mind-2s-review.htmlRead 15 October 2026Hardware table: on the rear panel 2 x USB 3.2 Gen2 Type-A at up to 10 Gbit/s, 2 x USB4 Type-C with data up to 40 Gbit/s, power and DisplayPort, and 1 x HDMI 2.1. The text says both Type-C ports are identical and connect directly to the processor. There is no wired network port.
User-facing USB ports
Not available
User-facing USB-C ports
Not available
Rear USB ports
4
Thunderbolt
Yes
Ethernet speed
Not available
Discrete GPU output ports
0

Wireless

Wi-Fi
Wi-Fi 6E2Maker product pagekhadas.com/mind/specsRead 15 October 2026Communications: Wi-Fi 6E (802.11ax).
Wi-Fi bands
2.4 GHz, 5 GHz, 6 GHz8Maker product pageintel.com/content/www/us/en/products/sku/204837/intel-wifi-6e-ax211-gig/specifications.htmlRead 15 October 2026Intel spec for the Wi-Fi 6E AX211 that Khadas names: 2.4 GHz, 5 GHz and 6 GHz.
Wi-Fi module
Intel Wi-Fi 6E AX2112Maker product pagekhadas.com/mind/specsRead 15 October 2026Communications: chipset Intel Wi-Fi 6E AX211.
Wi-Fi antenna
Not available
Bluetooth
5.32Maker product pagekhadas.com/mind/specsRead 15 October 2026Communications: Bluetooth 5.3.
Ethernet controller
Not available

Camera and audio

Webcam
Not available
Built-in speaker drivers
011Reviewixbt.com/platform/khadas-mind-2s-review.htmlRead 15 October 2026Hardware table: sound subsystem none.
Total speaker power
Not available
Microphones
011Reviewixbt.com/platform/khadas-mind-2s-review.htmlRead 15 October 2026Hardware table: sound subsystem none, so no built-in microphone.
Audio features
Not available

Lighting

We could not find any of these 4 fields. Show them
RGB lighting
Not available
Lit parts
Not available
Lighting standard
Not available
Lighting software
Not available

Software

Operating system
Windows 11 Home1Maker product pagekhadas.com/mind-2Read 15 October 2026The Mind 2s spec table lists Windows 11 Home.2Maker product pagekhadas.com/mind/specsRead 15 October 2026Operating System: Windows 11 Home.
OS family
Windows1Maker product pagekhadas.com/mind-2Read 15 October 2026Windows 11 Home.
Control software
Mind App1Maker product pagekhadas.com/mind-2Read 15 October 2026Page section Mind App: the app sets the power mode (Power-saving, Balanced or Performance) and updates firmware and drivers.

Upgradeability

We could not find any of these 4 fields. Show them
Proprietary parts
Not available
Max graphics card length
Not available
Max CPU cooler height
Not available
Warranty kept after upgrade
Not available

Measured performance

Cinebench 2024 single-core
Not available
Cinebench 2024 multi-core
Not available
Geekbench single-core
2,890points10Reviewtomsguide.com/computing/mini-pcs/khadas-mind-2s-reviewRead 15 October 2026Performance Benchmarks table: Geekbench 6.5 single-core 2890. The review does not name a power mode.
Geekbench multi-core
14,532points10Reviewtomsguide.com/computing/mini-pcs/khadas-mind-2s-reviewRead 15 October 2026Performance Benchmarks table: Geekbench 6.5 multi-core 14532.
3DMark Time Spy graphics
3,212points9Reviewtechradar.com/computing/khadas-mind-2s-mini-pc-reviewRead 15 October 2026Benchmark table: Time Spy Graphics 3212 (overall 3592, CPU 10931). The review does not name a power mode.
3DMark Steel Nomad
Not available
SSD sequential read (measured)
Not available
Game frame rates
Not available

Measured noise and temperature

Fan noise per load
ProfileLoadDistance (cm)Noise (dB(A))
Not stated, idleIdle5017.6
Not stated, powerMax maximum CPU loadMax load5035.6
Source11Reviewixbt.com/platform/khadas-mind-2s-review.htmlRead 15 October 2026Sound-insulated semi-anechoic chamber, microphone 50 cm from the front panel, room at 24 degrees C, load made with powerMax. Idle 17.6 dBA and maximum CPU load 35.6 dBA with the supplied 65 W power adapter. Background is 16.2 dBA. The review names no fan profile.
Highest measured fan noise
35.6dB(A)
Measured fan noise at idle
17.6dB(A)
CPU temperature in stress test
Not available
CPU clock in stress test
Not available
GPU temperature while gaming
Not available

Measured power

Power draw idle
10W11Reviewixbt.com/platform/khadas-mind-2s-review.htmlRead 15 October 2026Table of power from the mains with the 65 W adapter: 10 W at idle. Maximum CPU load drew 49 W on average with a 63 W peak, which is CPU load only and not a CPU and GPU stress.
Power draw gaming
Not available
Power draw max
Not available
Power draw sleep or off
Not available
Sustained CPU power (measured)
21.6W11Reviewixbt.com/platform/khadas-mind-2s-review.htmlRead 15 October 2026CPU power table: Core Ultra 7 255H averages 21.6 W, with a 24.2 W maximum and 16.2 W minimum, in the maximum CPU load test on the supplied 65 W adapter. The review says the chip draws its rated 28 W only at the start of the test. The reading tool is not named.
GPU power while gaming (measured)
Not available

Certifications

We could not find any of these 5 fields. Show them
ENERGY STAR
Not available
EPEAT
Not available
Copilot+ PC
Not available
Typical annual energy consumption (TEC)
Not available
Other certifications
Not available

In the box

In the box
Khadas Mind, 65W Power Adapter, USB-C to USB-C Cable (1.2 m), Manual, Warranty Card3Maker product pagekhadas.com/product-page/mind-2Read 15 October 2026In The Box: 1 x Khadas Mind, 1 x 65W Power Adapter, 1 x USB-C to USB-C Cable (1.2 m), 1 x Manual, 1 x Warranty Card. The list is shared by the Mind 2 and Mind 2s.
Included extras
Not available

Warranty

Manufacturer warranty (source market)
2years4Maker spec sheet (PDF)dl.khadas.com/products/mind-series/factsheet/mind-family-factsheet-en.pdfRead 15 October 2026Mind 2/2s page of the Mind Family factsheet (March 2026): Two-year Warranty. The market is not named.
Warranty service
Not available

Compare with

Pick a desktop PC to see both side by side. Differences are marked yellow.

More desktop PC comparisons

Sources

We read 11 sources for this desktop PC. The numbers match the markers in the sheet.

  1. Maker product pagekhadas.com/mind-2
    Read 15 October 2026Backs 16 fields
  2. Maker product pagekhadas.com/mind/specs
    Read 15 October 2026Backs 21 fields
  3. Read 15 October 2026Backs 5 fields
  4. Read 15 October 2026Backs 4 fields
  5. Read 15 October 2026Backs 2 fields
  6. Read 15 October 2026Backs 1 field
  7. Read 15 October 2026Backs 9 fields
  8. Read 15 October 2026Backs 1 field
  9. Read 15 October 2026Backs 2 fields
  10. Read 15 October 2026Backs 3 fields
  11. Read 15 October 2026Backs 8 fields

See a wrong value? Tell us and name the field.
