PC parts / Graphics cards
ASRockGraphics card

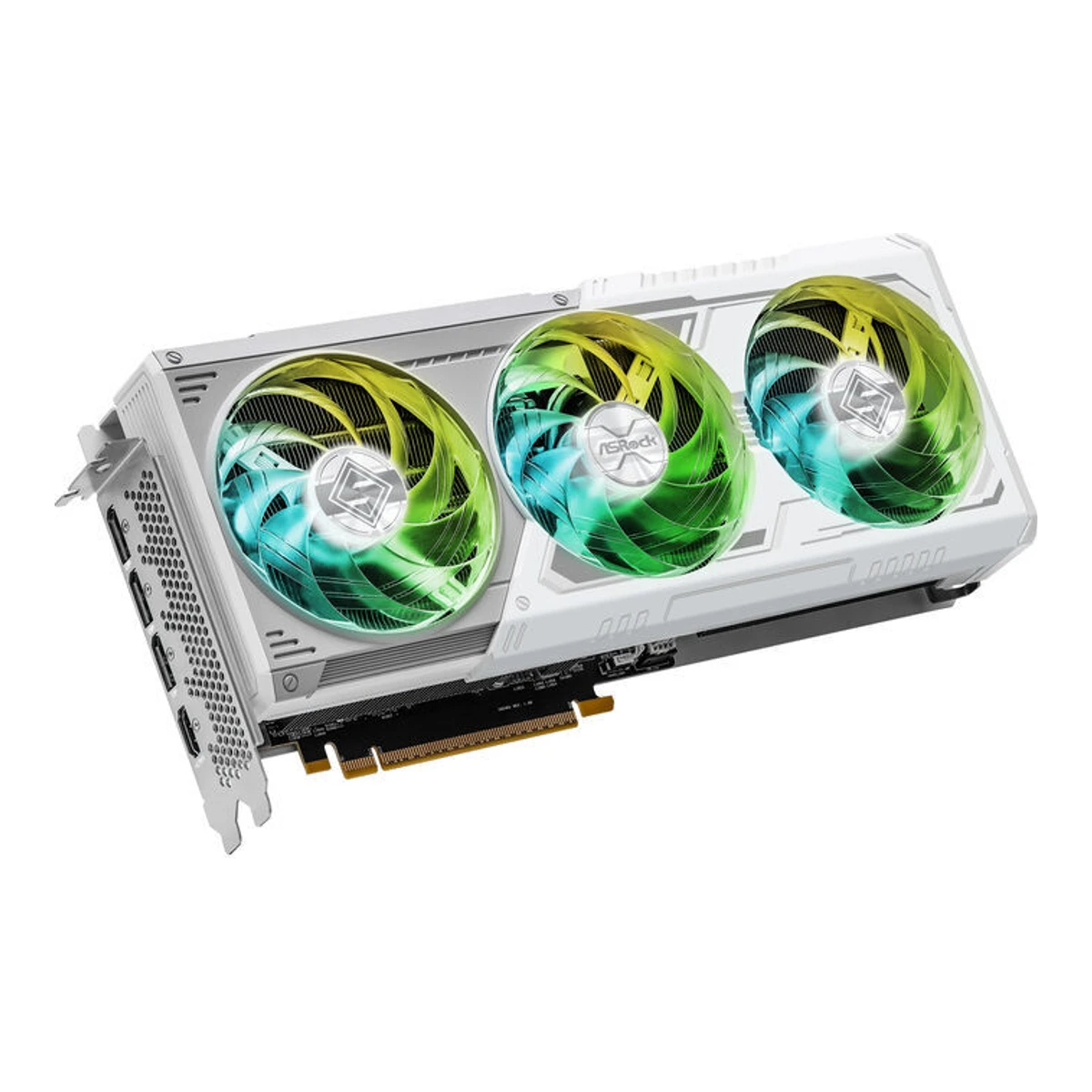

Intel Arc B580 Steel Legend 12GB OC
Released December 2024.2Press releasethefpsreview.com/2024/12/03/asrock-launches-intel-arc-b580-steel-legend-12gb-oc-b580-challenger-12gb-oc-and-b570-challenger-10gb-oc-graphics-cardsRead 15 October 2026Press release 2024-12-03. Newegg pre-orders opened 2024-12-05 and retail started 2024-12-13 (see the wccftech and Tom's Hardware sources). Last checked 15 October 2026.
- GPU
- Intel Arc B580
- VRAM
- 12GB
- Length
- 298mm
- Board power
- 190W
64 of 100 fields known.
At a glance
Game clock
2,800MHz2Press releasethefpsreview.com/2024/12/03/asrock-launches-intel-arc-b580-steel-legend-12gb-oc-b580-challenger-12gb-oc-and-b570-challenger-10gb-oc-graphics-cardsRead 15 October 2026The release says Graphics Clock up to 2800MHz. ASRock's spec table (retailer copies) calls the same figure Engine Clock 2800 MHz and Funky Kit calls it the boost clock of up to 2.8 GHz. Tom's Hardware found the card runs at the same 2850 MHz maximum boost as other B580 cards. ASRock's Graphics Clock on an Intel card is the game clock, so it is stored here. Intel's reference Graphics Clock is 2670 MHz.3Retailer pageavlgear.com/products/asrock-b580-sl-12go-intel-arc-b580-steel-legend-12gb-oc-graphics-cardRead 15 October 2026Engine Clock: 2800 MHz.11Press articletomshardware.com/pc-components/gpus/where-to-buy-the-intel-arc-b580Read 15 October 2026The Steel Legend OC comes with a Graphics Clock of 2800 MHz but seems to have the same maximum 2850 MHz boost clock as other B580 cards.12Press articlewccftech.com/newegg-lists-asrock-intel-arc-b580-gpus-pre-orders-steel-legend-challenger-269-259-usdRead 15 October 2026The Steel Legend has a 2800 MHz boost clock.
Higher than all other graphics cards.
Ports
- HDMI 2.1a
- DisplayPort 2.1 UHBR13.5
- 2 DisplayPort 2.1 UHBR10
General
- Model numbers
- B580 SL 12GO, 90-GA5CZZ-00UANF3Retailer pageavlgear.com/products/asrock-b580-sl-12go-intel-arc-b580-steel-legend-12gb-oc-graphics-cardRead 15 October 2026Title and text name the B580 SL 12GO.4Retailer pagecomx-computers.co.za/90-GA5CZZ-00UANF-specifications-318716.htmRead 15 October 2026Product Code 90-GA5CZZ-00UANF.5Retailer pagearvutitark.ee/en/pc-components/graphics-cards-vga/asrock-intel-arc-b580-stl-legend-12gb-oc-1423783Read 15 October 2026Product code 90-GA5CZZ-00UANF. The same page lists 5.1 cm x 29.8 cm x 13.1 cm, 650 W recommended PSU, 2x 8-pin and a 36 month warranty. The warranty is not stored, because other markets list 1, 2 or 3 years and no maker statement was readable.6Spec databasebuildcores.com/products/GPU/1ns3j3pgo/ASRock-Steel-Legend-OC-Arc-B580-12GB-GDDR6Read 15 October 2026Part Numbers B580 SL 12GO and 90-GA5CZZ-00UANF. The page also lists Core Boost Clock 2800 MHz, 2 PCIe 8-pin, 3 fans and Total Slot Width 2.6.
- Predecessor
- Not available
- Successor
- Not available
- Launch price (US)
- $269.9911Press articletomshardware.com/pc-components/gpus/where-to-buy-the-intel-arc-b580Read 15 October 2026Buying guide, last updated 14 January 2025: for the Steel Legend OC the MSRP is $269. The wccftech report gives the exact Newegg launch listing of $269.99. US dollars, excluding tax. ASRock's own US price was not readable.12Press articlewccftech.com/newegg-lists-asrock-intel-arc-b580-gpus-pre-orders-steel-legend-challenger-269-259-usdRead 15 October 20265 December 2024: the Steel Legend Arc B580 is priced at $269.99 on Newegg for pre-order. The article calls the price of these cards the official MSRP.
- Launch price (EU)
- Not available
- Markets
- Not available
- Colours
- White2Press releasethefpsreview.com/2024/12/03/asrock-launches-intel-arc-b580-steel-legend-12gb-oc-b580-challenger-12gb-oc-and-b570-challenger-10gb-oc-graphics-cardsRead 15 October 2026The white color scheme of the Steel Legend.4Retailer pagecomx-computers.co.za/90-GA5CZZ-00UANF-specifications-318716.htmRead 15 October 2026Colour: White.
GPU
- GPU architecture
- Xe27Maker product pageintel.com/content/www/us/en/products/sku/241598/intel-arc-b580-graphics/specifications.htmlRead 15 October 2026Microarchitecture Xe2.
- GPU die
- BMG-G218Reviewtomshardware.com/pc-components/gpus/intel-arc-b580-review-the-new-usd249-gpu-champion-has-arrivedRead 15 October 2026Specification table, Architecture row: BMG-G21.9Reviewclub386.com/intel-arc-b580-limited-edition-reviewRead 15 October 2026Text names the BMG-G21 chip.
- Process
- TSMC N57Maker product pageintel.com/content/www/us/en/products/sku/241598/intel-arc-b580-graphics/specifications.htmlRead 15 October 2026Lithography Type TSMC N5.8Reviewtomshardware.com/pc-components/gpus/intel-arc-b580-review-the-new-usd249-gpu-champion-has-arrivedRead 15 October 2026
- Transistors
- 19.6billion8Reviewtomshardware.com/pc-components/gpus/intel-arc-b580-review-the-new-usd249-gpu-champion-has-arrivedRead 15 October 2026Specification table: 19.6 billion.
- Ray tracing cores
- 207Maker product pageintel.com/content/www/us/en/products/sku/241598/intel-arc-b580-graphics/specifications.htmlRead 15 October 2026Ray Tracing Units 20.
- AI cores
- 1603Retailer pageavlgear.com/products/asrock-b580-sl-12go-intel-arc-b580-steel-legend-12gb-oc-graphics-cardRead 15 October 2026Intel XMX Engines: 160.7Maker product pageintel.com/content/www/us/en/products/sku/241598/intel-arc-b580-graphics/specifications.htmlRead 15 October 2026Intel XMX Engines 160.
- Infinity Cache (L3)
- Not available
- FP32 compute (claimed)
- Not available
- AI performance (claimed)
Precision Throughput (TOPS) INT8 233
Clocks
- Base clock
- Not available
- Game clock
- 2,800MHz2Press releasethefpsreview.com/2024/12/03/asrock-launches-intel-arc-b580-steel-legend-12gb-oc-b580-challenger-12gb-oc-and-b570-challenger-10gb-oc-graphics-cardsRead 15 October 2026The release says Graphics Clock up to 2800MHz. ASRock's spec table (retailer copies) calls the same figure Engine Clock 2800 MHz and Funky Kit calls it the boost clock of up to 2.8 GHz. Tom's Hardware found the card runs at the same 2850 MHz maximum boost as other B580 cards. ASRock's Graphics Clock on an Intel card is the game clock, so it is stored here. Intel's reference Graphics Clock is 2670 MHz.3Retailer pageavlgear.com/products/asrock-b580-sl-12go-intel-arc-b580-steel-legend-12gb-oc-graphics-cardRead 15 October 2026Engine Clock: 2800 MHz.11Press articletomshardware.com/pc-components/gpus/where-to-buy-the-intel-arc-b580Read 15 October 2026The Steel Legend OC comes with a Graphics Clock of 2800 MHz but seems to have the same maximum 2850 MHz boost clock as other B580 cards.12Press articlewccftech.com/newegg-lists-asrock-intel-arc-b580-gpus-pre-orders-steel-legend-challenger-269-259-usdRead 15 October 2026The Steel Legend has a 2800 MHz boost clock.
- Boost clock
- Not available
- Boost clock in OC mode
- Not available
- Reference boost clock
- Not available
Memory
- VRAM
- 12GB2Press releasethefpsreview.com/2024/12/03/asrock-launches-intel-arc-b580-steel-legend-12gb-oc-b580-challenger-12gb-oc-and-b570-challenger-10gb-oc-graphics-cardsRead 15 October 202612GB GDDR6 memory running at 19Gbps.3Retailer pageavlgear.com/products/asrock-b580-sl-12go-intel-arc-b580-steel-legend-12gb-oc-graphics-cardRead 15 October 20267Maker product pageintel.com/content/www/us/en/products/sku/241598/intel-arc-b580-graphics/specifications.htmlRead 15 October 2026Memory 12 GB GDDR6.
- VRAM type
- GDDR62Press releasethefpsreview.com/2024/12/03/asrock-launches-intel-arc-b580-steel-legend-12gb-oc-b580-challenger-12gb-oc-and-b570-challenger-10gb-oc-graphics-cardsRead 15 October 20263Retailer pageavlgear.com/products/asrock-b580-sl-12go-intel-arc-b580-steel-legend-12gb-oc-graphics-cardRead 15 October 20267Maker product pageintel.com/content/www/us/en/products/sku/241598/intel-arc-b580-graphics/specifications.htmlRead 15 October 2026
- Memory bus width
- 192bits3Retailer pageavlgear.com/products/asrock-b580-sl-12go-intel-arc-b580-steel-legend-12gb-oc-graphics-cardRead 15 October 20267Maker product pageintel.com/content/www/us/en/products/sku/241598/intel-arc-b580-graphics/specifications.htmlRead 15 October 2026Graphics Memory Interface 192 bit.
- Memory speed
- 19Gbps2Press releasethefpsreview.com/2024/12/03/asrock-launches-intel-arc-b580-steel-legend-12gb-oc-b580-challenger-12gb-oc-and-b570-challenger-10gb-oc-graphics-cardsRead 15 October 20263Retailer pageavlgear.com/products/asrock-b580-sl-12go-intel-arc-b580-steel-legend-12gb-oc-graphics-cardRead 15 October 20267Maker product pageintel.com/content/www/us/en/products/sku/241598/intel-arc-b580-graphics/specifications.htmlRead 15 October 2026Graphics Memory Speed 19 Gbps.
Connectivity
- PCIe generation
- 43Retailer pageavlgear.com/products/asrock-b580-sl-12go-intel-arc-b580-steel-legend-12gb-oc-graphics-cardRead 15 October 20267Maker product pageintel.com/content/www/us/en/products/sku/241598/intel-arc-b580-graphics/specifications.htmlRead 15 October 2026PCI Express 4.0 x8.
- PCIe lanes
- 83Retailer pageavlgear.com/products/asrock-b580-sl-12go-intel-arc-b580-steel-legend-12gb-oc-graphics-cardRead 15 October 2026Bus Standard: PCI Express 4.0 x8.7Maker product pageintel.com/content/www/us/en/products/sku/241598/intel-arc-b580-graphics/specifications.htmlRead 15 October 2026
- Display outputs
Type Version Count Max bandwidth (Gbps) HDMI 2.1a 1 Not available DisplayPort 2.1 UHBR13.5 1 54 DisplayPort 2.1 UHBR10 2 40 Source3Retailer pageavlgear.com/products/asrock-b580-sl-12go-intel-arc-b580-steel-legend-12gb-oc-graphics-cardRead 15 October 2026Outputs: 3x DisplayPort 2.1 and 1x HDMI 2.1a. DisplayPort Details: 1x DisplayPort 2.1 (Primary, up to UHBR13.5) and 2x DisplayPort 2.1 (up to UHBR10). UHBR13.5 is 54 Gbps and UHBR10 is 40 Gbps. The copy follows ASRock's spec table.4Retailer pagecomx-computers.co.za/90-GA5CZZ-00UANF-specifications-318716.htmRead 15 October 2026Interface: 1 x HDMI 2.1a, 1 x DisplayPort 2.1 up to UHBR 13.5, 2 x DisplayPort 2.1 up to UHBR 10.7Maker product pageintel.com/content/www/us/en/products/sku/241598/intel-arc-b580-graphics/specifications.htmlRead 15 October 2026Graphics Output: HDMI 2.1, DP2.1 up to UHBR 13.5, DP2.1 up to UHBR 10. ASRock states HDMI 2.1a and the port split.13Reviewhwcooling.net/en/asrock-intel-arc-b580-steel-legend-12gb-review-third-in-the-game/2Read 15 October 2026Page 2: only the middle DisplayPort connector supports UHBR13.5. The other two are limited to UHBR10.- Display outputs in total
- 4
- HDMI ports
- 1
- DisplayPort ports
- 3
- Highest HDMI version
- 2.1a
- Highest DisplayPort version
- 2.1 UHBR13.5
- Fastest DisplayPort link
- 54Gbps
- Max displays
- 43Retailer pageavlgear.com/products/asrock-b580-sl-12go-intel-arc-b580-steel-legend-12gb-oc-graphics-cardRead 15 October 2026Multi-View: up to 4 displays.7Maker product pageintel.com/content/www/us/en/products/sku/241598/intel-arc-b580-graphics/specifications.htmlRead 15 October 2026Number of Displays Supported 4.
- Max output resolution
- Resolution7680 × 4320 pxRefresh rate120 Hz3Retailer pageavlgear.com/products/asrock-b580-sl-12go-intel-arc-b580-steel-legend-12gb-oc-graphics-cardRead 15 October 2026Digital Max Resolution 7680 x 4320. The 120 Hz is Intel's HDMI figure at 8K. DisplayPort is 8K at 60 Hz.7Maker product pageintel.com/content/www/us/en/products/sku/241598/intel-arc-b580-graphics/specifications.htmlRead 15 October 2026Max Resolution HDMI 7680 x 4320 at 120 Hz. Max Resolution DP 7680 x 4320 at 60 Hz. The HDMI mode is the highest and is stored.
- HDCP version
- Not available
Video engine
- Video decoders
- 27Maker product pageintel.com/content/www/us/en/products/sku/241598/intel-arc-b580-graphics/specifications.htmlRead 15 October 2026
- Hardware video encode
- H.264, H.265 (HEVC), AV12Press releasethefpsreview.com/2024/12/03/asrock-launches-intel-arc-b580-steel-legend-12gb-oc-b580-challenger-12gb-oc-and-b570-challenger-10gb-oc-graphics-cardsRead 15 October 2026The Advanced Media Engine has two full-featured media transcoders for the most popular formats including AV1.7Maker product pageintel.com/content/www/us/en/products/sku/241598/intel-arc-b580-graphics/specifications.htmlRead 15 October 2026H.264, H.265 (HEVC) and AV1 hardware encode and decode: Yes.
- Hardware video decode
- H.264, H.265 (HEVC), VP9, AV17Maker product pageintel.com/content/www/us/en/products/sku/241598/intel-arc-b580-graphics/specifications.htmlRead 15 October 2026H.264, H.265 and AV1 hardware decode: Yes. VP9 is not on this page. See the wccftech source.10Reviewwccftech.com/review/intel-arc-b580-battlemage-graphics-card-review/3Read 15 October 2026The GPU supports hardware acceleration engines such as AV1, HEVC, AVC, VP9 and XAVC-H. Intel's product page does not list VP9.
Graphics features
- DirectX
- 12 Ultimate3Retailer pageavlgear.com/products/asrock-b580-sl-12go-intel-arc-b580-steel-legend-12gb-oc-graphics-cardRead 15 October 20267Maker product pageintel.com/content/www/us/en/products/sku/241598/intel-arc-b580-graphics/specifications.htmlRead 15 October 2026DirectX 12 Ultimate.
- OpenGL
- 4.63Retailer pageavlgear.com/products/asrock-b580-sl-12go-intel-arc-b580-steel-legend-12gb-oc-graphics-cardRead 15 October 20267Maker product pageintel.com/content/www/us/en/products/sku/241598/intel-arc-b580-graphics/specifications.htmlRead 15 October 2026OpenGL up to 4.6.
- Upscaling technologies
- XeSS 23Retailer pageavlgear.com/products/asrock-b580-sl-12go-intel-arc-b580-steel-legend-12gb-oc-graphics-cardRead 15 October 2026Intel XeSS 2.9Reviewclub386.com/intel-arc-b580-limited-edition-reviewRead 15 October 2026Specification table lists XeSS 2. Intel's product page says only XeSS.
- Frame generation
- XeSS Frame Generation2Press releasethefpsreview.com/2024/12/03/asrock-launches-intel-arc-b580-steel-legend-12gb-oc-b580-challenger-12gb-oc-and-b570-challenger-10gb-oc-graphics-cardsRead 15 October 2026The release lists Intel XeSS Frame Generation and Intel Xe Low Latency.9Reviewclub386.com/intel-arc-b580-limited-edition-reviewRead 15 October 2026Specification table lists XeSS Frame Generation.
Power
- Board power
- Not available
- Reference board power
- 190W7Maker product pageintel.com/content/www/us/en/products/sku/241598/intel-arc-b580-graphics/specifications.htmlRead 15 October 2026TBP 190 W.
- PSU wattage (card maker)
- 650W3Retailer pageavlgear.com/products/asrock-b580-sl-12go-intel-arc-b580-steel-legend-12gb-oc-graphics-cardRead 15 October 2026Recommended PSU: 650W.4Retailer pagecomx-computers.co.za/90-GA5CZZ-00UANF-specifications-318716.htmRead 15 October 2026Recommended PSU 650W.15Reviewtweakreviews.com/graphics-card/asrock-b580-steel-legendRead 15 October 2026ASRock recommends a 650W power supply.
- Power connector
- 2 x 8-pin PCIe3Retailer pageavlgear.com/products/asrock-b580-sl-12go-intel-arc-b580-steel-legend-12gb-oc-graphics-cardRead 15 October 2026Power Connectors: 2x 8-pin.4Retailer pagecomx-computers.co.za/90-GA5CZZ-00UANF-specifications-318716.htmRead 15 October 2026Power Connector 2 x 8-pin.11Press articletomshardware.com/pc-components/gpus/where-to-buy-the-intel-arc-b580Read 15 October 2026The Steel Legend OC comes with dual 8-pin power connectors.12Press articlewccftech.com/newegg-lists-asrock-intel-arc-b580-gpus-pre-orders-steel-legend-challenger-269-259-usdRead 15 October 2026Triple fan cooling and dual 8-pin PCI-E connectors.13Reviewhwcooling.net/en/asrock-intel-arc-b580-steel-legend-12gb-review-third-in-the-game/2Read 15 October 2026Page 2: a pair of classic 8-pin connectors.14Reviewfunkykit.com/reviews/video-cards/asrock-steel-legend-intel-arc-b580-graphics-card-review/3Read 15 October 2026Page 3: 2 x 8-pin PCIE power connectors.
Cooling
- Cooler type
- Open air13Reviewhwcooling.net/en/asrock-intel-arc-b580-steel-legend-12gb-review-third-in-the-game/2Read 15 October 2026Page 2: a cooler with three fans that blow air down onto a heatsink with transverse finning, with a pass-through rear half. hwcooling.net refused connections from this agent, so pages 1 and 2 were read in an Internet Archive copy. The noise, temperature and clock pages were not archived and are not used.14Reviewfunkykit.com/reviews/video-cards/asrock-steel-legend-intel-arc-b580-graphics-card-review/3Read 15 October 2026Page 3: three striped ring fans with a large heatsink and a metal backplate.
- Fans
- 32Press releasethefpsreview.com/2024/12/03/asrock-launches-intel-arc-b580-steel-legend-12gb-oc-b580-challenger-12gb-oc-and-b570-challenger-10gb-oc-graphics-cardsRead 15 October 2026Triple fan design.3Retailer pageavlgear.com/products/asrock-b580-sl-12go-intel-arc-b580-steel-legend-12gb-oc-graphics-cardRead 15 October 202613Reviewhwcooling.net/en/asrock-intel-arc-b580-steel-legend-12gb-review-third-in-the-game/2Read 15 October 2026Page 2: three fans with 8.8 cm impellers.
- Radiator size
- Not available
- Fan stop at low load
- Yes3Retailer pageavlgear.com/products/asrock-b580-sl-12go-intel-arc-b580-steel-legend-12gb-oc-graphics-cardRead 15 October 2026Triple fan design with 0dB silent cooling under light loads.15Reviewtweakreviews.com/graphics-card/asrock-b580-steel-legendRead 15 October 2026The cooler has the option of a 0dB mode where the fans stop completely under low load.
- Dual BIOS
- Not available
Dimensions and weight
- Length
- 298mm4Retailer pagecomx-computers.co.za/90-GA5CZZ-00UANF-specifications-318716.htmRead 15 October 2026Product Dimensions 29.8 x 13.1 x 5.1 cm, so 298 x 131 x 51 mm. Funky Kit and Arvutitark give the same figures. The bracket is not mentioned. Length is the longest side.14Reviewfunkykit.com/reviews/video-cards/asrock-steel-legend-intel-arc-b580-graphics-card-review/3Read 15 October 2026Page 3: the card measures only 298 x 131 x 51mm.
- Height
- 131mm4Retailer pagecomx-computers.co.za/90-GA5CZZ-00UANF-specifications-318716.htmRead 15 October 2026Second value of 29.8 x 13.1 x 5.1 cm.14Reviewfunkykit.com/reviews/video-cards/asrock-steel-legend-intel-arc-b580-graphics-card-review/3Read 15 October 2026
- Thickness
- 51mm4Retailer pagecomx-computers.co.za/90-GA5CZZ-00UANF-specifications-318716.htmRead 15 October 2026Third value of 29.8 x 13.1 x 5.1 cm, the shortest side.14Reviewfunkykit.com/reviews/video-cards/asrock-steel-legend-intel-arc-b580-graphics-card-review/3Read 15 October 2026
- Slot width
- Not available
- Low profile
- Not available
- NVIDIA SFF-Ready
- Not available
- Package weight
- Not available
Lighting and software
- RGB lighting
- Yes2Press releasethefpsreview.com/2024/12/03/asrock-launches-intel-arc-b580-steel-legend-12gb-oc-b580-challenger-12gb-oc-and-b570-challenger-10gb-oc-graphics-cardsRead 15 October 2026ARGB fans and an ARGB LED light panel.3Retailer pageavlgear.com/products/asrock-b580-sl-12go-intel-arc-b580-steel-legend-12gb-oc-graphics-cardRead 15 October 2026Polychrome SYNC lighting.13Reviewhwcooling.net/en/asrock-intel-arc-b580-steel-legend-12gb-review-third-in-the-game/2Read 15 October 2026Page 2: transparent fans lit by addressable RGB LEDs and an illuminated Steel Legend logo. The page also gives a card weight of 968 grams and a length of about 29.5 cm from the bracket. They are not stored, because the maker's spec gives 959 g and 298 mm.
- Lighting sync
- ASRock Polychrome SYNC2Press releasethefpsreview.com/2024/12/03/asrock-launches-intel-arc-b580-steel-legend-12gb-oc-b580-challenger-12gb-oc-and-b570-challenger-10gb-oc-graphics-cardsRead 15 October 2026Lighting is controlled with Polychrome SYNC software.3Retailer pageavlgear.com/products/asrock-b580-sl-12go-intel-arc-b580-steel-legend-12gb-oc-graphics-cardRead 15 October 2026Polychrome SYNC support.
- Software
- Not available
Measured performance
We could not find any of these 6 fields. Show them
- GPU clock while gaming (measured)
- Not available
- 3DMark Time Spy graphics
- Not available
- 3DMark Steel Nomad
- Not available
- 3DMark Port Royal
- Not available
- 3DMark Speed Way
- Not available
- Game frame rates
- Not available
Measured noise and temperature
We could not find any of these 5 fields. Show them
- Fan noise per load
- Not available
- Fan noise while gaming
- Not available
- GPU temperature while gaming
- Not available
- Hot spot temperature while gaming
- Not available
- Memory temperature while gaming
- Not available
Measured power
We could not find any of these 2 fields. Show them
- Card power at idle (measured)
- Not available
- GPU power while gaming (measured)
- Not available
In the box
- In the box
- Quick Installation Guide3Retailer pageavlgear.com/products/asrock-b580-sl-12go-intel-arc-b580-steel-legend-12gb-oc-graphics-cardRead 15 October 2026What's Included: 1x Quick Installation Guide. The list has no adapter, bracket or other item.
- Power adapter cable included
- No3Retailer pageavlgear.com/products/asrock-b580-sl-12go-intel-arc-b580-steel-legend-12gb-oc-graphics-cardRead 15 October 2026The maker's in-the-box list has no adapter, so false.13Reviewhwcooling.net/en/asrock-intel-arc-b580-steel-legend-12gb-review-third-in-the-game/2Read 15 October 2026Page 1: accessories are limited to a quick-installation guide. No power adapter is required.
- Support bracket included
- No3Retailer pageavlgear.com/products/asrock-b580-sl-12go-intel-arc-b580-steel-legend-12gb-oc-graphics-cardRead 15 October 2026The maker's in-the-box list has no support bracket, so false.13Reviewhwcooling.net/en/asrock-intel-arc-b580-steel-legend-12gb-review-third-in-the-game/2Read 15 October 2026Page 1: despite the card's weight there is no need for a support bracket, and none is in the box.
Links
- Product page
- www.asrock.com/Graphics-Card/Intel/Intel%20Arc%20B580%20Steel%20Legend%2012GB%20OC/index.asp1Maker product pageasrock.com/Graphics-Card/Intel/Intel%20Arc%20B580%20Steel%20Legend%2012GB%20OC/index.aspRead 15 October 2026ASRock product page from the task's evidence link. asrock.com answers agents with a bot check, so the page was not read. The ASRock spec text below comes from the ASRock press release and from retailer and distributor copies of ASRock's spec table.
- Spec sheet
- Not available
- Manual
- Not available
- EPREL registration number
- Not available
Warranty
We could not find any of these 1 fields. Show them
- Manufacturer warranty (source market)
- Not available
