PC parts / Graphics cards

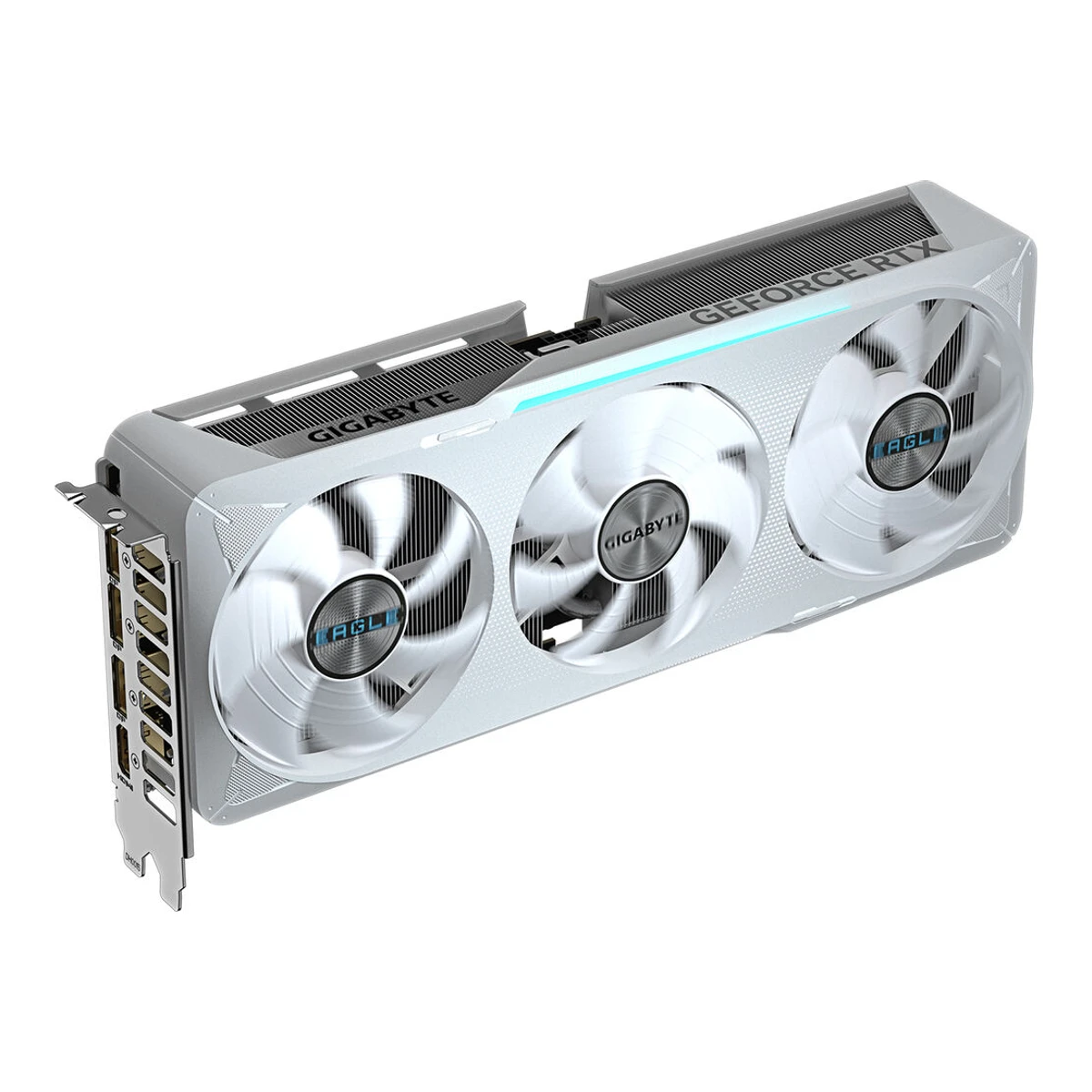

GIGABYTE GeForce RTX 5070 EAGLE OC ICE SFF 12G

GIGABYTEGraphics card

GeForce RTX 5070 EAGLE OC ICE SFF 12G

Released July 2025.7Reviewthefpsreview.com/2025/07/10/gigabyte-geforce-rtx-5070-eagle-oc-ice-sff-12g-video-card-reviewRead 14 October 2026Review of this exact white card, published 2025-07-10. It is the earliest dated review found. The retail month is not stated. The estimate is approximate and could be one or two months early. Last checked 16 October 2026.

GPU
NVIDIA GeForce RTX 5070
VRAM
12GB
Length
290mm
Board power
250W

71 of 100 fields known.

Compare with another graphics cardDownload JSONDownload CSVGet it from the API

At a glance

Ports

  • HDMI 2.1b
  • 3 DisplayPort 2.1b UHBR20

All specs

SourceCalculated

General

Series
EAGLE1Maker product pagegigabyte.com/us/Graphics-Card/GV-N5070EAGLEOC-ICE-12GD/spRead 14 October 2026Product name GeForce RTX 5070 EAGLE OC ICE SFF 12G. EAGLE is the line name.
Model numbers
GV-N5070EAGLEOC ICE-12GD1Maker product pagegigabyte.com/us/Graphics-Card/GV-N5070EAGLEOC-ICE-12GD/spRead 14 October 2026SKU GV-N5070EAGLEOC-ICE-12GD. Retailers write it GV-N5070EAGLEOC ICE-12GD. The black EAGLE OC SFF is a separate product with its own SKU.2Retailer pagenetcodex.ph/product/gigabyte-geforce-rtx-5070-eagle-oc-ice-sff-12gb-gddr7-graphics-card-with-blackwell-architecture-and-windforce-cooling-gv-n5070eagleoc-ice-12gdRead 14 October 2026SKU GV-N5070EAGLEOC-ICE-12GD.4Retailer pagearvutitark.ee/en/pc-components/graphics-cards-vga/giga-vga-12gb-rtx5070-eagle-oc-ice-12g-3xdphdmi-geforce-rtx-1438932Read 14 October 2026Product code GV-N5070EAGLEOC ICE-12GD.
GTIN / EAN
889523048429, 47193313557775Retailer pageglobalb.channelonline.com/acme/classicmp/Products/overview/M025954106Read 14 October 2026UPC 0889523048429, written as the 12-digit UPC 889523048429 and matched with the part number GV-N5070EAGLEOC ICE-12GD. The page header reads THIS IS TEST STORESITE.6Retailer pagetanotis.com/products/gigabyte-geforce-rtx-5070-eagle-oc-ice-sff-graphics-cardRead 14 October 2026UPC 889523048429.
Announced
Not available
Status
Available3Retailer pageparadigit.ie/gigabyte-geforce-rtx-5070-eagle-oc-ice-sff-12g/21797580/productRead 14 October 2026Listed for sale on 2026-10-14.4Retailer pagearvutitark.ee/en/pc-components/graphics-cards-vga/giga-vga-12gb-rtx5070-eagle-oc-ice-12g-3xdphdmi-geforce-rtx-1438932Read 14 October 2026Listed with 7 units available for order on 2026-10-14.
Predecessor
Not available
Successor
Not available
Launch price (US)
Not available
Launch price (EU)
Not available
Markets
Not available
Colours
White3Retailer pageparadigit.ie/gigabyte-geforce-rtx-5070-eagle-oc-ice-sff-12g/21797580/productRead 14 October 2026Colour: White.7Reviewthefpsreview.com/2025/07/10/gigabyte-geforce-rtx-5070-eagle-oc-ice-sff-12g-video-card-reviewRead 14 October 2026The AERO and EAGLE OC ICE SFF are white cards.
GPU
NVIDIA GeForce RTX 50709Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5070-familyRead 14 October 2026GeForce RTX 5070 column of the spec table.
GPU brand
NVIDIA9Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5070-familyRead 14 October 2026
Reference launch price (US)
$54912Press releasenvidianews.nvidia.com/news/nvidia-blackwell-geforce-rtx-50-series-opens-new-world-of-ai-computer-graphicsRead 14 October 2026Dated 2025-01-06. The GeForce RTX 5070 GPU is available starting in February at 549 USD.

GPU

GPU architecture
Blackwell9Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5070-familyRead 14 October 2026NVIDIA Architecture: Blackwell.
GPU die
GB20510Maker spec sheet (PDF)images.nvidia.com/aem-dam/Solutions/geforce/blackwell/nvidia-rtx-blackwell-gpu-architecture.pdfRead 14 October 2026Table 6 in Appendix C, GPU codename GB205.
Process
TSMC 4N10Maker spec sheet (PDF)images.nvidia.com/aem-dam/Solutions/geforce/blackwell/nvidia-rtx-blackwell-gpu-architecture.pdfRead 14 October 2026Table 6: TSMC 4nm 4N, NVIDIA Custom Process.
Transistors
31.1billion10Maker spec sheet (PDF)images.nvidia.com/aem-dam/Solutions/geforce/blackwell/nvidia-rtx-blackwell-gpu-architecture.pdfRead 14 October 2026Table 6: 31.1 billion.
Die size
263mm²10Maker spec sheet (PDF)images.nvidia.com/aem-dam/Solutions/geforce/blackwell/nvidia-rtx-blackwell-gpu-architecture.pdfRead 14 October 2026Table 6: 263 mm2.
Compute units
4810Maker spec sheet (PDF)images.nvidia.com/aem-dam/Solutions/geforce/blackwell/nvidia-rtx-blackwell-gpu-architecture.pdfRead 14 October 2026Table 6: 48 SMs on the GeForce RTX 5070. The full GB205 has 50.
Shader cores
6,1442Retailer pagenetcodex.ph/product/gigabyte-geforce-rtx-5070-eagle-oc-ice-sff-12gb-gddr7-graphics-card-with-blackwell-architecture-and-windforce-cooling-gv-n5070eagleoc-ice-12gdRead 14 October 2026CUDA cores 6144.9Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5070-familyRead 14 October 2026CUDA cores 6144.10Maker spec sheet (PDF)images.nvidia.com/aem-dam/Solutions/geforce/blackwell/nvidia-rtx-blackwell-gpu-architecture.pdfRead 14 October 2026
Ray tracing cores
4810Maker spec sheet (PDF)images.nvidia.com/aem-dam/Solutions/geforce/blackwell/nvidia-rtx-blackwell-gpu-architecture.pdfRead 14 October 2026Table 6: 48 fourth-generation RT cores.
AI cores
19210Maker spec sheet (PDF)images.nvidia.com/aem-dam/Solutions/geforce/blackwell/nvidia-rtx-blackwell-gpu-architecture.pdfRead 14 October 2026Table 6: 192 fifth-generation Tensor cores.
ROPs
8010Maker spec sheet (PDF)images.nvidia.com/aem-dam/Solutions/geforce/blackwell/nvidia-rtx-blackwell-gpu-architecture.pdfRead 14 October 2026Table 6: 80 ROPs.
L2 cache
48MB10Maker spec sheet (PDF)images.nvidia.com/aem-dam/Solutions/geforce/blackwell/nvidia-rtx-blackwell-gpu-architecture.pdfRead 14 October 2026Table 6: 49152 KB, which is 48 MB.
Infinity Cache (L3)
Not available
FP32 compute (claimed)
30.9TFLOPS10Maker spec sheet (PDF)images.nvidia.com/aem-dam/Solutions/geforce/blackwell/nvidia-rtx-blackwell-gpu-architecture.pdfRead 14 October 2026Peak FP32 TFLOPS (non-Tensor), based on the 2512 MHz GPU Boost Clock.
AI performance (claimed)
PrecisionWith sparsityThroughput (TOPS)
FP4No493.9
FP4Yes987.8
FP8No246.9
FP8Yes493.9
FP16No123.5
FP16Yes246.9
INT8No246.9
INT8Yes493.9
Source10Maker spec sheet (PDF)images.nvidia.com/aem-dam/Solutions/geforce/blackwell/nvidia-rtx-blackwell-gpu-architecture.pdfRead 14 October 2026Table 6, dense and effective with sparsity. FP4 uses FP32 accumulate. FP8 and FP16 use FP16 accumulate. FP8 with FP32 accumulate is half as high.

Clocks

Base clock
Not available
Game clock
Not available
Boost clock
2,587MHz1Maker product pagegigabyte.com/us/Graphics-Card/GV-N5070EAGLEOC-ICE-12GD/spRead 14 October 2026Core Clock 2587 MHz (Reference card : 2512 MHz). Gigabyte states one clock, which is its boost clock.2Retailer pagenetcodex.ph/product/gigabyte-geforce-rtx-5070-eagle-oc-ice-sff-12gb-gddr7-graphics-card-with-blackwell-architecture-and-windforce-cooling-gv-n5070eagleoc-ice-12gdRead 14 October 2026Core clock 2587 MHz (reference card: 2512 MHz).3Retailer pageparadigit.ie/gigabyte-geforce-rtx-5070-eagle-oc-ice-sff-12g/21797580/productRead 14 October 2026Clock speed 2587 MHz.7Reviewthefpsreview.com/2025/07/10/gigabyte-geforce-rtx-5070-eagle-oc-ice-sff-12g-video-card-reviewRead 14 October 2026Factory boost clock 2587 MHz against a reference value of 2512 MHz.
Boost clock in OC mode
Not available
Reference boost clock
2,512MHz1Maker product pagegigabyte.com/us/Graphics-Card/GV-N5070EAGLEOC-ICE-12GD/spRead 14 October 2026Core Clock row: Reference card 2512 MHz.2Retailer pagenetcodex.ph/product/gigabyte-geforce-rtx-5070-eagle-oc-ice-sff-12gb-gddr7-graphics-card-with-blackwell-architecture-and-windforce-cooling-gv-n5070eagleoc-ice-12gdRead 14 October 20267Reviewthefpsreview.com/2025/07/10/gigabyte-geforce-rtx-5070-eagle-oc-ice-sff-12g-video-card-reviewRead 14 October 2026Reference value 2512 MHz.10Maker spec sheet (PDF)images.nvidia.com/aem-dam/Solutions/geforce/blackwell/nvidia-rtx-blackwell-gpu-architecture.pdfRead 14 October 2026Table 6: GPU Boost Clock 2512 MHz.

Memory

VRAM
12GB2Retailer pagenetcodex.ph/product/gigabyte-geforce-rtx-5070-eagle-oc-ice-sff-12gb-gddr7-graphics-card-with-blackwell-architecture-and-windforce-cooling-gv-n5070eagleoc-ice-12gdRead 14 October 202612 GB GDDR7.9Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5070-familyRead 14 October 2026Standard memory config for the RTX 5070: 12 GB GDDR7.
VRAM type
GDDR72Retailer pagenetcodex.ph/product/gigabyte-geforce-rtx-5070-eagle-oc-ice-sff-12gb-gddr7-graphics-card-with-blackwell-architecture-and-windforce-cooling-gv-n5070eagleoc-ice-12gdRead 14 October 202612 GB GDDR7.9Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5070-familyRead 14 October 202612 GB GDDR7.
Memory bus width
192bits2Retailer pagenetcodex.ph/product/gigabyte-geforce-rtx-5070-eagle-oc-ice-sff-12gb-gddr7-graphics-card-with-blackwell-architecture-and-windforce-cooling-gv-n5070eagleoc-ice-12gdRead 14 October 2026Memory bus 192-bit.9Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5070-familyRead 14 October 2026Memory interface width 192-bit.
Memory speed
28Gbps2Retailer pagenetcodex.ph/product/gigabyte-geforce-rtx-5070-eagle-oc-ice-sff-12gb-gddr7-graphics-card-with-blackwell-architecture-and-windforce-cooling-gv-n5070eagleoc-ice-12gdRead 14 October 2026Memory clock 28 Gbps.10Maker spec sheet (PDF)images.nvidia.com/aem-dam/Solutions/geforce/blackwell/nvidia-rtx-blackwell-gpu-architecture.pdfRead 14 October 2026Table 6: memory data rate 28 Gbps.
Memory bandwidth
672GB/s10Maker spec sheet (PDF)images.nvidia.com/aem-dam/Solutions/geforce/blackwell/nvidia-rtx-blackwell-gpu-architecture.pdfRead 14 October 2026Table 6: 672 GB/sec.

Connectivity

PCIe generation
59Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5070-familyRead 14 October 2026PCI Express Gen 5.10Maker spec sheet (PDF)images.nvidia.com/aem-dam/Solutions/geforce/blackwell/nvidia-rtx-blackwell-gpu-architecture.pdfRead 14 October 2026Table 6: PCI Express Gen 5.
PCIe lanes
163Retailer pageparadigit.ie/gigabyte-geforce-rtx-5070-eagle-oc-ice-sff-12g/21797580/productRead 14 October 2026Interface: PCI Express 5.0 x16.7Reviewthefpsreview.com/2025/07/10/gigabyte-geforce-rtx-5070-eagle-oc-ice-sff-12g-video-card-reviewRead 14 October 2026PCIe Gen 5.0 x16 compatible.
Display outputs
TypeVersionCountMax bandwidth (Gbps)
HDMI2.1b1Not available
DisplayPort2.1b UHBR20380
Source1Maker product pagegigabyte.com/us/Graphics-Card/GV-N5070EAGLEOC-ICE-12GD/spRead 14 October 2026DisplayPort 2.1b x 3 and HDMI 2.1b x 1. The UHBR20 class and the 80 Gbps link rate come from the NVIDIA RTX 5070 page. Some retailers write DisplayPort 2.1a.2Retailer pagenetcodex.ph/product/gigabyte-geforce-rtx-5070-eagle-oc-ice-sff-12gb-gddr7-graphics-card-with-blackwell-architecture-and-windforce-cooling-gv-n5070eagleoc-ice-12gdRead 14 October 2026DisplayPort 2.1b x 3, HDMI 2.1b x 1.9Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5070-familyRead 14 October 20263x DisplayPort and 1x HDMI. Footnote: DisplayPort 2.1b with UHBR20, up to 4K 480 Hz or 8K 165 Hz with DSC. UHBR20 is 80 Gbps. HDMI 2.1b.
Display outputs in total
4
HDMI ports
1
DisplayPort ports
3
Highest HDMI version
2.1b
Highest DisplayPort version
2.1b UHBR20
Fastest DisplayPort link
80Gbps
Max displays
41Maker product pagegigabyte.com/us/Graphics-Card/GV-N5070EAGLEOC-ICE-12GD/spRead 14 October 2026Multi-view 4 and a digital maximum of 7680 x 4320.2Retailer pagenetcodex.ph/product/gigabyte-geforce-rtx-5070-eagle-oc-ice-sff-12gb-gddr7-graphics-card-with-blackwell-architecture-and-windforce-cooling-gv-n5070eagleoc-ice-12gdRead 14 October 2026Multi-view 4 displays and a maximum of 7680 x 4320.3Retailer pageparadigit.ie/gigabyte-geforce-rtx-5070-eagle-oc-ice-sff-12g/21797580/productRead 14 October 2026Max displays 4.9Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5070-familyRead 14 October 2026Multi monitor: up to 4 independent displays at 4K 165 Hz.
Max output resolution
Resolution7680 × 4320 pxRefresh rate165 Hz9Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5070-familyRead 14 October 2026Footnote 1: up to 8K 12-bit HDR at 165 Hz with DP 2.1b and DSC. Over HDMI 2.1b with DSC it is 8K at 120 Hz.
HDCP version
2.39Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5070-familyRead 14 October 2026HDCP 2.3.

Video engine

Video encoders
19Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5070-familyRead 14 October 2026NVENC: 1x ninth generation.10Maker spec sheet (PDF)images.nvidia.com/aem-dam/Solutions/geforce/blackwell/nvidia-rtx-blackwell-gpu-architecture.pdfRead 14 October 2026Table 6: 1 x NVENC (9th Gen).
Video decoders
19Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5070-familyRead 14 October 2026NVDEC: 1x sixth generation.10Maker spec sheet (PDF)images.nvidia.com/aem-dam/Solutions/geforce/blackwell/nvidia-rtx-blackwell-gpu-architecture.pdfRead 14 October 2026Table 6: 1 x NVDEC (6th Gen).
Hardware video encode
H.264, H.265 (HEVC), AV111Maker product pagedeveloper.nvidia.com/video-encode-decode-support-matrixRead 14 October 2026GeForce RTX 5070 row: H.264, HEVC and AV1 encode.
Hardware video decode
H.264, H.265 (HEVC), VP9, AV111Maker product pagedeveloper.nvidia.com/video-encode-decode-support-matrixRead 14 October 2026GeForce RTX 5070 row: decode for H.264, HEVC, VP9 and AV1 among others.

Graphics features

DirectX
12 Ultimate9Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5070-familyRead 14 October 2026Microsoft DirectX 12 Ultimate: Yes.
Vulkan
1.49Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5070-familyRead 14 October 2026Vulkan 1.4, OpenGL 4.6.
OpenGL
4.69Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5070-familyRead 14 October 2026Vulkan 1.4, OpenGL 4.6.
Upscaling technologies
DLSS 49Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5070-familyRead 14 October 2026DLSS 4 with Super Resolution, DLAA and Ray Reconstruction.
Frame generation
DLSS Frame Generation, DLSS Multi Frame Generation9Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5070-familyRead 14 October 2026DLSS 4 lists Frame Generation and Multi Frame Generation.

Power

Board power
Not available
Reference board power
250W9Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5070-familyRead 14 October 2026Total Graphics Power 250 W for the GPU. NVIDIA says the table describes the Founders Edition or reference design.10Maker spec sheet (PDF)images.nvidia.com/aem-dam/Solutions/geforce/blackwell/nvidia-rtx-blackwell-gpu-architecture.pdfRead 14 October 2026Table 6: TGP 250 W.
PSU wattage (card maker)
750W1Maker product pagegigabyte.com/us/Graphics-Card/GV-N5070EAGLEOC-ICE-12GD/spRead 14 October 2026Recommended PSU 750 W. NVIDIA states 650 W required system power for the chip.2Retailer pagenetcodex.ph/product/gigabyte-geforce-rtx-5070-eagle-oc-ice-sff-12gb-gddr7-graphics-card-with-blackwell-architecture-and-windforce-cooling-gv-n5070eagleoc-ice-12gdRead 14 October 2026Recommended PSU 750W.3Retailer pageparadigit.ie/gigabyte-geforce-rtx-5070-eagle-oc-ice-sff-12g/21797580/productRead 14 October 2026Recommended PSU 750 W.7Reviewthefpsreview.com/2025/07/10/gigabyte-geforce-rtx-5070-eagle-oc-ice-sff-12g-video-card-reviewRead 14 October 2026Recommended 750 W PSU minimum. The review lists TDP as 250 W, which is NVIDIA's chip figure.
Power connector
16-pin (revision not stated)1Maker product pagegigabyte.com/us/Graphics-Card/GV-N5070EAGLEOC-ICE-12GD/spRead 14 October 2026Power Connectors: 16 pin x 1. Gigabyte does not name the revision of the card input. The adapter is named 12V-2x6.2Retailer pagenetcodex.ph/product/gigabyte-geforce-rtx-5070-eagle-oc-ice-sff-12gb-gddr7-graphics-card-with-blackwell-architecture-and-windforce-cooling-gv-n5070eagleoc-ice-12gdRead 14 October 2026Power connector 16-pin x 1.3Retailer pageparadigit.ie/gigabyte-geforce-rtx-5070-eagle-oc-ice-sff-12g/21797580/productRead 14 October 2026Power connector 1 x 16-pin.7Reviewthefpsreview.com/2025/07/10/gigabyte-geforce-rtx-5070-eagle-oc-ice-sff-12g-video-card-reviewRead 14 October 2026The supplemental connector is the 12V 6x2 HPWR, written as 12V-2x6 elsewhere. The review says an adapter is included and a small LED lights up at the connector on a connection error.

Cooling

Cooler type
Open air2Retailer pagenetcodex.ph/product/gigabyte-geforce-rtx-5070-eagle-oc-ice-sff-12gb-gddr7-graphics-card-with-blackwell-architecture-and-windforce-cooling-gv-n5070eagleoc-ice-12gdRead 14 October 2026WINDFORCE cooling with Hawk fans, server-grade thermal gel and composite copper heatpipes. Fans blow onto a heatsink.6Retailer pagetanotis.com/products/gigabyte-geforce-rtx-5070-eagle-oc-ice-sff-graphics-cardRead 14 October 2026WINDFORCE system with composite copper heat pipe and a large heatsink.
Fans
32Retailer pagenetcodex.ph/product/gigabyte-geforce-rtx-5070-eagle-oc-ice-sff-12gb-gddr7-graphics-card-with-blackwell-architecture-and-windforce-cooling-gv-n5070eagleoc-ice-12gdRead 14 October 2026WINDFORCE system with Hawk fans.3Retailer pageparadigit.ie/gigabyte-geforce-rtx-5070-eagle-oc-ice-sff-12g/21797580/productRead 14 October 2026Cooling: active, 3 fans.6Retailer pagetanotis.com/products/gigabyte-geforce-rtx-5070-eagle-oc-ice-sff-graphics-cardRead 14 October 2026WINDFORCE system with three Hawk fans.7Reviewthefpsreview.com/2025/07/10/gigabyte-geforce-rtx-5070-eagle-oc-ice-sff-12g-video-card-reviewRead 14 October 2026Three 90 mm Hawk fans.
Radiator size
Not available
Fan stop at low load
Yes6Retailer pagetanotis.com/products/gigabyte-geforce-rtx-5070-eagle-oc-ice-sff-graphics-cardRead 14 October 20263D Active Fan: the fans stop spinning during low loads. A retailer copy of the maker's text. No temperature threshold is stated.
Dual BIOS
Not available

Dimensions and weight

Length
290mm1Maker product pagegigabyte.com/us/Graphics-Card/GV-N5070EAGLEOC-ICE-12GD/spRead 14 October 2026Card Size L=290 W=120 H=50 mm. Gigabyte writes W as the card height and H as the thickness. The page does not say whether the bracket is included.2Retailer pagenetcodex.ph/product/gigabyte-geforce-rtx-5070-eagle-oc-ice-sff-12gb-gddr7-graphics-card-with-blackwell-architecture-and-windforce-cooling-gv-n5070eagleoc-ice-12gdRead 14 October 2026Card size 290 x 120 x 50 mm (L x W x H).7Reviewthefpsreview.com/2025/07/10/gigabyte-geforce-rtx-5070-eagle-oc-ice-sff-12g-video-card-reviewRead 14 October 2026Dimensions 290 x 120 x 50 mm (11 3/8 x 4 3/4 x 2 in).8Certification listnvidia.com/en-us/geforce/news/small-form-factor-sff-readyRead 14 October 2026The list gives height x length x depth as 120 x 290 x 50 mm for the RTX 5070 EAGLE OC ICE SFF.
Height
120mm1Maker product pagegigabyte.com/us/Graphics-Card/GV-N5070EAGLEOC-ICE-12GD/spRead 14 October 2026Second value of L=290 W=120 H=50 mm.2Retailer pagenetcodex.ph/product/gigabyte-geforce-rtx-5070-eagle-oc-ice-sff-12gb-gddr7-graphics-card-with-blackwell-architecture-and-windforce-cooling-gv-n5070eagleoc-ice-12gdRead 14 October 20267Reviewthefpsreview.com/2025/07/10/gigabyte-geforce-rtx-5070-eagle-oc-ice-sff-12g-video-card-reviewRead 14 October 20268Certification listnvidia.com/en-us/geforce/news/small-form-factor-sff-readyRead 14 October 2026
Thickness
50mm1Maker product pagegigabyte.com/us/Graphics-Card/GV-N5070EAGLEOC-ICE-12GD/spRead 14 October 2026Third value of L=290 W=120 H=50 mm.2Retailer pagenetcodex.ph/product/gigabyte-geforce-rtx-5070-eagle-oc-ice-sff-12gb-gddr7-graphics-card-with-blackwell-architecture-and-windforce-cooling-gv-n5070eagleoc-ice-12gdRead 14 October 20267Reviewthefpsreview.com/2025/07/10/gigabyte-geforce-rtx-5070-eagle-oc-ice-sff-12g-video-card-reviewRead 14 October 20268Certification listnvidia.com/en-us/geforce/news/small-form-factor-sff-readyRead 14 October 2026
Slot width
Not available
Low profile
No3Retailer pageparadigit.ie/gigabyte-geforce-rtx-5070-eagle-oc-ice-sff-12g/21797580/productRead 14 October 2026Form factor: Full-height, full-length (FH/FL).
NVIDIA SFF-Ready
Yes5Retailer pageglobalb.channelonline.com/acme/classicmp/Products/overview/M025954106Read 14 October 2026Features list: NVIDIA GeForce SFF-Ready.7Reviewthefpsreview.com/2025/07/10/gigabyte-geforce-rtx-5070-eagle-oc-ice-sff-12g-video-card-reviewRead 14 October 2026Dimensions comply with NVIDIA SFF criteria.8Certification listnvidia.com/en-us/geforce/news/small-form-factor-sff-readyRead 14 October 2026GeForce RTX 5070 EAGLE OC ICE SFF is listed at 120 x 290 x 50 mm. The list has no 12G in the name.
Weight
992.2g(2.2 lb)7Reviewthefpsreview.com/2025/07/10/gigabyte-geforce-rtx-5070-eagle-oc-ice-sff-12g-video-card-reviewRead 14 October 2026The weight of the video card is 2 pounds 3 ounces, which is 992.2 g. The review does not say how it was weighed. The package weight is separate.
Package weight
1,500g(3.3 lb)2Retailer pagenetcodex.ph/product/gigabyte-geforce-rtx-5070-eagle-oc-ice-sff-12gb-gddr7-graphics-card-with-blackwell-architecture-and-windforce-cooling-gv-n5070eagleoc-ice-12gdRead 14 October 2026Packaging weight 1.5 kg, packaging size 40 x 20 x 10 cm. A US retailer lists the package at 3.315 lb. A paradigit.ie listing gives 2 kg without naming a package.6Retailer pagetanotis.com/products/gigabyte-geforce-rtx-5070-eagle-oc-ice-sff-graphics-cardRead 14 October 2026Weight 3.315 lb, which the page labels as the package weight. 3.315 lb is 1503.6 g and agrees with the 1.5 kg packaging weight.

Lighting and software

RGB lighting
Yes5Retailer pageglobalb.channelonline.com/acme/classicmp/Products/overview/M025954106Read 14 October 2026Features list: RGB lighting.6Retailer pagetanotis.com/products/gigabyte-geforce-rtx-5070-eagle-oc-ice-sff-graphics-cardRead 14 October 2026RGB lighting supports 16.7 million colours.7Reviewthefpsreview.com/2025/07/10/gigabyte-geforce-rtx-5070-eagle-oc-ice-sff-12g-video-card-reviewRead 14 October 2026A subtle LED strip along the top edge, controlled in GIGABYTE Control Center under the RGB Fusion tab.
Lighting sync
Gigabyte RGB Fusion7Reviewthefpsreview.com/2025/07/10/gigabyte-geforce-rtx-5070-eagle-oc-ice-sff-12g-video-card-reviewRead 14 October 2026The Control Center tab is named RGB Fusion.
Software
GIGABYTE Control Center7Reviewthefpsreview.com/2025/07/10/gigabyte-geforce-rtx-5070-eagle-oc-ice-sff-12g-video-card-reviewRead 14 October 2026GIGABYTE Control Center.

Measured performance

We could not find any of these 6 fields. Show them
GPU clock while gaming (measured)
Not available
3DMark Time Spy graphics
Not available
3DMark Steel Nomad
Not available
3DMark Port Royal
Not available
3DMark Speed Way
Not available
Game frame rates
Not available

Measured noise and temperature

We could not find any of these 5 fields. Show them
Fan noise per load
Not available
Fan noise while gaming
Not available
GPU temperature while gaming
Not available
Hot spot temperature while gaming
Not available
Memory temperature while gaming
Not available

Measured power

We could not find any of these 2 fields. Show them
Card power at idle (measured)
Not available
GPU power while gaming (measured)
Not available

In the box

In the box
Quick guide, 12V-2x6 to 2x PCIe 8-pin adapter1Maker product pagegigabyte.com/us/Graphics-Card/GV-N5070EAGLEOC-ICE-12GD/spRead 14 October 2026Accessories: quick guide and one 12V-2x6 to 2x PCIe 8-pin adapter.2Retailer pagenetcodex.ph/product/gigabyte-geforce-rtx-5070-eagle-oc-ice-sff-12gb-gddr7-graphics-card-with-blackwell-architecture-and-windforce-cooling-gv-n5070eagleoc-ice-12gdRead 14 October 2026Accessories: quick guide and one 12V-2x6 to 2x PCIe 8-pin adapter.5Retailer pageglobalb.channelonline.com/acme/classicmp/Products/overview/M025954106Read 14 October 2026Included accessories: 2 x 8-pin to 12VHPWR cable.7Reviewthefpsreview.com/2025/07/10/gigabyte-geforce-rtx-5070-eagle-oc-ice-sff-12g-video-card-reviewRead 14 October 2026Box contents: the card, a quick start booklet and a two-headed adapter.
Power adapter cable included
Yes1Maker product pagegigabyte.com/us/Graphics-Card/GV-N5070EAGLEOC-ICE-12GD/spRead 14 October 2026The box holds a 12V-2x6 to 2x PCIe 8-pin adapter.2Retailer pagenetcodex.ph/product/gigabyte-geforce-rtx-5070-eagle-oc-ice-sff-12gb-gddr7-graphics-card-with-blackwell-architecture-and-windforce-cooling-gv-n5070eagleoc-ice-12gdRead 14 October 2026One 12V-2x6 to 2x PCIe 8-pin adapter.7Reviewthefpsreview.com/2025/07/10/gigabyte-geforce-rtx-5070-eagle-oc-ice-sff-12g-video-card-reviewRead 14 October 2026A two-headed HPWR adapter is in the box.
Support bracket included
No2Retailer pagenetcodex.ph/product/gigabyte-geforce-rtx-5070-eagle-oc-ice-sff-12gb-gddr7-graphics-card-with-blackwell-architecture-and-windforce-cooling-gv-n5070eagleoc-ice-12gdRead 14 October 2026The accessories list holds only the quick guide and the adapter. The FPS Review lists the card, a quick start booklet and the adapter. A retailer feature text mentions an adjustable VGA holder, which no accessories list names.7Reviewthefpsreview.com/2025/07/10/gigabyte-geforce-rtx-5070-eagle-oc-ice-sff-12g-video-card-reviewRead 14 October 2026The box contents list names no support bracket.

Warranty

Manufacturer warranty (source market)
3years4Retailer pagearvutitark.ee/en/pc-components/graphics-cards-vga/giga-vga-12gb-rtx5070-eagle-oc-ice-12g-3xdphdmi-geforce-rtx-1438932Read 14 October 2026Warranty 36 months at this Estonian retailer. A US distributor listing states a limited 3 year warranty and The FPS Review names the GIGABYTE three-year warranty.5Retailer pageglobalb.channelonline.com/acme/classicmp/Products/overview/M025954106Read 14 October 2026Warranty: Limited, 3 years. US distributor.6Retailer pagetanotis.com/products/gigabyte-geforce-rtx-5070-eagle-oc-ice-sff-graphics-cardRead 14 October 2026Limited 3-year manufacturer warranty.7Reviewthefpsreview.com/2025/07/10/gigabyte-geforce-rtx-5070-eagle-oc-ice-sff-12g-video-card-reviewRead 14 October 2026The review names a GIGABYTE three-year warranty.
