PC parts / Graphics cards

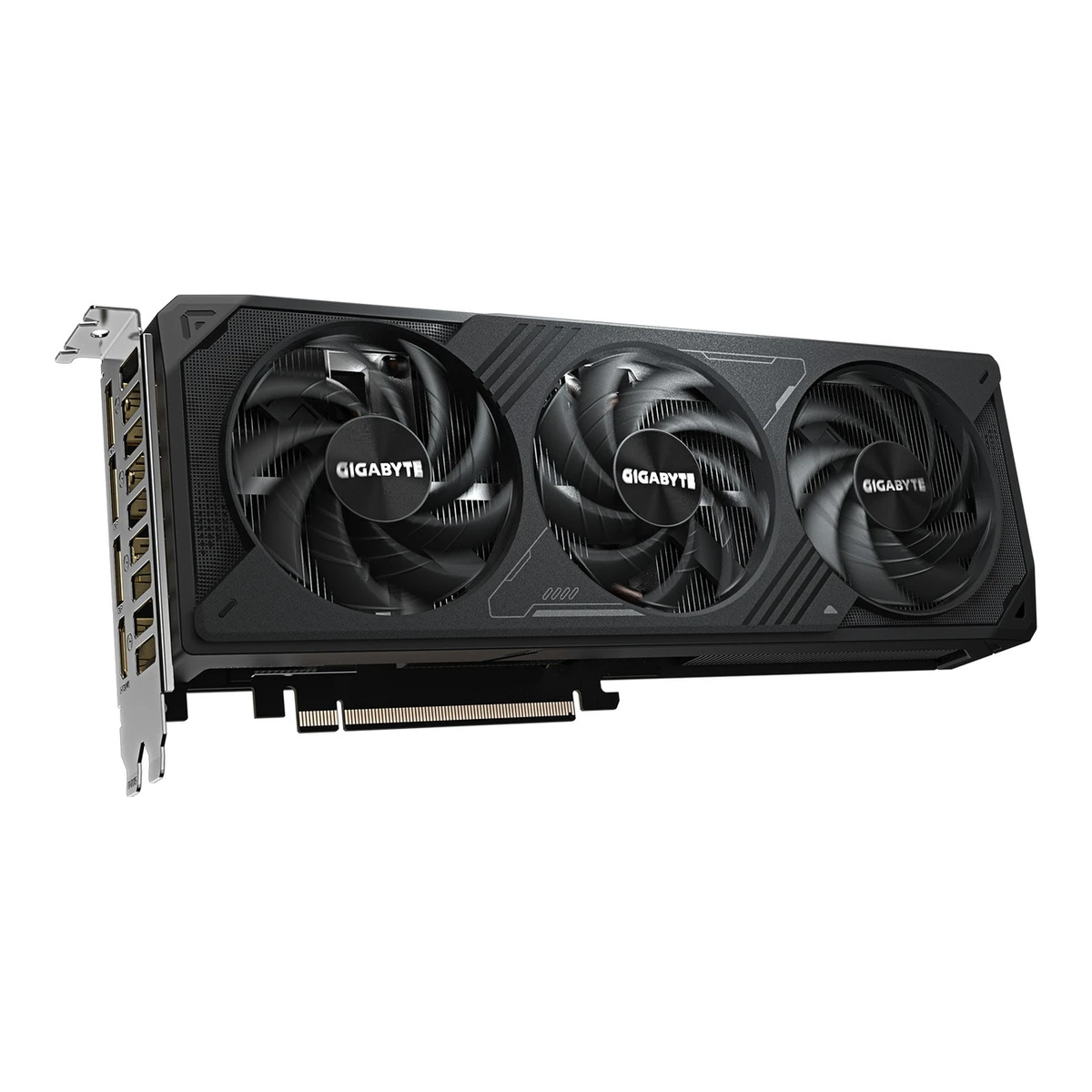

GIGABYTEGraphics card
GeForce RTX 5070 Windforce OC SFF 12G
Released March 2025.12Press articlecxotoday.com/press-release/gigabyte-geforce-rtx-50-series-graphics-cards-now-available-optimized-cooling-for-extreme-performanceRead 14 October 2026Reprint of a Gigabyte release dated 2025-02-21: the RTX 5070 will be available on March 5. Family availability. The page does not name the Windforce OC SFF. Last checked 16 October 2026.
- GPU
- NVIDIA GeForce RTX 5070
- VRAM
- 12GB
- Length
- 282mm
- Board power
- 250W
67 of 100 fields known.
At a glance
Ports
- HDMI 2.1b
- 3 DisplayPort 2.1b UHBR20
General
- Model numbers
- GV-N5070WF3OC-12GD5Retailer pagestore.aorus.com/fr/geforce-rtx-5070-windforce-oc-sff-12g-graphics-cardRead 14 October 2026SKU GV-N5070WF3OC-12GD.
- Announced
- Not available
- Predecessor
- Not available
- Successor
- Not available
- Launch price (US)
- Not available
- Launch price (EU)
- Not available
- Markets
- Not available
- GPU
- NVIDIA GeForce RTX 50707Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5070-familyRead 14 October 2026GeForce RTX 5070 column of the spec table.
- GPU brand
- NVIDIA7Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5070-familyRead 14 October 2026NVIDIA GeForce.
- Reference launch price (US)
- $54911Press releasenvidianews.nvidia.com/news/nvidia-blackwell-geforce-rtx-50-series-opens-new-world-of-ai-computer-graphicsRead 14 October 2026Dated 2025-01-06. The GeForce RTX 5070 is available starting in February at $549. NVIDIA moved the date later to 2025-03-05 for this GPU.
GPU
- GPU architecture
- Blackwell7Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5070-familyRead 14 October 2026
- Transistors
- 31.1billion8Maker spec sheet (PDF)images.nvidia.com/aem-dam/Solutions/geforce/blackwell/nvidia-rtx-blackwell-gpu-architecture.pdfRead 14 October 2026
- Shader cores
- 6,1447Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5070-familyRead 14 October 20268Maker spec sheet (PDF)images.nvidia.com/aem-dam/Solutions/geforce/blackwell/nvidia-rtx-blackwell-gpu-architecture.pdfRead 14 October 2026
- Ray tracing cores
- 488Maker spec sheet (PDF)images.nvidia.com/aem-dam/Solutions/geforce/blackwell/nvidia-rtx-blackwell-gpu-architecture.pdfRead 14 October 2026
- Infinity Cache (L3)
- Not available
- FP32 compute (claimed)
- 30.9TFLOPS8Maker spec sheet (PDF)images.nvidia.com/aem-dam/Solutions/geforce/blackwell/nvidia-rtx-blackwell-gpu-architecture.pdfRead 14 October 2026Peak FP32 TFLOPS (non-Tensor), based on the 2512 MHz GPU Boost Clock.
- AI performance (claimed)
Precision With sparsity Throughput (TOPS) FP4 No 493.9 FP4 Yes 987.8 FP8 No 246.9 FP8 Yes 493.9 FP16 No 123.5 FP16 Yes 246.9 INT8 No 246.9 INT8 Yes 493.9
Clocks
- Base clock
- Not available
- Game clock
- Not available
- Boost clock
- 2,542MHz1Maker product pagegigabyte.com/Graphics-Card/GV-N5070WF3OC-12GD/spRead 14 October 2026Core Clock 2542 MHz, with the reference card at 2512 MHz. gigabyte.com blocks agents, so the page was read only through web search excerpts of its spec tab. Each value matches the retailer copy at netcodex.ph.2Retailer pagenetcodex.phRead 14 October 2026Core Clock row: 2542 MHz (Reference card: 2512 MHz). Gigabyte states one clock for the card, which is its boost clock.3Retailer pagekantoorartikelen.nl/en/gigabyte-geforce-rtx-5070-windforce-oc-sff-12gb-gddr7-dlss-4-videokaart-nvidia-gpu/gv-n5070wf3oc-12gdRead 14 October 2026Boost up to 2542 MHz.
- Boost clock in OC mode
- Not available
- Reference boost clock
- 2,512MHz1Maker product pagegigabyte.com/Graphics-Card/GV-N5070WF3OC-12GD/spRead 14 October 20262Retailer pagenetcodex.phRead 14 October 2026Core Clock row: Reference card 2512 MHz.8Maker spec sheet (PDF)images.nvidia.com/aem-dam/Solutions/geforce/blackwell/nvidia-rtx-blackwell-gpu-architecture.pdfRead 14 October 2026Table 6: GPU Boost Clock 2512 MHz.
Memory
Connectivity
- PCIe generation
- 57Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5070-familyRead 14 October 20268Maker spec sheet (PDF)images.nvidia.com/aem-dam/Solutions/geforce/blackwell/nvidia-rtx-blackwell-gpu-architecture.pdfRead 14 October 2026
- Display outputs
Type Version Count Max bandwidth (Gbps) HDMI 2.1b 1 Not available DisplayPort 2.1b UHBR20 3 80 Source1Maker product pagegigabyte.com/Graphics-Card/GV-N5070WF3OC-12GD/spRead 14 October 2026DisplayPort 2.1b x 3 and HDMI 2.1b x 1. The UHBR20 class and the 80 Gbps link rate come from the NVIDIA RTX 5070 page.2Retailer pagenetcodex.phRead 14 October 2026Output interface: DisplayPort 2.1b x 3 and HDMI 2.1b x 1.7Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5070-familyRead 14 October 2026Footnote: DisplayPort 2.1b with UHBR20, up to 4K 480 Hz or 8K 165 Hz with DSC. UHBR20 is 80 Gbps.- Display outputs in total
- 4
- HDMI ports
- 1
- DisplayPort ports
- 3
- Highest HDMI version
- 2.1b
- Highest DisplayPort version
- 2.1b UHBR20
- Fastest DisplayPort link
- 80Gbps
- Max displays
- 41Maker product pagegigabyte.com/Graphics-Card/GV-N5070WF3OC-12GD/spRead 14 October 20262Retailer pagenetcodex.phRead 14 October 2026Multi-view 4.7Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5070-familyRead 14 October 2026Up to 4 independent displays at 4K 165 Hz.
- Max output resolution
- Resolution7680 × 4320 pxRefresh rate165 Hz2Retailer pagenetcodex.phRead 14 October 2026Digital Max Resolution 7680 x 4320. The 165 Hz is NVIDIA figure for 8K with DisplayPort 2.1b and DSC.7Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5070-familyRead 14 October 2026Footnote: up to 8K 12-bit HDR at 165 Hz with DP 2.1b and DSC.
Video engine
- Video encoders
- 17Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5070-familyRead 14 October 20261 x ninth-generation NVENC.
- Video decoders
- 17Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5070-familyRead 14 October 20261 x sixth-generation NVDEC.
- Hardware video encode
- H.264, H.265 (HEVC), AV19Maker product pagedeveloper.nvidia.com/video-encode-decode-support-matrixRead 14 October 2026GeForce RTX 5070 row: H.264, HEVC and AV1 encode.
- Hardware video decode
- H.264, H.265 (HEVC), VP9, AV19Maker product pagedeveloper.nvidia.com/video-encode-decode-support-matrixRead 14 October 2026GeForce RTX 5070 row: decode for H.264, HEVC, VP9 and AV1 among others.
Graphics features
- DirectX
- 12 Ultimate7Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5070-familyRead 14 October 2026Microsoft DirectX 12 Ultimate.
- Upscaling technologies
- DLSS 47Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5070-familyRead 14 October 2026Spec table lists DLSS 4, Super Resolution, DLAA and Ray Reconstruction.
- Frame generation
- DLSS Frame Generation, DLSS Multi Frame Generation7Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5070-familyRead 14 October 2026The DLSS cell lists Frame Generation and Multi Frame Generation.
Power
- Board power
- Not available
- Reference board power
- 250W7Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5070-familyRead 14 October 2026Total Graphics Power 250 W for the GPU.8Maker spec sheet (PDF)images.nvidia.com/aem-dam/Solutions/geforce/blackwell/nvidia-rtx-blackwell-gpu-architecture.pdfRead 14 October 2026
- PSU wattage (card maker)
- 750W1Maker product pagegigabyte.com/Graphics-Card/GV-N5070WF3OC-12GD/spRead 14 October 2026Recommended PSU 750 W. NVIDIA states 650 W required system power for the chip.2Retailer pagenetcodex.phRead 14 October 2026Recommended PSU 750W.
- Power connector
- 16-pin (revision not stated)1Maker product pagegigabyte.com/Graphics-Card/GV-N5070WF3OC-12GD/spRead 14 October 2026Power connectors: 16 pin x 1. Gigabyte does not name the revision of the card input. The adapter is named 12V-2x6 to 2x PCIe 8-pin.2Retailer pagenetcodex.phRead 14 October 2026Power Connectors: 16 pin x 1.
Cooling
- Cooler type
- Open air1Maker product pagegigabyte.com/Graphics-Card/GV-N5070WF3OC-12GD/spRead 14 October 2026WINDFORCE cooling with Hawk fans, composite copper heat pipes and a large copper plate.3Retailer pagekantoorartikelen.nl/en/gigabyte-geforce-rtx-5070-windforce-oc-sff-12gb-gddr7-dlss-4-videokaart-nvidia-gpu/gv-n5070wf3oc-12gdRead 14 October 2026Three axial Hawk fans on a large copper plate with heat pipes and a heatsink.
- Fans
- 32Retailer pagenetcodex.phRead 14 October 2026Description: triple alternate-spinning Hawk fans.3Retailer pagekantoorartikelen.nl/en/gigabyte-geforce-rtx-5070-windforce-oc-sff-12gb-gddr7-dlss-4-videokaart-nvidia-gpu/gv-n5070wf3oc-12gdRead 14 October 2026Three 80 mm fans with alternating spin directions.
- Radiator size
- Not available
- Fan stop at low load
- Yes1Maker product pagegigabyte.com/Graphics-Card/GV-N5070WF3OC-12GD/spRead 14 October 2026Cooling text: the 3D Active Fan provides semi-passive cooling, and the fans remain off in a low load or low power game. No temperature threshold is stated.3Retailer pagekantoorartikelen.nl/en/gigabyte-geforce-rtx-5070-windforce-oc-sff-12gb-gddr7-dlss-4-videokaart-nvidia-gpu/gv-n5070wf3oc-12gdRead 14 October 2026Page text: semi-passive operation, the fans stay off under light load. No temperature threshold is stated.
- Dual BIOS
- Not available
Dimensions and weight
- Length
- 282mm1Maker product pagegigabyte.com/Graphics-Card/GV-N5070WF3OC-12GD/spRead 14 October 2026Card Size L=282 W=110 H=50 mm. Gigabyte writes W as the card height and H as the thickness. The page does not say whether the bracket is included.2Retailer pagenetcodex.phRead 14 October 2026Card Size row: L=282 mm, W=110 mm, H=50 mm (2.5 Slot).6Certification listnvidia.com/en-us/geforce/news/small-form-factor-sff-readyRead 14 October 2026The list gives 110 x 282 x 50 mm. NVIDIA lists height, length and thickness.13Retailer pageldlc.com/en/product/PB00671172.htmlRead 14 October 2026Length 282 mm, width 110 mm, thickness 50 mm.
- Height
- 110mm1Maker product pagegigabyte.com/Graphics-Card/GV-N5070WF3OC-12GD/spRead 14 October 2026Second value of L=282 W=110 H=50 mm.2Retailer pagenetcodex.phRead 14 October 2026Card Size row, W=110 mm. The description calls 110 mm the height.6Certification listnvidia.com/en-us/geforce/news/small-form-factor-sff-readyRead 14 October 202613Retailer pageldlc.com/en/product/PB00671172.htmlRead 14 October 2026
- Thickness
- 50mm1Maker product pagegigabyte.com/Graphics-Card/GV-N5070WF3OC-12GD/spRead 14 October 2026Third value of L=282 W=110 H=50 mm.2Retailer pagenetcodex.phRead 14 October 2026Card Size row, H=50 mm.6Certification listnvidia.com/en-us/geforce/news/small-form-factor-sff-readyRead 14 October 202613Retailer pageldlc.com/en/product/PB00671172.htmlRead 14 October 2026
- Slot width
- Not available
- Low profile
- No4Retailer pageparadigit.ie/gigabyte-windforce-geforce-rtx-5070-oc-sff-12g/21770524/productRead 14 October 2026Form factor: Full-Height/Full-Length (FH/FL).5Retailer pagestore.aorus.com/fr/geforce-rtx-5070-windforce-oc-sff-12g-graphics-cardRead 14 October 2026Slots and form factor: Full-Height/Full-Length (FH/FL).
- NVIDIA SFF-Ready
- Yes6Certification listnvidia.com/en-us/geforce/news/small-form-factor-sff-readyRead 14 October 2026GIGABYTE GeForce RTX 5070 WINDFORCE OC SFF is listed at 110 x 282 x 50 mm.
- Weight
- Not available
- Package weight
- Not available
Lighting and software
We could not find any of these 3 fields. Show them
- RGB lighting
- Not available
- Lighting sync
- Not available
- Software
- Not available
Measured performance
We could not find any of these 6 fields. Show them
- GPU clock while gaming (measured)
- Not available
- 3DMark Time Spy graphics
- Not available
- 3DMark Steel Nomad
- Not available
- 3DMark Port Royal
- Not available
- 3DMark Speed Way
- Not available
- Game frame rates
- Not available
Measured noise and temperature
We could not find any of these 5 fields. Show them
- Fan noise per load
- Not available
- Fan noise while gaming
- Not available
- GPU temperature while gaming
- Not available
- Hot spot temperature while gaming
- Not available
- Memory temperature while gaming
- Not available
Measured power
We could not find any of these 2 fields. Show them
- Card power at idle (measured)
- Not available
- GPU power while gaming (measured)
- Not available
In the box
- In the box
- 1 x Quick guide, 1 x 12V-2x6 to 2x PCIe 8-pin adapter1Maker product pagegigabyte.com/Graphics-Card/GV-N5070WF3OC-12GD/spRead 14 October 2026Accessories: quick guide and one 12V-2x6 to 2x PCIe 8-pin adapter.2Retailer pagenetcodex.phRead 14 October 2026Accessories rows: 1 x Quick guide and 1 x 12V-2x6 to 2x PCIe 8-pin adapter.
Links
- Product page
- www.gigabyte.com/Graphics-Card/GV-N5070WF3OC-12GD1Maker product pagegigabyte.com/Graphics-Card/GV-N5070WF3OC-12GD/spRead 14 October 2026
- Spec sheet
- www.gigabyte.com/Graphics-Card/GV-N5070WF3OC-12GD/sp1Maker product pagegigabyte.com/Graphics-Card/GV-N5070WF3OC-12GD/spRead 14 October 2026
- Manual
- www.gigabyte.com/Graphics-Card/GV-N5070WF3OC-12GD/support1Maker product pagegigabyte.com/Graphics-Card/GV-N5070WF3OC-12GD/spRead 14 October 2026Support page of the card, where the manual and drivers are listed.
- EPREL registration number
- Not available
Warranty
- Manufacturer warranty (source market)
- 3years5Retailer pagestore.aorus.com/fr/geforce-rtx-5070-windforce-oc-sff-12g-graphics-cardRead 14 October 2026Gigabyte own online store for France lists a 3 year warranty. A UK retailer lists 4 years, which Gigabyte offers in some markets with registration. The value is for the market in the note.
