PC parts / Graphics cards
GIGABYTEGraphics card

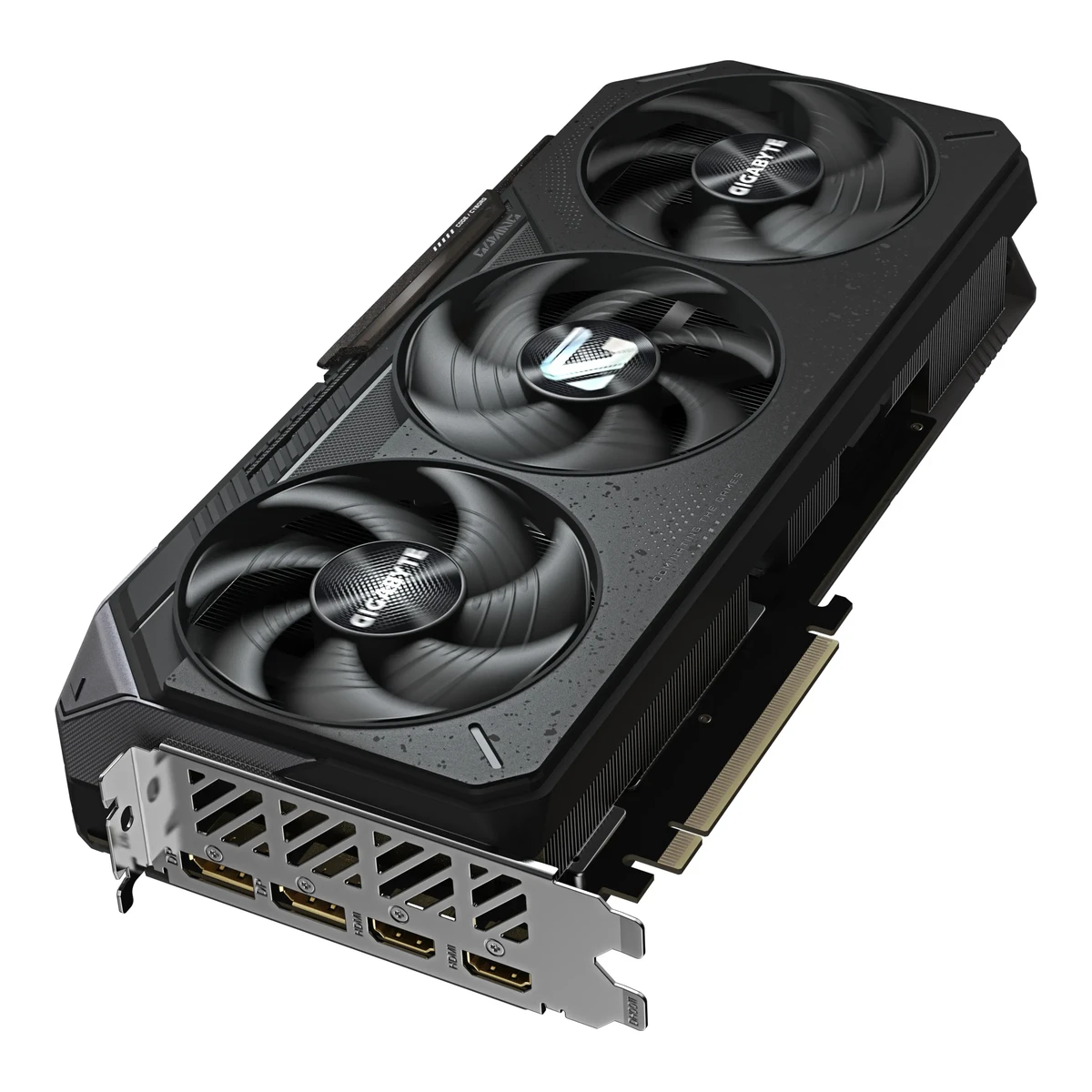

Radeon RX 9070 XT Gaming OC 16G
Released March 2025.1Reviewhwcooling.net/en/radeon-rx-9070-xt-gaming-oc-gigabytes-affordable-choiceRead 14 October 2026Review published 2025-03-11, a few days after the 2025-03-06 launch of the RX 9070 series. Last checked 14 October 2026.
- GPU
- AMD Radeon RX 9070 XT
- VRAM
- 16GB
- Length
- 288mm
- Board power
- 330W
69 of 100 fields known.
At a glance
Boost clock
3,060MHz1Reviewhwcooling.net/en/radeon-rx-9070-xt-gaming-oc-gigabytes-affordable-choiceRead 14 October 2026Page 1: parameters stored in the Performance BIOS, the default. Boost clock raised from the reference 2970 MHz to 3060 MHz.2Reviewhwcooling.net/en/tuning-gigabyte-radeon-rx-9070-xt-performance-in-amd-softwareRead 14 October 2026Boost Clock up to 3060 MHz.
Higher than 89% of other graphics cards.
Reference boost clock
Higher than 83% of other graphics cards.
Ports
- 2 HDMI 2.1b
- 2 DisplayPort 2.1a UHBR13.5
General
- Model numbers
- GV-R9070XTGAMING OC-16GD3Retailer pagemultitronic.fi/en/products/4466834Read 14 October 2026
- GTIN / EAN
- 47193313555243Retailer pagemultitronic.fi/en/products/4466834Read 14 October 2026EAN in the logistics data.
- Announced
- Not available
- Status
- Available4Retailer pagevideocardprices.com/card/amd-rx-9070-xtRead 14 October 2026Listed as in stock at Amazon as of 2026-10-13.
- Predecessor
- Not available
- Successor
- Not available
- Launch price (US)
- Not available
- Launch price (EU)
- Not available
- Markets
- Not available
GPU
- GPU die
- Navi 488Reviewclub386.com/amd-radeon-rx-9070-xt-reviewRead 14 October 2026Spec table: Navi 48.
- Transistors
- 53.9billion5Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9070xt.htmlRead 14 October 20268Reviewclub386.com/amd-radeon-rx-9070-xt-reviewRead 14 October 2026
- Die size
- 357mm²8Reviewclub386.com/amd-radeon-rx-9070-xt-reviewRead 14 October 2026Spec table: 357 mm2.
- Compute units
- 645Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9070xt.htmlRead 14 October 2026
- Shader cores
- 4,0965Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9070xt.htmlRead 14 October 2026
- Ray tracing cores
- 645Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9070xt.htmlRead 14 October 2026
- L2 cache
- 8MB11Spec databasehardwaredealz.com/hardware/gpu/amd-radeon-rx-9070-xt-16gb/technische-datenRead 14 October 2026Chip configuration: 64 CU, 64 RT cores, 8 MiB L2 cache. AMD's product page states no L2 figure.12Reviewold.chipsandcheese.comRead 14 October 2026RDNA 4 doubles L2 per shader engine, so the RX 9070 XT with four shader engines has 8 MB of L2.
- Infinity Cache (L3)
- 64MB5Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9070xt.htmlRead 14 October 2026
- FP32 compute (claimed)
- 48.7TFLOPS5Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9070xt.htmlRead 14 October 2026Peak Single Precision (FP32 Vector) performance, 48.7 TFLOPs. AMD counts dual-issue.
- AI performance (claimed)
Precision With sparsity Throughput (TOPS) FP16 No 195 FP16 Yes 389 FP8 No 389 FP8 Yes 779 INT8 No 389 INT8 Yes 779 INT4 No 779 INT4 Yes 1,557
Clocks
- Base clock
- Not available
- Game clock
- 2,520MHz1Reviewhwcooling.net/en/radeon-rx-9070-xt-gaming-oc-gigabytes-affordable-choiceRead 14 October 2026Page 1: advertised typical game clock raised from 2400 MHz to 2520 MHz.2Reviewhwcooling.net/en/tuning-gigabyte-radeon-rx-9070-xt-performance-in-amd-softwareRead 14 October 2026Game Clock up to 2520 MHz.
- Boost clock
- 3,060MHz1Reviewhwcooling.net/en/radeon-rx-9070-xt-gaming-oc-gigabytes-affordable-choiceRead 14 October 2026Page 1: parameters stored in the Performance BIOS, the default. Boost clock raised from the reference 2970 MHz to 3060 MHz.2Reviewhwcooling.net/en/tuning-gigabyte-radeon-rx-9070-xt-performance-in-amd-softwareRead 14 October 2026Boost Clock up to 3060 MHz.
- Boost clock in OC mode
- Not available
Memory
- VRAM
- 16GB2Reviewhwcooling.net/en/tuning-gigabyte-radeon-rx-9070-xt-performance-in-amd-softwareRead 14 October 20265Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9070xt.htmlRead 14 October 2026
- VRAM type
- GDDR65Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9070xt.htmlRead 14 October 2026
- Memory bus width
- 256bits5Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9070xt.htmlRead 14 October 2026
Connectivity
- PCIe generation
- 55Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9070xt.htmlRead 14 October 2026
- Display outputs
Type Version Count Max bandwidth (Gbps) HDMI 2.1b 2 Not available DisplayPort 2.1a UHBR13.5 2 54 - Display outputs in total
- 4
- HDMI ports
- 2
- DisplayPort ports
- 2
- Highest HDMI version
- 2.1b
- Highest DisplayPort version
- 2.1a UHBR13.5
- Fastest DisplayPort link
- 54Gbps
- Max displays
- 43Retailer pagemultitronic.fi/en/products/4466834Read 14 October 2026Spec table: maximum displays per videocard 4.
- Max output resolution
- Resolution7680 × 4320 pxRefresh rate144 Hz2Reviewhwcooling.net/en/tuning-gigabyte-radeon-rx-9070-xt-performance-in-amd-softwareRead 14 October 2026Spec summary: maximum resolution 7680 x 4320 (8K). The 144 Hz is AMD's figure for 8K from its launch press release, not a Gigabyte figure.3Retailer pagemultitronic.fi/en/products/4466834Read 14 October 2026Spec table: maximum resolution 7680 x 4320 pixels.7Press releaseamd.com/en/newsroom/press-releases/2025-2-28-amd-unveils-next-generation-amd-rdna-4-architectu.htmlRead 14 October 2026AMD Radiance Display Engine supports DisplayPort 2.1a and HDMI 2.1b, up to 8K 144 Hz with 12-bit HDR.
- HDCP version
- Not available
Video engine
- Video encoders
- Not available
- Video decoders
- Not available
- Hardware video encode
- H.264, H.265 (HEVC), AV15Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9070xt.htmlRead 14 October 20264K H264, H265/HEVC and AV1 encode: Yes.
- Hardware video decode
- H.264, H.265 (HEVC), VP9, AV15Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9070xt.htmlRead 14 October 20264K H264, H265/HEVC and AV1 decode: Yes. VP9 is from the AMD codec footnote reproduced on ASUS's Radeon RX 9070 XT page.6Maker product pageasus.com/us/motherboards-components/graphics-cards/prime/prime-rx9070xt-o16gRead 14 October 2026Footnote 4 of ASUS's page for a card with the same GPU quotes AMD: video codec acceleration includes at least HEVC (H.265), H.264, VP9 and AV1.
Graphics features
- DirectX
- Not available
- Upscaling technologies
- FSR 46Maker product pageasus.com/us/motherboards-components/graphics-cards/prime/prime-rx9070xt-o16gRead 14 October 2026Page text names AMD FidelityFX Super Resolution 4 for the Radeon RX 9000 series.
- Frame generation
- FSR Frame Generation, AMD Fluid Motion Frames 26Maker product pageasus.com/us/motherboards-components/graphics-cards/prime/prime-rx9070xt-o16gRead 14 October 2026ASUS's page for a card with the same GPU names FSR 4 with frame generation in supported games and AMD Fluid Motion Frames 2 under HYPR-RX. These are chip-level features of the Radeon RX 9070 XT.
Power
- Board power
- 330W1Reviewhwcooling.net/en/radeon-rx-9070-xt-gaming-oc-gigabytes-affordable-choiceRead 14 October 2026Page 1: power limit (TBP) raised from the reference 304 W to 330 W, shown in GPU-Z and HWiNFO. The same limit applies in the Silent BIOS. It can be raised to 363 W with the +10 % slider in AMD Software. Not a maker-stated figure.2Reviewhwcooling.net/en/tuning-gigabyte-radeon-rx-9070-xt-performance-in-amd-softwareRead 14 October 2026Power limit (TBP) raised from the reference 304 W to 330 W.
- Reference board power
- 304W5Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9070xt.htmlRead 14 October 2026Typical Board Power (Desktop) 304 W.
- PSU wattage (card maker)
- 850W3Retailer pagemultitronic.fi/en/products/4466834Read 14 October 2026Spec table: minimum system power supply 850 W.
- Power connector
- 3 x 8-pin PCIe1Reviewhwcooling.net/en/radeon-rx-9070-xt-gaming-oc-gigabytes-affordable-choiceRead 14 October 2026Page 2: three classic 8-pin connectors, each with a power fault LED.2Reviewhwcooling.net/en/tuning-gigabyte-radeon-rx-9070-xt-performance-in-amd-softwareRead 14 October 2026
Cooling
- Radiator size
- Not available
- Fan stop at low load
- Not available
Dimensions and weight
- Length
- 288mm1Reviewhwcooling.net/en/radeon-rx-9070-xt-gaming-oc-gigabytes-affordable-choiceRead 14 October 2026Page 2: 29 cm long, 288 mm from the tuning article.2Reviewhwcooling.net/en/tuning-gigabyte-radeon-rx-9070-xt-performance-in-amd-softwareRead 14 October 2026Spec summary: card dimensions 288 x 132 x 56 mm.
- Slot width
- Not available
- NVIDIA SFF-Ready
- Not available
Lighting and software
- RGB lighting
- Yes1Reviewhwcooling.net/en/radeon-rx-9070-xt-gaming-oc-gigabytes-affordable-choiceRead 14 October 2026Page 2: sliding cover with the transparent Gigabyte logo over a strip backlit by ARGB LEDs.2Reviewhwcooling.net/en/tuning-gigabyte-radeon-rx-9070-xt-performance-in-amd-softwareRead 14 October 2026
- Lighting sync
- Not available
Measured performance
- 3DMark Time Spy graphics
- Not available
- 3DMark Steel Nomad
- 7,244points10Reviewgamereactor.eu/gigabyte-radeon-rx-9070xt-gaming-oc-16g-1528833Read 14 October 2026Review dated 2025-04-15, Gaming OC 16G on an X870E board with a Ryzen 7 9800X3D. Steel Nomad 7244. The review does not state the driver or the BIOS position.
- 3DMark Port Royal
- 18,722points10Reviewgamereactor.eu/gigabyte-radeon-rx-9070xt-gaming-oc-16g-1528833Read 14 October 2026Port Royal 18722, same system.
- 3DMark Speed Way
- 6,372points10Reviewgamereactor.eu/gigabyte-radeon-rx-9070xt-gaming-oc-16g-1528833Read 14 October 2026Speed Way 6372, same system. The review's Time Spy 26778 is not stored because it does not say whether it is the graphics score.
- Game frame rates
- Not available
Measured noise and temperature
We could not find any of these 5 fields. Show them
- Fan noise per load
- Not available
- Fan noise while gaming
- Not available
- GPU temperature while gaming
- Not available
- Hot spot temperature while gaming
- Not available
- Memory temperature while gaming
- Not available
Measured power
We could not find any of these 2 fields. Show them
- Card power at idle (measured)
- Not available
- GPU power while gaming (measured)
- Not available
In the box
Links
We could not find any of these 4 fields. Show them
- Product page
- Not available
- Spec sheet
- Not available
- Manual
- Not available
- EPREL registration number
- Not available
Warranty
We could not find any of these 1 fields. Show them
- Manufacturer warranty (source market)
- Not available
Compare with
Pick a graphics card to see both side by side. Differences are marked yellow.
Sources
We read 12 sources for this graphics card. The numbers match the markers in the sheet.
- Retailer pagemultitronic.fi/en/products/4466834
- Retailer pagevideocardprices.com/card/amd-rx-9070-xt
- Certification listkhronos.org/conformance/adopters/conformant-products/vulkan
- Reviewold.chipsandcheese.com
See a wrong value? Tell us and name the field.
