PC parts / Graphics cards

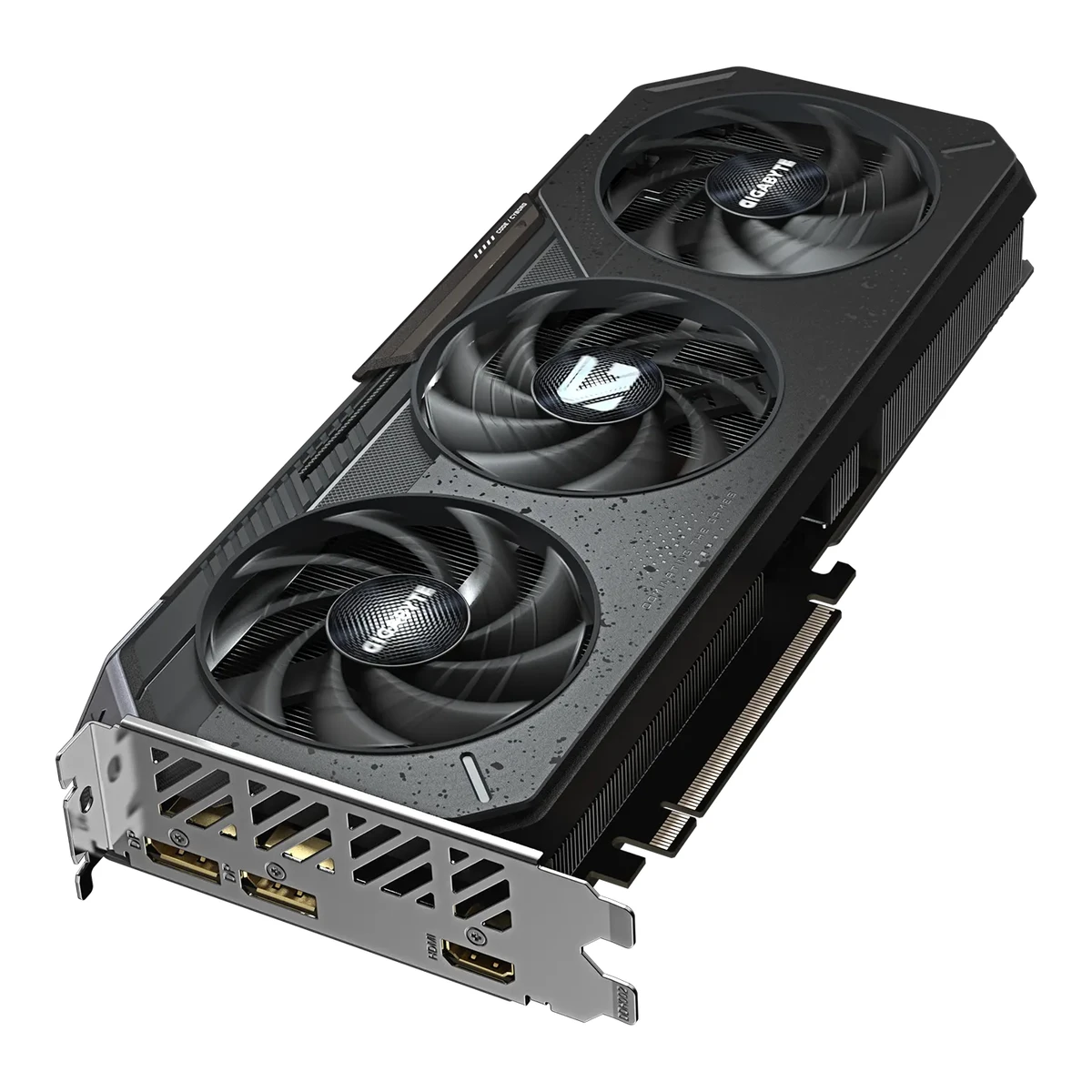

GIGABYTEGraphics card
Radeon RX 9060 XT Gaming OC 16G
Released June 2025.7Press articletomshardware.com/pc-components/gpus/amd-radeon-rx-9060-xt-launches-on-june-5-starting-at-usd299Read 14 October 2026Headline: the RX 9060 XT launches on June 5 (2025). Family availability. Not specific to this card. Last checked 14 October 2026.
- GPU
- AMD Radeon RX 9060 XT
- VRAM
- 16GB
- Length
- 281mm
- Board power
- 182W
74 of 100 fields known.
At a glance
Boost clock
3,320MHz1Retailer pagefirstshop.hu/gigabyte-rx9060xt-gaming-oc-16g-gv-r9060xtgaming-oc-16gd-p230196Read 14 October 2026Core Clock: Boost Clock up to 3320 MHz (Reference card: 3130 MHz). gigabyte.com blocks agents, so the maker spec tab was read through this verbatim copy and a second copy at elitehubs.com.2Retailer pageelitehubs.com/products/gigabyte-radeon-rx-9060-xt-gaming-oc-16gb-amd-graphic-cardRead 14 October 2026Spec tab copy: Boost Clock up to 3320 MHz.8Reviewhwcooling.net/en/gigabyte-rx-9060-xt-gaming-oc-review-right-on-targetRead 14 October 2026Page 1: boost clock raised from up to 3130 MHz to 3320 MHz.
Higher than 97% of other graphics cards.
PSU wattage
450W1Retailer pagefirstshop.hu/gigabyte-rx9060xt-gaming-oc-16g-gv-r9060xtgaming-oc-16gd-p230196Read 14 October 2026Recommended PSU 450W. AMD also states 450 W minimum for the chip.2Retailer pageelitehubs.com/products/gigabyte-radeon-rx-9060-xt-gaming-oc-16gb-amd-graphic-cardRead 14 October 2026Spec tab copy: Recommended PSU 450W.
Lower than 94% of other graphics cards. Lower is better.
Reference boost clock
3,130MHz1Retailer pagefirstshop.hu/gigabyte-rx9060xt-gaming-oc-16g-gv-r9060xtgaming-oc-16gd-p230196Read 14 October 2026Core Clock: Reference card 3130 MHz.4Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9060xt.htmlRead 14 October 2026Boost Frequency up to 3130 MHz, Game Frequency 2530 MHz.8Reviewhwcooling.net/en/gigabyte-rx-9060-xt-gaming-oc-review-right-on-targetRead 14 October 2026Page 1: reference boost clock up to 3130 MHz.
Higher than 92% of other graphics cards.
Game clock
2,780MHz1Retailer pagefirstshop.hu/gigabyte-rx9060xt-gaming-oc-16g-gv-r9060xtgaming-oc-16gd-p230196Read 14 October 2026Core Clock: Game Clock up to 2780 MHz (Reference card: 2530 MHz).2Retailer pageelitehubs.com/products/gigabyte-radeon-rx-9060-xt-gaming-oc-16gb-amd-graphic-cardRead 14 October 2026Spec tab copy: Game Clock up to 2780 MHz.8Reviewhwcooling.net/en/gigabyte-rx-9060-xt-gaming-oc-review-right-on-targetRead 14 October 2026Page 1: game clock raised from the reference 2530 MHz to 2780 MHz.
Higher than 90% of other graphics cards.
Thickness
Lower than 84% of other graphics cards. Lower is better.
Ports
- HDMI 2.1b
- 2 DisplayPort 2.1a UHBR13.5
General
- Model numbers
- GV-R9060XTGAMING OC-16GD1Retailer pagefirstshop.hu/gigabyte-rx9060xt-gaming-oc-16g-gv-r9060xtgaming-oc-16gd-p230196Read 14 October 2026Part number GV-R9060XTGAMING OC-16GD. The page copies the Gigabyte spec tab.3Retailer pageshop.sumillion.com/pc-components/graphics-cards/gigabyte-radeon-rx-9060-xt-gaming-oc-16g-graphics-card-gv-r9060xtgaming-oc-16gd.htmlRead 14 October 2026SKU GV-R9060XTGAMING OC-16GD. The feed also lists a TDP of 151 W, which is a retail feed field and is not stored.
- GTIN / EAN
- 47193313562483Retailer pageshop.sumillion.com/pc-components/graphics-cards/gigabyte-radeon-rx-9060-xt-gaming-oc-16g-graphics-card-gv-r9060xtgaming-oc-16gd.htmlRead 14 October 2026EAN 4719331356248.
- Announced
- Not available
- Predecessor
- Not available
- Successor
- Not available
- Launch price (US)
- Not available
- Launch price (EU)
- Not available
- Markets
- Not available
- GPU
- AMD Radeon RX 9060 XT4Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9060xt.htmlRead 14 October 2026
- Reference launch price (US)
- $3495Press releaseamd.com/en/newsroom/press-releases/2025-5-20-amd-introduces-new-radeon-graphics-cards-and-ryzen.htmlRead 14 October 2026Dated 2025-05-20. The Radeon RX 9060 XT 16GB has an SEP of $349 USD. The 8GB card is $299.7Press articletomshardware.com/pc-components/gpus/amd-radeon-rx-9060-xt-launches-on-june-5-starting-at-usd299Read 14 October 2026The 16GB version starts at $349.
GPU
- GPU architecture
- RDNA 45Press releaseamd.com/en/newsroom/press-releases/2025-5-20-amd-introduces-new-radeon-graphics-cards-and-ryzen.htmlRead 14 October 2026The RX 9060 XT GPUs are powered by the AMD RDNA 4 architecture.
- Process
- TSMC N4P8Reviewhwcooling.net/en/gigabyte-rx-9060-xt-gaming-oc-review-right-on-targetRead 14 October 2026Spec table image on page 1: Manufacturing Process TSMC N4P.10Reviewmezha.media/en/reviews/oglyad-videokarti-asus-tuf-gaming-radeon-rx-9060-xt-16gb-oc-303374Read 14 October 2026Text: TSMC 4 nm (N4P FinFET).
- Transistors
- 29.7billion4Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9060xt.htmlRead 14 October 2026Transistor Count 29.7 B.8Reviewhwcooling.net/en/gigabyte-rx-9060-xt-gaming-oc-review-right-on-targetRead 14 October 2026Spec table image: 29.7 billion.10Reviewmezha.media/en/reviews/oglyad-videokarti-asus-tuf-gaming-radeon-rx-9060-xt-16gb-oc-303374Read 14 October 2026Text: 29.7 billion transistors.
- Die size
- 199mm²8Reviewhwcooling.net/en/gigabyte-rx-9060-xt-gaming-oc-review-right-on-targetRead 14 October 2026Spec table image: 199 mm2.10Reviewmezha.media/en/reviews/oglyad-videokarti-asus-tuf-gaming-radeon-rx-9060-xt-16gb-oc-303374Read 14 October 2026Text: die area 199 mm2.
- Compute units
- 324Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9060xt.htmlRead 14 October 2026Compute Units 32.8Reviewhwcooling.net/en/gigabyte-rx-9060-xt-gaming-oc-review-right-on-targetRead 14 October 2026Spec table image: 32 compute units.
- Shader cores
- 2,0481Retailer pagefirstshop.hu/gigabyte-rx9060xt-gaming-oc-16g-gv-r9060xtgaming-oc-16gd-p230196Read 14 October 2026Stream Processors 2048.4Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9060xt.htmlRead 14 October 2026Stream Processors 2048.8Reviewhwcooling.net/en/gigabyte-rx-9060-xt-gaming-oc-review-right-on-targetRead 14 October 2026Spec table image: 2048 stream processors.
- Ray tracing cores
- 324Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9060xt.htmlRead 14 October 2026Ray Accelerators 32.8Reviewhwcooling.net/en/gigabyte-rx-9060-xt-gaming-oc-review-right-on-targetRead 14 October 2026Spec table image: 32 ray accelerators.
- AI cores
- 644Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9060xt.htmlRead 14 October 2026AI Accelerators 64.8Reviewhwcooling.net/en/gigabyte-rx-9060-xt-gaming-oc-review-right-on-targetRead 14 October 2026Spec table image: 64 AI accelerators.
- ROPs
- 644Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9060xt.htmlRead 14 October 2026ROPs 64.8Reviewhwcooling.net/en/gigabyte-rx-9060-xt-gaming-oc-review-right-on-targetRead 14 October 2026Spec table image: 64 ROPs.10Reviewmezha.media/en/reviews/oglyad-videokarti-asus-tuf-gaming-radeon-rx-9060-xt-16gb-oc-303374Read 14 October 2026Text: 64 rasterizers (ROPs).
- Infinity Cache (L3)
- 32MB4Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9060xt.htmlRead 14 October 2026AMD Infinity Cache Technology 32 MB.8Reviewhwcooling.net/en/gigabyte-rx-9060-xt-gaming-oc-review-right-on-targetRead 14 October 2026Spec table image: AMD Infinity Cache 32 MB.
- FP32 compute (claimed)
- 25.6TFLOPS4Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9060xt.htmlRead 14 October 2026Peak Single Precision (FP32 Vector) Performance 25.6 TFLOPs. AMD counts dual-issue.
- AI performance (claimed)
Precision With sparsity Throughput (TOPS) FP16 No 103 FP16 Yes 205 FP8 No 205 FP8 Yes 410 INT8 No 205 INT8 Yes 410 INT4 No 410 INT4 Yes 821
Clocks
- Base clock
- Not available
- Game clock
- 2,780MHz1Retailer pagefirstshop.hu/gigabyte-rx9060xt-gaming-oc-16g-gv-r9060xtgaming-oc-16gd-p230196Read 14 October 2026Core Clock: Game Clock up to 2780 MHz (Reference card: 2530 MHz).2Retailer pageelitehubs.com/products/gigabyte-radeon-rx-9060-xt-gaming-oc-16gb-amd-graphic-cardRead 14 October 2026Spec tab copy: Game Clock up to 2780 MHz.8Reviewhwcooling.net/en/gigabyte-rx-9060-xt-gaming-oc-review-right-on-targetRead 14 October 2026Page 1: game clock raised from the reference 2530 MHz to 2780 MHz.
- Boost clock
- 3,320MHz1Retailer pagefirstshop.hu/gigabyte-rx9060xt-gaming-oc-16g-gv-r9060xtgaming-oc-16gd-p230196Read 14 October 2026Core Clock: Boost Clock up to 3320 MHz (Reference card: 3130 MHz). gigabyte.com blocks agents, so the maker spec tab was read through this verbatim copy and a second copy at elitehubs.com.2Retailer pageelitehubs.com/products/gigabyte-radeon-rx-9060-xt-gaming-oc-16gb-amd-graphic-cardRead 14 October 2026Spec tab copy: Boost Clock up to 3320 MHz.8Reviewhwcooling.net/en/gigabyte-rx-9060-xt-gaming-oc-review-right-on-targetRead 14 October 2026Page 1: boost clock raised from up to 3130 MHz to 3320 MHz.
- Boost clock in OC mode
- Not available
- Reference boost clock
- 3,130MHz1Retailer pagefirstshop.hu/gigabyte-rx9060xt-gaming-oc-16g-gv-r9060xtgaming-oc-16gd-p230196Read 14 October 2026Core Clock: Reference card 3130 MHz.4Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9060xt.htmlRead 14 October 2026Boost Frequency up to 3130 MHz, Game Frequency 2530 MHz.8Reviewhwcooling.net/en/gigabyte-rx-9060-xt-gaming-oc-review-right-on-targetRead 14 October 2026Page 1: reference boost clock up to 3130 MHz.
Memory
- VRAM
- 16GB1Retailer pagefirstshop.hu/gigabyte-rx9060xt-gaming-oc-16g-gv-r9060xtgaming-oc-16gd-p230196Read 14 October 20264Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9060xt.htmlRead 14 October 2026Max Memory Size 16 GB, GDDR6, 128-bit.8Reviewhwcooling.net/en/gigabyte-rx-9060-xt-gaming-oc-review-right-on-targetRead 14 October 2026Spec table image: 16GB GDDR6 at 20 Gbps on a 128-bit bus.
- VRAM type
- GDDR61Retailer pagefirstshop.hu/gigabyte-rx9060xt-gaming-oc-16g-gv-r9060xtgaming-oc-16gd-p230196Read 14 October 20264Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9060xt.htmlRead 14 October 20268Reviewhwcooling.net/en/gigabyte-rx-9060-xt-gaming-oc-review-right-on-targetRead 14 October 2026
- Memory bus width
- 128bits1Retailer pagefirstshop.hu/gigabyte-rx9060xt-gaming-oc-16g-gv-r9060xtgaming-oc-16gd-p230196Read 14 October 20264Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9060xt.htmlRead 14 October 20268Reviewhwcooling.net/en/gigabyte-rx-9060-xt-gaming-oc-review-right-on-targetRead 14 October 2026
- Memory speed
- 20Gbps1Retailer pagefirstshop.hu/gigabyte-rx9060xt-gaming-oc-16g-gv-r9060xtgaming-oc-16gd-p230196Read 14 October 2026Memory Clock 20 Gbps. Memory Size 16GB, GDDR6, 128 bit.4Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9060xt.htmlRead 14 October 2026Memory Speed up to 20 Gbps.8Reviewhwcooling.net/en/gigabyte-rx-9060-xt-gaming-oc-review-right-on-targetRead 14 October 2026
Connectivity
- PCIe generation
- 51Retailer pagefirstshop.hu/gigabyte-rx9060xt-gaming-oc-16g-gv-r9060xtgaming-oc-16gd-p230196Read 14 October 2026Card Bus PCI-E 5.0. The lane count is not in the Gigabyte spec tab.4Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9060xt.htmlRead 14 October 2026Bus Type PCIe 5.0 x16.
- PCIe lanes
- 164Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9060xt.htmlRead 14 October 2026Bus Type PCIe 5.0 x16.8Reviewhwcooling.net/en/gigabyte-rx-9060-xt-gaming-oc-review-right-on-targetRead 14 October 2026Page 1: Radeon RX 9060 XT cards have a PCI Express 5.0 x16 interface.9Reviewcgmagonline.com/review/hardware/gigabyte-amd-radeon-rx-9060-xtRead 14 October 2026Text: the card uses a full PCIe 5.0 x16 interface.
- Display outputs
Type Version Count Max bandwidth (Gbps) HDMI 2.1b 1 Not available DisplayPort 2.1a UHBR13.5 2 54 Source1Retailer pagefirstshop.hu/gigabyte-rx9060xt-gaming-oc-16g-gv-r9060xtgaming-oc-16gd-p230196Read 14 October 2026Output: DisplayPort 2.1a x2 and HDMI 2.1b x1. The UHBR13.5 class and 54 Gbps link rate come from the hwcooling.net and CGMagazine reviews of this card.8Reviewhwcooling.net/en/gigabyte-rx-9060-xt-gaming-oc-review-right-on-targetRead 14 October 2026Page 2: one HDMI 2.1b and two DisplayPort connectors with UHBR13.5 support. The review writes DisplayPort 2.1b. Gigabyte and AMD write 2.1a, which is stored. UHBR13.5 is 54 Gbps.9Reviewcgmagonline.com/review/hardware/gigabyte-amd-radeon-rx-9060-xtRead 14 October 2026Text: DisplayPort 2.1a UHBR13.5 and HDMI 2.1b. Two DisplayPort outputs and a single HDMI port on the Gigabyte card.- Display outputs in total
- 3
- HDMI ports
- 1
- DisplayPort ports
- 2
- Highest HDMI version
- 2.1b
- Highest DisplayPort version
- 2.1a UHBR13.5
- Fastest DisplayPort link
- 54Gbps
- Max displays
- 31Retailer pagefirstshop.hu/gigabyte-rx9060xt-gaming-oc-16g-gv-r9060xtgaming-oc-16gd-p230196Read 14 October 2026Multi-view 3.2Retailer pageelitehubs.com/products/gigabyte-radeon-rx-9060-xt-gaming-oc-16gb-amd-graphic-cardRead 14 October 2026Spec tab copy: Multi-view 3.
- Max output resolution
- Resolution7680 × 4320 pxRefresh rate144 Hz1Retailer pagefirstshop.hu/gigabyte-rx9060xt-gaming-oc-16g-gv-r9060xtgaming-oc-16gd-p230196Read 14 October 2026Digital max resolution 7680 x 4320. The 144 Hz is AMD's figure for the RDNA 4 display engine at 8K.6Press releaseamd.com/en/newsroom/press-releases/2025-2-28-amd-unveils-next-generation-amd-rdna-4-architectu.htmlRead 14 October 2026AMD Radiance Display Engine supports DisplayPort 2.1a and HDMI 2.1b, up to 8K 144 Hz with 12-bit HDR. A figure for the RDNA 4 family.
- HDCP version
- Not available
Video engine
- Video encoders
- Not available
- Video decoders
- Not available
- Hardware video encode
- H.264, H.265 (HEVC), AV14Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9060xt.htmlRead 14 October 20264K H264, H265/HEVC and AV1 encode: Yes.
- Hardware video decode
- H.264, H.265 (HEVC), VP9, AV14Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9060xt.htmlRead 14 October 20264K H264, H265/HEVC and AV1 decode: Yes. VP9 is from the CGMagazine review of this card.9Reviewcgmagonline.com/review/hardware/gigabyte-amd-radeon-rx-9060-xtRead 14 October 2026Text: the media engine decodes VP9 4K at up to 210 fps, H.264, HEVC and AV1. These are AMD media engine figures.
Graphics features
- Upscaling technologies
- FSR 45Press releaseamd.com/en/newsroom/press-releases/2025-5-20-amd-introduces-new-radeon-graphics-cards-and-ryzen.htmlRead 14 October 20261440p gaming with FSR 4 ML-enhanced upscaling.8Reviewhwcooling.net/en/gigabyte-rx-9060-xt-gaming-oc-review-right-on-targetRead 14 October 2026Page 1: FidelityFX Super Resolution 4 (FSR 4).
- Frame generation
- FSR Frame Generation, AMD Fluid Motion Frames4Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9060xt.htmlRead 14 October 2026Supported technologies list AMD Fluid Motion Frames.8Reviewhwcooling.net/en/gigabyte-rx-9060-xt-gaming-oc-review-right-on-targetRead 14 October 2026The review tests FSR with Frame Generation on this card. Page 17: AMD can only generate one frame at a time.
Power
- Reference board power
- 160W4Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9060xt.htmlRead 14 October 2026Typical Board Power (Desktop) 160W for the 16 GB card.8Reviewhwcooling.net/en/gigabyte-rx-9060-xt-gaming-oc-review-right-on-targetRead 14 October 2026Spec table image: total board power 160 W for the 16GB reference.
- PSU wattage (card maker)
- 450W1Retailer pagefirstshop.hu/gigabyte-rx9060xt-gaming-oc-16g-gv-r9060xtgaming-oc-16gd-p230196Read 14 October 2026Recommended PSU 450W. AMD also states 450 W minimum for the chip.2Retailer pageelitehubs.com/products/gigabyte-radeon-rx-9060-xt-gaming-oc-16gb-amd-graphic-cardRead 14 October 2026Spec tab copy: Recommended PSU 450W.
- Power connector
- 1 x 8-pin PCIe1Retailer pagefirstshop.hu/gigabyte-rx9060xt-gaming-oc-16g-gv-r9060xtgaming-oc-16gd-p230196Read 14 October 2026Power Connectors: 8 pin*1.8Reviewhwcooling.net/en/gigabyte-rx-9060-xt-gaming-oc-review-right-on-targetRead 14 October 2026Page 2: a single 8-pin connector.9Reviewcgmagonline.com/review/hardware/gigabyte-amd-radeon-rx-9060-xtRead 14 October 2026Text: a single 8-pin connector.
Cooling
- Cooler type
- Open air2Retailer pageelitehubs.com/products/gigabyte-radeon-rx-9060-xt-gaming-oc-16gb-amd-graphic-cardRead 14 October 2026WINDFORCE cooling with Hawk fans, composite copper heat pipes, a large vapor chamber and screen cooling. Fans blow onto the heatsink.8Reviewhwcooling.net/en/gigabyte-rx-9060-xt-gaming-oc-review-right-on-targetRead 14 October 2026Page 2: Windforce cooler with three fans and a pass-through heatsink. Fans blow onto the heatsink.
- Fans
- 33Retailer pageshop.sumillion.com/pc-components/graphics-cards/gigabyte-radeon-rx-9060-xt-gaming-oc-16g-graphics-card-gv-r9060xtgaming-oc-16gd.htmlRead 14 October 2026Number of fans: 3. Cooling technology GIGABYTE WINDFORCE 3X.8Reviewhwcooling.net/en/gigabyte-rx-9060-xt-gaming-oc-review-right-on-targetRead 14 October 2026Page 2: three fans, the middle one counter-rotating.
- Radiator size
- Not available
Dimensions and weight
- Length
- 281mm1Retailer pagefirstshop.hu/gigabyte-rx9060xt-gaming-oc-16g-gv-r9060xtgaming-oc-16gd-p230196Read 14 October 2026Card size L=281 W=118 H=40 mm. Gigabyte writes W as the card height and H as the thickness. The page does not say whether the bracket is included.2Retailer pageelitehubs.com/products/gigabyte-radeon-rx-9060-xt-gaming-oc-16gb-amd-graphic-cardRead 14 October 2026Spec tab copy: Card size L=281 W=118 H=40 mm.
- Slot width
- Not available
- NVIDIA SFF-Ready
- Not available
- Weight
- 840g(1.9 lb)3Retailer pageshop.sumillion.com/pc-components/graphics-cards/gigabyte-radeon-rx-9060-xt-gaming-oc-16g-graphics-card-gv-r9060xtgaming-oc-16gd.htmlRead 14 October 2026Weight & dimensions: weight 840 g, length 281 mm, height 118 mm, depth 40 mm. hwcooling.net weighed 828 g on its sample.8Reviewhwcooling.net/en/gigabyte-rx-9060-xt-gaming-oc-review-right-on-targetRead 14 October 2026Page 2: the card weighs 828 g on the reviewer's scale. The distributor feed says 840 g, which is stored.
Lighting and software
- RGB lighting
- Yes2Retailer pageelitehubs.com/products/gigabyte-radeon-rx-9060-xt-gaming-oc-16gb-amd-graphic-cardRead 14 October 2026Gigabyte feature text: RGB lighting with 16.7M customizable colors and many lighting effects.8Reviewhwcooling.net/en/gigabyte-rx-9060-xt-gaming-oc-review-right-on-targetRead 14 October 2026Page 2: sliding transparent cover over a window lit by ARGB LEDs.9Reviewcgmagonline.com/review/hardware/gigabyte-amd-radeon-rx-9060-xtRead 14 October 2026Text: triple-fan layout with subtle RGB lighting along the side.
- Lighting sync
- Not available
Measured performance
- 3DMark Time Spy graphics
- Not available
- 3DMark Steel Nomad
- Not available
- 3DMark Port Royal
- 9,701points8Reviewhwcooling.net/en/gigabyte-rx-9060-xt-gaming-oc-review-right-on-targetRead 14 October 2026Page 13: Port Royal score 9701 in the review chart. Graphics test 44.9 fps. Same test system. The review states no driver version.
- 3DMark Speed Way
- Not available
- Game frame rates
Game Width (px) Height (px) Preset Upscaling Ray tracing Average FPS Cyberpunk 2077 1920 1080 Ultra Off No 117.5 Cyberpunk 2077 2560 1440 Ultra Off No 75.1 Cyberpunk 2077 3840 2160 Ultra Off No 32.5 Cyberpunk 2077 1920 1080 RT Ultra Off Yes 48.5 Cyberpunk 2077 2560 1440 RT Ultra Off Yes 29.7 Cyberpunk 2077 3840 2160 RT Ultra Off Yes 13.9 F1 24 1920 1080 Ultra High, TAA Off Yes 72.7 F1 24 2560 1440 Ultra High, TAA Off Yes 54 F1 24 3840 2160 Ultra High, TAA Off Yes 29 Metro Exodus Enhanced Edition 1920 1080 Extreme Off Not available 61.3 Metro Exodus Enhanced Edition 2560 1440 Extreme Off Not available 46.8 Metro Exodus Enhanced Edition 3840 2160 Extreme Off Not available 26.7
Measured noise and temperature
- Fan noise per load
- Not available
- Fan noise while gaming
- Not available
- Hot spot temperature while gaming
- Not available
- Memory temperature while gaming
- Not available
Measured power
- Card power at idle (measured)
- Not available
- GPU power while gaming (measured)
- 182W8Reviewhwcooling.net/en/gigabyte-rx-9060-xt-gaming-oc-review-right-on-targetRead 14 October 2026Page 14: chart of Total Board Power (TBP) from GPU-Z or HWiNFO, the chart does not say which. Average 182.0 W in the same run, maximum 183.2 W, minimum 180.6 W. A software readout, not a hardware capture.
In the box
- In the box
- VGA manual1Retailer pagefirstshop.hu/gigabyte-rx9060xt-gaming-oc-16g-gv-r9060xtgaming-oc-16gd-p230196Read 14 October 2026Accessories: VGA manual.8Reviewhwcooling.net/en/gigabyte-rx-9060-xt-gaming-oc-review-right-on-targetRead 14 October 2026Page 1: the accessories only include a simple installation guide.
Links
- Product page
- www.gigabyte.com/Graphics-Card/GV-R9060XTGAMING-OC-16GD9Reviewcgmagonline.com/review/hardware/gigabyte-amd-radeon-rx-9060-xtRead 14 October 2026The review of this exact card links the Gigabyte product page GV-R9060XTGAMING-OC-16GD. gigabyte.com blocks agents, so the page was not read.
- Spec sheet
- Not available
- Manual
- Not available
- EPREL registration number
- Not available
Warranty
- Manufacturer warranty (source market)
- 3years3Retailer pageshop.sumillion.com/pc-components/graphics-cards/gigabyte-radeon-rx-9060-xt-gaming-oc-16g-graphics-card-gv-r9060xtgaming-oc-16gd.htmlRead 14 October 2026Warranty period 3 year(s) in this UK distributor feed. Gigabyte Hungary sells it with 36 months at firstshop.hu. The value is for the UK.
Compare with
Pick a graphics card to see both side by side. Differences are marked yellow.
Sources
We read 11 sources for this graphics card. The numbers match the markers in the sheet.
- Certification listkhronos.org/conformance/adopters/conformant-products/vulkan
See a wrong value? Tell us and name the field.
