PC parts / Graphics cards
GIGABYTEGraphics card

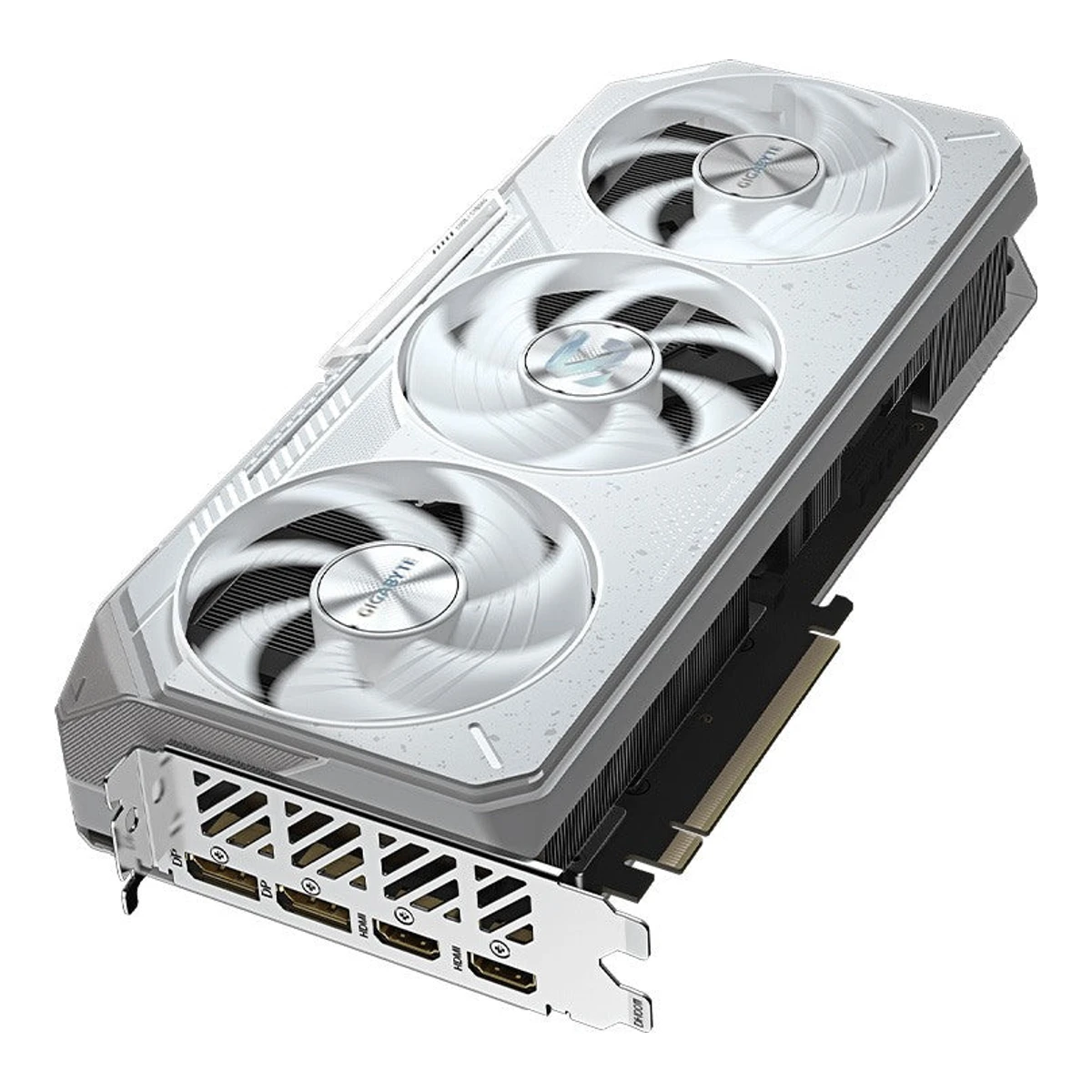

Radeon RX 9070 XT Gaming OC Ice 16G
Released November 2025.8Reviewhwcooling.net/en/gigabyte-amd-radeon-rx-9070-xt-gaming-oc-ice-16g-review-white-for-lessRead 14 October 2026Review published 2025-11-12. It says Gigabyte is introducing Ice variants with a white shroud. The RX 9070 series launched on 2025-03-06 and the black Gaming OC existed before. Last checked 14 October 2026.
- GPU
- AMD Radeon RX 9070 XT
- VRAM
- 16GB
- Length
- 288mm
- Board power
- 330W
75 of 100 fields known.
At a glance
Boost clock
3,060MHz2Retailer pagewcslmall.com/products/5164/gigabyte-%E6%8A%80%E5%98%89-radeon-rx-9070-xt-gaming-oc-ice-16gRead 14 October 2026Boost Clock up to 3060 MHz (Reference card: 2970 MHz). The marketing paragraph's 3100 MHz OC figure belongs to the AORUS Elite text and is not stored.4Retailer pageshopro.lt/442658-rx9070-xt-16gb-gigabyte-gaming-oc-ice-gddr6-enRead 14 October 2026Processor boost clock speed 3060 MHz.5Retailer pageparadigit.ie/gigabyte-radeon-rx-9070-xt-gaming-oc-ice-16gb/21847347/productRead 14 October 2026Processor clock speed (Boost) 3060 MHz. The shop lists a weight of 1.26 kg, while HWCooling weighed 1.28 kg.7Reviewtechradar.com/computing/gpu/gigabyte-radeon-rx-9070-xt-gaming-oc-ice-16gb-review-excellent-performance-from-a-standout-graphics-cardRead 14 October 20268Reviewhwcooling.net/en/gigabyte-amd-radeon-rx-9070-xt-gaming-oc-ice-16g-review-white-for-lessRead 14 October 2026Page 1: boost clock raised from the reference 2970 MHz to up to 3060 MHz.11Press articlemultiplayer.it/notizie/gigabyte-presenta-radeon-rx-9070-xt-gaming-oc-ice-edizione-speciale-tutta-bianca-gpu-amd.htmlRead 14 October 2026Boost up to 3060 MHz.
Higher than 89% of other graphics cards.
Reference boost clock
2,970MHz2Retailer pagewcslmall.com/products/5164/gigabyte-%E6%8A%80%E5%98%89-radeon-rx-9070-xt-gaming-oc-ice-16gRead 14 October 2026Boost Clock up to 3060 MHz (Reference card: 2970 MHz).8Reviewhwcooling.net/en/gigabyte-amd-radeon-rx-9070-xt-gaming-oc-ice-16g-review-white-for-lessRead 14 October 2026Page 1: reference boost clock 2970 MHz.12Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9070xt.htmlRead 14 October 2026Boost Frequency up to 2970 MHz.
Higher than 83% of other graphics cards.
Ports
- 2 HDMI 2.1b
- 2 DisplayPort 2.1a UHBR13.5
General
- Model numbers
- GV-R907XGAMINGOCICE-16GD2Retailer pagewcslmall.com/products/5164/gigabyte-%E6%8A%80%E5%98%89-radeon-rx-9070-xt-gaming-oc-ice-16gRead 14 October 2026Hong Kong shop, item number GV-R907XGAMINGOCICE-16GD. The Specification table is Gigabyte's spec text. The marketing paragraph above it comes from another card, the AORUS Elite, and is not used.3Retailer pageshop.sumillion.com/gigabyte-radeon-rx-9070-xt-gaming-oc-ice-16g-amd-16-gb-gddr6-gv-r907xgamingocice-16gd.htmlRead 14 October 20266Retailer pagejbhifi.com.au/products/gigabyte-radeon-rx-9070-xt-gaming-oc-ice-16g-graphics-cardRead 14 October 2026Model GV-R907XGAMINGOCICE-16GD.
- GTIN / EAN
- 47193313570303Retailer pageshop.sumillion.com/gigabyte-radeon-rx-9070-xt-gaming-oc-ice-16g-amd-16-gb-gddr6-gv-r907xgamingocice-16gd.htmlRead 14 October 2026EAN 4719331357030.4Retailer pageshopro.lt/442658-rx9070-xt-16gb-gigabyte-gaming-oc-ice-gddr6-enRead 14 October 2026EAN 4719331357030.
- Announced
- Not available
- Status
- Available5Retailer pageparadigit.ie/gigabyte-radeon-rx-9070-xt-gaming-oc-ice-16gb/21847347/productRead 14 October 2026On 2026-10-14 the shop lists the card with one in stock and delivery in 4 to 5 working days.7Reviewtechradar.com/computing/gpu/gigabyte-radeon-rx-9070-xt-gaming-oc-ice-16gb-review-excellent-performance-from-a-standout-graphics-cardRead 14 October 2026The review, dated March 2026, says the card is available now.
- Predecessor
- Not available
- Successor
- Not available
- Launch price (US)
- Not available
- Launch price (EU)
- Not available
- Markets
- Not available
- Colours
- White3Retailer pageshop.sumillion.com/gigabyte-radeon-rx-9070-xt-gaming-oc-ice-16g-amd-16-gb-gddr6-gv-r907xgamingocice-16gd.htmlRead 14 October 2026Product colour White.4Retailer pageshopro.lt/442658-rx9070-xt-16gb-gigabyte-gaming-oc-ice-gddr6-enRead 14 October 2026Product colour White.5Retailer pageparadigit.ie/gigabyte-radeon-rx-9070-xt-gaming-oc-ice-16gb/21847347/productRead 14 October 2026Colour of product: White.
GPU
- GPU architecture
- RDNA 413Press releaseamd.com/en/newsroom/press-releases/2025-2-28-amd-unveils-next-generation-amd-rdna-4-architectu.htmlRead 14 October 2026AMD unveils the RDNA 4 architecture with the Radeon RX 9070 XT.
- GPU die
- Navi 4814Reviewclub386.com/amd-radeon-rx-9070-xt-reviewRead 14 October 2026Spec table: Navi 48.
- Process
- TSMC N4P14Reviewclub386.com/amd-radeon-rx-9070-xt-reviewRead 14 October 2026Spec table: TSMC N4P (4nm). AMD names no node.
- Transistors
- 53.9billion12Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9070xt.htmlRead 14 October 202614Reviewclub386.com/amd-radeon-rx-9070-xt-reviewRead 14 October 2026Spec table: 53.9 bn.
- Die size
- 357mm²14Reviewclub386.com/amd-radeon-rx-9070-xt-reviewRead 14 October 2026Spec table: 357 mm2.
- Compute units
- 6412Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9070xt.htmlRead 14 October 2026
- Shader cores
- 4,09612Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9070xt.htmlRead 14 October 2026
- Ray tracing cores
- 6412Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9070xt.htmlRead 14 October 2026
- Infinity Cache (L3)
- 64MB12Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9070xt.htmlRead 14 October 2026
- FP32 compute (claimed)
- 48.7TFLOPS12Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9070xt.htmlRead 14 October 2026Peak Single Precision (FP32 Vector) 48.7 TFLOPs. AMD counts dual-issue.
- AI performance (claimed)
Precision With sparsity Throughput (TOPS) FP16 No 195 FP16 Yes 389 FP8 No 389 FP8 Yes 779 INT8 No 389 INT8 Yes 779 INT4 No 779 INT4 Yes 1,557
Clocks
- Base clock
- Not available
- Game clock
- 2,520MHz2Retailer pagewcslmall.com/products/5164/gigabyte-%E6%8A%80%E5%98%89-radeon-rx-9070-xt-gaming-oc-ice-16gRead 14 October 2026Game Clock up to 2520 MHz (Reference card: 2400 MHz).7Reviewtechradar.com/computing/gpu/gigabyte-radeon-rx-9070-xt-gaming-oc-ice-16gb-review-excellent-performance-from-a-standout-graphics-cardRead 14 October 20268Reviewhwcooling.net/en/gigabyte-amd-radeon-rx-9070-xt-gaming-oc-ice-16g-review-white-for-lessRead 14 October 2026Page 1: typical game clock raised from 2400 MHz to up to 2520 MHz.11Press articlemultiplayer.it/notizie/gigabyte-presenta-radeon-rx-9070-xt-gaming-oc-ice-edizione-speciale-tutta-bianca-gpu-amd.htmlRead 14 October 2026Game clock up to 2520 MHz.
- Boost clock
- 3,060MHz2Retailer pagewcslmall.com/products/5164/gigabyte-%E6%8A%80%E5%98%89-radeon-rx-9070-xt-gaming-oc-ice-16gRead 14 October 2026Boost Clock up to 3060 MHz (Reference card: 2970 MHz). The marketing paragraph's 3100 MHz OC figure belongs to the AORUS Elite text and is not stored.4Retailer pageshopro.lt/442658-rx9070-xt-16gb-gigabyte-gaming-oc-ice-gddr6-enRead 14 October 2026Processor boost clock speed 3060 MHz.5Retailer pageparadigit.ie/gigabyte-radeon-rx-9070-xt-gaming-oc-ice-16gb/21847347/productRead 14 October 2026Processor clock speed (Boost) 3060 MHz. The shop lists a weight of 1.26 kg, while HWCooling weighed 1.28 kg.7Reviewtechradar.com/computing/gpu/gigabyte-radeon-rx-9070-xt-gaming-oc-ice-16gb-review-excellent-performance-from-a-standout-graphics-cardRead 14 October 20268Reviewhwcooling.net/en/gigabyte-amd-radeon-rx-9070-xt-gaming-oc-ice-16g-review-white-for-lessRead 14 October 2026Page 1: boost clock raised from the reference 2970 MHz to up to 3060 MHz.11Press articlemultiplayer.it/notizie/gigabyte-presenta-radeon-rx-9070-xt-gaming-oc-ice-edizione-speciale-tutta-bianca-gpu-amd.htmlRead 14 October 2026Boost up to 3060 MHz.
- Boost clock in OC mode
- Not available
- Reference boost clock
- 2,970MHz2Retailer pagewcslmall.com/products/5164/gigabyte-%E6%8A%80%E5%98%89-radeon-rx-9070-xt-gaming-oc-ice-16gRead 14 October 2026Boost Clock up to 3060 MHz (Reference card: 2970 MHz).8Reviewhwcooling.net/en/gigabyte-amd-radeon-rx-9070-xt-gaming-oc-ice-16g-review-white-for-lessRead 14 October 2026Page 1: reference boost clock 2970 MHz.12Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9070xt.htmlRead 14 October 2026Boost Frequency up to 2970 MHz.
Memory
- VRAM
- 16GB2Retailer pagewcslmall.com/products/5164/gigabyte-%E6%8A%80%E5%98%89-radeon-rx-9070-xt-gaming-oc-ice-16gRead 14 October 202612Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9070xt.htmlRead 14 October 2026
- VRAM type
- GDDR62Retailer pagewcslmall.com/products/5164/gigabyte-%E6%8A%80%E5%98%89-radeon-rx-9070-xt-gaming-oc-ice-16gRead 14 October 202612Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9070xt.htmlRead 14 October 2026
- Memory bus width
- 256bits2Retailer pagewcslmall.com/products/5164/gigabyte-%E6%8A%80%E5%98%89-radeon-rx-9070-xt-gaming-oc-ice-16gRead 14 October 202612Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9070xt.htmlRead 14 October 2026
Connectivity
- PCIe generation
- 52Retailer pagewcslmall.com/products/5164/gigabyte-%E6%8A%80%E5%98%89-radeon-rx-9070-xt-gaming-oc-ice-16gRead 14 October 202612Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9070xt.htmlRead 14 October 2026
- Display outputs
Type Version Count Max bandwidth (Gbps) HDMI 2.1b 2 Not available DisplayPort 2.1a UHBR13.5 2 54 Source2Retailer pagewcslmall.com/products/5164/gigabyte-%E6%8A%80%E5%98%89-radeon-rx-9070-xt-gaming-oc-ice-16gRead 14 October 2026Output: DisplayPort 2.1a x2, HDMI 2.1b x2. UHBR13.5 and 54 Gbps come from the HWCooling review, which names UHBR13.5 for the DisplayPorts.3Retailer pageshop.sumillion.com/gigabyte-radeon-rx-9070-xt-gaming-oc-ice-16g-amd-16-gb-gddr6-gv-r907xgamingocice-16gd.htmlRead 14 October 20262 x HDMI 2.1b and 2 x DisplayPort 2.1a.4Retailer pageshopro.lt/442658-rx9070-xt-16gb-gigabyte-gaming-oc-ice-gddr6-enRead 14 October 20262 HDMI 2.1b and 2 DisplayPort 2.1a.7Reviewtechradar.com/computing/gpu/gigabyte-radeon-rx-9070-xt-gaming-oc-ice-16gb-review-excellent-performance-from-a-standout-graphics-cardRead 14 October 2026Two HDMI 2.1b ports and two DisplayPort 2.1a outputs.9Reviewhwcooling.net/en/gigabyte-amd-radeon-rx-9070-xt-gaming-oc-ice-16g-review-white-for-less/2Read 14 October 2026Page 2: two DisplayPort 2.1b (UHBR13.5) and two HDMI 2.1b. The third DisplayPort of the reference layout is a second HDMI port. Gigabyte's spec text and TechRadar write DisplayPort 2.1a, which is stored.- Display outputs in total
- 4
- HDMI ports
- 2
- DisplayPort ports
- 2
- Highest HDMI version
- 2.1b
- Highest DisplayPort version
- 2.1a UHBR13.5
- Fastest DisplayPort link
- 54Gbps
- Max displays
- 42Retailer pagewcslmall.com/products/5164/gigabyte-%E6%8A%80%E5%98%89-radeon-rx-9070-xt-gaming-oc-ice-16gRead 14 October 2026Multi-view 4.4Retailer pageshopro.lt/442658-rx9070-xt-16gb-gigabyte-gaming-oc-ice-gddr6-enRead 14 October 2026Maximum displays per videocard 4.
- Max output resolution
- Resolution7680 × 4320 pxRefresh rate144 Hz13Press releaseamd.com/en/newsroom/press-releases/2025-2-28-amd-unveils-next-generation-amd-rdna-4-architectu.htmlRead 14 October 2026Radiance Display Engine with DisplayPort 2.1a and HDMI 2.1b, up to 8K 144Hz with 12-bit HDR. The 7680 x 4320 size is Gigabyte's, the 144 Hz is AMD's figure, not a Gigabyte figure.
- HDCP version
- Not available
Video engine
- Video encoders
- Not available
- Video decoders
- Not available
- Hardware video encode
- H.264, H.265 (HEVC), AV112Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9070xt.htmlRead 14 October 20264K H264, H265/HEVC and AV1 encode: Yes.
- Hardware video decode
- H.264, H.265 (HEVC), VP9, AV112Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9070xt.htmlRead 14 October 20264K H264, H265/HEVC and AV1 decode: Yes. VP9 is from the AMD codec footnote on ASUS's page.18Maker product pageasus.com/us/motherboards-components/graphics-cards/prime/prime-rx9070xt-o16gRead 14 October 2026Footnote 4 of ASUS's page for a card with the same GPU quotes AMD: video codec acceleration includes at least HEVC (H.265), H.264, VP9 and AV1.
Graphics features
- OpenGL
- 4.62Retailer pagewcslmall.com/products/5164/gigabyte-%E6%8A%80%E5%98%89-radeon-rx-9070-xt-gaming-oc-ice-16gRead 14 October 20263Retailer pageshop.sumillion.com/gigabyte-radeon-rx-9070-xt-gaming-oc-ice-16g-amd-16-gb-gddr6-gv-r907xgamingocice-16gd.htmlRead 14 October 2026
- Upscaling technologies
- FSR 413Press releaseamd.com/en/newsroom/press-releases/2025-2-28-amd-unveils-next-generation-amd-rdna-4-architectu.htmlRead 14 October 2026FidelityFX Super Resolution 4 (FSR 4), exclusive to the Radeon RX 9000 Series.
- Frame generation
- FSR Frame Generation, AMD Fluid Motion Frames 213Press releaseamd.com/en/newsroom/press-releases/2025-2-28-amd-unveils-next-generation-amd-rdna-4-architectu.htmlRead 14 October 2026FSR 4 combines with FSR 3.1 frame generation. HYPR-RX includes AMD Fluid Motion Frames, which the release calls version 2.1. Stored as AMD Fluid Motion Frames 2 like the other AMD cards.17Maker product pagesapphiretech.com/en/consumer/nitro-radeon-rx-9070-xt-16g-gddr6Read 14 October 2026The same page lists AMD HYPR-RX with AFMF 2 and AMD Fluid Motion Frames 2 technology.
Power
- Reference board power
- 304W12Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9070xt.htmlRead 14 October 2026Typical Board Power (Desktop) 304 W.
- PSU wattage (card maker)
- 850W2Retailer pagewcslmall.com/products/5164/gigabyte-%E6%8A%80%E5%98%89-radeon-rx-9070-xt-gaming-oc-ice-16gRead 14 October 2026Recommended PSU 850W. AMD's reference figure is 750 W.3Retailer pageshop.sumillion.com/gigabyte-radeon-rx-9070-xt-gaming-oc-ice-16g-amd-16-gb-gddr6-gv-r907xgamingocice-16gd.htmlRead 14 October 20264Retailer pageshopro.lt/442658-rx9070-xt-16gb-gigabyte-gaming-oc-ice-gddr6-enRead 14 October 2026Minimum system power supply 850 W.7Reviewtechradar.com/computing/gpu/gigabyte-radeon-rx-9070-xt-gaming-oc-ice-16gb-review-excellent-performance-from-a-standout-graphics-cardRead 14 October 2026Gigabyte recommends an 850W PSU.11Press articlemultiplayer.it/notizie/gigabyte-presenta-radeon-rx-9070-xt-gaming-oc-ice-edizione-speciale-tutta-bianca-gpu-amd.htmlRead 14 October 2026Recommended power supply 850 W.
- Power connector
- 3 x 8-pin PCIe2Retailer pagewcslmall.com/products/5164/gigabyte-%E6%8A%80%E5%98%89-radeon-rx-9070-xt-gaming-oc-ice-16gRead 14 October 2026Power Connectors: 8 pin x3.3Retailer pageshop.sumillion.com/gigabyte-radeon-rx-9070-xt-gaming-oc-ice-16g-amd-16-gb-gddr6-gv-r907xgamingocice-16gd.htmlRead 14 October 20264Retailer pageshopro.lt/442658-rx9070-xt-16gb-gigabyte-gaming-oc-ice-gddr6-enRead 14 October 2026Supplementary power connectors 3x 8-pin.7Reviewtechradar.com/computing/gpu/gigabyte-radeon-rx-9070-xt-gaming-oc-ice-16gb-review-excellent-performance-from-a-standout-graphics-cardRead 14 October 2026Three standard 8-pin PCIe connectors.8Reviewhwcooling.net/en/gigabyte-amd-radeon-rx-9070-xt-gaming-oc-ice-16g-review-white-for-lessRead 14 October 2026Page 1: a trio of 8-pin connectors.9Reviewhwcooling.net/en/gigabyte-amd-radeon-rx-9070-xt-gaming-oc-ice-16g-review-white-for-less/2Read 14 October 2026Page 2: three 8-pin connectors, each with an LED.11Press articlemultiplayer.it/notizie/gigabyte-presenta-radeon-rx-9070-xt-gaming-oc-ice-edizione-speciale-tutta-bianca-gpu-amd.htmlRead 14 October 20263 x 8-pin PCIe.
Cooling
- Cooler type
- Open air3Retailer pageshop.sumillion.com/gigabyte-radeon-rx-9070-xt-gaming-oc-ice-16g-amd-16-gb-gddr6-gv-r907xgamingocice-16gd.htmlRead 14 October 2026Cooling type Active, GIGABYTE WINDFORCE 3X, with Hawk fans, a vapor chamber and screen cooling.9Reviewhwcooling.net/en/gigabyte-amd-radeon-rx-9070-xt-gaming-oc-ice-16g-review-white-for-less/2Read 14 October 2026Page 2: open pass-through fin stack with a vapour chamber and a rear window.
- Fans
- 33Retailer pageshop.sumillion.com/gigabyte-radeon-rx-9070-xt-gaming-oc-ice-16g-amd-16-gb-gddr6-gv-r907xgamingocice-16gd.htmlRead 14 October 2026Number of fans: 3.4Retailer pageshopro.lt/442658-rx9070-xt-16gb-gigabyte-gaming-oc-ice-gddr6-enRead 14 October 2026Number of fans 3, cooling technology GIGABYTE WINDFORCE 3X.9Reviewhwcooling.net/en/gigabyte-amd-radeon-rx-9070-xt-gaming-oc-ice-16g-review-white-for-less/2Read 14 October 2026Page 2: three fans, each 11 mm tall, impeller just under 9 cm.
- Radiator size
- Not available
- Dual BIOS
- Yes3Retailer pageshop.sumillion.com/gigabyte-radeon-rx-9070-xt-gaming-oc-ice-16g-amd-16-gb-gddr6-gv-r907xgamingocice-16gd.htmlRead 14 October 2026Dual BIOS (Performance / Silent). Performance is the factory default.7Reviewtechradar.com/computing/gpu/gigabyte-radeon-rx-9070-xt-gaming-oc-ice-16gb-review-excellent-performance-from-a-standout-graphics-cardRead 14 October 20268Reviewhwcooling.net/en/gigabyte-amd-radeon-rx-9070-xt-gaming-oc-ice-16g-review-white-for-lessRead 14 October 2026Page 1: Performance is the default BIOS, Silent has slower fans. Clocks and power limit are the same in both.9Reviewhwcooling.net/en/gigabyte-amd-radeon-rx-9070-xt-gaming-oc-ice-16g-review-white-for-less/2Read 14 October 2026Page 2: BIOS switch selects Performance (default) or Silent.11Press articlemultiplayer.it/notizie/gigabyte-presenta-radeon-rx-9070-xt-gaming-oc-ice-edizione-speciale-tutta-bianca-gpu-amd.htmlRead 14 October 2026Spec row: dual BIOS, Performance / Silent.
Dimensions and weight
- Length
- 288mm2Retailer pagewcslmall.com/products/5164/gigabyte-%E6%8A%80%E5%98%89-radeon-rx-9070-xt-gaming-oc-ice-16gRead 14 October 2026Card size L=288 W=132 H=56 mm. Gigabyte writes W as the card height and H as the thickness.3Retailer pageshop.sumillion.com/gigabyte-radeon-rx-9070-xt-gaming-oc-ice-16g-amd-16-gb-gddr6-gv-r907xgamingocice-16gd.htmlRead 14 October 2026Length 288 mm.4Retailer pageshopro.lt/442658-rx9070-xt-16gb-gigabyte-gaming-oc-ice-gddr6-enRead 14 October 2026Length 288 mm.7Reviewtechradar.com/computing/gpu/gigabyte-radeon-rx-9070-xt-gaming-oc-ice-16gb-review-excellent-performance-from-a-standout-graphics-cardRead 14 October 2026Dimensions 288 x 132 x 56 mm.11Press articlemultiplayer.it/notizie/gigabyte-presenta-radeon-rx-9070-xt-gaming-oc-ice-edizione-speciale-tutta-bianca-gpu-amd.htmlRead 14 October 2026Card size L 288 mm x W 132 mm x H 56 mm.
- Height
- 132mm2Retailer pagewcslmall.com/products/5164/gigabyte-%E6%8A%80%E5%98%89-radeon-rx-9070-xt-gaming-oc-ice-16gRead 14 October 2026Second value of L=288 W=132 H=56 mm. TechRadar and the Sumillion feed give the same 132 mm.3Retailer pageshop.sumillion.com/gigabyte-radeon-rx-9070-xt-gaming-oc-ice-16g-amd-16-gb-gddr6-gv-r907xgamingocice-16gd.htmlRead 14 October 2026Height 132 mm.4Retailer pageshopro.lt/442658-rx9070-xt-16gb-gigabyte-gaming-oc-ice-gddr6-enRead 14 October 2026Height 132 mm.7Reviewtechradar.com/computing/gpu/gigabyte-radeon-rx-9070-xt-gaming-oc-ice-16gb-review-excellent-performance-from-a-standout-graphics-cardRead 14 October 2026
- Thickness
- 56mm2Retailer pagewcslmall.com/products/5164/gigabyte-%E6%8A%80%E5%98%89-radeon-rx-9070-xt-gaming-oc-ice-16gRead 14 October 2026Third value of L=288 W=132 H=56 mm.3Retailer pageshop.sumillion.com/gigabyte-radeon-rx-9070-xt-gaming-oc-ice-16g-amd-16-gb-gddr6-gv-r907xgamingocice-16gd.htmlRead 14 October 2026Depth 56 mm.4Retailer pageshopro.lt/442658-rx9070-xt-16gb-gigabyte-gaming-oc-ice-gddr6-enRead 14 October 2026Depth 56 mm.7Reviewtechradar.com/computing/gpu/gigabyte-radeon-rx-9070-xt-gaming-oc-ice-16gb-review-excellent-performance-from-a-standout-graphics-cardRead 14 October 2026
- Slot width
- Not available
- Low profile
- No3Retailer pageshop.sumillion.com/gigabyte-radeon-rx-9070-xt-gaming-oc-ice-16g-amd-16-gb-gddr6-gv-r907xgamingocice-16gd.htmlRead 14 October 2026Form factor Full-Height/Full-Length (FH/FL).4Retailer pageshopro.lt/442658-rx9070-xt-16gb-gigabyte-gaming-oc-ice-gddr6-enRead 14 October 2026Form factor Full-Height/Full-Length (FH/FL).
- NVIDIA SFF-Ready
- Not available
Lighting and software
- RGB lighting
- Yes3Retailer pageshop.sumillion.com/gigabyte-radeon-rx-9070-xt-gaming-oc-ice-16g-amd-16-gb-gddr6-gv-r907xgamingocice-16gd.htmlRead 14 October 202616.7M customizable colors and lighting effects.9Reviewhwcooling.net/en/gigabyte-amd-radeon-rx-9070-xt-gaming-oc-ice-16g-review-white-for-less/2Read 14 October 2026Page 2: sliding cover with a transparent Gigabyte logo over an ARGB-backlit strip.11Press articlemultiplayer.it/notizie/gigabyte-presenta-radeon-rx-9070-xt-gaming-oc-ice-edizione-speciale-tutta-bianca-gpu-amd.htmlRead 14 October 2026Spec row: RGB 16.7M colours, effects set in software.
- Lighting sync
- Not available
- Software
- GIGABYTE Control Center3Retailer pageshop.sumillion.com/gigabyte-radeon-rx-9070-xt-gaming-oc-ice-16g-amd-16-gb-gddr6-gv-r907xgamingocice-16gd.htmlRead 14 October 2026GIGABYTE CONTROL CENTER adjusts clock speed, voltage, fan mode and power target.9Reviewhwcooling.net/en/gigabyte-amd-radeon-rx-9070-xt-gaming-oc-ice-16g-review-white-for-less/2Read 14 October 2026Page 2: lighting effects are set in Gigabyte Control Center.11Press articlemultiplayer.it/notizie/gigabyte-presenta-radeon-rx-9070-xt-gaming-oc-ice-edizione-speciale-tutta-bianca-gpu-amd.htmlRead 14 October 2026Spec row: Gigabyte Control Center (GCC) for clocks, voltages, fans and power target.
Measured performance
- 3DMark Time Spy graphics
- Not available
- 3DMark Port Royal
- 17,899points7Reviewtechradar.com/computing/gpu/gigabyte-radeon-rx-9070-xt-gaming-oc-ice-16gb-review-excellent-performance-from-a-standout-graphics-cardRead 14 October 2026Port Royal 17899, same system.
- 3DMark Speed Way
- 6,814points7Reviewtechradar.com/computing/gpu/gigabyte-radeon-rx-9070-xt-gaming-oc-ice-16gb-review-excellent-performance-from-a-standout-graphics-cardRead 14 October 2026Speed Way 6814, same system.
- Game frame rates
Game Width (px) Height (px) Preset Upscaling Ray tracing Average FPS Cyberpunk 2077 2560 1440 Ultra Ray Tracing Balanced (upscaler not named) Yes 85 Cyberpunk 2077 3840 2160 Ultra Ray Tracing Balanced (upscaler not named) Yes 65 Black Myth: Wukong 1920 1080 Cinematic 50% (upscaler not named) Yes 83 Black Myth: Wukong 2560 1440 Cinematic 50% (upscaler not named) Yes 72 Black Myth: Wukong 3840 2160 Cinematic 50% (upscaler not named) Yes 46
Measured noise and temperature
We could not find any of these 5 fields. Show them
- Fan noise per load
- Not available
- Fan noise while gaming
- Not available
- GPU temperature while gaming
- Not available
- Hot spot temperature while gaming
- Not available
- Memory temperature while gaming
- Not available
Measured power
- Card power at idle (measured)
- Not available
In the box
- In the box
- Concise installation manual2Retailer pagewcslmall.com/products/5164/gigabyte-%E6%8A%80%E5%98%89-radeon-rx-9070-xt-gaming-oc-ice-16gRead 14 October 2026Accessories: Quick guide.8Reviewhwcooling.net/en/gigabyte-amd-radeon-rx-9070-xt-gaming-oc-ice-16g-review-white-for-lessRead 14 October 2026Page 1: the accessories include only a concise installation manual.
- Power adapter cable included
- No8Reviewhwcooling.net/en/gigabyte-amd-radeon-rx-9070-xt-gaming-oc-ice-16g-review-white-for-lessRead 14 October 2026Page 1: three traditional 8-pin connectors, so no power adapter is needed, and the box holds only a manual.
- Support bracket included
- No7Reviewtechradar.com/computing/gpu/gigabyte-radeon-rx-9070-xt-gaming-oc-ice-16gb-review-excellent-performance-from-a-standout-graphics-cardRead 14 October 2026There is no support bracket in the box.8Reviewhwcooling.net/en/gigabyte-amd-radeon-rx-9070-xt-gaming-oc-ice-16g-review-white-for-lessRead 14 October 2026Page 1: the accessories include only a concise installation manual, so no support bracket. TechRadar also says there is none.
Links
- Product page
- www.gigabyte.com/Graphics-Card/GV-R907XGAMINGOCICE-16GD1Maker product pagegigabyte.com/Graphics-Card/GV-R907XGAMINGOCICE-16GDRead 14 October 2026Gigabyte's product page for GV-R907XGAMINGOCICE-16GD. The page was not opened because gigabyte.com blocks agents. The link comes from the picking job and from search results for the model.
- Spec sheet
- Not available
- Manual
- Not available
- EPREL registration number
- Not available
Warranty
- Manufacturer warranty (source market)
- 3years2Retailer pagewcslmall.com/products/5164/gigabyte-%E6%8A%80%E5%98%89-radeon-rx-9070-xt-gaming-oc-ice-16gRead 14 October 2026Warranty period 3 years (shop field). JB Hi-Fi Australia says 36 months and TechRadar says three years.4Retailer pageshopro.lt/442658-rx9070-xt-16gb-gigabyte-gaming-oc-ice-gddr6-enRead 14 October 2026Warranty field 36 months on the shop's product header. Lithuania.6Retailer pagejbhifi.com.au/products/gigabyte-radeon-rx-9070-xt-gaming-oc-ice-16g-graphics-cardRead 14 October 2026Manufacturer's warranty: 36 months. Australian shop.7Reviewtechradar.com/computing/gpu/gigabyte-radeon-rx-9070-xt-gaming-oc-ice-16gb-review-excellent-performance-from-a-standout-graphics-cardRead 14 October 2026A standard three-year warranty.11Press articlemultiplayer.it/notizie/gigabyte-presenta-radeon-rx-9070-xt-gaming-oc-ice-edizione-speciale-tutta-bianca-gpu-amd.htmlRead 14 October 2026Spec row: 3 years standard.
