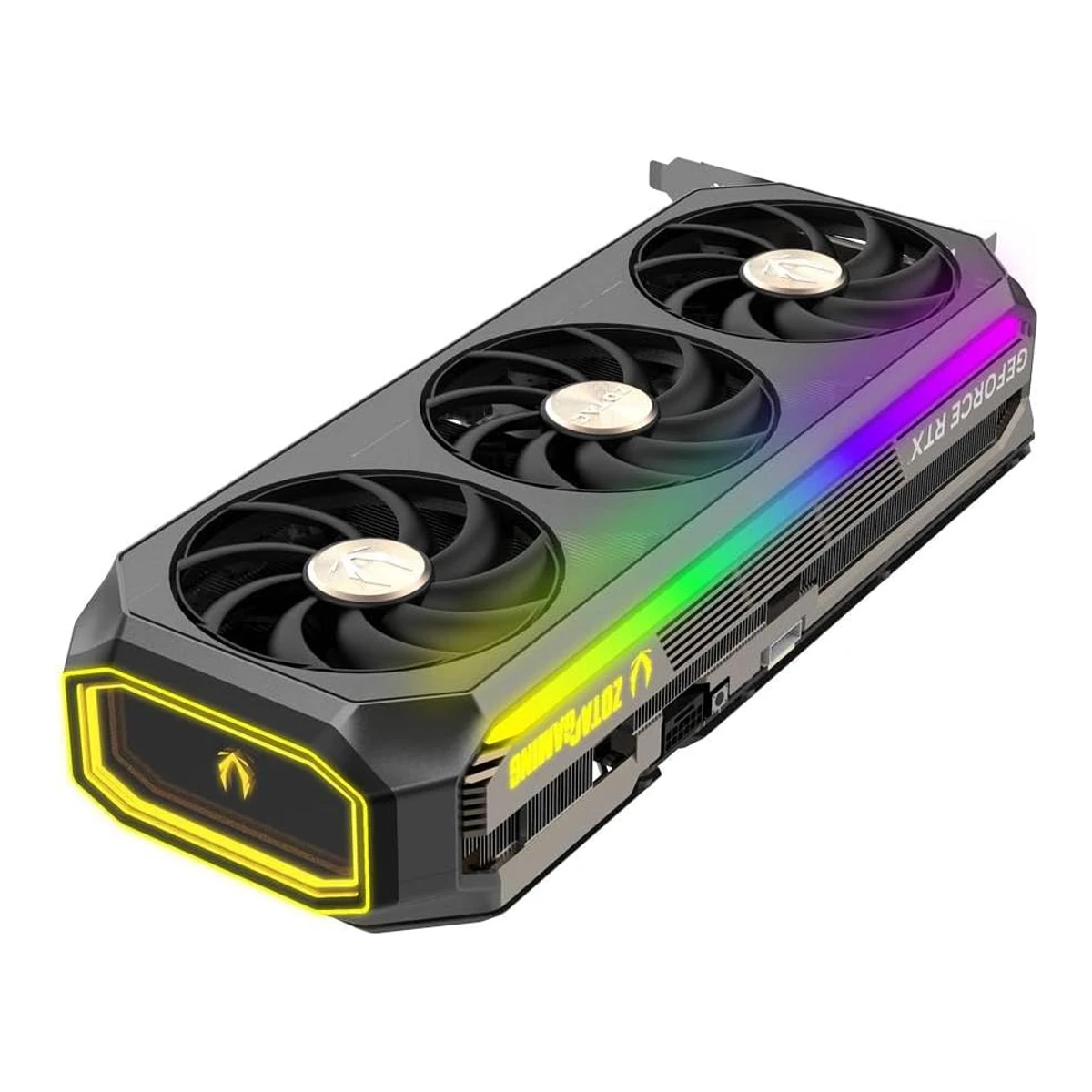

ZOTAC GAMING GeForce RTX 5090 AMP Extreme INFINITY

ZOTACGraphics card

GAMING GeForce RTX 5090 AMP Extreme INFINITY

Released February 2025.6Press articlethefpsreview.com/2025/01/07/zotac-gaming-announces-nvidia-geforce-rtx-50-series-blackwell-graphics-cards-with-12vhpwr-enhancements-including-safety-light-that-ensures-cable-is-fully-seatedRead 16 October 2026Dated 2025-01-07. ZOTAC announced the AMP Extreme INFINITY for the RTX 5090 at launch. NVIDIA's RTX 5090 went on sale on 2025-01-30. No source states the first retail date of this exact card. The month 2025-02 is approximate. Last checked 16 October 2026.

GPU
NVIDIA GeForce RTX 5090
VRAM
32GB
Length
332.1mm
Board power
600W

69 of 100 fields known.

Compare with another graphics cardDownload JSONDownload CSVGet it from the API

At a glance

Ports

  • HDMI 2.1b
  • 3 DisplayPort 2.1b UHBR20

All specs

SourceCalculated

General

Series
AMP Extreme INFINITY2Retailer pageamazon.com/ZOTAC-Infinity-Graphics-IceStorm-ZT-B50900B-10P/dp/B0DV64SCM8Read 16 October 2026Item details: Model Name ZOTAC GAMING GeForce RTX 5090 AMP Extreme Infinity. The Amazon page offers the Infinity Mirror, Solid OC and White styles, and this entry is the Infinity Mirror style.
Model numbers
ZT-B50900B-10P2Retailer pageamazon.com/ZOTAC-Infinity-Graphics-IceStorm-ZT-B50900B-10P/dp/B0DV64SCM8Read 16 October 2026Item details: Model Number and Mfr Part Number ZT-B50900B-10P.3Retailer pagescan.co.uk/products/zotac-nvidia-geforce-rtx-5090-amp-extreme-infinty-32gb-gddr7-ray-tracing-graphics-card-dlss-4-21760Read 16 October 2026Manufacturer code ZT-B50900B-10P.5Spec databasebuildcores.com/products/GPU/ar4sjpf2m/ZOTAC-GAMING-GeForce-RTX-5090-AMP-Extreme-INFINITY-32GB-GDDR7Read 16 October 2026Part Numbers: ZT-B50900B-10P.
GTIN / EAN
810012085366, 88863077000182Retailer pageamazon.com/ZOTAC-Infinity-Graphics-IceStorm-ZT-B50900B-10P/dp/B0DV64SCM8Read 16 October 2026Item details: UPC 810012085366. The EAN 8886307700018 is on the Scan page and BuildCores.3Retailer pagescan.co.uk/products/zotac-nvidia-geforce-rtx-5090-amp-extreme-infinty-32gb-gddr7-ray-tracing-graphics-card-dlss-4-21760Read 16 October 2026Specifications, Additional Information: GTIN 8886307700018.5Spec databasebuildcores.com/products/GPU/ar4sjpf2m/ZOTAC-GAMING-GeForce-RTX-5090-AMP-Extreme-INFINITY-32GB-GDDR7Read 16 October 2026UPC 810012085366 and EANs 0810012085366 and 8886307700018 for part number ZT-B50900B-10P.
Announced
Not available
Status
Available2Retailer pageamazon.com/ZOTAC-Infinity-Graphics-IceStorm-ZT-B50900B-10P/dp/B0DV64SCM8Read 16 October 2026The page is a live product listing with reviews. It says the item cannot be shipped to the selected delivery location, so stock is not shown.10Spec databasegeizhals.de/zotac-gaming-geforce-rtx-5090-amp-extreme-infinity-zt-b50900b-10p-a3382476.htmlRead 16 October 2026On 2026-10-16 the page shows 2 offers for the family and none for this card (Derzeit keine Angebote). Scan offers a notify-me button. The card is scarce, not discontinued.
Predecessor
Not available
Successor
Not available
Launch price (US)
Not available
Launch price (EU)
Not available
Markets
Not available
Colours
Not available
GPU
NVIDIA GeForce RTX 509012Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5090Read 16 October 2026Page title and specification table: GeForce RTX 5090.
GPU brand
NVIDIA12Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5090Read 16 October 2026
Reference launch price (US)
$1,99914Press releasenvidianews.nvidia.com/news/nvidia-blackwell-geforce-rtx-50-series-opens-new-world-of-ai-computer-graphicsRead 16 October 2026The GeForce RTX 5090 will be available on Jan. 30 at $1,999. The release is dated 2025-01-06.

GPU

GPU architecture
Blackwell13Maker spec sheet (PDF)images.nvidia.com/aem-dam/Solutions/geforce/blackwell/nvidia-rtx-blackwell-gpu-architecture.pdfRead 16 October 2026Table 3: GPU Architecture NVIDIA Blackwell.
GPU die
GB20213Maker spec sheet (PDF)images.nvidia.com/aem-dam/Solutions/geforce/blackwell/nvidia-rtx-blackwell-gpu-architecture.pdfRead 16 October 2026Table 3: GPU codename GB202.
Process
TSMC 4N13Maker spec sheet (PDF)images.nvidia.com/aem-dam/Solutions/geforce/blackwell/nvidia-rtx-blackwell-gpu-architecture.pdfRead 16 October 2026Table 3: TSMC 4nm 4N, NVIDIA Custom Process.
Transistors
92.2billion13Maker spec sheet (PDF)images.nvidia.com/aem-dam/Solutions/geforce/blackwell/nvidia-rtx-blackwell-gpu-architecture.pdfRead 16 October 2026Appendix A: 92.2 billion for the whole GB202 die.
Die size
750mm²13Maker spec sheet (PDF)images.nvidia.com/aem-dam/Solutions/geforce/blackwell/nvidia-rtx-blackwell-gpu-architecture.pdfRead 16 October 2026Appendix A table: 750 mm2.
Compute units
17013Maker spec sheet (PDF)images.nvidia.com/aem-dam/Solutions/geforce/blackwell/nvidia-rtx-blackwell-gpu-architecture.pdfRead 16 October 2026Table 3: 170 SMs.
Shader cores
21,76012Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5090Read 16 October 2026NVIDIA CUDA Cores: 21760.
Ray tracing cores
17013Maker spec sheet (PDF)images.nvidia.com/aem-dam/Solutions/geforce/blackwell/nvidia-rtx-blackwell-gpu-architecture.pdfRead 16 October 2026Table 3: 170 RT cores (4th Gen).
AI cores
68013Maker spec sheet (PDF)images.nvidia.com/aem-dam/Solutions/geforce/blackwell/nvidia-rtx-blackwell-gpu-architecture.pdfRead 16 October 2026Table 3: 680 Tensor cores (5th Gen).
ROPs
17613Maker spec sheet (PDF)images.nvidia.com/aem-dam/Solutions/geforce/blackwell/nvidia-rtx-blackwell-gpu-architecture.pdfRead 16 October 2026Table 3: 176 ROPs.
L2 cache
96MB13Maker spec sheet (PDF)images.nvidia.com/aem-dam/Solutions/geforce/blackwell/nvidia-rtx-blackwell-gpu-architecture.pdfRead 16 October 2026Table 3: 98304 KB, which is 96 MB.
Infinity Cache (L3)
Not available
FP32 compute (claimed)
104.8TFLOPS13Maker spec sheet (PDF)images.nvidia.com/aem-dam/Solutions/geforce/blackwell/nvidia-rtx-blackwell-gpu-architecture.pdfRead 16 October 2026Peak FP32 TFLOPS (non-Tensor) 104.8, based on the 2407 MHz GPU Boost Clock.
AI performance (claimed)
PrecisionWith sparsityThroughput (TOPS)
FP4No1,676
FP4Yes3,352
FP8No838
FP8Yes1,676
FP16No419
FP16Yes838
INT8No838
INT8Yes1,676
Source13Maker spec sheet (PDF)images.nvidia.com/aem-dam/Solutions/geforce/blackwell/nvidia-rtx-blackwell-gpu-architecture.pdfRead 16 October 2026Table 3, dense and effective with sparsity. FP4 uses FP32 accumulate (1676 and 3352). FP8 and FP16 use FP16 accumulate. FP8 with FP32 accumulate is half as high.

Clocks

Base clock
Not available
Game clock
Not available
Boost clock
2,467MHz2Retailer pageamazon.com/ZOTAC-Infinity-Graphics-IceStorm-ZT-B50900B-10P/dp/B0DV64SCM8Read 16 October 2026The From the manufacturer block and the About this item text say Engine boost clock 2467 MHz. NVIDIA's reference boost is 2407 MHz. ZOTAC states no base clock on the page.3Retailer pagescan.co.uk/products/zotac-nvidia-geforce-rtx-5090-amp-extreme-infinty-32gb-gddr7-ray-tracing-graphics-card-dlss-4-21760Read 16 October 2026Specifications: Boost Clock 2467 MHz.
Boost clock in OC mode
Not available
Reference boost clock
2,407MHz13Maker spec sheet (PDF)images.nvidia.com/aem-dam/Solutions/geforce/blackwell/nvidia-rtx-blackwell-gpu-architecture.pdfRead 16 October 2026Table 3: GPU Boost Clock 2407 MHz.

Memory

VRAM
32GB12Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5090Read 16 October 2026
VRAM type
GDDR712Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5090Read 16 October 202613Maker spec sheet (PDF)images.nvidia.com/aem-dam/Solutions/geforce/blackwell/nvidia-rtx-blackwell-gpu-architecture.pdfRead 16 October 2026Table 3: 32 GB GDDR7.
Memory bus width
512bits12Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5090Read 16 October 2026
Memory speed
28Gbps13Maker spec sheet (PDF)images.nvidia.com/aem-dam/Solutions/geforce/blackwell/nvidia-rtx-blackwell-gpu-architecture.pdfRead 16 October 2026Table 3: Memory Clock (Data Rate) 28 Gbps.
Memory bandwidth
1,792GB/s13Maker spec sheet (PDF)images.nvidia.com/aem-dam/Solutions/geforce/blackwell/nvidia-rtx-blackwell-gpu-architecture.pdfRead 16 October 2026Table 3: Memory Bandwidth 1792 GB/sec.

Connectivity

PCIe generation
512Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5090Read 16 October 2026
PCIe lanes
162Retailer pageamazon.com/ZOTAC-Infinity-Graphics-IceStorm-ZT-B50900B-10P/dp/B0DV64SCM8Read 16 October 2026SPECIFICATIONS: PCI Express 5.0 x16.3Retailer pagescan.co.uk/products/zotac-nvidia-geforce-rtx-5090-amp-extreme-infinty-32gb-gddr7-ray-tracing-graphics-card-dlss-4-21760Read 16 October 2026Specifications: PCIe 5.0 (x16).
Display outputs
TypeVersionCountMax bandwidth (Gbps)
HDMI2.1b1Not available
DisplayPort2.1b UHBR20380
Source2Retailer pageamazon.com/ZOTAC-Infinity-Graphics-IceStorm-ZT-B50900B-10P/dp/B0DV64SCM8Read 16 October 2026CONNECTIONS: 3 x DisplayPort 2.1b with UHBR20 (up to 4K 480Hz or 8K 165Hz with DSC) and 1 x HDMI Connector (4K 480Hz HDR or 8K 120Hz HDR with DSC, Gaming VRR as specified in the HDMI 2.1b Specification). The 80 Gbps rate is the UHBR20 link rate.3Retailer pagescan.co.uk/products/zotac-nvidia-geforce-rtx-5090-amp-extreme-infinty-32gb-gddr7-ray-tracing-graphics-card-dlss-4-21760Read 16 October 2026Specifications: 3 x DisplayPort 2.1b and 1 x HDMI 2.1b.12Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5090Read 16 October 2026Footnote 2: DisplayPort 2.1b with UHBR20, up to 4K 480 Hz or 8K 165 Hz with DSC. The 80 Gbps rate is UHBR20.
Display outputs in total
4
HDMI ports
1
DisplayPort ports
3
Highest HDMI version
2.1b
Highest DisplayPort version
2.1b UHBR20
Fastest DisplayPort link
80Gbps
Max displays
42Retailer pageamazon.com/ZOTAC-Infinity-Graphics-IceStorm-ZT-B50900B-10P/dp/B0DV64SCM8Read 16 October 2026CONNECTIONS: Up to 4 displays simultaneously.3Retailer pagescan.co.uk/products/zotac-nvidia-geforce-rtx-5090-amp-extreme-infinty-32gb-gddr7-ray-tracing-graphics-card-dlss-4-21760Read 16 October 2026Specifications: Max. Concurrent Displays 4 Displays.12Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5090Read 16 October 2026Multi Monitor: up to 4 displays.
Max output resolution
Resolution7680 × 4320 pxRefresh rate165 Hz2Retailer pageamazon.com/ZOTAC-Infinity-Graphics-IceStorm-ZT-B50900B-10P/dp/B0DV64SCM8Read 16 October 2026Features and specs: Display Maximum Resolution 7680x4320. The 165 Hz is ZOTAC's figure for 8K over DisplayPort 2.1b with DSC. Over HDMI ZOTAC states 8K at 120 Hz.12Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5090Read 16 October 2026Max Digital Resolution: 4K at 480 Hz or 8K at 165 Hz with DSC. MSI's sheet gives 7680 x 4320. The 165 Hz is NVIDIA's.
HDCP version
2.32Retailer pageamazon.com/ZOTAC-Infinity-Graphics-IceStorm-ZT-B50900B-10P/dp/B0DV64SCM8Read 16 October 2026CONNECTIONS: HDCP 2.3 support.12Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5090Read 16 October 2026HDCP: 2.3.

Video engine

Video encoders
34Retailer pagedigit.in/pc-components/zotac-nvidia-geforce-rtx-5090-amp-extreme-infinity-32-gb-gddr7-graphics-card.htmlRead 16 October 2026Spec table: 3 x 9th Gen NVIDIA Encoder.12Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5090Read 16 October 2026NVENC: 3x Ninth Generation.15Maker product pagedeveloper.nvidia.com/video-encode-decode-support-matrixRead 16 October 20263 NVENC units.
Video decoders
24Retailer pagedigit.in/pc-components/zotac-nvidia-geforce-rtx-5090-amp-extreme-infinity-32-gb-gddr7-graphics-card.htmlRead 16 October 2026Spec table: 2 x 6th Gen NVIDIA Decoder.12Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5090Read 16 October 2026NVDEC: 2x Sixth Generation.15Maker product pagedeveloper.nvidia.com/video-encode-decode-support-matrixRead 16 October 20262 NVDEC units.
Hardware video encode
H.264, H.265 (HEVC), AV115Maker product pagedeveloper.nvidia.com/video-encode-decode-support-matrixRead 16 October 2026NVENC table, GeForce RTX 5090, 9th Gen: H.264, H.265 and AV1 encode are YES.
Hardware video decode
H.264, H.265 (HEVC), VP9, AV115Maker product pagedeveloper.nvidia.com/video-encode-decode-support-matrixRead 16 October 2026NVDEC table, GeForce RTX 5090, 6th Gen: VP9, H.264, H.265 and AV1 decode are YES. H.266 is not listed.

Graphics features

DirectX
12 Ultimate2Retailer pageamazon.com/ZOTAC-Infinity-Graphics-IceStorm-ZT-B50900B-10P/dp/B0DV64SCM8Read 16 October 2026SOFTWARE COMPATIBILITY: Microsoft DirectX 12 Ultimate.12Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5090Read 16 October 2026Microsoft DirectX 12 Ultimate.
Vulkan
1.42Retailer pageamazon.com/ZOTAC-Infinity-Graphics-IceStorm-ZT-B50900B-10P/dp/B0DV64SCM8Read 16 October 2026SOFTWARE COMPATIBILITY: Vulkan RT APIs, Vulkan 1.4.12Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5090Read 16 October 2026Vulkan 1.4, OpenGL 4.6.
OpenGL
4.62Retailer pageamazon.com/ZOTAC-Infinity-Graphics-IceStorm-ZT-B50900B-10P/dp/B0DV64SCM8Read 16 October 2026SOFTWARE COMPATIBILITY: OpenGL 4.6.12Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5090Read 16 October 2026Vulkan 1.4, OpenGL 4.6.
Upscaling technologies
DLSS 412Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5090Read 16 October 2026The DLSS row lists DLSS 4 with Super Resolution, DLAA and Ray Reconstruction.
Frame generation
DLSS Frame Generation, DLSS Multi Frame Generation12Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5090Read 16 October 2026The DLSS row lists Frame Generation and Multi Frame Generation.

Power

Board power
600W2Retailer pageamazon.com/ZOTAC-Infinity-Graphics-IceStorm-ZT-B50900B-10P/dp/B0DV64SCM8Read 16 October 2026POWER REQUIREMENTS: 600-watt max power consumption. NVIDIA's reference is 575 W. ZOTAC does not say here whether the dual BIOS changes the limit.7Press articlethefpsreview.com/2025/01/14/zotac-gaming-geforce-rtx-5090-amp-extreme-infinity-features-a-600-watt-tgp-25-watts-higher-than-referenceRead 16 October 2026The article says ZOTAC posted a 600 W power consumption rating for the card on its website, 25 W above the 575 W Founders Edition.8Press articleguru3d.com/story/zotac-is-listing-geforce-rtx-5090-at-575-and-600w-power-consumption-recommended-psu-100wRead 16 October 2026ZOTAC's posted specifications list 575 and 600 W power consumption, and the AMP Extreme INFINITY is the one with 600 W. Guru3D says it is unclear whether 600 W is the default or needs the high-performance BIOS.
Reference board power
575W12Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5090Read 16 October 2026Total Graphics Power 575 W.13Maker spec sheet (PDF)images.nvidia.com/aem-dam/Solutions/geforce/blackwell/nvidia-rtx-blackwell-gpu-architecture.pdfRead 16 October 2026Table 3: TGP 575 W.
PSU wattage (card maker)
1,000W2Retailer pageamazon.com/ZOTAC-Infinity-Graphics-IceStorm-ZT-B50900B-10P/dp/B0DV64SCM8Read 16 October 2026POWER REQUIREMENTS: 1000-watt power supply recommended.8Press articleguru3d.com/story/zotac-is-listing-geforce-rtx-5090-at-575-and-600w-power-consumption-recommended-psu-100wRead 16 October 2026ZOTAC recommends a 1000 W power supply.
Power connector
12V-2x62Retailer pageamazon.com/ZOTAC-Infinity-Graphics-IceStorm-ZT-B50900B-10P/dp/B0DV64SCM8Read 16 October 2026POWER REQUIREMENTS: 1 x 12v-2x6 power input. The feature text names the 12V-2x6 connection too (power safety light, reversed power connector). Scan prints 12VHPWR for the same card, which is a retailer's wording.

Cooling

Cooler type
Open air2Retailer pageamazon.com/ZOTAC-Infinity-Graphics-IceStorm-ZT-B50900B-10P/dp/B0DV64SCM8Read 16 October 2026About this item: IceStorm 3.0 Advanced Cooling, 3x 100mm BladeLink fans, vapor chamber, composite heatpipes and a pass-thru airflow design with a full-length heatsink.
Fans
32Retailer pageamazon.com/ZOTAC-Infinity-Graphics-IceStorm-ZT-B50900B-10P/dp/B0DV64SCM8Read 16 October 2026About this item: 3x 100mm BladeLink fans. Features: triple 100mm BladeLink fans with three independent active fan control zones.3Retailer pagescan.co.uk/products/zotac-nvidia-geforce-rtx-5090-amp-extreme-infinty-32gb-gddr7-ray-tracing-graphics-card-dlss-4-21760Read 16 October 2026Specifications: Cooling Solution Tri Fan (3).10Spec databasegeizhals.de/zotac-gaming-geforce-rtx-5090-amp-extreme-infinity-zt-b50900b-10p-a3382476.htmlRead 16 October 2026Kuehlung: 3x Axial-Luefter (100mm).
Radiator size
Not available
Fan stop at low load
Yes2Retailer pageamazon.com/ZOTAC-Infinity-Graphics-IceStorm-ZT-B50900B-10P/dp/B0DV64SCM8Read 16 October 2026Feature text: FREEZE FAN STOP, fans stay off when idle. No temperature threshold is stated.6Press articlethefpsreview.com/2025/01/07/zotac-gaming-announces-nvidia-geforce-rtx-50-series-blackwell-graphics-cards-with-12vhpwr-enhancements-including-safety-light-that-ensures-cable-is-fully-seatedRead 16 October 2026Automatic Fan Stop adjusts fan speed to load.10Spec databasegeizhals.de/zotac-gaming-geforce-rtx-5090-amp-extreme-infinity-zt-b50900b-10p-a3382476.htmlRead 16 October 2026Kuehlung: 3x Axial-Luefter (100mm) mit 0dB-Zero-Fan-Modus.
Dual BIOS
Yes2Retailer pageamazon.com/ZOTAC-Infinity-Graphics-IceStorm-ZT-B50900B-10P/dp/B0DV64SCM8Read 16 October 2026Feature text: Dual BIOS with a Quiet mode (lower fan speed) and an Amplify mode (higher fan speed for lower temperatures). ZOTAC calls them two cooling modes.6Press articlethefpsreview.com/2025/01/07/zotac-gaming-announces-nvidia-geforce-rtx-50-series-blackwell-graphics-cards-with-12vhpwr-enhancements-including-safety-light-that-ensures-cable-is-fully-seatedRead 16 October 2026A Dual BIOS switch toggles between maximum performance and quieter operation, by physical button or in FireStorm.10Spec databasegeizhals.de/zotac-gaming-geforce-rtx-5090-amp-extreme-infinity-zt-b50900b-10p-a3382476.htmlRead 16 October 2026Besonderheiten: Dual BIOS Switch.

Dimensions and weight

Length
332.1mm2Retailer pageamazon.com/ZOTAC-Infinity-Graphics-IceStorm-ZT-B50900B-10P/dp/B0DV64SCM8Read 16 October 2026DIMENSIONS Product: Length 332.1 mm (13.1 in). ZOTAC does not say whether the bracket is included.3Retailer pagescan.co.uk/products/zotac-nvidia-geforce-rtx-5090-amp-extreme-infinty-32gb-gddr7-ray-tracing-graphics-card-dlss-4-21760Read 16 October 2026Specifications, Physical: Dimensions 332.1 x 137.5 x 69.6 mm.10Spec databasegeizhals.de/zotac-gaming-geforce-rtx-5090-amp-extreme-infinity-zt-b50900b-10p-a3382476.htmlRead 16 October 2026Abmessungen: 332.1x137.5x69.6mm (LxBxH).
Height
137.5mm2Retailer pageamazon.com/ZOTAC-Infinity-Graphics-IceStorm-ZT-B50900B-10P/dp/B0DV64SCM8Read 16 October 2026DIMENSIONS Product: Height 137.5 mm (5.4 in).3Retailer pagescan.co.uk/products/zotac-nvidia-geforce-rtx-5090-amp-extreme-infinty-32gb-gddr7-ray-tracing-graphics-card-dlss-4-21760Read 16 October 2026Same dimensions row, middle value.10Spec databasegeizhals.de/zotac-gaming-geforce-rtx-5090-amp-extreme-infinity-zt-b50900b-10p-a3382476.htmlRead 16 October 2026Same row, middle value.
Thickness
69.6mm2Retailer pageamazon.com/ZOTAC-Infinity-Graphics-IceStorm-ZT-B50900B-10P/dp/B0DV64SCM8Read 16 October 2026DIMENSIONS Product: Width 3.5 slot (69.6 mm) (2.7 in). ZOTAC's Width is the thickness.3Retailer pagescan.co.uk/products/zotac-nvidia-geforce-rtx-5090-amp-extreme-infinty-32gb-gddr7-ray-tracing-graphics-card-dlss-4-21760Read 16 October 2026Same dimensions row, last value.10Spec databasegeizhals.de/zotac-gaming-geforce-rtx-5090-amp-extreme-infinity-zt-b50900b-10p-a3382476.htmlRead 16 October 2026Same row, last value.
Slot width
3.5slots2Retailer pageamazon.com/ZOTAC-Infinity-Graphics-IceStorm-ZT-B50900B-10P/dp/B0DV64SCM8Read 16 October 2026DIMENSIONS Product: 3.5 slot.3Retailer pagescan.co.uk/products/zotac-nvidia-geforce-rtx-5090-amp-extreme-infinty-32gb-gddr7-ray-tracing-graphics-card-dlss-4-21760Read 16 October 2026Specifications, Physical: Width 3.5 Slot.10Spec databasegeizhals.de/zotac-gaming-geforce-rtx-5090-amp-extreme-infinity-zt-b50900b-10p-a3382476.htmlRead 16 October 2026Gesamthoehe: Quad Slot (3.5 Slots), the same 3.5 as ZOTAC's text.
Low profile
No10Spec databasegeizhals.de/zotac-gaming-geforce-rtx-5090-amp-extreme-infinity-zt-b50900b-10p-a3382476.htmlRead 16 October 2026Bauform: PCIe-Karte (full height). Slotblende: full height. Scan prints Low Profile Support N/A. A full-height bracket is a spec database's wording here, not a ZOTAC datasheet line.
NVIDIA SFF-Ready
No11Certification listnvidia.com/en-us/geforce/news/small-form-factor-sff-readyRead 16 October 2026The list covers the 5090 class. It names the Founders Edition and two ASUS ProArt RTX 5090 cards, and no ZOTAC card. False is stored.
Weight
Not available
Package weight
Not available

Lighting and software

RGB lighting
Yes2Retailer pageamazon.com/ZOTAC-Infinity-Graphics-IceStorm-ZT-B50900B-10P/dp/B0DV64SCM8Read 16 October 2026Feature text: SPECTRA 2.0 ARGB lighting (logo, strip, mirror) with three zones, plus the Infinity Mirror.6Press articlethefpsreview.com/2025/01/07/zotac-gaming-announces-nvidia-geforce-rtx-50-series-blackwell-graphics-cards-with-12vhpwr-enhancements-including-safety-light-that-ensures-cable-is-fully-seatedRead 16 October 2026SPECTRA 2.0 ARGB lighting with tri-zone control and an Infinity Mirror.10Spec databasegeizhals.de/zotac-gaming-geforce-rtx-5090-amp-extreme-infinity-zt-b50900b-10p-a3382476.htmlRead 16 October 2026Besonderheiten: Beleuchtung (RGB) and RGB-Synchronisierung (3-Pin ARGB).
Lighting sync
Not available
Software
ZOTAC FireStorm2Retailer pageamazon.com/ZOTAC-Infinity-Graphics-IceStorm-ZT-B50900B-10P/dp/B0DV64SCM8Read 16 October 2026Feature text: the FIRESTORM Utility controls temperatures, clocks, voltages, fan curves and RGB lighting.

Measured performance

We could not find any of these 6 fields. Show them
GPU clock while gaming (measured)
Not available
3DMark Time Spy graphics
Not available
3DMark Steel Nomad
Not available
3DMark Port Royal
Not available
3DMark Speed Way
Not available
Game frame rates
Not available

Measured noise and temperature

We could not find any of these 5 fields. Show them
Fan noise per load
Not available
Fan noise while gaming
Not available
GPU temperature while gaming
Not available
Hot spot temperature while gaming
Not available
Memory temperature while gaming
Not available

Measured power

We could not find any of these 2 fields. Show them
Card power at idle (measured)
Not available
GPU power while gaming (measured)
Not available

In the box

In the box
User Manual, Quick Start Guide, 4 x 8-pin-to-16-pin cable, SPECTRA LINK cable, GPU Support Stand2Retailer pageamazon.com/ZOTAC-Infinity-Graphics-IceStorm-ZT-B50900B-10P/dp/B0DV64SCM8Read 16 October 2026INSIDE THE BOX: user manual, 4 x 8-pin-to-16-pin cable, SPECTRA LINK cable, GPU support stand. The item details also list a quick start guide.
Power adapter cable included
Yes2Retailer pageamazon.com/ZOTAC-Infinity-Graphics-IceStorm-ZT-B50900B-10P/dp/B0DV64SCM8Read 16 October 2026INSIDE THE BOX: 4 x 8-pin-to-16-pin cable.
Support bracket included
Yes2Retailer pageamazon.com/ZOTAC-Infinity-Graphics-IceStorm-ZT-B50900B-10P/dp/B0DV64SCM8Read 16 October 2026INSIDE THE BOX: GPU Support Stand. Feature text: metal support stand bundled for added GPU reinforcement.10Spec databasegeizhals.de/zotac-gaming-geforce-rtx-5090-amp-extreme-infinity-zt-b50900b-10p-a3382476.htmlRead 16 October 2026Besonderheiten: Grafikkarten-Halterung.

Warranty

Manufacturer warranty (source market)
3years4Retailer pagedigit.in/pc-components/zotac-nvidia-geforce-rtx-5090-amp-extreme-infinity-32-gb-gddr7-graphics-card.htmlRead 16 October 2026Specification table: Warranty 3 years (manufacturer). The market is India. Amazon US lists 2 + 1 Years for the same card, and ZOTAC's registration extension differs by region.
