ZOTACGraphics card

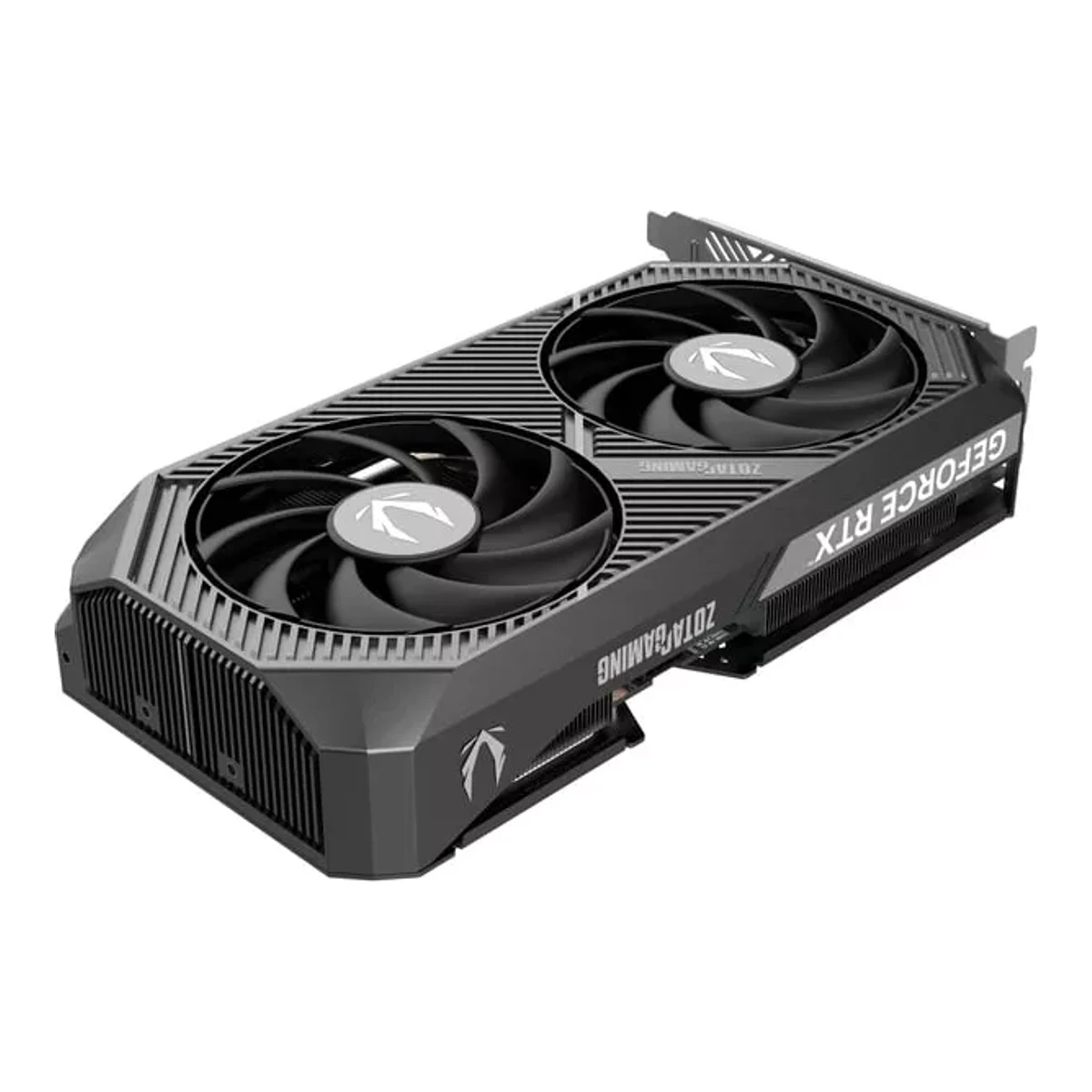

GAMING GeForce RTX 5060 Ti 16GB Twin Edge OC

Released April 2025.6 Last checked 14 October 2026.

GPU: NVIDIA GeForce RTX 5060 Ti
VRAM: 16GB
Length: 220.5mm
Board power: 180W

68 of 100 fields known.

Compare with another graphics card Download JSON Download CSV Get it from the API

At a glance

Ports

HDMI 2.1b
3 DisplayPort 2.1b UHBR20

All specs

SourceCalculatedHide missing

General

Series: Twin Edge1
Model numbers: ZT-B50620H-10M1 4 5
GTIN / EAN: 810012085663, 88863077006294
Announced: Not available
Status: Available5
Predecessor: Not available
Successor: Not available
Launch price (US): Not available
Launch price (EU): Not available
Markets: Not available
Colours: Black4
GPU: NVIDIA GeForce RTX 5060 Ti8
GPU brand: NVIDIA8
Reference launch price (US): $4296 7

GPU

GPU architecture: Blackwell8
GPU die: GB2066 7
Process: TSMC 4N6 7
Transistors: 21.9billion6 7
Die size: 181mm²6 7
Compute units: 367
Shader cores: 4,6083 8
Ray tracing cores: 367
AI cores: 1446 7
ROPs: 486 7
L2 cache: 32MB6
Infinity Cache (L3): Not available
FP32 compute (claimed): 23.7TFLOPS7
AI performance (claimed): Not available

Clocks

Base clock: Not available
Game clock: Not available
Boost clock: 2,602MHz2 3
Boost clock in OC mode: Not available
Reference boost clock: 2,572MHz6 7

Memory

VRAM: 16GB3 8
VRAM type: GDDR73
Memory bus width: 128bits3 8
Memory speed: 28Gbps3 7
Memory bandwidth: 448GB/s6 7

Connectivity

PCIe generation: 53 8
PCIe lanes: 83 6
Display outputs: Type Version Count Max bandwidth (Gbps)
HDMI 2.1b 1 Not available
DisplayPort 2.1b UHBR20 3 80
Source3 8
Display outputs in total: 4
HDMI ports: 1
DisplayPort ports: 3
Highest HDMI version: 2.1b
Highest DisplayPort version: 2.1b UHBR20
Fastest DisplayPort link: 80Gbps
Max displays: 43 8
Max output resolution: Resolution7680 × 4320 pxRefresh rate165 Hz3 8
HDCP version: 2.33 8

Video engine

Video encoders: 18 9
Video decoders: 18 9
Hardware video encode: H.264, H.265 (HEVC), AV19
Hardware video decode: H.264, H.265 (HEVC), VP9, AV19

Graphics features

DirectX: 12 Ultimate3 8
Vulkan: 1.48
OpenGL: 4.63 8
Upscaling technologies: DLSS 48
Frame generation: DLSS Frame Generation, DLSS Multi Frame Generation8

Power

Board power: 180W3 6
Reference board power: 180W7 8
PSU wattage (card maker): 600W2 3 8
Power connector: 1 x 8-pin PCIe3 6

Cooling

Cooler type: Open air1 3
Fans: 21 4
Radiator size: Not available
Fan stop at low load: Yes1
Dual BIOS: Not available

Dimensions and weight

Length: 220.5mm2 3 6
Height: 120.25mm2 3 6
Thickness: 41.6mm2 3 6
Slot width: 2slots2 3
Low profile: Not available
NVIDIA SFF-Ready: Not available
Weight: Not available
Package weight: Not available

Lighting and software

RGB lighting: No4 6
Lighting sync: Not available
Software: ZOTAC FireStorm1

Measured performance

GPU clock while gaming (measured): Not available
3DMark Time Spy graphics: Not available
3DMark Steel Nomad: Not available
3DMark Port Royal: Not available
3DMark Speed Way: Not available
Game frame rates: Game Width (px) Height (px) Preset Upscaling Ray tracing Average FPS
Cyberpunk 2077 1920 1080 Ultra, Psycho ray tracing DLSS Quality Yes 87
Cyberpunk 2077 2560 1440 Ultra, Psycho ray tracing DLSS Quality Yes 56
Source6

Measured noise and temperature

We could not find any of these 5 fields. Show them

Fan noise per load: Not available
Fan noise while gaming: Not available
GPU temperature while gaming: Not available
Hot spot temperature while gaming: Not available
Memory temperature while gaming: Not available

Measured power

We could not find any of these 2 fields. Show them

Card power at idle (measured): Not available
GPU power while gaming (measured): Not available

In the box

In the box: User Manual3
Power adapter cable included: No3 6
Support bracket included: No3

Links

Product page: www.zotac.com/us/product/graphics_card/zotac-gaming-geforce-rtx-5060-ti-16gb-twin-edge-oc 1
Spec sheet: www.zotac.com/download/mediadrivers/External/GraphicsCard/5060Ti/Brochure/ZT-B50620H-10M-brochure.pdf 2
Manual: Not available
EPREL registration number: Not available

Warranty

Manufacturer warranty (source market): 3years5
