Gaming / Handheld consoles

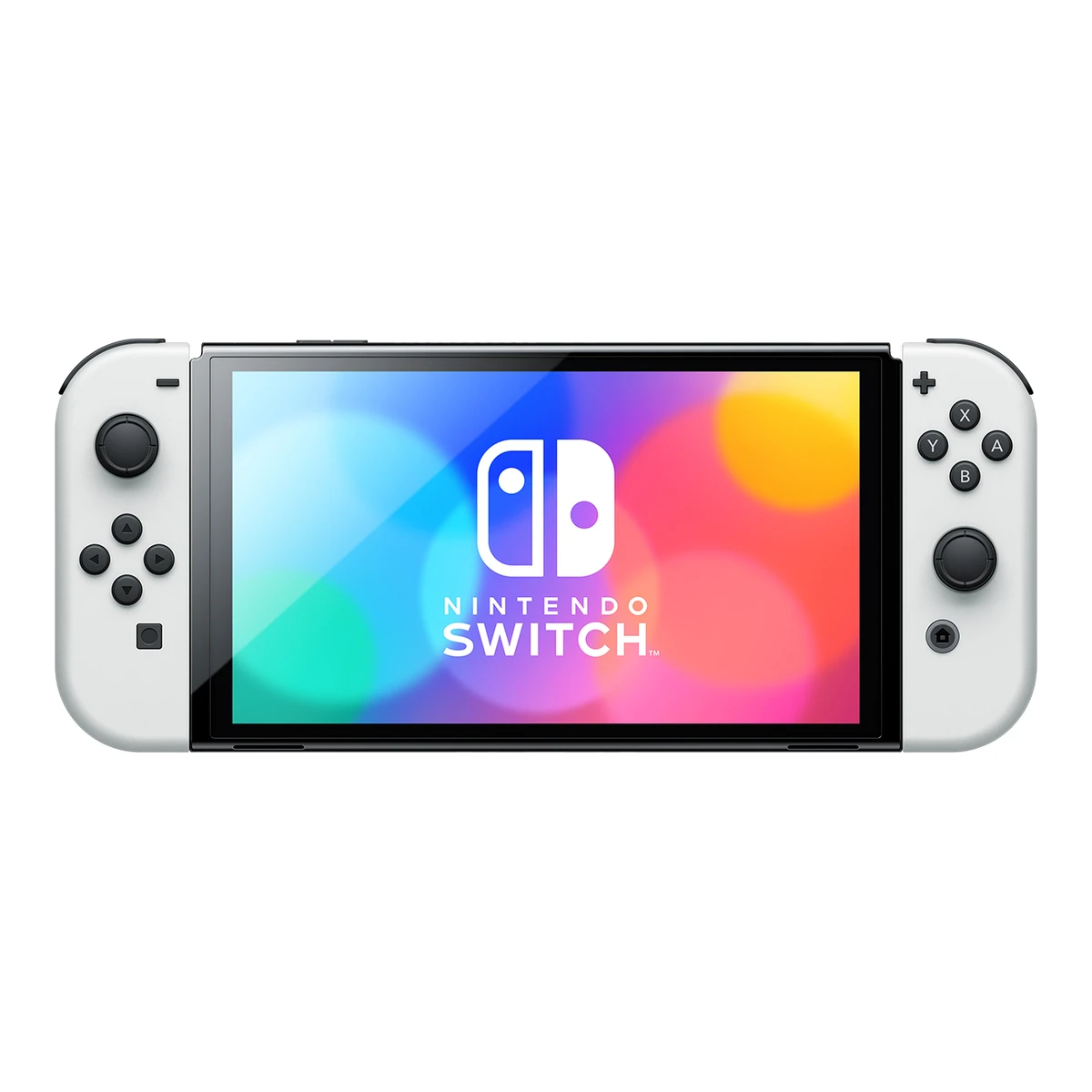

Nintendo Switch OLED Model

NintendoHandheld console

Switch OLED Model

Released 8 October 2021.4Maker product pagenintendo.com/us/store/products/nintendo-switch-oled-model-white-setRead 7 October 2026Current official store public product record: exact SKU 115461 Nintendo Switch OLED White Set releaseDate 2021-10-08, UPC 00045496883386. This is the matching product record, not a gallery uploadDate or recommended item. Last checked 16 October 2026.

Chip
NVIDIA Tegra X1+
Screen size
7in
Refresh rate
60Hz
Weight
420g

100 of 165 fields known.

Compare with another handheld consoleDownload JSONDownload CSVGet it from the API

At a glance

  • Shortest gaming test runtime (measured)

    4.85h

    Higher than 79% of other handheld consoles.

Ports

  • USB-C
  • 3.5 mm audio
  • microSD card microSD, microSDHC, microSDXC
  • Other Game card slot

All specs

SourceCalculated

General

Series
Nintendo Switch2Maker product pagenintendo.com/en-gb/Hardware/Nintendo-Switch-Family/Nintendo-Switch-OLED-Model/Nintendo-Switch-OLED-Model-2000984.htmlRead 30 September 2026Listed under Nintendo Switch Family
Model numbers
HEG-0016Maker product pagenintendo.com/en-gb/Corporate/Consumer-Information/Eco-design/Product-Ecodesign-Information-Consoles-part-1--2801083.htmlRead 30 September 2026Listed as Nintendo Switch OLED Model [HEG-001]
GTIN / EAN
045496883386, 0454968834094Maker product pagenintendo.com/us/store/products/nintendo-switch-oled-model-white-setRead 7 October 2026UPC 00045496883386 in the store data5Maker product pagenintendo.com/us/store/products/nintendo-switch-oled-model-neon-blue-neon-red-setRead 7 October 2026UPC 00045496883409 in the store data
Announced
6 July 20218Spec databaseen.wikipedia.org/wiki/Nintendo_SwitchRead 30 September 202613Press releasenintendo.com/us/whatsnew/nintendo-announces-nintendo-switch-oled-model-with-a-vibrant-7-inch-oled-screen-launching-oct-8Read 30 September 2026Publication date July 6, 2021.
Status
Available8Spec databaseen.wikipedia.org/wiki/Nintendo_SwitchRead 30 September 2026Nintendo will stop selling the Switch family in Europe in February 2027
Predecessor
Nintendo Switch (HAC-001(-01))19Reviewtechradar.com/reviews/nintendo-switch-oled-reviewRead 7 October 2026Standard hybrid Nintendo Switch is identified as the predecessor. The review separately names the 2019 version for its unchanged runtime comparison. Existing catalog reference is the current standard HAC-001(-01), not Switch Lite. No predecessor measurements transferred.
Successor
Nintendo Switch 28Spec databaseen.wikipedia.org/wiki/Nintendo_SwitchRead 30 September 2026
Launch price (US)
$349.998Spec databaseen.wikipedia.org/wiki/Nintendo_SwitchRead 30 September 202613Press releasenintendo.com/us/whatsnew/nintendo-announces-nintendo-switch-oled-model-with-a-vibrant-7-inch-oled-screen-launching-oct-8Read 30 September 2026Opening paragraph: suggested retail price $349.99.
Launch price (EU)
Not available
Markets
US4Maker product pagenintendo.com/us/store/products/nintendo-switch-oled-model-white-setRead 7 October 2026Exact US sale listing and original US launch establish US distribution of the represented standard White and Neon packs. Both existing variant rows already have US scope. Other regional sets, special editions and game bundles are not added.5Maker product pagenintendo.com/us/store/products/nintendo-switch-oled-model-neon-blue-neon-red-setRead 7 October 2026Exact US Neon Blue/Neon Red sale listing, matching existing UPC 045496883409.
Colours
White, Neon blue/Neon red2Maker product pagenintendo.com/en-gb/Hardware/Nintendo-Switch-Family/Nintendo-Switch-OLED-Model/Nintendo-Switch-OLED-Model-2000984.htmlRead 30 September 2026Nintendo Switch OLED Model (White) and (Neon blue/Neon red). Special editions exist and are not listed here
Device class
Dedicated console8Spec databaseen.wikipedia.org/wiki/Nintendo_SwitchRead 30 September 2026
Form factor
Detachable controllers8Spec databaseen.wikipedia.org/wiki/Nintendo_SwitchRead 30 September 2026

Platform and software

OS family
Nintendo Switch OS8Spec databaseen.wikipedia.org/wiki/Nintendo_SwitchRead 30 September 2026
OS at launch
Not available
Latest OS
Nintendo Switch system software 23.0.121Maker product pagenintendo.com/fr-fr/Assistance/Depannage/Informations-sur-la-mise-a-jour-de-la-console-Nintendo-Switch-1445507.htmlRead 7 October 2026Current maker stable update dated October 1, 2026. Original Switch family software, not Switch 2 update features. Access date defines researched latest version. Factory launch firmware not inferred.
Built-in game stores
Nintendo eShop2Maker product pagenintendo.com/en-gb/Hardware/Nintendo-Switch-Family/Nintendo-Switch-OLED-Model/Nintendo-Switch-OLED-Model-2000984.htmlRead 30 September 2026
Physical games
Game card2Maker product pagenintendo.com/en-gb/Hardware/Nintendo-Switch-Family/Nintendo-Switch-OLED-Model/Nintendo-Switch-OLED-Model-2000984.htmlRead 30 September 2026
Backward compatibility
Compatible with the Nintendo Switch game library. Nintendo Labo fit and some game experiences can differ.13Press releasenintendo.com/us/whatsnew/nintendo-announces-nintendo-switch-oled-model-with-a-vibrant-7-inch-oled-screen-launching-oct-8Read 30 September 2026Full Nintendo Switch library, subject to Nintendo Labo fit and game-specific experience differences.
Upscaling and frame generation
Not available

Processor and graphics

Chip
NVIDIA Tegra X1+8Spec databaseen.wikipedia.org/wiki/Nintendo_SwitchRead 30 September 2026The maker calls it an NVIDIA customised Tegra processor. Wikipedia: the OLED Model uses the Tegra X1+
Chip brand
NVIDIA8Spec databaseen.wikipedia.org/wiki/Nintendo_SwitchRead 30 September 2026
Core configuration
Physical core countCoreBase clock (GHz)Max clock (GHz)
4Cortex-A571.021.785
Source8Spec databaseen.wikipedia.org/wiki/Nintendo_SwitchRead 30 September 2026Four Cortex-A57 cores used, normally 1.02 GHz, up to 1.785 GHz during loading since a 2019 firmware update. The four Cortex-A53 cores are unused9Press articledigitalfoundry.net/articles/digitalfoundry-2025-nintendo-switch-2-final-tech-specs-and-system-reservations-confirmedRead 30 September 2026Switch 1 column: 4x ARM Cortex A57, 1020 MHz docked and handheld, max 1.785 GHz
CPU cores
4
Max CPU clock
1.785GHz
Process
16nm8Spec databaseen.wikipedia.org/wiki/Nintendo_SwitchRead 30 September 2026Tegra X1+ on a 16 nm process
GPU
Integrated NVIDIA GPU, 256 CUDA cores8Spec databaseen.wikipedia.org/wiki/Nintendo_SwitchRead 30 September 2026
GPU architecture
Maxwell8Spec databaseen.wikipedia.org/wiki/Nintendo_SwitchRead 30 September 2026
GPU compute units
Not available
GPU max clock
768MHz9Press articledigitalfoundry.net/articles/digitalfoundry-2025-nintendo-switch-2-final-tech-specs-and-system-reservations-confirmedRead 30 September 2026Docked clock. Up to 460 MHz handheld. Nvidia lists a max of 921 MHz that games do not use
GPU compute (claimed)
Not available
Power modes
ModePower sourceMax CPU clock (GHz)Max GPU clock (MHz)
HandheldBattery1.02460
DockedDocked1.02768
Source9Press articledigitalfoundry.net/articles/digitalfoundry-2025-nintendo-switch-2-final-tech-specs-and-system-reservations-confirmedRead 30 September 2026Clocks per mode. Power per mode is not published
Lowest TDP
Not available
Highest TDP
Not available
Highest TDP on battery
Not available
Custom TDP
Not available

Memory and storage

RAM
4GB8Spec databaseen.wikipedia.org/wiki/Nintendo_SwitchRead 30 September 2026
RAM type
LPDDR4X8Spec databaseen.wikipedia.org/wiki/Nintendo_SwitchRead 30 September 2026Consoles made after August 2019 use LPDDR4X. The Digital Foundry table says LPDDR4 for Switch 1 in general
RAM speed
Not available
Memory bandwidth
25.6GB/s9Press articledigitalfoundry.net/articles/digitalfoundry-2025-nintendo-switch-2-final-tech-specs-and-system-reservations-confirmedRead 30 September 202625.6 GB/s docked, 21.3 GB/s handheld. Switch 1 family column
Storage
64GB2Maker product pagenintendo.com/en-gb/Hardware/Nintendo-Switch-Family/Nintendo-Switch-OLED-Model/Nintendo-Switch-OLED-Model-2000984.htmlRead 30 September 2026
Storage type
eMMC8Spec databaseen.wikipedia.org/wiki/Nintendo_SwitchRead 30 September 2026
Installed drive PCIe generation
Not available
Storage slots
Not available
M.2 slots
Not available
Memory card
microSD2Maker product pagenintendo.com/en-gb/Hardware/Nintendo-Switch-Family/Nintendo-Switch-OLED-Model/Nintendo-Switch-OLED-Model-2000984.htmlRead 30 September 2026
Card speed class
UHS-I22Maker product pagenintendo.com/en-gb/Support/Nintendo-Switch/microSD-Card-FAQ-1500171.htmlRead 7 October 2026Exact original Switch-family card FAQ applies to OLED. Recommended card transfer speed 60 to 95 MB/s is a compatibility guideline, not measured reader throughput. Switch 2 microSD Express support not inherited.
Max card size
2TB8Spec databaseen.wikipedia.org/wiki/Nintendo_SwitchRead 30 September 2026Published as up to 2 TB

Display

Screen size
7in(17.8 cm)2Maker product pagenintendo.com/en-gb/Hardware/Nintendo-Switch-Family/Nintendo-Switch-OLED-Model/Nintendo-Switch-OLED-Model-2000984.htmlRead 30 September 2026
Native resolution
1280 × 720px2Maker product pagenintendo.com/en-gb/Hardware/Nintendo-Switch-Family/Nintendo-Switch-OLED-Model/Nintendo-Switch-OLED-Model-2000984.htmlRead 30 September 2026
Pixel density
209.8ppi
Aspect ratio
16:923Press articlegamespot.com/articles/nintendo-switch-vs-steam-deck-which-handheld-is-right-for-you/1100-6494082Read 7 October 2026Exact OLED and original Switch display comparison explicitly states ratio. Maker 1280×720 raster corroborates consistency, but ratio is not generated from pixels. Other GameSpot Bluetooth 4.2/2.4GHz-only template assertions conflict with maker and are rejected.
Panel type
OLED2Maker product pagenintendo.com/en-gb/Hardware/Nintendo-Switch-Family/Nintendo-Switch-OLED-Model/Nintendo-Switch-OLED-Model-2000984.htmlRead 30 September 2026
Native panel orientation
Not available
Screen surface
Glossy24Reviewpress-start.com.au/reviews/nintendo-switch/2021/10/06/nintendo-switch-oled-review-the-best-portable-experience-yetRead 7 October 2026Own exact OLED review identifies screen surface, distinct from its glossy bezel/dock interior. Normal curl 200 full article was read. Factory anti-shatter film remains part of normal surface. No reflection percentage inferred.
Touchscreen
Yes2Maker product pagenintendo.com/en-gb/Hardware/Nintendo-Switch-Family/Nintendo-Switch-OLED-Model/Nintendo-Switch-OLED-Model-2000984.htmlRead 30 September 2026
Built-in display refresh modes
Width (px)Height (px)Max (Hz)
128072060
Source12Reviewtomsguide.com/reviews/nintendo-switch-oledRead 30 September 2026720p at up to 60 frames per second in handheld mode
Max refresh rate
60Hz
Adaptive sync
Not available
VRR lower limit
Not available
Brightness (SDR, claimed)
Not available
Peak brightness (HDR, claimed)
Not available
DCI-P3 coverage (claimed)
Not available
HDR formats
Not available
Second display
Not available

Controls

Stick sensor
Potentiometer10Reviewgamepadla.com/nintendo-switch-joy-con.htmlRead 30 September 2026Joy-Con: sticks type Potentiometers
Stick layout
Offset4Maker product pagenintendo.com/us/store/products/nintendo-switch-oled-model-white-setRead 7 October 2026From the maker's product photos: left stick above the directional buttons, right stick below the face buttons
Touch-sensitive sticks
Not available
Replaceable stick modules
Service without soldering17Reviewifixit.com/Guide/Left+Joy-Con+Joystick+Replacement/113182Read 7 October 2026Left guide steps 10 to 12 disconnect ZIF flex cable, remove two screws and remove joystick. Service with tools and without soldering, not a user hot-swap.25Reviewifixit.com/Guide/Right+Joy-Con+Joystick+Replacement/113185Read 7 October 2026Actual supplied Joy-Con architecture shared with existing compatible first-generation Joy-Con. Left guide 113182 and right guide 113185 both disconnect ZIF flex cable and remove two screws to service joystick modules. Controller must be opened with tools, not a hot-swappable module. No Hall replacement feature transferred from optional kits. Nintendo’s whole-controller compatibility corroborates identity.
Trigger sensor
Digital10Reviewgamepadla.com/nintendo-switch-joy-con.htmlRead 30 September 2026Joy-Con: triggers pressing Digital
Trigger stops
Not available
D-pad
Four buttons2Maker product pagenintendo.com/en-gb/Hardware/Nintendo-Switch-Family/Nintendo-Switch-OLED-Model/Nintendo-Switch-OLED-Model-2000984.htmlRead 30 September 2026Published as Directional buttons on Joy-Con (L)
Face button labels
Nintendo2Maker product pagenintendo.com/en-gb/Hardware/Nintendo-Switch-Family/Nintendo-Switch-OLED-Model/Nintendo-Switch-OLED-Model-2000984.htmlRead 30 September 2026
Extra rear and grip buttons
02Maker product pagenintendo.com/en-gb/Hardware/Nintendo-Switch-Family/Nintendo-Switch-OLED-Model/Nintendo-Switch-OLED-Model-2000984.htmlRead 30 September 2026Complete Joy-Con button inventory contains no extra rear grip/paddle controls. SL/SR rail shoulder controls excluded.
Trackpads
Not available
System-level remapping
Yes26Maker product pageen-americas-support.nintendo.com/app/answers/detail/a_id/49229/p/897/c/947Read 7 October 2026Exact support applicability includes OLED and supported Joy-Con L/R. Five preset slots. Power, volume, HOME and SYNC excluded from remapping. Stored on console, not carried to another console by controller. No third-party app required.
System buttons
POWER Button, Volume Buttons, HOME Button, Capture Button, + Button, - Button, SYNC Button15Maker product pageen-americas-support.nintendo.com/app/answers/detail/a_id/22633Read 7 October 2026Applicable console diagram explicitly names POWER and Volume Buttons. Joy-Con diagram supplies HOME/Capture/+/-/SYNC.27Maker product pageen-americas-support.nintendo.com/app/answers/detail/a_id/22634Read 7 October 2026Named auxiliary and system controls from exact applicable Joy-Con diagram plus console diagram 22633 Power/Volume. Standard game face, direction and shoulder buttons are separate existing control fields. Rail release buttons are mechanical attachment controls and not listed as system input buttons. Does not claim that these are seven individual physical switches across console and both controllers.
Detached controller connection
Bluetooth2Maker product pagenintendo.com/en-gb/Hardware/Nintendo-Switch-Family/Nintendo-Switch-OLED-Model/Nintendo-Switch-OLED-Model-2000984.htmlRead 30 September 2026
Controller mouse sensor
Not available
Fingerprint
Not available

Motion and feedback

Gyroscope
Yes2Maker product pagenintendo.com/en-gb/Hardware/Nintendo-Switch-Family/Nintendo-Switch-OLED-Model/Nintendo-Switch-OLED-Model-2000984.htmlRead 30 September 2026
Rumble
HD haptics2Maker product pagenintendo.com/en-gb/Hardware/Nintendo-Switch-Family/Nintendo-Switch-OLED-Model/Nintendo-Switch-OLED-Model-2000984.htmlRead 30 September 2026Published as HD rumble
RGB lighting
Not available

Measured

Brightness (measured)
Not available
HDR peak brightness (measured)
Not available
Contrast ratio (measured)
Not available
DCI-P3 coverage (measured)
Not available
Colour accuracy (measured Delta E)
3.31Measurementtweakers.net/reviews/9480/nintendo-switch-oled-en-metroid-dread-nieuwe-game-en-nieuwe-console-getest.htmlRead 7 October 2026Own OLED mean Delta E 2000 of primary/secondary colours plus white, factory High/Vivid preset, sRGB reference. YouTube test video, C6 HDR2000 and Calman Ultimate. Maker interview independently identifies Vivid as factory default. Not extended ColorChecker or post-calibration. Standard result 2.40 and excluding-white results 1.40/2.50 are separate. Firmware unstated.16Maker product pagenintendo.com/en-ca/whatsnew/ask-the-developer-vol-2-nintendo-switch-oled-model-part-2Read 7 October 2026Maker developer interview identifies vibrant/Vivid colour preset as default out of box. Numerical error is Tweakers own measurement, not maker claim.
PWM frequency (measured)
Not available
3DMark Time Spy graphics (measured)
Not available
3DMark Steel Nomad Light (measured)
Not available
3DMark Wild Life Extreme (measured)
Not available
Cinebench 2024 single-core (measured)
Not available
Cinebench 2024 multi-core (measured)
Not available
AnTuTu (measured)
Not available
Game frame rates (measured)
Not available
SSD sequential read (measured)
Not available
Memory card read (measured)
Not available
Battery runtime per test (measured)
TestGameHours (h)
Video playbackNot available5
GamingSuper Smash Bros. Ultimate4.85
Source1Measurementtweakers.net/reviews/9480/nintendo-switch-oled-en-metroid-dread-nieuwe-game-en-nieuwe-console-getest.htmlRead 7 October 2026Own exact OLED gaming test to battery shutdown: continuous Smash CPU battle, Standard colour, maximum brightness, sticks restrained to prevent dimming. 4h51m normalized 4.85h. Published nine-CPU-player description is inconsistent with game player limit. Actual count remains unresolved and is not asserted. The measured duration is kept and the discrepancy is noted. Firmware, Wi-Fi and audio settings unstated. Existing Tom’s Guide 5h video row retained with its own 100% brightness/50% volume conditions.12Reviewtomsguide.com/reviews/nintendo-switch-oledRead 30 September 20265:00 playing a YouTube video at 100 % screen brightness and 50 % volume
Shortest gaming test runtime (measured)
4.85h
Longest gaming test runtime (measured)
4.85h
Video runtime (measured)
5h
Full charge time (measured)
Not available
Power draw gaming (measured)
7.4W29Measurementeurogamer.net/heres-how-much-power-your-consoles-use-and-how-much-that-costs-in-the-ukRead 7 October 2026Original Eurogamer/Digital Foundry retest table explicitly identifies Nintendo Switch HEG-001 OLED Edition and workload Overwatch 2, with measured 6.5 to 8.0 W range and approximate average 7.4 W. Whole-console electricity-use test excludes TV/AVR consumption. Article text does not name meter, firmware, dock state or gaming charge state. No fabricated Default mode or isolated APU power claim. Original 2017/2019 figures excluded.
Fan noise per mode (measured)
Not available
Max fan noise (measured)
Not available
Fan noise while gaming (measured)
Not available
Back surface under load (measured)
28.8°C28Measurementlesnumeriques.com/console-de-jeu/nintendo-switch-oled-p64179/test.htmlRead 7 October 2026Own OLED thermal figure after 30 minutes Breath of the Wild shows rear housing hot point 28.8C. Prose rounds case temperature to 29C. Front screen 32C and vent/radiator 31.5C are separate surfaces, not die or grip readings. Thermal camera image read directly. Ambient, brightness and firmware are not stated for this thermal test.
Grips under load (measured)
Not available
Chip temperature while gaming (measured)
Not available
Stick tests (measured)
Not available
Speaker loudness (measured)
Not available
Weight (measured)
Not available

Audio

Speakers
22Maker product pagenintendo.com/en-gb/Hardware/Nintendo-Switch-Family/Nintendo-Switch-OLED-Model/Nintendo-Switch-OLED-Model-2000984.htmlRead 30 September 2026Console Speakers: Stereo, left/right built-in speakers shown in front diagram.
Speaker direction
Front-facing30Reviewifixit.com/News/53272/nintendo-switch-oled-teardown-more-than-screen-deepRead 7 October 2026Actual OLED speaker teardown comparison explicitly distinguishes closed new OLED modules from older speakers emitting both sides. No numeric loudness inferred. Maker developer interview corroborates new enclosed speaker design.
Audio features
Linear PCM 5.1ch output over HDMI in TV mode2Maker product pagenintendo.com/en-gb/Hardware/Nintendo-Switch-Family/Nintendo-Switch-OLED-Model/Nintendo-Switch-OLED-Model-2000984.htmlRead 30 September 2026
Microphones
Not available
3.5 mm jack
Yes2Maker product pagenintendo.com/en-gb/Hardware/Nintendo-Switch-Family/Nintendo-Switch-OLED-Model/Nintendo-Switch-OLED-Model-2000984.htmlRead 30 September 2026

Ports and dock

Ports
TypeVersionCount
USB-CNot available1
3.5 mm audioNot available1
microSD cardmicroSD, microSDHC, microSDXC1
OtherGame card slot1
Source2Maker product pagenintendo.com/en-gb/Hardware/Nintendo-Switch-Family/Nintendo-Switch-OLED-Model/Nintendo-Switch-OLED-Model-2000984.htmlRead 30 September 2026USB Type-C terminal, 3.5 mm audio jack, game card slot, microSD card slot
USB-C ports
1
USB4 or Thunderbolt
Not available
USB-C charging
Not available
Video out
Not available
Max external display
Not available
External GPU
Not available
Dock
Included2Maker product pagenintendo.com/en-gb/Hardware/Nintendo-Switch-Family/Nintendo-Switch-OLED-Model/Nintendo-Switch-OLED-Model-2000984.htmlRead 30 September 2026
Max output through dock
Width (px)Height (px)Refresh rate (Hz)
1920108060
Source2Maker product pagenintendo.com/en-gb/Hardware/Nintendo-Switch-Family/Nintendo-Switch-OLED-Model/Nintendo-Switch-OLED-Model-2000984.htmlRead 30 September 2026TV mode over HDMI: max 1920x1080 at 60 fps
Dock ports
2 USB ports (USB 2.0 compatible), System connector, AC adapter port, HDMI port, LAN port2Maker product pagenintendo.com/en-gb/Hardware/Nintendo-Switch-Family/Nintendo-Switch-OLED-Model/Nintendo-Switch-OLED-Model-2000984.htmlRead 30 September 2026

Wireless

Wi-Fi
Wi-Fi 52Maker product pagenintendo.com/en-gb/Hardware/Nintendo-Switch-Family/Nintendo-Switch-OLED-Model/Nintendo-Switch-OLED-Model-2000984.htmlRead 30 September 2026Published as IEEE 802.11 a/b/g/n/ac
Wi-Fi bands
2.4 GHz, 5 GHz8Spec databaseen.wikipedia.org/wiki/Nintendo_SwitchRead 30 September 2026Connectivity table: Wi-Fi 5 at 2.4/5 GHz. The maker separately specifies IEEE 802.11 a/b/g/n/ac.
Bluetooth
4.12Maker product pagenintendo.com/en-gb/Hardware/Nintendo-Switch-Family/Nintendo-Switch-OLED-Model/Nintendo-Switch-OLED-Model-2000984.htmlRead 30 September 2026Console. Joy-Con use Bluetooth 3.0
NFC
Yes2Maker product pagenintendo.com/en-gb/Hardware/Nintendo-Switch-Family/Nintendo-Switch-OLED-Model/Nintendo-Switch-OLED-Model-2000984.htmlRead 30 September 2026In the right Joy-Con
Cellular
No31Reviewtechaeris.com/2023/03/03/razer-edge-5g-review-ive-got-mixed-feelings-about-thisRead 7 October 2026Published own handheld comparison explicitly names OLED among devices limited to noncellular networking. Maker connection inventory and FCC radios corroborate. A phone hotspot remains a Wi-Fi connection to the console. No native LTE/5G modem or bands borrowed from compared Razer Edge.
Network
Not available

Battery and charging

Battery energy
15.95Wh8Spec databaseen.wikipedia.org/wiki/Nintendo_SwitchRead 30 September 20263.7 V, 15.95 Wh, 4310 mAh
Battery capacity
4,310mAh2Maker product pagenintendo.com/en-gb/Hardware/Nintendo-Switch-Family/Nintendo-Switch-OLED-Model/Nintendo-Switch-OLED-Model-2000984.htmlRead 30 September 2026
Claimed battery life
UseGameHours (from) (h)Hours (h)
GamingNot available4.59
GamingThe Legend of Zelda: Breath of the WildNot available5.5
Source2Maker product pagenintendo.com/en-gb/Hardware/Nintendo-Switch-Family/Nintendo-Switch-OLED-Model/Nintendo-Switch-OLED-Model-2000984.htmlRead 30 September 2026
Battery life (claimed, min)
4.5h
Battery life (claimed, max)
9h
Wired charging
Not available
Charging standards
USB Power Delivery14Owner's manualnintendo.com/eu/media/downloads/support_1/nintendoswitch/NSwitch_ImportantInformation_EUR_01.pdfRead 7 October 2026Current exact HEG-001 common-charger section, PDF page 32/printed 66 to 67, explicitly USB PD wired charging up to 15V. Required 2.5 to 14W charger range to achieve charging speed is not accepted connector ceiling. Separate 39W TV-mode supply requirement is not handheld charging ceiling. So wired_charging_max_w stays omitted.
Charge 0 to 100 % (claimed)
180min2Maker product pagenintendo.com/en-gb/Hardware/Nintendo-Switch-Family/Nintendo-Switch-OLED-Model/Nintendo-Switch-OLED-Model-2000984.htmlRead 30 September 2026Published as 3 hours approx., charged in sleep mode
Charge limit
Not available
Bypass charging
Not available
Charger in box
Yes4Maker product pagenintendo.com/us/store/products/nintendo-switch-oled-model-white-setRead 7 October 2026
Included charger
39W7Maker product pagenintendo.com/en-gb/Corporate/Consumer-Information/Eco-design/Product-Ecodesign-Information-Consoles-part-2--2810757.htmlRead 30 September 2026Nintendo Switch AC adapter HAC-002: output DC 5.0 V 1.5 A / DC 15.0 V 2.6 A. 15 V x 2.6 A = 39 W

Cooling

Fans
111Reviewifixit.com/Guide/Nintendo+Switch+OLED+Model+Fan+Replacement/150096Read 30 September 2026Guide replaces the one fan
Vapor chamber
Not available
Custom fan curve
Not available

Build

Built-in kickstand
Yes2Maker product pagenintendo.com/en-gb/Hardware/Nintendo-Switch-Family/Nintendo-Switch-OLED-Model/Nintendo-Switch-OLED-Model-2000984.htmlRead 30 September 2026Published as wide adjustable stand
Dust and water rating
Not available
User-replaceable parts
Joy-Con controllers34Reviewtweakers.net/reviews/9480/nintendo-switch-oled-en-metroid-dread-nieuwe-game-en-nieuwe-console-getest.htmlRead 7 October 2026Exact OLED own hardware review explicitly says the components are interchangeable with older Switch consoles and old Joy-Con can be used. Whole detachable Joy-Con controllers are user-replaceable. Internal joystick module service is classified separately. Internal batteries, soldered eMMC and DIY console repairs are not declared user-replaceable from repair guides.

Dimensions and weight

Front and side, drawn to scale.

Dimensions
Width242Height102Depth28.4mm(9.5 × 4 × 1.1 in)2Maker product pagenintendo.com/en-gb/Hardware/Nintendo-Switch-Family/Nintendo-Switch-OLED-Model/Nintendo-Switch-OLED-Model-2000984.htmlRead 30 September 2026Width and height are the full device with supplied controllers attached. Maximum external depth includes protruding controls: 28.4 mm. Chassis-only depth is 13.9 mm and is not stored in this field.
Weight
420g(14.8 oz)2Maker product pagenintendo.com/en-gb/Hardware/Nintendo-Switch-Family/Nintendo-Switch-OLED-Model/Nintendo-Switch-OLED-Model-2000984.htmlRead 30 September 2026With Joy-Con attached
Weight without controllers
320g(11.3 oz)2Maker product pagenintendo.com/en-gb/Hardware/Nintendo-Switch-Family/Nintendo-Switch-OLED-Model/Nintendo-Switch-OLED-Model-2000984.htmlRead 30 September 2026Approx. 320 g

Certifications

Game compatibility programme
Not available
FCC ID
BKEHEG00132Regulatory filingfccid.io/BKEHEG001Read 7 October 2026Original Nintendo HEG001 grant, July 13 2021, applies to console HEG-001 in the represented US packs. Manufacturer label exhibit 5337286 title HEG-001_Label_and_label_location corroborates mapping. Product code has no hyphen in registered FCC ID. Separate Joy-Con FCC IDs not combined into this console field. No SAR value added to a field that does not exist.35Regulatory filingfccid.io/BKEHEG001/Label/06-Label-and-Location-5337286Read 7 October 2026Nintendo original producer-filed label exhibit 5337286 names HEG-001_Label_and_label_location, associated FCC ID BKEHEG001, July 13 2021 application. Exact HEG-001 console in represented US packs, no separate Joy-Con IDs included.
Other certifications
EU Radio Equipment Directive 2014/53/EU declaration of conformity33Regulatory filingnintendo.com/eu/media/downloads/support_1/nintendoswitch/NSwitchOledModel_DeclarationOfConformity.pdfRead 7 October 2026Exact maker declaration, originally issued July 27 2021, revised August 12 2026, names HEG-001 and applicable RED conformity. EU-market declaration scope, not an independent third-party certificate or a US warranty promise. Later cybersecurity/ecodesign clauses have their own date footnotes and are not stored as universal launch capabilities.

In the box

In the box
Nintendo Switch console, Nintendo Switch dock, Joy-Con (L), Joy-Con (R), Joy-Con straps, Joy-Con grip, High Speed HDMI Cable, Nintendo Switch AC Adapter4Maker product pagenintendo.com/us/store/products/nintendo-switch-oled-model-white-setRead 7 October 2026
Carrying case
None4Maker product pagenintendo.com/us/store/products/nintendo-switch-oled-model-white-setRead 7 October 2026Exact represented standard US pack complete box list includes no carrying case. Maker separately sells case/screen-protector SKU 114296 for OLED compatibility. None means none supplied in these console packs, not absence of compatible optional cases or special retailer bundles.5Maker product pagenintendo.com/us/store/products/nintendo-switch-oled-model-neon-blue-neon-red-setRead 7 October 2026Independent exact US Neon standard-pack complete box list matches White pack except controller/dock colour, with no carrying case. Optional case is sold separately.18Maker product pagenintendo.com/us/store/products/nintendo-switch-carrying-case-screen-protectorRead 7 October 2026Separate accessory SKU 114296 includes OLED screen protector and states Nintendo Switch console not included. Corroborates optional case rather than supplied pack case.

Warranty

Manufacturer warranty (source market)
1year20Maker product pageen-americas-support.nintendo.com/app/answers/detail/a_id/50404/p/172/c/693Read 7 October 2026Current Nintendo of America limited warranty explicitly applies to Switch OLED. US hardware scope, matching existing US pack references. European terms are not generalized. Current terms include controllers and adapters unless otherwise specified, superseding older three-month accessory summaries.

Compare with

Pick a handheld console to see both side by side. Differences are marked yellow.

More handheld console comparisons

Variants

Each variant lists only what differs from the specs above.

Model numberGTINMarketsColours
HEG-001045496883386USWhite
HEG-001045496883409USNeon blue/Neon red

Sources

We read 35 sources for this handheld console. The numbers match the markers in the sheet.

  1. Read 7 October 2026Backs 2 fields
  2. Read 30 September 2026Backs 34 fields
  3. Read 30 September 2026Backs 1 field
  4. Read 7 October 2026Backs 8 fields
  5. Read 7 October 2026Backs 4 fields
  6. Read 30 September 2026Backs 1 field
  7. Read 30 September 2026Backs 1 field
  8. Read 30 September 2026Backs 20 fields
  9. Read 30 September 2026Backs 4 fields
  10. Read 30 September 2026Backs 2 fields
  11. Read 30 September 2026Backs 1 field
  12. Read 30 September 2026Backs 2 fields
  13. Read 30 September 2026Backs 4 fields
  14. Read 7 October 2026Backs 2 fields
  15. Read 7 October 2026Backs 1 field
  16. Read 7 October 2026Backs 1 field
  17. Read 7 October 2026Backs 1 field
  18. Read 7 October 2026Backs 1 field
  19. Read 7 October 2026Backs 1 field
  20. Read 7 October 2026Backs 1 field
  21. Read 7 October 2026Backs 1 field
  22. Read 7 October 2026Backs 1 field
  23. Read 7 October 2026Backs 1 field
  24. Read 7 October 2026Backs 1 field
  25. Read 7 October 2026Backs 1 field
  26. Read 7 October 2026Backs 1 field
  27. Read 7 October 2026Backs 1 field
  28. Read 7 October 2026Backs 1 field
  29. Read 7 October 2026Backs 1 field
  30. Read 7 October 2026Backs 1 field
  31. Read 7 October 2026Backs 1 field
  32. Regulatory filingfccid.io/BKEHEG001
    Read 7 October 2026Backs 1 field
  33. Read 7 October 2026Backs 1 field
  34. Read 7 October 2026Backs 1 field
  35. Read 7 October 2026Backs 1 field

See a wrong value? Tell us and name the field.
