Gaming / Keyboards

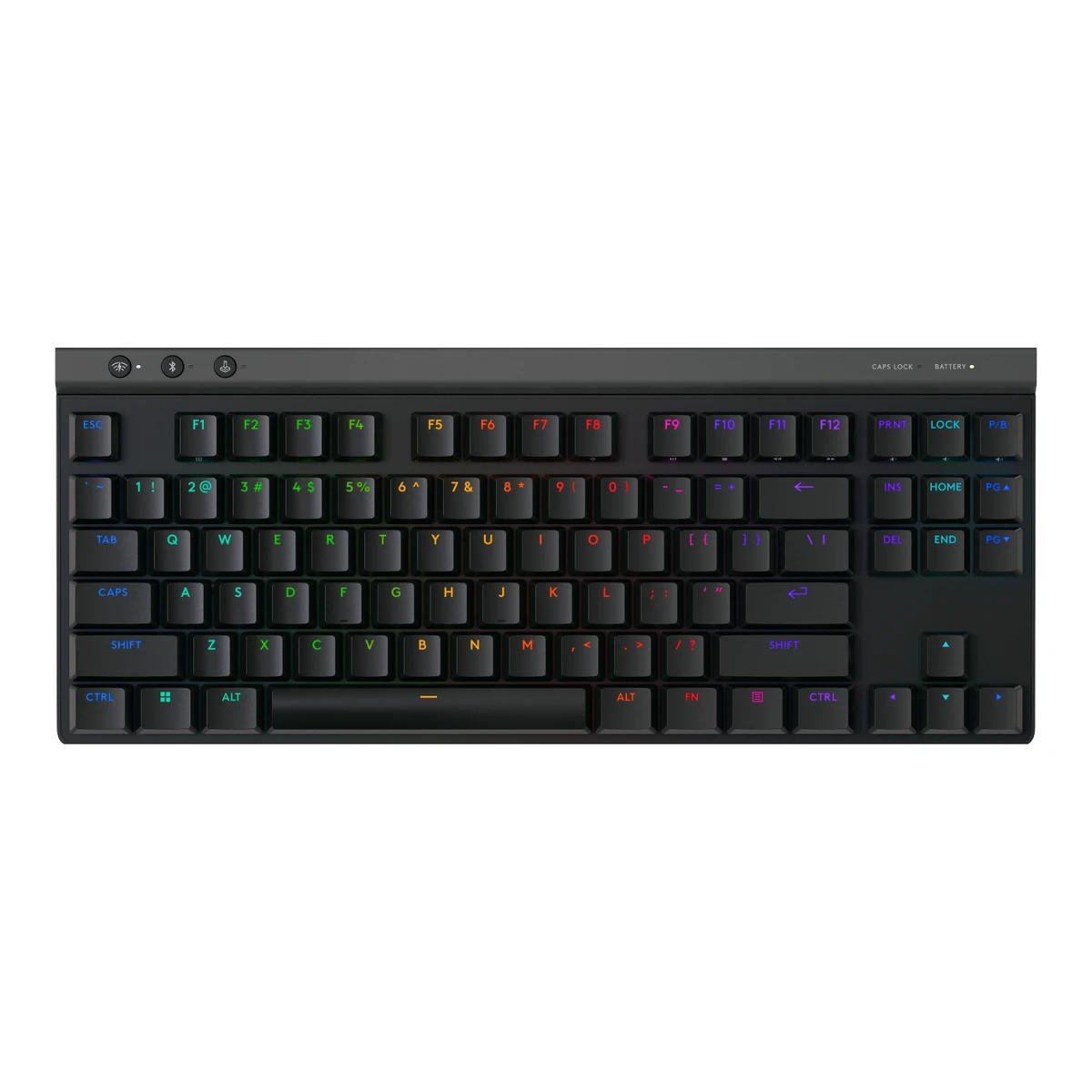

Logitech G515 LIGHTSPEED TKL
Form factor
TKL
Switch sensing technology
Low-profile mechanical
Connections
USB (wired), 2.4 GHz, Bluetooth
Max polling rate
1,000Hz

99 of 164 fields known.

All specs

SourceCalculated

General

Model numbers
YR0098, 920-012423, 920-012536, 920-012535, 920-0125371Maker product pagelogitechg.com/en-us/shop/p/g515-tkl-wireless-keyboardRead 23 October 2026US page SKU payload maps four English US switch and colour options. YR0098 is confirmed by the exact support specification. CU0021 identifies the receiver and is excluded.
Predecessor
Not available
Successor
Not available
Markets
US1Maker product pagelogitechg.com/en-us/shop/p/g515-tkl-wireless-keyboardRead 23 October 2026
Sold as
Complete1Maker product pagelogitechg.com/en-us/shop/p/g515-tkl-wireless-keyboardRead 23 October 2026

Layout

Form factor
TKL5Maker product pagelogitechg.com/en-us/shop/p/g515-tkl-wireless-keyboardRead 23 October 2026
Layout standard
ANSI5Maker product pagelogitechg.com/en-us/shop/p/g515-tkl-wireless-keyboardRead 23 October 2026
Bottom row
Not available

Switches

Switch sensing technology
Low-profile mechanical7Maker product pagelogitechg.com/en-us/shop/p/g515-tkl-wireless-keyboardRead 23 October 2026
Actuation force
43 to 45gf38Maker product pagelogitechg.com/en-us/shop/p/g515-tkl-wireless-keyboardRead 23 October 2026
Bottom-out force
Not available
Tactile bump force
Not available
Actuation point
1.3mm7Maker product pagelogitechg.com/en-us/shop/p/g515-tkl-wireless-keyboardRead 23 October 2026
Rated keystrokes
Not available
Adjustable actuation
Not available
Actuation range
Not available
Actuation step
Not available
Per-key actuation
Not available
Rapid trigger
Not available
Minimum rapid trigger movement
Not available
Multi-action keys
Not available
SOCD handling
Not available
Analog input
Not available
Compatible switches
Not available
Stabilizers
Not available

Keycaps

Keycap thickness
Not available

Performance

Polling rate per connection
ConnectionPolling rate (Hz)Receiver or adapter
USB (wired)1,000Not available
2.4 GHz1,000Included LIGHTSPEED receiver
Max polling rate
1,000Hz
Polling rate (wired)
1,000Hz
Polling rate (2.4 GHz)
1,000Hz
Polling rate (Bluetooth)
Not available
Scan rate
Not available
Input latency (claimed)
Not available
Adjustable debounce
Not available
Minimum debounce
Not available

Measured

We could not find any of these 7 fields. Show them
Latency per connection (measured)
Not available
Actuation point (measured)
Not available
Total travel (measured)
Not available
Operating force (measured)
Not available
Typing noise (measured)
Not available
Battery life (measured)
Not available
Weight (measured)
Not available

Connectivity

Bluetooth
Not available
Devices it can switch between
Not available
Wireless range
Not available
Works with
Windows, macOS, ChromeOS, Android, iOS15Maker product pagelogitechg.com/en-us/shop/p/g515-tkl-wireless-keyboardRead 23 October 2026
Consoles
Not available

Battery

Number of batteries
Not available
Battery life per mode (claimed)
ConnectionLightingHours (h)
2.4 GHzMax36
Longest battery life (claimed)
36h
Battery life, lighting off
Not available
Battery life, lighting on
36h
Battery life, backlight on (claimed)
Not available
Battery life, backlight off (claimed)
Not available
Full charge time
Not available
Quick charge
Not available
Solar charging
Not available

Build

Plate material
Not available
Mount style
Not available
Flex cuts in PCB
Not available
Sound dampening
Foam, position not stated23Press releaseir.logitech.com/news/news-details/2024/Introducing-Logitechs-G515--A-Next-Generation-Low-Profile-Keyboard-for-High-Performance-Gaming/default.aspxRead 23 October 2026Maker names a sound-dampening foam layer without its position.
Typing angles
4°, 8°24Reviewhwbusters.com/peripherals/logitech-g515-lightspeed-tkl-wireless-keyboard-review/5Read 23 October 2026Review names two flip-out foot angles, 4 and 8 degrees. Folded-foot angle is not stated and is not inferred.
Spill resistant
Not available
IP rating
Not available

Lighting

LED position
Not available
Lighting zones
Not available
Brightness levels
Not available
Side or underglow lighting
Not available
Lighting sensors
Not available

Controls

Media keys
Fn layer28Reviewgamingnexus.com/Article/14055/Logitech-G515-LIGHTSPEED-TKLRead 23 October 2026Review identifies Fn media functions on F9 to F12, Print, Lock and Pause.
Programmable knob
Not available
Knob press
Not available
OS mode switch
Not available

Software

Open firmware
Not available
Onboard profiles
Not available
Macros stored onboard
Yes32Reviewhwbusters.com/peripherals/logitech-g515-lightspeed-tkl-wireless-keyboard-review/5Read 23 October 2026Review explicitly says macro profiles are stored in onboard memory and used without G HUB.
Layers
Not available

Ergonomics

Wrist rest material
Not available
Tenting
Not available
Tenting angles
Not available

Dimensions and weight

Front and side, drawn to scale.

Dimensions
Width368Depth150Height22mm(14.5 × 5.9 × 0.9 in)35Maker spec sheet (PDF)logitech-mexico.com/wp-content/uploads/2025/01/G515-LIGHTSPEED-TKL-920-012423_compressed.pdfRead 23 October 2026Page 2 body 368 by 150 by 22 mm. Desk-plane axes remapped. Tom's Hardware confirms height includes keycaps. Maker product page agrees. Support HTML table instead lists 354.75 by 146 by 22.14 mm without clear axis labels. The matching product sheet takes precedence.
Dimensions with wrist rest
Not available
Keyboard weight
880g(1.9 lb)35Maker spec sheet (PDF)logitech-mexico.com/wp-content/uploads/2025/01/G515-LIGHTSPEED-TKL-920-012423_compressed.pdfRead 23 October 2026Page 2 explicitly says weight without cable, 880 g.
Weight including wrist rest
Not available

Certifications

Platform certifications
Not available

In the box

In the box
G515 LIGHTSPEED TKL Gaming Keyboard, USB-A to USB-C detachable charging and data cable (1.8 m), USB Wireless Receiver, USB Extender, User documentation37Maker product pagelogitechg.com/en-us/shop/p/g515-tkl-wireless-keyboardRead 23 October 2026
Cables included
TypeCount
USB-A to USB-C charging and data cable1

Warranty

Manufacturer warranty (source market)
2years1Maker product pagelogitechg.com/en-us/shop/p/g515-tkl-wireless-keyboardRead 23 October 2026US store new-product warranty. Refurbished one-year warranty is excluded.

Compare with

Pick a keyboard to see both side by side. Differences are marked yellow.

More keyboard comparisons

Variants

Each variant lists only what differs from the specs above.

Model numberGTINMarketsColoursLayout standardRegional layoutsKeys in regional layoutSwitch feelSwitch modelsActuation force
920-012423097855193612USBlackANSIEnglish US (QWERTY)87TactileGL Tactile45 gf
920-012536Not availableUSBlackANSIEnglish US (QWERTY)87LinearGL Linear43 gf
920-012535097855193490USWhiteANSIEnglish US (QWERTY)87TactileGL Tactile45 gf
920-012537Not availableUSWhiteANSIEnglish US (QWERTY)87LinearGL Linear43 gf
