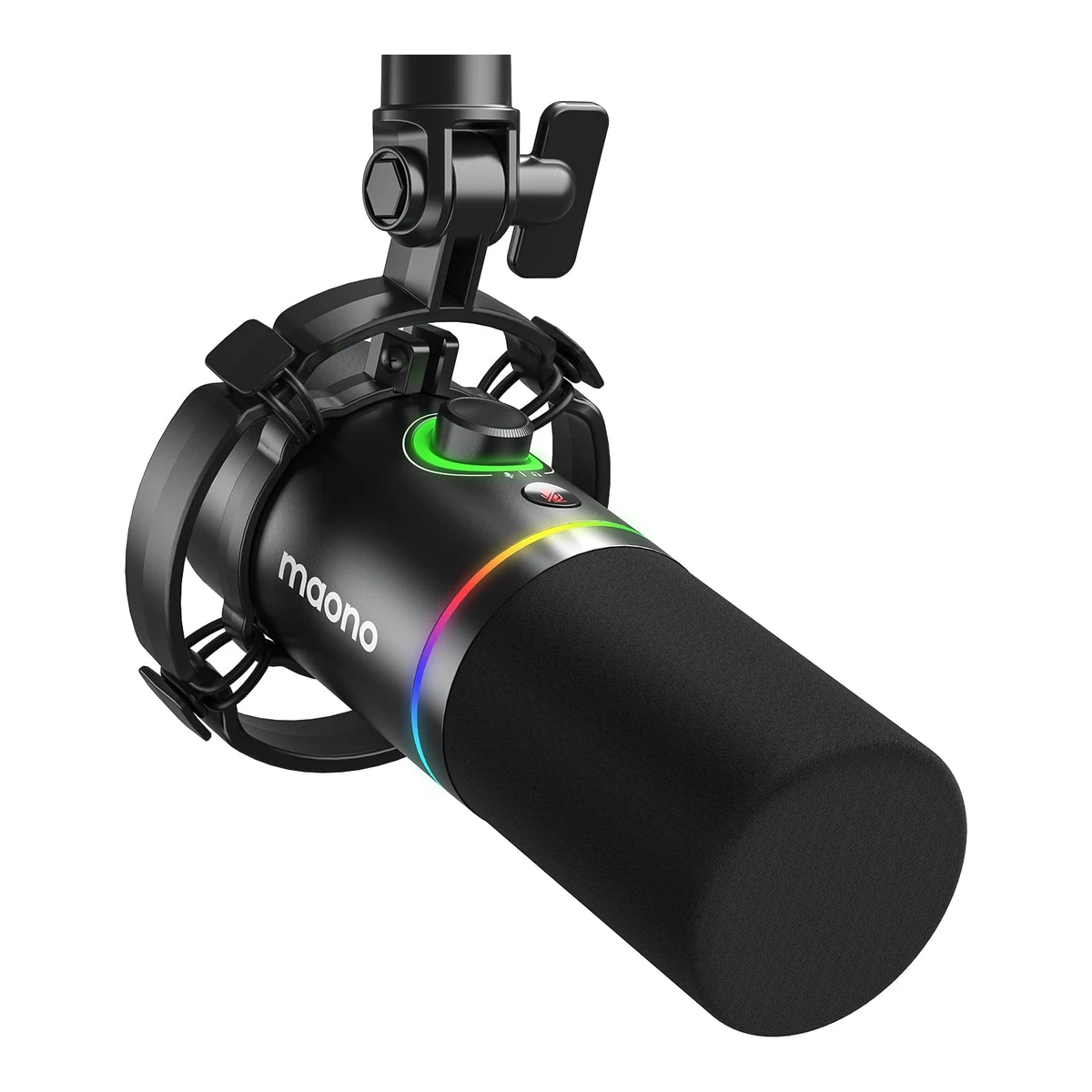

Maono PD200X

MaonoMicrophone

PD200X

Released January 2023.2Maker product pagemaono.com/products/maono-pd200x-dynamic-usb-and-xlr-internet-microphone.jsonRead 15 October 2026Store product data: created 2023-01-15, published 2023-01-29 and tagged release date 20230130. Last checked 23 October 2026.

Type
Dynamic
Polar patterns
Cardioid
Outputs
USB, XLR
Frequency response
40 Hz / 16 kHz

40 of 61 fields known.

Compare with another microphoneDownload JSONDownload CSVGet it from the API

All specs

SourceCalculated

General

Series
PD1Maker product pagemaono.com/products/maono-pd200x-dynamic-usb-and-xlr-internet-microphoneRead 15 October 2026The Maono help center files the PD200X under Microphone, PD Series.
Model numbers
PD200X, PD200XS1Maker product pagemaono.com/products/maono-pd200x-dynamic-usb-and-xlr-internet-microphoneRead 15 October 2026The page title is Maono PD200X. The same store sells the kit with a boom arm as MAONO PD200XS USB/XLR Dynamic Microphone Set with Boom Arm. The boom arm changes the box and not the microphone, so the kit is not stored as a variant.2Maker product pagemaono.com/products/maono-pd200x-dynamic-usb-and-xlr-internet-microphone.jsonRead 15 October 2026Store variant titles name PD200X. The kit SKU is C.01.01.002.00968 for black and C.01.01.002.00969 for white.
GTIN / EAN
Not available
Announced
Not available
Status
Available1Maker product pagemaono.com/products/maono-pd200x-dynamic-usb-and-xlr-internet-microphoneRead 15 October 2026In stock on the Maono US store with an Add to cart button at 89.99 USD. The only PD200X option on the page is the BA20 boom arm kit, which the store also sells as the PD200XS.
Predecessor
Not available
Successor
Maono PD300X9Reviewcgmagonline.com/review/maono-pd300x-microphone-reviewRead 23 October 2026CGMagazine's review calls the PD200X the predecessor of the PD300X.10Press articlechip.pl/2025/01/maono-pd300x-i-mikrofon-dynamicznyRead 23 October 2026Chip.pl's launch article calls the PD200X the predecessor of the PD300X.
Launch price (US)
$79.997Reviewgameluster.com/review-maono-pd200x-microphone-nothing-to-lose-with-adjustable-gainRead 15 October 2026Review dated 2023 (the page shows 5 March and 14 June 2023): the PD200X currently retails for 79.99 USD, and pre-ordering on the Maono site included a free XLR cable. This is a retail price soon after launch and not a maker launch statement. OnMSFT also gave 79.99 USD as the Maono store price in October 2023.
Launch price (EU)
Not available
Markets
Not available
Colours
Black, White1Maker product pagemaono.com/products/maono-pd200x-dynamic-usb-and-xlr-internet-microphoneRead 15 October 2026Store options: Black and White.
Microphone type
Dynamic1Maker product pagemaono.com/products/maono-pd200x-dynamic-usb-and-xlr-internet-microphoneRead 15 October 2026Spec: Element Type, Dynamic Microphone.3Owner's manualfaq.maono.com/docs/PD200X-User-ManualRead 15 October 2026Page 3 specification: Element Type, Dynamic.

Capsule and pickup

Capsule size
Not available
Capsules
13Owner's manualfaq.maono.com/docs/PD200X-User-ManualRead 15 October 2026Page 3 features: Dynamic Capsule, singular. No count is printed.
Polar patterns
Cardioid1Maker product pagemaono.com/products/maono-pd200x-dynamic-usb-and-xlr-internet-microphoneRead 15 October 2026Spec: Polar Pattern, Cardioid. Amazon's item data says Unidirectional.3Owner's manualfaq.maono.com/docs/PD200X-User-ManualRead 15 October 2026Page 3: Polar Pattern, Cardioid. Page 4 has the polar plot at 1 kHz.
Address type
End address3Owner's manualfaq.maono.com/docs/PD200X-User-ManualRead 15 October 2026Page 11 is titled End-address microphone and says to ensure the microphone grill faces the audio source.

Sound specs

Frequency response
Min40 HzMax16 kHz1Maker product pagemaono.com/products/maono-pd200x-dynamic-usb-and-xlr-internet-microphoneRead 15 October 2026Spec: Frequency Response 40Hz-16kHz.3Owner's manualfaq.maono.com/docs/PD200X-User-ManualRead 15 October 2026Page 3: Frequency Reponse 40Hz-16kHz. Page 4 has the response graph.
Sensitivity (analog)
-52dBV/Pa1Maker product pagemaono.com/products/maono-pd200x-dynamic-usb-and-xlr-internet-microphoneRead 15 October 2026Spec: Sensitivity XLR:-52dBV, USB:-10.5dBFS/Pa(Max). The manual prints -52dBV/Pa. The help center FAQ prints -51.2dBV/Pa. The manual value is stored. The USB value is the maximum gain value and is not stored.3Owner's manualfaq.maono.com/docs/PD200X-User-ManualRead 15 October 2026Page 3: Sensitivity XLR: -52dBV/Pa, USB: -10.5dBFS/Pa (Max). Page 3 also gives an adjustable gain range of 0 to +42dB, so the USB value is the maximum gain value and is not stored.4Maker product pagefaq.maono.com/docs/PD200X-FAQs-gZFrRead 15 October 2026Q7: Sensitivity XLR: -51.2dBV/Pa, USB: -10.5dBFS/Pa (Max). This differs from the -52dBV/Pa of the manual and the store page.
Sensitivity (digital)
Not available
Max SPL
130dB SPL1Maker product pagemaono.com/products/maono-pd200x-dynamic-usb-and-xlr-internet-microphoneRead 15 October 2026Spec: Max.SPL >130dB SPL. The manual prints the same. No distortion level is printed.3Owner's manualfaq.maono.com/docs/PD200X-User-ManualRead 15 October 2026Page 3: Max. SPL >130dB SPL. No distortion level is printed.
Max SPL distortion limit
Not available
Self-noise
Not available
Digital noise floor
Not available
Signal-to-noise ratio
Not available
Dynamic range
Not available
Output impedance
Not available

Connectivity

Outputs
USB, XLR1Maker product pagemaono.com/products/maono-pd200x-dynamic-usb-and-xlr-internet-microphoneRead 15 October 2026Spec: Capsule Type, XLR & USB-C (the label is the store's wording for the connectors).3Owner's manualfaq.maono.com/docs/PD200X-User-ManualRead 15 October 2026Page 3: Connectivity, XLR & USB-C.4Maker product pagefaq.maono.com/docs/PD200X-FAQs-gZFrRead 15 October 2026Q1: PD200X supports USB or XLR wired connections. USB connects to computers, smartphones and tablets and XLR only works with audio interfaces.
Inputs for other sources
Not available
USB and XLR at once
Not available
USB port
USB-C3Owner's manualfaq.maono.com/docs/PD200X-User-ManualRead 15 October 2026Page 3: Connectivity, XLR & USB-C. Page 2 labels the USB-C socket on the base.
Cable host plug
Not available
Cable length
2.5m7Reviewgameluster.com/review-maono-pd200x-microphone-nothing-to-lose-with-adjustable-gainRead 15 October 2026The USB-C cable is 8.2 feet (2.5 m).8Retailer pageamazon.com/dp/B0C6XJ9W5TRead 15 October 2026Included Components: 2.5m USB-C to USB-A/C Cable. This listing is the kit with a boom arm and was Currently unavailable on the day it was read.
Phantom power
Not required4Maker product pagefaq.maono.com/docs/PD200X-FAQs-gZFrRead 15 October 2026Q10: is 48V phantom power required? No. PD200X is a dynamic microphone that does not require external 48V phantom power.

Digital audio

Max bit depth
24bits1Maker product pagemaono.com/products/maono-pd200x-dynamic-usb-and-xlr-internet-microphoneRead 15 October 2026Spec: Bit Depth/Sample Rate 24-bit/48kHz.3Owner's manualfaq.maono.com/docs/PD200X-User-ManualRead 15 October 2026Page 3: Bit Depth/Sample Rate 24-bit/48kHz.4Maker product pagefaq.maono.com/docs/PD200X-FAQs-gZFrRead 15 October 2026Q6: PD200X supports 24bit/48kHz audio output.
Max sample rate
48kHz1Maker product pagemaono.com/products/maono-pd200x-dynamic-usb-and-xlr-internet-microphoneRead 15 October 2026Spec: Bit Depth/Sample Rate 24-bit/48kHz.3Owner's manualfaq.maono.com/docs/PD200X-User-ManualRead 15 October 2026Page 3: Bit Depth/Sample Rate 24-bit/48kHz.4Maker product pagefaq.maono.com/docs/PD200X-FAQs-gZFrRead 15 October 2026Q6: PD200X supports 24bit/48kHz audio output.
32-bit float recording
No3Owner's manualfaq.maono.com/docs/PD200X-User-ManualRead 15 October 2026Only 24-bit is listed and no 32-bit float format is named, so false.

Monitoring

Headphone output
Yes3Owner's manualfaq.maono.com/docs/PD200X-User-ManualRead 15 October 2026Page 2 overview: 3.5mm Headphone Jack on the base. Page 7 says to plug headphones into it for real-time monitoring.5Maker product pagefaq.maono.com/docs/PD200X-User-GuideRead 15 October 2026Software guide: the monitor output volume is set on the knob.
Zero-latency monitoring
Yes3Owner's manualfaq.maono.com/docs/PD200X-User-ManualRead 15 October 2026Page 7: connect headphones to the 3.5mm jack on the microphone to take advantage of real-time monitoring. Page 3 says Maono Link controls real-time monitoring. The manual does not use the words zero latency. Microphone Geeks says zero-latency monitoring.6Reviewmicrophonegeeks.com/maono-pd200x-usb-xlr-streamingpodcast-dynamic-mic-reviewRead 15 October 2026Review updated 1 May 2025: headphones plug into a 3.5 mm jack at the base for real-time zero-latency monitoring.

Controls and processing

Onboard controls
Gain, Headphone volume, Mute3Owner's manualfaq.maono.com/docs/PD200X-User-ManualRead 15 October 2026Page 9: the 2-in-1 knob rotates to change mic gain in one mode and headphone volume in the other, and a short press switches mode. The mute button mutes, and the note says muting is not available in XLR mode.4Maker product pagefaq.maono.com/docs/PD200X-FAQs-gZFrRead 15 October 2026Q15: in XLR mode the knobs and lights are disabled and the audio interface controls volume. In USB mode the knobs adjust volume and monitoring.5Maker product pagefaq.maono.com/docs/PD200X-User-GuideRead 15 October 2026Software guide: the headphone volume is adjusted on the knob or in Maono Link. Microphone gain also has a software slider.6Reviewmicrophonegeeks.com/maono-pd200x-usb-xlr-streamingpodcast-dynamic-mic-reviewRead 15 October 2026A one-click mute button with an LED, and a 2-in-1 knob that switches between mic gain (green) and headphone volume (blue).7Reviewgameluster.com/review-maono-pd200x-microphone-nothing-to-lose-with-adjustable-gainRead 15 October 2026A multifunction knob adjusts gain (green LED) or headphone volume (blue LED) and switches mode with a press. A mute button turns the knob LED red when muted.
Onboard processing
Noise reduction, EQ, High-pass filter, Compressor, Limiter1Maker product pagemaono.com/products/maono-pd200x-dynamic-usb-and-xlr-internet-microphoneRead 15 October 2026Page: unlock more functions like EQ, limiter and compressor adjustment in Maono Link, in USB mode, and advanced noise reduction. See the manual and software guide for the basis. It is not stated that the settings stay active with the app closed.3Owner's manualfaq.maono.com/docs/PD200X-User-ManualRead 15 October 2026Page 3: audio processing offered by built-in hardware DSP. Page 15 Advanced: a combination of EQ, limiter and compressor. The software guide adds noise reduction and a high-pass filter in the EQ.5Maker product pagefaq.maono.com/docs/PD200X-User-GuideRead 15 October 2026Software guide: Maono Link offers 40 levels of noise reduction, a graphical EQ with a high-pass filter, a low-pass filter and five bands, and a basic compressor and limiter. The guide states USB mode uses on-board DSP. The low-pass filter has no matching option.

Mounting and accessories

Mount threads
5/8 inch, 3/8 inch3Owner's manualfaq.maono.com/docs/PD200X-User-ManualRead 15 October 2026Page 1 packing list: 5/8" to 3/8" Thread Adapter. Pages 5 and 6 say some stands and boom arms need the included thread adapter.
Shock mount
Included3Owner's manualfaq.maono.com/docs/PD200X-User-ManualRead 15 October 2026Page 2 overview shows the shock mount around the body and page 3 lists Shock mount as a feature.6Reviewmicrophonegeeks.com/maono-pd200x-usb-xlr-streamingpodcast-dynamic-mic-reviewRead 15 October 2026The review says the included shock mount is plastic and feels lighter than the metal body.7Reviewgameluster.com/review-maono-pd200x-microphone-nothing-to-lose-with-adjustable-gainRead 15 October 2026Shock mount in the box.8Retailer pageamazon.com/dp/B0C6XJ9W5TRead 15 October 2026Included Components: Shock Mount.
Pop filter
Foam windscreen3Owner's manualfaq.maono.com/docs/PD200X-User-ManualRead 15 October 2026Page 3: built-in windfoam, and the custom-built shockmount and windfoam reduce unwanted noises.6Reviewmicrophonegeeks.com/maono-pd200x-usb-xlr-streamingpodcast-dynamic-mic-reviewRead 15 October 2026A foam windscreen is included and handles plosives well.
Desk stand included
No3Owner's manualfaq.maono.com/docs/PD200X-User-ManualRead 15 October 2026The packing list on page 1 has no stand or base. Pages 5 and 6 describe a desktop stand base and a boom arm as separate purchases.

Design and build

Housing material
All metal body1Maker product pagemaono.com/products/maono-pd200x-dynamic-usb-and-xlr-internet-microphoneRead 15 October 2026Page: the PD200X is built from premium metal.3Owner's manualfaq.maono.com/docs/PD200X-User-ManualRead 15 October 2026Page 3 features: All metal body.6Reviewmicrophonegeeks.com/maono-pd200x-usb-xlr-streamingpodcast-dynamic-mic-reviewRead 15 October 2026The review calls the microphone body metal.8Retailer pageamazon.com/dp/B0C6XJ9W5TRead 15 October 2026Item data: Enclosure Material, Metal.
RGB lighting
Yes1Maker product pagemaono.com/products/maono-pd200x-dynamic-usb-and-xlr-internet-microphoneRead 15 October 2026Page: RGB lighting control with 9 vibrant hues, switched with a button. The status LED display is separate.3Owner's manualfaq.maono.com/docs/PD200X-User-ManualRead 15 October 2026Page 3 features: Programmable RGB lights. Page 10 describes a button for static and dynamic colour modes.4Maker product pagefaq.maono.com/docs/PD200X-FAQs-gZFrRead 15 October 2026Q12: 9 light effects in Maono Link, all with brightness adjustment.5Maker product pagefaq.maono.com/docs/PD200X-User-GuideRead 15 October 2026Software guide, Lighting: the PD200X has RGB lighting with 8 preset colours, brightness control and an option to turn the lights off while muted.6Reviewmicrophonegeeks.com/maono-pd200x-usb-xlr-streamingpodcast-dynamic-mic-reviewRead 15 October 2026An LED ring near the top with 9 selectable colours, cycled with a button on the bottom.
Lighting zones
Not available

Software

Software
Maono Link1Maker product pagemaono.com/products/maono-pd200x-dynamic-usb-and-xlr-internet-microphoneRead 15 October 2026Page: Maono Link software.3Owner's manualfaq.maono.com/docs/PD200X-User-ManualRead 15 October 2026Page 3 and page 14: Maono Link for Windows and macOS, plus an Android app.5Maker product pagefaq.maono.com/docs/PD200X-User-GuideRead 15 October 2026Software guide: Maono Link for Windows, with macOS support following, and an Android app.
User firmware updates
Yes1Maker product pagemaono.com/products/maono-pd200x-dynamic-usb-and-xlr-internet-microphoneRead 15 October 2026The software guide has a Firmware Upgrade option in Maono Link.3Owner's manualfaq.maono.com/docs/PD200X-User-ManualRead 15 October 2026Page 15: the settings menu checks for software and firmware updates.4Maker product pagefaq.maono.com/docs/PD200X-FAQs-gZFrRead 15 October 2026The FAQ points to Maono Link for updates. See the software guide for the Firmware Upgrade option.5Maker product pagefaq.maono.com/docs/PD200X-User-GuideRead 15 October 2026Maono Link software guide, Firmware Upgrade: the menu detects new firmware and starts the upgrade. Do not unplug the USB during the upgrade.

Compatibility

Works with
Windows, macOS, iOS, Android1Maker product pagemaono.com/products/maono-pd200x-dynamic-usb-and-xlr-internet-microphoneRead 15 October 2026Page: in USB mode plug-and-play with Windows, Mac OS and Android. The FAQ adds iPhone use.3Owner's manualfaq.maono.com/docs/PD200X-User-ManualRead 15 October 2026Pages 12 and 13 give Windows and macOS setup. Page 9 notes that an external power adapter is needed with iOS devices.4Maker product pagefaq.maono.com/docs/PD200X-FAQs-gZFrRead 15 October 2026Q3: Android phones connect to the Type-C port and some need OTG. iPhone 15 and above connect directly and iPhone 14 and below need a Lightning-to-USB adapter. Q13: Maono Link needs Windows 10 version 1809 or later or macOS 13.5 or later. Q18: Windows 10 1803 and macOS 10.13 or later for professional software.
Consoles
PlayStation1Maker product pagemaono.com/products/maono-pd200x-dynamic-usb-and-xlr-internet-microphoneRead 15 October 2026Page: widely compatible with smartphones, PC, PS4, PS5 and audio interfaces. No Xbox or Switch is named.

Dimensions and weight

Front and side, drawn to scale.

Microphone dimensions
Width55Height55Depth160mm(2.2 × 2.2 × 6.3 in)4Maker product pagefaq.maono.com/docs/PD200X-FAQs-gZFrRead 15 October 2026Q7: Dimensions 55mm (Width, Single Microphone) and 160mm (Height). The body is a round cylinder and the microphone is end-address. Stored with the 160 mm length as depth toward the speaker and the 55 mm diameter as width and height, as for other end-address microphones. Retailers print larger sizes of 152 x 105 x 202.5 mm, which describe the microphone with its shock mount and adapter.
Microphone weight
314g(11.1 oz)4Maker product pagefaq.maono.com/docs/PD200X-FAQs-gZFrRead 15 October 2026Q7 PD200X Specification Details: Microphone Weight (Single) 314g. Weight with Package 577g.
Weight with stand
Not available

Certifications

We could not find any of these 1 fields. Show them
Other certifications
Not available

In the box

In the box
USB/XLR Dynamic Microphone, Shock Mount, 5/8" to 3/8" Thread Adapter, USB A&C to USB C 2-in-1 Cable, User Manual3Owner's manualfaq.maono.com/docs/PD200X-User-ManualRead 15 October 2026Page 1 packing list without the counts of 1 each: USB/XLR Dynamic Microphone, 5/8" to 3/8" Thread Adapter, USB A&C to USB C 2-in-1 Cable and User Manual. The shock mount is not on that list. It comes from the overview on page 2, the Amazon box image and the Gameluster review.7Reviewgameluster.com/review-maono-pd200x-microphone-nothing-to-lose-with-adjustable-gainRead 15 October 2026Box: microphone, shock mount, USB-C to USB-C cable with a built-in C-to-A adapter, 5/8" to 3/8" thread adapter and user manual. No stand or arm and no XLR cable.8Retailer pageamazon.com/dp/B0C6XJ9W5TRead 15 October 2026The maker's A+ box image lists 2.5m USB C to USB A/C Cable, 5/8" to 3/8" Adapter, Dynamic Microphone, User's Manual and Shock Mount.

Warranty

Manufacturer warranty (source market)
1year1Maker product pagemaono.com/products/maono-pd200x-dynamic-usb-and-xlr-internet-microphoneRead 15 October 202612-Month Warranty on the store page, US store. Amazon US lists 18 months for its own listing.
