Computers / Microphones

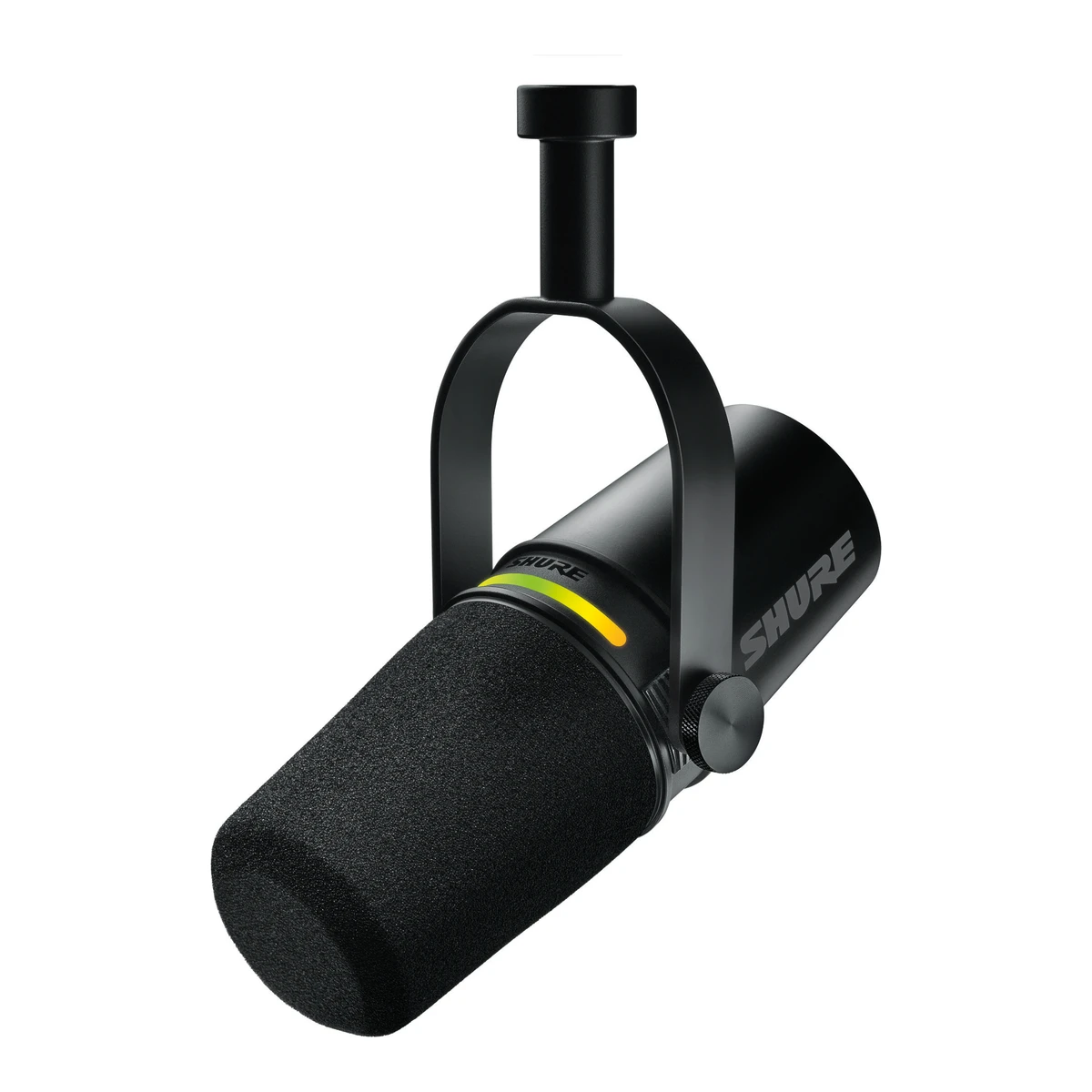

Shure MV7+
Type
Dynamic
Polar patterns
Cardioid
Outputs
USB, XLR
Frequency response
50 Hz / 16 kHz

43 of 61 fields known.

All specs

SourceCalculated

General

Predecessor
Not available
Successor
Not available
Launch price (EU)
Not available
Markets
Not available

Capsule and pickup

Capsule size
Not available
Polar patterns
Cardioid1Maker product pageshure.com/en-US/products/microphones/mv7Read 14 October 2026Page data lists cardioid.2Owner's manualpubs.shure.com/view/guide/MV7plus/en-US.pdfRead 14 October 2026
Address type
End address1Maker product pageshure.com/en-US/products/microphones/mv7Read 14 October 2026Page data form factor: End-Address/Small Diaphragm.

Sound specs

Frequency response
Min50 HzMax16 kHz1Maker product pageshure.com/en-US/products/microphones/mv7Read 14 October 20262Owner's manualpubs.shure.com/view/guide/MV7plus/en-US.pdfRead 14 October 2026
Sensitivity (analog)
-55dBV/Pa2Owner's manualpubs.shure.com/view/guide/MV7plus/en-US.pdfRead 14 October 2026Spec table: -55 dBV/Pa (1.78 mV) at 1 kHz, open circuit voltage with XLR connection, 1 Pa = 94 dB SPL. The XLR output is passive and has no preamp.
Sensitivity (digital)
-33dBFS1Maker product pageshure.com/en-US/products/microphones/mv7Read 14 October 2026Page data lists sensitivity -33.0 dBFS/Pa. The user guide ties -33 dBV/Pa to the USB-C connection.2Owner's manualpubs.shure.com/view/guide/MV7plus/en-US.pdfRead 14 October 2026Spec table: -33 dBV/Pa at 1 kHz, open circuit voltage with USB-C connection, 1 Pa = 94 dB SPL, at minimum gain and flat mode. The adjustable gain range is 0 to +36 dB. The output is digital over USB, so the value is stored as digital sensitivity.
Max SPL
128dB SPL2Owner's manualpubs.shure.com/view/guide/MV7plus/en-US.pdfRead 14 October 2026USB-C maximum SPL 128 dB SPL at minimum gain, flat mode. No THD level is given and no XLR figure is printed.
Max SPL distortion limit
Not available
Self-noise
Not available
Digital noise floor
Not available
Signal-to-noise ratio
Not available
Dynamic range
Not available
Output impedance
350Ω2Owner's manualpubs.shure.com/view/guide/MV7plus/en-US.pdfRead 14 October 2026350 ohm at 1 kHz with XLR connection.

Connectivity

Outputs
USB, XLR1Maker product pageshure.com/en-US/products/microphones/mv7Read 14 October 2026Dual USB-C and XLR outputs.2Owner's manualpubs.shure.com/view/guide/MV7plus/en-US.pdfRead 14 October 2026
Inputs for other sources
Not available
USB and XLR at once
Not available
USB port
USB-C2Owner's manualpubs.shure.com/view/guide/MV7plus/en-US.pdfRead 14 October 2026
Cable host plug
USB-C2Owner's manualpubs.shure.com/view/guide/MV7plus/en-US.pdfRead 14 October 2026Furnished accessory: a 3 meter USB-C to USB-C cable.
Phantom power
Not required2Owner's manualpubs.shure.com/view/guide/MV7plus/en-US.pdfRead 14 October 2026The XLR output is passive and the spec table lists phantom power protection: yes. The microphone is powered through USB-C bus power. A dynamic microphone needs no phantom power.

Digital audio

Max sample rate
48kHz2Owner's manualpubs.shure.com/view/guide/MV7plus/en-US.pdfRead 14 October 2026
32-bit float recording
No2Owner's manualpubs.shure.com/view/guide/MV7plus/en-US.pdfRead 14 October 2026The bit depth table lists only 24 bit and 16 bit, so no 32-bit float format.

Monitoring

Controls and processing

Onboard controls
Mute1Maker product pageshure.com/en-US/products/microphones/mv7Read 14 October 2026Instantly mute the microphone by tapping anywhere on the LED panel. Gain and monitor mix are set in MOTIV Mix.2Owner's manualpubs.shure.com/view/guide/MV7plus/en-US.pdfRead 14 October 2026The LED touch panel mutes the microphone when touched. Mute lock is set in MOTIV Mix. Gain and monitor mix show on the panel but are set in MOTIV Mix.
Onboard processing
Auto level, Compressor, Limiter, Noise reduction, EQ, High-pass filter, Plosive reduction1Maker product pageshure.com/en-US/products/microphones/mv7Read 14 October 2026Page lists Auto Level Mode, real-time Denoiser, Digital Popper Stopper, three reverbs and sound signature, EQ and compression in MOTIV Mix. The user guide spec table lists the on-board DSP and says the device stores the most recently used settings.2Owner's manualpubs.shure.com/view/guide/MV7plus/en-US.pdfRead 14 October 2026Spec table, on-board DSP: Auto-Level Mode, Digital Popper Stopper, Real-time Denoiser, Tone Slider, Reverb, Compressor, Limiter, High-Pass Filter. Digital Popper Stopper is stored as plosive reduction and the Tone Slider as EQ. Reverb has no matching option. Manual mode sets gain, compressor and limiter, and Auto Level is the default. The guide says the device stores the most recently used settings.

Mounting and accessories

Mount threads
5/8 inch, 3/8 inch2Owner's manualpubs.shure.com/view/guide/MV7plus/en-US.pdfRead 14 October 20265/8 in-27 thread mount. The furnished accessories include a 5/8 in to 3/8 in thread adapter.
Shock mount
Not available

Design and build

RGB lighting
Yes1Maker product pageshure.com/en-US/products/microphones/mv7Read 14 October 2026The LED touch panel offers 16.8 million colors and a pulsing light effect besides the live meter and mute state. The decorative pulse is why this is stored as true.
Lighting zones
Not available

Software

Compatibility

Dimensions and weight

Front and side, drawn to scale.

Microphone dimensions
Width90Height164Depth169.5mm(3.5 × 6.5 × 6.7 in)2Owner's manualpubs.shure.com/view/guide/MV7plus/en-US.pdfRead 14 October 2026Overall dimensions drawing, page 13: 169.5 mm long, 90 mm wide and 164.0 mm high, with the yoke and its mount post. The microphone points along the length, so the depth is 169.5 mm.
Weight with stand
Not available

Certifications

In the box

Warranty

We could not find any of these 1 fields. Show them
Manufacturer warranty (source market)
Not available

Compare with

Pick a microphone to see both side by side. Differences are marked yellow.

More microphone comparisons

Variants

Each variant lists only what differs from the specs above.

Model numberGTINLaunch price (US)ColoursDesk stand includedIn the box
MV7+-K042406791571$279BlackSame as baseMV7+ Black, USB-C to USB-C cable, Quick Start Guide
MV7+-W042406812719$279WhiteSame as baseMV7+ White, USB-C to USB-C cable, Quick Start Guide
MV7+-K-BNDL042406791694$299BlackYesMV7+ Black, USB-C to USB-C cable, Quick Start Guide, Shure-by-Gator Desktop Microphone Stand
