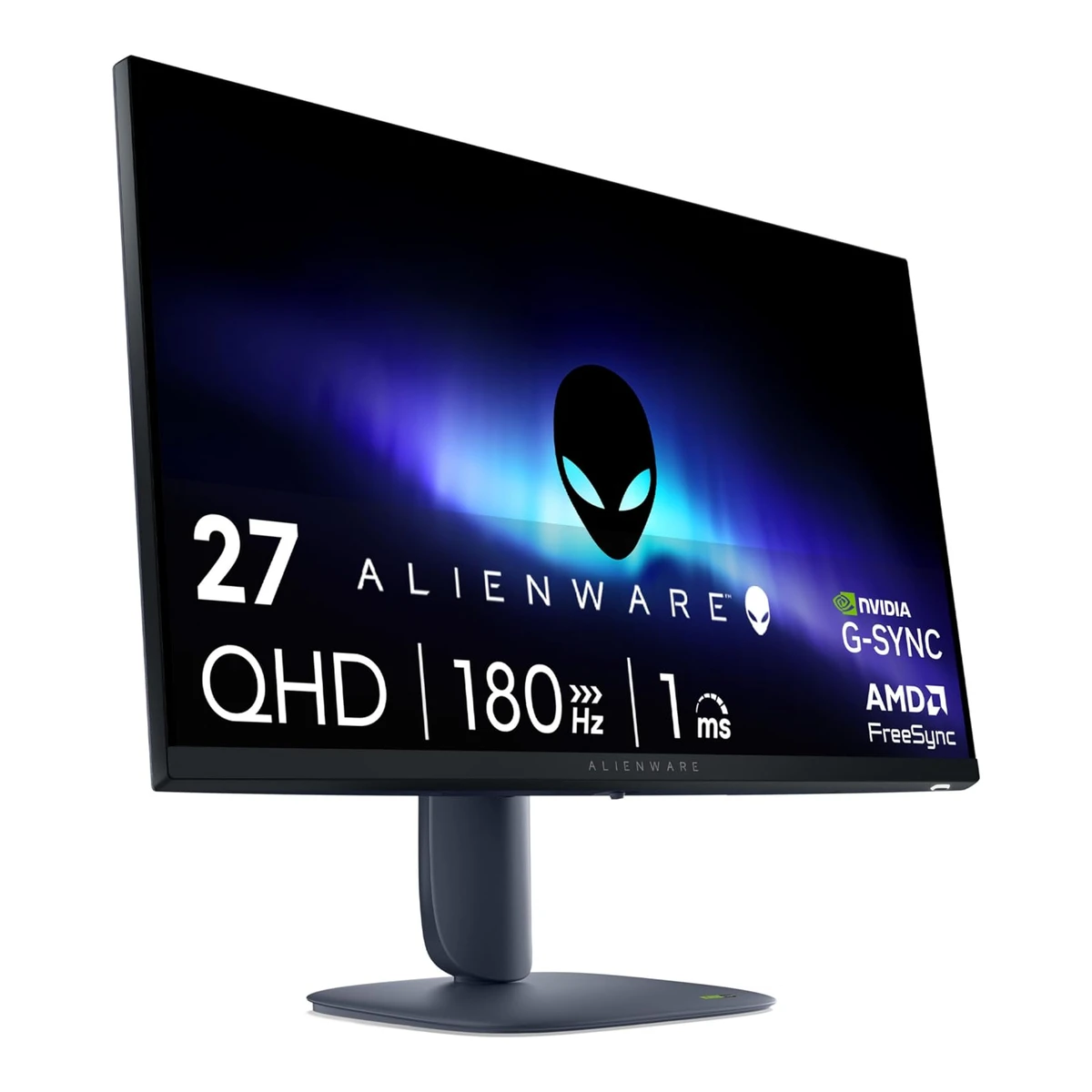

Alienware AW2725DM

General

Series

Alienware1Owner's manualgzhls.at/blob/ldb/c/7/8/7/6f1cf3c9c25bac93eb9bc32ac4630ae655d2.pdfRead 16 October 2026Cover: Alienware 27 Gaming Monitor AW2725DM. Alienware is Dell's gaming brand and the series name matches the other Alienware monitors in the catalog.

Model numbersiMaker identifiers for this exact model and its listed variants. Excludes sibling models and other generations.

AW2725DM, AW2725DMc, 210-BPKY, 210-BQWQ, 6R0H21Owner's manualgzhls.at/blob/ldb/c/7/8/7/6f1cf3c9c25bac93eb9bc32ac4630ae655d2.pdfRead 16 October 2026Cover: model AW2725DM, regulatory model AW2725DMc. The part numbers 210-BPKY and 210-BQWQ and the code 6R0H2 come from the retail sources below.6Retailer pageamazon.com/dp/B0F146MYKDRead 16 October 2026Amazon US item details: model number 6R0H2, model name Alienware 27 Gaming Monitor - AW2725DM.7Spec databasepreisvergleich.heise.de/dell-alienware-27-gaming-monitor-aw2725dm-210-bpky-a3475057.htmlRead 16 October 2026Heise price comparison: Dell Alienware 27 Gaming Monitor AW2725DM, part number 210-BPKY. Retailers in that listing also use 210-BQWQ and GAME-AW2725DM.8Spec databaselcd-compare.com/moniteur-ALIAW2725DM-ALIENWARE-AW2725DM.htmRead 16 October 2026LCD-Compare: ALIENWARE AW2725DM (210-BQWQ).9Spec databasebuildcores.com/products/Monitor/gnig353g0/Alienware-27-Gaming-Monitor-AW2725DMRead 16 October 2026BuildCores: part number 210-BPKY.

GTIN / EAN

884116492764, 53971849627186Retailer pageamazon.com/dp/B0F146MYKDRead 16 October 2026Amazon US ASIN B0F146MYKD, Alienware 27 Gaming Monitor - AW2725DM: UPC 884116492764. BuildCores lists the same UPC. The EAN 5397184962718 is from the sources below.8Spec databaselcd-compare.com/moniteur-ALIAW2725DM-ALIENWARE-AW2725DM.htmRead 16 October 2026LCD-Compare reference: 210-BQWQ (EAN 5397184962718) and UPC 0884116492764. Two EU retailers list the same EAN with 210-BQWQ.9Spec databasebuildcores.com/products/Monitor/gnig353g0/Alienware-27-Gaming-Monitor-AW2725DMRead 16 October 2026BuildCores: UPC 884116492764, EAN 0884116492764 for part number 210-BPKY.

AnnouncediThe maker's first announcement of this model. This is separate from first retail availability.

Not available

Status

Available5Press releasethefpsreview.com/2025/03/05/alienware-announces-six-new-gaming-monitors-and-the-launch-of-the-aw2725q-a-27-4k-qd-oled-monitor-with-166-ppi-pixel-density-record-highest-pixels-per-inch-in-any-oled-or-qd-oled-monitorRead 16 October 2026Announcement lists the AW2725DM as available from 6 March 2025 and retailers still sell it.6Retailer pageamazon.com/dp/B0F146MYKDRead 16 October 2026On sale on Amazon US and in EU shops.7Spec databasepreisvergleich.heise.de/dell-alienware-27-gaming-monitor-aw2725dm-210-bpky-a3475057.htmlRead 16 October 2026Heise lists the monitor from 22 April 2025 with offers from German shops.

PredecessoriThe model this one directly replaced, in the same line, tier and size, as the maker or a trusted review names it.

Not available

SuccessoriThe model that directly replaced this one, in the same line, tier and size. A revision such as a Slim or OLED model does not count when a next generation exists.

Not available

Launch price (US)iThe maker's US launch MSRP for the stated configuration, excluding tax. Current store prices and later discounts do not qualify.

$269.995Press releasethefpsreview.com/2025/03/05/alienware-announces-six-new-gaming-monitors-and-the-launch-of-the-aw2725q-a-27-4k-qd-oled-monitor-with-166-ppi-pixel-density-record-highest-pixels-per-inch-in-any-oled-or-qd-oled-monitorRead 16 October 2026Dell's Alienware announcement of 4 March 2025, reposted in full by The FPS Review: Alienware 27 IPS Monitor (AW2725DM), availability March 6, 2025 (NA), target price about $269.99 USD. It is a US target price, so it is stored without tax. Pricing is subject to change.

Launch price (EU)iThe maker's euro launch price for the stated configuration, including VAT as published. Current store prices and later discounts do not qualify.

Not available

MarketsiISO country or region codes where this exact model or variant is sold. A source page's language does not establish availability.

US, EU2EU energy label (EPREL)eprel.ec.europa.eu/fiches/electronicdisplays/Fiche_2167459_EN.pdfRead 16 October 2026EU and EEA market availability from the registry. The US comes from the Amazon US listing and the Dell announcement.6Retailer pageamazon.com/dp/B0F146MYKDRead 16 October 2026Amazon US sells the monitor in the United States.

ColoursiThe maker's own colour names

Interstellar Indigo6Retailer pageamazon.com/dp/B0F146MYKDRead 16 October 2026Amazon US lists the colour as Black, but the product photos and Best Buy US show a dark blue finish that Best Buy names Interstellar Indigo. The Best Buy name is stored.10Retailer pagebestbuy.com/product/alienware-aw2725dm-27-ips-led-qhd-180hz-1ms-freesync-and-g-sync-compatible-gaming-monitor-with-hdr-hdmi-displayport-interstellar-indigo/J3K4L636PRRead 16 October 2026The Best Buy US product title names the colour Interstellar Indigo. The page did not load for scripted access, so the title was read from search results. Notebookcheck's launch coverage uses the same name.

SegmentiFrom the maker's own product category. Office also covers home and everyday monitors.

Gaming1Owner's manualgzhls.at/blob/ldb/c/7/8/7/6f1cf3c9c25bac93eb9bc32ac4630ae655d2.pdfRead 16 October 2026Alienware is Dell's gaming brand and the guide lists game features such as Dark Stabilizer, Game Enhance Mode and AlienVision.

Display

Screen sizeiDiagonal in inches exactly as the maker advertises it. A class size and the viewable diagonal can differ.

27in(68.6 cm)1Owner's manualgzhls.at/blob/ldb/c/7/8/7/6f1cf3c9c25bac93eb9bc32ac4630ae655d2.pdfRead 16 October 2026Table 5: viewable diagonal 685.8 mm (27.0 in.). The product name is Alienware 27.

Viewable screen diagonaliDiagonal of the visible image area. This can be smaller than the advertised class size.

27in(68.6 cm)1Owner's manualgzhls.at/blob/ldb/c/7/8/7/6f1cf3c9c25bac93eb9bc32ac4630ae655d2.pdfRead 16 October 2026Table 5: viewable image diagonal 685.8 mm (27.0 in.).

Native resolution

2560 × 1440px1Owner's manualgzhls.at/blob/ldb/c/7/8/7/6f1cf3c9c25bac93eb9bc32ac4630ae655d2.pdfRead 16 October 2026Features list: 2560 x 1440 resolution. Table 6: maximum preset resolution 2560 x 1440.

Aspect ratio

16:91Owner's manualgzhls.at/blob/ldb/c/7/8/7/6f1cf3c9c25bac93eb9bc32ac4630ae655d2.pdfRead 16 October 2026Table 5: 16:9.

Pixel density

108.8ppi=CalculatedFrom Screen size and Native resolution

Pixel pitchiDistance between adjacent pixels. Source notes identify horizontal or vertical pitch if they differ. A horizontal figure about a third of the vertical one is the pitch of one subpixel, not of a pixel, so the pixel figure is stored.

0.2331mm1Owner's manualgzhls.at/blob/ldb/c/7/8/7/6f1cf3c9c25bac93eb9bc32ac4630ae655d2.pdfRead 16 October 2026Table 5: 0.2331 mm horizontal and vertical.

Active display areaiMaker published active-display width and height, excluding the external frame. Source notes distinguish image area from any published shift-reserve area. Dimensions are not inferred from native resolution or rounded pixel pitch.

Width596.74Height335.66mm(23.5 × 13.2 in)1Owner's manualgzhls.at/blob/ldb/c/7/8/7/6f1cf3c9c25bac93eb9bc32ac4630ae655d2.pdfRead 16 October 2026Table 5: active area 596.74 mm horizontal and 335.66 mm vertical.

Curved

No1Owner's manualgzhls.at/blob/ldb/c/7/8/7/6f1cf3c9c25bac93eb9bc32ac4630ae655d2.pdfRead 16 October 2026Table 5: curvature N/A for the AW2725DM. The AW3225DM column is 1500R.

Curvature radiusiRadius of screen curvature. A published 1800R is 1800 mm.

Not available

Screen surface

Matte1Owner's manualgzhls.at/blob/ldb/c/7/8/7/6f1cf3c9c25bac93eb9bc32ac4630ae655d2.pdfRead 16 October 2026Table 5: anti-glare with hard-coating 3H. Anti-glare is a matte surface.

Anti-reflection coating

Anti-glare with hard-coating 3H1Owner's manualgzhls.at/blob/ldb/c/7/8/7/6f1cf3c9c25bac93eb9bc32ac4630ae655d2.pdfRead 16 October 2026Table 5 display screen coating, verbatim.

Touchscreen

Not available

Panel

Panel type

Fast IPS6Retailer pageamazon.com/dp/B0F146MYKDRead 16 October 2026Amazon US title and Dell brand text: WQHD Fast IPS. The Fast IPS name maps to the fast_ips option.

Panel type (as published)iPanel or technology name as published. This is separate from the normalised panel type.

Fast IPS1Owner's manualgzhls.at/blob/ldb/c/7/8/7/6f1cf3c9c25bac93eb9bc32ac4630ae655d2.pdfRead 16 October 2026Table 5 calls the panel technology In-Plane Switching (IPS). Dell's Amazon US text calls it Fast IPS, which is the name stored.6Retailer pageamazon.com/dp/B0F146MYKDRead 16 October 2026Amazon US title: Fast IPS.

BacklightiLayout of the backlight. OLED is none (self-emissive). WLED or LED alone names no layout, so it is left out unless a source states edge-lit or direct-lit.

Not available

Local dimming

Not available

Dimming zones

Not available

Panel maker

Not available

Panel part number

Not available

Panel generationiGeneration or panel architecture name stated by the source. Brand product generation and panel generation can differ.

Not available

Subpixel layoutiArrangement of the red, green, blue and any white emitters within a pixel. Individual emitter shapes do not establish their arrangement. Marketing names such as Primary RGB Tandem do not prove an RGB stripe layout.

Not available

Colour depthiSupported total colour depth per channel. A stated 8-bit plus FRC implementation is 10 supported bits with FRC, not native 10-bit. A 6-bit plus FRC panel, also called Hi-FRC, is 8 bits with FRC.

10bits1Owner's manualgzhls.at/blob/ldb/c/7/8/7/6f1cf3c9c25bac93eb9bc32ac4630ae655d2.pdfRead 16 October 2026Table 5: 1.07 billion colors, which is 10 bits per channel. The HDMI line says 10bit.

Colour depth methodiNative panel bits or temporal frame rate control. Supported 10-bit input alone does not prove native 10-bit panel depth.

FRC8Spec databaselcd-compare.com/moniteur-ALIAW2725DM-ALIENWARE-AW2725DM.htmRead 16 October 2026LCD-Compare: panel 8 bits + FRC. No maker document states the panel method. The guide gives 1.07 billion colors, so the panel is 10-bit with FRC.

Displayable colours

1.07 billion1Owner's manualgzhls.at/blob/ldb/c/7/8/7/6f1cf3c9c25bac93eb9bc32ac4630ae655d2.pdfRead 16 October 2026Table 5: color depth 1.07 billion colors.

sRGB coverageiPercentage of the sRGB reference gamut covered. Gamut volume is a different measure and is not stored here. Source notes identify the colour-space standard.

Not available

DCI-P3 coverageiPercentage of DCI-P3 covered. Do not substitute gamut volume. Source notes identify the CIE reference and any minimum or typical qualifier.

95%1Owner's manualgzhls.at/blob/ldb/c/7/8/7/6f1cf3c9c25bac93eb9bc32ac4630ae655d2.pdfRead 16 October 2026Table 5: color gamut DCI-P3 95% (CIE 1976), typical.

Adobe RGB coverageiPercentage of Adobe RGB covered. Do not substitute gamut volume.

Not available

Rec. 2020 coverageiPercentage of Rec. 2020 covered. Do not substitute gamut volume.

Not available

NTSC coverageiPercentage of the NTSC reference gamut covered. Source notes identify the reference. Do not substitute gamut volume.

Not available

Factory calibrated

Not available

Claimed Delta EiMaker claim for colour error. Source notes retain a less-than qualifier, the colour space and whether the figure is an average or maximum.

Not available

Paper calibration report in boxiA physical calibration report included in the package. An electronic report in the menu or software does not count as a paper report.

Not available

Hardware calibration supportiCalibration writes to the monitor internal hardware LUT. Ordinary colour controls or a computer ICC profile do not establish this feature.

Not available

Static contrast ratioiPanel native static contrast, without dynamic contrast processing or local dimming. 1000 means 1000:1. Do not store a dynamic contrast claim here.

1,000:11Owner's manualgzhls.at/blob/ldb/c/7/8/7/6f1cf3c9c25bac93eb9bc32ac4630ae655d2.pdfRead 16 October 2026Table 5: contrast ratio 1000:1 typical.

Brightness (typical, SDR)iMaker typical SDR white luminance. Source notes state any window size, average picture level and operating mode.

400nits1Owner's manualgzhls.at/blob/ldb/c/7/8/7/6f1cf3c9c25bac93eb9bc32ac4630ae655d2.pdfRead 16 October 2026Table 5: 400 cd/m2 typical.

Brightness (maker minimum)iMaker minimum guaranteed brightness specification under its stated conditions. This is not the lowest user-selectable brightness unless the source explicitly says so.

Not available

Peak brightness (HDR)iMaker peak HDR white luminance. The source notes state window size or average picture level, mode and time limit where published.

Not available

HDR peak test windowiPercentage of screen area used for the peak HDR claim. If the maker publishes average picture level instead, source notes identify that distinction.

Not available

Full-screen brightnessiMaker white luminance at 100% screen area or 100% average picture level. Source notes state SDR or HDR and mode.

Not available

HDR formats

HDR108Spec databaselcd-compare.com/moniteur-ALIAW2725DM-ALIENWARE-AW2725DM.htmRead 16 October 2026LCD-Compare lists HDR10 and HDR10+ for the AW2725DM. HDR10 is required by DisplayHDR 400. HDR10+ is not stored because no maker document names it.

HDR certificationiVESA DisplayHDR certification. None needs a source, such as the maker saying the monitor has no DisplayHDR certification or the model being absent from the VESA list. When no source was checked, it is left out.

DisplayHDR 4001Owner's manualgzhls.at/blob/ldb/c/7/8/7/6f1cf3c9c25bac93eb9bc32ac4630ae655d2.pdfRead 16 October 2026Table 5 and features list: VESA DisplayHDR 400. The Smart HDR menu entry says DisplayHDR 400 is compliant with the DisplayHDR True Black standard. That wording looks copied from an OLED model. Amazon US and Heise both say DisplayHDR 400, so the LCD tier is stored.6Retailer pageamazon.com/dp/B0F146MYKDRead 16 October 2026Dell brand image on Amazon US shows the VESA Certified DisplayHDR 400 logo.7Spec databasepreisvergleich.heise.de/dell-alienware-27-gaming-monitor-aw2725dm-210-bpky-a3475057.htmlRead 16 October 2026Heise: DisplayHDR 400, VESA certified.

Viewing angle (horizontal)

178°1Owner's manualgzhls.at/blob/ldb/c/7/8/7/6f1cf3c9c25bac93eb9bc32ac4630ae655d2.pdfRead 16 October 2026Table 5: 178 degrees typical.

Viewing angle (vertical)

178°1Owner's manualgzhls.at/blob/ldb/c/7/8/7/6f1cf3c9c25bac93eb9bc32ac4630ae655d2.pdfRead 16 October 2026Table 5: 178 degrees typical.

Refresh rate and motion

Refresh rate per resolution and portiHighest accepted rate for each proven resolution, input and operating condition. Preset or supported timing lists alone do not prove a maximum. Keep separate bit-depth, chroma and DSC conditions. Dual-mode or crop-mode requirements belong in source notes. Unknown input stays unknown.

Refresh rate per resolution and port. The top rate is in bold.

Resolution	HDMI 2.1 TMDS	DisplayPort 1.4
2560 × 1440Native	144Hz10-bit	180Hz

Source1Owner's manualgzhls.at/blob/ldb/c/7/8/7/6f1cf3c9c25bac93eb9bc32ac4630ae655d2.pdfRead 16 October 2026Table 5 connectivity: one DP 1.4 supports up to 2560 x 1440 at 180 Hz with HDR and VRR. Two HDMI 2.1 ports support up to QHD 2560 x 1440 at 144 Hz 10bit TMDS with HDR and VRR as specified in HDMI 2.1. Table 6 gives the same maximum preset resolution per input, 180 Hz on DisplayPort and 144 Hz on HDMI. Bit depth of the DisplayPort mode, chroma and DSC are not stated. The preset timing tables are not used as proof.

Show as source table

Width (px)	Height (px)	Input	Input version	Maximum accepted rate (Hz)	Bit depth (bits)
2560	1440	DisplayPort	1.4	180	Not available
2560	1440	HDMI	2.1 TMDS	144	10

Max refresh rateiHighest proven accepted rate across the stored modes, including lower-resolution dual modes.

180Hz=CalculatedFrom Refresh rate per resolution and port

Max refresh rate at native resolutioniHighest proven accepted rate at the native pixel resolution, across all inputs and stored operating conditions.

180Hz=CalculatedFrom Refresh rate per resolution and port and Native resolution

Max refresh rate over DisplayPortiHighest proven accepted rate over DisplayPort at native resolution. A higher lower-resolution dual mode is separate.

180Hz=CalculatedFrom Refresh rate per resolution and port and Native resolution

Max refresh rate over HDMIiHighest proven accepted rate over HDMI at native resolution. Console refresh limits can be lower than PC limits.

144Hz=CalculatedFrom Refresh rate per resolution and port and Native resolution

Max refresh rate over USB-CiHighest proven accepted rate over USB-C or Thunderbolt at native resolution. USB data bandwidth settings can lower the video maximum.

Not available

Max refresh rate at 10-bitiHighest stored native-resolution mode explicitly proven at 10-bit colour. Rows without bit-depth evidence do not count.

144Hz=CalculatedFrom Refresh rate per resolution and port and Native resolution

Native refresh rateiHighest refresh rate the maker rates without overclock. A lower optimum or recommended mode in a manual is not this value.

180Hz1Owner's manualgzhls.at/blob/ldb/c/7/8/7/6f1cf3c9c25bac93eb9bc32ac4630ae655d2.pdfRead 16 October 2026Table 6: maximum preset resolution 2560 x 1440 at 180 Hz on DisplayPort. No overclock mode is described. The EU registry lists 60 Hz as the default image refresh rate, which is the factory default mode and not the rated maximum.

Overclocked refresh rate

Not available

Dual modeiA dedicated display mode that changes resolution to raise the maximum refresh rate. Ordinary image scaling or a preset timing does not count.

Not available

Minimum fixed refresh rateiLowest fixed input rate accepted by the monitor. A VRR lower limit or general vertical scan range is not this value.

Not available

Adaptive sync technologiesiExact published adaptive-sync protocol or named certification. Generic Adaptive-Sync support does not prove VESA AdaptiveSync Display certification. Source notes distinguish protocols from certifications.

VESA AdaptiveSync Display, FreeSync, G-SYNC Compatible, HDMI VRR1Owner's manualgzhls.at/blob/ldb/c/7/8/7/6f1cf3c9c25bac93eb9bc32ac4630ae655d2.pdfRead 16 October 2026Features list: VESA AdaptiveSync Display certification, NVIDIA G-SYNC Compatible Certified (AW2725DM only) and support for AMD FreeSync Technology. Table 5 lists VRR on the HDMI ports as specified in HDMI 2.1. No FreeSync tier is named. Table 6 gives 48 to 180 Hz (DisplayPort) and 48 to 144 Hz (HDMI) as general vertical scan ranges. They are not stated as VRR ranges, so no VRR range is stored.6Retailer pageamazon.com/dp/B0F146MYKDRead 16 October 2026Amazon US title and brand images: G-SYNC, FreeSync and VESA AdaptiveSync.

VRR range per portiVariable-refresh-rate operating range for each input and the operating mode named in source notes. A fixed timing or general vertical scan range alone is not a VRR range.

Not available

Low framerate compensation

Not available

Response time (maker GtG claim)iMaker grey-to-grey pixel transition claim. Source notes state fastest overdrive or other conditions where published.

1ms1Owner's manualgzhls.at/blob/ldb/c/7/8/7/6f1cf3c9c25bac93eb9bc32ac4630ae655d2.pdfRead 16 October 2026Table 5: 1 ms gray to gray in Extreme mode, 2 ms in Super Fast mode and 4 ms in Fast mode. The fastest value is stored.

Response time (maker MPRT claim)iMaker moving-picture response-time claim, often with strobing enabled. This is not a grey-to-grey transition time.

Not available

Overdrive settings

Fast, Super Fast, Extreme1Owner's manualgzhls.at/blob/ldb/c/7/8/7/6f1cf3c9c25bac93eb9bc32ac4630ae655d2.pdfRead 16 October 2026OSD Game menu, Response Time: Fast, Super Fast or Extreme.

Motion blur reductioniA dedicated blur-reduction feature using backlight strobing or black frame insertion. OLED monitors have no backlight.

Not available

Blur-reduction technologyiPublished name of the backlight strobing or black frame insertion feature.

Not available

Blur reduction works with VRRiWhether the dedicated strobing or black frame insertion mode can operate at the same time as variable refresh rate.

Not available

Flicker-free (claimed)

Yes1Owner's manualgzhls.at/blob/ldb/c/7/8/7/6f1cf3c9c25bac93eb9bc32ac4630ae655d2.pdfRead 16 October 2026Features list: flicker-free screen.

Black frame insertion

Not available

Connectivity

Video inputsiPhysical connectors that accept a display signal. A USB-C data-only charging port is not a video input. Counts exclude USB hubs and audio jacks.

Type	Version	Count	HDCP
DisplayPort	1.4	1	2.3
HDMI	2.1 TMDS	2	2.3

Source1Owner's manualgzhls.at/blob/ldb/c/7/8/7/6f1cf3c9c25bac93eb9bc32ac4630ae655d2.pdfRead 16 October 2026Table 4 lists the bottom connectors: power, security lock, HDMI 1, HDMI 2, DisplayPort, USB upstream and two USB downstream ports. Table 5: DP 1.4 and two HDMI 2.1 ports, all HDCP 1.4 and 2.3. The highest HDCP version is stored. The cable in the box is named HDMI 2.1 TMDS. Raw link bandwidth is not stated.

HDMI ports

2=CalculatedFrom Video inputs

DisplayPort ports

1=CalculatedFrom Video inputs

Highest HDMI version

2.1 TMDS=CalculatedFrom Video inputs

Highest DisplayPort version

1.4=CalculatedFrom Video inputs

HDMI features

VRR1Owner's manualgzhls.at/blob/ldb/c/7/8/7/6f1cf3c9c25bac93eb9bc32ac4630ae655d2.pdfRead 16 October 2026Table 5: VRR as specified in HDMI 2.1. The guide does not list ALLM, QMS or eARC.

USB-C video (DP Alt Mode)

No1Owner's manualgzhls.at/blob/ldb/c/7/8/7/6f1cf3c9c25bac93eb9bc32ac4630ae655d2.pdfRead 16 October 2026The complete bottom-view connector table (Table 4) has no USB-C connector.

USB-C power deliverediPower the monitor supplies to a connected device. Source notes distinguish guaranteed, maximum and shared dynamic limits. Power consumed by the monitor is separate.

Not available

Thunderbolt

Not available

USB upstream portsiUSB connections from the monitor hub to host computers. Video input and downstream charging ports are separate.

Connector	USB version	Count
USB-B	5Gbps	1

Source1Owner's manualgzhls.at/blob/ldb/c/7/8/7/6f1cf3c9c25bac93eb9bc32ac4630ae655d2.pdfRead 16 October 2026Table 4 and Table 18: one USB 5Gbps Type-B upstream port at the rear.

USB downstream hub portsiUSB hub connections for peripherals. These exclude host-facing upstream ports. A port the maker names for service or firmware updates only is not counted.

Connector	USB version	Count
USB-A	5Gbps	2

Source1Owner's manualgzhls.at/blob/ldb/c/7/8/7/6f1cf3c9c25bac93eb9bc32ac4630ae655d2.pdfRead 16 October 2026Table 4 and Table 18: two USB 5Gbps Type-A downstream ports at the bottom. One supports BC1.2 charging up to 2 A. A numbered USB revision is not inferred from the speed.

KVM switch

Not available

Daisy chain (MST)

No1Owner's manualgzhls.at/blob/ldb/c/7/8/7/6f1cf3c9c25bac93eb9bc32ac4630ae655d2.pdfRead 16 October 2026The complete bottom-view connector table has one DisplayPort input and no DisplayPort output.

Ethernet

No1Owner's manualgzhls.at/blob/ldb/c/7/8/7/6f1cf3c9c25bac93eb9bc32ac4630ae655d2.pdfRead 16 October 2026The complete bottom-view connector table has no Ethernet socket.

3.5 mm headphone outputiAnalogue headphone or audio output. A shared four-pole headset jack counts.

No1Owner's manualgzhls.at/blob/ldb/c/7/8/7/6f1cf3c9c25bac93eb9bc32ac4630ae655d2.pdfRead 16 October 2026The complete bottom-view connector table has no audio jack. The AU Review also says there is no 3.5 mm audio jack.

3.5 mm microphone inputiAnalogue microphone input, including the microphone contacts of a shared four-pole headset jack. This does not imply a separate microphone socket.

No1Owner's manualgzhls.at/blob/ldb/c/7/8/7/6f1cf3c9c25bac93eb9bc32ac4630ae655d2.pdfRead 16 October 2026The complete bottom-view connector table has no audio jack.

Optical out

No1Owner's manualgzhls.at/blob/ldb/c/7/8/7/6f1cf3c9c25bac93eb9bc32ac4630ae655d2.pdfRead 16 October 2026The complete bottom-view connector table has no optical output.

Picture in picture

Yes1Owner's manualgzhls.at/blob/ldb/c/7/8/7/6f1cf3c9c25bac93eb9bc32ac4630ae655d2.pdfRead 16 October 2026Features list: supports Picture by Picture (PBP), Picture in Picture (PIP) and Console Mode. Table 12 lists the input pairs for the PIP/PBP mode.

Picture by picture

Yes1Owner's manualgzhls.at/blob/ldb/c/7/8/7/6f1cf3c9c25bac93eb9bc32ac4630ae655d2.pdfRead 16 October 2026Features list and Table 12: Picture by Picture (PBP).

Audio and camera

Speakers

No1Owner's manualgzhls.at/blob/ldb/c/7/8/7/6f1cf3c9c25bac93eb9bc32ac4630ae655d2.pdfRead 16 October 2026The parts tables list no speaker. Heise lists speakers as N/A.7Spec databasepreisvergleich.heise.de/dell-alienware-27-gaming-monitor-aw2725dm-210-bpky-a3475057.htmlRead 16 October 2026Heise: speakers N/A.

Number of speakers

Not available

Speaker power per channeliRated power per speaker or output channel. Do not store the total of all speakers here.

Not available

Webcam

No1Owner's manualgzhls.at/blob/ldb/c/7/8/7/6f1cf3c9c25bac93eb9bc32ac4630ae655d2.pdfRead 16 October 2026The front, back and bottom parts tables list no camera.

Microphone

No1Owner's manualgzhls.at/blob/ldb/c/7/8/7/6f1cf3c9c25bac93eb9bc32ac4630ae655d2.pdfRead 16 October 2026The front, back and bottom parts tables list no microphone.

Ergonomics and controls

Stand height adjustmentiVertical travel of the supplied stand. This is not the total height of the monitor.

110mm1Owner's manualgzhls.at/blob/ldb/c/7/8/7/6f1cf3c9c25bac93eb9bc32ac4630ae655d2.pdfRead 16 October 2026Table 5: height adjustable stand 0 mm to 110 mm.4Maker spec sheet (PDF)gzhls.at/blob/ldb/7/f/c/7/37b80c7b1a222ccf24625e9505b858d3bfeb.pdfRead 16 October 2026Outline drawing: lift 110.00 mm.

TiltiMaximum movement from the neutral position with the supplied stand. Each direction is stored as a positive magnitude.

Forward5°Backward21°1Owner's manualgzhls.at/blob/ldb/c/7/8/7/6f1cf3c9c25bac93eb9bc32ac4630ae655d2.pdfRead 16 October 2026Table 5: tilt -5 to +21 degrees. Stored as 5 forward and 21 backward.4Maker spec sheet (PDF)gzhls.at/blob/ldb/7/f/c/7/37b80c7b1a222ccf24625e9505b858d3bfeb.pdfRead 16 October 2026Outline drawing tilt marks: 5 and 21 degrees.

SwiveliMaximum movement from the neutral position with the supplied stand. Each direction is stored as a positive magnitude.

Left20°Right20°1Owner's manualgzhls.at/blob/ldb/c/7/8/7/6f1cf3c9c25bac93eb9bc32ac4630ae655d2.pdfRead 16 October 2026Table 5: swivel -20 to +20 degrees for the AW2725DM.4Maker spec sheet (PDF)gzhls.at/blob/ldb/7/f/c/7/37b80c7b1a222ccf24625e9505b858d3bfeb.pdfRead 16 October 2026Outline drawing: swivel 20 degrees to each side.

PivotiMaximum movement from the neutral position with the supplied stand. Each direction is stored as a positive magnitude. Pivot is rotation in the screen plane. A small slant adjustment for levelling, as Dell calls it, counts.

Counterclockwise90°Clockwise90°1Owner's manualgzhls.at/blob/ldb/c/7/8/7/6f1cf3c9c25bac93eb9bc32ac4630ae655d2.pdfRead 16 October 2026Table 5: pivot -90 to +90 degrees for the AW2725DM. A note in the same table warns against portrait use and inverse (180 degree) landscape mounting. It sits beside the AW3225DM column, which has no pivot. The pivot values are stored as published.4Maker spec sheet (PDF)gzhls.at/blob/ldb/7/f/c/7/37b80c7b1a222ccf24625e9505b858d3bfeb.pdfRead 16 October 2026Outline drawing: pivot 90 degrees in both directions.

Removable stand

Yes1Owner's manualgzhls.at/blob/ldb/c/7/8/7/6f1cf3c9c25bac93eb9bc32ac4630ae655d2.pdfRead 16 October 2026Features list: removable stand. A Removing the monitor stand procedure uses a stand release button.

VESA mount

100 x 1001Owner's manualgzhls.at/blob/ldb/c/7/8/7/6f1cf3c9c25bac93eb9bc32ac4630ae655d2.pdfRead 16 October 2026Table 3: VESA mounting holes (4), 100 mm x 100 mm, behind the VESA cover. M4 x 10 mm screws.4Maker spec sheet (PDF)gzhls.at/blob/ldb/7/f/c/7/37b80c7b1a222ccf24625e9505b858d3bfeb.pdfRead 16 October 2026Outline drawing: 100.00 mm hole spacing, 4x M4x10.

VESA adapter needed

Not available

Security lock slot

Yes1Owner's manualgzhls.at/blob/ldb/c/7/8/7/6f1cf3c9c25bac93eb9bc32ac4630ae655d2.pdfRead 16 October 2026Table 4: security-lock slot based on the Kensington Security Slot. The lock is optional.

On-screen menu controlsiControls that operate the monitor menu or display settings. Desktop window-layout software alone does not count as menu control.

Joystick, Software1Owner's manualgzhls.at/blob/ldb/c/7/8/7/6f1cf3c9c25bac93eb9bc32ac4630ae655d2.pdfRead 16 October 2026Table 22: a joystick button at the bottom of the monitor controls the OSD. The Alienware Command Center also adjusts display settings, brightness, contrast, preset modes and PIP/PBP from the computer.

Desktop software

Alienware Command Center (AWCC)1Owner's manualgzhls.at/blob/ldb/c/7/8/7/6f1cf3c9c25bac93eb9bc32ac4630ae655d2.pdfRead 16 October 2026Table 5: Alienware Command Center (AWCC) Yes. The Using AlienFX function chapter describes it.7Spec databasepreisvergleich.heise.de/dell-alienware-27-gaming-monitor-aw2725dm-210-bpky-a3475057.htmlRead 16 October 2026Heise lists joystick control. The guide and Amazon US name the Alienware Command Center.

User firmware updates

Not available

Ambient light sensoriPresence of a physical ambient-light sensor. A regulatory statement that Automatic Brightness Control is unavailable does not prove the sensor is absent. Human presence or proximity sensing is separate.

Not available

Presence sensoriPresence of a person-detection or proximity sensor. Source notes distinguish room presence from near-screen detection. Absence of one kind does not prove absence of every presence sensor.

No1Owner's manualgzhls.at/blob/ldb/c/7/8/7/6f1cf3c9c25bac93eb9bc32ac4630ae655d2.pdfRead 16 October 2026The parts tables list no presence sensor. The EU registry says room presence sensor: No. This covers room presence and the listed parts only.

RGB lightingiDecorative illumination explicitly described as RGB or documented with selectable red, green and blue colours. A power LED or only one or two fixed colours is insufficient.

Not available

Gaming menu features

Timer, Frame Rate, Display Alignment, Dark Stabilizer, Console Mode, AlienVision1Owner's manualgzhls.at/blob/ldb/c/7/8/7/6f1cf3c9c25bac93eb9bc32ac4630ae655d2.pdfRead 16 October 2026OSD Game menu: Game Enhance Mode (Timer, Frame Rate, Display Alignment), Dark Stabilizer (0 to 3), Console Mode (HDMI only) and AlienVision.

Dimensions and weight

Dimensions with standiOverall monitor dimensions with the supplied stand. Minimum and maximum heights require the stand position to be identified by the source.

Width613Height (lowest)409.46Height (highest)519.46Depth206mm(24.1 × 16.1 to 20.5 × 8.1 in)1Owner's manualgzhls.at/blob/ldb/c/7/8/7/6f1cf3c9c25bac93eb9bc32ac4630ae655d2.pdfRead 16 October 2026Table 14 with stand: height 409.46 mm compressed and 519.46 mm extended, width 613 mm, depth 206 mm.4Maker spec sheet (PDF)gzhls.at/blob/ldb/7/f/c/7/37b80c7b1a222ccf24625e9505b858d3bfeb.pdfRead 16 October 2026Dell AW2725DM outline dimension drawing, nominal: 613.00 mm wide, 409.46 mm and 519.46 mm high with stand, 206.00 mm deep. This matches Table 14 of the user guide.

Dimensions without standiOverall monitor body dimensions after the stand is removed, including the frame and rear housing.

Width613Height363.72Depth67.19mm(24.1 × 14.3 × 2.6 in)1Owner's manualgzhls.at/blob/ldb/c/7/8/7/6f1cf3c9c25bac93eb9bc32ac4630ae655d2.pdfRead 16 October 2026Table 14 without stand: height 363.72 mm, width 613 mm, depth 67.19 mm.4Maker spec sheet (PDF)gzhls.at/blob/ldb/7/f/c/7/37b80c7b1a222ccf24625e9505b858d3bfeb.pdfRead 16 October 2026Outline drawing: 613.00 mm wide, 363.72 mm high and 67.19 mm deep without stand.

Stand footprintiWidth and depth of the stand base on the desk. A maker's stand width and depth count.

Width240Depth206mm(9.4 × 8.1 in)1Owner's manualgzhls.at/blob/ldb/c/7/8/7/6f1cf3c9c25bac93eb9bc32ac4630ae655d2.pdfRead 16 October 2026Table 14 stand dimensions: width 240 mm and depth 206 mm.4Maker spec sheet (PDF)gzhls.at/blob/ldb/7/f/c/7/37b80c7b1a222ccf24625e9505b858d3bfeb.pdfRead 16 October 2026Outline drawing: stand base 240.00 mm wide and 206.00 mm deep.

Weight with standiWeight with the supplied stand. Source notes state if cables are included. Packaging weight is separate.

6.57kg(14.5 lb)1Owner's manualgzhls.at/blob/ldb/c/7/8/7/6f1cf3c9c25bac93eb9bc32ac4630ae655d2.pdfRead 16 October 2026Table 14: 6.57 kg with stand assembly and cables. The stand assembly weighs 1.99 kg.

Weight without standiMonitor body weight without stand. Source notes state whether cables are included.

4.23kg(9.3 lb)1Owner's manualgzhls.at/blob/ldb/c/7/8/7/6f1cf3c9c25bac93eb9bc32ac4630ae655d2.pdfRead 16 October 2026Table 14: 4.23 kg without stand assembly, for wall mount or VESA, without cables.

Box dimensionsiShipping box width, height and depth in the maker published orientation. A flat-packed box can have a smaller height than the upright display.

Not available

Box weight

9.82kg(21.6 lb)1Owner's manualgzhls.at/blob/ldb/c/7/8/7/6f1cf3c9c25bac93eb9bc32ac4630ae655d2.pdfRead 16 October 2026Table 14: weight with packaging 9.82 kg.

Power

• EU energy class SDRF2EU energy label (EPREL)eprel.ec.europa.eu/fiches/electronicdisplays/Fiche_2167459_EN.pdfRead 16 October 2026Product information sheet: SDR class F.
  ABCDEFG
• EU energy class HDRG2EU energy label (EPREL)eprel.ec.europa.eu/fiches/electronicdisplays/Fiche_2167459_EN.pdfRead 16 October 2026Product information sheet: HDR class G.
  ABCDEFG

Power supplyiUSB-C powered monitors can draw power from a compatible host or an optional USB-C power source. This does not establish a bundled adapter. Record a supplied adapter and its rating separately.

Internal1Owner's manualgzhls.at/blob/ldb/c/7/8/7/6f1cf3c9c25bac93eb9bc32ac4630ae655d2.pdfRead 16 October 2026The guide connects the power cable directly to the monitor. The EU registry says internal power supply.2EU energy label (EPREL)eprel.ec.europa.eu/fiches/electronicdisplays/Fiche_2167459_EN.pdfRead 16 October 2026Power supply type: Internal.

Adapter ratingiRated output power of the external power adapter. Do not substitute the monitor maximum consumption.

Not available

Input voltage

100-240 V AC, 50/60 Hz1Owner's manualgzhls.at/blob/ldb/c/7/8/7/6f1cf3c9c25bac93eb9bc32ac4630ae655d2.pdfRead 16 October 2026Table 13: 100 VAC to 240 VAC, 50 Hz or 60 Hz plus or minus 3 Hz, 1.5 A typical.

Power use (typical)iMaker typical operating power under a stated test condition. An unlabeled Power On upper bound does not establish a typical value. EU label test power has separate fields. An ENERGY STAR on-mode (Pon) figure is not a typical value.

Not available

Power use (max)iMaker maximum operating power. Source notes state whether USB charging and connected-device load are included.

80W1Owner's manualgzhls.at/blob/ldb/c/7/8/7/6f1cf3c9c25bac93eb9bc32ac4630ae655d2.pdfRead 16 October 2026Table 13: 80 W at maximum brightness and contrast with maximum power loading on all USB ports. It includes the USB load.

Power use SDR (EU label)iSDR on-mode power demand in the EU product information sheet, in watts. It can differ from rounded energy-label kWh per 1000 hours.

25W2EU energy label (EPREL)eprel.ec.europa.eu/fiches/electronicdisplays/Fiche_2167459_EN.pdfRead 16 October 2026Product information sheet: on-mode power demand in SDR 25.0 W. This matches the On Mode figure in the user guide.

Power use HDR (EU label)iHDR on-mode power demand in the EU product information sheet, in watts. It can differ from rounded energy-label kWh per 1000 hours.

36W2EU energy label (EPREL)eprel.ec.europa.eu/fiches/electronicdisplays/Fiche_2167459_EN.pdfRead 16 October 2026Product information sheet: on-mode power demand in HDR 36.0 W.

Standby poweriPower in standby or DPMS. Source notes retain any less-than qualifier.

0.3W1Owner's manualgzhls.at/blob/ldb/c/7/8/7/6f1cf3c9c25bac93eb9bc32ac4630ae655d2.pdfRead 16 October 2026Table 13: 0.3 W standby as defined in EU 2019/2021 and 2019/2013. The features list says below 0.5 W.2EU energy label (EPREL)eprel.ec.europa.eu/fiches/electronicdisplays/Fiche_2167459_EN.pdfRead 16 October 2026Product information sheet: standby 0.3 W.

Off-mode poweriPower when switched off but still connected to mains. Source notes retain any less-than qualifier.

0.3W1Owner's manualgzhls.at/blob/ldb/c/7/8/7/6f1cf3c9c25bac93eb9bc32ac4630ae655d2.pdfRead 16 October 2026Table 13: 0.3 W off mode as defined in EU 2019/2021 and 2019/2013.2EU energy label (EPREL)eprel.ec.europa.eu/fiches/electronicdisplays/Fiche_2167459_EN.pdfRead 16 October 2026Product information sheet: off mode 0.3 W.

Energy per 1000 h SDR

25kWh3EU energy label (EPREL)gzhls.at/blob/ldb/6/c/5/4/d00e2e5d4980e6e1a0555f27d60d4079b529.pdfRead 16 October 2026EU energy label for ALIENWARE AW2725DM: 25 kWh/1000h in SDR. The label file is mirrored by Geizhals.

Energy per 1000 h HDR

36kWh3EU energy label (EPREL)gzhls.at/blob/ldb/6/c/5/4/d00e2e5d4980e6e1a0555f27d60d4079b529.pdfRead 16 October 2026EU energy label for ALIENWARE AW2725DM: 36 kWh/1000h in HDR.

Certifications

VESA ClearMR

Not available

VESA AdaptiveSync Display

180Hz1Owner's manualgzhls.at/blob/ldb/c/7/8/7/6f1cf3c9c25bac93eb9bc32ac4630ae655d2.pdfRead 16 October 2026The guide names VESA AdaptiveSync Display certification without a number. The number 180 is from the VESA AdaptiveSync Display 180 logo in Dell's brand content on Amazon US and from LCD-Compare.6Retailer pageamazon.com/dp/B0F146MYKDRead 16 October 2026Dell brand image on Amazon US shows the VESA Certified AdaptiveSync Display 180 logo next to G-SYNC and AMD FreeSync.8Spec databaselcd-compare.com/moniteur-ALIAW2725DM-ALIENWARE-AW2725DM.htmRead 16 October 2026LCD-Compare: VESA certification AdaptiveSync Display 180.

TÜV certifications

Low Blue Light (Hardware Solution)1Owner's manualgzhls.at/blob/ldb/c/7/8/7/6f1cf3c9c25bac93eb9bc32ac4630ae655d2.pdfRead 16 October 2026Features list: the monitor uses a low blue light panel and is compliant with TUV Rheinland (Hardware Solution) at factory reset. The guide names no category.

Low blue lightiHardware means a published panel-level hardware low-blue-light solution. Software means a selectable picture filter. Hardware does not require a selectable filter mode.

Hardware1Owner's manualgzhls.at/blob/ldb/c/7/8/7/6f1cf3c9c25bac93eb9bc32ac4630ae655d2.pdfRead 16 October 2026Features list: built-in hardware low blue light solution that adjusts display parameters. TUV Rheinland (Hardware Solution).

ENERGY STAR

Not available

TCO Certified

Not available

EPEAT

Not available

Colour certifications

Not available

Other certifications

Not available

In the box

In the box

Monitor, Stand riser, Stand base, DisplayPort to DisplayPort 1.4 cable (1.80 m), HDMI 2.1 TMDS cable (1.80 m), USB 5Gbps Type-A to Type-B cable (1.80 m), Power cable (varies by country or region), Safety, Environmental, and Regulatory Information, Alienware Sticker, QR Card1Owner's manualgzhls.at/blob/ldb/c/7/8/7/6f1cf3c9c25bac93eb9bc32ac4630ae655d2.pdfRead 16 October 2026Table 1: display, stand riser, stand base, DisplayPort to DisplayPort 1.4 cable (1.80 m), HDMI 2.1 TMDS cable (1.80 m), USB 5Gbps Type-A to Type-B cable (1.80 m), power cable (varies by country or region), safety and regulatory information, Alienware sticker and QR card.6Retailer pageamazon.com/dp/B0F146MYKDRead 16 October 2026Amazon US included components agree with the guide: DisplayPort 1.4 cable, HDMI cable, monitor, power cable, quick setup guide, safety information, stand and USB Type-A to Type-B cable.

Cables includediCables supplied with the product. Count is included only when the source establishes it. Bundles can vary by market.

Type	Count
DisplayPort to DisplayPort 1.4 cable (1.80 m)	1
HDMI 2.1 TMDS cable (1.80 m)	1
USB 5Gbps Type-A to Type-B cable (1.80 m)	1
Power cable	Not available

Source1Owner's manualgzhls.at/blob/ldb/c/7/8/7/6f1cf3c9c25bac93eb9bc32ac4630ae655d2.pdfRead 16 October 2026Table 1: DisplayPort, HDMI 2.1 TMDS and USB Type-A to Type-B cables of 1.80 m each, plus a power cable.

Warranty

Manufacturer warranty (source market)iThe maker's warranty period for the exact SKU or configuration and market named in the source note. It applies only to that stated market, not every regional variant. Statutory consumer rights are excluded. The base term is stored. An extension that needs registration goes in the source note.

3years2EU energy label (EPREL)eprel.ec.europa.eu/fiches/electronicdisplays/Fiche_2167459_EN.pdfRead 16 October 2026Minimum duration of the general guarantee offered by the supplier: 3 years. This is the EU value. The Amazon US page also lists a 3-year advanced exchange warranty.6Retailer pageamazon.com/dp/B0F146MYKDRead 16 October 2026Amazon US: 3-Years Advanced Exchange Service.

Dead pixel policy

Not available

Links

Product page

Not available

Spec sheet

Not available

Manual

gzhls.at/blob/ldb/c/7/8/7/6f1cf3c9c25bac93eb9bc32ac4630ae655d2.pdf1Owner's manualgzhls.at/blob/ldb/c/7/8/7/6f1cf3c9c25bac93eb9bc32ac4630ae655d2.pdfRead 16 October 2026Alienware 27 Gaming Monitor AW2725DM and Alienware 32 Gaming Monitor AW3225DM User's Guide, March 2025, Rev. A00, regulatory model AW2725DMc/AW3225DMc. English edition mirrored by Geizhals. The two sizes share one guide, so only the AW2725DM column is used. The AW3225DM is a different, curved VA monitor.

EPREL registration numberiId in the EU energy label database. Each size or model of a series has its own id, so it is per variant.

21674592EU energy label (EPREL)eprel.ec.europa.eu/fiches/electronicdisplays/Fiche_2167459_EN.pdfRead 16 October 2026EPREL registration 2167459 for model identifier AW2725DM, linked from the user guide.
