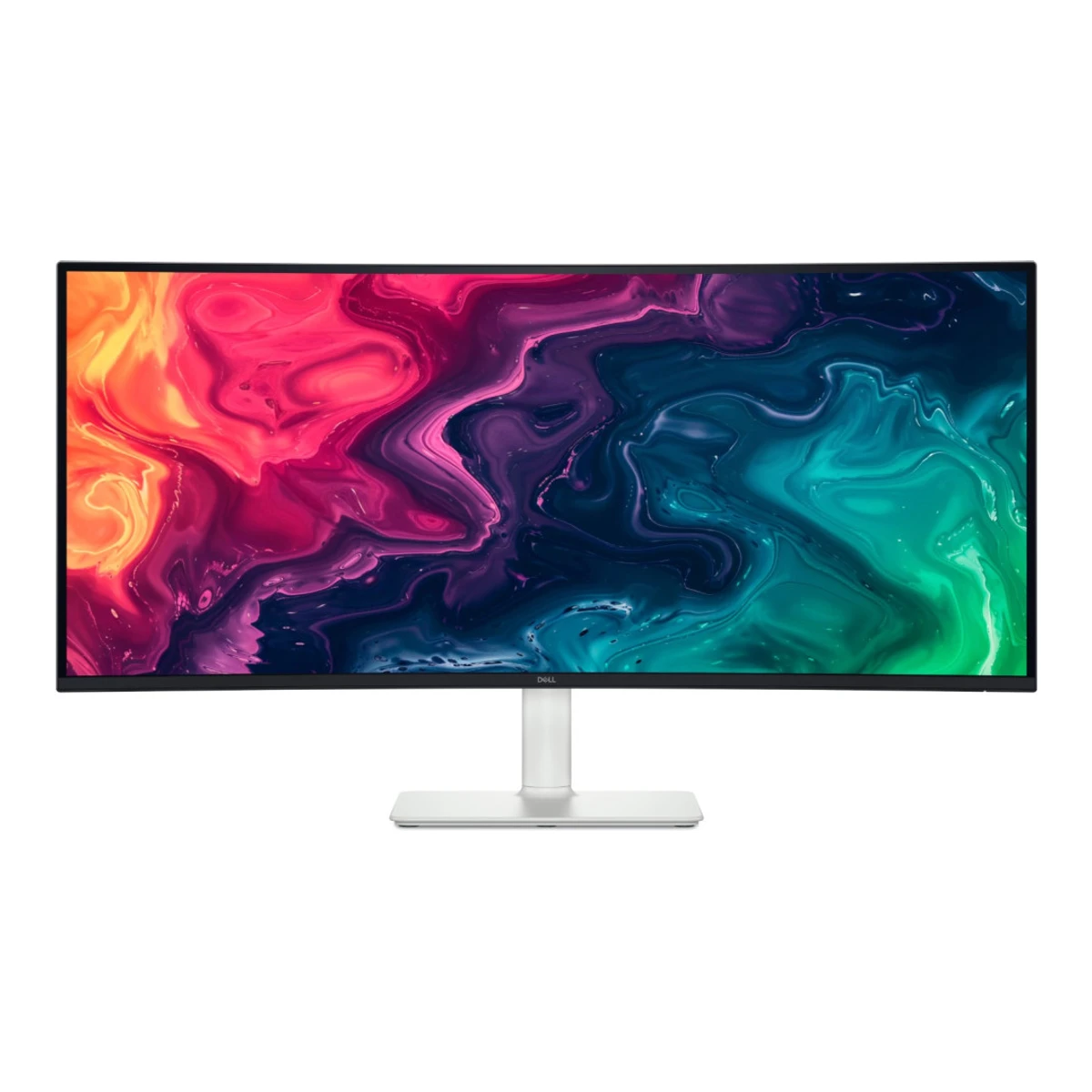

Dell 34 Plus USB-C Monitor S3425DW
Screen size
34in
Resolution
3440 × 1440
Refresh rate
120Hz
Panel
VA

106 of 172 fields known.

At a glance

Ports

  • 2 HDMI 2.1
  • USB-C DisplayPort 1.4 Alt Mode
  • USB-C 5GbpsTo your computer
  • 2 USB-A 5Gbps
  • USB-C 5GbpsUSB downstream hub ports

All specs

SourceCalculated

General

Announced
Not available
Predecessor
Not available
Successor
Not available
Launch price (US)
Not available
Launch price (EU)
Not available
Markets
US6Retailer pageamazon.com/dp/B0F1H325FNRead 15 October 2026Selected reference is the US part 210-BRMV. The EU part 210-BQWR is not stored as a variant.

Display

Screen size
34in(86.4 cm)3Owner's manualgzhls.at/blob/ldb/c/1/2/9/4cc594acecd609bcfe039f9f91b2c872d3f7.pdfRead 15 October 2026Viewable image diagonal 864.3 mm (34.0 in.). The monitor is sold as a 34 inch model.
Pixel density
109.7ppi
Pixel pitch
0.2318mm2Maker spec sheet (PDF)tecomtrade.hr/media/product/2025/05/08/dell-34-plus-usb-c-monitor-s3425dw-datasheet.pdfRead 15 October 20263Owner's manualgzhls.at/blob/ldb/c/1/2/9/4cc594acecd609bcfe039f9f91b2c872d3f7.pdfRead 15 October 2026Horizontal and vertical 0.23175 mm.
Active display area
Width797.22Height333.72mm(31.4 × 13.1 in)3Owner's manualgzhls.at/blob/ldb/c/1/2/9/4cc594acecd609bcfe039f9f91b2c872d3f7.pdfRead 15 October 2026Active area horizontal 797.22 mm and vertical 333.72 mm. The curved width is the arc length. The 807.32 mm body width is the chord, which fits the 1800 mm radius.
Touchscreen
Not available

Panel

Panel type (as published)
Vertical Alignment (VA) Technology3Owner's manualgzhls.at/blob/ldb/c/1/2/9/4cc594acecd609bcfe039f9f91b2c872d3f7.pdfRead 15 October 2026
Backlight
Edge-lit LED2Maker spec sheet (PDF)tecomtrade.hr/media/product/2025/05/08/dell-34-plus-usb-c-monitor-s3425dw-datasheet.pdfRead 15 October 20263Owner's manualgzhls.at/blob/ldb/c/1/2/9/4cc594acecd609bcfe039f9f91b2c872d3f7.pdfRead 15 October 2026Backlight: LED Edgelight System.
Local dimming
Not available
Dimming zones
Not available
Panel maker
Not available
Panel part number
Not available
Panel generation
Not available
Subpixel layout
Not available
Colour depth
10bits3Owner's manualgzhls.at/blob/ldb/c/1/2/9/4cc594acecd609bcfe039f9f91b2c872d3f7.pdfRead 15 October 2026Color depth: 1.07 billion colors, which is 10 bits per channel. The guide does not say whether the panel is native 10-bit or 8-bit with FRC, so no method is stored.
Colour depth method
Not available
Adobe RGB coverage
Not available
Rec. 2020 coverage
Not available
NTSC coverage
Not available
Claimed Delta E
Not available
Paper calibration report in box
Not available
Hardware calibration support
Not available
Brightness (maker minimum)
Not available
Peak brightness (HDR)
Not available
HDR peak test window
Not available
Full-screen brightness
Not available
HDR certification
Not available

Refresh rate and motion

Refresh rate per resolution and port
Refresh rate per resolution and port. The top rate is in bold.
ResolutionHDMI 2.1USB-C DisplayPort 1.4 Alt Mode
3440 × 1440Native120Hz10-bit120Hz10-bit, DSC
Show as source table
Width (px)Height (px)InputInput versionMaximum accepted rate (Hz)Bit depth (bits)DSC
34401440HDMI2.112010No
34401440USB-CDisplayPort 1.4 Alt Mode12010Yes
34401440USB-CDisplayPort 1.4 Alt Mode12010No
Max refresh rate
120Hz
Max refresh rate at native resolution
120Hz
Max refresh rate over DisplayPort
Not available
Max refresh rate over HDMI
120Hz
Max refresh rate over USB-C
120Hz
Max refresh rate at 10-bit
120Hz
Native refresh rate
120Hz3Owner's manualgzhls.at/blob/ldb/c/1/2/9/4cc594acecd609bcfe039f9f91b2c872d3f7.pdfRead 15 October 2026Maximum preset resolution 3440 x 1440 at 120 Hz. No overclock mode is described.
Overclocked refresh rate
Not available
Dual mode
Not available
Minimum fixed refresh rate
Not available
VRR range per port
InputMin (Hz)Max (Hz)
HDMI48120
USB-C48120
Response time (maker MPRT claim)
Not available
Motion blur reduction
Not available
Blur-reduction technology
Not available
Blur reduction works with VRR
Not available
Black frame insertion
Not available

Measured

Input lag at maximum refresh rate
Not available
Input lag at 60 Hz
Not available
Average response time (measured)
Not available
Overshoot (measured)
Not available
Contrast ratio (measured)
Not available
SDR brightness (measured)
Not available
HDR brightness in a real scene (measured)
Not available
PWM flicker frequency (measured)
Not available
VRR range (measured)
Not available
Gray uniformity (measured)
Not available
Reflections (measured)
Not available

Connectivity

Video inputs
TypeVersionCountDSCHDCP
HDMI2.12Not available1.4 and 2.2
USB-CDisplayPort 1.4 Alt Mode1YesNot available
HDMI ports
2
DisplayPort ports
0
Highest HDMI version
2.1
Highest DisplayPort version
Not available
Thunderbolt
Not available
USB upstream ports
ConnectorUSB versionCount
USB-C5Gbps1
USB downstream hub ports
ConnectorUSB versionCount
USB-A5Gbps2
USB-C5Gbps1
KVM switch
Not available
3.5 mm headphone output
No3Owner's manualgzhls.at/blob/ldb/c/1/2/9/4cc594acecd609bcfe039f9f91b2c872d3f7.pdfRead 15 October 2026The connector inventory has no 3.5 mm jack.
3.5 mm microphone input
No3Owner's manualgzhls.at/blob/ldb/c/1/2/9/4cc594acecd609bcfe039f9f91b2c872d3f7.pdfRead 15 October 2026The connector inventory has no microphone input.

Smart features

We could not find any of these 4 fields. Show them
Smart platform
Not available
Wi-Fi
Not available
Bluetooth
Not available
Remote control
Not available

Audio and camera

Ergonomics and controls

Pivot
Counterclockwise4°Clockwise4°2Maker spec sheet (PDF)tecomtrade.hr/media/product/2025/05/08/dell-34-plus-usb-c-monitor-s3425dw-datasheet.pdfRead 15 October 2026Slant adjust -4 to +4 degrees. This is roll adjustment from neutral, as the S3225QC entry stores it. The monitor cannot rotate to portrait.3Owner's manualgzhls.at/blob/ldb/c/1/2/9/4cc594acecd609bcfe039f9f91b2c872d3f7.pdfRead 15 October 2026
On-screen menu controls
Joystick, Software3Owner's manualgzhls.at/blob/ldb/c/1/2/9/4cc594acecd609bcfe039f9f91b2c872d3f7.pdfRead 15 October 2026A rear joystick controls the OSD menu. Dell Display and Peripheral Manager can change OSD brightness, contrast and resolution in software.
Ambient light sensor
Not available
Presence sensor
Not available
RGB lighting
Not available

OLED care

We could not find any of these 3 fields. Show them
OLED care
Not available
Burn-in covered by warranty
Not available
Burn-in warranty length
Not available

Dimensions and weight

Front and side, drawn to scale. The dashed outline is the screen at its highest.

Dimensions with stand
Width807.32Height (lowest)411.53Height (highest)517.18Depth221.85mm(31.8 × 16.2 to 20.4 × 8.7 in)2Maker spec sheet (PDF)tecomtrade.hr/media/product/2025/05/08/dell-34-plus-usb-c-monitor-s3425dw-datasheet.pdfRead 15 October 2026Height extended 517.18 mm and compressed 411.53 mm, width 807.32 mm, depth 221.85 mm. A curved panel, so the width is the chord.3Owner's manualgzhls.at/blob/ldb/c/1/2/9/4cc594acecd609bcfe039f9f91b2c872d3f7.pdfRead 15 October 2026
Dimensions without stand
Width807.32Height355.77Depth116.89mm(31.8 × 14 × 4.6 in)2Maker spec sheet (PDF)tecomtrade.hr/media/product/2025/05/08/dell-34-plus-usb-c-monitor-s3425dw-datasheet.pdfRead 15 October 20263Owner's manualgzhls.at/blob/ldb/c/1/2/9/4cc594acecd609bcfe039f9f91b2c872d3f7.pdfRead 15 October 2026
Stand footprint
Width259Depth221.85mm(10.2 × 8.7 in)3Owner's manualgzhls.at/blob/ldb/c/1/2/9/4cc594acecd609bcfe039f9f91b2c872d3f7.pdfRead 15 October 2026Stand dimensions: width 259.00 mm and depth 221.85 mm.
Box dimensions
Not available

Power

Power supply
Internal3Owner's manualgzhls.at/blob/ldb/c/1/2/9/4cc594acecd609bcfe039f9f91b2c872d3f7.pdfRead 15 October 2026Power cable connects directly. There is no external adapter in the package. AC input 100 VAC-240 VAC, 50 Hz or 60 Hz.
Adapter rating
Not available
Power use (typical)
Not available
Power use SDR (EU label)
31W4EU energy label (EPREL)eprel.ec.europa.eu/fiches/electronicdisplays/Fiche_2198463_EN.pdfRead 15 October 2026On mode power demand in SDR: 31.0 W.
Power use HDR (EU label)
40W4EU energy label (EPREL)eprel.ec.europa.eu/fiches/electronicdisplays/Fiche_2198463_EN.pdfRead 15 October 2026On mode power demand in HDR: 40.0 W.

Certifications

VESA ClearMR
Not available
VESA AdaptiveSync Display
Not available
Low blue light
Hardware3Owner's manualgzhls.at/blob/ldb/c/1/2/9/4cc594acecd609bcfe039f9f91b2c872d3f7.pdfRead 15 October 2026The monitor uses a low blue light panel and complies with TÜV Rheinland hardware low blue light certification, Category 2 in the footnote. ComfortView Plus is enabled by default.
TCO Certified
Not available
EPEAT
Not available
Colour certifications
Not available

In the box

Warranty

Dead pixel policy
Not available
