PC parts / Motherboards
GIGABYTEGaming motherboard

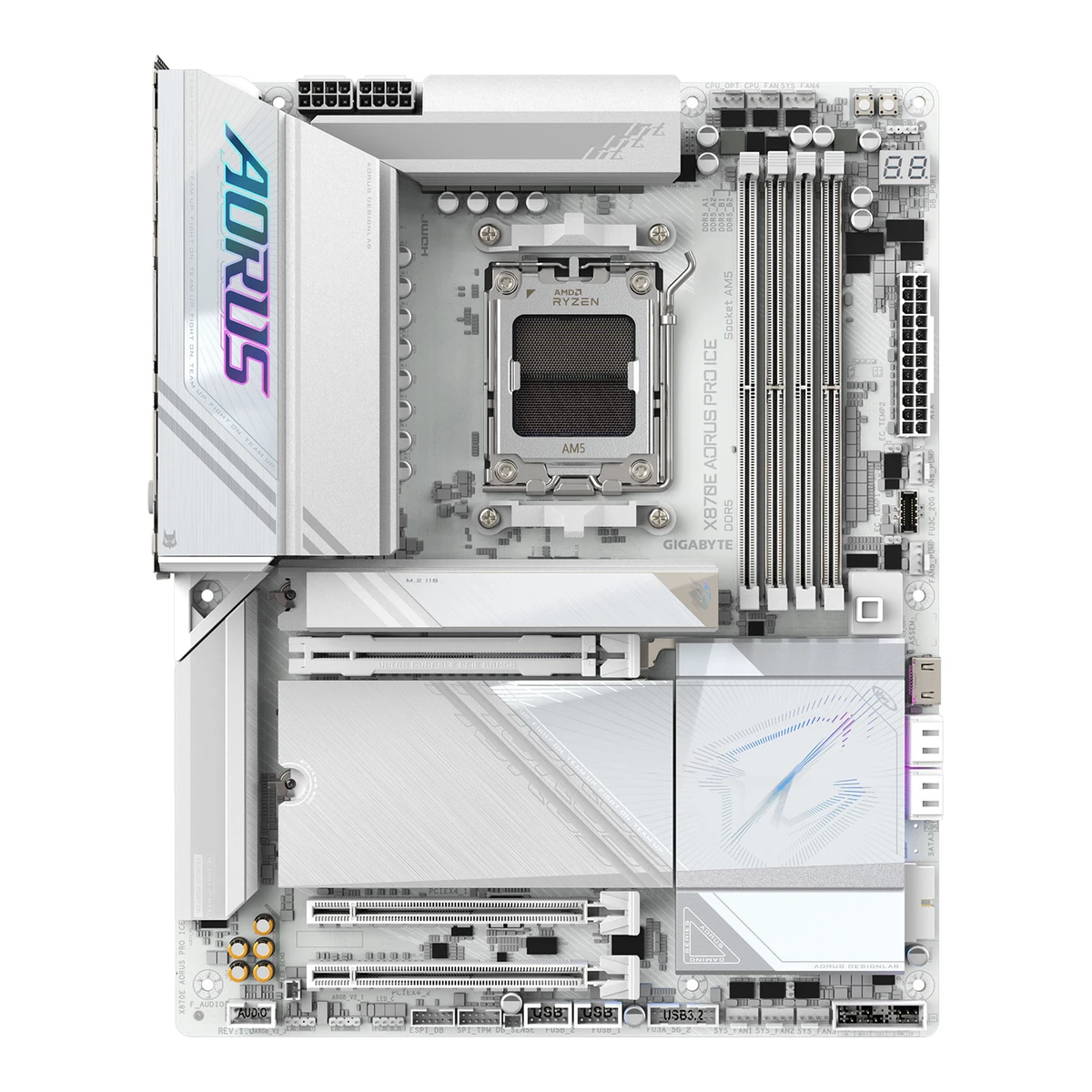

X870E AORUS PRO ICE
Released September 2024.4Spec databasegeizhals.de/gigabyte-x870e-aorus-pro-ice-a3286711.htmlRead 14 October 2026Listed since 2024-08-30. Last checked 16 October 2026.
- CPU socket
- AM5
- Chipset
- AMD X870E
- Form factor
- ATX
- M.2 slots
- 4
64 of 78 fields known.
At a glance
PCIe 5.0 M.2 slots
3
Higher than 94% of other motherboards.
Ports
- 2 USB-C USB4
- 3 USB-A USB 3.2 Gen 2
- 4 USB-A USB 3.2 Gen 1
- 2 USB-A USB 2.0
- HDMI 2.1
- Ethernet (RJ45)
- 2 3.5 mm audio
- Optical S/PDIF
- USB-C header
- 2 USB 3 header (19-pin)
- 2 USB 2.0 header (9-pin)
General
- Model numbers
- X870E AORUS PRO ICE1Owner's manualtrovaprezzi.it/manuali/gigabyte_aorus_x870e_pro_ice.pdfRead 14 October 2026Regulatory page: Model Number X870E AORUS PRO ICE/X870E AORUS PRO. The two models are one board in two colours.
- GTIN / EAN
- 4719331864798, 8895230452756Retailer pagehinta.fi/4941721/gigabyte-x870e-aorus-pro-ice/tuotetiedotRead 14 October 2026GTIN/EAN 4719331864798 and 0889523045275 (UPC 889523045275 without the leading zero). comparateur-gamer.fr and BuildCores give the same codes.7Retailer pagecomparateur-gamer.fr/prix/gigabyte-x870e-aorus-pro-ice-4719331864798Read 14 October 2026EAN 4719331864798, reference X870E AORUS PRO ICE.8Spec databasebuildcores.com/products/Motherboard/ixiuh1whc/Gigabyte-X870E-AORUS-PRO-ICERead 14 October 2026UPC 889523045275, EAN 0889523045275, part number X870E AORUS PRO ICE. Colour: White.
- Announced
- Not available
- Predecessor
- Not available
- Successor
- Not available
- Launch price (US)
- $359.9911Spec databasemaxmybuild.com/motherboards/gigabyte-x870e-aorus-pro-iceRead 14 October 2026MSRP $360.00, which rounds the $359.99 of the pre-launch retailer listing. The page does not say it is a launch price.12Press articlewccftech.com/gigabyte-aorus-x870e-x870-motherboards-prices-listed-219-us-up-to-799-us/ampRead 14 October 2026Lists the X870E AORUS PRO ICE at $359.99 US in B&H pre-launch listings, excl. sales tax. A retailer price, not a GIGABYTE statement. MaxMyBuild lists an MSRP of $360.00 for the board.
- Launch price (EU)
- Not available
- Markets
- Not available
- Colours
- Not available
- Segment
- Gaming9Retailer pagescan.co.uk/products/gigabyte-x870e-aorus-pro-ice-amd-x870e-s-am5-ddr5-pcie-50-4x-m2-25gbe-wifi7-usb-40-amd-expo-atxRead 14 October 2026The product photo shows the box line GAMING MOTHERBOARD under the name, and the text says AORUS gaming motherboards. Paradigit's text says it is designed for PC builders and gamers.10Retailer pageparadigit.ie/gigabyte-x870e-aorus-pro-ice/80067456/productRead 14 October 2026The product description says the board is designed for high-performance PC builders and gamers.
- Board revision
- Not available
Platform
- CPU socket
- AM51Owner's manualtrovaprezzi.it/manuali/gigabyte_aorus_x870e_pro_ice.pdfRead 14 October 2026
- Chipset
- AMD X870E1Owner's manualtrovaprezzi.it/manuali/gigabyte_aorus_x870e_pro_ice.pdfRead 14 October 2026
- Supported processors
- AMD Ryzen 9000 Series, AMD Ryzen 8000 Series, AMD Ryzen 7000 Series1Owner's manualtrovaprezzi.it/manuali/gigabyte_aorus_x870e_pro_ice.pdfRead 14 October 2026Section 2-2: AMD Socket AM5, AMD Ryzen 9000, 8000 and 7000 Series Processors. The manual points to GIGABYTE's website for the latest CPU support list. Read on 2026-10-14.
Board
Front and side, drawn to scale.
- Board dimensions
- Width244Height305mm(9.6 × 12 in)1Owner's manualtrovaprezzi.it/manuali/gigabyte_aorus_x870e_pro_ice.pdfRead 14 October 2026Section 2-2: ATX form factor, 30.5cm x 24.4cm.
Power delivery
- Power stage layout
- 16+2+29Retailer pagescan.co.uk/products/gigabyte-x870e-aorus-pro-ice-amd-x870e-s-am5-ddr5-pcie-50-4x-m2-25gbe-wifi7-usb-40-amd-expo-atxRead 14 October 202616+2+2 Twin Digital VRM, 80A Smart Power Stage, 8+8-pin CPU power.
- CPU core (Vcore) power stages
- 164Spec databasegeizhals.de/gigabyte-x870e-aorus-pro-ice-a3286711.htmlRead 14 October 2026VRM row: 16+2+2, 16x 80 A PMC41410 smart power stages for VCORE, 2 for SOC/VCCGT and 2 DrMOS for the rest. Geizhals also counts 18 virtual and 10 real CPU phases.
- Vcore power stage rating
- 80A4Spec databasegeizhals.de/gigabyte-x870e-aorus-pro-ice-a3286711.htmlRead 14 October 202616x 80 A smart power stages for VCORE.9Retailer pagescan.co.uk/products/gigabyte-x870e-aorus-pro-ice-amd-x870e-s-am5-ddr5-pcie-50-4x-m2-25gbe-wifi7-usb-40-amd-expo-atxRead 14 October 202680A SPS modules in the 16+2+2 Digital Twin Power Design.
- VRM controller
- Infineon XDPE192C3B4Spec databasegeizhals.de/gigabyte-x870e-aorus-pro-ice-a3286711.htmlRead 14 October 2026PWM controller row: XDPE192C3B (max 12 phases) and RT3672EE (max 2 phases). XDPE192C3B is Infineon. No review of this board names a controller, and this is one aggregator.
Memory
- Memory slots
- 41Owner's manualtrovaprezzi.it/manuali/gigabyte_aorus_x870e_pro_ice.pdfRead 14 October 2026
- Max memory
- 256GB1Owner's manualtrovaprezzi.it/manuali/gigabyte_aorus_x870e_pro_ice.pdfRead 14 October 2026
- Max memory speed (overclocked)
- 8,200MT/s4Spec databasegeizhals.de/gigabyte-x870e-aorus-pro-ice-a3286711.htmlRead 14 October 2026Data rate: DDR5-5200 (Ryzen 7000/8000G), DDR5-5600 (Ryzen 9000), max DDR5-8000 OC. Netcodex, hinta.fi and comparateur-gamer say 8200. 8200 is stored.5Retailer pagenetcodex.ph/product/gigabyte-x870e-aorus-pro-ice-am5-lga-1718-atx-ddr5-4x-m-2-pcie-5-0-usb4-wi-fi-7-2-5gbe-lan-ez-latch-q-flashRead 14 October 2026The spec table copies GIGABYTE's: DDR5 8200(OC) to 4800 MT/s. The title says up to 8000MHz (OC). No module setup per speed is given. Ryzen 9000 is the newest family the board is sold for.6Retailer pagehinta.fi/4941721/gigabyte-x870e-aorus-pro-ice/tuotetiedotRead 14 October 2026Memory speeds 4400 to 8200 MHz supported, maximum 8200 MHz.7Retailer pagecomparateur-gamer.fr/prix/gigabyte-x870e-aorus-pro-ice-4719331864798Read 14 October 2026The spec table lists support up to 8200 MHz. The marketing text cites DDR5-8000 (OC).9Retailer pagescan.co.uk/products/gigabyte-x870e-aorus-pro-ice-amd-x870e-s-am5-ddr5-pcie-50-4x-m2-25gbe-wifi7-usb-40-amd-expo-atxRead 14 October 2026The overview says overclocking support up to 8000 MT/s. The spec table of the maker says 8200, which is stored.
- CUDIMM support
- Not available
Expansion slots
- Expansion slots
Physical slot Electrical lanes PCIe generation Connected to Count PCIe x16 16 5 CPU 1 PCIe x16 4 4 Chipset 1 PCIe x16 4 3 Chipset 1 - Full-length PCIe slots
- 3
- Fastest PCIe x16 slot generation
- 5
Storage
- M.2 storage slots
Slot PCIe generation PCIe lanes Connected to Longest drive Takes SATA drives Heatsink Shares lanes with M2A_CPU 5 4 CPU M.2 22110 No Yes Not available M2B_CPU 5 4 CPU M.2 22110 No Yes The PCIe x16 slot runs at x8 M2C_CPU 5 4 CPU M.2 22110 No Yes The PCIe x16 slot runs at x8 M2D_SB 4 4 Chipset M.2 22110 No Yes Not available - M.2 slots
- 4
- PCIe 5.0 M.2 slots
- 3
Rear ports
- Rear ports
Type Version Count Max link rate (Gbps) Thunderbolt or USB4 DP Alt Mode USB-C USB4 2 40 USB4 Yes USB-A USB 3.2 Gen 2 3 10 Not available Not available USB-A USB 3.2 Gen 1 4 5 Not available Not available USB-A USB 2.0 2 0.48 Not available Not available HDMI HDMI 2.1 1 Not available Not available Not available Ethernet (RJ45) Not available 1 2.5 Not available Not available 3.5 mm audio Not available 2 Not available Not available Not available Optical S/PDIF Not available 1 Not available Not available Not available Source1Owner's manualtrovaprezzi.it/manuali/gigabyte_aorus_x870e_pro_ice.pdfRead 14 October 2026Section 2-2 and 2-6: 2 USB4 Type-C ports (DisplayPort, also USB 3.2 Gen 2x2 compatible), 3 USB 3.2 Gen 2 Type-A (red), 4 USB 3.2 Gen 1, 2 USB 2.0, 1 HDMI (HDMI 2.1, 4096x2160 at 60 Hz, CPU with graphics only), 1 RJ-45 up to 2.5 Gbps, 2 audio jacks and 1 optical S/PDIF out. The USB 3.2 Gen 1 ports are not named Type-A in the manual. The only Type-C ports on the panel are the USB4 ports, so the USB 3.2 Gen 1 ports are stored as Type-A. USB4 is stored as 40 Gbps (Geizhals). The ports are not Thunderbolt. The Q-Flash Plus button and two antenna connectors are not ports. The manual gives no USB power output.4Spec databasegeizhals.de/gigabyte-x870e-aorus-pro-ice-a3286711.htmlRead 14 October 20262x USB4 with DisplayPort 1.4 (40 Gb/s), 3x USB-A 10 Gb/s, 4x USB-A 5 Gb/s, 2x USB-A 2.0.- Rear USB ports
- 11
- Rear USB-C ports
- 2
- Fastest rear USB port
- 40Gbps
- Thunderbolt
- No
Internal connectors
- Internal USB headers
Header Max data rate (Gbps) Headers Front ports served USB-C header 20 1 1 USB 3 header (19-pin) 5 2 4 USB 2.0 header (9-pin) 0.48 2 4 - Front USB-C header speed
- 20Gbps
Networking
- Ethernet controllers
- Realtek RTL81254Spec databasegeizhals.de/gigabyte-x870e-aorus-pro-ice-a3286711.htmlRead 14 October 2026LAN: Realtek RTL8125BG, 2.5GBase-T. The suffix BG is left out. The manual says only Realtek 2.5GbE LAN chip.7Retailer pagecomparateur-gamer.fr/prix/gigabyte-x870e-aorus-pro-ice-4719331864798Read 14 October 20262.5 GbE LAN (Realtek RTL8125).11Spec databasemaxmybuild.com/motherboards/gigabyte-x870e-aorus-pro-iceRead 14 October 2026LAN: Realtek RTL8125BG, 2.5 GbE, 1 port.
- Ethernet ports
- 1
- Ethernet speed
- 2.5Gbps
- Wi-Fi standard
- Wi-Fi 71Owner's manualtrovaprezzi.it/manuali/gigabyte_aorus_x870e_pro_ice.pdfRead 14 October 2026Section 2-2: 802.11a, b, g, n, ac, ax and be.
- Wi-Fi bands
- 2.4 GHz, 5 GHz, 6 GHz1Owner's manualtrovaprezzi.it/manuali/gigabyte_aorus_x870e_pro_ice.pdfRead 14 October 2026Section 2-2: 2.4/5/6 GHz carrier frequency bands. The 6 GHz band depends on country regulations.
- Max Wi-Fi channel width
- 320MHz1Owner's manualtrovaprezzi.it/manuali/gigabyte_aorus_x870e_pro_ice.pdfRead 14 October 2026Section 2-2: support for the 11be 320MHz wireless standard.
Audio
- Audio codec
- Realtek ALC12201Owner's manualtrovaprezzi.it/manuali/gigabyte_aorus_x870e_pro_ice.pdfRead 14 October 2026Section 2-2: Realtek ALC1220 CODEC.
- DAC chip
- Not available
Features
- Clear CMOS button (rear)
- No1Owner's manualtrovaprezzi.it/manuali/gigabyte_aorus_x870e_pro_ice.pdfRead 14 October 2026Section 2-2 and 2-8: Clear CMOS is a jumper (CLR_CMOS). The back panel list has no clear CMOS button. BuildCores also says no button.
- POST code display
- Yes1Owner's manualtrovaprezzi.it/manuali/gigabyte_aorus_x870e_pro_ice.pdfRead 14 October 2026Section 1-1 layout shows DB_PORT, with the note that debug code information is in the Debug LED Codes pages (section 5-2). Geizhals lists a segment display and the Scan UK photo shows a two-digit display near the top right corner.4Spec databasegeizhals.de/gigabyte-x870e-aorus-pro-ice-a3286711.htmlRead 14 October 2026Features: diagnostic LED indicators and a diagnostic segment display.
- Power button on the board
- Yes1Owner's manualtrovaprezzi.it/manuali/gigabyte_aorus_x870e_pro_ice.pdfRead 14 October 2026Section 2-2 and 2-7: power button and reset button on the board.
- Pre-installed I/O shield
- Yes1Owner's manualtrovaprezzi.it/manuali/gigabyte_aorus_x870e_pro_ice.pdfRead 14 October 2026The section 1-3 box contents list has no loose I/O shield. Geizhals lists an integrated I/O shield and the Scan UK photo shows it on the board.4Spec databasegeizhals.de/gigabyte-x870e-aorus-pro-ice-a3286711.htmlRead 14 October 2026Features: integrierte I/O-Blende.
- Tool-free features
- Tool-free M.2 latch, Tool-free M.2 heatsink, PCIe slot release, Push-on antenna connector1Owner's manualtrovaprezzi.it/manuali/gigabyte_aorus_x870e_pro_ice.pdfRead 14 October 2026Section 2-8: M.2 EZ-Latch Plus (screwless M.2 SSD clip), M.2 EZ-Latch Click (screwless heatsink) and a PCIe EZ-Latch Plus release for the graphics card slot. Geizhals lists Quick Connect antenna connectors, which is GIGABYTE's WIFI EZ-Plug. The Scan UK photo shows the antenna ports.
Measured
We could not find any of these 3 fields. Show them
- VRM temperature under CPU load
- Not available
- Power draw idle
- Not available
- Power draw CPU stress
- Not available
In the box
- In the box
- User's Manual, Quick Installation Guide, One antenna, Two SATA cables, One noise detection cable, One G Connector, One M.2 thermal pad, Three packs of M.2 thick/thin rubber pads1Owner's manualtrovaprezzi.it/manuali/gigabyte_aorus_x870e_pro_ice.pdfRead 14 October 2026Section 1-3. The list is for reference and the manual says the actual items depend on the package. It covers the ICE and the standard model.
Links
- Product page
- www.gigabyte.com/Motherboard/X870E-AORUS-PRO-ICE2Maker product pagegigabyte.com/Motherboard/X870E-AORUS-PRO-ICERead 14 October 2026The URL comes from the Geizhals listing and search results. gigabyte.com blocks agents, so the page was not opened. GIGABYTE has separate pages for Rev. 1.0 and Rev. 1.1. Specifications were read from the user's manual and retailer copies of the maker's text.
- Spec sheet
- Not available
- Manual
- www.trovaprezzi.it/manuali/gigabyte_aorus_x870e_pro_ice.pdf1Owner's manualtrovaprezzi.it/manuali/gigabyte_aorus_x870e_pro_ice.pdfRead 14 October 2026GIGABYTE User's Manual Rev. 1002 for X870E AORUS PRO ICE and X870E AORUS PRO (46 pages), hosted by trovaprezzi.it. A Rev. 1001 copy on Geizhals has the same specification chapter. The manual does not split Rev. 1.0 and Rev. 1.1 of the board. The maker's own manual page was not readable.
- EPREL registration number
- Not available
Warranty
Compare with
Pick a motherboard to see both side by side. Differences are marked yellow.
Sources
We read 12 sources for this motherboard. The numbers match the markers in the sheet.
- Owner's manualtrovaprezzi.it/manuali/gigabyte_aorus_x870e_pro_ice.pdf
- Maker product pagegigabyte.com/Motherboard/X870E-AORUS-PRO-ICE
- Maker product pageamd.com/en/products/processors/chipsets/am5.html
See a wrong value? Tell us and name the field.
