PC parts / Motherboards
GIGABYTEGaming motherboard

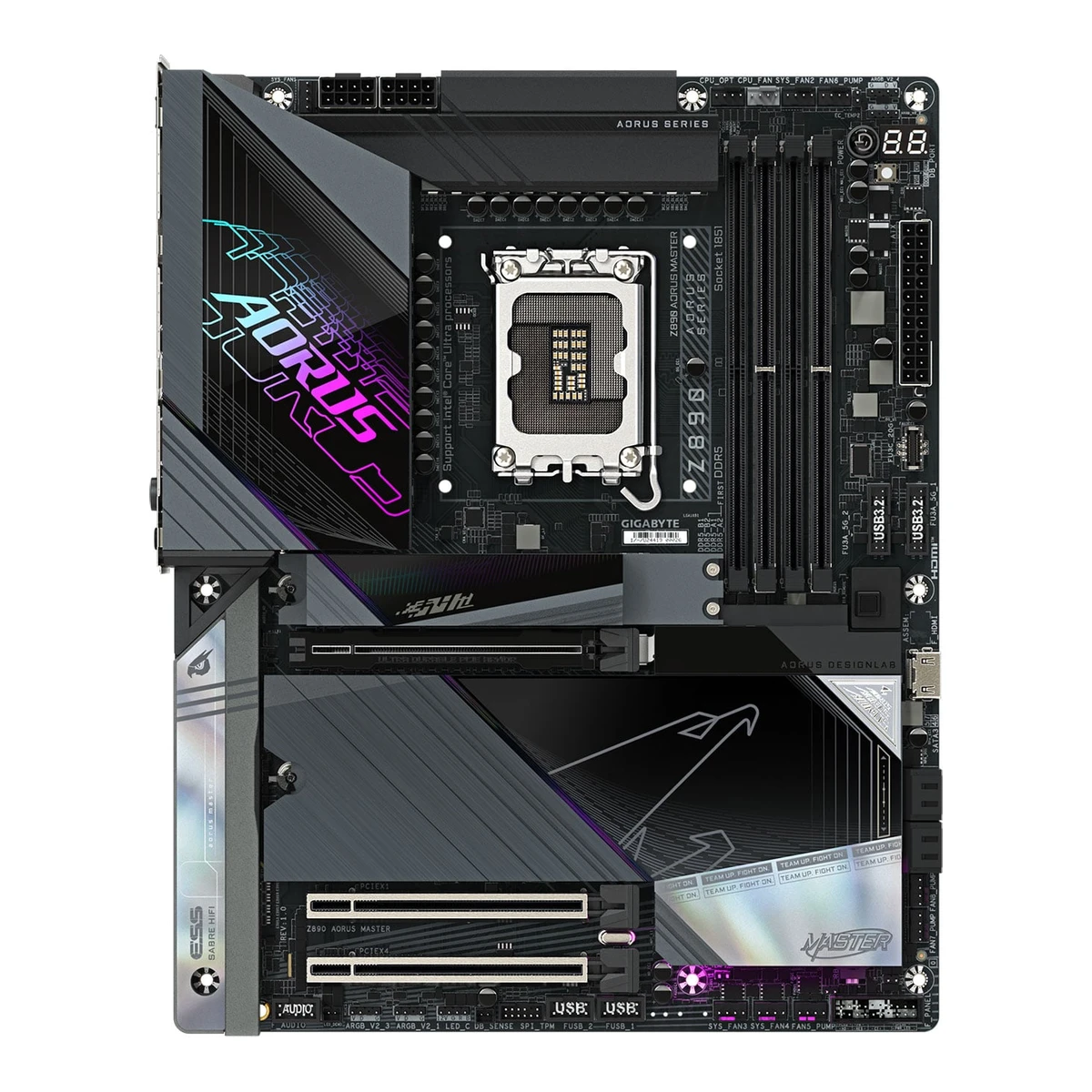

Z890 AORUS MASTER
Released October 2024.3Reviewtomshardware.com/pc-components/motherboards/gigabyte-z890-aorus-master-motherboard-reviewRead 14 October 2026Review of 2024-11-16 for a board on sale. Last checked 16 October 2026.
- CPU socket
- LGA1851
- Chipset
- Intel Z890
- Form factor
- ATX
- M.2 slots
- 5
69 of 78 fields known.
At a glance
Max memory speed (overclocked)
9,500MT/s3Reviewtomshardware.com/pc-components/motherboards/gigabyte-z890-aorus-master-motherboard-reviewRead 14 October 2026Spec table from the Gigabyte website: DDR5-9500+(OC), 256GB. Text: speeds up to DDR5-9500(OC). The review ran DDR5-8200 kits. The maker lists no module setup per speed. Core Ultra 200S is the only CPU family for this board.6Reviewprofesionalreview.com/2024/10/24/z890-aorus-master-review/ampRead 14 October 20269500 MHz with XMP 3.0. The review tested 8200 MHz.7Reviewgeeknetic.es/Review/2973/Gigabyte-Z890-AORUS-MASTER-Review.htmlRead 14 October 2026Review of 2024-11-27: up to 9500 MT/s with overclocking and up to 256 GB of DDR5.8Spec databasegeizhals.de/gigabyte-z890-aorus-master-a3327967.htmlRead 14 October 2026Data rate: DDR5-5600 UDIMM, DDR5-6400 CUDIMM (Core Ultra 200S), max DDR5-9500 OC.10Spec databaseik.imagekit.io/pimberly/65707b38e31f5a94719d7ba0/534a3775/670ec91d2893ec0018c0bba1/product-pdfRead 14 October 2026Key features: up to 9500MHz DDR5 (OC). Supported memory clock speeds list ends 8600 and 9500, maximum 9500 MHz.
Higher than all other motherboards.
Fan headers
101Owner's manualtrovaprezzi.it/manuali/gigabyte_aorus_z890_master.pdfRead 14 October 2026Section 2-2: 1 CPU fan, 1 CPU fan/pump, 4 system fan and 4 system fan/pump headers. Tom's also counts 10.3Reviewtomshardware.com/pc-components/motherboards/gigabyte-z890-aorus-master-motherboard-reviewRead 14 October 2026Spec table: 10 four-pin fan and pump headers, each with 2A/24W output.
Higher than 98% of other motherboards.
Rear USB ports
14
Higher than 95% of other motherboards.
CPU core power stages
183Reviewtomshardware.com/pc-components/motherboards/gigabyte-z890-aorus-master-motherboard-reviewRead 14 October 202618 Renesas R2209004 SPS MOSFETs rated at 110A each in a twin configuration.6Reviewprofesionalreview.com/2024/10/24/z890-aorus-master-review/ampRead 14 October 202618 Renesas R2209004 MOSFETs of 110A.
Higher than 78% of other motherboards.
Ports
- 2 USB-C USB4
- 6 USB-A USB 3.2 Gen 2
- 4 USB-A USB 3.2 Gen 1
- 2 USB-A USB 2.0
- Ethernet (RJ45)
- 2 3.5 mm audio
- Optical S/PDIF
- USB-C header
- 2 USB 3 header (19-pin)
- 2 USB 2.0 header (9-pin)
General
- Model numbers
- Z890 AORUS MASTER1Owner's manualtrovaprezzi.it/manuali/gigabyte_aorus_z890_master.pdfRead 14 October 2026Regulatory page: Model Number Z890 AORUS MASTER.
- GTIN / EAN
- 47193318649039Retailer pagescan.co.uk/products/gigabyte-z890-aorus-masterRead 14 October 2026GTIN 4719331864903.10Spec databaseik.imagekit.io/pimberly/65707b38e31f5a94719d7ba0/534a3775/670ec91d2893ec0018c0bba1/product-pdfRead 14 October 2026Retailer product sheet of 2024-10-15 (pimberly feed, linked from a Datek store listing): EAN 4719331864903.
- Predecessor
- Not available
- Successor
- Not available
- Launch price (US)
- $599.993Reviewtomshardware.com/pc-components/motherboards/gigabyte-z890-aorus-master-motherboard-reviewRead 14 October 2026Priced at $599.99, the MSRP did go up from the Z790 Aorus Master X ($550). The US price excludes sales tax. Wccftech's Newegg pre-order listing of 2024-10-10 says the same.11Press articlewccftech.com/intel-z890-motherboards-available-pre-order-prices-starting-199-us-asus-asrock-gigabyte-msi/ampRead 14 October 2026Lists the Gigabyte Z890 Aorus Master at $599.99 in a Newegg pre-order listing, excl. sales tax. A retailer price, not a GIGABYTE statement. Tom's review gives the same MSRP.
- Launch price (EU)
- Not available
- Markets
- Not available
- Colours
- Not available
- Board revision
- Not available
Platform
- CPU socket
- LGA18511Owner's manualtrovaprezzi.it/manuali/gigabyte_aorus_z890_master.pdfRead 14 October 2026
- Chipset
- Intel Z8901Owner's manualtrovaprezzi.it/manuali/gigabyte_aorus_z890_master.pdfRead 14 October 2026
- Supported processors
- Intel Core Ultra (Series 2)1Owner's manualtrovaprezzi.it/manuali/gigabyte_aorus_z890_master.pdfRead 14 October 2026Section 2-2: LGA1851 socket, Intel Core Ultra Processors. The manual refers to the maker's website for the CPU support list. Retail listings name Intel Core Ultra (Series 2). Read on 2026-10-14.
Board
Front and side, drawn to scale.
- Form factor
- ATX1Owner's manualtrovaprezzi.it/manuali/gigabyte_aorus_z890_master.pdfRead 14 October 2026
- Board dimensions
- Width244Height305mm(9.6 × 12 in)1Owner's manualtrovaprezzi.it/manuali/gigabyte_aorus_z890_master.pdfRead 14 October 2026Section 2-2: ATX form factor, 30.5cm x 24.4cm.
- PCB layers
- 86Reviewprofesionalreview.com/2024/10/24/z890-aorus-master-review/ampRead 14 October 20268 layers.9Retailer pagescan.co.uk/products/gigabyte-z890-aorus-masterRead 14 October 20268-layer PCB, low-loss, 2X copper.
- RGB lighting on the board
- Yes3Reviewtomshardware.com/pc-components/motherboards/gigabyte-z890-aorus-master-motherboard-reviewRead 14 October 2026Heatsinks with the AORUS branding are illuminated by RGB LEDs and another RGB strip lights the bottom of the board.6Reviewprofesionalreview.com/2024/10/24/z890-aorus-master-review/ampRead 14 October 2026RGB Fusion 2.0 lighting on the aluminium cover over the rear I/O and under the chipset block.
Power delivery
- Power stage layout
- 18+1+2+13Reviewtomshardware.com/pc-components/motherboards/gigabyte-z890-aorus-master-motherboard-reviewRead 14 October 2026Review text: 21 phases, 18 for Vcore. The maker's 18+1+2+1 comes from the retailer product sheet.6Reviewprofesionalreview.com/2024/10/24/z890-aorus-master-review/ampRead 14 October 202618 phases for VccCore in 9+9 parallel, 1 for VccGT and 2 for VccSA. This fits 18+1+2 and the maker's 18+1+2+1.10Spec databaseik.imagekit.io/pimberly/65707b38e31f5a94719d7ba0/534a3775/670ec91d2893ec0018c0bba1/product-pdfRead 14 October 2026Key features: Digital 18+1+2+1 Phases 110A SPS VRM with Tantalum Polymer Capacitor.
- CPU core (Vcore) power stages
- 183Reviewtomshardware.com/pc-components/motherboards/gigabyte-z890-aorus-master-motherboard-reviewRead 14 October 202618 Renesas R2209004 SPS MOSFETs rated at 110A each in a twin configuration.6Reviewprofesionalreview.com/2024/10/24/z890-aorus-master-review/ampRead 14 October 202618 Renesas R2209004 MOSFETs of 110A.
- Vcore power stage rating
- 110A3Reviewtomshardware.com/pc-components/motherboards/gigabyte-z890-aorus-master-motherboard-reviewRead 14 October 2026The spec table says 18x 110A SPS MOSFETs for Vcore.6Reviewprofesionalreview.com/2024/10/24/z890-aorus-master-review/ampRead 14 October 202618 Renesas R2209004 of 110A. The same as the maker's 110A SPS.9Retailer pagescan.co.uk/products/gigabyte-z890-aorus-masterRead 14 October 202618+1+2 Digital Twin VRM with 110A Smart Power Stage modules, copying GIGABYTE's text.10Spec databaseik.imagekit.io/pimberly/65707b38e31f5a94719d7ba0/534a3775/670ec91d2893ec0018c0bba1/product-pdfRead 14 October 2026Digital 18+1+2+1 Phases 110A SPS VRM.
- VRM controller
- Renesas RAA2291303Reviewtomshardware.com/pc-components/motherboards/gigabyte-z890-aorus-master-motherboard-reviewRead 14 October 2026Power flows to the familiar Renesas RAA229130 PWM controller. Profesional Review agrees. Geizhals lists a second controller, RAA229134.6Reviewprofesionalreview.com/2024/10/24/z890-aorus-master-review/ampRead 14 October 2026Renesas RAA229130 digital controller.8Spec databasegeizhals.de/gigabyte-z890-aorus-master-a3327967.htmlRead 14 October 2026PWM controller row: RAA229130 (max 12 phases) and RAA229134 (max 4 phases). The first is stored, as Tom's and Profesional Review name it.
Memory
- Memory slots
- 41Owner's manualtrovaprezzi.it/manuali/gigabyte_aorus_z890_master.pdfRead 14 October 2026
- Max memory
- 256GB1Owner's manualtrovaprezzi.it/manuali/gigabyte_aorus_z890_master.pdfRead 14 October 2026
- Max memory speed (overclocked)
- 9,500MT/s3Reviewtomshardware.com/pc-components/motherboards/gigabyte-z890-aorus-master-motherboard-reviewRead 14 October 2026Spec table from the Gigabyte website: DDR5-9500+(OC), 256GB. Text: speeds up to DDR5-9500(OC). The review ran DDR5-8200 kits. The maker lists no module setup per speed. Core Ultra 200S is the only CPU family for this board.6Reviewprofesionalreview.com/2024/10/24/z890-aorus-master-review/ampRead 14 October 20269500 MHz with XMP 3.0. The review tested 8200 MHz.7Reviewgeeknetic.es/Review/2973/Gigabyte-Z890-AORUS-MASTER-Review.htmlRead 14 October 2026Review of 2024-11-27: up to 9500 MT/s with overclocking and up to 256 GB of DDR5.8Spec databasegeizhals.de/gigabyte-z890-aorus-master-a3327967.htmlRead 14 October 2026Data rate: DDR5-5600 UDIMM, DDR5-6400 CUDIMM (Core Ultra 200S), max DDR5-9500 OC.10Spec databaseik.imagekit.io/pimberly/65707b38e31f5a94719d7ba0/534a3775/670ec91d2893ec0018c0bba1/product-pdfRead 14 October 2026Key features: up to 9500MHz DDR5 (OC). Supported memory clock speeds list ends 8600 and 9500, maximum 9500 MHz.
- CUDIMM support
- Yes3Reviewtomshardware.com/pc-components/motherboards/gigabyte-z890-aorus-master-motherboard-reviewRead 14 October 2026The review ran Kingston and G.Skill CUDIMM kits up to DDR5-8200 without trouble, with the 285K. It does not state the clock driver mode.7Reviewgeeknetic.es/Review/2973/Gigabyte-Z890-AORUS-MASTER-Review.htmlRead 14 October 2026The review says CUDIMM is supported.8Spec databasegeizhals.de/gigabyte-z890-aorus-master-a3327967.htmlRead 14 October 2026Data rate row names DDR5-6400 CUDIMM for Core Ultra 200S.
Expansion slots
- Expansion slots
Physical slot Electrical lanes PCIe generation Connected to Count PCIe x16 16 5 CPU 1 PCIe x16 4 4 Chipset 1 PCIe x16 1 4 Chipset 1 Source1Owner's manualtrovaprezzi.it/manuali/gigabyte_aorus_z890_master.pdfRead 14 October 2026Section 2-2: PCIEX16 is from the CPU, PCIe 5.0 at x16, and drops to x8 when a device is in M2D_CPU. PCIEX4 and PCIEX1 are x16-length slots on the chipset, PCIe 4.0 running at x4 and x1. Scan UK and Geizhals say the x1 slot is PCIe 3.0. The manual is stored. Tom's confirms the lane sharing.3Reviewtomshardware.com/pc-components/motherboards/gigabyte-z890-aorus-master-motherboard-reviewRead 14 October 2026Three full-length PCIe slots. The top slot is the CPU PCIe 5.0 x16. The two below run through the chipset at PCIe 4.0 x4 and x1. The top slot drops to x8 when M2D_CPU is populated.8Spec databasegeizhals.de/gigabyte-z890-aorus-master-a3327967.htmlRead 14 October 2026Lists the third slot as PCIe 3.0 x16 at x1. The manual says PCIe 4.0 and is stored.- Full-length PCIe slots
- 3
- Fastest PCIe x16 slot generation
- 5
Storage
- M.2 storage slots
Slot PCIe generation PCIe lanes Connected to Longest drive Takes SATA drives Heatsink Shares lanes with M2A_CPU 5 4 CPU M.2 22110 No Yes Not available M2B_CPU 4 4 CPU M.2 22110 No Yes Not available M2D_CPU 5 4 CPU M.2 22110 No Yes The PCIe x16 slot runs at x8 M2P_SB 4 4 Chipset M.2 2280 No Yes Not available M2M_SB 4 4 Chipset M.2 2280 Yes Yes Not available Source1Owner's manualtrovaprezzi.it/manuali/gigabyte_aorus_z890_master.pdfRead 14 October 2026Section 2-2 and 2-8. M2A_CPU takes 25110/22110/2580/2280, PCIe 5.0 x4/x2. M2B_CPU takes 22110/2280, PCIe 4.0 x4/x2, from the CPU. M2D_CPU takes 22110/2280, PCIe 5.0 x4/x2, and shares bandwidth with PCIEX16. M2P_SB takes 2280, PCIe 4.0 x4/x2. M2M_SB takes 2280, PCIe 4.0 x4/x2 and SATA. The 2-8 table marks M.2 SATA SSDs as supported on M2M_SB only. 22110 is stored for 25110 and 22110 slots. The 2-8 steps remove a motherboard heatsink for every slot.3Reviewtomshardware.com/pc-components/motherboards/gigabyte-z890-aorus-master-motherboard-reviewRead 14 October 2026Spec table: two PCIe 5.0 x4 sockets up to 110 mm, one PCIe 4.0 x4 up to 110 mm, one PCIe 4.0 x4 up to 80 mm and one PCIe 4.0 x4 PCIe/SATA up to 80 mm. Text: five M.2 sockets under the heatsinks, each with the M.2 EZ Latch. M2M_SB takes SATA as well.- M.2 slots
- 5
- PCIe 5.0 M.2 slots
- 2
Rear ports
- Rear ports
Type Version Count Max link rate (Gbps) Thunderbolt or USB4 DP Alt Mode USB-C USB4 2 40 Thunderbolt 4 Yes USB-A USB 3.2 Gen 2 6 10 Not available Not available USB-A USB 3.2 Gen 1 4 5 Not available Not available USB-A USB 2.0 2 0.48 Not available Not available Ethernet (RJ45) Not available 1 10 Not available Not available 3.5 mm audio Not available 2 Not available Not available Not available Optical S/PDIF Not available 1 Not available Not available Not available Source1Owner's manualtrovaprezzi.it/manuali/gigabyte_aorus_z890_master.pdfRead 14 October 2026Section 2-2 and 2-6: 2 Intel Thunderbolt 4 connectors (USB4 Type-C, also USB 3.2 Gen 2x2 compatible, DisplayPort and Thunderbolt video), 6 USB 3.2 Gen 2 Type-A (red), 4 USB 3.2 Gen 1, 2 USB 2.0, 1 RJ-45 up to 10 Gbps, 2 audio jacks and 1 optical S/PDIF out. The USB 3.2 Gen 1 ports are not named Type-A in the manual. Tom's lists them with the Type-A ports and the Thunderbolt ports are the only Type-C on the panel, so they are stored as Type-A. Thunderbolt is stored as 40 Gbps (Tom's). The Q-Flash Plus button and two antenna connectors are not ports. HDMI is the internal F_HDMI header.3Reviewtomshardware.com/pc-components/motherboards/gigabyte-z890-aorus-master-motherboard-reviewRead 14 October 2026The rear panel has 14 USB ports: two Thunderbolt 4 (40 Gbps) Type-C ports that also give video, six USB 3.2 Gen 2 (10 Gbps, all Type-A), four USB 3.2 Gen 1 (5 Gbps) and two USB 2.0. One 10 GbE port, two analog jacks and S/PDIF. The text says 20 Gbps for the Gen 2 ports, which is a typo, since the spec table and the maker say 10.- Rear USB ports
- 14
- Rear USB-C ports
- 2
- Fastest rear USB port
- 40Gbps
- Thunderbolt
- Yes
Internal connectors
- Internal USB headers
Header Max data rate (Gbps) Headers Front ports served USB-C header 20 1 1 USB 3 header (19-pin) 5 2 4 USB 2.0 header (9-pin) 0.48 2 4 - Front USB-C header speed
- 20Gbps
- Fan headers
- 101Owner's manualtrovaprezzi.it/manuali/gigabyte_aorus_z890_master.pdfRead 14 October 2026Section 2-2: 1 CPU fan, 1 CPU fan/pump, 4 system fan and 4 system fan/pump headers. Tom's also counts 10.3Reviewtomshardware.com/pc-components/motherboards/gigabyte-z890-aorus-master-motherboard-reviewRead 14 October 2026Spec table: 10 four-pin fan and pump headers, each with 2A/24W output.
Networking
- Ethernet controllers
- Marvell AQC1131Owner's manualtrovaprezzi.it/manuali/gigabyte_aorus_z890_master.pdfRead 14 October 2026Section 2-2: Marvell AQtion AQC113C 10GbE LAN chip. The suffix C is left out. Geizhals reads AQC113CS. AQtion is the family name and is left out, as on the other boards.6Reviewprofesionalreview.com/2024/10/24/z890-aorus-master-review/ampRead 14 October 2026Marvell AQtion AQC113C, 10 GbE.
- Ethernet ports
- 1
- Ethernet speed
- 10Gbps
- Wi-Fi standard
- Wi-Fi 71Owner's manualtrovaprezzi.it/manuali/gigabyte_aorus_z890_master.pdfRead 14 October 2026Section 2-2: 802.11a, b, g, n, ac, ax and be.
- Wi-Fi bands
- 2.4 GHz, 5 GHz, 6 GHz1Owner's manualtrovaprezzi.it/manuali/gigabyte_aorus_z890_master.pdfRead 14 October 2026Section 2-2: 2.4/5/6 GHz carrier frequency bands. The 6 GHz band depends on country regulations.
- Max Wi-Fi channel width
- 320MHz1Owner's manualtrovaprezzi.it/manuali/gigabyte_aorus_z890_master.pdfRead 14 October 2026Section 2-2: support for the 11be 320MHz wireless standard.
- Wi-Fi module
- Intel BE2001Owner's manualtrovaprezzi.it/manuali/gigabyte_aorus_z890_master.pdfRead 14 October 2026Section 2-2: Intel Wi-Fi 7 BE200NGW. The suffix NGW is left out.6Reviewprofesionalreview.com/2024/10/24/z890-aorus-master-review/ampRead 14 October 2026Intel Wi-Fi 7 BE200 with Bluetooth 5.4.7Reviewgeeknetic.es/Review/2973/Gigabyte-Z890-AORUS-MASTER-Review.htmlRead 14 October 2026Intel Wi-Fi 7 BE200NGW, 2x2, MLO and 320 MHz channels on 6 GHz, Bluetooth 5.4.
Audio
- Audio codec
- Realtek ALC12201Owner's manualtrovaprezzi.it/manuali/gigabyte_aorus_z890_master.pdfRead 14 October 2026Section 2-2: Realtek ALC1220 CODEC.6Reviewprofesionalreview.com/2024/10/24/z890-aorus-master-review/ampRead 14 October 2026Realtek ALC1220 codec with an ESS ES9118 DAC, WIMA capacitors and DTS:X Ultra.
Features
- Clear CMOS button (rear)
- Yes1Owner's manualtrovaprezzi.it/manuali/gigabyte_aorus_z890_master.pdfRead 14 October 2026Section 2-2 and 2-6: Clear CMOS button on the back panel. A Clear CMOS jumper also exists.
- POST code display
- Yes1Owner's manualtrovaprezzi.it/manuali/gigabyte_aorus_z890_master.pdfRead 14 October 2026Section 1-1 layout shows DB_PORT, with the note that debug code information is in the Debug LED Codes pages (section 5-2), which list two-character codes. Section 2-7 also lists four status LEDs (CPU, DRAM, VGA, BOOT). Tom's lists a two-character Debug port, and the Scan UK photo shows the two-digit display near the top right corner.3Reviewtomshardware.com/pc-components/motherboards/gigabyte-z890-aorus-master-motherboard-reviewRead 14 October 2026Spec table: Debug Port (2-character) and Debug LEDs. Text: a two-character Debug port and a four-LED POST debugger.8Spec databasegeizhals.de/gigabyte-z890-aorus-master-a3327967.htmlRead 14 October 2026Features: diagnostic LED with segment display, so a code display.
- Power button on the board
- Yes1Owner's manualtrovaprezzi.it/manuali/gigabyte_aorus_z890_master.pdfRead 14 October 2026Section 2-2 and 2-7: power button and reset button on the board.3Reviewtomshardware.com/pc-components/motherboards/gigabyte-z890-aorus-master-motherboard-reviewRead 14 October 2026Spec table: one power button and one reset button.
- Pre-installed I/O shield
- Yes1Owner's manualtrovaprezzi.it/manuali/gigabyte_aorus_z890_master.pdfRead 14 October 2026The section 1-3 box contents list has no loose I/O shield. Geizhals lists an integrated I/O shield and the Scan UK photo shows the shield on the board.8Spec databasegeizhals.de/gigabyte-z890-aorus-master-a3327967.htmlRead 14 October 2026Features: integrierte I/O-Blende.
- Tool-free features
- Tool-free M.2 latch, Tool-free M.2 heatsink, PCIe slot release, Push-on antenna connector1Owner's manualtrovaprezzi.it/manuali/gigabyte_aorus_z890_master.pdfRead 14 October 2026Section 2-8: M.2 EZ-Latch Plus (screwless M.2 SSD clip) and M.2 EZ-Latch Click (screwless heatsink). The PCIe EZ-Latch Plus button and the WIFI EZ-Plug are from Tom's and Geizhals. Tom's lists a Wi-Fi antenna with EZ-plug in the box.3Reviewtomshardware.com/pc-components/motherboards/gigabyte-z890-aorus-master-motherboard-reviewRead 14 October 2026EZ Latch on all five M.2 sockets, a PCIe EZ Latch button on the top slot and an antenna with EZ-plug in the box.8Spec databasegeizhals.de/gigabyte-z890-aorus-master-a3327967.htmlRead 14 October 2026Antenna connectors are listed as Quick Connect.
Measured
- Power draw idle
- Not available
In the box
- In the box
- Z890 AORUS MASTER motherboard, User's Manual, Quick Installation Guide, One antenna, DDR Wind Blade, Two SATA cables, One noise detection cable, Two thermistor cables, One G Connector, Two M.2 thermal pads, Three packs of M.2 thick/thin rubber pads1Owner's manualtrovaprezzi.it/manuali/gigabyte_aorus_z890_master.pdfRead 14 October 2026Section 1-3. The list is for reference and the manual says the actual items depend on the package.
Links
- Product page
- www.gigabyte.com/Motherboard/Z890-AORUS-MASTER2Maker product pagegigabyte.com/Motherboard/Z890-AORUS-MASTERRead 14 October 2026The URL comes from the job evidence and search results. gigabyte.com blocks agents, so the page was not opened. Specifications were read from the user's manual, a retailer product sheet and reviews that copy the maker's spec table.
- Spec sheet
- Not available
- Manual
- www.trovaprezzi.it/manuali/gigabyte_aorus_z890_master.pdf1Owner's manualtrovaprezzi.it/manuali/gigabyte_aorus_z890_master.pdfRead 14 October 2026GIGABYTE User's Manual Rev. 1004 for Z890 AORUS MASTER (48 pages), hosted by trovaprezzi.it. The maker's own manual page was not readable.
- EPREL registration number
- Not available
Warranty
- Manufacturer warranty (source market)
- 3years3Reviewtomshardware.com/pc-components/motherboards/gigabyte-z890-aorus-master-motherboard-reviewRead 14 October 2026Spec table: 3 Years. This is a US reviewer and the market is not named. Scan UK states 24 months.8Spec databasegeizhals.de/gigabyte-z890-aorus-master-a3327967.htmlRead 14 October 2026Garantie 3 Jahre.9Retailer pagescan.co.uk/products/gigabyte-z890-aorus-masterRead 14 October 202624 months, direct, for the UK market. Tom's and Geizhals say 3 years.10Spec databaseik.imagekit.io/pimberly/65707b38e31f5a94719d7ba0/534a3775/670ec91d2893ec0018c0bba1/product-pdfRead 14 October 2026Warranty period 3 year(s).
Compare with
Pick a motherboard to see both side by side. Differences are marked yellow.
Sources
We read 11 sources for this motherboard. The numbers match the markers in the sheet.
- Owner's manualtrovaprezzi.it/manuali/gigabyte_aorus_z890_master.pdf
- Maker product pagegigabyte.com/Motherboard/Z890-AORUS-MASTER
- Spec databasegeizhals.de/gigabyte-z890-aorus-master-a3327967.html
- Retailer pagescan.co.uk/products/gigabyte-z890-aorus-master
See a wrong value? Tell us and name the field.
