PC parts / Motherboards

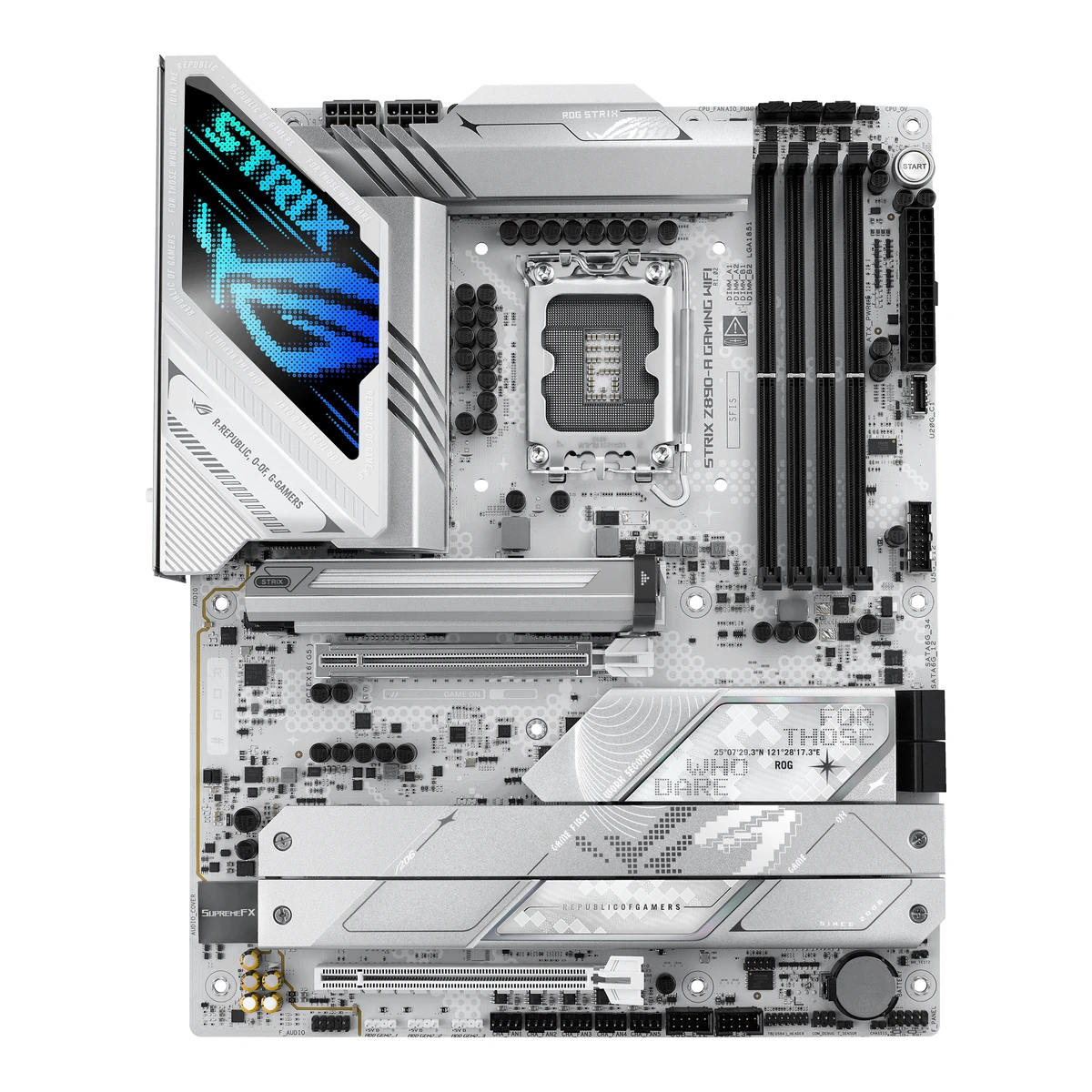

ASUS ROG STRIX Z890-A GAMING WIFI

ASUSGaming motherboard

ROG STRIX Z890-A GAMING WIFI

Released October 2024.5Maker product pagerog.asus.com/support/webapi/product/GetPDBIOSRead 15 October 2026The ASUS BIOS list, read through its public data feed, starts with BIOS 0503 dated 2024-09-04. The first LAN, Bluetooth, audio and chipset drivers are dated 2024-10-16. Intel launched Core Ultra 200S and the Z890 chipset on 2024-10-24, which is the month used. Last checked 15 October 2026.

CPU socket
LGA1851
Chipset
Intel Z890
Form factor
ATX
M.2 slots
5

69 of 78 fields known.

Compare with another motherboardDownload JSONDownload CSVGet it from the API

At a glance

Ports

  • 2 USB-C USB4
  • USB-C USB 3.2 Gen 2
  • 5 USB-A USB 3.2 Gen 2
  • 2 USB-A USB 3.2 Gen 1
  • DisplayPort 1.4
  • HDMI 2.1
  • Ethernet (RJ45)
  • 2 3.5 mm audio
  • Optical S/PDIF
  • USB-C header
  • USB 3 header (19-pin)
  • 2 USB 2.0 header (9-pin)

All specs

SourceCalculated

General

Series
ROG Strix2Maker product pagerog.asus.com/motherboards/rog-strix/rog-strix-z890-a-gaming-wifiRead 15 October 2026
Model numbers
ROG STRIX Z890-A GAMING WIFI, 90MB1I90-M0AAY0, 90MB1I90-M0EAY01Maker product pagerog.asus.com/motherboards/rog-strix/rog-strix-z890-a-gaming-wifi/specRead 15 October 2026The spec page names only the model. The part numbers come from the ASUS US eShop (90MB1I90-M0AAY0) and EU retailers (90MB1I90-M0EAY0).9Retailer pageeshop.asus.com/us/90mb1i90-m0aay0-rog-strix-z890-a-gaming-wifi.htmlRead 15 October 2026Part Number 90MB1I90-M0AAY0.10Retailer pagecustompc.com.cy/components/motherboards/intel-motherboards/asus-rog-strix-z890-a-gaming-wifi-mainboard-socket-lga-1851-intel-z890-atx-ddr5Read 15 October 2026Part number 90MB1I90-M0EAY0.
GTIN / EAN
4711387758830, 19710575883410Retailer pagecustompc.com.cy/components/motherboards/intel-motherboards/asus-rog-strix-z890-a-gaming-wifi-mainboard-socket-lga-1851-intel-z890-atx-ddr5Read 15 October 2026custompc.com.cy lists EAN 4711387758830 for part number 90MB1I90-M0EAY0.12Spec databasebuildcores.com/products/Motherboard/p2j5jubrv/Asus-ROG-STRIX-Z890-A-GAMING-WIFI-DDR5-ATXRead 15 October 2026BuildCores lists UPC 197105758834 and EAN 4711387758830 for the board, with release year 2024 and a white colour. The UPC is not tied to a part number on the page, so no variant row is made for it.
Announced
Not available
Status
Available9Retailer pageeshop.asus.com/us/90mb1i90-m0aay0-rog-strix-z890-a-gaming-wifi.htmlRead 15 October 2026The store lists the board in stock on 2026-10-15.
Predecessor
Not available
Successor
Not available
Launch price (US)
$399.998Press articlewccftech.com/intel-z890-motherboards-available-pre-order-prices-starting-199-us-asus-asrock-gigabyte-msiRead 15 October 2026Article of 2024-10-10 lists the ROG STRIX Z890-A GAMING WIFI at 399.99 USD on B&H and Newegg in US retail pre-order listings, for the Core Ultra 200S launch. It is a retailer listing and not an ASUS statement of MSRP. US prices exclude sales tax. Tom's Hardware's review of 2024-12-19 calls it a sub-$400 board.
Launch price (EU)
Not available
Markets
Not available
Colours
Not available
Segment
Gaming2Maker product pagerog.asus.com/motherboards/rog-strix/rog-strix-z890-a-gaming-wifiRead 15 October 2026ROG Strix is the gaming line of ASUS Republic of Gamers. The page sells the board for elite gaming.
Board revision
Not available

Platform

CPU socket
LGA18511Maker product pagerog.asus.com/motherboards/rog-strix/rog-strix-z890-a-gaming-wifi/specRead 15 October 2026
Chipset
Intel Z8901Maker product pagerog.asus.com/motherboards/rog-strix/rog-strix-z890-a-gaming-wifi/specRead 15 October 2026
Supported processors
Intel Core Ultra (Series 2)1Maker product pagerog.asus.com/motherboards/rog-strix/rog-strix-z890-a-gaming-wifi/specRead 15 October 2026Intel Core Ultra Processors (Series 2), with a link to the ASUS download center for the CPU support list. Read on 2026-10-15. A news box on the page also mentions a Core Ultra 200S Plus Series that needs a newer Windows 11, but the CPU line itself names only Series 2.
CPU overclocking
Yes2Maker product pagerog.asus.com/motherboards/rog-strix/rog-strix-z890-a-gaming-wifiRead 15 October 2026The page describes AI Overclocking, NPU Boost and TurboV Core CPU tuning for overclocking enthusiasts.

Board

Front and side, drawn to scale.

Form factor
ATX1Maker product pagerog.asus.com/motherboards/rog-strix/rog-strix-z890-a-gaming-wifi/specRead 15 October 2026ATX Form Factor.
Board dimensions
Width244Height305mm(9.6 × 12 in)1Maker product pagerog.asus.com/motherboards/rog-strix/rog-strix-z890-a-gaming-wifi/specRead 15 October 202612 inch x 9.6 inch (30.5 cm x 24.4 cm).
PCB layers
82Maker product pagerog.asus.com/motherboards/rog-strix/rog-strix-z890-a-gaming-wifiRead 15 October 2026Power solution section: EIGHT-LAYER PCB.
Back-connect design
No3Owner's manualdlcdnets.asus.com/pub/ASUS/mb/LGA1851/ROG_STRIX_Z890-A_GAMING_WIFI/E26409_ROG_STRIX_Z890-A_GAMING_WIFI_EM_V2_WEB.pdfRead 15 October 2026The chapter 1 layout shows the usual front-side power, fan, USB and system panel connectors. The board is not a back-connect design.
RGB lighting on the board
Yes2Maker product pagerog.asus.com/motherboards/rog-strix/rog-strix-z890-a-gaming-wifiRead 15 October 2026The page lists Polymo Lighting on the I/O shroud and says ROG Strix boards have full lighting control of onboard RGB LEDs with Aura Sync.

Power delivery

Power stage layout
16+1+2+22Maker product pagerog.asus.com/motherboards/rog-strix/rog-strix-z890-a-gaming-wifiRead 15 October 2026Power solution: 16(90A)+1(90A)+2(90A)+2(80A) power stages, written 16+1+2+2. The text says the VRM features 16+1+2+2 power stages, each rated up to 90 amps, while the table gives 80 A for the last two.
CPU core (Vcore) power stages
162Maker product pagerog.asus.com/motherboards/rog-strix/rog-strix-z890-a-gaming-wifiRead 15 October 202616 VCCCORE stages.
Vcore power stage rating
90A2Maker product pagerog.asus.com/motherboards/rog-strix/rog-strix-z890-a-gaming-wifiRead 15 October 2026VCCCORE Power 90A, SPS.
VRM controller
ASUS ASP24326Reviewtomshardware.com/pc-components/motherboards/asus-rog-strix-z890-a-gaming-wifi-motherboard-reviewRead 15 October 2026Review page 1: the VRMs have 21 phases, 16 for Vcore. Power comes from the EPS connectors to a Digi+ ASP2432 PWM controller, then to 16 Monolithic Power Systems MPS2330 90A MOSFETs in a teamed configuration. Stored as ASUS ASP2432, the form used for other ASUS boards. The review is dated 2024-12-19.
CPU power connectors
8+8 pin1Maker product pagerog.asus.com/motherboards/rog-strix/rog-strix-z890-a-gaming-wifi/specRead 15 October 2026Internal connectors: 2 x 8-pin +12V CPU Power connectors and the 24-pin main power connector.
Extra slot power connector
No1Maker product pagerog.asus.com/motherboards/rog-strix/rog-strix-z890-a-gaming-wifi/specRead 15 October 2026The internal connector list has no extra slot power connector. The 8-pin CPU Power Plug LED in the manual is not a connector.

Memory

Memory type
DDR51Maker product pagerog.asus.com/motherboards/rog-strix/rog-strix-z890-a-gaming-wifi/specRead 15 October 2026
Memory slots
41Maker product pagerog.asus.com/motherboards/rog-strix/rog-strix-z890-a-gaming-wifi/specRead 15 October 2026
Max memory
256GB1Maker product pagerog.asus.com/motherboards/rog-strix/rog-strix-z890-a-gaming-wifi/specRead 15 October 20264 x DIMM slots, max. 256GB, DDR5. The manual says the same. Tom's Hardware prints 192 GB in its table, which is the older figure.
Max memory speed (overclocked)
9,066MT/s1Maker product pagerog.asus.com/motherboards/rog-strix/rog-strix-z890-a-gaming-wifi/specRead 15 October 2026Up to 9066+MT/s (OC) with Intel Core Ultra Processors (Series 2). The page says supported speeds and module counts vary with the CPU and memory configuration.
ECC memory
No1Maker product pagerog.asus.com/motherboards/rog-strix/rog-strix-z890-a-gaming-wifi/specRead 15 October 2026The memory line says Non-ECC, Un-buffered, Clocked Unbuffered DIMM (CUDIMM). Non-ECC DDR5 supports On-Die ECC, which does not count.
CUDIMM support
Yes1Maker product pagerog.asus.com/motherboards/rog-strix/rog-strix-z890-a-gaming-wifi/specRead 15 October 2026The memory line lists Clocked Unbuffered DIMM (CUDIMM) with no bypass mode limit. Tom's Hardware ran 48 GB DDR5-8200 CUDIMM kits on this board.

Expansion slots

Expansion slots
Physical slotElectrical lanesPCIe generationConnected toCount
PCIe x16165CPU1
PCIe x1644Chipset1
Source1Maker product pagerog.asus.com/motherboards/rog-strix/rog-strix-z890-a-gaming-wifi/specRead 15 October 2026Core Ultra Series 2: 1 x PCIe 5.0 x16 slot. Z890 chipset: 1 x PCIe 4.0 x16 slot (supports x4 mode). The manual layout shows two slots, PCIEX16(G5) and PCIEX16(G4).3Owner's manualdlcdnets.asus.com/pub/ASUS/mb/LGA1851/ROG_STRIX_Z890-A_GAMING_WIFI/E26409_ROG_STRIX_Z890-A_GAMING_WIFI_EM_V2_WEB.pdfRead 15 October 2026Layout: PCIEX16(G5) and PCIEX16(G4). The Thunderbolt add-in card note says it must go in the PCIEX16(G4) slot.
Full-length PCIe slots
2
Fastest PCIe x16 slot generation
5

Storage

M.2 storage slots
SlotPCIe generationPCIe lanesConnected toLongest driveTakes SATA drivesHeatsink
M.2_154CPUM.2 22110NoYes
M.2_244CPUM.2 2280NoYes
M.2_344ChipsetM.2 2280NoYes
M.2_444ChipsetM.2 22110NoYes
M.2_544ChipsetM.2 2280YesYes
Source1Maker product pagerog.asus.com/motherboards/rog-strix/rog-strix-z890-a-gaming-wifi/specRead 15 October 2026Core Ultra Series 2: M.2_1 type 2242/2260/2280/22110 at PCIe 5.0 x4 and M.2_2 type 2280 at PCIe 4.0 x4. Z890 chipset: M.2_3 type 2280 at PCIe 4.0 x4, M.2_4 type 2280/22110 at PCIe 4.0 x4 and M.2_5 type 2242/2260/2280 at PCIe 4.0 x4 and SATA modes. A 2260 slot is stored as 2280. Only M.2_5 lists a SATA mode. The full slot list shows the other four without one, so their sata cell is false. The page names no lane sharing, and Tom's Hardware says the configuration does not change whatever is connected. The Special Features list names M.2 heatsinks and a backplate. The overview lists 4 x M.2 Heatsinks and says heatsinks cover every slot, so every slot is stored with a heatsink. M.2 slots from the CPU support RAID 0/1/5 only.2Maker product pagerog.asus.com/motherboards/rog-strix/rog-strix-z890-a-gaming-wifiRead 15 October 2026Overview: 5 x M.2 slots, 1 x M.2 22110 at PCIe 5.0 x4, 1 x M.2 22110 and 2 x M.2 2280 at PCIe 4.0 x4 and 1 x M.2 2280 at PCIe 4.0 x4 and SATA. 4 x M.2 Heatsinks. Heatsinks cover every slot.3Owner's manualdlcdnets.asus.com/pub/ASUS/mb/LGA1851/ROG_STRIX_Z890-A_GAMING_WIFI/E26409_ROG_STRIX_Z890-A_GAMING_WIFI_EM_V2_WEB.pdfRead 15 October 2026Specifications summary and layout note: M.2_1 to M.2_5 as on the specification page. M.2 slots from the CPU only support RAID 0/1/5.
M.2 slots
5
PCIe 5.0 M.2 slots
1
SATA ports
41Maker product pagerog.asus.com/motherboards/rog-strix/rog-strix-z890-a-gaming-wifi/specRead 15 October 20264 x SATA 6Gb/s ports.

Rear ports

Rear ports
TypeVersionCountMax link rate (Gbps)Thunderbolt or USB4Power out (W)DP Alt Mode
USB-CUSB4240Thunderbolt 415Yes
USB-CUSB 3.2 Gen 2110Not available30Not available
USB-AUSB 3.2 Gen 2510Not availableNot availableNot available
USB-AUSB 3.2 Gen 125Not availableNot availableNot available
DisplayPortDisplayPort 1.41Not availableNot availableNot availableNot available
HDMIHDMI 2.11Not availableNot availableNot availableNot available
Ethernet (RJ45)Not available12.5Not availableNot availableNot available
3.5 mm audioNot available2Not availableNot availableNot availableNot available
Optical S/PDIFNot available1Not availableNot availableNot availableNot available
Source1Maker product pagerog.asus.com/motherboards/rog-strix/rog-strix-z890-a-gaming-wifi/specRead 15 October 2026Back Panel I/O Ports: 2 x Thunderbolt 4 (2 x USB Type-C), 6 x USB 10Gbps ports (5 Type-A and 1 Type-C with up to 30W PD/PPS Fast-charge), 2 x USB 5Gbps Type-A, 1 DisplayPort, 1 HDMI, 1 Wi-Fi module, 1 Intel 2.5Gb Ethernet, 2 audio jacks, 1 optical S/PDIF out, plus the BIOS FlashBack and Clear CMOS buttons. That is 10 USB ports, as the page totals them. ASUS names USB by speed, so 10Gbps is stored as USB 3.2 Gen 2 and 5Gbps as USB 3.2 Gen 1. The Thunderbolt 4 rows carry the footnote 5V/3.0A, stored as 15 W. The 10Gbps Type-C footnote says 5V/9V max 3.0A, 12V max 2.5A and 15V max 2.0A, which is the 30 W of the port name. DisplayPort is max 8K@60Hz as specified in DisplayPort 1.4 and HDMI is 4K@60Hz as specified in HDMI 2.1. The Thunderbolt 4 footnote says DP alt mode supports up to UHBR20, so dp_alt_mode is true for those ports. The page does not say whether the 10Gbps Type-C port has DisplayPort output. The Wi-Fi module and the buttons are not ports.
Rear USB ports
10
Rear USB-C ports
3
Fastest rear USB port
40Gbps
Thunderbolt
Yes

Internal connectors

Internal USB headers
HeaderMax data rate (Gbps)HeadersFront ports servedPower out (W)
USB-C header201115
USB 3 header (19-pin)512Not available
USB 2.0 header (9-pin)0.4824Not available
Source1Maker product pagerog.asus.com/motherboards/rog-strix/rog-strix-z890-a-gaming-wifi/specRead 15 October 2026Front USB (Total 7 ports): 1 x USB 20Gbps connector (supports USB Type-C), 1 x USB 5Gbps header for 2 additional ports and 2 x USB 2.0 headers for 4 additional ports. The footnote on the Type-C connector says power delivery output 5V/3.0A, stored as 15 W. Tom's Hardware prints 30 W PD/PPS for this connector in its table. The maker figure is used. The Thunderbolt (USB4) header is for an add-in card and has no row here.3Owner's manualdlcdnets.asus.com/pub/ASUS/mb/LGA1851/ROG_STRIX_Z890-A_GAMING_WIFI/E26409_ROG_STRIX_Z890-A_GAMING_WIFI_EM_V2_WEB.pdfRead 15 October 2026Layout contents 8 to 10: the USB 20Gbps Type-C front panel connector, the USB 5Gbps header and the USB 2.0 header.
Front USB-C header speed
20Gbps
Fan headers
81Maker product pagerog.asus.com/motherboards/rog-strix/rog-strix-z890-a-gaming-wifi/specRead 15 October 20261 x CPU Fan, 1 x CPU OPT Fan, 1 x AIO Pump and 5 x Chassis Fan headers, all 4-pin.
ARGB headers
31Maker product pagerog.asus.com/motherboards/rog-strix/rog-strix-z890-a-gaming-wifi/specRead 15 October 20263 x Addressable Gen2 headers.
RGB headers
01Maker product pagerog.asus.com/motherboards/rog-strix/rog-strix-z890-a-gaming-wifi/specRead 15 October 2026The internal connector list has only the three Addressable Gen2 headers and no 4-pin RGB header.

Networking

Ethernet controllers
Intel I2264Maker product pageasus.com/support/api/product.asmx/GetPDDriversRead 15 October 2026The ASUS support page for this model, read through its public data feed, lists Intel I226 LAN drivers. The specification page says only Intel 2.5Gb Ethernet. Tom's Hardware names an Intel i-226.6Reviewtomshardware.com/pc-components/motherboards/asus-rog-strix-z890-a-gaming-wifi-motherboard-reviewRead 15 October 2026Specifications table: Intel i-226 (2.5 GbE).
Ethernet ports
1
Ethernet speed
2.5Gbps
Wi-Fi included
Yes1Maker product pagerog.asus.com/motherboards/rog-strix/rog-strix-z890-a-gaming-wifi/specRead 15 October 20261 x Wi-Fi module on the back panel.
Wi-Fi standard
Wi-Fi 71Maker product pagerog.asus.com/motherboards/rog-strix/rog-strix-z890-a-gaming-wifi/specRead 15 October 20262x2 Wi-Fi 7 (802.11be).6Reviewtomshardware.com/pc-components/motherboards/asus-rog-strix-z890-a-gaming-wifi-motherboard-reviewRead 15 October 2026Specifications table: Wi-Fi 7 2x2, 320 MHz, 6 GHz, BT 5.4, 5.8 Gbps.
Wi-Fi bands
2.4 GHz, 5 GHz, 6 GHz1Maker product pagerog.asus.com/motherboards/rog-strix/rog-strix-z890-a-gaming-wifi/specRead 15 October 2026Supports 2.4/5/6GHz frequency band. The 6 GHz band and its bandwidth depend on regulation, and Wi-Fi 7 needs Windows 11 24H2 or later for full functions.
Max Wi-Fi channel width
320MHz1Maker product pagerog.asus.com/motherboards/rog-strix/rog-strix-z890-a-gaming-wifi/specRead 15 October 2026Supports Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate.
Wi-Fi module
Intel BE2004Maker product pageasus.com/support/api/product.asmx/GetPDDriversRead 15 October 2026The same list has an Intel Wi-Fi driver and an Intel Bluetooth driver whose package name says BE200. The 2x2 Wi-Fi 7, 320 MHz and Bluetooth 5.4 specifications fit the Intel BE200. Tom's Hardware lists the same radio figures without naming the module.
Bluetooth
5.41Maker product pagerog.asus.com/motherboards/rog-strix/rog-strix-z890-a-gaming-wifi/specRead 15 October 2026Bluetooth v5.4. The page says the version may vary and refers to the Wi-Fi module maker.

Audio

Audio codec
Realtek ALC40801Maker product pagerog.asus.com/motherboards/rog-strix/rog-strix-z890-a-gaming-wifi/specRead 15 October 2026ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 with a Savitech SV3H712 amplifier. The amplifier is not a DAC, so dac_chip is empty.6Reviewtomshardware.com/pc-components/motherboards/asus-rog-strix-z890-a-gaming-wifi-motherboard-reviewRead 15 October 2026The review says a Realtek ALC4080 codec sits under the SupremeFX Faraday cage, with a Savitech SV3H712 amplifier.
DAC chip
Not available

Features

BIOS flashback
Yes1Maker product pagerog.asus.com/motherboards/rog-strix/rog-strix-z890-a-gaming-wifi/specRead 15 October 2026BIOS FlashBack button on the back panel.
Clear CMOS button (rear)
Yes1Maker product pagerog.asus.com/motherboards/rog-strix/rog-strix-z890-a-gaming-wifi/specRead 15 October 20261 x Clear CMOS button on the back panel.
POST code display
No1Maker product pagerog.asus.com/motherboards/rog-strix/rog-strix-z890-a-gaming-wifi/specRead 15 October 2026The Special Features list names Q-LED (CPU, DRAM, VGA, Boot Device) and no Q-Code. The manual layout contents list Q-LEDs and a Start button and no code display. The overview page has a generic Q-CODE text block that is not part of the spec list.3Owner's manualdlcdnets.asus.com/pub/ASUS/mb/LGA1851/ROG_STRIX_Z890-A_GAMING_WIFI/E26409_ROG_STRIX_Z890-A_GAMING_WIFI_EM_V2_WEB.pdfRead 15 October 2026Layout contents 19: Q-LEDs. No code display is listed.
Power button on the board
Yes1Maker product pagerog.asus.com/motherboards/rog-strix/rog-strix-z890-a-gaming-wifi/specRead 15 October 2026Internal I/O Connectors: 1 x Start button. The manual says it powers up the system.3Owner's manualdlcdnets.asus.com/pub/ASUS/mb/LGA1851/ROG_STRIX_Z890-A_GAMING_WIFI/E26409_ROG_STRIX_Z890-A_GAMING_WIFI_EM_V2_WEB.pdfRead 15 October 2026Layout contents 16: Start button. Press the Start button to power up the system, or put the system into sleep or soft-off mode.
Dual BIOS
No1Maker product pagerog.asus.com/motherboards/rog-strix/rog-strix-z890-a-gaming-wifi/specRead 15 October 2026BIOS is a single 256 Mb UEFI AMI BIOS. The feature lists name no dual BIOS.3Owner's manualdlcdnets.asus.com/pub/ASUS/mb/LGA1851/ROG_STRIX_Z890-A_GAMING_WIFI/E26409_ROG_STRIX_Z890-A_GAMING_WIFI_EM_V2_WEB.pdfRead 15 October 2026Specifications summary: 256 Mb Flash ROM, UEFI AMI BIOS. Dual BIOS is not stated.
Pre-installed I/O shield
Yes1Maker product pagerog.asus.com/motherboards/rog-strix/rog-strix-z890-a-gaming-wifi/specRead 15 October 2026ASUS EZ DIY: Pre-mounted I/O shield.
Tool-free features
Tool-free M.2 latch, Tool-free M.2 heatsink, PCIe slot release, Push-on antenna connector1Maker product pagerog.asus.com/motherboards/rog-strix/rog-strix-z890-a-gaming-wifi/specRead 15 October 2026ASUS Q-Design: M.2 Q-Latch, M.2 Q-Release, M.2 Q-Slide, PCIe Slot Q-Release Slim (with PCIe SafeSlot) and Q-Antenna. The overview says the Q-Release heatsink has a switch for removal without screws, the Q-Latch holds an M.2 SSD with one press and the Q-Antenna fasteners snap into place.2Maker product pagerog.asus.com/motherboards/rog-strix/rog-strix-z890-a-gaming-wifiRead 15 October 2026DIY-friendly design: M.2 Q-Release, M.2 Q-Slide, New M.2 Q-LATCH, PCIe Slot Q-Release Slim and Q-Antenna.

Measured

VRM temperature under CPU load
44°C7Measurementtomshardware.com/pc-components/motherboards/asus-rog-strix-z890-a-gaming-wifi-motherboard-review/3Read 15 October 2026Power Consumption / VRM Temperatures section: AIDA64 stress test on all threads for 30 minutes at stock settings, about 24 C ambient by the chart title. The text says the VRM peaked just under 45 C. The chart shows thermocouple 1 near 44 C and thermocouple 2 near 41 C at 30 minutes, so the probe reading is stored as 44. The exact value is not printed. The chart shows the CPU at about 243 W, while the text says about 210 W. The review names no CPU for this board, and the test system table on page 2 is a copy of the AMD one (Ryzen 9 9900X), so the CPU is not stated.
Power draw idle
72W7Measurementtomshardware.com/pc-components/motherboards/asus-rog-strix-z890-a-gaming-wifi-motherboard-review/3Read 15 October 2026Power Consumption chart: Asus Strix Z890-A Gaming idle 72 W. Whole PC at the wall with a Kill-A-Watt meter, monitor excluded, Windows Balanced power plan, XMP enabled. The text says the same.
Power draw CPU stress
294W7Measurementtomshardware.com/pc-components/motherboards/asus-rog-strix-z890-a-gaming-wifi-motherboard-review/3Read 15 October 2026Power Consumption chart: Asus Strix Z890-A Gaming load 294 W peak (average 183 W) in the AIDA64 System Stability Test with Stress CPU, FPU, Cache and Memory enabled. Whole PC at the wall with a Kill-A-Watt meter. The graphics card is not loaded. The text says the CPU peaked around 210 W and never reached the 240 W limit.

In the box

In the box
1 x ROG STRIX Z890-A GAMING WIFI motherboard, 2 x SATA 6Gb/s cables, 1 x Thermal pad for M.2 22110, 1 x ASUS WiFi Q-Antenna, 1 x Cable ties package, 1 x M.2 Q-Latch package, 1 x ROG key chain, 1 x ROG Strix stickers, 5 x M.2 rubbers, 1 x Quick Start Guide1Maker product pagerog.asus.com/motherboards/rog-strix/rog-strix-z890-a-gaming-wifi/specRead 15 October 2026Accessories list on the specification page, the same as the manual's package contents. Tom's Hardware lists two Q-Latch packages, and the maker lists one.3Owner's manualdlcdnets.asus.com/pub/ASUS/mb/LGA1851/ROG_STRIX_Z890-A_GAMING_WIFI/E26409_ROG_STRIX_Z890-A_GAMING_WIFI_EM_V2_WEB.pdfRead 15 October 2026Package contents on page 13.

Warranty

Manufacturer warranty (source market)
3years9Retailer pageeshop.asus.com/us/90mb1i90-m0aay0-rog-strix-z890-a-gaming-wifi.htmlRead 15 October 2026ASUS US eShop: 3 year manufacturer warranty. US market.
