PC parts / Motherboards

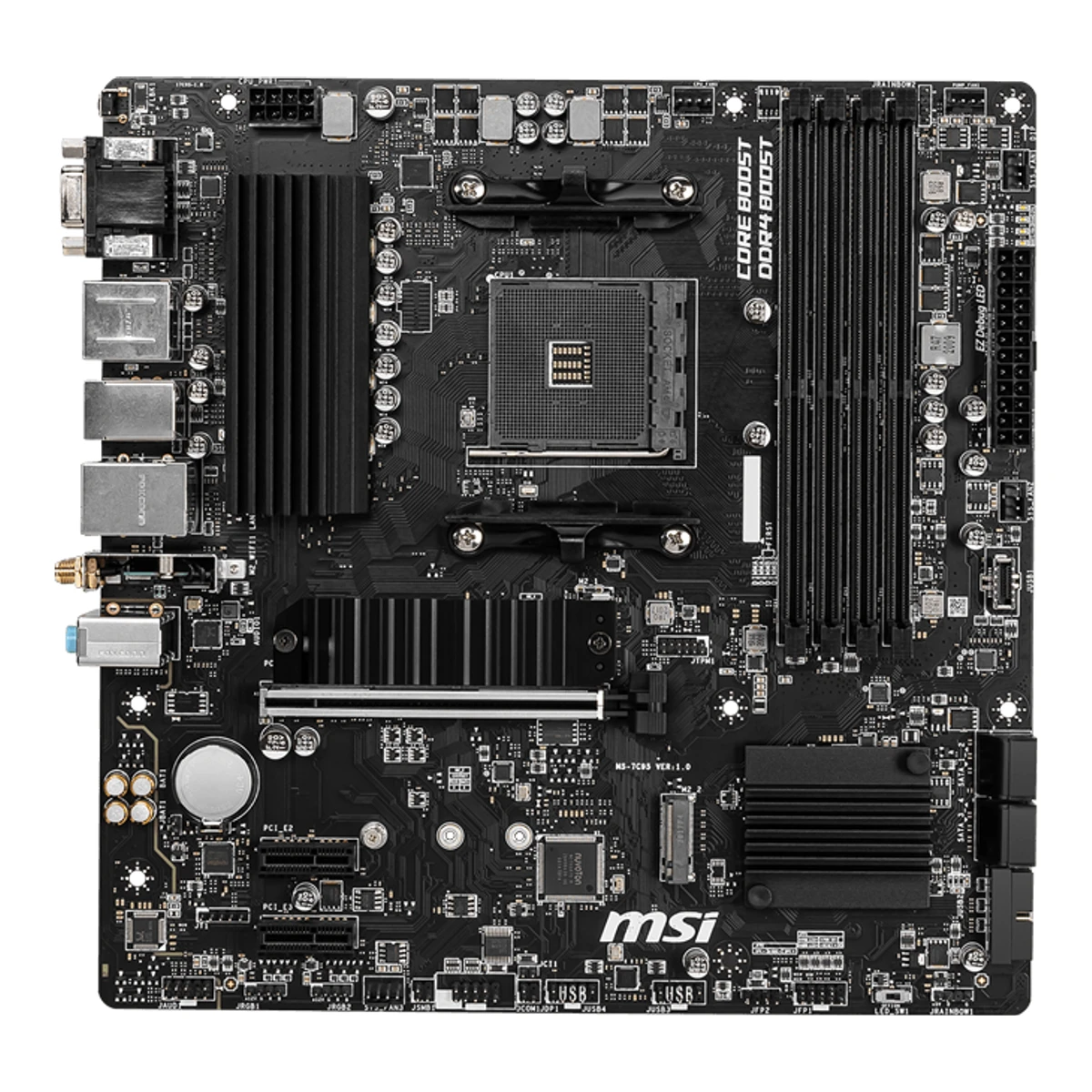

MSI B550M PRO-VDH WIFI

MSIMainstream motherboard

B550M PRO-VDH WIFI

Released June 2020.1Owner's manualtrovaprezzi.it/manuali/msi_b550m_pro_vdh_wifi.pdfRead 15 October 2026Revision history: Version 1.0, 2020/06, First release. Last checked 15 October 2026.

CPU socket
AM4
Chipset
AMD B550
Form factor
Micro-ATX
M.2 slots
2

56 of 78 fields known.

Compare with another motherboardDownload JSONDownload CSVGet it from the API

At a glance

Ports

  • 4 USB-A USB 3.2 Gen 1
  • 2 USB-A USB 2.0
  • HDMI
  • DisplayPort
  • VGA
  • Ethernet (RJ45)
  • 3 3.5 mm audio
  • PS/2
  • USB-C header
  • USB 3 header (19-pin)
  • 2 USB 2.0 header (9-pin)

All specs

SourceCalculated

General

Series
PRO1Owner's manualtrovaprezzi.it/manuali/msi_b550m_pro_vdh_wifi.pdfRead 15 October 2026The manual and the MSI datasheet name no series. The board's name carries PRO, MSI's B550 launch press release has a PRO Series section, and the datasheet tagline is Business Elegance.9Press releasethefpsreview.com/2020/05/21/pr-msi-announces-mpg-mag-and-pro-series-amd-b550-motherboards-with-cutting-edge-pcie-4-0-supportRead 15 October 2026The press release's PRO Series section covers the B550-A PRO, and its tag list names the B550M PRO-VDH WIFI. MSI sells the board in the PRO line.11Spec databasebuildcores.com/products/Motherboard/uxu3t8vy1/MSI-B550M-PRO-VDH-WIFIRead 15 October 2026Page title: MSI PRO B550M PRO-VDH WIFI AM4 DDR4 Micro-ATX. The page's spec table is loaded by script and was not read.
Model numbers
B550M PRO-VDH WIFI, 7C95-001R, 911-7C95-081, 911-7C95-0943Maker product pagepl-store.msi.com/collections/power-up-z-msi/products/b550m-pro-vdh-wifi-1Read 15 October 2026MSI Polish store SKU 911-7C95-081 (store feed) for B550M PRO-VDH WIFI. The same code is on MSI's EU business store.4Maker product pagetw-store.msi.com/products/b550m-pro-vdh-wifiRead 15 October 2026MSI Taiwan store SKU 911-7C95-094 in its product feed.6Retailer pageoffice-partner.de/msi-b550m-pro-vdh-wifi-7c95-001r-13042334Read 15 October 2026German authorized MSI dealer: manufacturer number 7C95-001R.7Retailer pageeshop.enzure.se/msi-b550m-pro-vdh-wifi/cat-p/c/p1001165098Read 15 October 2026Article number 7C95-001R.
GTIN / EAN
4719072733698, 8241422193936Retailer pageoffice-partner.de/msi-b550m-pro-vdh-wifi-7c95-001r-13042334Read 15 October 2026EAN 4719072733698. enzure.se lists the same EAN for 7C95-001R.7Retailer pageeshop.enzure.se/msi-b550m-pro-vdh-wifi/cat-p/c/p1001165098Read 15 October 2026EAN 4719072733698.8Retailer pageebay.com/p/20039727611Read 15 October 2026Catalog entry for B550M PRO-VDH WIFI: MPN B550M PRO-VDH WIFI and UPC 0824142219393, stored as 824142219393. BuildCores lists another UPC for this board, which is not used.
Announced
21 May 20209Press releasethefpsreview.com/2020/05/21/pr-msi-announces-mpg-mag-and-pro-series-amd-b550-motherboards-with-cutting-edge-pcie-4-0-supportRead 15 October 2026MSI's B550 launch press release, posted 2020-05-21, names the B550M PRO-VDH WIFI in its tag list but describes only the B550-A PRO in its PRO Series text. A dated announcement of this board alone was not found, so this is the lineup announcement.
Status
Available3Maker product pagepl-store.msi.com/collections/power-up-z-msi/products/b550m-pro-vdh-wifi-1Read 15 October 2026The product is listed at 429 PLN on 2026-10-15. The store page was created on 2026-06-08.4Maker product pagetw-store.msi.com/products/b550m-pro-vdh-wifiRead 15 October 2026The store lists the board for sale at 3,390 TWD on 2026-10-15.12Spec databasemaxmybuild.com/motherboards/msi-b550m-pro-vdh-wifiRead 15 October 2026Shows Amazon and Newegg in stock at 89.99 USD on 2026-10-15.
Predecessor
Not available
Successor
Not available
Launch price (US)
Not available
Launch price (EU)
Not available
Markets
Not available
Colours
Not available
Segment
Mainstream2Maker spec sheet (PDF)storage-asset.msi.com/datasheet/mb/global/B550M-PRO-VDH-WIFI.pdfRead 15 October 2026The datasheet tagline is Business Elegance and the board sits in MSI's PRO line. MSI names no gaming or creator use.
Board revision
Not available

Platform

CPU socket
AM41Owner's manualtrovaprezzi.it/manuali/msi_b550m_pro_vdh_wifi.pdfRead 15 October 2026Specifications, CPU: AM4 socket.
Chipset
AMD B5501Owner's manualtrovaprezzi.it/manuali/msi_b550m_pro_vdh_wifi.pdfRead 15 October 2026Specifications: AMD B550 Chipset.
Supported processors
AMD Ryzen 5000 Series, AMD Ryzen 4000 G-Series, AMD Ryzen 3000 Series3Maker product pagepl-store.msi.com/collections/power-up-z-msi/products/b550m-pro-vdh-wifi-1Read 15 October 2026Features: supports AMD Ryzen 5000 and 3000 Series desktop processors (not compatible with AMD Ryzen 5 3400G and Ryzen 3 3200G) and AMD Ryzen 4000 G-Series desktop processors. Read on 2026-10-15. The first-release manual says 3rd Gen AMD Ryzen with a BIOS update.
CPU overclocking
Yes10Maker product pageamd.com/en/products/processors/chipsets/am4.htmlRead 15 October 2026Specifications table, B550 row: Overclocking Enabled: Yes. This is the chipset maker's feature, not a board spec.

Board

Front and side, drawn to scale.

Form factor
Micro-ATX1Owner's manualtrovaprezzi.it/manuali/msi_b550m_pro_vdh_wifi.pdfRead 15 October 2026Specifications, Form Factor: Micro-ATX, 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm).
Board dimensions
Width244Height244mm(9.6 × 9.6 in)1Owner's manualtrovaprezzi.it/manuali/msi_b550m_pro_vdh_wifi.pdfRead 15 October 2026Specifications: 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm), stored as 244 mm x 244 mm.
PCB layers
Not available
Back-connect design
No1Owner's manualtrovaprezzi.it/manuali/msi_b550m_pro_vdh_wifi.pdfRead 15 October 2026The component overview shows the usual front-side power, fan and USB connectors.
RGB lighting on the board
No1Owner's manualtrovaprezzi.it/manuali/msi_b550m_pro_vdh_wifi.pdfRead 15 October 2026Specifications, LED Features: 1x EZ LED Control switch and 4x EZ Debug LEDs, which are status LEDs. The list names no lighting on the board. The RGB and RAINBOW headers are for external strips.

Power delivery

Power stage layout
Not available
CPU core (Vcore) power stages
Not available
Vcore power stage rating
Not available
VRM controller
Not available
CPU power connectors
8 pin1Owner's manualtrovaprezzi.it/manuali/msi_b550m_pro_vdh_wifi.pdfRead 15 October 2026Specifications, Internal Connectors: 1x 24-pin ATX main power connector and 1x 8-pin ATX 12V power connector.
Extra slot power connector
No1Owner's manualtrovaprezzi.it/manuali/msi_b550m_pro_vdh_wifi.pdfRead 15 October 2026The internal connector list in the Specifications has no PCIe power connector, only the 24-pin and 8-pin ATX 12V connectors.

Memory

Memory type
DDR41Owner's manualtrovaprezzi.it/manuali/msi_b550m_pro_vdh_wifi.pdfRead 15 October 2026Specifications, Memory: 4x DDR4 memory slots.
Memory slots
41Owner's manualtrovaprezzi.it/manuali/msi_b550m_pro_vdh_wifi.pdfRead 15 October 2026Specifications, Memory: 4x DDR4 memory slots.
Max memory
128GB1Owner's manualtrovaprezzi.it/manuali/msi_b550m_pro_vdh_wifi.pdfRead 15 October 2026Specifications, Memory: support up to 128GB.
Max memory speed (overclocked)
4,400MT/s1Owner's manualtrovaprezzi.it/manuali/msi_b550m_pro_vdh_wifi.pdfRead 15 October 2026Specifications, Memory: DDR4 2667 to 4400+ MHz by A-XMP OC mode, 1DPC 1R max speed 4400 MHz (1DPC 2R 3733, 2DPC 1R 3866, 2DPC 2R 3466). JEDEC speeds go up to 3200. MSI's store pages say up to 4400(OC).2Maker spec sheet (PDF)storage-asset.msi.com/datasheet/mb/global/B550M-PRO-VDH-WIFI.pdfRead 15 October 2026Memory Support: 4 DIMMs, Dual Channel DDR4-4400 MHz (OC).3Maker product pagepl-store.msi.com/collections/power-up-z-msi/products/b550m-pro-vdh-wifi-1Read 15 October 2026Features: DDR4 memory up to 4400(OC) MHz.
ECC memory
Yes1Owner's manualtrovaprezzi.it/manuali/msi_b550m_pro_vdh_wifi.pdfRead 15 October 2026Specifications, Memory: supports non-ECC and ECC UDIMM memory, with no non-ECC mode qualifier. A German dealer's data sheet says ECC modules run in non-ECC mode in one row and in ECC mode in another, so the maker's list is used.
CUDIMM support
Not available

Expansion slots

Expansion slots
Physical slotElectrical lanesPCIe generationConnected toCount
PCIe x16164CPU1
PCIe x113Chipset2
Source1Owner's manualtrovaprezzi.it/manuali/msi_b550m_pro_vdh_wifi.pdfRead 15 October 2026Specifications and page 29: 1x PCIe 3.0/4.0 x16 slot (PCI_E1, from the CPU, the supported generation depends on the installed processor, 4.0 with Ryzen 5000 and 3000) and 2x PCIe 3.0 x1 slots (PCI_E2 and PCI_E3, from the chipset).2Maker spec sheet (PDF)storage-asset.msi.com/datasheet/mb/global/B550M-PRO-VDH-WIFI.pdfRead 15 October 2026Graphics interface 1x PCIe 4.0 / 3.0 x16 slot. Expansion slots 2x PCI-E 3.0 x1.
Full-length PCIe slots
1
Fastest PCIe x16 slot generation
4

Storage

M.2 storage slots
SlotPCIe generationPCIe lanesConnected toLongest driveTakes SATA drivesHeatsink
M2_144CPUM.2 2280YesYes
M2_234ChipsetM.2 2280NoNo
Source1Owner's manualtrovaprezzi.it/manuali/msi_b550m_pro_vdh_wifi.pdfRead 15 October 2026Specifications and pages 30 to 31. M2_1 is from the AMD processor, PCIe 4.0/3.0 x4 depending on the processor, SATA 6Gb/s supported, 2242/2260/2280. M2_2 is from the B550 chipset, PCIe 3.0 x4, 2242/2260/2280, with no SATA mode listed. Only M2_1 has the M.2 Shield Frozr heatsink (page 30), and the M2_2 steps show no heatsink. MaxMyBuild also lists a heatsink on slot 1 only. No lane sharing is stated.2Maker spec sheet (PDF)storage-asset.msi.com/datasheet/mb/global/B550M-PRO-VDH-WIFI.pdfRead 15 October 2026Storage: 1x M.2 Gen4 x4 slot, 1x M.2 Gen3 x4 slot, 4x SATA 6Gb/s ports.12Spec databasemaxmybuild.com/motherboards/msi-b550m-pro-vdh-wifiRead 15 October 2026M.2 heatsinks: slot 1 only.
M.2 slots
2
PCIe 5.0 M.2 slots
0
SATA ports
41Owner's manualtrovaprezzi.it/manuali/msi_b550m_pro_vdh_wifi.pdfRead 15 October 2026Specifications: 4x SATA 6Gb/s ports from the B550 chipset.

Rear ports

Rear ports
TypeVersionCountMax link rate (Gbps)
USB-AUSB 3.2 Gen 145
USB-AUSB 2.020.48
HDMINot available1Not available
DisplayPortNot available1Not available
VGANot available1Not available
Ethernet (RJ45)Not available11
3.5 mm audioNot available3Not available
PS/2Not available1Not available
Source1Owner's manualtrovaprezzi.it/manuali/msi_b550m_pro_vdh_wifi.pdfRead 15 October 2026Specifications, Back Panel Connectors: 1x VGA port, 1x DisplayPort, 1x HDMI port, 4x USB 3.2 Gen 1 5Gbps Type-A, 1x PS/2 keyboard/mouse combo port, 2x USB 2.0 Type-A, 1x LAN (RJ45), 2x Wi-Fi antenna connectors, 3x audio jacks and the Flash BIOS button. LAN is a 1Gbps controller. DisplayPort 4096x2160 at 60Hz and HDMI 4096x2160 at 24Hz, both only with a processor that has integrated graphics. The manual names no DisplayPort or HDMI version. MSI's speed names are stored as USB-IF names: 5Gbps as Gen 1.
Rear USB ports
6
Rear USB-C ports
0
Fastest rear USB port
5Gbps
Thunderbolt
Not available

Internal connectors

Internal USB headers
HeaderMax data rate (Gbps)HeadersFront ports served
USB-C header511
USB 3 header (19-pin)512
USB 2.0 header (9-pin)0.4824
Source1Owner's manualtrovaprezzi.it/manuali/msi_b550m_pro_vdh_wifi.pdfRead 15 October 2026Specifications, Internal Connectors: 1x USB 3.2 Gen 1 5Gbps Type-C port (JUSB1), 1x USB 3.2 Gen 1 5Gbps connector for 2 more ports (JUSB2) and 2x USB 2.0 connectors for 4 more ports (JUSB3 and JUSB4). No USB power output is stated.
Front USB-C header speed
5Gbps
Fan headers
51Owner's manualtrovaprezzi.it/manuali/msi_b550m_pro_vdh_wifi.pdfRead 15 October 2026Specifications, Internal Connectors: 1 CPU fan, 1 water-pump fan and 3 system fan connectors make 5.
ARGB headers
21Owner's manualtrovaprezzi.it/manuali/msi_b550m_pro_vdh_wifi.pdfRead 15 October 2026Specifications, Internal Connectors: 2x 3-pin RAINBOW LED connectors (addressable).
RGB headers
21Owner's manualtrovaprezzi.it/manuali/msi_b550m_pro_vdh_wifi.pdfRead 15 October 2026Specifications, Internal Connectors: 2x 4-pin RGB LED connectors.

Networking

Ethernet controllers
Realtek RTL81111Owner's manualtrovaprezzi.it/manuali/msi_b550m_pro_vdh_wifi.pdfRead 15 October 2026Specifications, LAN: 1x Realtek RTL8111HN 1Gbps LAN controller. The suffix HN is left out.2Maker spec sheet (PDF)storage-asset.msi.com/datasheet/mb/global/B550M-PRO-VDH-WIFI.pdfRead 15 October 2026LAN: Realtek RTL8111HN Gigabit LAN.4Maker product pagetw-store.msi.com/products/b550m-pro-vdh-wifiRead 15 October 2026Specifications: 1x Realtek RTL8111HN Gigabit LAN.
Ethernet ports
1
Ethernet speed
1Gbps
Wi-Fi included
Yes1Owner's manualtrovaprezzi.it/manuali/msi_b550m_pro_vdh_wifi.pdfRead 15 October 2026Specifications: Intel Dual Band Wireless-AC 3168 on the board's Wi-Fi socket. The board is the WIFI model.
Wi-Fi standard
Wi-Fi 51Owner's manualtrovaprezzi.it/manuali/msi_b550m_pro_vdh_wifi.pdfRead 15 October 2026Specifications: Wi-Fi 802.11 a/b/g/n/ac, dual band, up to 433 Mbps, which is Wi-Fi 5.2Maker spec sheet (PDF)storage-asset.msi.com/datasheet/mb/global/B550M-PRO-VDH-WIFI.pdfRead 15 October 2026Wi-Fi / Bluetooth: Wi-Fi AC, Bluetooth 4.2.
Wi-Fi bands
2.4 GHz, 5 GHz1Owner's manualtrovaprezzi.it/manuali/msi_b550m_pro_vdh_wifi.pdfRead 15 October 2026Specifications: dual band (2.4GHz, 5GHz).
Max Wi-Fi channel width
Not available
Wi-Fi module
Intel Dual Band Wireless-AC 31681Owner's manualtrovaprezzi.it/manuali/msi_b550m_pro_vdh_wifi.pdfRead 15 October 2026Specifications: Intel Dual Band Wireless-AC 3168. The block diagram says 1x Intel Wi-Fi 3168.6Retailer pageoffice-partner.de/msi-b550m-pro-vdh-wifi-7c95-001r-13042334Read 15 October 2026Technical data: Wi-Fi 5, 802.11a/b/g/n/ac, 1x1, Intel 3168, Bluetooth 4.2.
Bluetooth
4.21Owner's manualtrovaprezzi.it/manuali/msi_b550m_pro_vdh_wifi.pdfRead 15 October 2026Specifications: dual mode Bluetooth 2.1, 2.1+EDR, 3.0, 4.0, BLE and 4.2.2Maker spec sheet (PDF)storage-asset.msi.com/datasheet/mb/global/B550M-PRO-VDH-WIFI.pdfRead 15 October 2026Wi-Fi / Bluetooth: Wi-Fi AC, Bluetooth 4.2.

Audio

Audio codec
Realtek ALC8921Owner's manualtrovaprezzi.it/manuali/msi_b550m_pro_vdh_wifi.pdfRead 15 October 2026Specifications: Realtek ALC892 codec, 7.1-channel High Definition Audio. MSI's store pages list ALC892/ALC897, so later boards may use the ALC897 and no source ties a codec to a board revision.3Maker product pagepl-store.msi.com/collections/power-up-z-msi/products/b550m-pro-vdh-wifi-1Read 15 October 2026Specifications table: Audio ports (rear) Realtek ALC892/ALC897 codec.6Retailer pageoffice-partner.de/msi-b550m-pro-vdh-wifi-7c95-001r-13042334Read 15 October 2026Technical data: audio codec Realtek ALC892.
DAC chip
Not available

Features

BIOS flashback
Yes1Owner's manualtrovaprezzi.it/manuali/msi_b550m_pro_vdh_wifi.pdfRead 15 October 2026Specifications: 1x Flash BIOS Button, on the back panel.
Clear CMOS button (rear)
No1Owner's manualtrovaprezzi.it/manuali/msi_b550m_pro_vdh_wifi.pdfRead 15 October 2026Specifications: the only reset listed is 1x Clear CMOS jumper (JBAT1, page 38). The back panel list has the Flash BIOS button and no Clear CMOS button.
POST code display
No1Owner's manualtrovaprezzi.it/manuali/msi_b550m_pro_vdh_wifi.pdfRead 15 October 2026Specifications, LED Features: 4x EZ Debug LEDs, which are single status LEDs. No two-digit display is listed.
Power button on the board
No1Owner's manualtrovaprezzi.it/manuali/msi_b550m_pro_vdh_wifi.pdfRead 15 October 2026The Specifications list no power or start button on the board. The only switch listed is the EZ LED Control switch.
Dual BIOS
No1Owner's manualtrovaprezzi.it/manuali/msi_b550m_pro_vdh_wifi.pdfRead 15 October 2026Specifications, BIOS Features: 1x 256 Mb flash. No second BIOS is listed.
Pre-installed I/O shield
Not available
Tool-free features
Not available

Measured

We could not find any of these 3 fields. Show them
VRM temperature under CPU load
Not available
Power draw idle
Not available
Power draw CPU stress
Not available

In the box

In the box
2 x SATA 6G cables, Wi-Fi antenna, M.2 screws (3 pcs), Case badge, Product registration card, Driver DVD, Quick installation guide, MSI components compatibility and reward program card1Owner's manualtrovaprezzi.it/manuali/msi_b550m_pro_vdh_wifi.pdfRead 15 October 2026Package contents, page 20: motherboard, 2 SATA 6G cables, Wi-Fi antenna, 3 M.2 screws, case badge, product registration card, driver DVD, quick installation guide and MSI components compatibility and reward program card. No I/O shield is listed.

Warranty

Manufacturer warranty (source market)
3years5Maker product pageeu-business-store.msi.com/products/b550m-pro-vdh-wifiRead 15 October 2026Warranty: 3 Year Warranty (MSI EU business e-shop, Germany page, SKU 911-7C95-081).6Retailer pageoffice-partner.de/msi-b550m-pro-vdh-wifi-7c95-001r-13042334Read 15 October 2026Manufacturer warranty 3 years (Germany).
