PC parts / Motherboards
ASUSGaming motherboard

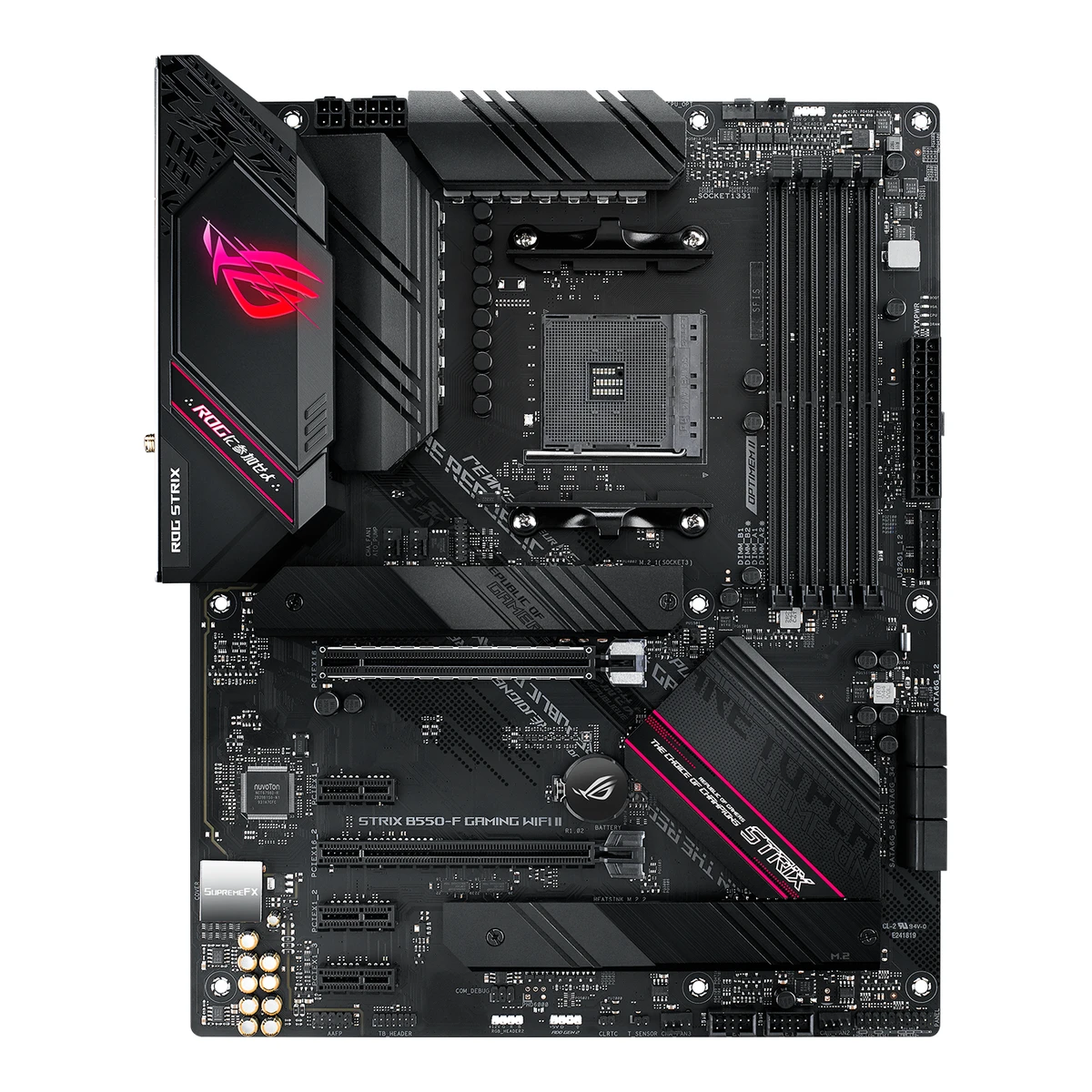

ROG STRIX B550-F GAMING WIFI II
Released September 2021.3Owner's manualdoc.moyo.ua/13113185_1666793471.pdfRead 15 October 2026The manual is the First Edition of August 2021, and its PDF was created on 2021-08-13. No retail date was read. A Pangoly listing seen in a search result gives first availability in 2021-09, and the main team's pick list gives 2021-09. The month is approximate. Last checked 15 October 2026.
- CPU socket
- AM4
- Chipset
- AMD B550
- Form factor
- ATX
- M.2 slots
- 2
57 of 78 fields known.
At a glance
Ports
- USB-C USB 3.2 Gen 2
- USB-A USB 3.2 Gen 2
- 4 USB-A USB 3.2 Gen 1
- 2 USB-A USB 2.0
- DisplayPort 1.2
- HDMI 2.1
- Ethernet (RJ45)
- 5 3.5 mm audio
- Optical S/PDIF
- USB 3 header (19-pin)
- 2 USB 2.0 header (9-pin)
General
- Model numbers
- ROG STRIX B550-F GAMING WIFI II, 90MB19V0-M0EAY0, 90MB19V0-M0AAY03Owner's manualdoc.moyo.ua/13113185_1666793471.pdfRead 15 October 2026Manual cover: ROG STRIX B550-F GAMING WIFI II.6Retailer pageparadigit.ie/asus-rog-strix-b550-f-gaming-wifi-ii-amd-b550-socket-am4-atx/21175029/productRead 15 October 2026Product number manufacturer: 90MB19V0-M0EAY0.7Retailer pagedirectcomputers.co.uk/fr/products/asus-rog-strix-b550-f-gaming-wifi-ii-amd-b550-am4-atx-4-ddr4-hdmi-dp-ax-wi-fi-6e-2-5gb-lan-rgb-lighting-2x-m-2Read 15 October 2026SKU 90MB19V0-M0EAY0. 90MB19V0-M0AAY0 comes from the main team's pick list, which gives it as a model number of the same board. No page that could be opened lists it.8Retailer pagevoelkner.de/products/5760723/Asus-ROG-STRIX-B550-F-GAMING-WIFI-II-Mainboard-Sockel-PC-AMD-AM4-Formfaktor-Details-ATX-Mainboard-Chipsatz-AMD-B550.htmlRead 15 October 2026Part number 90MB19V0-M0EAY0.
- GTIN / EAN
- 4711081453314, 1955534533187Retailer pagedirectcomputers.co.uk/fr/products/asus-rog-strix-b550-f-gaming-wifi-ii-amd-b550-am4-atx-4-ddr4-hdmi-dp-ax-wi-fi-6e-2-5gb-lan-rgb-lighting-2x-m-2Read 15 October 2026The page's product data lists gtin13 4711081453314 for SKU 90mb19v0-m0eay0.8Retailer pagevoelkner.de/products/5760723/Asus-ROG-STRIX-B550-F-GAMING-WIFI-II-Mainboard-Sockel-PC-AMD-AM4-Formfaktor-Details-ATX-Mainboard-Chipsatz-AMD-B550.htmlRead 15 October 2026The listing carries EAN 4711081453314 for part number 90MB19V0-M0EAY0 and the UPC 195553453318 in its keywords.9Retailer page888lots.com/item/asus-rog-strix-b550-f-gaming-wifi-ii-amd-socket-am4-atx-ddr4-888-b09lvqcmk4-usRead 15 October 2026The Amazon catalog record for ASIN B09LVQCMK4 lists UPC 195553453318 and EAN 4711081453314 for the same board. The two codes differ and may be regional barcodes. Both are stored. The UPC check digit is valid. It is stored with 12 digits, as the sources print it.
- Announced
- Not available
- Status
- Available5Retailer pagestartech.com.bd/asus-rog-strix-b550-f-gaming-wifi-ii-motherboardRead 15 October 2026The listing shows a price of 23,300 BDT on 2026-10-15.10Revieweneba.com/hubRead 15 October 2026Affiliate review of 2026-08-06 says the board is number 2 on Amazon's Computer Motherboards best-seller list at $137. No tests or measurements are used from it.
- Predecessor
- Not available
- Successor
- Not available
- Launch price (US)
- Not available
- Launch price (EU)
- Not available
- Markets
- Not available
- Colours
- Not available
- Board revision
- Not available
Platform
- CPU socket
- AM41Maker product pagerog.asus.com/motherboards/rog-strix/rog-strix-b550-f-gaming-wifi-ii-model/specRead 15 October 2026AMD AM4 Socket for AMD Ryzen 5000 and 3000 Series and 5000 and 4000 G-Series Desktop Processors. The page refers to www.asus.com for the CPU support list.3Owner's manualdoc.moyo.ua/13113185_1666793471.pdfRead 15 October 2026Specifications summary: AMD AM4 Socket.
- Chipset
- AMD B5501Maker product pagerog.asus.com/motherboards/rog-strix/rog-strix-b550-f-gaming-wifi-ii-model/specRead 15 October 2026AMD B550 chipset.3Owner's manualdoc.moyo.ua/13113185_1666793471.pdfRead 15 October 2026Specifications summary: AMD B550 Chipset.
- Supported processors
- AMD Ryzen 5000 Series, AMD Ryzen 5000 G-Series, AMD Ryzen 4000 G-Series, AMD Ryzen 3000 Series1Maker product pagerog.asus.com/motherboards/rog-strix/rog-strix-b550-f-gaming-wifi-ii-model/specRead 15 October 2026AMD Ryzen 5000 and 3000 Series Desktop Processors and AMD Ryzen 5000 and 4000 G-Series Processors. Written in the form used for the ASUS TUF GAMING B550-PLUS WIFI II in this catalog.3Owner's manualdoc.moyo.ua/13113185_1666793471.pdfRead 15 October 2026Specifications summary: AMD Ryzen 5000 and 3000 Series and 5000 and 4000 G-Series Desktop Processors. The manual refers to www.asus.com for the CPU support list. Read on 2026-10-15.
Board
Front and side, drawn to scale.
- Form factor
- ATX1Maker product pagerog.asus.com/motherboards/rog-strix/rog-strix-b550-f-gaming-wifi-ii-model/specRead 15 October 2026Form factor: ATX, 30.5cm x 24.4cm.3Owner's manualdoc.moyo.ua/13113185_1666793471.pdfRead 15 October 2026Specifications summary: ATX Form Factor, 12 inch x 9.6 inch (30.5 cm x 24.4 cm).
- Board dimensions
- Width244Height305mm(9.6 × 12 in)1Maker product pagerog.asus.com/motherboards/rog-strix/rog-strix-b550-f-gaming-wifi-ii-model/specRead 15 October 2026Form factor: ATX, 30.5cm x 24.4cm. The 244 mm side is the width, as for ATX.3Owner's manualdoc.moyo.ua/13113185_1666793471.pdfRead 15 October 202612 inch x 9.6 inch (30.5 cm x 24.4 cm). The 244 mm side is the width.
Power delivery
- CPU core (Vcore) power stages
- 122Maker product pagerog.asus.com/motherboards/rog-strix/rog-strix-b550-f-gaming-wifi-ii-modelRead 15 October 2026The first number of 12+2 is the Vcore rail. The page calls the stages teamed. They are counted as stages.
- Vcore power stage rating
- Not available
- VRM controller
- Not available
- CPU power connectors
- 8+4 pin1Maker product pagerog.asus.com/motherboards/rog-strix/rog-strix-b550-f-gaming-wifi-ii-model/specRead 15 October 2026Internal I/O: 1 x 8-pin +12V power connector and 1 x 4-pin +12V power connector, besides the 24-pin main power connector.3Owner's manualdoc.moyo.ua/13113185_1666793471.pdfRead 15 October 2026Internal I/O connectors: 1 x 24-pin Main Power, 1 x 8-pin +12V Power and 1 x 4-pin +12V Power connector.
- Extra slot power connector
- No1Maker product pagerog.asus.com/motherboards/rog-strix/rog-strix-b550-f-gaming-wifi-ii-model/specRead 15 October 2026The internal connector list has no extra slot power connector.3Owner's manualdoc.moyo.ua/13113185_1666793471.pdfRead 15 October 2026The internal connector list has no extra slot power connector.
Memory
- Memory type
- DDR41Maker product pagerog.asus.com/motherboards/rog-strix/rog-strix-b550-f-gaming-wifi-ii-model/specRead 15 October 20264 x DIMM, DDR4, un-buffered memory.3Owner's manualdoc.moyo.ua/13113185_1666793471.pdfRead 15 October 2026Specifications summary: 4 x DIMM, Max. 128GB, DDR4.
- Memory slots
- 41Maker product pagerog.asus.com/motherboards/rog-strix/rog-strix-b550-f-gaming-wifi-ii-model/specRead 15 October 20264 x DIMM.3Owner's manualdoc.moyo.ua/13113185_1666793471.pdfRead 15 October 20264 x DIMM.
- Max memory
- 128GB1Maker product pagerog.asus.com/motherboards/rog-strix/rog-strix-b550-f-gaming-wifi-ii-model/specRead 15 October 2026Max. 128GB.3Owner's manualdoc.moyo.ua/13113185_1666793471.pdfRead 15 October 2026Max. 128GB.
- Max memory speed (overclocked)
- 5,100MT/s1Maker product pagerog.asus.com/motherboards/rog-strix/rog-strix-b550-f-gaming-wifi-ii-model/specRead 15 October 2026The list for Ryzen 5000 and 3000 Series runs from 2133 to 4800(O.C.) MHz. The list for Ryzen 5000 and 4000 G-Series runs from 2133 to 5100(O.C) MHz. The highest overclocked speed is stored, which is the ROG overview's headline DDR4 5100MHz+. No module setup is named. Ryzen 5000 is the newest family.2Maker product pagerog.asus.com/motherboards/rog-strix/rog-strix-b550-f-gaming-wifi-ii-modelRead 15 October 2026The spec overview lists DDR4 5100MHz+ with dual channel.3Owner's manualdoc.moyo.ua/13113185_1666793471.pdfRead 15 October 2026Specifications summary: Ryzen 5000 and 3000 Series up to 4800(O.C.) MHz, and Ryzen 5000 and 4000 G-Series up to 5100(O.C) MHz. The higher figure is stored.
- ECC memory
- Yes1Maker product pagerog.asus.com/motherboards/rog-strix/rog-strix-b550-f-gaming-wifi-ii-model/specRead 15 October 2026ECC memory (ECC mode) support varies by CPU. The maker lists no non-ECC mode qualifier for the board, so it counts as ECC.3Owner's manualdoc.moyo.ua/13113185_1666793471.pdfRead 15 October 2026ECC memory (ECC mode) support varies by CPU.
- CUDIMM support
- Not available
Expansion slots
- Expansion slots
Physical slot Electrical lanes PCIe generation Connected to Count PCIe x16 16 4 CPU 1 PCIe x16 4 3 Chipset 1 PCIe x1 1 3 Chipset 3 Source1Maker product pagerog.asus.com/motherboards/rog-strix/rog-strix-b550-f-gaming-wifi-ii-model/specRead 15 October 2026CPU: 1 x PCIe 4.0 x16 SafeSlot (supports x16 mode). B550 chipset: 1 x PCIe 3.0 x16 slot (supports x4 mode) and 3 x PCIe 3.0 x1 slots. The x16 slot shares bandwidth with the three x1 slots. Per the manual, the x1 slots are disabled when the x16 slot runs at x4, and the x16 slot runs at x1 when an x1 slot is used. The M.2 slots are in the Storage row.3Owner's manualdoc.moyo.ua/13113185_1666793471.pdfRead 15 October 2026Specifications summary and the shared bandwidth table: PCIEX16_2 shares bandwidth with PCIEX1_1, PCIEX1_2 and PCIEX1_3. When it runs x4, the three x1 slots are disabled.- Full-length PCIe slots
- 2
- Fastest PCIe x16 slot generation
- 4
Storage
- M.2 storage slots
Slot PCIe generation PCIe lanes Connected to Longest drive Takes SATA drives Heatsink Shares lanes with M.2_1 4 4 CPU M.2 22110 Yes Yes Not available M.2_2 3 4 Chipset M.2 22110 Yes Yes SATA6G_5 and SATA6G_6 are disabled when M.2_2 is used Source1Maker product pagerog.asus.com/motherboards/rog-strix/rog-strix-b550-f-gaming-wifi-ii-model/specRead 15 October 2026CPU: M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 and SATA modes). B550 chipset: M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 and SATA modes). When M.2_2 is populated, SATA6G_5/6 ports are disabled. The Thermal Solution row lists an M.2 heatsink. The ROG overview says dual M.2 heatsinks, and the maker's product photo shows a heatsink over each slot.2Maker product pagerog.asus.com/motherboards/rog-strix/rog-strix-b550-f-gaming-wifi-ii-modelRead 15 October 2026The overview lists dual M.2 heatsinks and says both M.2 slots take up to type 22110.3Owner's manualdoc.moyo.ua/13113185_1666793471.pdfRead 15 October 2026Specifications summary and item 6 of the board overview: M.2_1 supports PCIe 4.0 x4 and SATA modes, M.2_2 supports PCIe 3.0 x4 and SATA modes, both for type 2242/2260/2280/22110. When M.2_2 is populated, SATA6G_5/6 are disabled. The installation section uses screws, with a bundled M.2 SSD screw package, so no screwless latch is listed.- M.2 slots
- 2
- PCIe 5.0 M.2 slots
- 0
Rear ports
- Rear ports
Type Version Count Max link rate (Gbps) USB-C USB 3.2 Gen 2 1 10 USB-A USB 3.2 Gen 2 1 10 USB-A USB 3.2 Gen 1 4 5 USB-A USB 2.0 2 0.48 DisplayPort DisplayPort 1.2 1 Not available HDMI HDMI 2.1 1 Not available Ethernet (RJ45) Not available 1 2.5 3.5 mm audio Not available 5 Not available Optical S/PDIF Not available 1 Not available Source1Maker product pagerog.asus.com/motherboards/rog-strix/rog-strix-b550-f-gaming-wifi-ii-model/specRead 15 October 2026Back panel: 2 x USB 3.2 Gen 2 ports (1 Type-A and 1 USB Type-C), 4 x USB 3.2 Gen 1 Type-A, 2 x USB 2.0, 1 x Wi-Fi module, 1 x DisplayPort (1.2 in the Graphics row), 1 x HDMI, 1 x Intel I225-V 2.5G Ethernet, 1 x optical S/PDIF out, 5 x audio jacks and 1 x BIOS FlashBack button. The page writes HDMI without a version. The manual writes HDMI 2.1. Graphics specifications may vary between CPU types. No USB power output or video mode is stated for the Type-C port, so dp_alt_mode is left out.3Owner's manualdoc.moyo.ua/13113185_1666793471.pdfRead 15 October 2026Back Panel I/O Ports as on the spec page. The Graphics row says 1 x DisplayPort 1.2 and 1 x HDMI 2.1, and graphics specifications may vary between CPU types.5Retailer pagestartech.com.bd/asus-rog-strix-b550-f-gaming-wifi-ii-motherboardRead 15 October 2026The page copies ASUS's spec, with HDMI 2.1 and DisplayPort 1.2 in the Graphics row.6Retailer pageparadigit.ie/asus-rog-strix-b550-f-gaming-wifi-ii-amd-b550-socket-am4-atx/21175029/productRead 15 October 2026HDMI version 2.1 and DisplayPort version 1.2.- Rear USB ports
- 8
- Rear USB-C ports
- 1
- Fastest rear USB port
- 10Gbps
- Thunderbolt
- Not available
Internal connectors
- Internal USB headers
Header Max data rate (Gbps) Headers Front ports served USB 3 header (19-pin) 5 1 2 USB 2.0 header (9-pin) 0.48 2 4 Source1Maker product pagerog.asus.com/motherboards/rog-strix/rog-strix-b550-f-gaming-wifi-ii-model/specRead 15 October 2026Internal I/O: 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports and 2 x USB 2.0 headers support 4 additional USB 2.0 ports. No front USB-C header is listed.3Owner's manualdoc.moyo.ua/13113185_1666793471.pdfRead 15 October 20261 x USB 3.2 Gen 1 header for 2 ports and 2 x USB 2.0 headers for 4 ports.- Front USB-C header speed
- Not available
- Fan headers
- 61Maker product pagerog.asus.com/motherboards/rog-strix/rog-strix-b550-f-gaming-wifi-ii-model/specRead 15 October 20261 x 4-pin AIO_Pump header, 1 x 4-pin CPU fan header, 1 x 4-pin CPU_OPT fan header and 3 x 4-pin chassis fan headers.3Owner's manualdoc.moyo.ua/13113185_1666793471.pdfRead 15 October 2026The fan header table lists CPU_FAN, CPU_OPT, CHA_FAN1 to 3 and AIO_PUMP, each rated 1 A (12 W).
Networking
- Ethernet controllers
- Intel I2251Maker product pagerog.asus.com/motherboards/rog-strix/rog-strix-b550-f-gaming-wifi-ii-model/specRead 15 October 20261 x Intel I225-V 2.5Gb Ethernet with ASUS LANGuard. The suffix V is left out.3Owner's manualdoc.moyo.ua/13113185_1666793471.pdfRead 15 October 20261 x Intel I225-V 2.5Gb Ethernet.6Retailer pageparadigit.ie/asus-rog-strix-b550-f-gaming-wifi-ii-amd-b550-socket-am4-atx/21175029/productRead 15 October 2026LAN controller: Intel I225-V.
- Ethernet ports
- 1
- Ethernet speed
- 2.5Gbps
- Wi-Fi included
- Yes1Maker product pagerog.asus.com/motherboards/rog-strix/rog-strix-b550-f-gaming-wifi-ii-model/specRead 15 October 2026The back panel lists a Wi-Fi module and the Wireless row lists Wi-Fi 6E with Bluetooth v5.2.3Owner's manualdoc.moyo.ua/13113185_1666793471.pdfRead 15 October 2026Wireless and Bluetooth: Wi-Fi 6E, 2x2, and 1 x ASUS Wi-Fi Module on the back panel.
- Wi-Fi standard
- Wi-Fi 6E1Maker product pagerog.asus.com/motherboards/rog-strix/rog-strix-b550-f-gaming-wifi-ii-model/specRead 15 October 20262x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax).3Owner's manualdoc.moyo.ua/13113185_1666793471.pdfRead 15 October 20262x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax).
- Wi-Fi bands
- 2.4 GHz, 5 GHz, 6 GHz1Maker product pagerog.asus.com/motherboards/rog-strix/rog-strix-b550-f-gaming-wifi-ii-model/specRead 15 October 2026Supports 2.4/5/6GHz frequency band. The 6 GHz regulation may vary between countries and the function is ready in Windows 11 or later.3Owner's manualdoc.moyo.ua/13113185_1666793471.pdfRead 15 October 2026Supports 2.4/5/6GHz frequency band.
- Max Wi-Fi channel width
- Not available
- Wi-Fi module
- Not available
- Bluetooth
- 5.21Maker product pagerog.asus.com/motherboards/rog-strix/rog-strix-b550-f-gaming-wifi-ii-model/specRead 15 October 2026Bluetooth v5.2.3Owner's manualdoc.moyo.ua/13113185_1666793471.pdfRead 15 October 2026Bluetooth v5.2.6Retailer pageparadigit.ie/asus-rog-strix-b550-f-gaming-wifi-ii-amd-b550-socket-am4-atx/21175029/productRead 15 October 2026Bluetooth version 5.2.
Audio
- Audio codec
- SupremeFX S1220A1Maker product pagerog.asus.com/motherboards/rog-strix/rog-strix-b550-f-gaming-wifi-ii-model/specRead 15 October 2026ROG SupremeFX 7.1-Channel High Definition Audio CODEC S1220A, with 120 dB SNR playback and 113 dB SNR recording. The maker names no chip maker. Stored as the maker writes it.3Owner's manualdoc.moyo.ua/13113185_1666793471.pdfRead 15 October 2026ROG SupremeFX 7.1-Channel High Definition Audio CODEC S1220A.
- DAC chip
- Not available
Features
- BIOS flashback
- Yes1Maker product pagerog.asus.com/motherboards/rog-strix/rog-strix-b550-f-gaming-wifi-ii-model/specRead 15 October 2026Back panel: 1 x BIOS FlashBack button. Special features: BIOS FlashBack button and LED.3Owner's manualdoc.moyo.ua/13113185_1666793471.pdfRead 15 October 2026Back panel I/O lists 1 x BIOS FlashBack button.
- Clear CMOS button (rear)
- No1Maker product pagerog.asus.com/motherboards/rog-strix/rog-strix-b550-f-gaming-wifi-ii-model/specRead 15 October 2026Internal I/O: 1 x Clear CMOS header. The back panel list has only the BIOS FlashBack button.3Owner's manualdoc.moyo.ua/13113185_1666793471.pdfRead 15 October 2026The back panel list has no clear CMOS button. The internal list has a Clear CMOS header.
- POST code display
- No1Maker product pagerog.asus.com/motherboards/rog-strix/rog-strix-b550-f-gaming-wifi-ii-model/specRead 15 October 2026Q-Design lists Q-LED with four status LEDs (DRAM, CPU, VGA and boot device). No two-digit display is listed.3Owner's manualdoc.moyo.ua/13113185_1666793471.pdfRead 15 October 2026ASUS Q-LED with four LEDs (DRAM, CPU, VGA, boot device). No Q-Code display.
- Power button on the board
- No1Maker product pagerog.asus.com/motherboards/rog-strix/rog-strix-b550-f-gaming-wifi-ii-model/specRead 15 October 2026The internal connector and special feature lists have no onboard power or reset button.
- Dual BIOS
- No1Maker product pagerog.asus.com/motherboards/rog-strix/rog-strix-b550-f-gaming-wifi-ii-model/specRead 15 October 2026BIOS: 256 Mb Flash ROM, UEFI AMI BIOS. Dual BIOS is not stated.3Owner's manualdoc.moyo.ua/13113185_1666793471.pdfRead 15 October 2026256 Mb Flash ROM. Dual BIOS is not stated.
- Pre-installed I/O shield
- Yes1Maker product pagerog.asus.com/motherboards/rog-strix/rog-strix-b550-f-gaming-wifi-ii-model/specRead 15 October 2026ASUS EZ DIY lists a pre-mounted I/O shield.2Maker product pagerog.asus.com/motherboards/rog-strix/rog-strix-b550-f-gaming-wifi-ii-modelRead 15 October 2026The patented I/O shield comes pre-mounted.3Owner's manualdoc.moyo.ua/13113185_1666793471.pdfRead 15 October 2026Special features, ASUS EZ DIY: Pre-mounted I/O shield.
- Tool-free features
- Not available
Measured
We could not find any of these 3 fields. Show them
- VRM temperature under CPU load
- Not available
- Power draw idle
- Not available
- Power draw CPU stress
- Not available
In the box
- In the box
- 1 x Addressable RGB extension cable, 4 x SATA 6Gb/s cables, 1 x ASUS Wi-Fi moving antennas, 1 x Cable ties pack, 1 x M.2 Rubber Package, 1 x M.2 SSD screw package, 1 x ROG key chain, 1 x ROG Strix stickers, 1 x ROG Strix thank you card, 1 x Support DVD, 1 x User manual1Maker product pagerog.asus.com/motherboards/rog-strix/rog-strix-b550-f-gaming-wifi-ii-model/specRead 15 October 2026Accessories list as published.3Owner's manualdoc.moyo.ua/13113185_1666793471.pdfRead 15 October 2026Package contents, chapter 1.
Links
- Product page
- rog.asus.com/motherboards/rog-strix/rog-strix-b550-f-gaming-wifi-ii-model2Maker product pagerog.asus.com/motherboards/rog-strix/rog-strix-b550-f-gaming-wifi-ii-modelRead 15 October 2026ASUS ROG product page for the ROG STRIX B550-F GAMING WIFI II.
- Spec sheet
- rog.asus.com/motherboards/rog-strix/rog-strix-b550-f-gaming-wifi-ii-model/spec1Maker product pagerog.asus.com/motherboards/rog-strix/rog-strix-b550-f-gaming-wifi-ii-model/specRead 15 October 2026ASUS ROG Tech Specs tab for the ROG STRIX B550-F GAMING WIFI II. Read on 2026-10-15.
- Manual
- doc.moyo.ua/13113185_1666793471.pdf3Owner's manualdoc.moyo.ua/13113185_1666793471.pdfRead 15 October 2026ASUS user manual E18592, First Edition, August 2021, 72 pages, in a copy on doc.moyo.ua. ASUS's own download link was not found. The copy matches the ASUS spec page.
- EPREL registration number
- Not available
Warranty
