PC parts / Motherboards

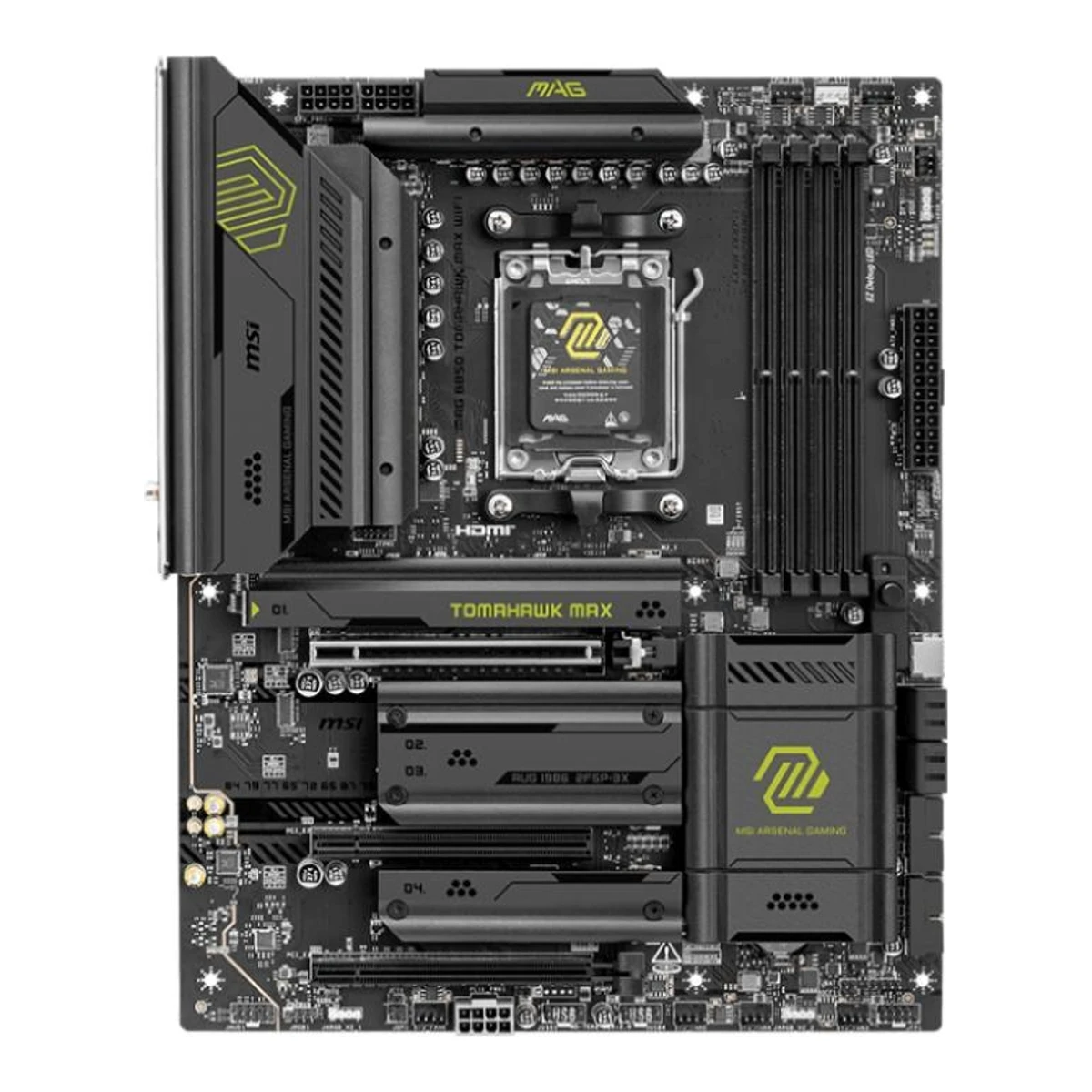

MSI MAG B850 TOMAHAWK MAX WIFI

MSIGaming motherboard

MAG B850 TOMAHAWK MAX WIFI

Released February 2025.4Reviewtomshardware.com/pc-components/motherboards/msi-mag-b850-tomahawk-max-wifi-motherboard-reviewRead 14 October 2026Published 2025-02-25 with US retail prices. Profesional Review published 2025-02-11 and MSI Japan launched the board around 2025-02-05. Regions differ by weeks. Last checked 16 October 2026.

CPU socket
AM5
Chipset
AMD B850
Form factor
ATX
M.2 slots
4

65 of 78 fields known.

Compare with another motherboardDownload JSONDownload CSVGet it from the API

At a glance

Ports

  • 3 USB-C USB 3.2 Gen 2
  • 2 USB-A USB 3.2 Gen 2
  • USB-A USB 3.2 Gen 1
  • 4 USB-A USB 2.0
  • HDMI 2.1
  • Ethernet (RJ45)
  • 2 3.5 mm audio
  • Optical S/PDIF
  • USB-C header
  • 2 USB 3 header (19-pin)
  • 2 USB 2.0 header (9-pin)

All specs

SourceCalculated

General

Series
MAG1Owner's manualgzhls.at/blob/ldb/4/c/d/0/9505de78491f9bbd3d2c02edb15c90ef238e.pdfRead 14 October 2026Cover: MAG Series Motherboard.
Model numbers
MAG B850 TOMAHAWK MAX WIFI, 911-7E62-0021Owner's manualgzhls.at/blob/ldb/4/c/d/0/9505de78491f9bbd3d2c02edb15c90ef238e.pdfRead 14 October 202611Maker product pagede-store.msi.com/products/mag-b850-tomahawk-max-wifiRead 14 October 2026MSI's German e-shop: SKU 911-7E62-002.
GTIN / EAN
47113772906232Retailer pageshop.sumanet.cz/mag-b850-tomahawk-max-wifi-msi-mb-sc-am5-mag-b850-tomahawk-max-wifi-amd-b850-4xddr5-1xhdmi-wifi-atxRead 14 October 2026GTIN (EAN) 4711377290623 for type designation MAG B850 TOMAHAWK MAX WIFI. hinta.fi lists the same code.11Maker product pagede-store.msi.com/products/mag-b850-tomahawk-max-wifiRead 14 October 2026Same page: GTIN-13 4711377290623.
Announced
Not available
Status
Not available
Predecessor
Not available
Successor
Not available
Launch price (US)
Not available
Launch price (EU)
Not available
Markets
Not available
Colours
Not available
Segment
Gaming2Retailer pageshop.sumanet.cz/mag-b850-tomahawk-max-wifi-msi-mb-sc-am5-mag-b850-tomahawk-max-wifi-amd-b850-4xddr5-1xhdmi-wifi-atxRead 14 October 2026The listing repeats MSI's text: designed for gamers with a stable, durable and DIY friendly foundation.
Board revision
Not available

Platform

CPU socket
AM51Owner's manualgzhls.at/blob/ldb/4/c/d/0/9505de78491f9bbd3d2c02edb15c90ef238e.pdfRead 14 October 2026
Chipset
AMD B8501Owner's manualgzhls.at/blob/ldb/4/c/d/0/9505de78491f9bbd3d2c02edb15c90ef238e.pdfRead 14 October 2026
Supported processors
AMD Ryzen 9000 Series, AMD Ryzen 8000 Series, AMD Ryzen 7000 Series1Owner's manualgzhls.at/blob/ldb/4/c/d/0/9505de78491f9bbd3d2c02edb15c90ef238e.pdfRead 14 October 2026Specifications chapter, page 17: Ryzen 9000, 8000 and 7000 Series Desktop Processors. The manual refers to msi.com for the newest support status. Read on 2026-10-14.
CPU overclocking
Yes6Reviewprofesionalreview.com/2025/02/11/msi-mag-b850-tomahawk-max-wifi-reviewRead 14 October 2026States the B850 board comes with overclocking capability.8Reviewguru3d.com/review/msi-mag-b850-tomahawk-max-wifi-review-great-performance-and-valueRead 14 October 2026Page 1: the board offers decent overclocking headroom for both the CPU and memory.

Board

Front and side, drawn to scale.

Form factor
ATX1Owner's manualgzhls.at/blob/ldb/4/c/d/0/9505de78491f9bbd3d2c02edb15c90ef238e.pdfRead 14 October 2026
Board dimensions
Width244Height305mm(9.6 × 12 in)1Owner's manualgzhls.at/blob/ldb/4/c/d/0/9505de78491f9bbd3d2c02edb15c90ef238e.pdfRead 14 October 2026Specifications chapter: ATX form factor, 9.6 in. x 12 in. (244 mm x 305 mm).
PCB layers
84Reviewtomshardware.com/pc-components/motherboards/msi-mag-b850-tomahawk-max-wifi-motherboard-reviewRead 14 October 2026Black 8-layer server-grade PCB.6Reviewprofesionalreview.com/2025/02/11/msi-mag-b850-tomahawk-max-wifi-reviewRead 14 October 20268-layer server-grade PCB with 2 oz copper traces.9Reviewtech4gamers.com/msi-mag-b850-tomahawk-max-wifi-reviewRead 14 October 20268-layered NPG-170D server-grade PCB with 2oz thickened copper.
Back-connect design
No1Owner's manualgzhls.at/blob/ldb/4/c/d/0/9505de78491f9bbd3d2c02edb15c90ef238e.pdfRead 14 October 2026Component overview pages 28 to 50 show the usual front-side connector layout. The board is not an MSI Project Zero model.
RGB lighting on the board
No4Reviewtomshardware.com/pc-components/motherboards/msi-mag-b850-tomahawk-max-wifi-motherboard-reviewRead 14 October 2026RGB lovers must add their own to the headers, as none are built in.9Reviewtech4gamers.com/msi-mag-b850-tomahawk-max-wifi-reviewRead 14 October 2026There is no onboard RGB, but there are multiple RGB headers.

Power delivery

Power stage layout
14+2+13Reviewkitguru.net/components/motherboard/leo-waldock/msi-mag-b850-tomahawk-max-wifi-reviewRead 14 October 2026Key features list, as in MSI's text: 14+2+1 Duet Rail Power System with 80A Smart Power Stages.6Reviewprofesionalreview.com/2025/02/11/msi-mag-b850-tomahawk-max-wifi-reviewRead 14 October 202614 phases for Vcore, 2 for SoC and 1 for Misc.
CPU core (Vcore) power stages
143Reviewkitguru.net/components/motherboard/leo-waldock/msi-mag-b850-tomahawk-max-wifi-reviewRead 14 October 2026VRMs: 14+2+1 x 80A Smart Power Stages.4Reviewtomshardware.com/pc-components/motherboards/msi-mag-b850-tomahawk-max-wifi-motherboard-reviewRead 14 October 202617 phases with 14 dedicated to Vcore. 14 x 80 A gives the 1,120 A the review states.6Reviewprofesionalreview.com/2025/02/11/msi-mag-b850-tomahawk-max-wifi-reviewRead 14 October 2026The review counts 16 MPS2433 80 A stages for Vcore and SoC, which fits 14 Vcore stages plus 2 SoC stages.
Vcore power stage rating
80A3Reviewkitguru.net/components/motherboard/leo-waldock/msi-mag-b850-tomahawk-max-wifi-reviewRead 14 October 202680 A. The Scan listing says 60 A, which no review or MSI text supports.4Reviewtomshardware.com/pc-components/motherboards/msi-mag-b850-tomahawk-max-wifi-motherboard-reviewRead 14 October 202680A MPS MPS2433 SPS MOSFETs.6Reviewprofesionalreview.com/2025/02/11/msi-mag-b850-tomahawk-max-wifi-reviewRead 14 October 20267Reviewhwcooling.net/en/si-mag-b850-tomahawk-max-wifi-cheaper-chipset-but-better-features-reviewRead 14 October 2026MPS 2433 integrated MOSFETs with a maximum current of 80 A per phase.
VRM controller
MPS MPS24123Reviewkitguru.net/components/motherboard/leo-waldock/msi-mag-b850-tomahawk-max-wifi-reviewRead 14 October 2026Controller is MPS2412 and the power stages are MPS2433.4Reviewtomshardware.com/pc-components/motherboards/msi-mag-b850-tomahawk-max-wifi-motherboard-reviewRead 14 October 2026Power goes to a Monolithic Power Systems MPS2412 controller.6Reviewprofesionalreview.com/2025/02/11/msi-mag-b850-tomahawk-max-wifi-reviewRead 14 October 2026The phases are controlled by an MPS2412 chip from the same maker.
CPU power connectors
8+8 pin1Owner's manualgzhls.at/blob/ldb/4/c/d/0/9505de78491f9bbd3d2c02edb15c90ef238e.pdfRead 14 October 2026Page 19: 2x 8-pin +12V power connectors (CPU_PWR1 and CPU_PWR2).
Extra slot power connector
Yes1Owner's manualgzhls.at/blob/ldb/4/c/d/0/9505de78491f9bbd3d2c02edb15c90ef238e.pdfRead 14 October 2026Page 19 and page 41: 1x 8-pin PCIe power connector (PCIE_PWR1). The special features list also names it.

Memory

Memory type
DDR51Owner's manualgzhls.at/blob/ldb/4/c/d/0/9505de78491f9bbd3d2c02edb15c90ef238e.pdfRead 14 October 2026
Memory slots
41Owner's manualgzhls.at/blob/ldb/4/c/d/0/9505de78491f9bbd3d2c02edb15c90ef238e.pdfRead 14 October 2026
Max memory
256GB1Owner's manualgzhls.at/blob/ldb/4/c/d/0/9505de78491f9bbd3d2c02edb15c90ef238e.pdfRead 14 October 2026
Max memory speed (overclocked)
8,400MT/s2Retailer pageshop.sumanet.cz/mag-b850-tomahawk-max-wifi-msi-mb-sc-am5-mag-b850-tomahawk-max-wifi-amd-b850-4xddr5-1xhdmi-wifi-atxRead 14 October 2026MSI text copied by the shop: Ryzen 9000 Series maximum overclocking frequency 1DPC 1R up to 8400+ MT/s. 1DPC 2R and 2DPC 1R reach 6400+ and 2DPC 2R reaches 4800+.4Reviewtomshardware.com/pc-components/motherboards/msi-mag-b850-tomahawk-max-wifi-motherboard-reviewRead 14 October 2026DDR5-8400 (OC), 1DPC 1R max speed up to 8400+ MT/s, as listed from MSI. The reviewer's stable out-of-box kit was DDR5-7200.
ECC memory
No1Owner's manualgzhls.at/blob/ldb/4/c/d/0/9505de78491f9bbd3d2c02edb15c90ef238e.pdfRead 14 October 2026Page 17: supports non-ECC, unbuffered memory.
CUDIMM support
No1Owner's manualgzhls.at/blob/ldb/4/c/d/0/9505de78491f9bbd3d2c02edb15c90ef238e.pdfRead 14 October 2026Page 17: supports CUDIMM, clock driver bypass mode only. POR boot frequency and support vary by CPU series.

Expansion slots

Expansion slots
Physical slotElectrical lanesPCIe generationConnected toCount
PCIe x16165CPU1
PCIe x1613Chipset1
PCIe x1644Chipset1
Source1Owner's manualgzhls.at/blob/ldb/4/c/d/0/9505de78491f9bbd3d2c02edb15c90ef238e.pdfRead 14 October 2026Page 17: 3x PCIe x16 slots. PCI_E1 from the CPU runs PCIe 5.0 x16 on Ryzen 9000 and 7000, PCIe 4.0 x8 on Ryzen 8700, 8600 and 8400, PCIe 4.0 x4 on Ryzen 8500 and 8300. PCI_E2 is up to PCIe 3.0 x1 and PCI_E3 is up to PCIe 4.0 x4, both from the chipset. PCI_E3 runs at x2 when M2_3 is used. The pre-installed Wi-Fi module sits in an M.2 Key-E slot, which is not listed.
Full-length PCIe slots
3
Fastest PCIe x16 slot generation
5

Storage

M.2 storage slots
SlotPCIe generationPCIe lanesConnected toLongest driveTakes SATA drivesHeatsinkShares lanes with
M2_154CPUM.2 22110NoYesNot available
M2_254CPUM.2 2280NoYesNot available
M2_342ChipsetM.2 2280NoYesPCI_E3 slot runs at x2 when M2_3 is used. Setting PCI_E3 to x4 in the BIOS turns off M2_3
M2_444ChipsetM.2 2280NoYesNot available
Source1Owner's manualgzhls.at/blob/ldb/4/c/d/0/9505de78491f9bbd3d2c02edb15c90ef238e.pdfRead 14 October 2026Page 18: M2_1 from the CPU, PCIe 5.0 x4 on Ryzen 9000 and 7000, 2280 and 22110. M2_2 from the CPU, PCIe 5.0 x4, 2260 and 2280. M2_3 from the chipset, PCIe 4.0 x2, 2260 and 2280. M2_4 from the chipset, PCIe 4.0 x4, 2260 and 2280. Ryzen 8000 CPUs slow M2_1 and M2_2 to PCIe 4.0 (M2_2 to x2 on Ryzen 8500 and 8300). Page 37 shows M.2 Shield Frozr heatsinks over M2_2 to M2_4, and page 34 the screwless one on M2_1. No slot lists an M.2 SATA mode, so sata is false.
M.2 slots
4
PCIe 5.0 M.2 slots
2
SATA ports
41Owner's manualgzhls.at/blob/ldb/4/c/d/0/9505de78491f9bbd3d2c02edb15c90ef238e.pdfRead 14 October 2026Page 17: 4x SATA 6Gb/s ports from an ASM1064 controller.

Rear ports

Rear ports
TypeVersionCountMax link rate (Gbps)
USB-CUSB 3.2 Gen 2310
USB-AUSB 3.2 Gen 2210
USB-AUSB 3.2 Gen 115
USB-AUSB 2.040.48
HDMIHDMI 2.11Not available
Ethernet (RJ45)Not available15
3.5 mm audioNot available2Not available
Optical S/PDIFNot available1Not available
Source1Owner's manualgzhls.at/blob/ldb/4/c/d/0/9505de78491f9bbd3d2c02edb15c90ef238e.pdfRead 14 October 2026Page 20 and page 23: 3 USB 10Gbps Type-C (CPU), 2 USB 10Gbps Type-A (one CPU, one chipset), 1 USB 5Gbps Type-A, 4 USB 2.0 (from a hub), 1 HDMI (2.1 with FRL, graphics only on CPUs with integrated graphics), 1 5G LAN (RJ45), line-out and mic-in jacks, 1 optical S/PDIF out. USB 2.0 is stored as 0.48 Gbps. Flash BIOS and Clear CMOS buttons and the two Wi-Fi antenna connectors are not ports.
Rear USB ports
10
Rear USB-C ports
3
Fastest rear USB port
10Gbps
Thunderbolt
Not available

Internal connectors

Internal USB headers
HeaderMax data rate (Gbps)HeadersFront ports served
USB-C header2011
USB 3 header (19-pin)524
USB 2.0 header (9-pin)0.4824
Source1Owner's manualgzhls.at/blob/ldb/4/c/d/0/9505de78491f9bbd3d2c02edb15c90ef238e.pdfRead 14 October 2026Page 19, 43 and 44: 1 USB 20Gbps Type-C front panel header (JUSBC1), 2 USB 5Gbps headers (JUSB2 and JUSB3) that serve 4 more ports, 2 USB 2.0 headers (JUSB4 and JUSB5) that serve 4 more ports.
Front USB-C header speed
20Gbps
Fan headers
81Owner's manualgzhls.at/blob/ldb/4/c/d/0/9505de78491f9bbd3d2c02edb15c90ef238e.pdfRead 14 October 2026Page 19 and page 46: CPU_FAN1, PUMP_SYS1 and SYS_FAN1 to SYS_FAN6 make 8 headers. The EZ Conn-Header V2 (JAF_2) is a combination connector and is not counted.
ARGB headers
31Owner's manualgzhls.at/blob/ldb/4/c/d/0/9505de78491f9bbd3d2c02edb15c90ef238e.pdfRead 14 October 2026Page 19: 3x 3-pin A-RAINBOW V2 (ARGB Gen2) connectors.
RGB headers
11Owner's manualgzhls.at/blob/ldb/4/c/d/0/9505de78491f9bbd3d2c02edb15c90ef238e.pdfRead 14 October 2026Page 19: 1x 4-pin RGB LED connector (JRGB1).

Networking

Ethernet controllers
Realtek RTL81266Reviewprofesionalreview.com/2025/02/11/msi-mag-b850-tomahawk-max-wifi-reviewRead 14 October 2026Realtek RTL8126VB with 5 Gbps on the RJ-45 port, stored as the chip family RTL8126.7Reviewhwcooling.net/en/si-mag-b850-tomahawk-max-wifi-cheaper-chipset-but-better-features-reviewRead 14 October 2026Realtek 8126VB, 5 GbE.
Ethernet ports
1
Ethernet speed
5Gbps
Wi-Fi included
Yes1Owner's manualgzhls.at/blob/ldb/4/c/d/0/9505de78491f9bbd3d2c02edb15c90ef238e.pdfRead 14 October 2026
Wi-Fi standard
Wi-Fi 71Owner's manualgzhls.at/blob/ldb/4/c/d/0/9505de78491f9bbd3d2c02edb15c90ef238e.pdfRead 14 October 2026
Wi-Fi bands
2.4 GHz, 5 GHz, 6 GHz1Owner's manualgzhls.at/blob/ldb/4/c/d/0/9505de78491f9bbd3d2c02edb15c90ef238e.pdfRead 14 October 2026
Max Wi-Fi channel width
320MHz1Owner's manualgzhls.at/blob/ldb/4/c/d/0/9505de78491f9bbd3d2c02edb15c90ef238e.pdfRead 14 October 2026Page 19: Supports 2.4GHz, 5GHz and 6GHz (320MHz) up to 5.8Gbps, 802.11 a/b/g/n/ac/ax/be.
Wi-Fi module
Qualcomm QCNCM8656Reviewprofesionalreview.com/2025/02/11/msi-mag-b850-tomahawk-max-wifi-reviewRead 14 October 2026Qualcomm FastConnect 7800 Wi-Fi 7 card with 320 MHz channels, 4KQAM and Bluetooth 5.4. HWCooling names the module Qualcomm NCM865, which is the part number QCNCM865, so that is stored.7Reviewhwcooling.net/en/si-mag-b850-tomahawk-max-wifi-cheaper-chipset-but-better-features-reviewRead 14 October 2026Qualcomm NCM865 wireless module, Wi-Fi 7 with Bluetooth 5.4. Published 2025-02-27.
Bluetooth
5.41Owner's manualgzhls.at/blob/ldb/4/c/d/0/9505de78491f9bbd3d2c02edb15c90ef238e.pdfRead 14 October 2026Page 19: Bluetooth 5.4, MLO, 4KQAM. The manual says the version may be updated by the Wi-Fi chip vendor.

Audio

Audio codec
Realtek ALC40801Owner's manualgzhls.at/blob/ldb/4/c/d/0/9505de78491f9bbd3d2c02edb15c90ef238e.pdfRead 14 October 2026Page 18: Realtek ALC4080 codec, 7.1-channel USB audio.
DAC chip
Not available

Features

BIOS flashback
Yes1Owner's manualgzhls.at/blob/ldb/4/c/d/0/9505de78491f9bbd3d2c02edb15c90ef238e.pdfRead 14 October 2026Page 20 and page 23: Flash BIOS button on the rear panel.
Clear CMOS button (rear)
Yes1Owner's manualgzhls.at/blob/ldb/4/c/d/0/9505de78491f9bbd3d2c02edb15c90ef238e.pdfRead 14 October 2026Page 20 and page 23: Clear CMOS button on the rear panel.
POST code display
No1Owner's manualgzhls.at/blob/ldb/4/c/d/0/9505de78491f9bbd3d2c02edb15c90ef238e.pdfRead 14 October 2026Page 19 and page 51: 4x EZ Debug LED (CPU, DRAM, GPU, boot) and one memory detection LED. No two-digit display is listed.
Power button on the board
No1Owner's manualgzhls.at/blob/ldb/4/c/d/0/9505de78491f9bbd3d2c02edb15c90ef238e.pdfRead 14 October 2026The specifications chapter and the onboard LEDs page list no power or reset button on the board. Its only buttons are the two on the rear panel.
Dual BIOS
No1Owner's manualgzhls.at/blob/ldb/4/c/d/0/9505de78491f9bbd3d2c02edb15c90ef238e.pdfRead 14 October 2026Page 20: BIOS is 1x 256 Mb flash. Dual BIOS is not stated.
Pre-installed I/O shield
Yes1Owner's manualgzhls.at/blob/ldb/4/c/d/0/9505de78491f9bbd3d2c02edb15c90ef238e.pdfRead 14 October 2026Page 21 special features list: Pre-installed I/O Shield.9Reviewtech4gamers.com/msi-mag-b850-tomahawk-max-wifi-reviewRead 14 October 2026The I/O shield is pre-installed on the motherboard, in stainless steel.
Tool-free features
Tool-free M.2 latch, Tool-free M.2 heatsink, PCIe slot release1Owner's manualgzhls.at/blob/ldb/4/c/d/0/9505de78491f9bbd3d2c02edb15c90ef238e.pdfRead 14 October 2026Page 21 EZ DIY list: EZ M.2 Shield Frozr II (screwless, on M2_1 only per page 34 and HWCooling), EZ M.2 Clip II and EZ PCIe Release. The Wi-Fi antenna uses the normal threaded connectors per Profesional Review, so the push-on antenna option is not set.7Reviewhwcooling.net/en/si-mag-b850-tomahawk-max-wifi-cheaper-chipset-but-better-features-reviewRead 14 October 2026Tool-free cooler on the first M.2 slot with a release button. The other two SSD coolers use screws. A remote button releases the PCIe slot latch.

Measured

VRM temperature under CPU load
44°C5Measurementtomshardware.com/pc-components/motherboards/msi-mag-b850-tomahawk-max-wifi-motherboard-review/3Read 14 October 2026Ryzen 9 9900X (CPU averages about 150 W), stock settings, AIDA64 System Stability Test. Peak 44 C on the reviewer's probes and 46 C from the board's integrated sensor. The ambient temperature is not stated.
Power draw idle
74W5Measurementtomshardware.com/pc-components/motherboards/msi-mag-b850-tomahawk-max-wifi-motherboard-review/3Read 14 October 2026Whole test system at the wall with a Kill-A-Watt meter, Windows Balanced power plan, EXPO enabled. Test system: Ryzen 9 9900X, RTX 4080, Crucial T705, Windows 11. The first page says AGESA 1.2.0.3a BIOS.
Power draw CPU stress
250W5Measurementtomshardware.com/pc-components/motherboards/msi-mag-b850-tomahawk-max-wifi-motherboard-review/3Read 14 October 2026Peak of the whole test system at the wall (Kill-A-Watt) during the AIDA64 System Stability Test with CPU, FPU, cache and memory stress. The graphics card was not stressed.

In the box

In the box
1 x Quick installation guide, 1 x European Union Regulatory Notices, 1 x SATA cable, 1 x 1 to 3 EZ Conn-Cable (V2), 1 x EZ Front panel cable, 1 x EZ Wi-Fi Antenna, 1 x Cable sticker, 3 x EZ M.2 Clip II, 1 x EZ M.2 Clip II Remover1Owner's manualgzhls.at/blob/ldb/4/c/d/0/9505de78491f9bbd3d2c02edb15c90ef238e.pdfRead 14 October 2026Page 22 package contents.

Warranty

Manufacturer warranty (source market)
3years4Reviewtomshardware.com/pc-components/motherboards/msi-mag-b850-tomahawk-max-wifi-motherboard-reviewRead 14 October 2026US: spec table lists Warranty 3 Years. Tech4Gamers also says MSI offers a 3-year warranty. Scan UK lists 24 months.
