PC parts / Motherboards
GIGABYTEGaming motherboard

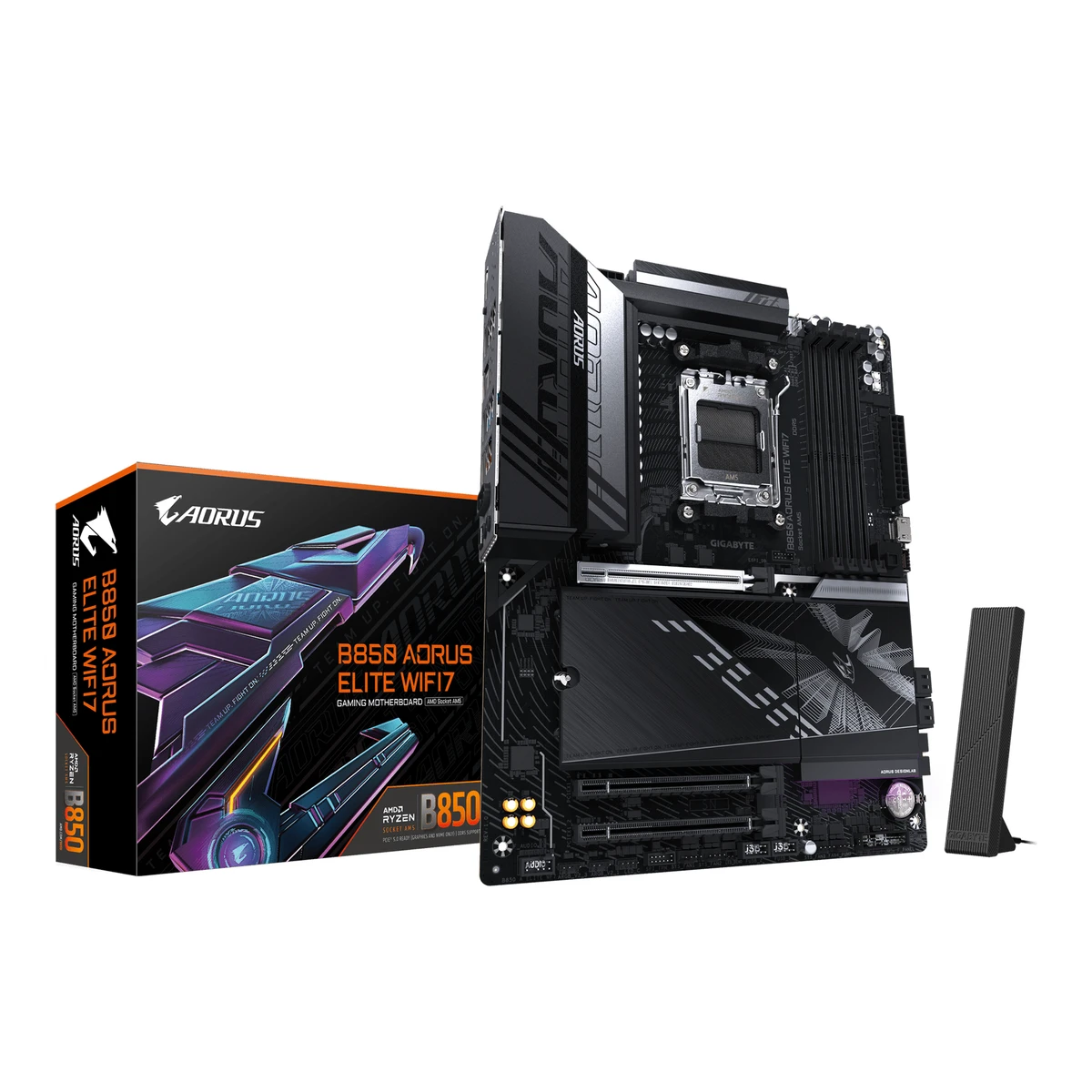

B850 AORUS ELITE WIFI7
Released January 2025.5Reviewthefpsreview.com/2025/01/06/gigabyte-b850-aorus-elite-wifi7-motherboard-reviewRead 14 October 2026Review published 2025-01-06 at the B850 launch, with 11 GIGABYTE B850 boards announced together. The Tom's Hardware review followed on 2025-01-14. Last checked 14 October 2026.
- CPU socket
- AM5
- Chipset
- AMD B850
- Form factor
- ATX
- M.2 slots
- 3
64 of 78 fields known.
At a glance
Ports
- USB-C USB 3.2 Gen 2
- 2 USB-A USB 3.2 Gen 2
- 5 USB-A USB 3.2 Gen 1
- 4 USB-A USB 2.0
- DisplayPort 1.4
- Ethernet (RJ45)
- 2 3.5 mm audio
- Optical S/PDIF
- USB-C header
- USB 3 header (19-pin)
- 2 USB 2.0 header (9-pin)
General
- Model numbers
- B850 AORUS ELITE WIFI7, B850 A ELITE WF71Owner's manualtrovaprezzi.it/manuali/gigabyte_aorus_b850_elite_wifi7_ice.pdfRead 14 October 2026
- Announced
- Not available
- Predecessor
- Not available
- Successor
- Not available
- Launch price (EU)
- Not available
- Markets
- Not available
- Colours
- Not available
- Board revision
- Not available
Platform
- CPU socket
- AM51Owner's manualtrovaprezzi.it/manuali/gigabyte_aorus_b850_elite_wifi7_ice.pdfRead 14 October 2026
- Chipset
- AMD B8501Owner's manualtrovaprezzi.it/manuali/gigabyte_aorus_b850_elite_wifi7_ice.pdfRead 14 October 2026
- Supported processors
- AMD Ryzen 9000 Series, AMD Ryzen 8000 Series, AMD Ryzen 7000 Series1Owner's manualtrovaprezzi.it/manuali/gigabyte_aorus_b850_elite_wifi7_ice.pdfRead 14 October 2026Section 2-2: Ryzen 9000, 8000 and 7000 Series. The manual refers to the maker's website for the latest CPU support list. Read on 2026-10-14.
Board
Front and side, drawn to scale.
- Form factor
- ATX1Owner's manualtrovaprezzi.it/manuali/gigabyte_aorus_b850_elite_wifi7_ice.pdfRead 14 October 2026
- Board dimensions
- Width244Height305mm(9.6 × 12 in)1Owner's manualtrovaprezzi.it/manuali/gigabyte_aorus_b850_elite_wifi7_ice.pdfRead 14 October 2026Section 2-2: ATX form factor, 30.5 cm x 24.4 cm.
Power delivery
- Power stage layout
- 14+2+24Reviewfunkykit.com/reviews/motherboards/gigabyte-b850-aorus-elite-wifi7-motherboard-reviewRead 14 October 2026Funky Kit: Digital Twin 14+2+2 phases VRM, as in GIGABYTE's feature list.5Reviewthefpsreview.com/2025/01/06/gigabyte-b850-aorus-elite-wifi7-motherboard-reviewRead 14 October 2026Twin 14+2+2 phase digital VRM: 14 Vcore phases, 2 SOC phases and 2 MISC phases.
- CPU core (Vcore) power stages
- 145Reviewthefpsreview.com/2025/01/06/gigabyte-b850-aorus-elite-wifi7-motherboard-reviewRead 14 October 202614 Vcore power stages. The stage rating is not stored because FPS Review and the retailer list 60 A while Tom's Hardware reads 55 A on the chips.6Reviewtomshardware.com/pc-components/motherboards/gigabyte-b850-aorus-elite-wifi-7-reviewRead 14 October 2026Power delivery is 18 phases with 14 dedicated to Vcore. The review counts 14 onsemi DrMOS power stages in a twin configuration.
- Vcore power stage rating
- Not available
- VRM controller
- Richtek RT3678BE6Reviewtomshardware.com/pc-components/motherboards/gigabyte-b850-aorus-elite-wifi-7-reviewRead 14 October 2026Power goes to an 8-channel Richtek RT3678BE controller.
Memory
- Memory type
- DDR51Owner's manualtrovaprezzi.it/manuali/gigabyte_aorus_b850_elite_wifi7_ice.pdfRead 14 October 2026
- Memory slots
- 41Owner's manualtrovaprezzi.it/manuali/gigabyte_aorus_b850_elite_wifi7_ice.pdfRead 14 October 2026
- Max memory
- 256GB1Owner's manualtrovaprezzi.it/manuali/gigabyte_aorus_b850_elite_wifi7_ice.pdfRead 14 October 2026
- Max memory speed (overclocked)
- 8,200MT/s2Reviewfunkykit.com/reviews/motherboards/gigabyte-b850-aorus-elite-wifi7-motherboard-review/2Read 14 October 2026Funky Kit page 2 reproduces the GIGABYTE specification list: DDR5 8200 (O.C.) as the highest listed speed, 4 DIMM sockets, up to 256 GB. The manual lists only 5200/4800/4400 MT/s. Ryzen 9000 is named by FPS Review for the 8200 MT/s figure.5Reviewthefpsreview.com/2025/01/06/gigabyte-b850-aorus-elite-wifi7-motherboard-reviewRead 14 October 2026DDR5 up to 8200 MT/s with Ryzen 9000 CPUs, which the review says GIGABYTE states. 8600 MT/s applies to the B850M AORUS PRO WIFI7 with Ryzen 8000 CPUs.
- CUDIMM support
- Not available
Expansion slots
- Expansion slots
Physical slot Electrical lanes PCIe generation Connected to Count PCIe x16 16 5 CPU 1 PCIe x16 1 3 Chipset 2 - Full-length PCIe slots
- 3
- Fastest PCIe x16 slot generation
- 5
Storage
- M.2 storage slots
Slot PCIe generation PCIe lanes Connected to Longest drive Takes SATA drives Heatsink M2A_CPU 5 4 CPU M.2 22110 No Yes M2B_CPU 4 4 CPU M.2 22110 No Yes M2C_SB 4 4 Chipset M.2 22110 No Yes - M.2 slots
- 3
- PCIe 5.0 M.2 slots
- 1
Rear ports
- Rear ports
Type Version Count Max link rate (Gbps) USB-C USB 3.2 Gen 2 1 10 USB-A USB 3.2 Gen 2 2 10 USB-A USB 3.2 Gen 1 5 5 USB-A USB 2.0 4 0.48 DisplayPort DisplayPort 1.4 1 Not available Ethernet (RJ45) Not available 1 2.5 3.5 mm audio Not available 2 Not available Optical S/PDIF Not available 1 Not available - Rear USB ports
- 12
- Rear USB-C ports
- 1
- Fastest rear USB port
- 10Gbps
- Thunderbolt
- Not available
Internal connectors
- Internal USB headers
Header Max data rate (Gbps) Headers Front ports served USB-C header 20 1 1 USB 3 header (19-pin) 5 1 2 USB 2.0 header (9-pin) 0.48 2 4 - Front USB-C header speed
- 20Gbps
Networking
- Ethernet controllers
- Realtek RTL81255Reviewthefpsreview.com/2025/01/06/gigabyte-b850-aorus-elite-wifi7-motherboard-reviewRead 14 October 2026The 2.5G LAN is a Realtek RTL8125D, stored as the chip family RTL8125. GIGABYTE's manual states only Realtek 2.5GbE.8Reviewhwcooling.net/en/gigabyte-b850-aorus-elite-wifi7-is-it-really-cheaper-yes-reviewRead 14 October 20262.5 GbE Realtek RTL8125. FPS Review names the RTL8125D variant.
- Ethernet ports
- 1
- Ethernet speed
- 2.5Gbps
- Wi-Fi included
- Yes1Owner's manualtrovaprezzi.it/manuali/gigabyte_aorus_b850_elite_wifi7_ice.pdfRead 14 October 2026
- Wi-Fi standard
- Wi-Fi 71Owner's manualtrovaprezzi.it/manuali/gigabyte_aorus_b850_elite_wifi7_ice.pdfRead 14 October 2026
- Wi-Fi bands
- 2.4 GHz, 5 GHz, 6 GHz1Owner's manualtrovaprezzi.it/manuali/gigabyte_aorus_b850_elite_wifi7_ice.pdfRead 14 October 2026
- Max Wi-Fi channel width
- 160MHz1Owner's manualtrovaprezzi.it/manuali/gigabyte_aorus_b850_elite_wifi7_ice.pdfRead 14 October 2026Section 2-2: support for 11be 160 MHz. The RTL8922AE chip is rated higher by Realtek but the maker states 160 MHz.
Audio
We could not find any of these 2 fields. Show them
- Audio codec
- Not available
- DAC chip
- Not available
Features
- BIOS flashback
- Yes1Owner's manualtrovaprezzi.it/manuali/gigabyte_aorus_b850_elite_wifi7_ice.pdfRead 14 October 2026Q-Flash Plus button on the rear panel (section 2-6).
- Clear CMOS button (rear)
- No1Owner's manualtrovaprezzi.it/manuali/gigabyte_aorus_b850_elite_wifi7_ice.pdfRead 14 October 2026Section 2-2 and 2-8: Clear CMOS is a jumper (CLR_CMOS). The only rear panel button is Q-Flash Plus.
- Power button on the board
- Yes1Owner's manualtrovaprezzi.it/manuali/gigabyte_aorus_b850_elite_wifi7_ice.pdfRead 14 October 2026Section 2-7: power and reset quick buttons on the board.
- Pre-installed I/O shield
- Yes1Owner's manualtrovaprezzi.it/manuali/gigabyte_aorus_b850_elite_wifi7_ice.pdfRead 14 October 2026The box contents list in section 1-3 has no loose I/O shield. Tom's Hardware describes the rear panel as the board's backplate with vent holes.6Reviewtomshardware.com/pc-components/motherboards/gigabyte-b850-aorus-elite-wifi-7-reviewRead 14 October 2026The backplate of the B850 Aorus Elite Wifi7 has vent ports that help cool the VRMs.8Reviewhwcooling.net/en/gigabyte-b850-aorus-elite-wifi7-is-it-really-cheaper-yes-reviewRead 14 October 2026The rear I/O panel is part of the board and partially perforated to improve VRM cooling.
- Tool-free features
- Tool-free M.2 latch, Tool-free M.2 heatsink, PCIe slot release, Push-on antenna connector1Owner's manualtrovaprezzi.it/manuali/gigabyte_aorus_b850_elite_wifi7_ice.pdfRead 14 October 2026M.2 EZ-Latch Plus (screwless M.2 drive clip), M.2 EZ-Latch Click (screwless M.2 heatsink) and PCIe EZ-Latch Plus (release button for the graphics card slot) are named in sections 2-4, 2-5 and 2-8. The push-on antenna connector (WIFI EZ-Plug) is from Funky Kit's copy of GIGABYTE's feature list and from FPS Review and HWCooling.2Reviewfunkykit.com/reviews/motherboards/gigabyte-b850-aorus-elite-wifi7-motherboard-review/2Read 14 October 2026GIGABYTE feature list: WIFI EZ-Plug (quick and easy Wi-Fi antenna installation), EZ-Latch Plus (PCIe and M.2 slots with quick release and screwless design) and EZ-Latch Click (M.2 heatsinks with screwless design).8Reviewhwcooling.net/en/gigabyte-b850-aorus-elite-wifi7-is-it-really-cheaper-yes-reviewRead 14 October 2026Remote EZ-Latch Plus button on the right edge releases the PCIe x16 slot latch. The WiFi antennas use a push-pin mounting system.
Measured
In the box
- In the box
- User's Manual, Quick Installation Guide, 1 x antenna, 2 x SATA cables, 1 x G Connector, 1 x M.2 thermal pad, 2 x packs of M.2 thick/thin rubber pads1Owner's manualtrovaprezzi.it/manuali/gigabyte_aorus_b850_elite_wifi7_ice.pdfRead 14 October 2026Section 1-3. The list is for reference and the manual says the actual items depend on the package. Tom's Hardware listed one SATA cable at launch.
Links
- Product page
- www.gigabyte.com/Motherboard/B850-AORUS-ELITE-WIFI7-rev-1x10Maker product pagegigabyte.com/Motherboard/B850-AORUS-ELITE-WIFI7-rev-1xRead 14 October 2026The page title appeared in web search results. gigabyte.com blocks agents, so the page was not read and its content is not used for any value.
- Spec sheet
- www.gigabyte.com/Motherboard/B850-AORUS-ELITE-WIFI7-rev-1x/sp10Maker product pagegigabyte.com/Motherboard/B850-AORUS-ELITE-WIFI7-rev-1xRead 14 October 2026Specification tab of the same page at /sp. Not read for the same reason.
- Manual
- www.trovaprezzi.it/manuali/gigabyte_aorus_b850_elite_wifi7_ice.pdf1Owner's manualtrovaprezzi.it/manuali/gigabyte_aorus_b850_elite_wifi7_ice.pdfRead 14 October 2026GIGABYTE User's Manual Rev. 1101 for B850 AORUS ELITE WIFI7 and the ICE model, hosted by trovaprezzi.it. The maker's download.gigabyte.com file name for the full manual was not found.
- EPREL registration number
- Not available
Warranty
We could not find any of these 1 fields. Show them
- Manufacturer warranty (source market)
- Not available
Compare with
Pick a motherboard to see both side by side. Differences are marked yellow.
Variants
Each variant lists only what differs from the specs above.
| Board revision | Audio codec |
|---|---|
| rev. 1.0 | Realtek ALC897 |
| rev. 1.1 | Realtek ALC1220 |
Sources
We read 10 sources for this motherboard. The numbers match the markers in the sheet.
