PC parts / Motherboards

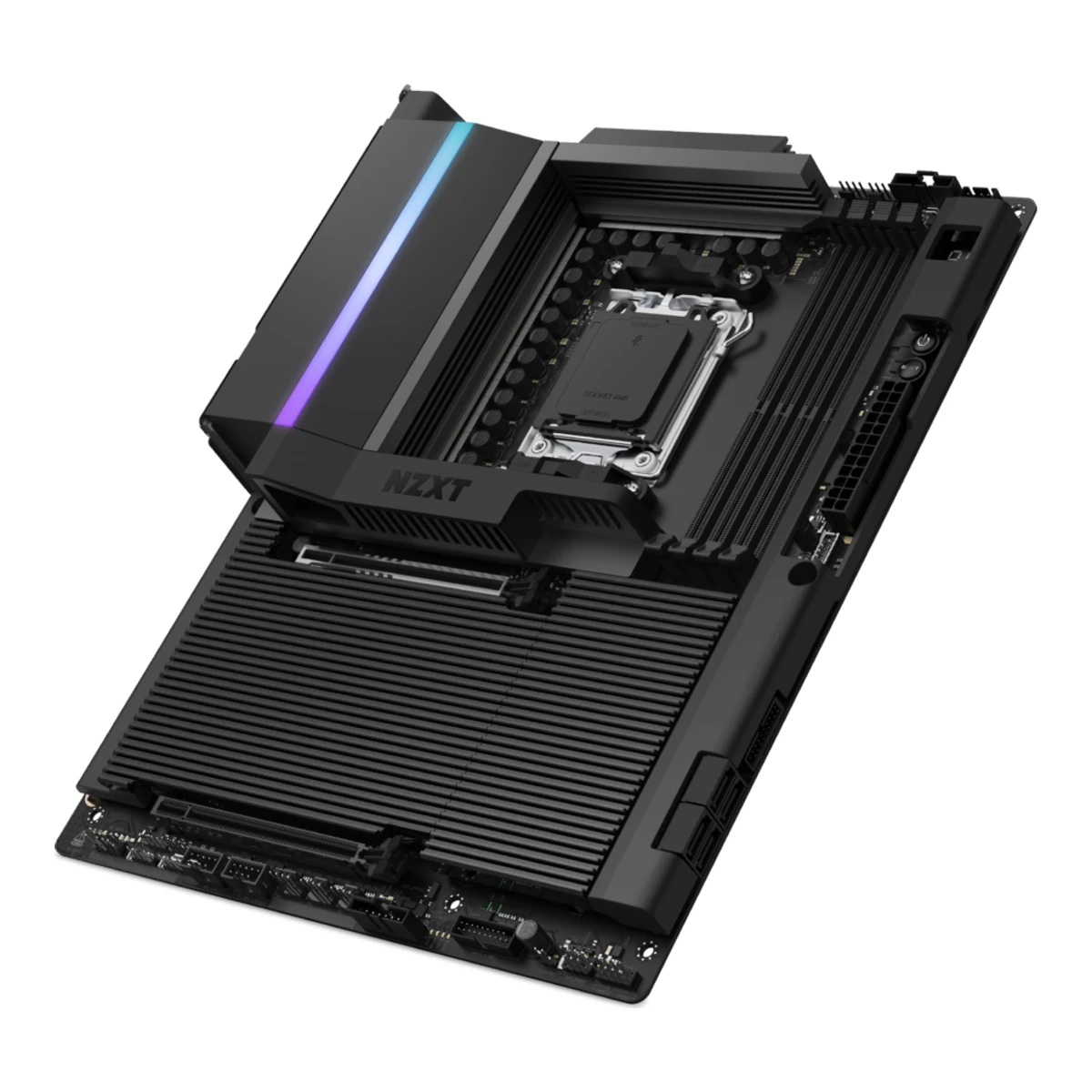

NZXTGaming motherboard
N9 X870E
Released April 2025.4Reviewpcunboxing.com/enRead 15 October 2026PC Unboxing review dated 2025-04-01 and NZXT's store listing published 2025-04-11. Igor's Lab review followed on 2025-05-01 and PC Gamer on 2025-07-03. Last checked 16 October 2026.
- CPU socket
- AM5
- Chipset
- AMD X870E
- Form factor
- ATX
- M.2 slots
- 4
63 of 78 fields known.
At a glance
CPU core power stages
201Maker product pagenzxt.com/product/n9-x870eRead 15 October 2026Overview: 20+2+1 design. Igor's Lab teardown counts 20 Renesas power stages on the Vcore rail.3Reviewigorslab.de/en/nzxt-n9-x870e-am5-motherboard-review-solid-optical-minimalism-at-a-proud-price-with-teardown-and-material-testRead 15 October 2026Igor's Lab teardown (2025-05-01): 20 Renesas smart power stages for the Vcore rail, plus 2 for SoC. The review counts a fourth rail, 20+2+1+1. The VRM controller is left out: Igor's Lab reads Renesas RAA229628 and PC Unboxing reads RAA228228 plus RAA229621.
Higher than 92% of other motherboards.
Ports
- 2 USB-C USB4
- 5 USB-A USB 3.2 Gen 2
- 3 USB-A USB 3.2 Gen 1
- 2 USB-A USB 2.0
- Ethernet (RJ45)
- 2 3.5 mm audio
- Optical S/PDIF
- USB-C header
- 2 USB 3 header (19-pin)
- 2 USB 2.0 header (9-pin)
General
- Model numbers
- N9-X87XT-W1, N9-X87XT-B11Maker product pagenzxt.com/product/n9-x870eRead 15 October 2026Spec table: N9-X87XT-W1 (White) and N9-X87XT-B1 (Black).
- GTIN / EAN
- 810074847292, 810074847308, 5056547207254, 50565472072611Maker product pagenzxt.com/product/n9-x870eRead 15 October 2026Spec table: UPC 810074847292 (White) and 810074847308 (Black). EAN 5056547207254 (White) and 5056547207261 (Black).
- Status
- Available1Maker product pagenzxt.com/product/n9-x870eRead 15 October 2026NZXT's own store page sells the board on 2026-10-15 at $499.99.
- Predecessor
- Not available
- Successor
- Not available
- Launch price (US)
- $499.995Reviewpcgamer.com/hardware/motherboards/nzxt-n9-x870e-reviewRead 15 October 2026Spec box (2025-07-03 review): Price $500 | £410 | AU$848. The text calls it a $500 X870E board.6Reviewcgmagonline.com/review/nzxt-n9-x870e-motherboardRead 15 October 2026Review dated 2025-06-28 lists MSRP $499.99. The currency is not named. NZXT's US store lists the same amount. Sales tax excluded.
- Launch price (EU)
- Not available
- Markets
- Not available
- Colours
- White, Black1Maker product pagenzxt.com/product/n9-x870eRead 15 October 2026Store page colour selector: White and Black.
- Segment
- Gaming1Maker product pagenzxt.com/product/n9-x870eRead 15 October 2026Page title: AMD X870E ATX Gaming Wi-Fi 7 Motherboard.
- Board revision
- Not available
Platform
- CPU socket
- AM51Maker product pagenzxt.com/product/n9-x870eRead 15 October 20262Owner's manualcdn-g.nzxt.com/dl/1743412363-motherboards_n9-x870e_digital-manual_241210_v1.pdfRead 15 October 2026
- Chipset
- AMD X870E1Maker product pagenzxt.com/product/n9-x870eRead 15 October 20262Owner's manualcdn-g.nzxt.com/dl/1743412363-motherboards_n9-x870e_digital-manual_241210_v1.pdfRead 15 October 2026
- Supported processors
- AMD Ryzen 9000 Series, AMD Ryzen 8000 Series, AMD Ryzen 7000 Series1Maker product pagenzxt.com/product/n9-x870eRead 15 October 2026Spec table: AMD Socket AM5 for Ryzen 9000, 8000 and 7000 series. The page says BIOS 3.20 or later is needed for the Ryzen 7 9800X3D. Read on 2026-10-15.2Owner's manualcdn-g.nzxt.com/dl/1743412363-motherboards_n9-x870e_digital-manual_241210_v1.pdfRead 15 October 2026Specifications, CPU and socket: AMD Socket AM5 Ryzen 9000, 8000 and 7000 Series Processors.
- CPU overclocking
- Yes1Maker product pagenzxt.com/product/n9-x870eRead 15 October 2026Overview: overclocking-ready power. The page names no multiplier overclocking feature, so the chip maker's X870E page is the main source.4Reviewpcunboxing.com/enRead 15 October 2026The BIOS has an Overclocking Tools tab with processor overclocking functions.9Maker product pageamd.com/en/products/processors/chipsets/am5.htmlRead 15 October 2026AMD's chipset page describes the X870E as having robust overclocking capabilities, and its comparison table has a Ryzen processor overclocking enabled column. NZXT's page says the board has overclocking-ready power.
Board
Front and side, drawn to scale.
- Form factor
- ATX1Maker product pagenzxt.com/product/n9-x870eRead 15 October 20262Owner's manualcdn-g.nzxt.com/dl/1743412363-motherboards_n9-x870e_digital-manual_241210_v1.pdfRead 15 October 2026Specifications, form factor: ATX 12.0 in x 9.6 in, 30.5 cm x 24.4 cm.
- Board dimensions
- Width244Height305mm(9.6 × 12 in)2Owner's manualcdn-g.nzxt.com/dl/1743412363-motherboards_n9-x870e_digital-manual_241210_v1.pdfRead 15 October 2026Specifications, form factor: ATX 30.5 cm x 24.4 cm, stored as height 305 mm along the rear I/O edge and width 244 mm. The product page's 309.34 x 254.44 x 49.39 mm includes the full metal cover and is not used.
Power delivery
- Power stage layout
- 20+2+11Maker product pagenzxt.com/product/n9-x870eRead 15 October 2026Overview: a 20+2+1 power phase design with 110A SPS. Igor's Lab counts a fourth rail, 20+2+1+1, in its teardown.
- CPU core (Vcore) power stages
- 201Maker product pagenzxt.com/product/n9-x870eRead 15 October 2026Overview: 20+2+1 design. Igor's Lab teardown counts 20 Renesas power stages on the Vcore rail.3Reviewigorslab.de/en/nzxt-n9-x870e-am5-motherboard-review-solid-optical-minimalism-at-a-proud-price-with-teardown-and-material-testRead 15 October 2026Igor's Lab teardown (2025-05-01): 20 Renesas smart power stages for the Vcore rail, plus 2 for SoC. The review counts a fourth rail, 20+2+1+1. The VRM controller is left out: Igor's Lab reads Renesas RAA229628 and PC Unboxing reads RAA228228 plus RAA229621.
- Vcore power stage rating
- 110A1Maker product pagenzxt.com/product/n9-x870eRead 15 October 2026Overview: 110A SPS (smart power stage).
- VRM controller
- Not available
- CPU power connectors
- 8+8 pin1Maker product pagenzxt.com/product/n9-x870eRead 15 October 2026Internal I/O list: 8-pin ATX 12V power connector, quantity 2. The manual lists 1 x 8+8-pin ATX 12V.2Owner's manualcdn-g.nzxt.com/dl/1743412363-motherboards_n9-x870e_digital-manual_241210_v1.pdfRead 15 October 2026Internal I/O: 1 x 8+8-pin ATX 12V power connector.
Memory
- Memory type
- DDR51Maker product pagenzxt.com/product/n9-x870eRead 15 October 20262Owner's manualcdn-g.nzxt.com/dl/1743412363-motherboards_n9-x870e_digital-manual_241210_v1.pdfRead 15 October 2026
- Memory slots
- 41Maker product pagenzxt.com/product/n9-x870eRead 15 October 20262Owner's manualcdn-g.nzxt.com/dl/1743412363-motherboards_n9-x870e_digital-manual_241210_v1.pdfRead 15 October 2026
- Max memory
- 192GB1Maker product pagenzxt.com/product/n9-x870eRead 15 October 2026FAQ: dual-channel up to 192 GB, same as the manual and the support spec page. PC Unboxing and PC Gamer print 256 GB. The maker value is stored.2Owner's manualcdn-g.nzxt.com/dl/1743412363-motherboards_n9-x870e_digital-manual_241210_v1.pdfRead 15 October 2026Specifications, memory: 4 x DIMM slots, max. 192 GB, dual-channel DDR5.
- Max memory speed (overclocked)
- 8,200MT/s4Reviewpcunboxing.com/enRead 15 October 2026Spec list: 8200 (O.C.) MT/s. Text: QVL-listed dual-channel modules reach 8200 MT/s with Ryzen 9000 series CPUs. NZXT's page says 8000+ MT/s and points to the memory QVL, which is on support.nzxt.com and was not readable. PC Gamer prints DDR5-4800 to DDR5-8200+ (OC).5Reviewpcgamer.com/hardware/motherboards/nzxt-n9-x870e-reviewRead 15 October 2026Spec box: Memory support DDR5-4800 to DDR5-8200+(OC), up to 256 GB. The review's VRM temperature is left out, since it used an Intel Core Ultra 9 285K rig and an unclear auxiliary sensor.
- CUDIMM support
- Not available
Expansion slots
- Expansion slots
Physical slot Electrical lanes PCIe generation Connected to Count PCIe x16 16 5 CPU 1 PCIe x16 2 3 Chipset 1 Source1Maker product pagenzxt.com/product/n9-x870eRead 15 October 2026Spec table: PCIe 5.0 x16 slot (PCIEX16_1) and PCIe 3.0 x16 slot (PCIEX16_2) in x2 mode. The manual puts the first on the CPU and the second on the chipset. The Key E M.2 socket for the Wi-Fi module is not stored.2Owner's manualcdn-g.nzxt.com/dl/1743412363-motherboards_n9-x870e_digital-manual_241210_v1.pdfRead 15 October 2026Specifications, expansion slots: under CPU 1 x PCIe 5.0 x16 slot (PCIEX16_1) in x16 mode. Under chipset 1 x PCIe 3.0 x16 slot (PCIEX16_2) in x2 mode, and a vertical Key E M.2 socket for a 2230 Wi-Fi/BT module. Igor's Lab reads the second slot as PCIe 4.0 x4 from its block diagram. The maker value is stored.- Full-length PCIe slots
- 2
- Fastest PCIe x16 slot generation
- 5
Storage
- M.2 storage slots
Slot PCIe generation PCIe lanes Connected to Longest drive Takes SATA drives Heatsink M2_1 5 4 CPU M.2 2280 No Yes M2_2 4 4 Chipset M.2 2280 No Yes M2_3 4 4 Chipset M.2 2280 No Yes M2_4 4 4 Chipset M.2 2280 No Yes Source1Maker product pagenzxt.com/product/n9-x870eRead 15 October 2026Spec table: M.2_1 type 2280 PCIe 5.0 x4, M.2_2 to M.2_4 type 2280 PCIe 4.0 x4. Overview: dedicated heatsinks and thermal pads for all M.2 slots. The spec lists no SATA mode for the slots, so sata is false. The slot labels follow the manual (M2_1 to M2_4).2Owner's manualcdn-g.nzxt.com/dl/1743412363-motherboards_n9-x870e_digital-manual_241210_v1.pdfRead 15 October 2026Specifications, storage: M2_1 Key M type 2280 PCIe Gen5x4 on the CPU. M2_2 to M2_4 Key M type 2280 PCIe Gen4x4 under the chipset heading. No SATA mode is listed for any of the four slots.- M.2 slots
- 4
- PCIe 5.0 M.2 slots
- 1
Rear ports
- Rear ports
Type Version Count Max link rate (Gbps) Thunderbolt or USB4 Power out (W) DP Alt Mode USB-C USB4 2 40 USB4 15 Yes USB-A USB 3.2 Gen 2 5 10 Not available Not available Not available USB-A USB 3.2 Gen 1 3 5 Not available Not available Not available USB-A USB 2.0 2 0.48 Not available Not available Not available Ethernet (RJ45) Not available 1 5 Not available Not available Not available 3.5 mm audio Not available 2 Not available Not available Not available Not available Optical S/PDIF Not available 1 Not available Not available Not available Not available Source1Maker product pagenzxt.com/product/n9-x870eRead 15 October 2026Spec table rear I/O: 2 USB 4, 5 USB 3.2 Gen 2, 3 USB 3.2 Gen 1 Type-A, 2 USB 2.0, 1 RJ45, 2 audio jacks, 1 optical S/PDIF out. The 5 USB 3.2 Gen 2 ports are Type-A because the rear panel shows eight Type-A ports and two Type-C. USB 2.0 is stored as 0.48 Gbps. The manual gives USB PD 3.0 up to 5 V at 3 A (15 W) on the USB4 ports and 5 GbE LAN. Wi-Fi antenna connectors and the two buttons are not ports.2Owner's manualcdn-g.nzxt.com/dl/1743412363-motherboards_n9-x870e_digital-manual_241210_v1.pdfRead 15 October 2026Specifications, rear I/O: 2 x SMA antenna connectors, 2 x USB4 Type-C (40 Gb/s, USB PD 3.0 up to 5V@3A, 15 W), 5 x USB 3.2 Gen2, 3 x USB 3.2 Gen1, 2 x USB 2.0, Clear CMOS button, BIOS Flashback button, 1 x RJ45, line out, mic in, optical S/PDIF out. The graphics note says the USB4 ports show only the CPU's embedded graphics, up to 8K 30 Hz, which is why dp_alt_mode is true.- Rear USB ports
- 12
- Rear USB-C ports
- 2
- Fastest rear USB port
- 40Gbps
- Thunderbolt
- No
Internal connectors
- Internal USB headers
Header Max data rate (Gbps) Headers Front ports served USB-C header 20 1 1 USB 3 header (19-pin) 5 2 4 USB 2.0 header (9-pin) 0.48 2 4 Source1Maker product pagenzxt.com/product/n9-x870eRead 15 October 2026Spec table: two USB 2.0 headers (up to 4 ports), two USB 3.2 Gen1 headers (up to 4 ports), one USB 3.2 Gen2x2 front panel header for USB Type-C. The manual's older text says USB 3.2 Gen 2 for the Type-C header. PC Unboxing and Igor's Lab both say 20 Gbps.2Owner's manualcdn-g.nzxt.com/dl/1743412363-motherboards_n9-x870e_digital-manual_241210_v1.pdfRead 15 October 2026Specifications, internal I/O: 2 x USB 2.0 header (up to 4 ports), 2 x USB 3.2 Gen 1 header (up to 4 ports), 1 x USB 3.2 Gen 2 front panel header (for USB Type-C). The Type-C header speed is stored as 20 Gbps, see the manufacturer page note.- Front USB-C header speed
- 20Gbps
- Fan headers
- 51Maker product pagenzxt.com/product/n9-x870eRead 15 October 2026Internal I/O: 1 CPU_FAN, 1 AIO_PUMP and 3 SYS_FAN, all 4-pin. The two NZXT 8-pin PWM connectors carry fan power with RGB lines and are not counted.2Owner's manualcdn-g.nzxt.com/dl/1743412363-motherboards_n9-x870e_digital-manual_241210_v1.pdfRead 15 October 2026Specifications, internal I/O: 1 x CPU_FAN, 1 x AIO_PUMP and 3 x SYS_FAN, all 4-pin. The 2 x NZXT 8-pin PWM connectors are combination connectors and are not counted.
- ARGB headers
- 21Maker product pagenzxt.com/product/n9-x870eRead 15 October 2026Internal I/O: 2 x 5V ARGB LED connectors.2Owner's manualcdn-g.nzxt.com/dl/1743412363-motherboards_n9-x870e_digital-manual_241210_v1.pdfRead 15 October 2026Specifications, internal I/O: 2 x 5V addressable RGB LED connectors.
- RGB headers
- 01Maker product pagenzxt.com/product/n9-x870eRead 15 October 2026Internal I/O has one NZXT RGB LED connector, which the manual calls a 5 V 4-pin LED header. There is no 12 V RGB header.2Owner's manualcdn-g.nzxt.com/dl/1743412363-motherboards_n9-x870e_digital-manual_241210_v1.pdfRead 15 October 2026The NZXT RGB LED connector is a 5 V 4-pin LED header (up to 5V/3A, 15 W) and is not a 12 V RGB header. The internal connector list has no other RGB header.
Networking
- Ethernet controllers
- Realtek RTL81262Owner's manualcdn-g.nzxt.com/dl/1743412363-motherboards_n9-x870e_digital-manual_241210_v1.pdfRead 15 October 2026Specifications, LAN: 5 Gigabit LAN, Realtek RTL8126CG. Stored as the chip family without the suffix. Guru3D and Igor's Lab also read RTL8126-CG.3Reviewigorslab.de/en/nzxt-n9-x870e-am5-motherboard-review-solid-optical-minimalism-at-a-proud-price-with-teardown-and-material-testRead 15 October 2026Teardown: Realtek RTL8126, connected to the first chipset over PCIe Gen3.
- Ethernet ports
- 1
- Ethernet speed
- 5Gbps
- Wi-Fi included
- Yes1Maker product pagenzxt.com/product/n9-x870eRead 15 October 2026Spec table: Tri-Band Wi-Fi 7, with an M.2 Key E socket for a 2230 Wi-Fi/BT PCIe module and two SMA antenna connectors.2Owner's manualcdn-g.nzxt.com/dl/1743412363-motherboards_n9-x870e_digital-manual_241210_v1.pdfRead 15 October 2026Specifications, wireless: 802.11be 2x2 Wi-Fi 7 module, 802.11a/b/g/n/ac/ax/axe/be.
- Wi-Fi standard
- Wi-Fi 71Maker product pagenzxt.com/product/n9-x870eRead 15 October 20262Owner's manualcdn-g.nzxt.com/dl/1743412363-motherboards_n9-x870e_digital-manual_241210_v1.pdfRead 15 October 2026
- Wi-Fi bands
- 2.4 GHz, 5 GHz, 6 GHz1Maker product pagenzxt.com/product/n9-x870eRead 15 October 20262Owner's manualcdn-g.nzxt.com/dl/1743412363-motherboards_n9-x870e_digital-manual_241210_v1.pdfRead 15 October 2026Specifications, wireless: 2.4 GHz, 5 GHz and 6 GHz bands.
- Max Wi-Fi channel width
- 160MHz2Owner's manualcdn-g.nzxt.com/dl/1743412363-motherboards_n9-x870e_digital-manual_241210_v1.pdfRead 15 October 2026Specifications, wireless: 160 MHz channel bandwidth with the 6 GHz band.
- Wi-Fi module
- Not available
Audio
- Audio codec
- Realtek ALC40821Maker product pagenzxt.com/product/n9-x870eRead 15 October 2026Spec table: Realtek ALC4082 audio codec. PC Gamer and CGMagazine write ALC4080.2Owner's manualcdn-g.nzxt.com/dl/1743412363-motherboards_n9-x870e_digital-manual_241210_v1.pdfRead 15 October 2026Specifications, audio: 7.1 CH HD Audio with Content Protection (Realtek ALC4082 audio codec).
- DAC chip
- Not available
Features
- BIOS flashback
- Yes2Owner's manualcdn-g.nzxt.com/dl/1743412363-motherboards_n9-x870e_digital-manual_241210_v1.pdfRead 15 October 2026Specifications, rear I/O: 1 x BIOS Flashback button. The rear panel photo on NZXT's store page shows the button next to Clear CMOS.3Reviewigorslab.de/en/nzxt-n9-x870e-am5-motherboard-review-solid-optical-minimalism-at-a-proud-price-with-teardown-and-material-testRead 15 October 2026Teardown names a Flash Back chip next to the BIOS flash.
- Clear CMOS button (rear)
- Yes1Maker product pagenzxt.com/product/n9-x870eRead 15 October 2026Rear I/O: Clear CMOS button, quantity 1.2Owner's manualcdn-g.nzxt.com/dl/1743412363-motherboards_n9-x870e_digital-manual_241210_v1.pdfRead 15 October 2026
- POST code display
- Yes1Maker product pagenzxt.com/product/n9-x870eRead 15 October 2026Internal I/O: Digital Debug LED, plus 4 POST LEDs. Igor's Lab calls it a 2-digit debug display. The manual's connector legend says status codes used for troubleshooting.2Owner's manualcdn-g.nzxt.com/dl/1743412363-motherboards_n9-x870e_digital-manual_241210_v1.pdfRead 15 October 2026Specifications, internal I/O: 1 x Digital Debug LED and 4 x POST LEDs. The connector legend names the Digital Debug LED as status codes used for troubleshooting.3Reviewigorslab.de/en/nzxt-n9-x870e-am5-motherboard-review-solid-optical-minimalism-at-a-proud-price-with-teardown-and-material-testRead 15 October 2026Page 1: a 2-digit debug LED display and four POST LEDs for CPU, DRAM, VGA and boot.
- Power button on the board
- Yes1Maker product pagenzxt.com/product/n9-x870eRead 15 October 2026Internal I/O: Power button and Reset button on the board.2Owner's manualcdn-g.nzxt.com/dl/1743412363-motherboards_n9-x870e_digital-manual_241210_v1.pdfRead 15 October 2026Specifications, internal I/O: 1 x Power button and 1 x Reset button.3Reviewigorslab.de/en/nzxt-n9-x870e-am5-motherboard-review-solid-optical-minimalism-at-a-proud-price-with-teardown-and-material-testRead 15 October 2026Page 1: power and reset buttons directly on the PCB.
- Dual BIOS
- Not available
Measured
We could not find any of these 3 fields. Show them
- VRM temperature under CPU load
- Not available
- Power draw idle
- Not available
- Power draw CPU stress
- Not available
In the box
- In the box
- 4 x SATA cables (2 x 90°, 2 x 180°), 2 x wireless antennas, 2 x NZXT 8-pin splitter cables, User manual1Maker product pagenzxt.com/product/n9-x870eRead 15 October 2026Page: SATA cables (2 x 90°, 2 x 180°) x4, wireless antenna x2, NZXT 8-pin splitter, user manual. The manual and Igor's Lab give two splitter cables.2Owner's manualcdn-g.nzxt.com/dl/1743412363-motherboards_n9-x870e_digital-manual_241210_v1.pdfRead 15 October 2026Package contents: motherboard, SATA cables (2 x 90°, 2 x 180°), wireless antenna x2, NZXT 8-pin splitter x2.
Links
- Product page
- nzxt.com/product/n9-x870e1Maker product pagenzxt.com/product/n9-x870eRead 15 October 2026
- Spec sheet
- Not available
- Manual
- cdn-g.nzxt.com/dl/1743412363-motherboards_n9-x870e_digital-manual_241210_v1.pdf2Owner's manualcdn-g.nzxt.com/dl/1743412363-motherboards_n9-x870e_digital-manual_241210_v1.pdfRead 15 October 2026NZXT digital manual, file dated 2024-12-10 (v1), multi-language, 3 pages. It is linked from the N9 X870E downloads page on support.nzxt.com, which blocks agents.
- EPREL registration number
- Not available
Warranty
- Manufacturer warranty (source market)
- 3years1Maker product pagenzxt.com/product/n9-x870eRead 15 October 2026Spec table: Warranty 3 years, US store page.
Compare with
Pick a motherboard to see both side by side. Differences are marked yellow.
Variants
Each variant lists only what differs from the specs above.
| Model number | GTIN | Colours |
|---|---|---|
| N9-X87XT-W1 | 810074847292 | White |
| N9-X87XT-B1 | 810074847308 | Black |
Sources
We read 9 sources for this motherboard. The numbers match the markers in the sheet.
