MSIGaming motherboard

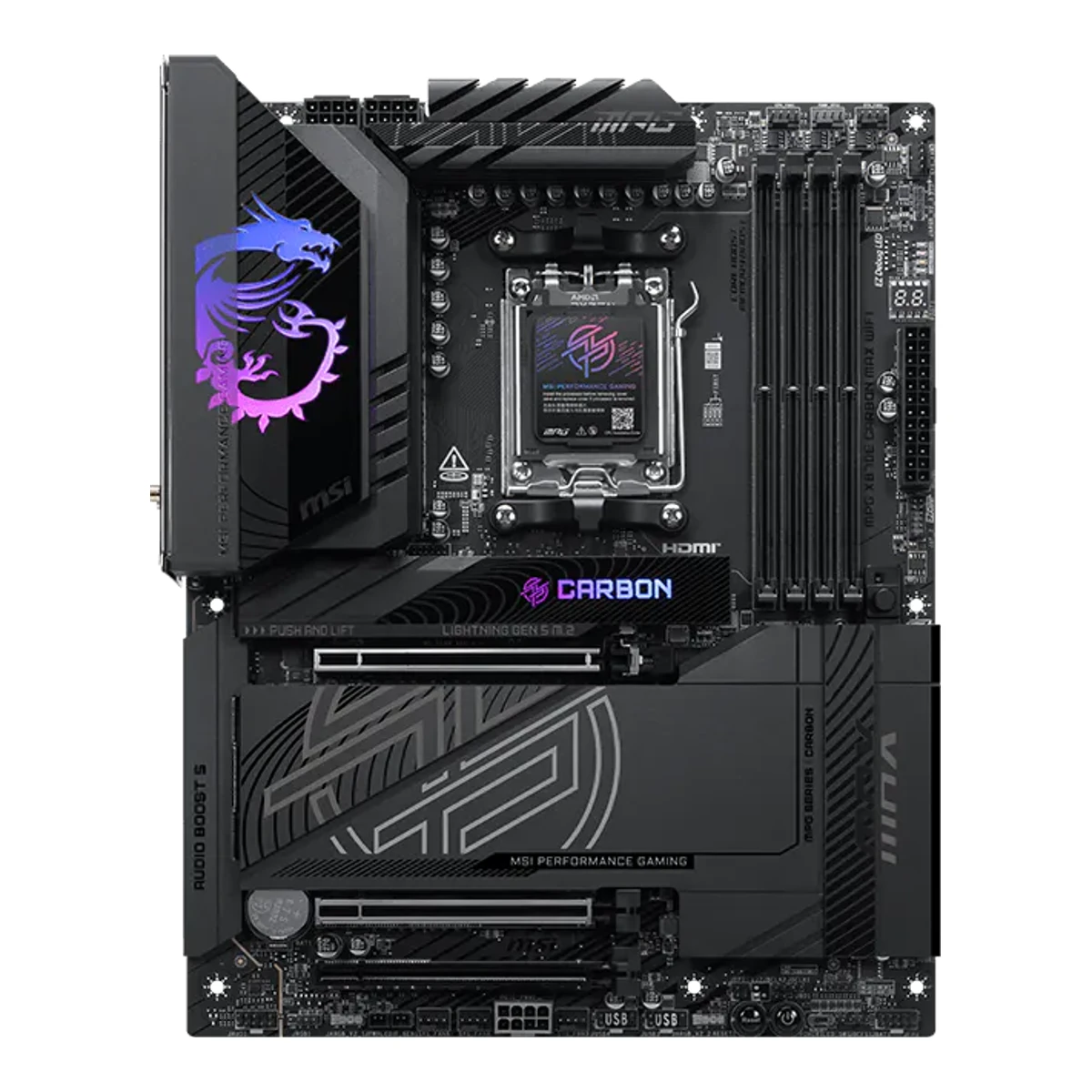

MPG X870E CARBON MAX WIFI
Released February 2026.1Owner's manualdownload-2.msi.com/archive/mnu_exe/mb/MPGX870ECARBONMAXWIFI_English.pdfRead 15 October 2026Revision history: Version 2.0, 2026/02, First release. Last checked 15 October 2026.
- CPU socket
- AM5
- Chipset
- AMD X870E
- Form factor
- ATX
- M.2 slots
- 4
71 of 78 fields known.
At a glance
Rear USB ports
13
Higher than 87% of other motherboards.
CPU core power stages
184Reviewtomshardware.com/pc-components/motherboards/msi-mpg-x870e-carbon-max-wifi-reviewRead 15 October 2026Page 1: 18 Renesas R2209004 110A SPS MOSFETs for Vcore. The FPS Review and Guru3D (MSI source) also say 18 stages.6Reviewthefpsreview.com/2026/04/06/msi-mpg-x870e-carbon-max-wifi-motherboard-review/2Read 15 October 2026Features page: the 18+2+1 layout with 110A smart power stages.7Press articleguru3d.com/story/msi-mpg-x870e-carbon-max-wifi-adds-64mb-bios-clock-genRead 15 October 2026From MSI: 18 (110A SPS) + 2 + 1 phases.
Higher than 78% of other motherboards.
Ports
- 2 USB-C USB4
- 2 USB-C USB 3.2 Gen 2
- 9 USB-A USB 3.2 Gen 2
- HDMI 2.1
- 2 Ethernet (RJ45)
- 2 3.5 mm audio
- Optical S/PDIF
- USB-C header
- 2 USB 3 header (19-pin)
- 2 USB 2.0 header (9-pin)
General
- Model numbers
- MPG X870E CARBON MAX WIFI, 911-7E49-15S3Maker product pagetw-store.msi.com/products/mpg-x870e-carbon-max-wifiRead 15 October 2026MSI Taiwan store (EZDIY trade-in offer page) lists SKU 911-7E49-15S for MPG X870E CARBON MAX WIFI in its product feed.
- Status
- Available3Maker product pagetw-store.msi.com/products/mpg-x870e-carbon-max-wifiRead 15 October 2026The store lists the board for sale at 16,090 TWD on 2026-10-15.9Spec databasebuildcores.com/products/Motherboard/ddghjdggg/MSI-MPG-X870E-CARBON-MAX-WIFIRead 15 October 2026Shows retailers in stock, the best price 374.99 USD at Walmart on 2026-10-15.10Retailer pagejib.co.th/web/product/readProduct/87570/MAINBOARD--%E0%B9%80%E0%B8%A1%E0%B8%99%E0%B8%9A%E0%B8%AD%E0%B8%A3%E0%B9%8C%E0%B8%94--MSI-MPG-X870E-CARBON-MAX-WIFI---AMD-SOCKET-AM5-DDR5-ATXRead 15 October 2026Listed for sale at 14,800 THB on 2026-10-15.
- Predecessor
- MSI MPG X870E CARBON WIFI4Reviewtomshardware.com/pc-components/motherboards/msi-mpg-x870e-carbon-max-wifi-reviewRead 15 October 2026Page 1: the Carbon Max Wifi is a refresh of the original X870E Carbon Wifi, with the OC Engine chip, a 64MB BIOS and a slightly different look. The FPS Review says the same.
- Successor
- Not available
- Launch price (US)
- $4994Reviewtomshardware.com/pc-components/motherboards/msi-mpg-x870e-carbon-max-wifi-reviewRead 15 October 2026Page 1: At $499, the Carbon Max Wifi is not cheap. The FPS Review (2026-04-06) also says currently offered at $499. A US price, tax not included. No maker price page could be read.6Reviewthefpsreview.com/2026/04/06/msi-mpg-x870e-carbon-max-wifi-motherboard-review/2Read 15 October 2026Introduction page: currently offered at $499, with a three-year warranty.
- Launch price (EU)
- Not available
- Markets
- Not available
- Colours
- Not available
- Board revision
- Not available
Platform
- Chipset
- AMD X870E1Owner's manualdownload-2.msi.com/archive/mnu_exe/mb/MPGX870ECARBONMAXWIFI_English.pdfRead 15 October 2026Specifications: AMD X870E.
- Supported processors
- AMD Ryzen 9000 Series, AMD Ryzen 8000 Series, AMD Ryzen 7000 Series1Owner's manualdownload-2.msi.com/archive/mnu_exe/mb/MPGX870ECARBONMAXWIFI_English.pdfRead 15 October 2026Specifications, CPU: AMD Ryzen 9000, 8000 and 7000 Series desktop processors. The manual points to msi.com for the newest support. Read on 2026-10-15. BIOS updates can add series later.
Board
Front and side, drawn to scale.
- Board dimensions
- Width244Height305mm(9.6 × 12 in)1Owner's manualdownload-2.msi.com/archive/mnu_exe/mb/MPGX870ECARBONMAXWIFI_English.pdfRead 15 October 2026Specifications: 9.6 in. x 12 in. (244 mm x 305 mm). The 244 mm side is the width and the 305 mm side the height, as for any ATX board.
- PCB layers
- 84Reviewtomshardware.com/pc-components/motherboards/msi-mpg-x870e-carbon-max-wifi-reviewRead 15 October 2026Page 1: server-grade 8-layer PCB. The FPS Review says 8 layer too.6Reviewthefpsreview.com/2026/04/06/msi-mpg-x870e-carbon-max-wifi-motherboard-review/2Read 15 October 2026Features page: the PCB is 8 layer copper in-laid.7Press articleguru3d.com/story/msi-mpg-x870e-carbon-max-wifi-adds-64mb-bios-clock-genRead 15 October 2026From MSI: an 8-layer PCB.10Retailer pagejib.co.th/web/product/readProduct/87570/MAINBOARD--%E0%B9%80%E0%B8%A1%E0%B8%99%E0%B8%9A%E0%B8%AD%E0%B8%A3%E0%B9%8C%E0%B8%94--MSI-MPG-X870E-CARBON-MAX-WIFI---AMD-SOCKET-AM5-DDR5-ATXRead 15 October 2026Copy of MSI's key features: 8-layer PCB with 2oz copper and server-grade materials.
- RGB lighting on the board
- Yes4Reviewtomshardware.com/pc-components/motherboards/msi-mpg-x870e-carbon-max-wifi-reviewRead 15 October 2026Page 1: a reflective Mystic Light RGB lighting accent (the MSI dragon) atop the VRM heatsink, and the M.2 Shield Frozr II heatsink for the top M.2 socket also features RGB.6Reviewthefpsreview.com/2026/04/06/msi-mpg-x870e-carbon-max-wifi-motherboard-review/2Read 15 October 2026Features page: the primary M.2 heatsink includes RGB lighting and a large RGB dragon icon sits on the I/O cover.
Power delivery
- Power stage layout
- 18+2+14Reviewtomshardware.com/pc-components/motherboards/msi-mpg-x870e-carbon-max-wifi-reviewRead 15 October 2026Page 1 spec table: 21 phase, 18x 110A MOSFETs for Vcore. The text says 21 total phases with 18 dedicated to Vcore. The FPS Review and Guru3D (from MSI) write 18+2+1.6Reviewthefpsreview.com/2026/04/06/msi-mpg-x870e-carbon-max-wifi-motherboard-review/2Read 15 October 2026Features page: 18+2+1 Smart Power Stage 110Amp power delivery.7Press articleguru3d.com/story/msi-mpg-x870e-carbon-max-wifi-adds-64mb-bios-clock-genRead 15 October 2026From MSI: an 18 (110A SPS) + 2 + 1 phase power configuration.10Retailer pagejib.co.th/web/product/readProduct/87570/MAINBOARD--%E0%B9%80%E0%B8%A1%E0%B8%99%E0%B8%9A%E0%B8%AD%E0%B8%A3%E0%B9%8C%E0%B8%94--MSI-MPG-X870E-CARBON-MAX-WIFI---AMD-SOCKET-AM5-DDR5-ATXRead 15 October 2026Copy of MSI's key features: 18+2+1 Duet Rail Power System with dual 8-pin CPU power connectors.
- CPU core (Vcore) power stages
- 184Reviewtomshardware.com/pc-components/motherboards/msi-mpg-x870e-carbon-max-wifi-reviewRead 15 October 2026Page 1: 18 Renesas R2209004 110A SPS MOSFETs for Vcore. The FPS Review and Guru3D (MSI source) also say 18 stages.6Reviewthefpsreview.com/2026/04/06/msi-mpg-x870e-carbon-max-wifi-motherboard-review/2Read 15 October 2026Features page: the 18+2+1 layout with 110A smart power stages.7Press articleguru3d.com/story/msi-mpg-x870e-carbon-max-wifi-adds-64mb-bios-clock-genRead 15 October 2026From MSI: 18 (110A SPS) + 2 + 1 phases.
- Vcore power stage rating
- 110A4Reviewtomshardware.com/pc-components/motherboards/msi-mpg-x870e-carbon-max-wifi-reviewRead 15 October 2026Page 1: 18x 110A MOSFETs for Vcore, Renesas R2209004 110A SPS. Guru3D's MSI-based text says 110A SPS too.6Reviewthefpsreview.com/2026/04/06/msi-mpg-x870e-carbon-max-wifi-motherboard-review/2Read 15 October 2026Features page: 18+2+1 Smart Power Stage 110Amp power delivery.7Press articleguru3d.com/story/msi-mpg-x870e-carbon-max-wifi-adds-64mb-bios-clock-genRead 15 October 2026From MSI: 18 (110A SPS) + 2 + 1 phases.
Memory
- Max memory speed (overclocked)
- 8,400MT/s2Maker spec sheet (PDF)storage-asset.msi.com/datasheet/mb/us/MPG-X870E-CARBON-MAX-WIFI.pdfRead 15 October 2026Newer datasheets (US 2026-07-21, global 2026-10-15) say 4 DIMMs, Dual Channel DDR5 9000+ MT/s (OC) and name no CPU family. Older ones (UK 2026-03-09, India 2026-04-16, Mexico 2026-10-05) say 8400+ MT/s (OC). Tom's Hardware copies MSI's spec page: DDR5-9000 (OC) in the headline and 1DPC 1R up to 8400+ MT/s, 1DPC 2R and 2DPC up to 6400+ MT/s for desktop processors. Tom's says the 9000 is with an APU. The FPS Review and Wccftech give 8400. The 8400 value for Ryzen 9000 is stored.4Reviewtomshardware.com/pc-components/motherboards/msi-mpg-x870e-carbon-max-wifi-reviewRead 15 October 2026Page 1 spec table: DDR5-9000 (OC) headline, and 1DPC 1R up to 8400+ MT/s, 1DPC 2R up to 6400+, 2DPC 1R up to 6400+, 2DPC 2R up to 6400+. The text says 9000 is with an APU and 8400 MT/s with a desktop-class processor.6Reviewthefpsreview.com/2026/04/06/msi-mpg-x870e-carbon-max-wifi-motherboard-review/2Read 15 October 2026Features page: frequencies are advertised up to 8400MT/s (OC).8Reviewwccftech.com/review/msi-mpg-x870e-carbon-max-wifi-motherboard-review-maxing-out-carbon/2Read 15 October 2026Page 2: slots rated for XMP profiles up to 8400 MT/s (OC Plus). Page 4 chart: official rating 8400 MT/s.10Retailer pagejib.co.th/web/product/readProduct/87570/MAINBOARD--%E0%B9%80%E0%B8%A1%E0%B8%99%E0%B8%9A%E0%B8%AD%E0%B8%A3%E0%B9%8C%E0%B8%94--MSI-MPG-X870E-CARBON-MAX-WIFI---AMD-SOCKET-AM5-DDR5-ATXRead 15 October 2026Copy of MSI's key features: Dual Channel DDR5 8400+ MT/s (OC).
Expansion slots
- Expansion slots
Physical slot Electrical lanes PCIe generation Connected to Count PCIe x16 16 5 CPU 1 PCIe x16 8 5 CPU 1 PCIe x16 4 4 Chipset 1 Source1Owner's manualdownload-2.msi.com/archive/mnu_exe/mb/MPGX870ECARBONMAXWIFI_English.pdfRead 15 October 2026Specifications and page 35: 3x PCIe x16 slots, all full length. PCI_E1 and PCI_E2 come from the CPU and run PCIe 5.0 x16/x0 or x8/x8 with Ryzen 9000 and 7000 (PCIe 4.0 x8/x0 with Ryzen 8700, 8600 and 8400, and PCIe 4.0 x4/x0 with Ryzen 8500 and 8300). PCI_E1 is PCIe 5.0 x16, PCI_E2 is PCIe 5.0 x8 and PCI_E3 is PCIe 4.0 x4 from the X870E chipset. The pre-installed Wi-Fi module sits in an M.2 Key-E slot, which is not listed.2Maker spec sheet (PDF)storage-asset.msi.com/datasheet/mb/us/MPG-X870E-CARBON-MAX-WIFI.pdfRead 15 October 2026Expansion slots: 1x PCIe 5.0 x16, 1x PCIe 5.0 x8 and 1x PCIe 4.0 x4 slot.4Reviewtomshardware.com/pc-components/motherboards/msi-mpg-x870e-carbon-max-wifi-reviewRead 15 October 2026Page 1: three full-length PCIe slots. The top two are from the CPU, PCIe 5.0 x16 and PCIe 5.0 x8 (the top slot drops to x8 when the second is used), the bottom x4 slot is from the chipset at PCIe 4.0 x4.- Full-length PCIe slots
- 3
- Fastest PCIe x16 slot generation
- 5
Storage
- M.2 storage slots
Slot PCIe generation PCIe lanes Connected to Longest drive Takes SATA drives Heatsink Shares lanes with M2_1 5 4 CPU M.2 2280 No Yes Not available M2_2 5 4 CPU M.2 2280 No Yes Rear USB 40Gbps Type-C ports. Both run at PCIe 5.0 x2 when a device is installed in M2_2. Setting M2_2 to x4 in the BIOS turns off the USB 40Gbps Type-C ports M2_3 4 4 Chipset M.2 22110 No Yes Not available M2_4 4 4 Chipset M.2 2280 No Yes Not available Source1Owner's manualdownload-2.msi.com/archive/mnu_exe/mb/MPGX870ECARBONMAXWIFI_English.pdfRead 15 October 2026Specifications and block diagram (page 75), Ryzen 9000 values. M2_1 and M2_2 come from the CPU, PCIe 5.0 x4 (PCIe 4.0 x4 on Ryzen 8000). M2_3 and M2_4 come from the X870E chipset, PCIe 4.0 x4. M2_1, M2_2 and M2_4 take 2260 and 2280 drives. M2_3 takes 2280 and 22110. M2_2 is unavailable on Ryzen 8500 and 8300. The USB 40Gbps Type-C ports and M2_2 share PCIe 5.0 x4 (footnote). The block diagram labels every M.2 slot PCIe only and no slot lists a SATA mode. The install steps on pages 38 to 45 show a Screwless M.2 Shield Frozr heatsink on all four slots.2Maker spec sheet (PDF)storage-asset.msi.com/datasheet/mb/us/MPG-X870E-CARBON-MAX-WIFI.pdfRead 15 October 2026Storage: 2x M.2 Gen5 x4 128Gbps slots and 2x M.2 Gen4 x4 64Gbps slots.4Reviewtomshardware.com/pc-components/motherboards/msi-mpg-x870e-carbon-max-wifi-reviewRead 15 October 2026Page 1: four M.2 sockets, and the text also mentions a fifth on the back of the board (not described, and not in MSI's slot list, which has four M-key slots and the Key-E Wi-Fi slot). M.2_1 and M.2_2 are from the CPU, up to PCIe 5.0 x4, 80 mm devices. M.2_3 and M.2_4 are from the chipset, PCIe 4.0 x4, M.2_3 up to 110 mm. M.2_2 shares with the USB4 Type-C ports and drops both to x2 when used.7Press articleguru3d.com/story/msi-mpg-x870e-carbon-max-wifi-adds-64mb-bios-clock-genRead 15 October 2026From MSI: two CPU PCIe 5.0 x4 sockets and two chipset PCIe 4.0 x4 sockets, all 2280/2260 in the story. The manual says M2_3 also takes 22110 and Tom's Hardware agrees, so the manual is used.- M.2 slots
- 4
- PCIe 5.0 M.2 slots
- 2
- SATA ports
- 41Owner's manualdownload-2.msi.com/archive/mnu_exe/mb/MPGX870ECARBONMAXWIFI_English.pdfRead 15 October 2026Specifications: 4x SATA 6Gb/s ports from the X870E chipset.2Maker spec sheet (PDF)storage-asset.msi.com/datasheet/mb/us/MPG-X870E-CARBON-MAX-WIFI.pdfRead 15 October 2026Storage: 4x SATA 6Gbps ports.
Rear ports
- Rear ports
Type Version Count Max link rate (Gbps) Thunderbolt or USB4 DP Alt Mode USB-C USB4 2 40 USB4 Yes USB-C USB 3.2 Gen 2 2 10 Not available Not available USB-A USB 3.2 Gen 2 9 10 Not available Not available HDMI HDMI 2.1 1 Not available Not available Not available Ethernet (RJ45) Not available 1 5 Not available Not available Ethernet (RJ45) Not available 1 2.5 Not available Not available 3.5 mm audio Not available 2 Not available Not available Not available Optical S/PDIF Not available 1 Not available Not available Not available Source1Owner's manualdownload-2.msi.com/archive/mnu_exe/mb/MPGX870ECARBONMAXWIFI_English.pdfRead 15 October 2026Specifications, Back Panel Connectors and pages 24 to 25: 2x USB 10Gbps Type-A (X870E) and 4x USB 10Gbps Type-A (RTS5420), 1x HDMI, 2x USB 40Gbps Type-C (ASM4242, DisplayPort over USB Type-C), 1x USB 10Gbps Type-C (CPU), 1x USB 10Gbps Type-C (X870E), 1x USB 10Gbps Type-A (CPU), 2x USB 10Gbps Type-A (X870E). That makes 9 Type-A, 2 USB4 Type-C and 2 USB 10Gbps Type-C. Also 1x 5G LAN, 1x 2.5G LAN, 2x audio jacks (line-out and mic-in), 1x optical S/PDIF out, 2x Wi-Fi antenna connectors and the Clear CMOS, Flash BIOS and Smart buttons. Onboard graphics: HDMI 2.1 FRL up to 8K 60Hz, and the USB4 ports with DisplayPort 1.4 HBR3 up to 4K 60Hz, only with a processor that has integrated graphics. MSI calls the 40Gbps ports USB4 and does not say Thunderbolt. MSI's speed names are stored as USB-IF names: 10Gbps as Gen 2.2Maker spec sheet (PDF)storage-asset.msi.com/datasheet/mb/us/MPG-X870E-CARBON-MAX-WIFI.pdfRead 15 October 2026USB ports: 2x USB 40Gbps (2 Type-C) and 11x USB 10Gbps (2 Type-C + 9 Type-A). Display interface: HDMI 2.1 FRL 8K 60Hz, and 2 USB4 ports with Type-C display output, which needs processor graphics. The connections diagram shows 2.5G and 5G LAN, HD audio connectors and an optical S/PDIF OUT.4Reviewtomshardware.com/pc-components/motherboards/msi-mpg-x870e-carbon-max-wifi-reviewRead 15 October 2026Page 1 spec table: 2 USB4 40 Gbps Type-C, 2 USB 3.2 Gen 2 Type-C, 9 USB 3.2 Gen 2 Type-A, HDMI 2.1, 5 GbE and 2.5 GbE, 2 analog jacks and S/PDIF.- Rear USB ports
- 13
- Rear USB-C ports
- 4
- Fastest rear USB port
- 40Gbps
- Thunderbolt
- No
Internal connectors
- Internal USB headers
Header Max data rate (Gbps) Headers Front ports served Power out (W) USB-C header 20 1 1 27 USB 3 header (19-pin) 5 2 4 Not available USB 2.0 header (9-pin) 0.48 2 4 Not available Source1Owner's manualdownload-2.msi.com/archive/mnu_exe/mb/MPGX870ECARBONMAXWIFI_English.pdfRead 15 October 2026Specifications, internal USB: 1x USB 20Gbps Type-C front port (X870E, USB PD 27W), 2x USB 5Gbps connectors (four more ports) and 2x USB 2.0 connectors (four more ports).2Maker spec sheet (PDF)storage-asset.msi.com/datasheet/mb/us/MPG-X870E-CARBON-MAX-WIFI.pdfRead 15 October 2026USB ports: 1x USB 20Gbps (1 Type-C), 4x USB 5Gbps (4 Type-A) and 4x USB 2.0 Type-A. The Type-A counts are front-panel ports from the headers.4Reviewtomshardware.com/pc-components/motherboards/msi-mpg-x870e-carbon-max-wifi-reviewRead 15 October 2026Page 1: front-panel USB 3.2 Gen 2x2 (20 Gbps with 27W charging) header, two 19-pin USB 3.2 Gen 1 (5 Gbps) headers and two USB 2.0 headers.- Front USB-C header speed
- 20Gbps
- Fan headers
- 71Owner's manualdownload-2.msi.com/archive/mnu_exe/mb/MPGX870ECARBONMAXWIFI_English.pdfRead 15 October 2026Specifications, fan connectors: 1 CPU fan, 1 pump/system fan and 5 system fan connectors make 7. The JAF_2 EZ Conn V2 connector carries fan, ARGB and USB lines together and is not counted.4Reviewtomshardware.com/pc-components/motherboards/msi-mpg-x870e-carbon-max-wifi-reviewRead 15 October 2026Page 1: seven 4-pin fan headers plus the JAF_2 combo header.6Reviewthefpsreview.com/2026/04/06/msi-mpg-x870e-carbon-max-wifi-motherboard-review/2Read 15 October 2026Features page: a total of seven 4-pin fan headers plus an EZ-Conn header.
Networking
- Ethernet controllers
- Realtek RTL8126, Realtek RTL81251Owner's manualdownload-2.msi.com/archive/mnu_exe/mb/MPGX870ECARBONMAXWIFI_English.pdfRead 15 October 2026Specifications, LAN: 1x Realtek 8126 5Gbps and 1x Realtek 8125 2.5Gbps LAN controller.2Maker spec sheet (PDF)storage-asset.msi.com/datasheet/mb/us/MPG-X870E-CARBON-MAX-WIFI.pdfRead 15 October 2026LAN: Realtek 5Gbps LAN and Realtek 2.5Gbps LAN, chip names not given.4Reviewtomshardware.com/pc-components/motherboards/msi-mpg-x870e-carbon-max-wifi-reviewRead 15 October 2026Page 1 spec table: Realtek 8126 (5 GbE) and Realtek 8125 (2.5 GbE).7Press articleguru3d.com/story/msi-mpg-x870e-carbon-max-wifi-adds-64mb-bios-clock-genRead 15 October 2026From MSI: Realtek RTL8126 for 5GbE and RTL8125 for 2.5GbE.
- Ethernet ports
- 2
- Ethernet speed
- 5Gbps
- Wi-Fi standard
- Wi-Fi 71Owner's manualdownload-2.msi.com/archive/mnu_exe/mb/MPGX870ECARBONMAXWIFI_English.pdfRead 15 October 2026Specifications: Wi-Fi 7, 802.11 a/b/g/n/ac/ax/be.2Maker spec sheet (PDF)storage-asset.msi.com/datasheet/mb/us/MPG-X870E-CARBON-MAX-WIFI.pdfRead 15 October 2026Wireless/Bluetooth: Wi-Fi 7 solution, Bluetooth 5.4.
- Wi-Fi bands
- 2.4 GHz, 5 GHz, 6 GHz1Owner's manualdownload-2.msi.com/archive/mnu_exe/mb/MPGX870ECARBONMAXWIFI_English.pdfRead 15 October 2026Specifications: 2.4GHz/5GHz/6GHz (320MHz). 6GHz support may depend on each country's rules.
- Max Wi-Fi channel width
- 320MHz1Owner's manualdownload-2.msi.com/archive/mnu_exe/mb/MPGX870ECARBONMAXWIFI_English.pdfRead 15 October 2026Specifications: 320MHz up to 5.8Gbps, MU-MIMO TX/RX.4Reviewtomshardware.com/pc-components/motherboards/msi-mpg-x870e-carbon-max-wifi-reviewRead 15 October 2026Page 1 spec table: 320 MHz.
- Wi-Fi module
- MediaTek MT79274Reviewtomshardware.com/pc-components/motherboards/msi-mpg-x870e-carbon-max-wifi-reviewRead 15 October 2026Page 1 spec table: Mediatek MT7927 Wi-Fi 7, 320 MHz, 6 GHz, 5.8 Gbps, BT 5.4. The FPS Review also says the Wi-Fi 7 and Bluetooth 5.4 chips are MediaTek. MSI names no chip. The predecessor MPG X870E CARBON WIFI uses a Qualcomm module.6Reviewthefpsreview.com/2026/04/06/msi-mpg-x870e-carbon-max-wifi-motherboard-review/2Read 15 October 2026Features page: Wireless 7 and Bluetooth 5.4 are MediaTek chipsets. LAN and audio are Realtek (8126 and 4080). It names no part number.
- Bluetooth
- 5.41Owner's manualdownload-2.msi.com/archive/mnu_exe/mb/MPGX870ECARBONMAXWIFI_English.pdfRead 15 October 2026Specifications: Bluetooth 5.4, MLO, 4KQAM. MSI says the version may be updated by the Wi-Fi chip vendor.2Maker spec sheet (PDF)storage-asset.msi.com/datasheet/mb/us/MPG-X870E-CARBON-MAX-WIFI.pdfRead 15 October 2026Wireless/Bluetooth: Wi-Fi 7 solution, Bluetooth 5.4.
Audio
- Audio codec
- Realtek ALC40801Owner's manualdownload-2.msi.com/archive/mnu_exe/mb/MPGX870ECARBONMAXWIFI_English.pdfRead 15 October 2026Specifications: Realtek ALC4080 codec, 7.1-channel USB high performance audio.4Reviewtomshardware.com/pc-components/motherboards/msi-mpg-x870e-carbon-max-wifi-reviewRead 15 October 2026Page 1: Realtek ALC4080 codec.
- DAC chip
- Not available
Features
- Clear CMOS button (rear)
- Yes1Owner's manualdownload-2.msi.com/archive/mnu_exe/mb/MPGX870ECARBONMAXWIFI_English.pdfRead 15 October 2026Rear panel list and page 24: Clear CMOS button. JBAT1 is a separate jumper.
- POST code display
- Yes1Owner's manualdownload-2.msi.com/archive/mnu_exe/mb/MPGX870ECARBONMAXWIFI_English.pdfRead 15 October 2026Specifications, LED Features: 1x EZ Digi-Debug LED, with a debug code table in the Onboard LEDs chapter. Tom's Hardware calls it the two-character debug display. The 4 EZ Debug LEDs are single status LEDs.4Reviewtomshardware.com/pc-components/motherboards/msi-mpg-x870e-carbon-max-wifi-reviewRead 15 October 2026Page 1 spec table: EZ Digi-Debug LED, and the text mentions the two-character debug display.6Reviewthefpsreview.com/2026/04/06/msi-mpg-x870e-carbon-max-wifi-motherboard-review/2Read 15 October 2026Features page: a digital LED debug readout as well as a smaller LED debug panel.
- Power button on the board
- Yes1Owner's manualdownload-2.msi.com/archive/mnu_exe/mb/MPGX870ECARBONMAXWIFI_English.pdfRead 15 October 2026Specifications, Internal Buttons: 1x Power button and 1x Reset button (POWER1, RESET1, page 49). The FPS Review sees power and reset buttons at the bottom right of the board.6Reviewthefpsreview.com/2026/04/06/msi-mpg-x870e-carbon-max-wifi-motherboard-review/2Read 15 October 2026Features page: power and reset buttons onboard at the bottom right.
- Pre-installed I/O shield
- Yes1Owner's manualdownload-2.msi.com/archive/mnu_exe/mb/MPGX870ECARBONMAXWIFI_English.pdfRead 15 October 2026Special Features, EZ DIY: Pre-installed I/O Shield.
- Tool-free features
- Tool-free M.2 latch, Tool-free M.2 heatsink, PCIe slot release1Owner's manualdownload-2.msi.com/archive/mnu_exe/mb/MPGX870ECARBONMAXWIFI_English.pdfRead 15 October 2026Special Features, EZ DIY: Screwless M.2 Shield Frozr, EZ M.2 Clip II and EZ PCIe Release. The Wi-Fi antenna is the EZ Antenna, which MSI's UK store describes as magnetic, so the push-on antenna option is not set.
Measured
In the box
- In the box
- Quick installation guide, European Union Regulatory Notices, 2 x SATA cables, ARGB extension cable, 1 to 3 EZ Conn-Cable (V2), EZ Front panel cable, EZ Wi-Fi Antenna, Cable sticker, EZ M.2 Clip II, EZ M.2 Clip II Remover1Owner's manualdownload-2.msi.com/archive/mnu_exe/mb/MPGX870ECARBONMAXWIFI_English.pdfRead 15 October 2026Package Contents, page 23: motherboard, quick installation guide, EU regulatory notices, 2 SATA cables, ARGB extension cable, 1 to 3 EZ Conn-Cable (V2), EZ Front panel cable, EZ Wi-Fi antenna, cable sticker, EZ M.2 Clip II and EZ M.2 Clip II Remover. Tom's Hardware calls the ARGB cable 1 to 3 and lists the same other items.4Reviewtomshardware.com/pc-components/motherboards/msi-mpg-x870e-carbon-max-wifi-reviewRead 15 October 2026Page 1, Inside the Box: EZ Wi-Fi antenna, cable stickers and installation guide, 1 to 3 EZ Conn-cable (v2), 1 to 3 ARGB Gen 2 extension cable, 2 SATA cables, EZ Front Panel cable, EZ M.2 Clip II remover and EZ M.2 Clip II.
Links
- Product page
- www.msi.com/Motherboard/MPG-X870E-CARBON-MAX-WIFI13Maker product pagemsi.com/Motherboard/MPG-X870E-CARBON-MAX-WIFIRead 15 October 2026The URL comes from the job evidence and web search results. msi.com blocks agents, so the page was not opened and no value comes from it.
- Spec sheet
- storage-asset.msi.com/datasheet/mb/us/MPG-X870E-CARBON-MAX-WIFI.pdf2Maker spec sheet (PDF)storage-asset.msi.com/datasheet/mb/us/MPG-X870E-CARBON-MAX-WIFI.pdfRead 15 October 2026One-page MSI datasheet for MPG X870E CARBON MAX WIFI, US version, generated 2026-07-21, on MSI's datasheet server.
- Manual
- download-2.msi.com/archive/mnu_exe/mb/MPGX870ECARBONMAXWIFI_English.pdf1Owner's manualdownload-2.msi.com/archive/mnu_exe/mb/MPGX870ECARBONMAXWIFI_English.pdfRead 15 October 2026MSI User Guide for MPG X870E CARBON MAX WIFI (82 pages), English, on MSI's download server. The Russian copy hosted by regard.ru has the same content and is not used. Revision history: Version 2.0, 2026/02, First release.
- EPREL registration number
- Not available
Warranty
- Manufacturer warranty (source market)
- 3years4Reviewtomshardware.com/pc-components/motherboards/msi-mpg-x870e-carbon-max-wifi-reviewRead 15 October 2026Page 1 spec table: Warranty 3 Years.6Reviewthefpsreview.com/2026/04/06/msi-mpg-x870e-carbon-max-wifi-motherboard-review/2Read 15 October 2026Introduction page: the board comes with a three-year warranty.10Retailer pagejib.co.th/web/product/readProduct/87570/MAINBOARD--%E0%B9%80%E0%B8%A1%E0%B8%99%E0%B8%9A%E0%B8%AD%E0%B8%A3%E0%B9%8C%E0%B8%94--MSI-MPG-X870E-CARBON-MAX-WIFI---AMD-SOCKET-AM5-DDR5-ATXRead 15 October 2026Warranty 3 years (Thailand).
Compare with
Pick a motherboard to see both side by side. Differences are marked yellow.
Sources
We read 13 sources for this motherboard. The numbers match the markers in the sheet.
