PC parts / Power supplies

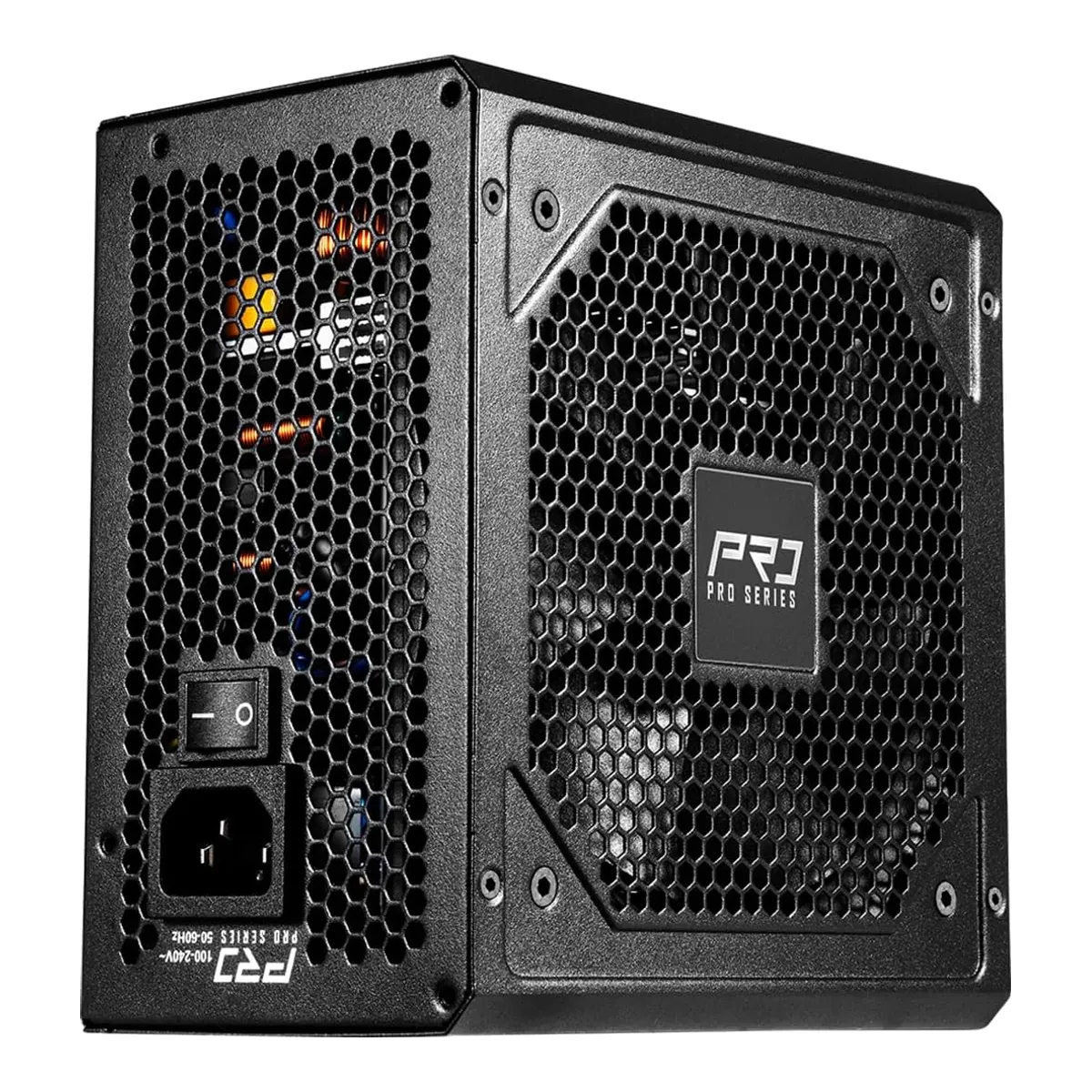

ASRock PRO-850G

ASRockPower supply

PRO-850G

Released September 2025.4Maker spec sheet (PDF)download.asrock.com/Manual/Declaration/PRO-850G/CE%20Declaration%20of%20Conformity.pdfRead 14 October 2026EU Declaration of Conformity for model PRO-850G, dated June 3, 2025. The archive copy of the ASRock page of 2025-09-19 lists the model. A US retailer listing was first stocked in October 2025. The month is approximate. Last checked 14 October 2026.

Power
850W
Efficiency
80 PLUS Gold
Modular cables
None
ATX version
ATX 3.1

31 of 66 fields known.

Compare with another power supplyDownload JSONDownload CSVGet it from the API

All specs

SourceCalculated

General

Series
PRO2Maker product pageweb.archive.org/web/20250919085843/https://asrock.com/Power-Supply/PRO/PRO-850G/index.aspRead 14 October 2026Listed under ASRock Power Supply, PRO series.
Model numbers
PRO-850G, 90-UXR085-GNUAA2, 90-UXR085-GNEAA26Retailer pageamazon.com/dp/B0FSTHTLZTRead 14 October 2026Amazon US lists model number 90-UXR085-GNUAA2 and manufacturer part PRO-850G. Paradigit and Grosbill list 90-UXR085-GNEAA2 for the EU unit.7Retailer pageparadigit.ie/asrock-pro-850g-850-w/21845961/productRead 14 October 2026Product number manufacturer 90-UXR085-GNEAA2.
GTIN / EAN
47115814914418Retailer pageshop.post.ch/en/electronics/pc-components/power-supply-units/asrock-power-supply-pro-series-pro-850g-850-w/p/878897Read 14 October 2026EAN 4711581491441 for PRO-850G. Grosbill lists the same EAN with reference 90-UXR085-GNEAA2.9Retailer pagegrosbill.com/asrock-atx-850w-169624Read 14 October 2026EAN 4711581491441, manufacturer reference 90-UXR085-GNEAA2. Grosbill ticks ATX 3.0 and calls the cables non-modular. The maker says ATX 3.1, which is stored.
Announced
Not available
Status
Available2Maker product pageweb.archive.org/web/20250919085843/https://asrock.com/Power-Supply/PRO/PRO-850G/index.aspRead 14 October 2026Archive copy of the ASRock page from 2025-09-19 (the model is listed). Retailers sell the unit in October 2026.
Predecessor
Not available
Successor
Not available
Launch price (US)
Not available
Launch price (EU)
Not available
Markets
Not available
Colours
Black7Retailer pageparadigit.ie/asrock-pro-850g-850-w/21845961/productRead 14 October 2026Colour of product: Black.
Form factor
ATX6Retailer pageamazon.com/dp/B0FSTHTLZTRead 14 October 2026Product details: Form Factor ATX. The 150 x 86 mm back face is the ATX size.
ATX version
ATX 3.12Maker product pageweb.archive.org/web/20250919085843/https://asrock.com/Power-Supply/PRO/PRO-850G/index.aspRead 14 October 2026Specification: ATX 12V Version ATX 3.1. Headline: ATX3.1 & PCIe5.1 Ready.
PCIe CEM version
PCIe 5.12Maker product pageweb.archive.org/web/20250919085843/https://asrock.com/Power-Supply/PRO/PRO-850G/index.aspRead 14 October 2026Headline: ATX3.1 & PCIe5.1 Ready. Connector row: PCIe5.1 connectors (12+4pin) Dual Color.
Modular cables
None6Retailer pageamazon.com/dp/B0FSTHTLZTRead 14 October 2026Product details: Power Supply Design Non-Modular. Customer reviews also say all cables are permanently attached.7Retailer pageparadigit.ie/asrock-pro-850g-850-w/21845961/productRead 14 October 2026Headline and specification: Non Modular. Inside Tech's listing says Modular: Fully, but its own table lists the same fixed counts as ASRock (one 24-pin, one EPS, two PCIe 6+2, four SATA) and the fully modular unit is the separate PRO-M850G. Amazon, Post.ch, Grosbill and Geektopia say non-modular, so none is stored as modular.8Retailer pageshop.post.ch/en/electronics/pc-components/power-supply-units/asrock-power-supply-pro-series-pro-850g-850-w/p/878897Read 14 October 2026Cable harness: Fixed.10Spec databasegeektopia.es/es/product/asrock/pro-850gRead 14 October 2026Modular: no. Geektopia gives a presentation date of April 17, 2026, which is later than the ASRock page archived in September 2025, so it is not used for the release month.
Built by (OEM)
Not available

Power

Rated continuous power
850W2Maker product pageweb.archive.org/web/20250919085843/https://asrock.com/Power-Supply/PRO/PRO-850G/index.aspRead 14 October 2026Model name PRO-850G and the 80 PLUS certificate state 850 W.5Certification listclearesult.com/80plus/sites/80plus/files/manufacturer-certificate/ASRock_PRO-850G_850W_SOCE%207106.7_Report.pdfRead 14 October 2026Rated output power 850 W.
Full power rated up to
Not available
12V rail design
Not available
+12V max current
70.8A2Maker product pageweb.archive.org/web/20250919085843/https://asrock.com/Power-Supply/PRO/PRO-850G/index.aspRead 14 October 2026Specification: Continuous 12V output 70.8 A. ASRock publishes no +3.3V, +5V or +5VSB table for this model.7Retailer pageparadigit.ie/asrock-pro-850g-850-w/21845961/productRead 14 October 2026Energy management: Max output current (+12V) 70.8 A. The same table lists +3.3V and +5V at 100 W each, which is not the combined limit and is not stored.
+12V max power
850W7Retailer pageparadigit.ie/asrock-pro-850g-850-w/21845961/productRead 14 October 2026Energy management: Combined power (+12V) 850 W.
+3.3V and +5V combined power
Not available
+5V standby current
3A7Retailer pageparadigit.ie/asrock-pro-850g-850-w/21845961/productRead 14 October 2026Energy management: Max output current (+5Vsb) 3 A.
AC input voltage
Lowest100Highest240V2Maker product pageweb.archive.org/web/20250919085843/https://asrock.com/Power-Supply/PRO/PRO-850G/index.aspRead 14 October 2026Specification: AC Input 100-240V~, 50-60Hz, 12-6A.
Alternative low power mode (ALPM)
Not available

Certifications

80 PLUS rating
80 PLUS Gold2Maker product pageweb.archive.org/web/20250919085843/https://asrock.com/Power-Supply/PRO/PRO-850G/index.aspRead 14 October 2026Headline: 80 PLUS GOLD Certified.5Certification listclearesult.com/80plus/sites/80plus/files/manufacturer-certificate/ASRock_PRO-850G_850W_SOCE%207106.7_Report.pdfRead 14 October 202680 PLUS certificate ID 7106.7 for model PRO-850G: Gold at 115 V, rated 850 W, type ATX12V, test date 2023-07-27, average efficiency 87.69% and 91.47% at 50% load. The test date is older than the ATX 3.1 standard, so ASRock may have kept the certificate for the ATX 3.1 revision. The ASRock page and all retailers state Gold.
Cybenetics efficiency at 115V
Not available
Cybenetics efficiency at 230V
Not available
Cybenetics noise at 115V
Not available
Cybenetics noise at 230V
Not available

Measured

We could not find any of these 10 fields. Show them
Average efficiency at 115V (measured)
Not available
Average efficiency at 230V (measured)
Not available
Light-load efficiency at 115V (measured)
Not available
Average power factor at 115V (measured)
Not available
Average noise at 115V (measured)
Not available
Noise at full load at 115V (measured)
Not available
Standby power with no load at 115V (measured)
Not available
Hold-up time (measured)
Not available
12V ripple at full load (measured)
Not available
12V load regulation (measured)
Not available

Cables and connectors

Cables
ConnectorConnectorsCablesLength to first plug (mm)
ATX 24-pin (20+4)11600
CPU 8-pin (EPS, 4+4)11650
PCIe 8-pin (6+2)22600
12V-2x611600
SATA power42450
4-pin Molex21450
Source2Maker product pageweb.archive.org/web/20250919085843/https://asrock.com/Power-Supply/PRO/PRO-850G/index.aspRead 14 October 2026Specification connector rows: 24-pin 1, EPS 4+4 pin 1, PCIe 5.1 12+4 pin dual color 1, PCIe 6+2 pin 2, 4-pin peripheral 2, SATA 4. The lengths and cable counts come from the cable drawing on the Amazon listing. The page gives no cable lengths or wire gauge. 12V-2x6 power rating is not stated for this model.6Retailer pageamazon.com/dp/B0FSTHTLZTRead 14 October 2026Listing image 4, a drawing published with the product: MB 24 pin 1x 600 mm, CPU 4+4 pin 1x 650 mm, PCIe 12V-2x6 1x 600 mm, PCIe 6+2 pin 2x 600 mm, one SATA cable with 3 SATA plugs and one PATA cable with 2 PATA plugs and 1 SATA plug, both 450 mm to the first plug and 120 mm between plugs. Totals match the ASRock page: 4 SATA and 2 peripheral plugs. The two PCIe 6+2 pin plugs are drawn as two separate cables. The same listing gallery also shows the PRO-850B, PRO-650B and PRO-750G, so only this drawing, which matches the ASRock counts, is used.
CPU (EPS) connectors
1
PCIe 8-pin connectors
2
16-pin GPU connectors
1
SATA power connectors
4
4-pin Molex connectors
2
Cable style
Flat2Maker product pageweb.archive.org/web/20250919085843/https://asrock.com/Power-Supply/PRO/PRO-850G/index.aspRead 14 October 2026Specification: Cable Type Flat.

Fan

Fan size
120mm2Maker product pageweb.archive.org/web/20250919085843/https://asrock.com/Power-Supply/PRO/PRO-850G/index.aspRead 14 October 2026Specification: Fan 120mm Fan. Headline: Low noise 120mm FAN. The page names no bearing.
Fan bearing
Not available
Fan mode
Always on2Maker product pageweb.archive.org/web/20250919085843/https://asrock.com/Power-Supply/PRO/PRO-850G/index.aspRead 14 October 2026Specification: iCOOL MODE No. The quick installation guide says that with iCOOL mode on, the fan does not spin at low to medium load. With iCOOL marked No, the fan spins at all loads.3Owner's manualdownload.asrock.com/Manual/QIG/Power%20Supply%20Series_multiQIG.pdfRead 14 October 2026Step 8: if the iCOOL mode is set to ON, the fan will not spin during low to medium loads.
Fan mode switch
Not available

Protection and parts

Protections
Over-current (OCP), Short-circuit (SCP), Over-voltage (OVP), Under-voltage (UVP), Over-temperature (OTP), Over-power (OPP)2Maker product pageweb.archive.org/web/20250919085843/https://asrock.com/Power-Supply/PRO/PRO-850G/index.aspRead 14 October 2026Specification: Protections OCP, SCP, OVP, UVP, OTP, OPP.
All-Japanese capacitors
No2Maker product pageweb.archive.org/web/20250919085843/https://asrock.com/Power-Supply/PRO/PRO-850G/index.aspRead 14 October 2026Specification: Capacitors All Taiwanese. Stored as false.
MTBF (claimed)
100,000h2Maker product pageweb.archive.org/web/20250919085843/https://asrock.com/Power-Supply/PRO/PRO-850G/index.aspRead 14 October 2026Specification: MTBF (Hours)@25°C 100,000.

Monitoring and lighting

We could not find any of these 4 fields. Show them
Software monitoring
Not available
Software
Not available
Built-in power display
Not available
RGB lighting
Not available

Dimensions and weight

Front and side, drawn to scale.

Dimensions
Width150Height86Depth140mm(5.9 × 3.4 × 5.5 in)2Maker product pageweb.archive.org/web/20250919085843/https://asrock.com/Power-Supply/PRO/PRO-850G/index.aspRead 14 October 2026Specification: Dimensions (L x W x H) 140mm x 150mm x 86mm. Depth is 140 mm and the back face is 150 x 86 mm.6Retailer pageamazon.com/dp/B0FSTHTLZTRead 14 October 2026Item dimensions 5.51 x 5.91 x 3.39 inches, which is 140 x 150 x 86 mm.
Weight
Not available

In the box

We could not find any of these 1 fields. Show them
In the box
Not available

Warranty

Manufacturer warranty (source market)
3years2Maker product pageweb.archive.org/web/20250919085843/https://asrock.com/Power-Supply/PRO/PRO-850G/index.aspRead 14 October 2026Specification: Warranty (Years) 3. The page is the global ASRock page and names no market.

Compare with

Pick a power supply to see both side by side. Differences are marked yellow.

More power supply comparisons

Variants

Each variant lists only what differs from the specs above.

Model numberGTIN
90-UXR085-GNUAA2Not available
90-UXR085-GNEAA24711581491441

Sources

We read 10 sources for this power supply. The numbers match the markers in the sheet.

  1. Read 14 October 2026Backs 1 field
  2. Read 14 October 2026Backs 17 fields
  3. Read 14 October 2026Backs 2 fields
  4. Read 14 October 2026Backs 1 field
  5. Read 14 October 2026Backs 2 fields
  6. Read 14 October 2026Backs 6 fields
  7. Read 14 October 2026Backs 7 fields
  8. Read 14 October 2026Backs 3 fields
  9. Read 14 October 2026Backs 2 fields
  10. Read 14 October 2026Backs 1 field
