PC parts / Power supplies
MSIPower supply

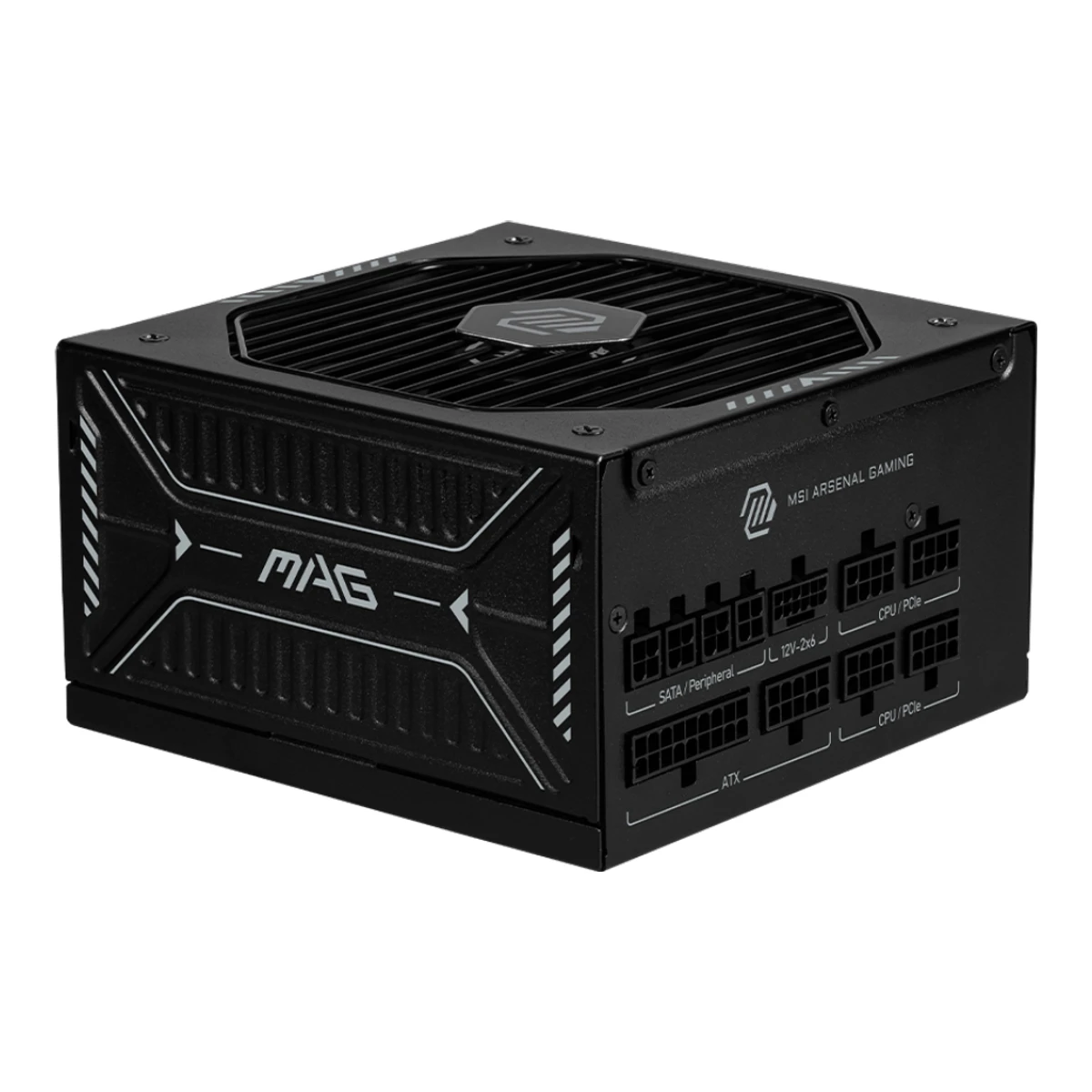

MAG A850GLS PCIE5
Released June 2025.3Press articlekitguru.net/components/power-supplies/joao-silva/msi-introduces-new-mag-a-gls-atx-3-1-psusRead 14 October 2026Series announced in late May 2025. Hardware Busters reviewed the A850GLS on June 5, 2025 and LDLC lists it as referenced on 16 Jun 2025, so the month is June 2025. Last checked 14 October 2026.
- Power
- 850W
- Efficiency
- 80 PLUS Gold
- Modular cables
- Fully modular
- ATX version
- ATX 3.1
50 of 66 fields known.
At a glance
Average noise
Lower than 81% of other power supplies. Lower is better.
General
- Model numbers
- MAG A850GLS PCIE5, 306-7ZPIY11-CE01Maker spec sheet (PDF)storage-asset.msi.com/datasheet/power-supply/us/MAG-A850GLS-PCIE5.pdfRead 14 October 2026Datasheet title MAG A850GLS PCIE5.2Maker product pagede-store.msi.com/products/mag-a850gls-pcie5Read 14 October 2026MSI e-shop Germany: order code 306-7ZPIY11-CE0.
- GTIN / EAN
- 4711377297783, 8241423980812Maker product pagede-store.msi.com/products/mag-a850gls-pcie5Read 14 October 2026MSI e-shop Germany: EAN 4711377297783 (gtin13 in the page data).8Spec databasebuildcores.com/products/PSU/3qgsgnsga/MSI-MAG-A850GLS-PCIE5Read 14 October 2026BuildCores lists UPC 824142398081 and EANs 4711377297783 and 4711377297790 with part numbers MAG A850GLS PCIE5, 306-7ZPIY11-CE0 and 306-7ZP1B31-CE0. The UPC comes from this one source. The second EAN is not stored since its model was not identified.
- Status
- Available2Maker product pagede-store.msi.com/products/mag-a850gls-pcie5Read 14 October 2026Page data shows the offer as in stock on 2026-10-14.
- Predecessor
- Not available
- Successor
- Not available
- Launch price (US)
- Not available
- Launch price (EU)
- Not available
- Markets
- Not available
- Colours
- Not available
- ATX version
- ATX 3.12Maker product pagede-store.msi.com/products/mag-a850gls-pcie5Read 14 October 2026Page title and text: 850 W ATX 3.1 Netzteil with a native 12V-2x6 / PCIe 5.1 connector.3Press articlekitguru.net/components/power-supplies/joao-silva/msi-introduces-new-mag-a-gls-atx-3-1-psusRead 14 October 2026Launch coverage: all models in the series comply with ATX 3.1. The Cybenetics report ticks ATX v3.1 PSU Power Excursion.
- PCIe CEM version
- PCIe 5.11Maker spec sheet (PDF)storage-asset.msi.com/datasheet/power-supply/us/MAG-A850GLS-PCIE5.pdfRead 14 October 2026Datasheet lists PCI-E 5.1 (16 pin) with a native 12V-2x6 connector.
- Modular cables
- Fully modular1Maker spec sheet (PDF)storage-asset.msi.com/datasheet/power-supply/us/MAG-A850GLS-PCIE5.pdfRead 14 October 2026
- Built by (OEM)
- Channel Well Technology (CWT)4Measurementcybenetics.com/evaluations/psus/2806Read 14 October 2026DUT Information: OEM/ODM CWT. Hardware Busters names the company Channel Well Technology.5Reviewhwbusters.com/psus/msi-mag-a850gls-pcie5-atx-v3-1-psu-reviewRead 14 October 2026Technical specifications: Manufacturer (OEM) CWT. Part analysis page: the OEM is Channel Well Technology. Review published June 5, 2025.
Power
- Rated continuous power
- 850W1Maker spec sheet (PDF)storage-asset.msi.com/datasheet/power-supply/us/MAG-A850GLS-PCIE5.pdfRead 14 October 2026Power Watt 850W. Power excursion up to 1870W for 100 microseconds is not stored.
- Full power rated up to
- Not available
- 12V rail design
- Single rail4Measurementcybenetics.com/evaluations/psus/2806Read 14 October 2026Power Specifications: one +12V column with 70.8A and 850W.5Reviewhwbusters.com/psus/msi-mag-a850gls-pcie5-atx-v3-1-psu-reviewRead 14 October 2026Technical specifications: Number of 12V rails 1.
- +12V max power
- 849.6W1Maker spec sheet (PDF)storage-asset.msi.com/datasheet/power-supply/us/MAG-A850GLS-PCIE5.pdfRead 14 October 2026DC output table: +12V 70.8A, 849.6W.
- +3.3V and +5V combined power
- 100W1Maker spec sheet (PDF)storage-asset.msi.com/datasheet/power-supply/us/MAG-A850GLS-PCIE5.pdfRead 14 October 2026DC output table: +5V 20A and +3.3V 20A with a combined 100W.
- +5V standby current
- 3A1Maker spec sheet (PDF)storage-asset.msi.com/datasheet/power-supply/us/MAG-A850GLS-PCIE5.pdfRead 14 October 2026DC output table: +5Vsb 3A, 15W.
Certifications
- Cybenetics efficiency at 115V
- Cybenetics Platinum4Measurementcybenetics.com/evaluations/psus/2806Read 14 October 2026Report 25PS2806A, certification ID 252806, issued May 8, 2025. The ETA badge shows Platinum at 115V, as Hardware Busters also prints. KitGuru's launch coverage says Gold without a voltage.
- Cybenetics efficiency at 230V
- Cybenetics Platinum4Measurementcybenetics.com/evaluations/psus/2806Read 14 October 2026The ETA badge shows Platinum at 230V.
- Cybenetics noise at 115V
- A+4Measurementcybenetics.com/evaluations/psus/2806Read 14 October 2026The LAMBDA badge shows A+ at 115V.
- Cybenetics noise at 230V
- A+4Measurementcybenetics.com/evaluations/psus/2806Read 14 October 2026The LAMBDA badge shows A+ at 230V.
Measured
- Average efficiency at 115V (measured)
- 89.955%4Measurementcybenetics.com/evaluations/psus/2806Read 14 October 2026Average over more than 1450 load combinations at 115V. Report issued May 8, 2025, sample received Apr 23, 2025, no serial number printed. The report prints a testing date of Mar 8, 2025. Ambient 28-32 C.
- Average efficiency at 230V (measured)
- 91.845%4Measurementcybenetics.com/evaluations/psus/2806Read 14 October 2026Average over more than 1450 load combinations at 230V.
- Light-load efficiency at 115V (measured)
- 71.388%4Measurementcybenetics.com/evaluations/psus/2806Read 14 October 2026Efficiency at 2% load (more than 500 W unit) at 115V.
- Average power factor at 115V (measured)
- 0.9834Measurementcybenetics.com/evaluations/psus/2806Read 14 October 2026Average over more than 1450 load combinations at 115V. At 230V it is 0.947.
- Average noise at 115V (measured)
- 18.07dB(A)4Measurementcybenetics.com/evaluations/psus/2806Read 14 October 2026Average over more than 1450 load combinations at 115V, ambient 28-32 C, Bruel and Kjaer 2270 G4 sound analyzer. The 230V average is 18.05 dBA.
- Noise at full load at 115V (measured)
- 46.3dB(A)4Measurementcybenetics.com/evaluations/psus/2806Read 14 October 2026Typical load tests at 115V, 100% load row: 46.3 dB(A) at 2151 rpm fan speed, ambient about 30 C.
- Standby power with no load at 115V (measured)
- 0.037W4Measurementcybenetics.com/evaluations/psus/2806Read 14 October 2026Standby power consumption at 115V with no load on +5VSB: 0.0370 W. At 230V it is 0.0782 W.
- Hold-up time (measured)
- 18.6ms4Measurementcybenetics.com/evaluations/psus/2806Read 14 October 2026Hold-Up Time and PWR_OK Signal: hold-up time 18.6 ms, AC loss to PWR_OK 16.6 ms, PWR_OK inactive to DC loss 2.0 ms, at maximum continuous load. The report names no input voltage.
- 12V ripple at full load (measured)
- 39.43mV4Measurementcybenetics.com/evaluations/psus/2806Read 14 October 2026Non-accredited measurement. 12V ripple at full load at 115V. At 230V it is 39.66 mV.
Cables and connectors
- Cables
Connector Connectors Cables Length to first plug (mm) Wire gauge Rated power (W) ATX 24-pin (20+4) 1 1 600 16-20AWG Not available CPU 8-pin (EPS, 4+4) 2 2 650 18AWG Not available PCIe 8-pin (6+2) 4 Not available 600 18AWG Not available 12V-2x6 1 1 600 Not available 600 SATA power 8 Not available 500 18-20AWG Not available 4-pin Molex 3 Not available 500 18-20AWG Not available 4-pin floppy 1 Not available 500 18-20AWG Not available Source1Maker spec sheet (PDF)storage-asset.msi.com/datasheet/power-supply/us/MAG-A850GLS-PCIE5.pdfRead 14 October 2026Connector counts from the datasheet: ATX 1, EPS 2 (listed as 1 EPS 8-pin and 1 EPS 4+4-pin), PCI-E 6+2 pin 4, 16-pin 12V-2x6 1 (600W), SATA 8, Molex 3, FDD 1. The datasheet gives no cable counts, lengths or gauge. Those come from the Cybenetics cable table. The Cybenetics sample had only 2 PCIe 6+2 plugs, 7 SATA plugs and 2 FDD plugs, so no cable count is stored for those rows. The MSI German shop lists EPS (4+4 PIN) 2.4Measurementcybenetics.com/evaluations/psus/2806Read 14 October 2026Cables and Connectors table: ATX 20+4 pin 600 mm 16-20AWG, 2 x 8-pin EPS 650 mm 18AWG, 2 PCIe 6+2 pin 600 mm 18AWG, 12+4 pin PCIe (600W) 600 mm 16-24AWG, one cable with 3 SATA (500 mm then 150 mm spacing) and 1 Molex 18AWG, two cables with 2 SATA, 1 Molex and 1 FDD each 18-20AWG. The 16-24AWG range for the 12V-2x6 cable includes the thin sideband wires, so no gauge is stored for it. The first plug of each SATA, Molex and FDD cable is 500 mm from the PSU. Plug counts for PCIe, SATA, Molex and FDD follow the MSI datasheet because the sample differs.5Reviewhwbusters.com/psus/msi-mag-a850gls-pcie5-atx-v3-1-psu-reviewRead 14 October 2026Product photos and cables page: the same cable table as the Cybenetics report. The review says the sample had two FDD connectors, which MSI's datasheet lists as one.- CPU (EPS) connectors
- 2
- PCIe 8-pin connectors
- 4
- 16-pin GPU connectors
- 1
- SATA power connectors
- 8
- 4-pin Molex connectors
- 3
Fan
- Fan size
- 135mm1Maker spec sheet (PDF)storage-asset.msi.com/datasheet/power-supply/us/MAG-A850GLS-PCIE5.pdfRead 14 October 2026Fan Size 135 mm.4Measurementcybenetics.com/evaluations/psus/2806Read 14 October 2026Cooling: 135mm Fluid Dynamic Bearing Fan (ZFF132512H).
- Fan bearing
- Fluid dynamic (FDB)1Maker spec sheet (PDF)storage-asset.msi.com/datasheet/power-supply/us/MAG-A850GLS-PCIE5.pdfRead 14 October 2026Fan Bearing Fluid Dynamic Bearing. A French retailer calls the fan hydrodynamic. The datasheet also prints Rated Speed 500 - 1800 +-15% RPM.4Measurementcybenetics.com/evaluations/psus/2806Read 14 October 2026Cooling: Fluid Dynamic Bearing fan.
- Fan mode
- Always on4Measurementcybenetics.com/evaluations/psus/2806Read 14 October 2026Semi-Passive Operation is not checked. The typical load table shows the fan at 413 rpm at 10% load.5Reviewhwbusters.com/psus/msi-mag-a850gls-pcie5-atx-v3-1-psu-reviewRead 14 October 2026Technical specifications: Semi-Passive Operation not supported. The review prefers a PWM fan at low speed over a fan-stop feature.
Protection and parts
- Protections
- Over-current (OCP), Over-voltage (OVP), Under-voltage (UVP), Over-power (OPP), Over-temperature (OTP), Short-circuit (SCP), No-load (NLO), Surge and inrush (SIP)1Maker spec sheet (PDF)storage-asset.msi.com/datasheet/power-supply/us/MAG-A850GLS-PCIE5.pdfRead 14 October 2026Protection line: OCP/ OTP/ OPP/ SCP/ OVP/ UVP/ SIP/ NLO.4Measurementcybenetics.com/evaluations/psus/2806Read 14 October 2026Protection Features page shows OPP, +12V OCP, OTP, SCP, surge and inrush protection ticked and fan failure protection not ticked. The protection tests tick UVP at 90 V and 80 V and NLO, and SIP shows an MOV for surge and an NTC with bypass relay for inrush. OVP is in the MSI protection line.
- All-Japanese capacitors
- Not available
- MTBF (claimed)
- Not available
Monitoring and lighting
We could not find any of these 4 fields. Show them
- Software monitoring
- Not available
- Software
- Not available
- Built-in power display
- Not available
- RGB lighting
- Not available
Dimensions and weight
Front and side, drawn to scale.
In the box
We could not find any of these 1 fields. Show them
- In the box
- Not available
Links
- Product page
- de-store.msi.com/products/mag-a850gls-pcie52Maker product pagede-store.msi.com/products/mag-a850gls-pcie5Read 14 October 2026
- Spec sheet
- storage-asset.msi.com/datasheet/power-supply/us/MAG-A850GLS-PCIE5.pdf1Maker spec sheet (PDF)storage-asset.msi.com/datasheet/power-supply/us/MAG-A850GLS-PCIE5.pdfRead 14 October 2026
- Manual
- Not available
- EPREL registration number
- Not available
Warranty
- Manufacturer warranty (source market)
- 7years2Maker product pagede-store.msi.com/products/mag-a850gls-pcie5Read 14 October 2026Page shows 7 Jahre Garantie. The page is the German shop, so the market is Germany. KitGuru also reports 7 years at launch.3Press articlekitguru.net/components/power-supplies/joao-silva/msi-introduces-new-mag-a-gls-atx-3-1-psusRead 14 October 2026Launch coverage: all models are backed by a 7-year warranty. No market is named.
Compare with
Pick a power supply to see both side by side. Differences are marked yellow.
Variants
Each variant lists only what differs from the specs above.
| Model number | GTIN |
|---|---|
| 306-7ZPIY11-CE0 | 4711377297783 |
Sources
We read 8 sources for this power supply. The numbers match the markers in the sheet.
- Maker spec sheet (PDF)storage-asset.msi.com/datasheet/power-supply/us/MAG-A850GLS-PCIE5.pdf
- Maker product pagede-store.msi.com/products/mag-a850gls-pcie5
- Measurementcybenetics.com/evaluations/psus/2806
- Retailer pageldlc.com/en/product/PB00690248.html
