PC parts / Power supplies

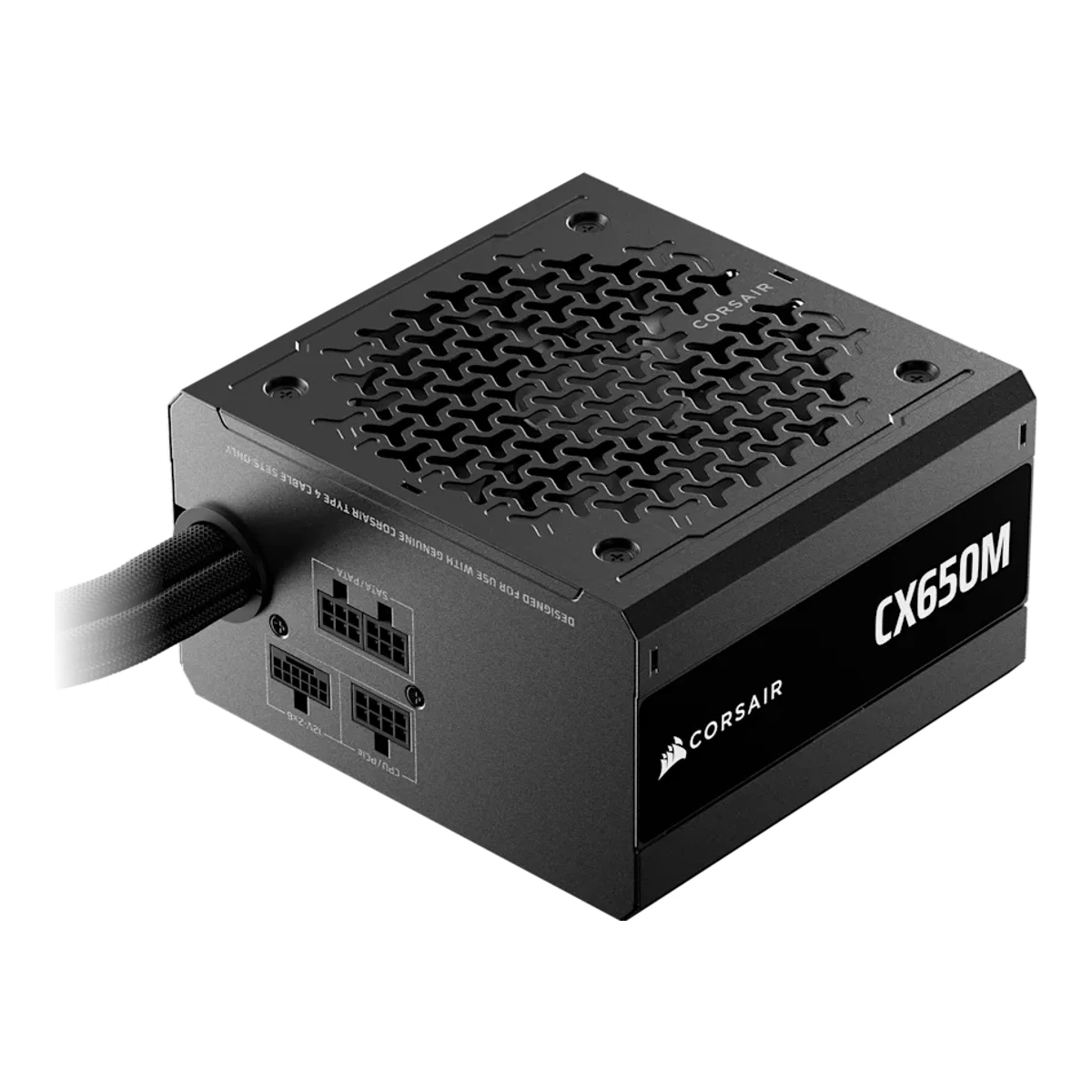

CORSAIR CX650M ATX 3.1

CORSAIRPower supply

CX650M ATX 3.1

Released July 2025.3Measurementcybenetics.com/evaluations/psus/2905Read 16 October 2026Cybenetics received the sample of CX650M (ATX v3.1) on Jun 30, 2025 and issued the report on Jul 29, 2025, so the unit existed by July 2025. Corsair prints no launch date and no press release was found. The CX750M of the same line has the same dates. The month is approximate. Last checked 16 October 2026.

Power
650W
Efficiency
Cybenetics Silver
Modular cables
Semi-modular
ATX version
ATX 3.1

49 of 66 fields known.

Compare with another power supplyDownload JSONDownload CSVGet it from the API

All specs

SourceCalculated

General

Series
CX-M1Maker product pagecorsair.com/us/en/p/psu/cp-9020310-na/cx-m-series-cx650m-atx-3-1-cybenetics-bronze-semi-modular-psu-cp-9020310-naRead 16 October 2026CX-M Series. The manual calls it CX-M Series (3rd GEN). The older CX650M (CP-9020221, 80 PLUS ID 380) is a different product.
Model numbers
CP-9020310-NA1Maker product pagecorsair.com/us/en/p/psu/cp-9020310-na/cx-m-series-cx650m-atx-3-1-cybenetics-bronze-semi-modular-psu-cp-9020310-naRead 16 October 2026SKU CP-9020310-NA. The power table prints MODEL RPS0228 and PART NO. 75-006837.
GTIN / EAN
Not available
Announced
Not available
Status
Available1Maker product pagecorsair.com/us/en/p/psu/cp-9020310-na/cx-m-series-cx650m-atx-3-1-cybenetics-bronze-semi-modular-psu-cp-9020310-naRead 16 October 2026In Stock and Best Seller on the Corsair US store at $89.99. Not stored as a launch price.
Predecessor
Not available
Successor
Not available
Launch price (US)
Not available
Launch price (EU)
Not available
Markets
Not available
Colours
Not available
Form factor
ATX1Maker product pagecorsair.com/us/en/p/psu/cp-9020310-na/cx-m-series-cx650m-atx-3-1-cybenetics-bronze-semi-modular-psu-cp-9020310-naRead 16 October 2026Tech Specs: PSU Form Factor ATX.
ATX version
ATX 3.11Maker product pagecorsair.com/us/en/p/psu/cp-9020310-na/cx-m-series-cx650m-atx-3-1-cybenetics-bronze-semi-modular-psu-cp-9020310-naRead 16 October 2026Tech Specs: ATX12V Version v3.1, EPS12V Version 2.92. The headline says ATX 3.1 and PCIe 5.1.2Owner's manualcorsair.com/us/en/explorer/diy-builder/power-supply-units/corsair-cxm-2025Read 16 October 2026Intro: CX-M Series power supplies are ATX 3.1 compliant and PCIe 5.1 ready.
PCIe CEM version
PCIe 5.11Maker product pagecorsair.com/us/en/p/psu/cp-9020310-na/cx-m-series-cx650m-atx-3-1-cybenetics-bronze-semi-modular-psu-cp-9020310-naRead 16 October 2026Headline and feature text: ATX 3.1 compliant and PCIe 5.1 ready, native 12V-2x6 GPU power cable.2Owner's manualcorsair.com/us/en/explorer/diy-builder/power-supply-units/corsair-cxm-2025Read 16 October 2026Intro: PCIe 5.1 ready with a 12V-2x6 cable.
Modular cables
Semi-modular1Maker product pagecorsair.com/us/en/p/psu/cp-9020310-na/cx-m-series-cx650m-atx-3-1-cybenetics-bronze-semi-modular-psu-cp-9020310-naRead 16 October 2026Tech Specs: Modular Semi. The cable listing marks the 24-pin, CPU and one dual 8-pin PCIe cable as fixed.3Measurementcybenetics.com/evaluations/psus/2905Read 16 October 2026DUT Information: Cable Design Semi Modular.
Built by (OEM)
HEC3Measurementcybenetics.com/evaluations/psus/2905Read 16 October 2026DUT Information and Parts Description: OEM/ODM HEC.

Power

Rated continuous power
650W1Maker product pagecorsair.com/us/en/p/psu/cp-9020310-na/cx-m-series-cx650m-atx-3-1-cybenetics-bronze-semi-modular-psu-cp-9020310-naRead 16 October 2026Tech Specs: Continuous Power W 650 Watts. The power table prints TOTAL POWER 650W.
Full power rated up to
40°C1Maker product pagecorsair.com/us/en/p/psu/cp-9020310-na/cx-m-series-cx650m-atx-3-1-cybenetics-bronze-semi-modular-psu-cp-9020310-naRead 16 October 2026Tech Specs: Continuous Output Rated Temp C 40 C.
12V rail design
Single rail3Measurementcybenetics.com/evaluations/psus/2905Read 16 October 2026Power Specifications lists one +12V rail at 54.2 A. The 12V OCP test tripped at 67.60 A (124.72 percent of 54.2 A) at 31.6 C, so one over-current limit covers the full rated +12V current. No source uses the words single rail.
+12V max current
54.2A1Maker product pagecorsair.com/us/en/p/psu/cp-9020310-na/cx-m-series-cx650m-atx-3-1-cybenetics-bronze-semi-modular-psu-cp-9020310-naRead 16 October 2026CX650M power table: +12V 54.2A, 650W.2Owner's manualcorsair.com/us/en/explorer/diy-builder/power-supply-units/corsair-cxm-2025Read 16 October 2026CX650M power table, model RPS0228, part no. 75-006837: +12V 54.2A 650W.
+12V max power
650W1Maker product pagecorsair.com/us/en/p/psu/cp-9020310-na/cx-m-series-cx650m-atx-3-1-cybenetics-bronze-semi-modular-psu-cp-9020310-naRead 16 October 2026CX650M power table: +12V 54.2A, 650W.2Owner's manualcorsair.com/us/en/explorer/diy-builder/power-supply-units/corsair-cxm-2025Read 16 October 2026CX650M power table: +12V 650W.
+3.3V and +5V combined power
130W1Maker product pagecorsair.com/us/en/p/psu/cp-9020310-na/cx-m-series-cx650m-atx-3-1-cybenetics-bronze-semi-modular-psu-cp-9020310-naRead 16 October 2026CX650M power table: +3.3V 20A and +5V 20A share one 130W maximum output cell.2Owner's manualcorsair.com/us/en/explorer/diy-builder/power-supply-units/corsair-cxm-2025Read 16 October 2026CX650M power table: +3.3V 20A 130W and +5V 20A under one 130W cell.
+5V standby current
3A1Maker product pagecorsair.com/us/en/p/psu/cp-9020310-na/cx-m-series-cx650m-atx-3-1-cybenetics-bronze-semi-modular-psu-cp-9020310-naRead 16 October 2026CX650M power table: +5VSB 3A, 15W.2Owner's manualcorsair.com/us/en/explorer/diy-builder/power-supply-units/corsair-cxm-2025Read 16 October 2026CX650M power table: +5Vsb 3A 15W.
AC input voltage
Lowest100Highest240V1Maker product pagecorsair.com/us/en/p/psu/cp-9020310-na/cx-m-series-cx650m-atx-3-1-cybenetics-bronze-semi-modular-psu-cp-9020310-naRead 16 October 2026CX650M power table: AC input 100V-240V, input current 10A-5A, frequency 47Hz-63Hz.2Owner's manualcorsair.com/us/en/explorer/diy-builder/power-supply-units/corsair-cxm-2025Read 16 October 2026CX650M power table: 100V - 240V a.c., 10A - 5A, 47Hz - 63Hz.
Alternative low power mode (ALPM)
Yes3Measurementcybenetics.com/evaluations/psus/2905Read 16 October 2026Temperature and Compliance Info: ALPM (Alternative Low Power Mode) compatible, checked.

Certifications

80 PLUS rating
Not available
Cybenetics efficiency at 115V
Cybenetics Silver3Measurementcybenetics.com/evaluations/psus/2905Read 16 October 2026Report 25PS2905A, certification ID 252905, issued Jul 29, 2025, model CX650M (ATX v3.1). The ETA badge shows Silver at 115V. Corsair's page says Cybenetics Bronze. The report is stored.
Cybenetics efficiency at 230V
Cybenetics Silver3Measurementcybenetics.com/evaluations/psus/2905Read 16 October 2026The ETA badge shows Silver at 230V.
Cybenetics noise at 115V
Standard++3Measurementcybenetics.com/evaluations/psus/2905Read 16 October 2026The LAMBDA badge shows Standard++ at 115V.
Cybenetics noise at 230V
Standard++3Measurementcybenetics.com/evaluations/psus/2905Read 16 October 2026The LAMBDA badge shows Standard++ at 230V.

Measured

Average efficiency at 115V (measured)
85.908%3Measurementcybenetics.com/evaluations/psus/2905Read 16 October 2026Average over more than 1450 load combinations at 115V. Sample serial 4580, received Jun 30, 2025, tested Jul 28, 2025. Ambient 28-32 C.
Average efficiency at 230V (measured)
87.995%3Measurementcybenetics.com/evaluations/psus/2905Read 16 October 2026Average over more than 1450 load combinations at 230V.
Light-load efficiency at 115V (measured)
69.573%3Measurementcybenetics.com/evaluations/psus/2905Read 16 October 2026Efficiency at 2% load (more than 500 W unit) at 115V. At 230V it is 72.132%.
Average power factor at 115V (measured)
0.9923Measurementcybenetics.com/evaluations/psus/2905Read 16 October 2026Average over more than 1450 load combinations at 115V. At 230V it is 0.962.
Average noise at 115V (measured)
30.95dB(A)3Measurementcybenetics.com/evaluations/psus/2905Read 16 October 2026Average over more than 1450 load combinations at 115V. Ambient 28-32 C. Bruel and Kjaer 2270 G4 sound analyzer. The 230V average is 30.55 dBA.
Noise at full load at 115V (measured)
43.8dB(A)3Measurementcybenetics.com/evaluations/psus/2905Read 16 October 2026Typical load tests at 115V, 100% load row: 43.8 dB(A) at 1819 rpm fan speed, intake 45.21 C. Not used for certification.
Standby power with no load at 115V (measured)
0.0513W3Measurementcybenetics.com/evaluations/psus/2905Read 16 October 2026Standby power consumption at 115V with no load on +5VSB: 0.0513 W. At 230V it is 0.0987 W.
Hold-up time (measured)
19.7ms3Measurementcybenetics.com/evaluations/psus/2905Read 16 October 2026Hold-Up Time and PWR_OK Signal: hold-up time 19.7 ms, AC loss to PWR_OK 17.3 ms, PWR_OK inactive to DC loss 2.4 ms, at maximum continuous load. The report names no input voltage.
12V ripple at full load (measured)
33.85mV3Measurementcybenetics.com/evaluations/psus/2905Read 16 October 2026Non-accredited measurement. 12V ripple at full load at 115V. At 230V it is 37.76 mV.
12V load regulation (measured)
0.83%3Measurementcybenetics.com/evaluations/psus/2905Read 16 October 2026Non-accredited measurement. 12V load regulation at 115V. At 230V it is 0.85%.

Cables and connectors

Cables
ConnectorConnectorsCablesLength to first plug (mm)Wire gaugeRated power (W)
ATX 24-pin (20+4)1160018-22AWGNot available
CPU 8-pin (EPS, 4+4)2150016-18AWGNot available
PCIe 8-pin (6+2)4250016-18AWGNot available
12V-2x61160016AWG450
SATA power6240018AWGNot available
SATA power2135018AWGNot available
4-pin Molex1135018AWGNot available
Source1Maker product pagecorsair.com/us/en/p/psu/cp-9020310-na/cx-m-series-cx650m-atx-3-1-cybenetics-bronze-semi-modular-psu-cp-9020310-naRead 16 October 2026CX650M cable listing: ATX 24-pin fixed (600mm), dual 4+4-pin / 8-pin EPS fixed (spacing 500mm, 100mm), dual 6+2-pin PCIe fixed (500mm, 100mm), dual 6+2-pin PCIe modular (500mm, 100mm), 450W 12V-2x6 modular (600mm), 3 SATA modular and 3 SATA fixed (400mm, 100mm, 100mm), 2 SATA / 1 PATA modular (350mm, 150mm, 150mm). The first spacing value is stored as the length to the first plug. Tech Specs: SATA connector 8, PATA connector 1. Wire gauges come from the Cybenetics report. Cybenetics lists 510 mm, 515 mm and 590 mm for some of the same cables, which are not stored. The 12V-2x6 gauge is a 16-24AWG range that includes sideband wires, so the 16AWG power wire gauge is stored.2Owner's manualcorsair.com/us/en/explorer/diy-builder/power-supply-units/corsair-cxm-2025Read 16 October 2026Included Cables: 1x fixed ATX 24-pin, 1x fixed dual ATX12V/EPS12V (8-pin / 4+4-pin), 1x fixed dual 8-pin PCIe, 1x modular dual 8-pin PCIe, 1x modular 450W / 600W 12V-2x6 (CX650M 450W), 1x modular SATA (3 SATA), 1x fixed SATA (3 SATA), 1x modular 2 SATA / 1 PATA. The 450W rating is for the CX650M.3Measurementcybenetics.com/evaluations/psus/2905Read 16 October 2026Cables and Connectors table: captive ATX 24 pin 18-22AWG, 4+4 pin ATX12V 16-18AWG, 6+2 pin PCIe 16-18AWG, SATA 18AWG. Modular 6+2 pin PCIe 16-18AWG, 12+1 pin PCIe (450W) 16-24AWG, SATA 18AWG, SATA / 4-pin Molex 18AWG. The gauges are stored. The lengths are Corsair's.
CPU (EPS) connectors
2
PCIe 8-pin connectors
4
16-pin GPU connectors
1
SATA power connectors
8
4-pin Molex connectors
1
Cable style
Mixed1Maker product pagecorsair.com/us/en/p/psu/cp-9020310-na/cx-m-series-cx650m-atx-3-1-cybenetics-bronze-semi-modular-psu-cp-9020310-naRead 16 October 2026Cable listing: the fixed 24-pin, CPU and 8-pin PCIe cables are Sleeved. The modular PCIe, 12V-2x6, SATA and SATA/PATA cables are Flat.

Fan

Fan size
120mm1Maker product pagecorsair.com/us/en/p/psu/cp-9020310-na/cx-m-series-cx650m-atx-3-1-cybenetics-bronze-semi-modular-psu-cp-9020310-naRead 16 October 2026Tech Specs: Fan Size MM 120mm. The feature text says a low-noise 120mm fan.
Fan bearing
Sleeve1Maker product pagecorsair.com/us/en/p/psu/cp-9020310-na/cx-m-series-cx650m-atx-3-1-cybenetics-bronze-semi-modular-psu-cp-9020310-naRead 16 October 2026Tech Specs: Fan Bearing Technology Sleeve. Cybenetics prints sleeve bearing in its DUT block and fluid dynamic bearing in the fan model line for the same fan HA1225H12F-Z. The maker figure is stored.
Fan mode
Always on1Maker product pagecorsair.com/us/en/p/psu/cp-9020310-na/cx-m-series-cx650m-atx-3-1-cybenetics-bronze-semi-modular-psu-cp-9020310-naRead 16 October 2026Tech Specs: Zero RPM Mode No. The feature text says a custom fan curve keeps it silent under low-to-moderate loads, which is not a fan stop.3Measurementcybenetics.com/evaluations/psus/2905Read 16 October 2026Semi-Passive Operation is marked absent. The typical load tests show the fan at 746 rpm at 10% load.
Fan mode switch
No1Maker product pagecorsair.com/us/en/p/psu/cp-9020310-na/cx-m-series-cx650m-atx-3-1-cybenetics-bronze-semi-modular-psu-cp-9020310-naRead 16 October 2026Tech Specs: Zero RPM Mode No, so there is no semi-passive mode to switch off.

Protection and parts

Protections
Over-current (OCP), Over-voltage (OVP), Under-voltage (UVP), Over-power (OPP), Over-temperature (OTP), Short-circuit (SCP), No-load (NLO), Surge and inrush (SIP)2Owner's manualcorsair.com/us/en/explorer/diy-builder/power-supply-units/corsair-cxm-2025Read 16 October 2026Safety and Protection section describes over-voltage (OVP), over-current (OCP), over-temperature (OTP), short-circuit (SCP) and over-power (OPP) protection. UVP, NLO and SIP come from the Cybenetics protection tests.3Measurementcybenetics.com/evaluations/psus/2905Read 16 October 2026Protection Features: UVP passed at 90 V full load and at 80 V (no damage), NLO checked, surge protection by MOV and inrush protection by NTC. The manufacturer block lists OPP, OCP (+12V), OTP, SCP, surge and inrush protection and no fan failure protection.
All-Japanese capacitors
Not available
MTBF (claimed)
100,000h1Maker product pagecorsair.com/us/en/p/psu/cp-9020310-na/cx-m-series-cx650m-atx-3-1-cybenetics-bronze-semi-modular-psu-cp-9020310-naRead 16 October 2026Tech Specs: MTBF Hours 100,000 hours. The test temperature is not stated.

Monitoring and lighting

We could not find any of these 4 fields. Show them
Software monitoring
Not available
Software
Not available
Built-in power display
Not available
RGB lighting
Not available

Dimensions and weight

Front and side, drawn to scale.

Dimensions
Width150Height86Depth140mm(5.9 × 3.4 × 5.5 in)1Maker product pagecorsair.com/us/en/p/psu/cp-9020310-na/cx-m-series-cx650m-atx-3-1-cybenetics-bronze-semi-modular-psu-cp-9020310-naRead 16 October 2026Tech Specs: Dimensions 150mm x 86mm x 140mm. The manual gives height 86 mm, width 150 mm and length 140 mm. The feature text says a compact 140mm (length) design.2Owner's manualcorsair.com/us/en/explorer/diy-builder/power-supply-units/corsair-cxm-2025Read 16 October 2026CX650M: height 86mm, width 150mm, length 140mm.
Weight
Not available

In the box

In the box
CX-M Series ATX Power Supply, Modular DC Cable Set, AC Power Cable, Warranty & Safety Documentation1Maker product pagecorsair.com/us/en/p/psu/cp-9020310-na/cx-m-series-cx650m-atx-3-1-cybenetics-bronze-semi-modular-psu-cp-9020310-naRead 16 October 2026Package Contents: CX-M Series ATX Power Supply, Modular DC Cable Set, AC Power Cable, Warranty & Safety Documentation. The cables are stored in the cables field. The AC cable differs per region.

Warranty

Manufacturer warranty (source market)
7years1Maker product pagecorsair.com/us/en/p/psu/cp-9020310-na/cx-m-series-cx650m-atx-3-1-cybenetics-bronze-semi-modular-psu-cp-9020310-naRead 16 October 2026Tech Specs: Warranty 7 Year. The page is the Corsair US store.2Owner's manualcorsair.com/us/en/explorer/diy-builder/power-supply-units/corsair-cxm-2025Read 16 October 2026Warranty: CX-M Series (3rd GEN) power supplies have a 7-year warranty.
