PC parts / Power supplies
CORSAIRPower supply

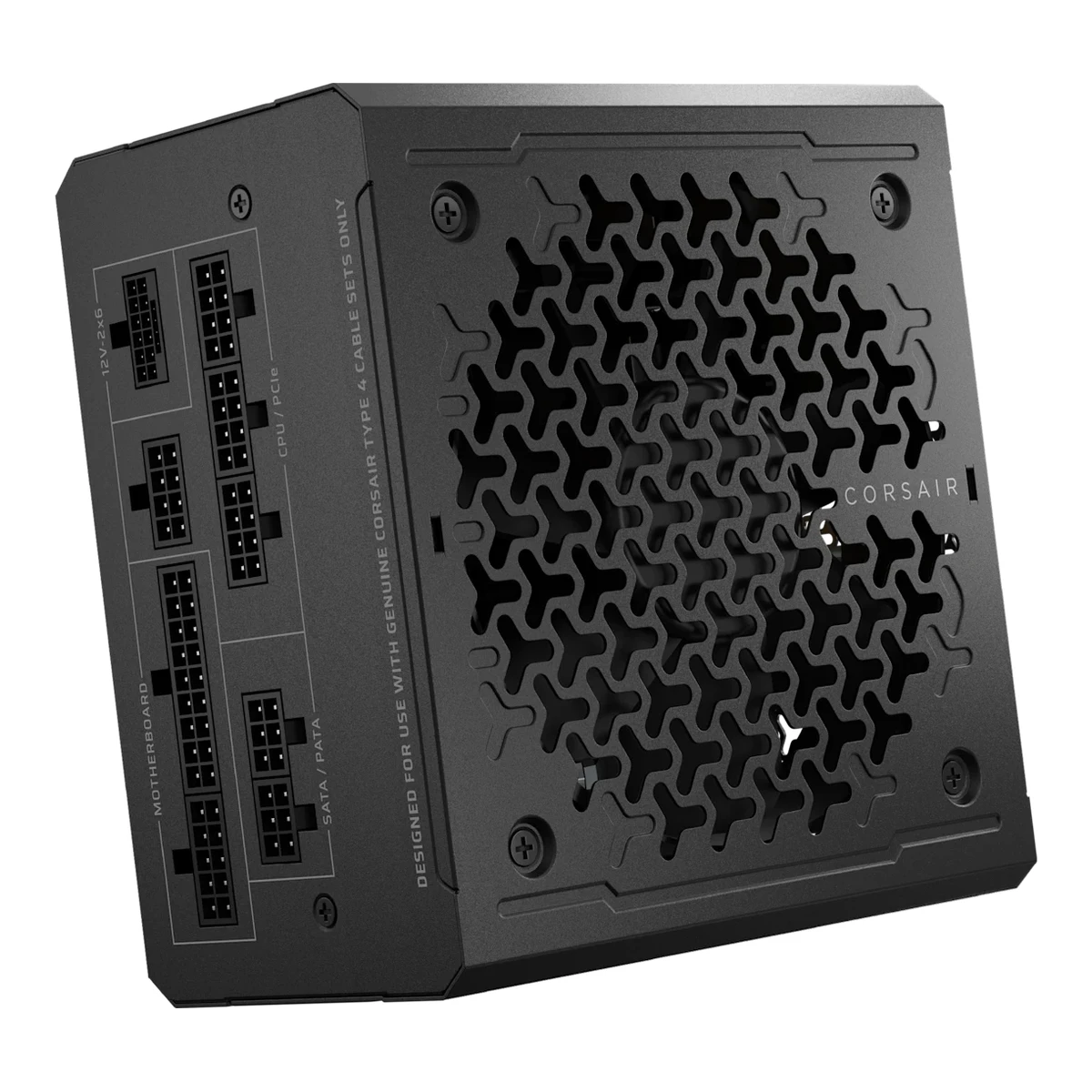

RM1000e (2025)
Released January 2025.6Reviewhwbusters.com/psus/corsair-rm1000e-atx-v3-1-psu-reviewRead 14 October 2026Review published January 15, 2025. KitGuru reviewed the unit on January 22, 2025. Cybenetics tested the unit on Oct 31, 2024. The Corsair US page of January 24, 2025 is marked New. Last checked 16 October 2026.
- Power
- 1,000W
- Efficiency
- Cybenetics Platinum
- Modular cables
- Fully modular
- ATX version
- ATX 3.1
52 of 66 fields known.
General
- Model numbers
- CP-9020297-NA, CP-9020294-NA, CP-9020297-EU1Maker product pagecorsair.com/us/en/p/psu/cp-9020297-na/rme-series-rm1000e-fully-modular-low-noise-atx-power-supply-cp-9020297-naRead 14 October 20262Maker product pagecorsair.com/us/en/p/psu/cp-9020294-na/rme-series-rm1000e-fully-modular-low-noise-atx-power-supply-white-cp-9020294-naRead 14 October 2026SKU CP-9020294-NA.8Retailer pagekomputronik.pl/product/957638/zasilacz-pc-corsair-rm1000e-2025-rme-series-cp-9020297-eu.htmlRead 14 October 2026CP-9020297-EU on the Komputronik and OX.ee listings.
- GTIN / EAN
- 8400066913278Retailer pagekomputronik.pl/product/957638/zasilacz-pc-corsair-rm1000e-2025-rme-series-cp-9020297-eu.htmlRead 14 October 2026Komputronik lists producer code CP-9020297-EU with EAN 840006691327. OX.ee lists the same code with EAN 0840006691327. This is the only GTIN found for the RMe 2025 RM1000e. The NA code was not found in a reliable listing.9Retailer pageox.ee/en/product/2885880Read 14 October 2026EAN 840006691327 (also printed as 0840006691327) for CP-9020297-EU.
- Announced
- Not available
- Predecessor
- Not available
- Successor
- Not available
- Launch price (US)
- $169.994Maker product pageweb.archive.org/web/20250124130712/https://www.corsair.com/us/en/p/psu/cp-9020297-na/rme-series-rm1000e-fully-modular-low-noise-atx-power-supply-cp-9020297-naRead 14 October 2026Archived copy of the Corsair US page from 2025-01-24, marked New, a few days after the reviews of January 15 and 22. It shows a price of 169.99 USD, excluding sales tax. Hardware Busters and Tom's Hardware print 170 USD. The page today shows 189.99 USD, which is a later price. The archived page shows the black SKU CP-9020297-NA. The white edition's launch price is not stated.6Reviewhwbusters.com/psus/corsair-rm1000e-atx-v3-1-psu-reviewRead 14 October 2026Technical specifications: MSRP (excluding VAT) 170 USD. Review published January 15, 2025.7Reviewtomshardware.com/pc-components/power-supplies/corsair-rm1000e-atx-3-1-power-supply-reviewRead 14 October 2026Review published 14 May 2025 says it was priced at 170 USD at the time of the review. Used only as support for the Corsair page figure.
- Launch price (EU)
- Not available
- Markets
- Not available
- Colours
- Black, White1Maker product pagecorsair.com/us/en/p/psu/cp-9020297-na/rme-series-rm1000e-fully-modular-low-noise-atx-power-supply-cp-9020297-naRead 14 October 20262Maker product pagecorsair.com/us/en/p/psu/cp-9020294-na/rme-series-rm1000e-fully-modular-low-noise-atx-power-supply-white-cp-9020294-naRead 14 October 2026The white edition has SKU CP-9020294-NA, the same Tech Specs and the same power table.
- Form factor
- ATX1Maker product pagecorsair.com/us/en/p/psu/cp-9020297-na/rme-series-rm1000e-fully-modular-low-noise-atx-power-supply-cp-9020297-naRead 14 October 20266Reviewhwbusters.com/psus/corsair-rm1000e-atx-v3-1-psu-reviewRead 14 October 2026Dimensions 150 x 85 x 140 mm (W x H x D). The back face is the ATX size.
- ATX version
- ATX 3.11Maker product pagecorsair.com/us/en/p/psu/cp-9020297-na/rme-series-rm1000e-fully-modular-low-noise-atx-power-supply-cp-9020297-naRead 14 October 2026
- PCIe CEM version
- PCIe 5.11Maker product pagecorsair.com/us/en/p/psu/cp-9020297-na/rme-series-rm1000e-fully-modular-low-noise-atx-power-supply-cp-9020297-naRead 14 October 2026Page says PCIe 5.1 compatible.
- Modular cables
- Fully modular1Maker product pagecorsair.com/us/en/p/psu/cp-9020297-na/rme-series-rm1000e-fully-modular-low-noise-atx-power-supply-cp-9020297-naRead 14 October 20265Measurementcybenetics.com/evaluations/psus/2624Read 14 October 2026DUT Information: Cable Design Fully Modular.
- Built by (OEM)
- HEC5Measurementcybenetics.com/evaluations/psus/2624Read 14 October 2026DUT Information: OEM/ODM HEC. Parts description: Manufacturer (OEM) HEC.7Reviewtomshardware.com/pc-components/power-supplies/corsair-rm1000e-atx-3-1-power-supply-reviewRead 14 October 2026Internal Design: HEC (Compucase) is the OEM.
Power
- Rated continuous power
- 1,000W1Maker product pagecorsair.com/us/en/p/psu/cp-9020297-na/rme-series-rm1000e-fully-modular-low-noise-atx-power-supply-cp-9020297-naRead 14 October 20265Measurementcybenetics.com/evaluations/psus/2624Read 14 October 2026Manufacturer-provided information: Rated Power 1000 W.
- Full power rated up to
- Not available
- 12V rail design
- Single rail6Reviewhwbusters.com/psus/corsair-rm1000e-atx-v3-1-psu-reviewRead 14 October 2026Technical specifications: Number of 12V rails 1.
- +12V max current
- 83.3A3Owner's manualcorsair.com/explorer/diy-builder/power-supply-units/corsair-rme-series-2025Read 14 October 2026RM1000e Specifications table: model RPS0217, SKU CP-9020297/CP-9020294, +12V 83.3A, 1000W. The black product page prints 62.5A, which is the RM750e figure. The white page prints 83.3A.5Measurementcybenetics.com/evaluations/psus/2624Read 14 October 2026Power specifications table: +12V 83.3 A, 1000 W.
- +12V max power
- 1,000W3Owner's manualcorsair.com/explorer/diy-builder/power-supply-units/corsair-rme-series-2025Read 14 October 2026RM1000e Specifications table: +12V 83.3A 1000W, total power 1000W.5Measurementcybenetics.com/evaluations/psus/2624Read 14 October 2026Power specifications table: +12V 1000 W, total 1000 W.
- +3.3V and +5V combined power
- 150W1Maker product pagecorsair.com/us/en/p/psu/cp-9020297-na/rme-series-rm1000e-fully-modular-low-noise-atx-power-supply-cp-9020297-naRead 14 October 2026Power table lists +3.3V 20A and +5V 20A with 150W combined. Cybenetics, Hardware Busters and Tom's Hardware also say 150W.5Measurementcybenetics.com/evaluations/psus/2624Read 14 October 2026Power specifications table: 3.3V and 5V 20 A each, 150 W combined.
- +5V standby current
- 3A1Maker product pagecorsair.com/us/en/p/psu/cp-9020297-na/rme-series-rm1000e-fully-modular-low-noise-atx-power-supply-cp-9020297-naRead 14 October 20265Measurementcybenetics.com/evaluations/psus/2624Read 14 October 2026Power specifications table: 5VSB 3 A, 15 W.
- AC input voltage
- Lowest100Highest240V1Maker product pagecorsair.com/us/en/p/psu/cp-9020297-na/rme-series-rm1000e-fully-modular-low-noise-atx-power-supply-cp-9020297-naRead 14 October 2026AC input 100-240V, 47-63Hz.5Measurementcybenetics.com/evaluations/psus/2624Read 14 October 2026Manufacturer-provided information: rated voltage 100-240 Vrms, 6-12 A, 47-63 Hz.
Certifications
- 80 PLUS rating
- Not available
- Cybenetics efficiency at 230V
- Cybenetics Platinum5Measurementcybenetics.com/evaluations/psus/2624Read 14 October 2026ETA Platinum at 230V (badge image).
- Cybenetics noise at 115V
- A-5Measurementcybenetics.com/evaluations/psus/2624Read 14 October 2026LAMBDA A- at 115V (badge image). The maker page also says Cybenetics Noise A-.
- Cybenetics noise at 230V
- A-5Measurementcybenetics.com/evaluations/psus/2624Read 14 October 2026LAMBDA A- at 230V (badge image).
Measured
- Average efficiency at 115V (measured)
- 89.483%5Measurementcybenetics.com/evaluations/psus/2624Read 14 October 2026Average over more than 1450 load combinations at 115V. Tested Oct 31, 2024 on sample serial A9DAF4420003AV. Ambient 28-32 C.
- Average efficiency at 230V (measured)
- 91.576%5Measurementcybenetics.com/evaluations/psus/2624Read 14 October 2026Average over more than 1450 load combinations at 230V.
- Light-load efficiency at 115V (measured)
- 70.962%5Measurementcybenetics.com/evaluations/psus/2624Read 14 October 2026Efficiency at 2% load (more than 500 W unit) at 115V.
- Average power factor at 115V (measured)
- 0.9755Measurementcybenetics.com/evaluations/psus/2624Read 14 October 2026Average over more than 1450 load combinations at 115V.
- Average noise at 115V (measured)
- 25.54dB(A)5Measurementcybenetics.com/evaluations/psus/2624Read 14 October 2026Average over more than 1450 load combinations at 115V. Ambient 28-32 C. Bruel and Kjaer 2270 G4 sound analyzer. The 230V average is 25.32 dBA.
- Noise at full load at 115V (measured)
- 46.7dB(A)5Measurementcybenetics.com/evaluations/psus/2624Read 14 October 2026Typical load tests at 115V, 100% load row: 46.7 dB(A) at 2094 rpm fan speed, ambient about 30 C.
- Standby power with no load at 115V (measured)
- 0.0481W5Measurementcybenetics.com/evaluations/psus/2624Read 14 October 2026Standby power consumption at 115V with no load on +5VSB.
- Hold-up time (measured)
- 16.4ms5Measurementcybenetics.com/evaluations/psus/2624Read 14 October 2026Hold-Up Time and PWR_OK Signal: hold-up time 16.4 ms, AC loss to PWR_OK 13.8 ms, at maximum continuous load. Report 2624.
- 12V ripple at full load (measured)
- 30.07mV5Measurementcybenetics.com/evaluations/psus/2624Read 14 October 2026Non-accredited measurement. 12V ripple at full load at 115V. At 230V it is 31.31 mV.
Cables and connectors
- Cables
Connector Connectors Cables Length to first plug (mm) Wire gauge Rated power (W) ATX 24-pin (20+4) 1 1 610 16-20AWG Not available CPU 8-pin (EPS, 4+4) 2 2 750 18AWG Not available PCIe 8-pin (6+2) 4 3 650 16-18AWG Not available 12V-2x6 1 1 650 16AWG 600 SATA power 6 2 450 18AWG Not available 4-pin Molex 2 1 450 18AWG Not available Source1Maker product pagecorsair.com/us/en/p/psu/cp-9020297-na/rme-series-rm1000e-fully-modular-low-noise-atx-power-supply-cp-9020297-naRead 14 October 2026Cable listing table: lengths 610 mm (24-pin), 750 mm (EPS), 650 mm (12V-2x6, 12V-2x6 to dual 8-pin, PCIe 8-pin), SATA 450 mm to the first plug then 100 mm spacing. Tolerance 10 mm. PCIe 8-pin is 2 single cables plus 1 cable with two 8-pin plugs (the 12V-2x6 to dual 8-pin cable), so 4 plugs on 3 cables. The SATA row covers a 4-plug SATA cable and a 2 SATA and 2 PATA cable. The two 4-pin plugs sit on the SATA and PATA cable, so the molex row takes that cable's 450 mm to its first plug. Hardware Busters and Cybenetics list the same cables. Tom's Hardware lists 3 PCIe 8-pin, 8 SATA and 3 Molex, which does not match Corsair or Cybenetics and is not used. The dual 8-pin cable and the native 12V-2x6 cable are separate cables in the box. Whether both can be used at once is not stated.5Measurementcybenetics.com/evaluations/psus/2624Read 14 October 2026Cables and Connectors table gives wire gauge per cable: ATX 16-20AWG, EPS 18AWG, 6+2 PCIe 16AWG, 2 x 6+2 PCIe 16-18AWG, 12+2 pin PCIe (600W) 16-24AWG, SATA and Molex 18AWG. The 16-24AWG range for the 12V-2x6 cable includes the thin sideband wires, so the 16AWG power wire gauge is stored. The report lists lengths of 600 mm, 740 mm and 640 mm, which are mostly 10 mm shorter than Corsair's figures (the 12+2 pin cable is 650 mm in both). Corsair's lengths are stored.6Reviewhwbusters.com/psus/corsair-rm1000e-atx-v3-1-psu-reviewRead 14 October 2026Technical specifications: 2x EPS (2 cables), 4x PCIe 6+2 pin (3 cables), 1x PCIe 12+2 pin (600W), 6x SATA (2 cables), 2x 4-pin Molex (1 cable). Product photos page: nine sockets at the back, including a 12V-2x6.- CPU (EPS) connectors
- 2
- PCIe 8-pin connectors
- 4
- 16-pin GPU connectors
- 1
- SATA power connectors
- 6
- 4-pin Molex connectors
- 2
- Cable style
- Embossed or debossed flat1Maker product pagecorsair.com/us/en/p/psu/cp-9020297-na/rme-series-rm1000e-fully-modular-low-noise-atx-power-supply-cp-9020297-naRead 14 October 2026Page lists ultra-flexible embossed cables. The cable listing says Debossed for every cable. Tom's Hardware calls them individually sleeved, which Corsair does not.
Fan
- Fan size
- 120mm1Maker product pagecorsair.com/us/en/p/psu/cp-9020297-na/rme-series-rm1000e-fully-modular-low-noise-atx-power-supply-cp-9020297-naRead 14 October 20265Measurementcybenetics.com/evaluations/psus/2624Read 14 October 2026Cooling: 120mm Rifle Bearing Fan.
- Fan bearing
- Rifle1Maker product pagecorsair.com/us/en/p/psu/cp-9020297-na/rme-series-rm1000e-fully-modular-low-noise-atx-power-supply-cp-9020297-naRead 14 October 2026Page says 120mm rifle bearing fan. Cybenetics names it Hong Hua HA1225H12SF-Z.5Measurementcybenetics.com/evaluations/psus/2624Read 14 October 2026Cooling: 120mm Rifle Bearing Fan (HA1225H12SF-Z).
- Fan mode
- Semi-passive1Maker product pagecorsair.com/us/en/p/psu/cp-9020297-na/rme-series-rm1000e-fully-modular-low-noise-atx-power-supply-cp-9020297-naRead 14 October 2026Tech Specs tab: Zero RPM Mode Yes.5Measurementcybenetics.com/evaluations/psus/2624Read 14 October 2026DUT Information: Semi-Passive Operation checked.
Protection and parts
- Protections
- Over-current (OCP), Over-voltage (OVP), Under-voltage (UVP), Over-power (OPP), Over-temperature (OTP), Short-circuit (SCP), No-load (NLO), Surge and inrush (SIP)3Owner's manualcorsair.com/explorer/diy-builder/power-supply-units/corsair-rme-series-2025Read 14 October 2026Safety and Protection section lists OVP, UVP, OCP, OTP, SCP and OPP. NLO and SIP come from the Cybenetics report.5Measurementcybenetics.com/evaluations/psus/2624Read 14 October 2026Protection Features (Manufacturer) lists OPP, +12V OCP, OTP, SCP, surge protection and inrush current protection. The protection tests tick NLO. Fan failure protection is not ticked.
- All-Japanese capacitors
- Not available
Monitoring and lighting
We could not find any of these 4 fields. Show them
- Software monitoring
- Not available
- Software
- Not available
- Built-in power display
- Not available
- RGB lighting
- Not available
Dimensions and weight
Front and side, drawn to scale.
- Dimensions
- Width150Height86Depth140mm(5.9 × 3.4 × 5.5 in)1Maker product pagecorsair.com/us/en/p/psu/cp-9020297-na/rme-series-rm1000e-fully-modular-low-noise-atx-power-supply-cp-9020297-naRead 14 October 2026Tech Specs tab: 140x150x86. The quick start guide gives 140 mm (L) x 150 mm (W) x 86 mm (H). Depth is 140 mm and the back face is 150 x 86 mm.3Owner's manualcorsair.com/explorer/diy-builder/power-supply-units/corsair-rme-series-2025Read 14 October 2026RM1000e Specifications: 140mm (L) x 150mm (W) x 86mm (H).
In the box
- In the box
- Power Supply, AC Cable, DC Cables, Cable Ties, Mounting Screws, Safety Leaflet3Owner's manualcorsair.com/explorer/diy-builder/power-supply-units/corsair-rme-series-2025Read 14 October 2026RM1000e Specifications, Package Contents.
Links
- Product page
- www.corsair.com/us/en/p/psu/cp-9020297-na/rme-series-rm1000e-fully-modular-low-noise-atx-power-supply-cp-9020297-na1Maker product pagecorsair.com/us/en/p/psu/cp-9020297-na/rme-series-rm1000e-fully-modular-low-noise-atx-power-supply-cp-9020297-naRead 14 October 2026
- Spec sheet
- Not available
- Manual
- www.corsair.com/explorer/diy-builder/power-supply-units/corsair-rme-series-20253Owner's manualcorsair.com/explorer/diy-builder/power-supply-units/corsair-rme-series-2025Read 14 October 2026
- EPREL registration number
- Not available
Warranty
Compare with
Pick a power supply to see both side by side. Differences are marked yellow.
Variants
Each variant lists only what differs from the specs above.
| Model number | GTIN | Launch price (US) | Markets | Colours |
|---|---|---|---|---|
| CP-9020297-NA | Not available | $169.99 | Not available | Black |
| CP-9020294-NA | Not available | Not available | Not available | White |
| CP-9020297-EU | 840006691327 | Not available | EU | Not available |
Sources
We read 9 sources for this power supply. The numbers match the markers in the sheet.
- Measurementcybenetics.com/evaluations/psus/2624
- Retailer pageox.ee/en/product/2885880
See a wrong value? Tell us and name the field.
