PC parts / Power supplies

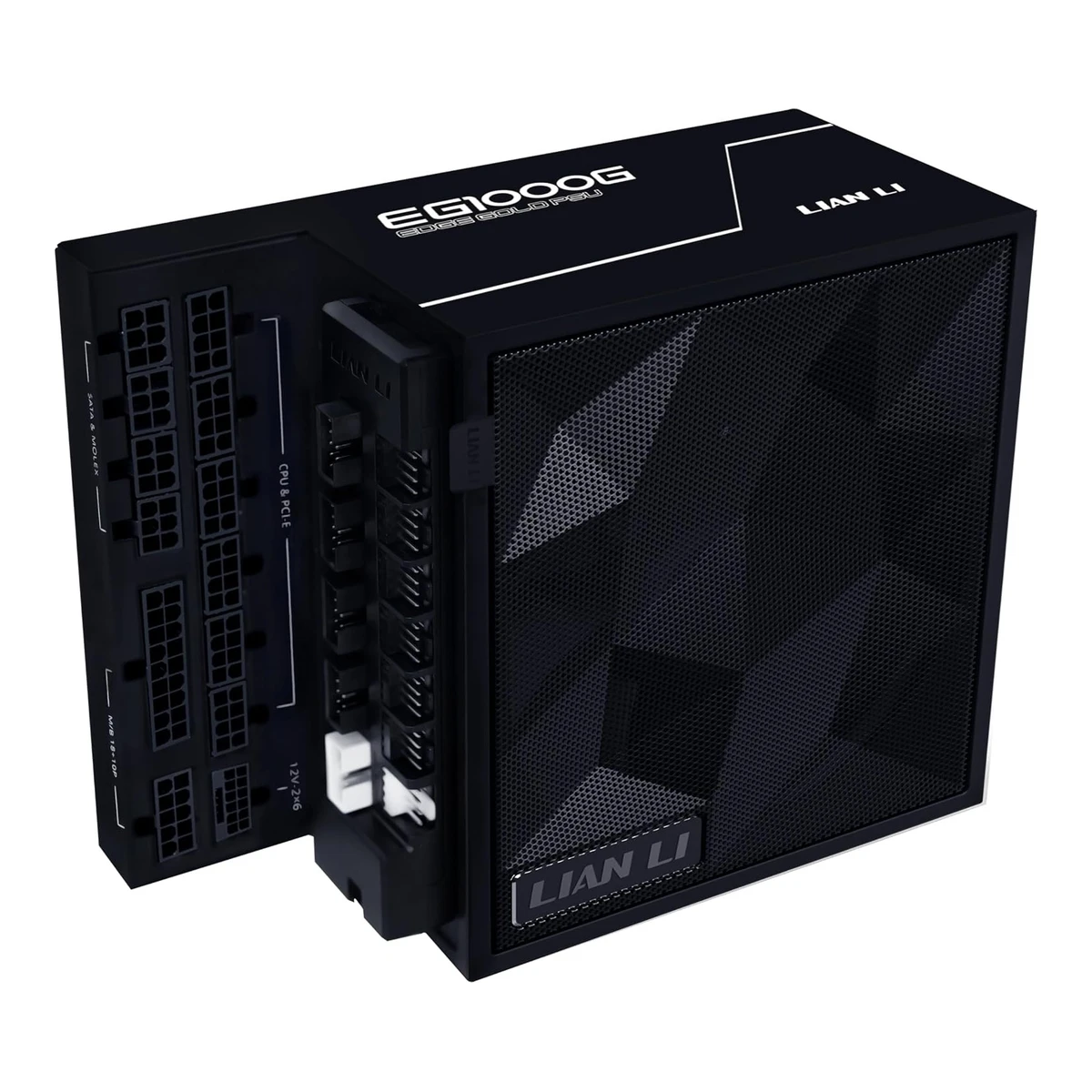

Lian LiPower supply
EDGE Gold 1000W
Released January 2025.2Press articletheoverclocker.comRead 14 October 2026The LIAN LI EDGE GOLD PSUs are available starting January 3rd, 2025. Caseking and Overclockers UK follow on February 3rd, 2025. The page shows no article date. Last checked 16 October 2026.
- Power
- 1,000W
- Efficiency
- 80 PLUS Gold
- Modular cables
- Fully modular
- ATX version
- ATX 3.1
50 of 66 fields known.
At a glance
PCIe 8-pin connectors
5
Higher than 84% of other power supplies.
SATA power connectors
12
Higher than 84% of other power supplies.
General
- Series
- EDGE Gold1Maker product pagelian-li.com/product/edge-goldRead 14 October 2026Page title EDGE GOLD, product name EDGE GOLD 1000.
- Model numbers
- EG1000G, EG1000G.BH, EG1000G.WH1Maker product pagelian-li.com/product/edge-goldRead 14 October 2026Specifications table: model EG1000G for EDGE GOLD 1000. The US Amazon listings give EG1000G.BH (black) and EG1000G.WH (white).6Retailer pageamazon.com/dp/B0DN16HS1LRead 14 October 2026Model Number EG1000G.BH. The white listing title reads EG1000G.WH.
- GTIN / EAN
- Not available
- Announced
- Not available
- Predecessor
- Not available
- Successor
- Not available
- Launch price (US)
- $154.992Press articletheoverclocker.comRead 14 October 2026MSRP table: 1000W $154.99 in black and in white, US price. The hub is included.
- Launch price (EU)
- Not available
- Markets
- Not available
- Colours
- Black, White1Maker product pagelian-li.com/product/edge-goldRead 14 October 2026Specifications table: Color Black / White for 1000W.
- Form factor
- ATX1Maker product pagelian-li.com/product/edge-goldRead 14 October 2026The back face is 150 x 86 mm, the ATX size. The maker calls the form factor ATX 3.1 and Cybenetics lists type ATX12V.3Measurementcybenetics.com/evaluations/psus/2688Read 14 October 2026DUT Information: Type ATX12V.
- ATX version
- ATX 3.11Maker product pagelian-li.com/product/edge-goldRead 14 October 2026Specifications table: Form factor ATX 3.1. Page badges: ATX 3.1, PCIE5.1.
- PCIe CEM version
- PCIe 5.11Maker product pagelian-li.com/product/edge-goldRead 14 October 2026Page badge: PCIE5.1. The text says PCIe 5.1 ready.
- Modular cables
- Fully modular1Maker product pagelian-li.com/product/edge-goldRead 14 October 2026Specifications table: Power supply design Fully modular.3Measurementcybenetics.com/evaluations/psus/2688Read 14 October 2026DUT Information: Cable Design Fully Modular.
- Built by (OEM)
- Helly Technology3Measurementcybenetics.com/evaluations/psus/2688Read 14 October 2026DUT Information: OEM/ODM Helly Technology. Parts Description: Manufacturer (OEM) Helly Technology.5Reviewhwbusters.com/psus/lian-li-eg1000g-atx-v3-1-psu-reviewRead 14 October 2026Manufacturer (OEM): Helly. Review dated January 12, 2025.
Power
- Rated continuous power
- 1,000W1Maker product pagelian-li.com/product/edge-goldRead 14 October 2026Specifications table: Max. DC output 1000W.3Measurementcybenetics.com/evaluations/psus/2688Read 14 October 2026Manufacturer-provided information: Rated Power 1000 W.
- Full power rated up to
- 40°C1Maker product pagelian-li.com/product/edge-goldRead 14 October 2026Page does not state it. The launch table and Hardware Busters give 40 C.2Press articletheoverclocker.comRead 14 October 2026Specification table: Working Temperature 40 Celsius.5Reviewhwbusters.com/psus/lian-li-eg1000g-atx-v3-1-psu-reviewRead 14 October 2026Technical specifications: Operating Temperature (Continuous Full Load) 0 - 40 C.
- 12V rail design
- Single rail3Measurementcybenetics.com/evaluations/psus/2688Read 14 October 2026Power Specifications: one +12V column with 83 A and 996 W, and one OCP result for 12V.5Reviewhwbusters.com/psus/lian-li-eg1000g-atx-v3-1-psu-reviewRead 14 October 2026Technical specifications: Number of 12V rails 1.
- +12V max current
- 83A3Measurementcybenetics.com/evaluations/psus/2688Read 14 October 2026Power Specifications table: +12V 83 A, 996 W. The maker table prints only the 996 W.
- +12V max power
- 996W1Maker product pagelian-li.com/product/edge-goldRead 14 October 2026Specifications table: Combined +12V 996W for the 1000W model.3Measurementcybenetics.com/evaluations/psus/2688Read 14 October 2026Power Specifications table: +12V 996 W.
- +3.3V and +5V combined power
- 120W1Maker product pagelian-li.com/product/edge-goldRead 14 October 2026Specifications table: Combined +3.3V and +5V 120W.3Measurementcybenetics.com/evaluations/psus/2688Read 14 October 2026Power Specifications table: one merged 120 W cell for 3.3V and 5V, 20 A each.
- +5V standby current
- 3A3Measurementcybenetics.com/evaluations/psus/2688Read 14 October 2026Power Specifications table: 5VSB 3 A, 15 W.
- AC input voltage
- Lowest100Highest240V1Maker product pagelian-li.com/product/edge-goldRead 14 October 2026Specifications table: Input voltage 100-240Vac, 12-6A, 50-60Hz.3Measurementcybenetics.com/evaluations/psus/2688Read 14 October 2026Manufacturer-provided information: 100-240 Vrms, 12-6 A, 50-60 Hz.
- Alternative low power mode (ALPM)
- Yes3Measurementcybenetics.com/evaluations/psus/2688Read 14 October 2026Temperature and Compliance Info: ALPM compatible, checked.
Certifications
- Cybenetics efficiency at 115V
- Cybenetics Platinum3Measurementcybenetics.com/evaluations/psus/2688Read 14 October 2026Report 24PS2688A, certification ID 252688, issued Dec 23, 2024. The database name is Lian Li EG1000G. The badge is ETA Platinum at 115V. The sample serial is G9PEG1000GBY2446000002. Lian Li states Cybenetics Platinum for the EG1000G and EG1200G, and Cybenetics Gold for the 750W and 850W.
- Cybenetics efficiency at 230V
- Cybenetics Platinum3Measurementcybenetics.com/evaluations/psus/2688Read 14 October 2026ETA Platinum at 230V.
- Cybenetics noise at 115V
- A+3Measurementcybenetics.com/evaluations/psus/2688Read 14 October 2026LAMBDA A+ at 115V.
- Cybenetics noise at 230V
- A+3Measurementcybenetics.com/evaluations/psus/2688Read 14 October 2026LAMBDA A+ at 230V.
Measured
- Average efficiency at 115V (measured)
- 89.305%3Measurementcybenetics.com/evaluations/psus/2688Read 14 October 2026Average over more than 1450 load combinations at 115V. Tested Dec 20, 2024, ambient 28-32 C, sample received Dec 9, 2024.
- Average efficiency at 230V (measured)
- 91.673%3Measurementcybenetics.com/evaluations/psus/2688Read 14 October 2026Average over more than 1450 load combinations at 230V.
- Light-load efficiency at 115V (measured)
- 74.138%3Measurementcybenetics.com/evaluations/psus/2688Read 14 October 2026Efficiency at 2% load (more than 500 W unit) at 115V.
- Average power factor at 115V (measured)
- 0.993Measurementcybenetics.com/evaluations/psus/2688Read 14 October 2026Average over more than 1450 load combinations at 115V. At 230V it is 0.968.
- Average noise at 115V (measured)
- 18.96dB(A)3Measurementcybenetics.com/evaluations/psus/2688Read 14 October 2026Average over more than 1450 load combinations at 115V, ambient 28-32 C, Bruel and Kjaer 2270 G4 sound analyzer. The 230V average is 19.48 dBA.
- Noise at full load at 115V (measured)
- 37.1dB(A)3Measurementcybenetics.com/evaluations/psus/2688Read 14 October 2026Typical load tests at 115V, 100% load row: 37.1 dB(A) at 1744 rpm fan speed, ambient about 30 C.
- Standby power with no load at 115V (measured)
- 0.0604W3Measurementcybenetics.com/evaluations/psus/2688Read 14 October 2026Standby power consumption at 115V with no load on +5VSB: 0.0604 W. At 230V it is 0.0944 W.
- Hold-up time (measured)
- 20.1ms3Measurementcybenetics.com/evaluations/psus/2688Read 14 October 2026Hold-Up Time and PWR_OK Signal: hold-up time 20.1 ms, AC loss to PWR_OK 17.1 ms, at maximum continuous load.
- 12V ripple at full load (measured)
- 34.83mV3Measurementcybenetics.com/evaluations/psus/2688Read 14 October 2026Non-accredited. 12V ripple at full load at 115V. At 230V it is 36.54 mV.
- 12V load regulation (measured)
- 0.13%3Measurementcybenetics.com/evaluations/psus/2688Read 14 October 2026Non-accredited. 12V load regulation at 115V. At 230V it is 0.14%.
Cables and connectors
- Cables
Connector Connectors Cables Length to first plug (mm) Wire gauge Rated power (W) ATX 24-pin (20+4) 1 1 620 16-22AWG Not available CPU 8-pin (EPS, 4+4) 2 2 750 18AWG Not available PCIe 8-pin (6+2) 5 4 650 18AWG Not available 12V-2x6 1 1 650 16AWG 600 SATA power 4 1 300 18AWG Not available SATA power 4 1 375 18AWG Not available SATA power 4 1 400 18AWG Not available 4-pin Molex 4 1 500 18AWG Not available Source1Maker product pagelian-li.com/product/edge-goldRead 14 October 2026Specifications table, 1000W column: 24/20-pin 620 mm, 8/4+4 pin CPU 750 mm, 4+4 pin CPU 750 mm, one 6+2 pin cable 650 mm+100 mm, SATA cables 300 mm and 400 mm with 4 plugs each, a Y-type SATA cable 375 mm with 4 plugs, 4 Molex plugs 500 mm, 12V-2X6 600W 650 mm. The table leaves out the three single 6+2 pin PCIe cables of 650 mm that the Overclocker launch table and the Cybenetics report list. Lengths run to the first plug. Wire gauges come from the Cybenetics report.2Press articletheoverclocker.comRead 14 October 2026Table for the 1000W: 20+4 pin 1, CPU 8 pin 1, CPU 4+4 pin 1, GPU 6+2 pin 3, GPU 6+2 pin (650+100) 1, 12V-2X6 (600W) 1, SATA extender 1, SATA-Y 1, SATA 1, PATA 1.3Measurementcybenetics.com/evaluations/psus/2688Read 14 October 2026Cables and Connectors table: ATX 20+4 pin 625 mm 16-22AWG, 4+4 pin and 8 pin EPS 745 mm 18AWG, 3 single 6+2 pin PCIe 650 mm and one 6+2 pin PCIe cable with two plugs (650 mm then 100 mm) 18AWG, 12+4 pin PCIe 650 mm (600W) 16-26AWG, SATA 305 mm with 4 plugs, SATA 405 mm with 4 plugs, 2 SATA cables of 380 mm with 4 plugs in total, one Molex cable of 510 mm with 4 plugs, all 18AWG. The 16-26AWG range of the 12V-2x6 cable includes the thin sideband wires, so the stored gauge is the 16AWG power wire. Hardware Busters says the PSU has one 12V-2x6 socket and the second 12V-2x6 cable ends in two 8-pin plugs, which matches the 650+100 mm PCIe cable. That cable shares the socket and cannot be used together with the native 12V-2x6 cable. Cybenetics counts the Y-type SATA cable as 2 cables, while the maker lists 1 Y-type cable, so 1 cable is stored.- CPU (EPS) connectors
- 2
- PCIe 8-pin connectors
- 5
- 16-pin GPU connectors
- 1
- SATA power connectors
- 12
- 4-pin Molex connectors
- 4
Fan
- Fan size
- 120mm1Maker product pagelian-li.com/product/edge-goldRead 14 October 2026Specifications table: Fan type 120mm FDB Fan.3Measurementcybenetics.com/evaluations/psus/2688Read 14 October 2026Fan Hong Hua HA1225M12F-Z, 120 mm.
- Fan bearing
- Fluid dynamic (FDB)1Maker product pagelian-li.com/product/edge-goldRead 14 October 2026Specifications table: Fan type 120mm FDB Fan.3Measurementcybenetics.com/evaluations/psus/2688Read 14 October 2026Fan Hong Hua HA1225M12F-Z, 120 mm, 12V 0.40A, Fluid Dynamic Bearing.
- Fan mode
- Semi-passive1Maker product pagelian-li.com/product/edge-goldRead 14 October 2026Page note: the fan features a fanless mode, remaining at zero RPM during low loads.3Measurementcybenetics.com/evaluations/psus/2688Read 14 October 2026DUT Information: Semi-Passive Operation checked. The typical load tests show 0 rpm at 10% load.
- Fan mode switch
- Not available
Protection and parts
- Protections
- Over-current (OCP), Over-voltage (OVP), Under-voltage (UVP), Over-power (OPP), Over-temperature (OTP), Short-circuit (SCP), No-load (NLO), Surge and inrush (SIP)1Maker product pagelian-li.com/product/edge-goldRead 14 October 2026Page text lists OCP, OVP, SCP, OPP, UVP, OTP, SIP, NLO and an inrush current limiter. The table row lists OCP/OVP/OTP/OPP/SCP/UVP.3Measurementcybenetics.com/evaluations/psus/2688Read 14 October 2026Protection Features (Manufacturer) lists OPP, +12V OCP, OTP, SCP, surge and inrush current protection. Protection tests tick NLO and SIP. The report has no UVP row, so UVP and OVP come from the maker.
- All-Japanese capacitors
- Not available
- MTBF (claimed)
- Not available
Monitoring and lighting
We could not find any of these 4 fields. Show them
- Software monitoring
- Not available
- Software
- Not available
- Built-in power display
- Not available
- RGB lighting
- Not available
Dimensions and weight
Front and side, drawn to scale.
- Dimensions
- Width150Height86Depth182mm(5.9 × 3.4 × 7.2 in)1Maker product pagelian-li.com/product/edge-goldRead 14 October 2026Specifications table: (D) 182 mm x (W) 86 mm x (H) 150 mm. The maker names the 150 mm side height and the 86 mm side width. The stored width and height follow the ATX back face of 150 x 86 mm and the depth is 182 mm. Amazon lists 7.17 x 3.39 x 5.91 inches, which is the same size.5Reviewhwbusters.com/psus/lian-li-eg1000g-atx-v3-1-psu-reviewRead 14 October 2026Technical specifications: 150 x 85 x 180 mm (W x H x D). The maker and Amazon give 86 mm and 182 mm, which are used.6Retailer pageamazon.com/dp/B0DN16HS1LRead 14 October 2026Item dimensions L x W x H 7.17 x 3.39 x 5.91 inches, which is 182 x 86 x 150 mm. The listing copy says Cybenetics Gold, which is the 750W and 850W rating, not the EG1000G rating.
In the box
- In the box
- EDGE Hub, USB-USB cable, USB-Type A cable, Fan3Px3P cable, Cable combs, AC power cord2Press articletheoverclocker.comRead 14 October 2026Included cables table for the 1000W: 15 cables including USB-USB, USB-Type A and Fan3Px3P. The hub comes with a fan PWM sync cable, an internal USB to USB header cable and a USB header to Type-A cable. Combs are pre-installed on the 20+4 pin, CPU, PCIe 6+2 pin and 12V-2x6 cables, with extra combs provided. The AC cord is listed by Cybenetics.
Links
- Product page
- lian-li.com/product/edge-gold1Maker product pagelian-li.com/product/edge-goldRead 14 October 2026
- Spec sheet
- Not available
- Manual
- Not available
- EPREL registration number
- Not available
Warranty
Compare with
Pick a power supply to see both side by side. Differences are marked yellow.
Variants
Each variant lists only what differs from the specs above.
| Model number | Colours |
|---|---|
| EG1000G.BH | Black |
| EG1000G.WH | White |
