PC parts / Power supplies
CORSAIRPower supply

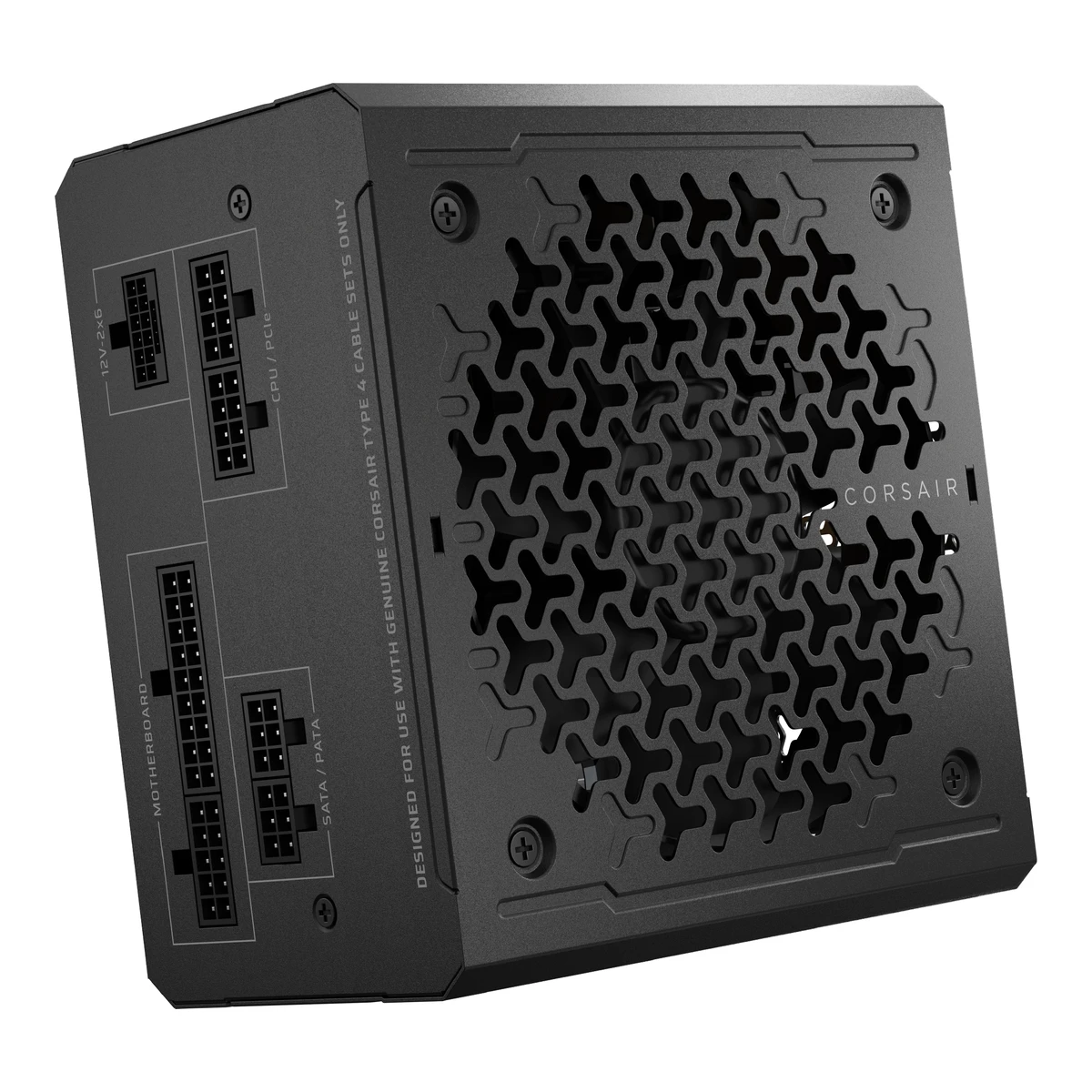

RM650e (2025)
Released January 2025.4Maker product pageweb.archive.org/web/20250110183955/https://www.corsair.com/us/en/p/psu/cp-9020302-na/rme-series-rm650e-fully-modular-low-noise-atx-power-supply-cp-9020302-naRead 16 October 2026The Corsair US page existed with a price by 2025-01-10. The Cybenetics report was issued on Nov 4, 2024 and Hardware Busters published its review on February 1, 2025. The 850 W and 1000 W RMe units of the same line are dated January 2025. Last checked 16 October 2026.
- Power
- 650W
- Efficiency
- Cybenetics Platinum
- Modular cables
- Fully modular
- ATX version
- ATX 3.1
52 of 66 fields known.
At a glance
Average noise
Lower than 87% of other power supplies. Lower is better.
General
- Model numbers
- CP-9020302-NA, CP-9020302-EU, CP-9020302-UK1Maker product pagecorsair.com/us/en/p/psu/cp-9020302-na/rme-series-rm650e-fully-modular-low-noise-atx-power-supply-cp-9020302-naRead 16 October 2026SKU CP-9020302-NA. The power table lists model RPS0223 and part number 75-006581.2Maker product pagecorsair.com/eu/en/p/psu/cp-9020302-eu/rme-series-rm650e-fully-modular-low-noise-atx-power-supply-cp-9020302-euRead 16 October 2026SKU CP-9020302-EU on the Corsair EU store. The UK store lists SKU CP-9020302-UK. The page shows a current price of 84.90 EUR, which is not a launch price.3Owner's manualcorsair.com/explorer/diy-builder/power-supply-units/corsair-rme-series-2025Read 16 October 2026RM650e table: Corsair SKU No. CP-9020302.7Retailer pageshop.prog-it.net/corsair-psu-rm650e-650w-80/cat-p/c/p1005498312Read 16 October 2026Product code CP-9020302-EU.
- Announced
- Not available
- Predecessor
- Not available
- Successor
- Not available
- Launch price (EU)
- Not available
- Markets
- Not available
- Colours
- Black8Retailer pageldlc.pro/fr-ch/fiche/PB00672682.htmlRead 16 October 2026Couleur: Noir (colour: black).
- Form factor
- ATX1Maker product pagecorsair.com/us/en/p/psu/cp-9020302-na/rme-series-rm650e-fully-modular-low-noise-atx-power-supply-cp-9020302-naRead 16 October 2026Tech Specs tab: Dimensions 140x150x86. The back face is 150 x 86 mm, the ATX size.5Measurementcybenetics.com/evaluations/psus/2628Read 16 October 2026DUT Information: Type ATX12V.
- Modular cables
- Fully modular1Maker product pagecorsair.com/us/en/p/psu/cp-9020302-na/rme-series-rm650e-fully-modular-low-noise-atx-power-supply-cp-9020302-naRead 16 October 2026Tech Specs tab: Modular Fully.5Measurementcybenetics.com/evaluations/psus/2628Read 16 October 2026DUT Information: Cable Design Fully Modular.
Power
- Rated continuous power
- 650W1Maker product pagecorsair.com/us/en/p/psu/cp-9020302-na/rme-series-rm650e-fully-modular-low-noise-atx-power-supply-cp-9020302-naRead 16 October 2026Tech Specs tab: Continuous Power 650 Watts.3Owner's manualcorsair.com/explorer/diy-builder/power-supply-units/corsair-rme-series-2025Read 16 October 2026RM650e Specifications: Total Power 650W.
- Full power rated up to
- Not available
- 12V rail design
- Single rail6Reviewhwbusters.com/psus/corsair-rm650e-atx-v3-1-psu-reviewRead 16 October 2026Technical specifications: Number of 12V rails 1.
- +12V max current
- 54.2A1Maker product pagecorsair.com/us/en/p/psu/cp-9020302-na/rme-series-rm650e-fully-modular-low-noise-atx-power-supply-cp-9020302-naRead 16 October 2026RM650e power table: +12V 54.2A, 650W.3Owner's manualcorsair.com/explorer/diy-builder/power-supply-units/corsair-rme-series-2025Read 16 October 2026RM650e table: +12V 54.2A, 650W, model RPS0223. The RM650e figures differ from the 750 W figures in the same guide.5Measurementcybenetics.com/evaluations/psus/2628Read 16 October 2026Power specifications table: +12V 54.2 A, 650 W.
- +12V max power
- 650W1Maker product pagecorsair.com/us/en/p/psu/cp-9020302-na/rme-series-rm650e-fully-modular-low-noise-atx-power-supply-cp-9020302-naRead 16 October 2026RM650e power table: +12V 54.2A, 650W.3Owner's manualcorsair.com/explorer/diy-builder/power-supply-units/corsair-rme-series-2025Read 16 October 2026RM650e table: +12V 54.2A, 650W.5Measurementcybenetics.com/evaluations/psus/2628Read 16 October 2026Power specifications table: +12V 650 W.
- +3.3V and +5V combined power
- 110W1Maker product pagecorsair.com/us/en/p/psu/cp-9020302-na/rme-series-rm650e-fully-modular-low-noise-atx-power-supply-cp-9020302-naRead 16 October 2026RM650e power table: +3.3V 20A and +5V 20A with one 110W cell.3Owner's manualcorsair.com/explorer/diy-builder/power-supply-units/corsair-rme-series-2025Read 16 October 2026RM650e table: +5V 20A and +3.3V 20A with one 110W cell.5Measurementcybenetics.com/evaluations/psus/2628Read 16 October 2026Power specifications table: one 110 W cell for 3.3V and 5V, with 20 A each.
- +5V standby current
- 3A1Maker product pagecorsair.com/us/en/p/psu/cp-9020302-na/rme-series-rm650e-fully-modular-low-noise-atx-power-supply-cp-9020302-naRead 16 October 2026RM650e power table: +5VSB 3A, 15W.3Owner's manualcorsair.com/explorer/diy-builder/power-supply-units/corsair-rme-series-2025Read 16 October 2026RM650e table: +5Vsb 3A, 15W.5Measurementcybenetics.com/evaluations/psus/2628Read 16 October 2026Power specifications table: 5VSB 3 A, 15 W.
- AC input voltage
- Lowest100Highest240V1Maker product pagecorsair.com/us/en/p/psu/cp-9020302-na/rme-series-rm650e-fully-modular-low-noise-atx-power-supply-cp-9020302-naRead 16 October 2026AC input 100-240V, input current 10A - 5A, frequency 47~63Hz.3Owner's manualcorsair.com/explorer/diy-builder/power-supply-units/corsair-rme-series-2025Read 16 October 2026AC Input 100V a.c.-240V a.c., input current 10A-5A, 47~63Hz.5Measurementcybenetics.com/evaluations/psus/2628Read 16 October 2026Manufacturer-provided information: rated voltage 100-240 Vrms, 5-10 A, 47-63 Hz.
Certifications
- 80 PLUS rating
- Not available
- Cybenetics efficiency at 115V
- Cybenetics Platinum5Measurementcybenetics.com/evaluations/psus/2628Read 16 October 2026Report 24PS2628A, certification ID 252628, issued Nov 4, 2024, for model RM650e (ATX v3.1). ETA Platinum at 115V (badge image 16, Platinum). Corsair's page now claims Cybenetics Gold, while its page of January 2025 said Platinum. The report level is stored.
- Cybenetics efficiency at 230V
- Cybenetics Platinum5Measurementcybenetics.com/evaluations/psus/2628Read 16 October 2026ETA Platinum at 230V (badge image 28, Platinum 230v).
Measured
- Average efficiency at 115V (measured)
- 89.07%5Measurementcybenetics.com/evaluations/psus/2628Read 16 October 2026Average over more than 1450 load combinations at 115V. Received Oct 22, 2024, tested Nov 2, 2024 on sample serial A9UNF442000242. Ambient 28-32 C.
- Average efficiency at 230V (measured)
- 91.226%5Measurementcybenetics.com/evaluations/psus/2628Read 16 October 2026Average over more than 1450 load combinations at 230V.
- Light-load efficiency at 115V (measured)
- 62.614%5Measurementcybenetics.com/evaluations/psus/2628Read 16 October 2026Efficiency at 2% load (more than 500 W unit) at 115V. The 230V cell is empty in the report.
- Average power factor at 115V (measured)
- 0.9895Measurementcybenetics.com/evaluations/psus/2628Read 16 October 2026Average over more than 1450 load combinations at 115V. At 230V it is 0.962.
- Average noise at 115V (measured)
- 12.58dB(A)5Measurementcybenetics.com/evaluations/psus/2628Read 16 October 2026Average over more than 1450 load combinations at 115V, ambient 28-32 C, Bruel and Kjaer 2270 G4 sound analyzer. The 230V average is 12.63 dBA.
- Noise at full load at 115V (measured)
- 30.1dB(A)5Measurementcybenetics.com/evaluations/psus/2628Read 16 October 2026Typical load tests at 115V, 100% load row: 30.1 dB(A) at 1187 rpm fan speed, intake about 45.5 C. At 230V it is 28.9 dB(A) at 1144 rpm. The unit is semi-passive, so the fan is at 0 rpm up to 40% load.
- Standby power with no load at 115V (measured)
- 0.0515W5Measurementcybenetics.com/evaluations/psus/2628Read 16 October 2026Standby power consumption at 115V with no load on +5VSB: 0.0515 W. At 230V it is 0.1035 W.
- Hold-up time (measured)
- 19.4ms5Measurementcybenetics.com/evaluations/psus/2628Read 16 October 2026Hold-Up Time and PWR_OK Signal: hold-up time 19.4 ms, AC loss to PWR_OK 16.8 ms, PWR_OK inactive to DC loss 2.6 ms, at maximum continuous load. The report names no input voltage.
- 12V ripple at full load (measured)
- 38.3mV5Measurementcybenetics.com/evaluations/psus/2628Read 16 October 2026Non-accredited. 12V ripple at full load at 115V. At 230V it is 37.25 mV.
- 12V load regulation (measured)
- 0.69%5Measurementcybenetics.com/evaluations/psus/2628Read 16 October 2026Non-accredited. 12V load regulation at 115V. At 230V it is 0.66%.
Cables and connectors
- Cables
Connector Connectors Cables Length to first plug (mm) Wire gauge Rated power (W) ATX 24-pin (20+4) 1 1 610 18-20AWG Not available CPU 8-pin (EPS, 4+4) 2 1 750 16-18AWG Not available PCIe 8-pin (6+2) 2 1 650 16-18AWG Not available PCIe 8-pin (6+2) 1 1 650 18AWG Not available 12V-2x6 1 1 650 18AWG 300 SATA power 6 2 450 18AWG Not available 4-pin Molex 2 1 450 18AWG Not available Source1Maker product pagecorsair.com/us/en/p/psu/cp-9020302-na/rme-series-rm650e-fully-modular-low-noise-atx-power-supply-cp-9020302-naRead 16 October 2026RM650e cable listing: 24-pin 610 mm, EPS 4+4 pin with 2 plugs on 1 cable (750 mm then 100 mm spacing, 850 mm total), 12V-2x6 650 mm, 12V-2x6 to dual 8-pin (6+2) 650 mm, one PCIe 8-pin (6+2) 650 mm, SATA 4-plug cable 450 mm to the first plug then 100 mm spacing, SATA and PATA cable with 2 SATA and 2 PATA plugs 450 mm then 100 mm spacing. Tolerance 10 mm. The 12V-2x6 to dual 8-pin cable plugs into the 12V-2x6 socket, so it counts as 2 PCIe 8-pin plugs on 1 cable and cannot be used together with the native 12V-2x6 cable. Tech Specs tab: SATA 6, PATA 2. A January 2025 copy of the tab and the prog-it listing also print EPS 2 and PCIe 3. The quick start guide agrees with the cable table. The 2 PATA plugs are stored as 4-pin Molex. The gauge and the 12V-2x6 rating come from Cybenetics.3Owner's manualcorsair.com/explorer/diy-builder/power-supply-units/corsair-rme-series-2025Read 16 October 2026Included cables for the RM650e: 24-pin 610 mm, 1 EPS 4+4 pigtail cable of 850 mm in total, 12V-2x6 650 mm, 12V-2x6 to 2x (6+2) 650 mm, 1 PCIe 8-pin (6+2) 650 mm, 1 SATA cable (4 SATA) and 1 SATA/PATA cable (2 SATA, 2 PATA).5Measurementcybenetics.com/evaluations/psus/2628Read 16 October 2026Cables and Connectors table: ATX 24 pin 610 mm 18-20AWG, 4+4 pin EPS12V (740 mm then 100 mm) 16-18AWG, a 2x 6+2 pin PCIe cable 650 mm 16-18AWG, a single 6+2 pin PCIe cable 640 mm 18AWG, a 12+2 pin PCIe cable 640 mm (300W) 18-24AWG, SATA and Molex cable (450 mm then 100 mm to the second SATA plug, then the 2 Molex plugs at 100 mm spacing) 18AWG and a 4-plug SATA cable (450 mm, 100 mm spacing) 18AWG. DUT Notes: this unit ships with an 18AWG 12+4pin PCIe cable, so 18AWG is the power wire gauge and the 24AWG end of the 18-24AWG range is the sideband wires. The 300W rating of the 12V-2x6 cable is printed by Cybenetics and Hardware Busters, and Corsair states none for this cable. Corsair's lengths are stored. They equal the report's or are 10 mm longer.6Reviewhwbusters.com/psus/corsair-rm650e-atx-v3-1-psu-reviewRead 16 October 2026Technical specifications: 2x EPS (1 cable), 3x PCIe 6+2 pin (2 cables), 1x PCIe 12+2 pin (300W), 6x SATA (2 cables), 2x 4-pin Molex (1 cable). The page shows the same cable table as Cybenetics. The modular panel has eight sockets, including a 12V-2x6. The review prints an MSRP of 90 USD excluding VAT but names no region, so it only supports the archived Corsair US price.- CPU (EPS) connectors
- 2
- PCIe 8-pin connectors
- 3
- 16-pin GPU connectors
- 1
- SATA power connectors
- 6
- 4-pin Molex connectors
- 2
- Cable style
- Embossed or debossed flat1Maker product pagecorsair.com/us/en/p/psu/cp-9020302-na/rme-series-rm650e-fully-modular-low-noise-atx-power-supply-cp-9020302-naRead 16 October 2026Page lists ultra-flexible embossed cables. The cable listing says Debossed for every cable.6Reviewhwbusters.com/psus/corsair-rm650e-atx-v3-1-psu-reviewRead 16 October 2026Text: embossed cables with low-profile combs.
Fan
- Fan size
- 120mm1Maker product pagecorsair.com/us/en/p/psu/cp-9020302-na/rme-series-rm650e-fully-modular-low-noise-atx-power-supply-cp-9020302-naRead 16 October 2026Text: a 120mm rifle bearing fan with a specially calculated fan curve.5Measurementcybenetics.com/evaluations/psus/2628Read 16 October 2026DUT Information: 120mm fan.
- Fan bearing
- Rifle1Maker product pagecorsair.com/us/en/p/psu/cp-9020302-na/rme-series-rm650e-fully-modular-low-noise-atx-power-supply-cp-9020302-naRead 16 October 2026Text: 120mm rifle bearing fan.5Measurementcybenetics.com/evaluations/psus/2628Read 16 October 2026DUT Information: 120mm Rifle Bearing Fan (HA1225H12SF-Z). The parts table names the fan Hong Hua HA1225H12F-Z.
- Fan mode
- Semi-passive1Maker product pagecorsair.com/us/en/p/psu/cp-9020302-na/rme-series-rm650e-fully-modular-low-noise-atx-power-supply-cp-9020302-naRead 16 October 2026Tech Specs tab: Zero RPM Mode Yes.5Measurementcybenetics.com/evaluations/psus/2628Read 16 October 2026DUT Information: Semi-Passive Operation checked. The 10% to 40% load rows show 0 rpm.
- Fan mode switch
- Not available
Protection and parts
- Protections
- Over-current (OCP), Over-voltage (OVP), Under-voltage (UVP), Over-power (OPP), Over-temperature (OTP), Short-circuit (SCP), No-load (NLO), Surge and inrush (SIP)3Owner's manualcorsair.com/explorer/diy-builder/power-supply-units/corsair-rme-series-2025Read 16 October 2026Safety and Protection section lists OVP, UVP, OCP, OTP, SCP and OPP. NLO and SIP come from the Cybenetics tests.5Measurementcybenetics.com/evaluations/psus/2628Read 16 October 2026Protection Features (Manufacturer) lists OPP, +12V OCP, OTP, SCP, surge and inrush current protection. The protection tests tick NLO and SIP shows an MOV for surge and an NTC with bypass relay for inrush. The supervisor IC covers OCP, OVP, UVP, SCP and PG, and Corsair's guide lists OVP and UVP.
- All-Japanese capacitors
- Not available
Monitoring and lighting
- Software monitoring
- Not available
- Software
- Not available
- Built-in power display
- Not available
Dimensions and weight
Front and side, drawn to scale.
- Dimensions
- Width150Height86Depth140mm(5.9 × 3.4 × 5.5 in)1Maker product pagecorsair.com/us/en/p/psu/cp-9020302-na/rme-series-rm650e-fully-modular-low-noise-atx-power-supply-cp-9020302-naRead 16 October 2026Tech Specs tab: 140x150x86. The quick start guide gives 140mm (L) x 150mm (W) x 86mm (H). Depth is 140 mm and the back face is 150 x 86 mm. The tab prints a weight of 2kg, which includes the cables or the box, so it is not stored.3Owner's manualcorsair.com/explorer/diy-builder/power-supply-units/corsair-rme-series-2025Read 16 October 2026RM650e Specifications: Dimensions 140mm(L) x 150mm(W) x 86mm (H).
In the box
- In the box
- Power Supply, AC Cable, DC Cables, Cable Ties, Mounting Screws, Safety Leaflet3Owner's manualcorsair.com/explorer/diy-builder/power-supply-units/corsair-rme-series-2025Read 16 October 2026RM650e Specifications, Package Contents: Power Supply, AC Cable, DC Cables, Cable Ties, Mounting Screws, Safety Leaflet.
Links
- Product page
- www.corsair.com/us/en/p/psu/cp-9020302-na/rme-series-rm650e-fully-modular-low-noise-atx-power-supply-cp-9020302-na1Maker product pagecorsair.com/us/en/p/psu/cp-9020302-na/rme-series-rm650e-fully-modular-low-noise-atx-power-supply-cp-9020302-naRead 16 October 2026
- Spec sheet
- Not available
- Manual
- www.corsair.com/explorer/diy-builder/power-supply-units/corsair-rme-series-20253Owner's manualcorsair.com/explorer/diy-builder/power-supply-units/corsair-rme-series-2025Read 16 October 2026Quick start guide CORSAIR RMe Series 2025 for RM650e, RM750e, RM850e and RM1000e.
- EPREL registration number
- Not available
Warranty
- Manufacturer warranty (source market)
- 7years1Maker product pagecorsair.com/us/en/p/psu/cp-9020302-na/rme-series-rm650e-fully-modular-low-noise-atx-power-supply-cp-9020302-naRead 16 October 2026Tech Specs tab: Warranty 7 Year. Page is corsair.com US, so the market is US.6Reviewhwbusters.com/psus/corsair-rm650e-atx-v3-1-psu-reviewRead 16 October 2026Warranty: 7-years.
Compare with
Pick a power supply to see both side by side. Differences are marked yellow.
Variants
Each variant lists only what differs from the specs above.
| Model number | GTIN | Launch price (US) | Markets |
|---|---|---|---|
| CP-9020302-NA | Not available | $89.99 | US |
| CP-9020302-EU | 840440485735 | Not available | EU |
| CP-9020302-UK | Not available | Not available | GB |
Sources
We read 8 sources for this power supply. The numbers match the markers in the sheet.
- Measurementcybenetics.com/evaluations/psus/2628
- Retailer pageldlc.pro/fr-ch/fiche/PB00672682.html
