PC parts / Power supplies

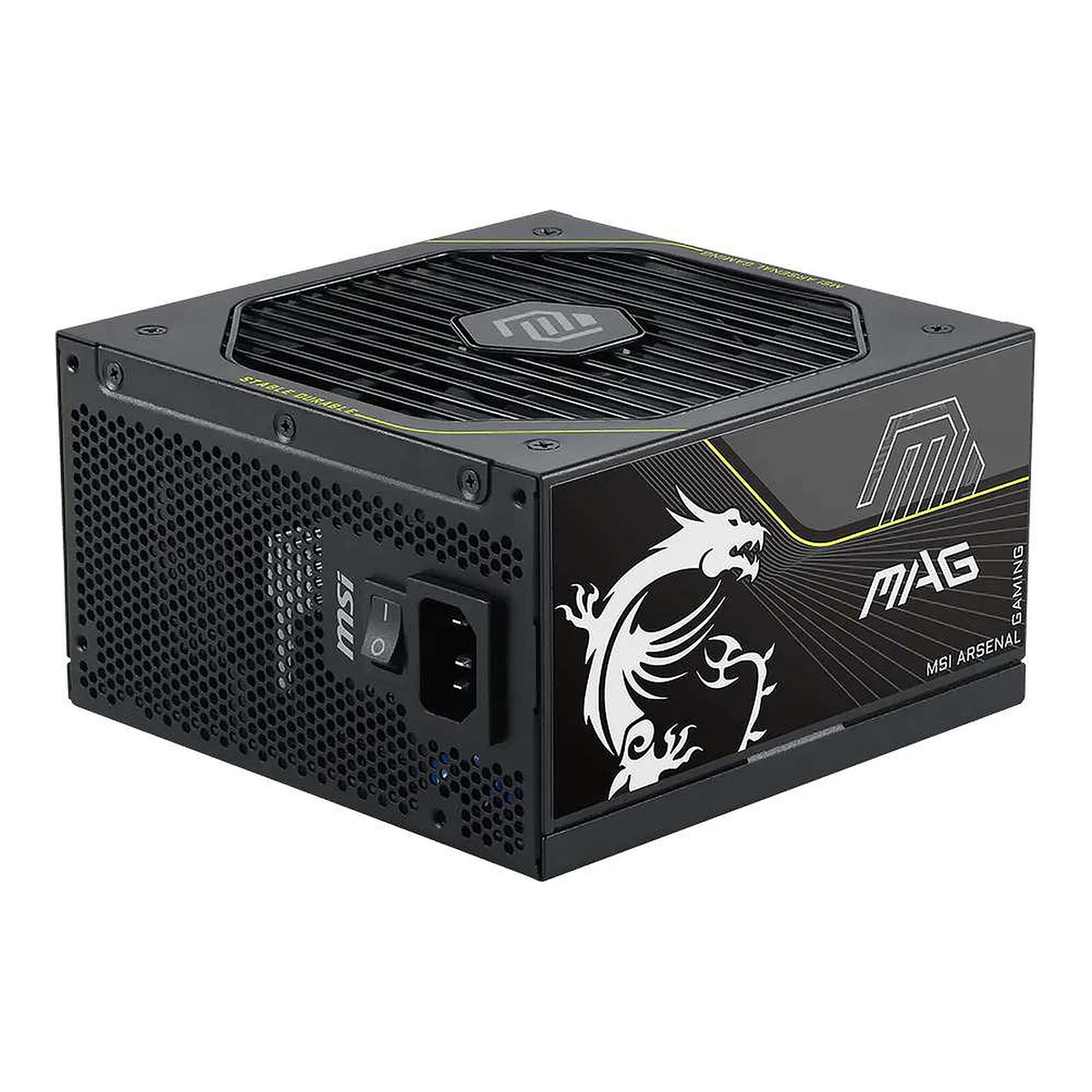

MSIPower supply
MAG A1000PLS PCIE5
Released April 2026.3Reviewhwbusters.com/psus/msi-mag-a1000pls-pcie5-atx-v3-1-psu-reviewRead 15 October 2026Review dated March 31, 2026, with the page updated on September 21, 2026. Last checked 15 October 2026.
- Power
- 1,000W
- Efficiency
- 80 PLUS Platinum
- Modular cables
- Fully modular
- ATX version
- ATX 3.1
51 of 66 fields known.
At a glance
Average noise
Lower than 83% of other power supplies. Lower is better.
Efficiency at 115V
Higher than 77% of other power supplies.
Efficiency at 230V
Higher than 77% of other power supplies.
General
- Model numbers
- MAG A1000PLS PCIE5, 306-7ZPNY11-CE01Maker spec sheet (PDF)storage-asset.msi.com/datasheet/power-supply/us/MAG-A1000PLS-PCIE5.pdfRead 15 October 2026Datasheet title MAG A1000PLS PCIE5, generated 2026-09-22.6Retailer pageldlc.com/en/product/PB00747451.htmlRead 15 October 2026Manufacturer part number 306-7ZPNY11-CE0.7Retailer pagegeeknetic.es/comparador-precios/fuente-de-alimentacion-msi-mag-a1000pls-1000w-certificacion-80mas-platinum-modular/comprarRead 15 October 2026MPN 306-7ZPNY11-CE0.
- GTIN / EAN
- 4711377397933, 8241424461957Retailer pagegeeknetic.es/comparador-precios/fuente-de-alimentacion-msi-mag-a1000pls-1000w-certificacion-80mas-platinum-modular/comprarRead 15 October 2026MPN 306-7ZPNY11-CE0 with EAN 4711377397933. Komputronik lists the same code and EAN. Another shop title shows EAN 4711377397940, which is not stored because its order code is unknown.8Retailer pageamazon.com/dp/B0GY1ZXHW3Read 15 October 2026Item details: UPC 824142446195, Model Number MAGA1000PLSPCIE5. The listing gives no MSI order code, so the US row has no model number.
- Announced
- Not available
- Status
- Available6Retailer pageldlc.com/en/product/PB00747451.htmlRead 15 October 2026LDLC France shows the 1000 W model as sold out in October 2026, with a first listing dated 6 Jul 2026. Amazon US lists it. The unit is still on sale, so the status is available.8Retailer pageamazon.com/dp/B0GY1ZXHW3Read 15 October 2026The US listing is live in October 2026 with a price shown.
- Predecessor
- Not available
- Successor
- Not available
- Launch price (US)
- Not available
- Launch price (EU)
- Not available
- Markets
- Not available
- Colours
- Black6Retailer pageldlc.com/en/product/PB00747451.htmlRead 15 October 2026Specification table: Color Black.
- ATX version
- ATX 3.11Maker spec sheet (PDF)storage-asset.msi.com/datasheet/power-supply/us/MAG-A1000PLS-PCIE5.pdfRead 15 October 2026The datasheet shows an ATX 3.1 READY badge.
- PCIe CEM version
- PCIe 5.11Maker spec sheet (PDF)storage-asset.msi.com/datasheet/power-supply/us/MAG-A1000PLS-PCIE5.pdfRead 15 October 2026The datasheet shows a PCIe 5.1 READY badge and lists PCIe 5 (12+4 pin) / 600W.
- Modular cables
- Fully modular1Maker spec sheet (PDF)storage-asset.msi.com/datasheet/power-supply/us/MAG-A1000PLS-PCIE5.pdfRead 15 October 2026Modular: Fully Modular.
- Built by (OEM)
- Channel Well Technology (CWT)2Measurementcybenetics.com/evaluations/psus/3121Read 15 October 2026DUT Information: OEM/ODM CWT. Parts description: Manufacturer (OEM) CWT.3Reviewhwbusters.com/psus/msi-mag-a1000pls-pcie5-atx-v3-1-psu-reviewRead 15 October 2026Technical specifications: OEM CWT (PLS). The OEM name is stored in the form used for the other CWT units.
Power
- Rated continuous power
- 1,000W1Maker spec sheet (PDF)storage-asset.msi.com/datasheet/power-supply/us/MAG-A1000PLS-PCIE5.pdfRead 15 October 2026Power Watt 1000W.
- Full power rated up to
- 40°C2Measurementcybenetics.com/evaluations/psus/3121Read 15 October 2026Manufacturer-Provided Information: Operating Temperature (Continuous Full Load) 0 - 40 C. Hardware Busters prints the same range.3Reviewhwbusters.com/psus/msi-mag-a1000pls-pcie5-atx-v3-1-psu-reviewRead 15 October 2026Technical specifications: Operating Temperature (Continuous Full Load) 0 - 40 C.
- 12V rail design
- Single rail2Measurementcybenetics.com/evaluations/psus/3121Read 15 October 2026Power Specifications: one +12V column with 83.3A and 999.6W.3Reviewhwbusters.com/psus/msi-mag-a1000pls-pcie5-atx-v3-1-psu-reviewRead 15 October 2026Technical specifications: Number of 12V rails 1.
- +12V max current
- 83.3A2Measurementcybenetics.com/evaluations/psus/3121Read 15 October 2026Power Specifications: 12V 83.3A, 999.6W.
- +12V max power
- 999.6W2Measurementcybenetics.com/evaluations/psus/3121Read 15 October 2026Power Specifications: 12V 83.3A, 999.6W. The report prints the figures as manufacturer-provided.
- +3.3V and +5V combined power
- 100W2Measurementcybenetics.com/evaluations/psus/3121Read 15 October 2026Power Specifications: 3.3V 20A and 5V 20A with one merged 100W cell. Hardware Busters prints Power 5V + 3.3V 100W.3Reviewhwbusters.com/psus/msi-mag-a1000pls-pcie5-atx-v3-1-psu-reviewRead 15 October 2026Technical specifications: Power 5V + 3.3v 100W.
- +5V standby current
- 3A2Measurementcybenetics.com/evaluations/psus/3121Read 15 October 2026Power Specifications: 5VSB 3A, 15W.
- AC input voltage
- Lowest100Highest240V1Maker spec sheet (PDF)storage-asset.msi.com/datasheet/power-supply/us/MAG-A1000PLS-PCIE5.pdfRead 15 October 2026Input Voltage Range 100~240 VAC, Input Frequency Range 50~60 Hz. The 15 A input current comes from the Cybenetics report.2Measurementcybenetics.com/evaluations/psus/3121Read 15 October 2026Manufacturer-Provided Information: 100-240 Vrms, 15 A, 50-60 Hz.
- Alternative low power mode (ALPM)
- Yes2Measurementcybenetics.com/evaluations/psus/3121Read 15 October 2026Temperature and Compliance Info: ALPM compatible, checked.
Certifications
- 80 PLUS rating
- 80 PLUS Platinum1Maker spec sheet (PDF)storage-asset.msi.com/datasheet/power-supply/us/MAG-A1000PLS-PCIE5.pdfRead 15 October 2026Efficiency Rating 80 PLUS PLATINUM. The 80 PLUS listing is cited too.4Certification listclearesult.com/80plus/certified-psus/Micro-Star-International-Co-Ltd/MS-7ZPNY-115V-Internal-8058Read 15 October 202680 PLUS ID 8058, model MS-7ZPNY, type ATX 3.1, 115V Internal, Platinum, test date 2025-12-09, rated input current 15.0 A. The listing uses MSI's internal code and no sample serial. It is matched by the order code 306-7ZPNY11-CE0, which LDLC and Geeknetic print for the MAG A1000PLS PCIE5, and by the 15 A input current that the Cybenetics report prints for this unit. The 1000 W entry MS-7ZPWB (January 2026) has a 12-6.5 A rating and is not used.
- Cybenetics efficiency at 115V
- Cybenetics Platinum2Measurementcybenetics.com/evaluations/psus/3121Read 15 October 2026Report 26PS3121A, certification ID 263121, issued Feb 20, 2026, no sample serial printed. The Cybenetics database lists MAG A1000PLS PCIE5 at ETA Platinum for 115V.
- Cybenetics efficiency at 230V
- Cybenetics Platinum2Measurementcybenetics.com/evaluations/psus/3121Read 15 October 2026The database lists ETA Platinum at 230V.
Measured
- Average efficiency at 115V (measured)
- 90.379%2Measurementcybenetics.com/evaluations/psus/3121Read 15 October 2026Average over more than 1450 load combinations at 115V. Date of receipt Jan 8, 2026, testing date Feb 18, 2026, ambient 28-32 C.
- Average efficiency at 230V (measured)
- 92.206%2Measurementcybenetics.com/evaluations/psus/3121Read 15 October 2026Average over more than 1450 load combinations at 230V.
- Light-load efficiency at 115V (measured)
- 71.912%2Measurementcybenetics.com/evaluations/psus/3121Read 15 October 2026Efficiency at 2% load (more than 500 W unit) at 115V. At 230V it is 73.515%.
- Average power factor at 115V (measured)
- 0.9822Measurementcybenetics.com/evaluations/psus/3121Read 15 October 2026Average over more than 1450 load combinations at 115V. At 230V it is 0.940.
- Average noise at 115V (measured)
- 17.93dB(A)2Measurementcybenetics.com/evaluations/psus/3121Read 15 October 2026Average over more than 1450 load combinations at 115V, ambient 28-32 C, Bruel and Kjaer 2270 G4 sound analyzer. The 230V average is 19.24 dBA.
- Noise at full load at 115V (measured)
- 29.8dB(A)2Measurementcybenetics.com/evaluations/psus/3121Read 15 October 2026Typical load tests at 115V, 100% load row: 29.8 dB(A) at 1250 rpm fan speed. At 230V it is 29.7 dB(A) at 1243 rpm.
- Standby power with no load at 115V (measured)
- 0.086W2Measurementcybenetics.com/evaluations/psus/3121Read 15 October 2026Standby power consumption at 115V with no load on +5VSB: 0.0860 W. At 230V it is 0.1479 W.
- Hold-up time (measured)
- 21.8ms2Measurementcybenetics.com/evaluations/psus/3121Read 15 October 2026Hold-Up Time and PWR_OK Signal: hold-up time 21.8 ms, AC loss to PWR_OK 18.8 ms, PWR_OK inactive to DC loss 3.0 ms, at maximum continuous load. The report names no input voltage.
- 12V ripple at full load (measured)
- 36.78mV2Measurementcybenetics.com/evaluations/psus/3121Read 15 October 2026Non-accredited. 12V ripple at full load at 115V. At 230V it is 38.14 mV.
- 12V load regulation (measured)
- 1.24%2Measurementcybenetics.com/evaluations/psus/3121Read 15 October 2026Non-accredited. 12V load regulation at 115V. At 230V it is 1.09%.
Cables and connectors
- Cables
Connector Connectors Cables Length to first plug (mm) Wire gauge Rated power (W) ATX 24-pin (20+4) 1 1 600 Not available Not available CPU 8-pin (EPS, 4+4) 2 2 650 Not available Not available PCIe 8-pin (6+2) 4 3 600 Not available Not available 12V-2x6 1 1 600 Not available 600 SATA power 6 2 500 18AWG Not available 4-pin Molex 3 1 500 18AWG Not available Source1Maker spec sheet (PDF)storage-asset.msi.com/datasheet/power-supply/us/MAG-A1000PLS-PCIE5.pdfRead 15 October 2026Connector list: 1 x Motherboard (24 pin), 1 x CPU (4+4 pin), 1 x CPU (8 pin), 1 x PCIe 5 (12+4 pin) / 600W, 4 x PCIe (6+2 pin), 6 x SATA and 3 x Peripheral (4 pin). The datasheet gives no cable counts, lengths or gauge. Those come from the Cybenetics report and the Hardware Busters review. The Features list calls the 12+4 pin connector a dual color 12V-2x6 connector.2Measurementcybenetics.com/evaluations/psus/3121Read 15 October 2026Cables and Connectors table: ATX 20+4 pin 600 mm, 4+4 pin EPS 650 mm, 8 pin EPS 650 mm, 6+2 pin PCIe 600 mm plus 150 mm with 2 plugs, 2 x 6+2 pin PCIe 600 mm, 12+4 pin PCIe (600W) 600 mm, 2 SATA cables of 500 mm plus 2 x 150 mm with 6 plugs in total 18AWG and 1 Molex cable of 500 mm plus 2 x 150 mm with 3 plugs 18AWG. The report counts two 4+4 pin EPS cables, but MSI's datasheet and Hardware Busters list one 4+4 pin and one 8 pin cable, so 2 EPS plugs are stored. Wire gauge for the ATX, EPS and PCIe cables differs between the report (18-22AWG and 18AWG) and the Hardware Busters table (16-22AWG and 16AWG), so none is stored for them. The 16-24AWG range of the 12V-2x6 cable includes the sideband wires.3Reviewhwbusters.com/psus/msi-mag-a1000pls-pcie5-atx-v3-1-psu-reviewRead 15 October 2026Cables page: same lengths as the Cybenetics report. It counts one 4+4 pin and one 8-pin EPS cable and 3 PCIe cables with 4 plugs in total. The modular panel has eleven sockets including one native 12V-2x6 header. The review prints 16-22AWG for ATX and 16AWG for EPS and PCIe wires.- CPU (EPS) connectors
- 2
- PCIe 8-pin connectors
- 4
- 16-pin GPU connectors
- 1
- SATA power connectors
- 6
- 4-pin Molex connectors
- 3
- Cable style
- Embossed or debossed flat1Maker spec sheet (PDF)storage-asset.msi.com/datasheet/power-supply/us/MAG-A1000PLS-PCIE5.pdfRead 15 October 2026Features: Embossed Jacket Cable.5Press articleweekly.ascii.jp/elem/000/004/390/4390310Read 15 October 2026The article says the cables are embossed and flexible and that a cable comb is included.
Fan
- Fan size
- 135mm1Maker spec sheet (PDF)storage-asset.msi.com/datasheet/power-supply/us/MAG-A1000PLS-PCIE5.pdfRead 15 October 2026Fan Size 135mm.2Measurementcybenetics.com/evaluations/psus/3121Read 15 October 2026Parts description: Power Logic PLA13525S12H, 135mm, 12V, 0.56A.
- Fan bearing
- Fluid dynamic (FDB)1Maker spec sheet (PDF)storage-asset.msi.com/datasheet/power-supply/us/MAG-A1000PLS-PCIE5.pdfRead 15 October 2026Fan Bearing FDB. The Cybenetics DUT page also prints Hydro Dynamic Bearing for the same fan model, and MSI marketing copy says hydrodynamic. The datasheet and the parts description say fluid dynamic, so that is stored.2Measurementcybenetics.com/evaluations/psus/3121Read 15 October 2026Parts description: Fluid Dynamic Bearing Fan.5Press articleweekly.ascii.jp/elem/000/004/390/4390310Read 15 October 2026The article calls the fan a 135 mm Fluid Dynamic Bearing fan.
- Fan mode
- Always on2Measurementcybenetics.com/evaluations/psus/3121Read 15 October 2026DUT Information: Semi-Passive Operation not checked. The typical load tests show the fan at 860 to 970 rpm from 10% to 50% load.3Reviewhwbusters.com/psus/msi-mag-a1000pls-pcie5-atx-v3-1-psu-reviewRead 15 October 2026Technical specifications: Semi-Passive Operation not supported.
Protection and parts
- Protections
- Over-current (OCP), Over-voltage (OVP), Under-voltage (UVP), Over-power (OPP), Over-temperature (OTP), Short-circuit (SCP), No-load (NLO), Surge and inrush (SIP)1Maker spec sheet (PDF)storage-asset.msi.com/datasheet/power-supply/us/MAG-A1000PLS-PCIE5.pdfRead 15 October 2026Protection line: OVP / OCP / OTP / OPP / SCP / UVP / SIP / NLO. The Features list adds GPU Safeguard (12V-2x6 overcurrent protection with a buzzer) and Fan Safeguard (fan failure protection), which have no option here.
- All-Japanese capacitors
- Not available
- MTBF (claimed)
- Not available
Monitoring and lighting
- Software monitoring
- Not available
- Software
- Not available
- Built-in power display
- Not available
Dimensions and weight
Front and side, drawn to scale.
- Dimensions
- Width150Height86Depth150mm(5.9 × 3.4 × 5.9 in)1Maker spec sheet (PDF)storage-asset.msi.com/datasheet/power-supply/us/MAG-A1000PLS-PCIE5.pdfRead 15 October 2026Dimensions (DxWxH) 150x150x86 mm. Depth 150, width 150, height 86.
- Weight
- 1.65kg(3.6 lb)2Measurementcybenetics.com/evaluations/psus/3121Read 15 October 2026Cybenetics Measurements: Weight 1.65 kg (3.64 lb). It is unknown whether cables are included. MSI does not publish a weight in the datasheet.3Reviewhwbusters.com/psus/msi-mag-a1000pls-pcie5-atx-v3-1-psu-reviewRead 15 October 2026Technical specifications: 1.65 kg (3.64 lb). The review does not say whether cables are included.
In the box
We could not find any of these 1 fields. Show them
- In the box
- Not available
Links
- Product page
- Not available
- Spec sheet
- storage-asset.msi.com/datasheet/power-supply/us/MAG-A1000PLS-PCIE5.pdf1Maker spec sheet (PDF)storage-asset.msi.com/datasheet/power-supply/us/MAG-A1000PLS-PCIE5.pdfRead 15 October 2026
- Manual
- Not available
- EPREL registration number
- Not available
Warranty
- Manufacturer warranty (source market)
- 10years5Press articleweekly.ascii.jp/elem/000/004/390/4390310Read 15 October 2026The article lists a 10-year warranty for Japan. The Cybenetics report prints 10 years as manufacturer-provided information with no market. A Spanish shop lists 7 years.8Retailer pageamazon.com/dp/B0GY1ZXHW3Read 15 October 2026Warranty Description 10 Years and the title says 10 Year Warranty. The US shop is the market.
Compare with
Pick a power supply to see both side by side. Differences are marked yellow.
Variants
Each variant lists only what differs from the specs above.
| Model number | GTIN |
|---|---|
| 306-7ZPNY11-CE0 | 4711377397933 |
| Not available | 824142446195 |
Sources
We read 8 sources for this power supply. The numbers match the markers in the sheet.
- Maker spec sheet (PDF)storage-asset.msi.com/datasheet/power-supply/us/MAG-A1000PLS-PCIE5.pdf
- Measurementcybenetics.com/evaluations/psus/3121
- Press articleweekly.ascii.jp/elem/000/004/390/4390310
- Retailer pageldlc.com/en/product/PB00747451.html
- Retailer pageamazon.com/dp/B0GY1ZXHW3
