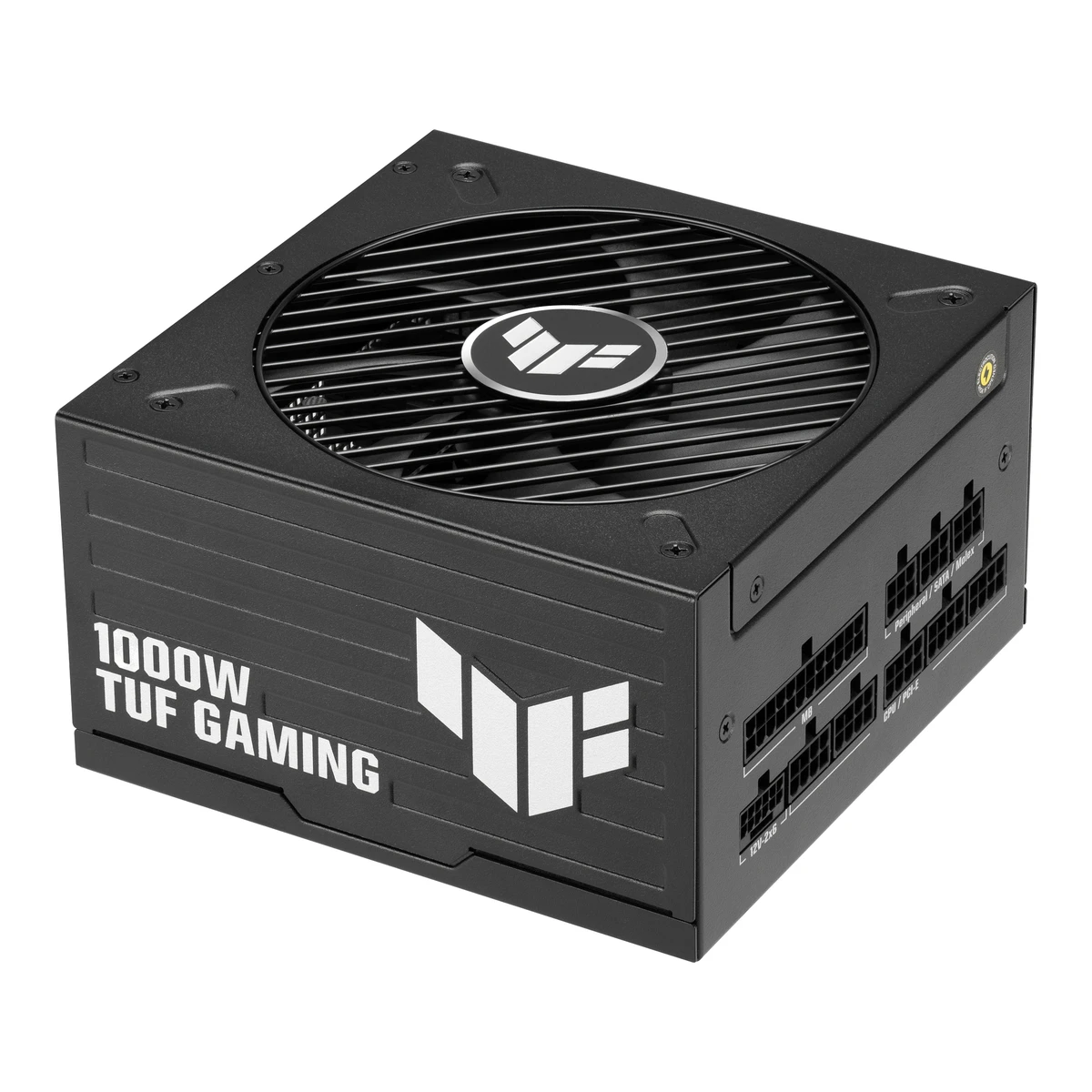

ASUS TUF Gaming 1000W Platinum

ASUSPower supply

TUF Gaming 1000W Platinum

Released August 2026.7Retailer pagefuture-x.shopgate.com/item/39373639313331Read 15 October 2026First retail evidence of the 1000W unit. ASUS announced the series on 2026-04-28 and gave no sales date. Cybenetics received the sample on 2026-06-17. Reviews of the 850W and 1200W units are dated 2026-08-03 to 2026-08-25, and one says availability was limited then. The month is approximate. Last checked 16 October 2026.

Power
1,000W
Efficiency
80 PLUS Platinum
Modular cables
Fully modular
ATX version
ATX 3.1

54 of 66 fields known.

Compare with another power supplyDownload JSONDownload CSVGet it from the API

At a glance

All specs

SourceCalculated

General

Series
TUF Gaming Platinum1Maker product pageasus.com/motherboards-components/power-supply-units/tuf-gaming/tuf-gaming-1000p/techspecRead 15 October 2026Page heading TUF Gaming 1000W Platinum, listed under the TUF Gaming group. The 850W and 1200W versions are separate products of the same Platinum series.
Model numbers
TUF-GAMING-1000P, 90YE0101-B0NA001Maker product pageasus.com/motherboards-components/power-supply-units/tuf-gaming/tuf-gaming-1000p/techspecRead 15 October 2026Model row TUF-GAMING-1000P. The ASUS part number 90YE0101-B0NA00 comes from the retailer page.7Retailer pagefuture-x.shopgate.com/item/39373639313331Read 15 October 2026Hersteller-Nr. 90YE0101-B0NA00 for TUF-GAMING-1000P.
GTIN / EAN
47116364897687Retailer pagefuture-x.shopgate.com/item/39373639313331Read 15 October 2026EAN 4711636489768 in the page data for TUF-GAMING-1000P (title of the page says 80+ Gold by mistake, the details say 80 PLUS Platinum).
Announced
April 20263Press releasepress.asus.com/news/press-releases/asus-tuf-gaming-platinum-power-supply-seriesRead 15 October 2026Press release dated April 28, 2026 (Taipei). It names the 850-watt, 1000-watt and 1200-watt versions and gives no price or sales date. KitGuru covered the series on April 22, 2026, so only the month is stored.
Status
Available7Retailer pagefuture-x.shopgate.com/item/39373639313331Read 15 October 2026Austrian shop page with a price and an add-to-cart button, in stock.
Predecessor
Not available
Successor
Not available
Launch price (US)
Not available
Launch price (EU)
Not available
Markets
Not available
Colours
Not available
Form factor
ATX1Maker product pageasus.com/motherboards-components/power-supply-units/tuf-gaming/tuf-gaming-1000p/techspecRead 15 October 2026Form Factor row says Intel ATX12V. Dimensions 150 x 150 x 86 mm fit ATX.
ATX version
ATX 3.11Maker product pageasus.com/motherboards-components/power-supply-units/tuf-gaming/tuf-gaming-1000p/techspecRead 15 October 2026ATX Standard row ATX 3.1. The overview says it meets ATX 3.1 and supports PCIe 5.1 graphics cards.2Maker product pageasus.com/motherboards-components/power-supply-units/tuf-gaming/tuf-gaming-1000pRead 15 October 2026Latest Standards: the series meets ATX 3.1 and supports PCIe 5.1 graphics cards.
PCIe CEM version
PCIe 5.12Maker product pageasus.com/motherboards-components/power-supply-units/tuf-gaming/tuf-gaming-1000pRead 15 October 2026Overview badges and Latest Standards text: PCIe 5.1 Compatible, with a native 12V-2x6 connector in the FAQ.
Modular cables
Fully modular4Measurementcybenetics.com/evaluations/psus/3346Read 15 October 2026DUT Information, Manufacturer-Provided Information: Cable Design Fully Modular.6Press articlekitguru.net/components/power-supplies/joao-silva/asus-unveils-tuf-gaming-platinum-psus-featuring-gan-mosfetsRead 15 October 2026Article dated April 22, 2026: the series is fully modular.
Built by (OEM)
Great Wall4Measurementcybenetics.com/evaluations/psus/3346Read 15 October 2026DUT Information and Parts Description: OEM/ODM Great Wall.

Power

Rated continuous power
1,000W1Maker product pageasus.com/motherboards-components/power-supply-units/tuf-gaming/tuf-gaming-1000p/techspecRead 15 October 2026Total Output 1000W.
Full power rated up to
50°C4Measurementcybenetics.com/evaluations/psus/3346Read 15 October 2026DUT Information, Manufacturer-Provided Information: Operating Temperature (Continuous Full Load) 0 - 50 °C. Cybenetics marks it as manufacturer-provided, so 50 °C is stored. The retailer page prints a 40 °C maximum operating temperature, which is not stored.
12V rail design
Single rail4Measurementcybenetics.com/evaluations/psus/3346Read 15 October 2026Power Specifications lists one +12V rail at 83.33 A. The 12V OCP test tripped at 107.00 A (128.41 percent of 83.33 A) at 29 °C, so one over-current limit covers the full rated +12V current. No source uses the words single rail.
+12V max current
83.3A1Maker product pageasus.com/motherboards-components/power-supply-units/tuf-gaming/tuf-gaming-1000p/techspecRead 15 October 2026Maximum Load row: +3.3V 25A, +5V 25A, +12V 83.3A, -12V 0.3A, +5Vsb 3A.
+12V max power
1,000W1Maker product pageasus.com/motherboards-components/power-supply-units/tuf-gaming/tuf-gaming-1000p/techspecRead 15 October 2026Combined Load row: +12V 1000W.
+3.3V and +5V combined power
125W1Maker product pageasus.com/motherboards-components/power-supply-units/tuf-gaming/tuf-gaming-1000p/techspecRead 15 October 2026Combined Load row prints 125W for the +3.3V and +5V columns as one shared figure, so it is stored once. The Cybenetics report prints one 125 W cell for both rails.
+5V standby current
3A1Maker product pageasus.com/motherboards-components/power-supply-units/tuf-gaming/tuf-gaming-1000p/techspecRead 15 October 2026Maximum Load row: +5Vsb 3A, Combined Load 15W.
AC input voltage
Lowest100Highest240V1Maker product pageasus.com/motherboards-components/power-supply-units/tuf-gaming/tuf-gaming-1000p/techspecRead 15 October 2026AC Input Range 100-240Vac.
Alternative low power mode (ALPM)
Yes4Measurementcybenetics.com/evaluations/psus/3346Read 15 October 2026Temperature and Compliance Info: ALPM (Alternative Low Power Mode) compatible, checked.

Certifications

80 PLUS rating
80 PLUS Platinum1Maker product pageasus.com/motherboards-components/power-supply-units/tuf-gaming/tuf-gaming-1000p/techspecRead 15 October 202680 PLUS Efficiency row: 80Plus Platinum. The 80 PLUS list agrees.5Certification listclearesult.com/80plus/sites/80plus/files/manufacturer-certificate/ASUS_TUF-GAMING-1000P_1000W_SOCE%208117_Report.pdfRead 15 October 202680 PLUS ID 8117, model TUF-GAMING-1000P, type ATX 3.1, 1000W, test date 2026-02-16: Platinum at 115V, typical efficiency 92.94% at 50% load, rated input 100-240V 15-8A.
Cybenetics efficiency at 115V
Cybenetics Platinum1Maker product pageasus.com/motherboards-components/power-supply-units/tuf-gaming/tuf-gaming-1000p/techspecRead 15 October 2026Cybenetics Efficiency row: Platinum (230V) and Platinum (115V). The Cybenetics report agrees.4Measurementcybenetics.com/evaluations/psus/3346Read 15 October 2026Report 26PS3346A, certification ID 263346, issued Jul 23, 2026. ETA Platinum at 115V (Cybenetics database feed, id 3346).
Cybenetics efficiency at 230V
Cybenetics Platinum1Maker product pageasus.com/motherboards-components/power-supply-units/tuf-gaming/tuf-gaming-1000p/techspecRead 15 October 2026Cybenetics Efficiency row: Platinum (230V) and Platinum (115V). The Cybenetics report agrees.4Measurementcybenetics.com/evaluations/psus/3346Read 15 October 2026ETA Platinum at 230V (Cybenetics database feed, id 3346).
Cybenetics noise at 115V
A+1Maker product pageasus.com/motherboards-components/power-supply-units/tuf-gaming/tuf-gaming-1000p/techspecRead 15 October 2026Cybenetics Noise Level Certification A+, with no voltage named. The overview text also says Lambda A+. The Cybenetics report shows A+ at both voltages.2Maker product pageasus.com/motherboards-components/power-supply-units/tuf-gaming/tuf-gaming-1000pRead 15 October 2026Efficiency and Noise Certification: Cybenetics Lambda A+ noise certification (less than 20 dB on average).4Measurementcybenetics.com/evaluations/psus/3346Read 15 October 2026LAMBDA A+ at 115V (Cybenetics database feed, id 3346).
Cybenetics noise at 230V
A+1Maker product pageasus.com/motherboards-components/power-supply-units/tuf-gaming/tuf-gaming-1000p/techspecRead 15 October 2026Cybenetics Noise Level Certification A+, with no voltage named. The Cybenetics report shows A+ at both voltages.2Maker product pageasus.com/motherboards-components/power-supply-units/tuf-gaming/tuf-gaming-1000pRead 15 October 2026Efficiency and Noise Certification: Cybenetics Lambda A+ noise certification.4Measurementcybenetics.com/evaluations/psus/3346Read 15 October 2026LAMBDA A+ at 230V (Cybenetics database feed, id 3346).

Measured

Average efficiency at 115V (measured)
90.534%4Measurementcybenetics.com/evaluations/psus/3346Read 15 October 2026Average over more than 1450 load combinations at 115V. Sample serial 2Q34282464, received Jun 17, 2026, tested Jul 3, 2026. Ambient 28-32 C.
Average efficiency at 230V (measured)
92.284%4Measurementcybenetics.com/evaluations/psus/3346Read 15 October 2026Average over more than 1450 load combinations at 230V.
Light-load efficiency at 115V (measured)
73.922%4Measurementcybenetics.com/evaluations/psus/3346Read 15 October 2026Efficiency at 2% load (more than 500 W unit) at 115V.
Average power factor at 115V (measured)
0.9844Measurementcybenetics.com/evaluations/psus/3346Read 15 October 2026Average over more than 1450 load combinations at 115V.
Average noise at 115V (measured)
16.57dB(A)4Measurementcybenetics.com/evaluations/psus/3346Read 15 October 2026Average over more than 1450 load combinations at 115V. Ambient 28-32 C. Bruel and Kjaer 2270 G4 sound analyzer. The 230V average is 16.63 dBA.
Noise at full load at 115V (measured)
27dB(A)4Measurementcybenetics.com/evaluations/psus/3346Read 15 October 2026Typical load tests at 115V, 100% load row: 27.0 dB(A) at 1075 rpm fan speed, intake 45.81 C. At 230V it is 27.0 dB(A) at 1076 rpm.
Standby power with no load at 115V (measured)
0.0599W4Measurementcybenetics.com/evaluations/psus/3346Read 15 October 2026Standby power consumption at 115V with no load on +5VSB: 0.0599 W.
Hold-up time (measured)
15.9ms4Measurementcybenetics.com/evaluations/psus/3346Read 15 October 2026Hold-Up Time and PWR_OK Signal: hold-up time 15.9 ms, AC loss to PWR_OK 12.9 ms, PWR_OK inactive to DC loss 3 ms, at maximum continuous load. The report names no input voltage.
12V ripple at full load (measured)
41.48mV4Measurementcybenetics.com/evaluations/psus/3346Read 15 October 2026Non-accredited measurement. 12V ripple at full load at 115V. At 230V it is 42.19 mV.
12V load regulation (measured)
0.52%4Measurementcybenetics.com/evaluations/psus/3346Read 15 October 2026Non-accredited measurement. 12V load regulation at 115V. At 230V it is 0.52%.

Cables and connectors

Cables
ConnectorConnectorsCablesLength to first plug (mm)Wire gaugeRated power (W)
ATX 24-pin (20+4)1161016-20AWGNot available
CPU 8-pin (EPS, 4+4)2275016AWGNot available
PCIe 8-pin (6+2)3367516AWGNot available
12V-2x61167516AWG600
SATA power6240018AWGNot available
4-pin Molex3140018AWGNot available
Source1Maker product pageasus.com/motherboards-components/power-supply-units/tuf-gaming/tuf-gaming-1000p/techspecRead 15 October 2026Cable Connectors row: 20+4-pin x1, CPU 4+4-pin x2, PCI-E 16-pin x1 (12V-2x6), PCI-E 6+2-pin x3, SATA x6, peripheral x3. Package Contents: motherboard cable x1 (610mm), CPU 1-to-1 cable x2 (750mm), PCI-E Gen 5.1 16-pin-to-16-pin cable x1 (675mm), PCI-E 1-to-1 cable 8-pin-to-6+2pin x3 (675mm), SATA 1-to-3 cable x2 (400+150+150mm), peripheral 1-to-3 cable x1 (400+150+150mm). Length is to the first plug. Wire gauges and the 600 W rating come from the Cybenetics report and the ASUS press release. The Cybenetics lengths are 670 mm for the PCIe cables, which are not stored.3Press releasepress.asus.com/news/press-releases/asus-tuf-gaming-platinum-power-supply-seriesRead 15 October 2026The bundled 16-pin PCIe cable delivers up to 600 watts. This is the 600 W cable rating.4Measurementcybenetics.com/evaluations/psus/3346Read 15 October 2026Cables and Connectors table: ATX 20+4 pin 16-20AWG, 4+4 pin EPS 16AWG (2 cables), 6+2 pin PCIe 16AWG (3 cables), 12+4 pin PCIe (600W) 16-24AWG, SATA 18AWG (2 cables, 6 connectors), 4-pin Molex 18AWG (1 cable, 3 connectors). The 16-24AWG range for the 12V-2x6 cable includes the thin sideband wires, so the 16AWG power wire gauge is stored.
CPU (EPS) connectors
2
PCIe 8-pin connectors
3
16-pin GPU connectors
1
SATA power connectors
6
4-pin Molex connectors
3
Cable style
Embossed or debossed flat2Maker product pageasus.com/motherboards-components/power-supply-units/tuf-gaming/tuf-gaming-1000pRead 15 October 2026Premium Embossed Cables section: embossed cable jacket on tin-plated oxygen-free copper wire.6Press articlekitguru.net/components/power-supplies/joao-silva/asus-unveils-tuf-gaming-platinum-psus-featuring-gan-mosfetsRead 15 October 2026Embossed cable sheathing.

Fan

Fan size
135mm2Maker product pageasus.com/motherboards-components/power-supply-units/tuf-gaming/tuf-gaming-1000pRead 15 October 2026Dual-Ball Fan Bearings: a 135mm fan on a dual-ball bearing.4Measurementcybenetics.com/evaluations/psus/3346Read 15 October 2026Cooling: 135mm Ball Bearing Fan (HA13525M12B-Z). Parts Description: Hong Hua HA13525M12B-Z, 135mm, 12V, 0.36A, Dual Ball Bearing.
Fan bearing
Dual ball2Maker product pageasus.com/motherboards-components/power-supply-units/tuf-gaming/tuf-gaming-1000pRead 15 October 2026Dual-Ball Fan Bearings section: dual-ball bearing setup.4Measurementcybenetics.com/evaluations/psus/3346Read 15 October 2026Parts Description: Fan Model Hong Hua HA13525M12B-Z, Dual Ball Bearing.
Fan mode
Always on1Maker product pageasus.com/motherboards-components/power-supply-units/tuf-gaming/tuf-gaming-1000p/techspecRead 15 October 20260dB Fan Button row: No, this product is without 0dB technology. The fan always spins. KitGuru says the same.4Measurementcybenetics.com/evaluations/psus/3346Read 15 October 2026DUT Information: Semi-Passive Operation not checked.6Press articlekitguru.net/components/power-supplies/joao-silva/asus-unveils-tuf-gaming-platinum-psus-featuring-gan-mosfetsRead 15 October 2026The fan has no 0 RPM mode, unlike the ROG Strix and Thor models.
Fan mode switch
No1Maker product pageasus.com/motherboards-components/power-supply-units/tuf-gaming/tuf-gaming-1000p/techspecRead 15 October 20260dB Fan Button row: No. The unit has no semi-passive mode to switch off.

Protection and parts

Protections
Over-current (OCP), Over-voltage (OVP), Under-voltage (UVP), Over-power (OPP), Over-temperature (OTP), Short-circuit (SCP), No-load (NLO), Surge and inrush (SIP)1Maker product pageasus.com/motherboards-components/power-supply-units/tuf-gaming/tuf-gaming-1000p/techspecRead 15 October 2026Protection section of the overview lists over-current, over-temperature, over-voltage, over-power, short circuit, under-voltage, surge and inrush protection and no-load operation. The Tech Specs row says OPP/OVP/UVP/SCP/OCP/OTP.2Maker product pageasus.com/motherboards-components/power-supply-units/tuf-gaming/tuf-gaming-1000pRead 15 October 2026Protection section: over-current, over-temperature, over-voltage, over-power, short circuit, under-voltage, surge and inrush protection, no-load operation.4Measurementcybenetics.com/evaluations/psus/3346Read 15 October 2026Protection Features: OCP, OPP, OTP and SCP on all rails, NLO checked, UVP at 90 V and 80 V checked, surge protection by MOV and inrush protection by NTC and bypass relay. Fan failure protection is marked absent.
All-Japanese capacitors
Not available
MTBF (claimed)
120,000h1Maker product pageasus.com/motherboards-components/power-supply-units/tuf-gaming/tuf-gaming-1000p/techspecRead 15 October 2026MTBF row: >120,000 hrs @ 40°C. Published as greater than 120000, so 120000 is the lower bound.

Monitoring and lighting

Software monitoring
Not available
Software
Not available
Built-in power display
Not available
RGB lighting
No1Maker product pageasus.com/motherboards-components/power-supply-units/tuf-gaming/tuf-gaming-1000p/techspecRead 15 October 2026AURA SYNC row: No.

Dimensions and weight

Front and side, drawn to scale.

Dimensions
Width150Height86Depth150mm(5.9 × 3.4 × 5.9 in)1Maker product pageasus.com/motherboards-components/power-supply-units/tuf-gaming/tuf-gaming-1000p/techspecRead 15 October 2026Dimensions row: 150 x 150 x 86 mm. The unit is 150 mm wide and 86 mm high, and 150 mm deep (KitGuru says 150mm deep). Cybenetics measured 150 x 85 x 150 mm (W x H x D).
Weight
1.51kg(3.3 lb)1Maker product pageasus.com/motherboards-components/power-supply-units/tuf-gaming/tuf-gaming-1000p/techspecRead 15 October 2026Weight row: 1.51 kg (single PSU). Cybenetics measured the same 1.51 kg.4Measurementcybenetics.com/evaluations/psus/3346Read 15 October 2026DUT Information: Weight 1.51 kg (3.33 lb), the same as the maker's figure.

In the box

In the box
Power Cord, TUF Gaming Cable Tie x 3, User Manual1Maker product pageasus.com/motherboards-components/power-supply-units/tuf-gaming/tuf-gaming-1000p/techspecRead 15 October 2026Package Contents: power cord x1, motherboard cable x1, CPU 1-to-1 cable x2, PCI-E Gen 5.1 cable x1, PCI-E 1-to-1 cable x3, SATA 1-to-3 cable x2, peripheral 1-to-3 cable x1, TUF Gaming cable tie x3, user manual x1. The cables are stored in the cables field.

Warranty

Manufacturer warranty (source market)
8years1Maker product pageasus.com/motherboards-components/power-supply-units/tuf-gaming/tuf-gaming-1000p/techspecRead 15 October 2026Warranty row 8-year. The page is the ASUS global site.
