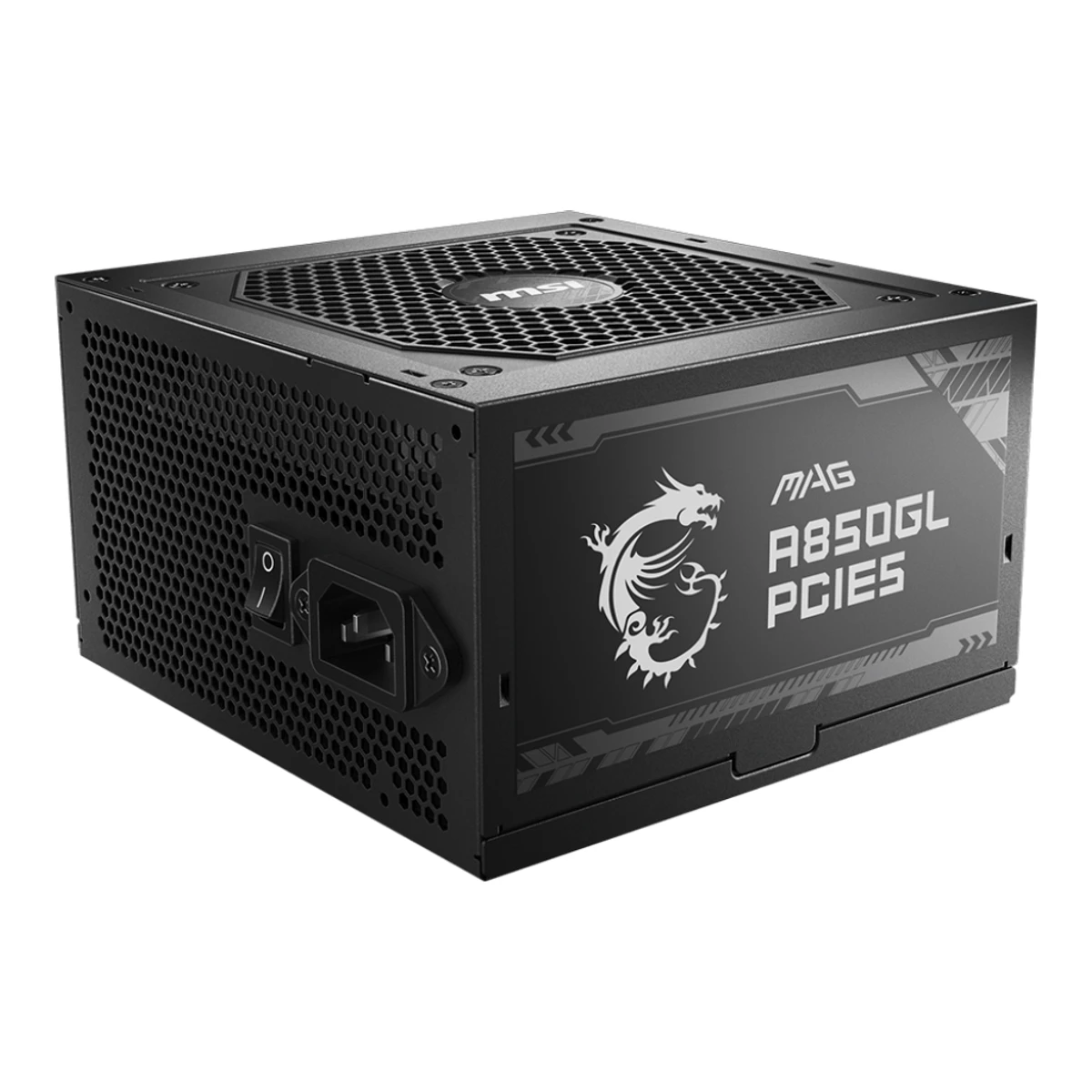

MSI MAG A850GL PCIE5

MSIPower supply

MAG A850GL PCIE5

Released July 2023.3Press articlegdm.or.jp/pressrelease/2023/0719/498049Read 16 October 2026Hermitage Akihabara republishes the MSI Japan release: announced 2023-07-19 as an ATX 3.0 and PCIe 5.0 unit, on sale from 2023-07-21. Geizhals has listed the unit since 2023-07-07 and Hardware Busters reviewed it on November 7, 2023. Last checked 16 October 2026.

Power
850W
Efficiency
80 PLUS Gold
Modular cables
Fully modular
ATX version
ATX 3.1

52 of 66 fields known.

Compare with another power supplyDownload JSONDownload CSVGet it from the API

All specs

SourceCalculated

General

Series
Not available
Model numbers
MAG A850GL PCIE5, 306-7ZP8A11-CE01Maker spec sheet (PDF)storage-asset.msi.com/datasheet/power-supply/us/MAG-A850GL-PCIE5.pdfRead 16 October 2026Datasheet title MAG A850GL PCIE5. The later MAG A850GL PCIE5 II has its own order code and is a different product.4Maker product pagede-store.msi.com/products/mag-a850gl-pcie5Read 16 October 2026MSI e-shop Germany: order code 306-7ZP8A11-CE0.
GTIN / EAN
47113770842534Maker product pagede-store.msi.com/products/mag-a850gl-pcie5Read 16 October 2026MSI e-shop Germany: EAN 4711377084253 (gtin13 in the page data).8Retailer pagestore.fluidone.com/msi-mag-a850gl-pcie5-power-supply-unit-850-w-20-4-pin-atx-atx-black-mag-a850gl-pcie5Read 16 October 2026EAN 4711377084253 for SKU MAG A850GL PCIE5, the same EAN as the MSI German e-shop.
Announced
19 July 20233Press articlegdm.or.jp/pressrelease/2023/0719/498049Read 16 October 2026MSI Japan announced MAG A850GL PCIE5 and MAG A750GL PCIE5 on 2023-07-19. The Japanese list price was 18,980 JPY including tax, which is not stored.
Status
Available4Maker product pagede-store.msi.com/products/mag-a850gl-pcie5Read 16 October 2026Page data shows the offer as in stock on 2026-10-16.
Predecessor
Not available
Successor
Not available
Launch price (US)
Not available
Launch price (EU)
Not available
Markets
Not available
Colours
Black8Retailer pagestore.fluidone.com/msi-mag-a850gl-pcie5-power-supply-unit-850-w-20-4-pin-atx-atx-black-mag-a850gl-pcie5Read 16 October 2026Spec sheet: Product colour Black. The listing text still says ATX 3.0 compatible and native PCIe 5.0.9Spec databasegeizhals.de/msi-mag-a850gl-pcie5-850w-atx-3-0-a2979848.htmlRead 16 October 2026Farbe schwarz. MSI also sells a separate MAG A850GL PCIE5 WHITE under its own order code. It is not stored here because its datasheet could not be read.
Form factor
ATX1Maker spec sheet (PDF)storage-asset.msi.com/datasheet/power-supply/us/MAG-A850GL-PCIE5.pdfRead 16 October 2026Dimensions (DxWxH) 140 x 150 x 86 mm. The back face is 150 x 86 mm, the standard ATX size. Cybenetics DUT Information prints Type ATX12V.
ATX version
ATX 3.11Maker spec sheet (PDF)storage-asset.msi.com/datasheet/power-supply/us/MAG-A850GL-PCIE5.pdfRead 16 October 2026Feature list in the 2025 sheets (US, global, UK and AU, generated 2025-03 to 2025-12): ATX 3.1 ready, native PCIe 5.1 dual-color 16-pin cable. The 2024 JP and CA sheets say ATX 3.0 compatible with a native PCIe 5.0 connector. The specification table and the connector counts are the same in both versions. The Japanese 2025 sheet says the same product described as ATX 3.0 also supports ATX 3.1. The German e-shop page and Hardware Busters still say ATX 3.0.2Maker spec sheet (PDF)storage-asset.msi.com/datasheet/power-supply/jp/MAG-A850GL-PCIE5.pdfRead 16 October 2026Japanese 2025 sheet: native 16-pin connector for ATX 3.1, and the same product described as ATX 3.0 also supports ATX 3.1.9Spec databasegeizhals.de/msi-mag-a850gl-pcie5-850w-atx-3-0-a2979848.htmlRead 16 October 2026Note: introduced as ATX 3.0 and PCIe 5.0 compatible, now also advertised as ATX 3.1 and PCIe 5.1 compatible. The page names the 16-pin cable 12V-2x6 and 600W, which the maker does not.
PCIe CEM version
PCIe 5.11Maker spec sheet (PDF)storage-asset.msi.com/datasheet/power-supply/us/MAG-A850GL-PCIE5.pdfRead 16 October 20262025 sheets: native PCIe 5.1 dual-color 16-pin cable. The earlier sheets say PCIe 5.0. The specification table still names the connector PCI-E 5.0 (16 pin).
Modular cables
Fully modular1Maker spec sheet (PDF)storage-asset.msi.com/datasheet/power-supply/us/MAG-A850GL-PCIE5.pdfRead 16 October 2026Specifications: Modular Yes (full modular).
Built by (OEM)
Channel Well Technology (CWT)5Measurementcybenetics.com/evaluations/psus/2336Read 16 October 2026DUT Information and Parts Description: OEM/ODM CWT, platform GPX. Hardware Busters names the company Channel Well Technology.7Reviewhwbusters.com/psus/msi-mag-a850gl-pcie5-850w-psu-reviewRead 16 October 2026Technical specifications: Manufacturer (OEM) CWT (GPX platform).

Power

Rated continuous power
850W1Maker spec sheet (PDF)storage-asset.msi.com/datasheet/power-supply/us/MAG-A850GL-PCIE5.pdfRead 16 October 2026Specifications: Power Watt 850W. Total power 850W. Power excursion 1700W up to 200% of rated power for 100 microseconds is not stored.
Full power rated up to
Not available
12V rail design
Single rail3Press articlegdm.or.jp/pressrelease/2023/0719/498049Read 16 October 2026Release text: +12V single rail design, 70.5A for the 850W model.5Measurementcybenetics.com/evaluations/psus/2336Read 16 October 2026Power Specifications: one +12V column with 70.5A and 846W.7Reviewhwbusters.com/psus/msi-mag-a850gl-pcie5-850w-psu-reviewRead 16 October 2026Technical specifications: Number of 12V rails 1.9Spec databasegeizhals.de/msi-mag-a850gl-pcie5-850w-atx-3-0-a2979848.htmlRead 16 October 2026+12V 70.5A (1 Schiene).
+12V max current
70.5A1Maker spec sheet (PDF)storage-asset.msi.com/datasheet/power-supply/us/MAG-A850GL-PCIE5.pdfRead 16 October 2026DC output table: +12V 70.5A, 846W. The datasheet prints -12V 0.3A and 3.6W next to it.3Press articlegdm.or.jp/pressrelease/2023/0719/498049Read 16 October 2026Release text: 70.5A for the 850W model.
+12V max power
846W1Maker spec sheet (PDF)storage-asset.msi.com/datasheet/power-supply/us/MAG-A850GL-PCIE5.pdfRead 16 October 2026DC output table: +12V 846W. Total power 850W.
+3.3V and +5V combined power
110W1Maker spec sheet (PDF)storage-asset.msi.com/datasheet/power-supply/us/MAG-A850GL-PCIE5.pdfRead 16 October 2026DC output table: +5V 20A and +3.3V 20A with one 110W figure under both.
+5V standby current
2.5A1Maker spec sheet (PDF)storage-asset.msi.com/datasheet/power-supply/us/MAG-A850GL-PCIE5.pdfRead 16 October 2026DC output table: +5Vsb 2.5A, 12.5W.
AC input voltage
Lowest100Highest240V1Maker spec sheet (PDF)storage-asset.msi.com/datasheet/power-supply/us/MAG-A850GL-PCIE5.pdfRead 16 October 2026Input Voltage Range 100~240 VAC. AC input 100-240V, 12A, 47-63Hz.
Alternative low power mode (ALPM)
Yes5Measurementcybenetics.com/evaluations/psus/2336Read 16 October 2026Temperature and Compliance Info: ALPM (Alternative Low Power Mode) compatible, checked.

Certifications

80 PLUS rating
80 PLUS Gold6Certification listclearesult.com/80plus/sites/80plus/files/manufacturer-certificate/Micro-Star%20International%20Co.%2C%20Ltd._MAG%20A850GL%20PCIE5_850W_SOCE%205832.7_Report.pdfRead 16 October 202680 PLUS ID 5832.7, model MAG A850GL PCIE5, type ATX12V, rated 850 W, input 100-240 V 12 A, no serial number printed: Gold at 115V, average efficiency 90.06% and 91.22% at 50% load. The list dates the entry 2019-12-20, long before the 2023 launch, so the certificate was most likely renamed from an older MAG A850GL. It agrees with the maker's Gold claim.
Cybenetics efficiency at 115V
Cybenetics Platinum5Measurementcybenetics.com/evaluations/psus/2336Read 16 October 2026Report 24PS2336A, certification ID 252336, issued Jan 26, 2024, model MAG A850GL PCIE5. The ETA badge shows Platinum at 115V. The report predates the 2025 ATX 3.1 relabel. No serial number is printed. Received Jan 8, 2024, tested Jan 25, 2024. The 80 PLUS entry and MSI say Gold.
Cybenetics efficiency at 230V
Cybenetics Platinum5Measurementcybenetics.com/evaluations/psus/2336Read 16 October 2026The ETA badge shows Platinum at 230V.
Cybenetics noise at 115V
Standard+5Measurementcybenetics.com/evaluations/psus/2336Read 16 October 2026The LAMBDA badge shows Standard+ at 115V.
Cybenetics noise at 230V
Standard+5Measurementcybenetics.com/evaluations/psus/2336Read 16 October 2026The LAMBDA badge shows Standard+ at 230V.

Measured

Average efficiency at 115V (measured)
89.044%5Measurementcybenetics.com/evaluations/psus/2336Read 16 October 2026Average over more than 1450 load combinations at 115V. Ambient 28-32 C.
Average efficiency at 230V (measured)
91.304%5Measurementcybenetics.com/evaluations/psus/2336Read 16 October 2026Average over more than 1450 load combinations at 230V.
Light-load efficiency at 115V (measured)
68.015%5Measurementcybenetics.com/evaluations/psus/2336Read 16 October 2026Efficiency at 2% load (more than 500 W unit) at 115V. At 230V it is 67.867%.
Average power factor at 115V (measured)
0.9825Measurementcybenetics.com/evaluations/psus/2336Read 16 October 2026Average over more than 1450 load combinations at 115V. At 230V it is 0.941.
Average noise at 115V (measured)
38.49dB(A)5Measurementcybenetics.com/evaluations/psus/2336Read 16 October 2026Average over more than 1450 load combinations at 115V. Ambient 28-32 C. Bruel and Kjaer 2270 G4 sound analyzer. The 230V average is 38.02 dBA.
Noise at full load at 115V (measured)
48.2dB(A)5Measurementcybenetics.com/evaluations/psus/2336Read 16 October 2026Typical load tests at 115V, 100% load row: 48.2 dB(A) at 2384 rpm fan speed, intake 45.91 C. Not used for certification.
Standby power with no load at 115V (measured)
0.0549W5Measurementcybenetics.com/evaluations/psus/2336Read 16 October 2026Standby power consumption at 115V with no load on +5VSB: 0.0549 W. At 230V it is 0.1190 W.
Hold-up time (measured)
17.2ms5Measurementcybenetics.com/evaluations/psus/2336Read 16 October 2026Hold-Up Time and PWR_OK Signal: hold-up time 17.2 ms, AC loss to PWR_OK 16.0 ms, PWR_OK inactive to DC loss 1.2 ms, at maximum continuous load. The report names no input voltage.
12V ripple at full load (measured)
30.17mV5Measurementcybenetics.com/evaluations/psus/2336Read 16 October 2026Non-accredited measurement. 12V ripple at full load at 115V. At 230V it is 27.21 mV.
12V load regulation (measured)
0.54%5Measurementcybenetics.com/evaluations/psus/2336Read 16 October 2026Non-accredited measurement. 12V load regulation at 115V. At 230V it is 0.55%.

Cables and connectors

Cables
ConnectorConnectorsCablesLength to first plug (mm)Wire gaugeRated power (W)
ATX 24-pin (20+4)1160018AWGNot available
CPU 8-pin (EPS, 4+4)2275018AWGNot available
PCIe 8-pin (6+2)4260018AWGNot available
16-pin PCIe (revision not stated)11600Not available600
SATA power8250018AWGNot available
4-pin Molex4150018-20AWGNot available
4-pin floppy1150018-20AWGNot available
Source1Maker spec sheet (PDF)storage-asset.msi.com/datasheet/power-supply/us/MAG-A850GL-PCIE5.pdfRead 16 October 2026Connector table: ATX 24 pin 1, EPS 4+4 pin 2, PCI-E 5.0 16 pin 1 (600W), PCI-E 6+2 pin 4, SATA 8, Molex 4, FDD 1. The datasheet gives no cable counts, lengths or wire gauges. Those come from the Cybenetics cable table. The datasheet and Geizhals rate the 16-pin cable 600W. Cybenetics and Hardware Busters say the connector is set to 450W by its sense pins. The 600W maker figure is stored.5Measurementcybenetics.com/evaluations/psus/2336Read 16 October 2026Cables and Connectors table: ATX 20+4 pin 600 mm 18AWG, 2 x 4+4 pin EPS 750 mm 18AWG, two 6+2 pin PCIe cables 600 mm + 150 mm (4 plugs) 18AWG, 12+4 pin PCIe 600 mm (450W) 16-26AWG, two SATA cables 500 + 150 + 150 + 150 mm (8 plugs) 18AWG, one cable with 4 Molex and 1 FDD 500 + 150 + 150 + 150 mm (+150 mm) 18-20AWG. The 16-26AWG range of the 12+4 pin cable includes the thin sideband wires and no source gives the power wire gauge, so no gauge is stored. Lengths are the lengths to the first plug.7Reviewhwbusters.com/psus/msi-mag-a850gl-pcie5-850w-psu-reviewRead 16 October 2026Cable table matches the Cybenetics report. The review calls the connector a plain 12VHPWR socket although the label says 12V-2x6, and says the connector is set to 450W.
CPU (EPS) connectors
2
PCIe 8-pin connectors
4
16-pin GPU connectors
1
SATA power connectors
8
4-pin Molex connectors
4
Cable style
Flat1Maker spec sheet (PDF)storage-asset.msi.com/datasheet/power-supply/us/MAG-A850GL-PCIE5.pdfRead 16 October 2026Feature list: Full modular design, Flat cables.

Fan

Fan size
120mm1Maker spec sheet (PDF)storage-asset.msi.com/datasheet/power-supply/us/MAG-A850GL-PCIE5.pdfRead 16 October 2026Specifications: Fan Size 120 mm. Cybenetics names the fan DF1202512FDHN.3Press articlegdm.or.jp/pressrelease/2023/0719/498049Read 16 October 2026Release text: 120mm FDB fan.5Measurementcybenetics.com/evaluations/psus/2336Read 16 October 2026Cooling: 120mm Fluid Dynamic Bearing Fan (DF1202512FDHN).
Fan bearing
Fluid dynamic (FDB)1Maker spec sheet (PDF)storage-asset.msi.com/datasheet/power-supply/us/MAG-A850GL-PCIE5.pdfRead 16 October 2026Specifications: Fan Bearing Fluid Dynamic Bearing. The Bearing Type row prints Hydro-Dynamic Bearing. The feature list says 120mm Fluid Dynamic Bearing Fan. The rated speed is 500 - 1800 +-15% RPM.3Press articlegdm.or.jp/pressrelease/2023/0719/498049Read 16 October 2026Release text: 120mm FDB fan.5Measurementcybenetics.com/evaluations/psus/2336Read 16 October 2026Cooling: 120mm Fluid Dynamic Bearing Fan (DF1202512FDHN).
Fan mode
Always on5Measurementcybenetics.com/evaluations/psus/2336Read 16 October 2026Semi-Passive Operation is marked absent. The typical load tests show the fan at 1145 rpm at 10% load.7Reviewhwbusters.com/psus/msi-mag-a850gl-pcie5-850w-psu-reviewRead 16 October 2026Technical specifications: Semi-Passive Operation not supported.
Fan mode switch
No5Measurementcybenetics.com/evaluations/psus/2336Read 16 October 2026The unit has no semi-passive mode, so it has no switch for it.7Reviewhwbusters.com/psus/msi-mag-a850gl-pcie5-850w-psu-reviewRead 16 October 2026Semi-passive operation is marked absent in the specification list.

Protection and parts

Protections
Over-current (OCP), Over-voltage (OVP), Under-voltage (UVP), Over-power (OPP), Over-temperature (OTP), Short-circuit (SCP), No-load (NLO), Surge and inrush (SIP)1Maker spec sheet (PDF)storage-asset.msi.com/datasheet/power-supply/us/MAG-A850GL-PCIE5.pdfRead 16 October 2026Specifications and feature list: OCP / OVP / OPP / OTP / SCP / UVP. NLO and SIP come from the Hardware Busters protection tests.7Reviewhwbusters.com/psus/msi-mag-a850gl-pcie5-850w-psu-reviewRead 16 October 2026Protection Features page: NLO passes, SIP is MOV for surge and an NTC thermistor with bypass relay for inrush, fan failure protection is absent, OTP and SCP pass. The Cybenetics report has no protection test section for this unit. The review says its 12V and OPP settings are correct, and 3.3V OCP triggers too high.
All-Japanese capacitors
Not available
MTBF (claimed)
150,000h1Maker spec sheet (PDF)storage-asset.msi.com/datasheet/power-supply/us/MAG-A850GL-PCIE5.pdfRead 16 October 2026Specifications: Life Expectancy MTTF 150,000 Hours (25 C). The figure is for the unit, so it is stored as MTBF.

Monitoring and lighting

Software monitoring
Not available
Software
Not available
Built-in power display
Not available
RGB lighting
No8Retailer pagestore.fluidone.com/msi-mag-a850gl-pcie5-power-supply-unit-850-w-20-4-pin-atx-atx-black-mag-a850gl-pcie5Read 16 October 2026Spec sheet: Illumination No.

Dimensions and weight

Front and side, drawn to scale.

Dimensions
Width150Height86Depth140mm(5.9 × 3.4 × 5.5 in)1Maker spec sheet (PDF)storage-asset.msi.com/datasheet/power-supply/us/MAG-A850GL-PCIE5.pdfRead 16 October 2026Specifications: Dimensions (DxWxH) 140 x 150 x 86 mm. Depth 140, width 150, height 86. Hardware Busters prints 150 x 85 x 140 mm for W x H x D. The table also prints 120 x 120 x 25.6 mm and a card weight of 169 g, which are fan-card template rows and are not stored.3Press articlegdm.or.jp/pressrelease/2023/0719/498049Read 16 October 2026Release text: width 150 mm, depth 140 mm, height 86 mm.
Weight
1.45kg(3.2 lb)7Reviewhwbusters.com/psus/msi-mag-a850gl-pcie5-850w-psu-reviewRead 16 October 2026Technical specifications: 1.45 kg (3.2 lb). The review does not say whether cables are included. MSI does not publish a weight. Review published November 7, 2023.

In the box

We could not find any of these 1 fields. Show them
In the box
Not available

Warranty

Manufacturer warranty (source market)
7years2Maker spec sheet (PDF)storage-asset.msi.com/datasheet/power-supply/jp/MAG-A850GL-PCIE5.pdfRead 16 October 2026Japanese feature list, generated 2025-02-03: 7-year long product warranty. The sheet is for the JP market. The German e-shop and the Japanese launch release also say 7 years. Hardware Busters says five years.3Press articlegdm.or.jp/pressrelease/2023/0719/498049Read 16 October 2026Release text: product warranty 7 years. The market is Japan.4Maker product pagede-store.msi.com/products/mag-a850gl-pcie5Read 16 October 2026Page shows 7 Jahre Garantie. The page is the German shop, so the market is Germany. The page text still says ATX 3.0 compatible and native PCIe 5.0.

Compare with

Pick a power supply to see both side by side. Differences are marked yellow.

More power supply comparisons

Variants

Each variant lists only what differs from the specs above.

Model numberGTIN
306-7ZP8A11-CE04711377084253
