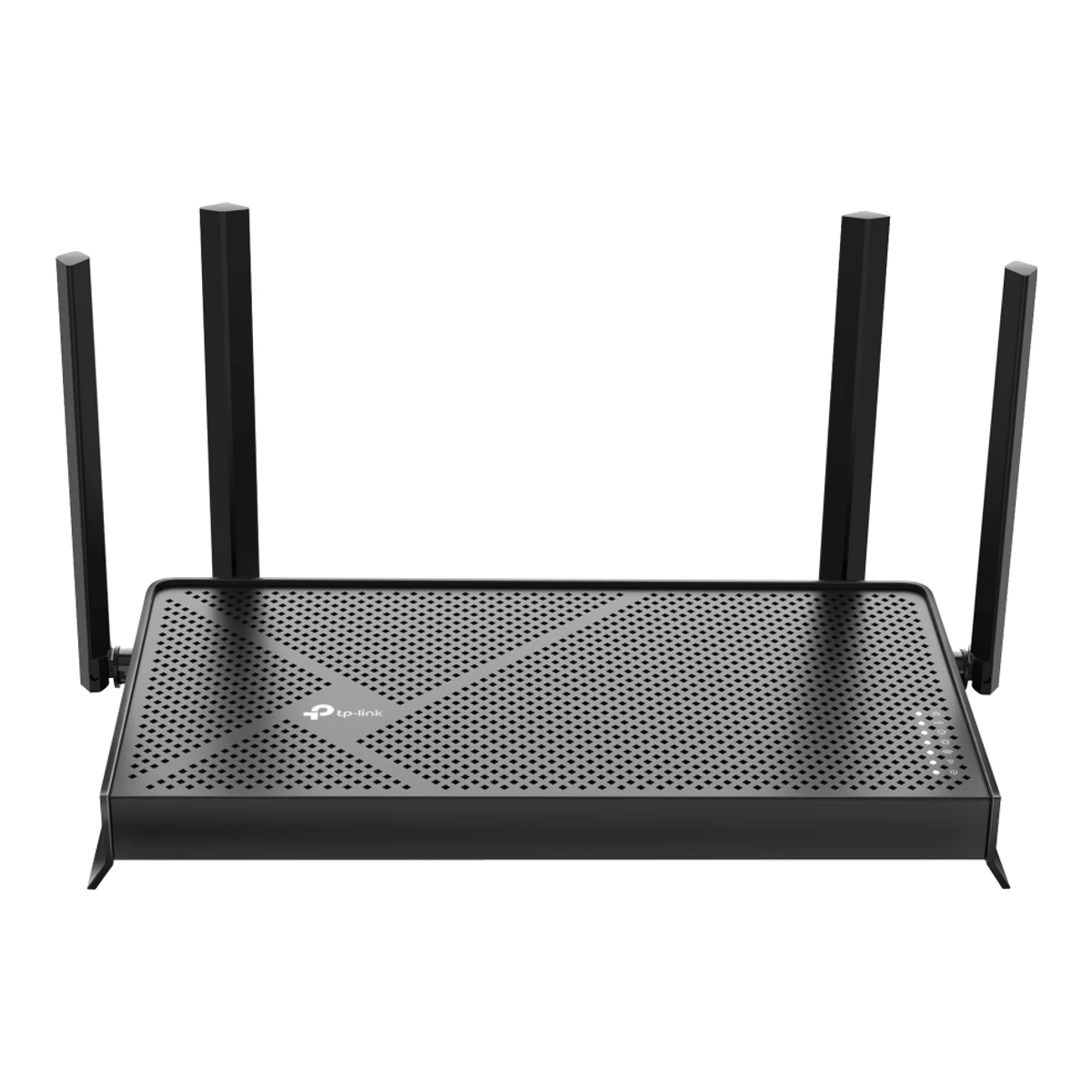

TP-Link Archer BE230

TP-LinkHome router

Archer BE230

Released July 2024.4Maker product pagetp-link.com/us/support/download/archer-be230/v1Read 14 October 2026Support page for Archer BE230 V1 (US) lists firmware 1.0.2 built 2024-04-25, 1.0.3 built 2024-06-12 and later builds up to 1.2.6 built 2026-06-17. The Walmart launch of the identical Archer BE3600 was on 2024-07-23. Last checked 14 October 2026.

Form factor
Router
Wi-Fi
Wi-Fi 7
Speed class
BE3600
WAN port
2.5Gbps

64 of 90 fields known.

Compare with another routerDownload JSONDownload CSVGet it from the API

At a glance

Ports

  • 5 RJ45
  • USB-A USB 3.0

All specs

SourceCalculated

General

Series
Archer1Maker product pagetp-link.com/us/home-networking/wifi-router/archer-be230Read 14 October 2026
Model numbers
Archer BE230, Archer BE36001Maker product pagetp-link.com/us/home-networking/wifi-router/archer-be230Read 14 October 2026The support page lists the Archer BE3600 Dual-Band Wi-Fi 7 Router datasheet under the Archer BE230 downloads, and the maker's end-of-sale list has Archer BE230 and Archer BE3600 (Walmart) rows with the same dates. Tom's Guide and Dong Knows Tech both call the BE3600 the identical router. The datasheet of the BE230 is used.
GTIN / EAN
Not available
Announced
Not available
Status
Available1Maker product pagetp-link.com/us/home-networking/wifi-router/archer-be230Read 14 October 2026The product page and the support downloads are live. Firmware 1.2.6 build 20260617 is dated 2026-07-30. The maker's US end-of-sale list (V9) gives an end-of-sale notice date of 2026-08-18 and an end-of-sale date of 2027-02-14 for the US versions, so it is still sold.5Maker spec sheet (PDF)static.tp-link.com/upload/manual/2026/202609/20260921/US%20EOS_List_Home%20-%20V9.pdfRead 14 October 2026Archer BE230 versions 1.0, 1.6, 1.20 and 1.26 (US) and Archer BE3600 1.6 and 1.26 (USW): end-of-sale notice 2026-08-18, end of sale 2027-02-14. Stored as available until the end-of-sale date passes.
Predecessor
Not available
Successor
Not available
Launch price (US)
$9911Reviewdongknows.com/tp-link-archer-be230-reviewRead 14 October 2026Spec table: U.S. price at launch $99, for the Archer BE230 (Archer BE3600). The Tom's Hardware launch report of 2024-07-23 gives $99 at Walmart too. Tom's Guide later prints a list price of $120. Retailer sale prices are not used.13Press articletech.yahoo.com/general/articles/tp-walmart-tout-first-sub-181914722.htmlRead 14 October 2026The new TP-Link Archer BE3600 is available exclusively through Walmart for $99. Excluding tax, US.
Launch price (EU)
Not available
Markets
US10Reviewtomsguide.com/computing/routers/tp-link-archer-be3600-reviewRead 14 October 2026US review and US prices.11Reviewdongknows.com/tp-link-archer-be230-reviewRead 14 October 2026US launch price.13Press articletech.yahoo.com/general/articles/tp-walmart-tout-first-sub-181914722.htmlRead 14 October 2026US, Walmart.
Colours
Black10Reviewtomsguide.com/computing/routers/tp-link-archer-be3600-reviewRead 14 October 2026Wrapped in black plastic. The review gives no colour name. The retail listings say Black.
Form factor
Router1Maker product pagetp-link.com/us/home-networking/wifi-router/archer-be230Read 14 October 2026Standalone router, EasyMesh-compatible.
Segment
Home1Maker product pagetp-link.com/us/home-networking/wifi-router/archer-be230Read 14 October 2026Listed under the maker's WiFi routers for homes. The page rates coverage for 3 Bedroom Houses.

Wi-Fi

Wi-Fi
Wi-Fi 71Maker product pagetp-link.com/us/home-networking/wifi-router/archer-be230Read 14 October 2026
Wi-Fi speed class
BE36001Maker product pagetp-link.com/us/home-networking/wifi-router/archer-be230Read 14 October 2026The page names the product BE3600 and shows the total as 3570 Mbps (2882 + 688).
Wi-Fi radios
BandWi-FiStreamsMax channel width (MHz)Max link rate (Mbps)
2.4 GHzWi-Fi 7240688
5 GHzWi-Fi 721602,882
Source1Maker product pagetp-link.com/us/home-networking/wifi-router/archer-be230Read 14 October 2026WiFi Speeds: BE3600, 5 GHz 2882 Mbps (802.11be) and 2.4 GHz 688 Mbps (802.11be). Capacity: 2x2 MU-MIMO, 4 streams, dual-band. Streams per band follow from the rates: 688 Mbps at 40 MHz and 2882 Mbps at 160 MHz are both 2 streams. The widest channels come from the datasheet.2Maker spec sheet (PDF)tp-link.com/us/document/17286Read 14 October 2026Datasheet Archer BE230_V1: WiFi Speeds 2882 Mbps (5 GHz) + 688 Mbps (2.4 GHz). The reception sensitivity table lists 11be EHT40 on 2.4 GHz and 11be EHT160 on 5 GHz, so 40 MHz and 160 MHz are the widest channels.
Radio bands
2
6 GHz band
No
Combined Wi-Fi link rate
3,570Mbps
Wi-Fi streams
4
Max Wi-Fi channel width
160MHz
Wi-Fi features
Multi-Link Operation (MLO), Multi-RU, 4K-QAM, OFDMA, MU-MIMO, Beamforming, Band steering1Maker product pagetp-link.com/us/home-networking/wifi-router/archer-be230Read 14 October 2026Advanced Features: MLO, 4K-QAM, Multi-RUs, EasyMesh-compatible. Capacity lists 2x2 MU-MIMO, OFDMA and Airtime Fairness. Range lists Beamforming.2Maker spec sheet (PDF)tp-link.com/us/document/17286Read 14 October 2026WiFi 7 Features: MLO, 4K-QAM and Multi-RUs. Smart Connect assigns each device to the best Wi-Fi band, stored as band_steering.3Owner's manualtp-link.com/us/document/46774Read 14 October 2026Smart Connect combines the 2.4 GHz and 5 GHz bands and assigns devices between them to balance network demands. Wireless Settings offers OFDMA + MU-MIMO.
External antennas
41Maker product pagetp-link.com/us/home-networking/wifi-router/archer-be230Read 14 October 20264x External Antennas.11Reviewdongknows.com/tp-link-archer-be230-reviewRead 14 October 2026Four non-detachable antennas that swivel 180 degrees and tilt up to 90 degrees.
Internal antennas
Not available
Detachable antennas
No10Reviewtomsguide.com/computing/routers/tp-link-archer-be3600-reviewRead 14 October 2026Spec table: number of antennas/removable: 4/No. The text says the antennas swivel but can't easily be replaced.11Reviewdongknows.com/tp-link-archer-be230-reviewRead 14 October 2026Four non-detachable antennas.
Coverage of one unit (claimed)
Not available
Connected devices per unit (claimed)
Not available

Ports and modem

Ports
PortCountRoleMax speed (Gbps)Version
RJ451WAN2.5Not available
RJ451LAN2.5Not available
RJ453LAN1Not available
USB-A1Not available5USB 3.0
Source1Maker product pagetp-link.com/us/home-networking/wifi-router/archer-be230Read 14 October 2026Ethernet Ports: 1x 2.5 Gbps WAN, 1x 2.5 Gbps LAN and 3x 1 Gbps LAN. USB Support: 1x USB 3.0. USB 3.0 is the 5 Gbps USB data rate.
Ethernet ports
5
Multi-gig ports
2
Fastest WAN port
2.5Gbps
Fastest LAN port
2.5Gbps
USB ports
1
SFP+ port
No
Built-in modem
Not available
Modem standards
Not available

Mesh

Mesh technologies
EasyMesh1Maker product pagetp-link.com/us/home-networking/wifi-router/archer-be230Read 14 October 2026EasyMesh: Compatible with EasyMesh.
Units per pack
11Maker product pagetp-link.com/us/home-networking/wifi-router/archer-be230Read 14 October 2026One router is sold.
Coverage of the pack (claimed)
Not available
Identical units
Not available
Satellite model
Not available
Satellite ports
Not available
Ethernet backhaul
Not available

Software

Management
Mobile app, Web interface1Maker product pagetp-link.com/us/home-networking/wifi-router/archer-be230Read 14 October 2026Management Features: Tether App and Webpage.
Online account required
No3Owner's manualtp-link.com/us/document/46774Read 14 October 2026Quick setup in the web interface says that to use more of TP-Link's cloud service you can log in with a TP-Link ID or click Skip to proceed.
Operating modes
Router, Access point1Maker product pagetp-link.com/us/home-networking/wifi-router/archer-be230Read 14 October 2026Wireless Mode: Router Mode and Access Point Mode.3Owner's manualtp-link.com/us/document/46774Read 14 October 2026Section 4.4 Set Up the Router as an Access Point.
Network features
Guest network, IoT network, IPTV, QoS, Parental controls, Dynamic DNS1Maker product pagetp-link.com/us/home-networking/wifi-router/archer-be230Read 14 October 2026Guest Network: 5 GHz and 2.4 GHz. Advanced Features lists an IoT Network. IPTV lists IGMP Proxy, IGMP Snooping, Bridge and Tag VLAN, so VLAN is not stored. QoS by Device and DDNS (TP-Link, NO-IP, DynDNS) are listed. HomeShield Parental Controls are listed and the basic tier is free (see the HomeShield page).3Owner's manualtp-link.com/us/document/46774Read 14 October 2026Chapters on Guest Network, IoT Network, IPTV (section 16.4) and Dynamic DNS (section 16.6).8Maker product pagetp-link.com/us/homeshieldRead 14 October 2026Basic parental controls (create profile, preset age template, pause the internet) and QoS are listed as free.
VPN server
OpenVPN, PPTP, L2TP, WireGuard1Maker product pagetp-link.com/us/home-networking/wifi-router/archer-be230Read 14 October 2026VPN Server: OpenVPN, PPTP, L2TP and WireGuard. The user guide names the L2TP server L2TP/IPSec.
VPN client
OpenVPN, PPTP, L2TP, WireGuard1Maker product pagetp-link.com/us/home-networking/wifi-router/archer-be230Read 14 October 2026VPN Client: OpenVPN, PPTP, L2TP and WireGuard.
USB applications
File server, Media server, Time Machine1Maker product pagetp-link.com/us/home-networking/wifi-router/archer-be230Read 14 October 2026Supported functions: FTP Server, Media Server, Samba Server.3Owner's manualtp-link.com/us/document/46774Read 14 October 2026Chapter 10 covers USB storage access (Samba, FTP), media sharing and Time Machine in its chapter overview. The body of the chapter has no Time Machine section. Tom's Guide describes a Time Machine backup setting in the web interface.10Reviewtomsguide.com/computing/routers/tp-link-archer-be3600-reviewRead 14 October 2026The web interface has a place to set the USB drive up for Time Machine backups.

Security

Wi-Fi security
WPA2-Personal, WPA3-Personal, WPA2-Enterprise1Maker product pagetp-link.com/us/home-networking/wifi-router/archer-be230Read 14 October 2026WiFi Encryption: WPA, WPA2, WPA3 and WPA/WPA2-Enterprise (802.1x).
Security service
HomeShield1Maker product pagetp-link.com/us/home-networking/wifi-router/archer-be230Read 14 October 2026Service Kit: HomeShield.
Security service cost
Basic free, full paid8Maker product pagetp-link.com/us/homeshieldRead 14 October 2026Basic network security (router and wireless security scan, IoT device identification) is free. IoT protection, web protection and intrusion prevention need Security+, with a 30-day free trial. The datasheet says HomeShield includes basic and advanced features and advanced features need a paid subscription.
Automatic firmware updates
Yes1Maker product pagetp-link.com/us/home-networking/wifi-router/archer-be230Read 14 October 2026Cloud Service: Auto Firmware Upgrade.
Security updates until
3 August 20296Maker spec sheet (PDF)static.tp-link.com/upload/manual/2026/202609/20260907/Statements%20of%20PSTI%20Compliance_TP-Link.pdfRead 14 October 2026UK PSTI statement, Home Networking, Routers: Archer BE230 V1 has a defined support period of 3/8/2029 (3 August 2029). The statement says the period ends 3 years after the end-of-life date and may be refreshed to extend it, so the date is a minimum. The same list gives Archer BE3600 V1 as 14/2/2030. The statement is for the UK, and the US end-of-sale date is later than the EU one, so the US date may be later.

Smart home

Thread border router
Not available
Matter controller
Not available
Zigbee hub
Not available
Bluetooth
Not available
Smart home platforms
Amazon Alexa, Google Assistant1Maker product pagetp-link.com/us/home-networking/wifi-router/archer-be230Read 14 October 2026Advanced Features: Works with Alexa and Google Assistant.

Hardware

System on chip
Broadcom BCM676410Reviewtomsguide.com/computing/routers/tp-link-archer-be3600-reviewRead 14 October 2026Spec table: Wi-Fi chip Broadcom BCM6764. The text says the router is powered by Broadcom's BCM6764 Wi-Fi chip with a quad-core 2.0 GHz processor. The maker publishes no chip and Dong Knows Tech lists the processor as undisclosed.
CPU cores
410Reviewtomsguide.com/computing/routers/tp-link-archer-be3600-reviewRead 14 October 2026Spec table: processor/memory/storage quad-core 2.0 / 512MB / 128MB.
CPU clock
2GHz10Reviewtomsguide.com/computing/routers/tp-link-archer-be3600-reviewRead 14 October 2026Spec table: quad-core 2.0.
RAM
512MB10Reviewtomsguide.com/computing/routers/tp-link-archer-be3600-reviewRead 14 October 2026512MB, the only figure printed. Stored as 0.512 GB.
Flash storage
128MB10Reviewtomsguide.com/computing/routers/tp-link-archer-be3600-reviewRead 14 October 2026128MB. Stored as 0.128 GB.
Cooling fan
No10Reviewtomsguide.com/computing/routers/tp-link-archer-be3600-reviewRead 14 October 2026Passive cooling through square holes in the top.11Reviewdongknows.com/tp-link-archer-be230-reviewRead 14 October 2026The router has no fan and ran silently.

Power

Power supply
External DC adapter1Maker product pagetp-link.com/us/home-networking/wifi-router/archer-be230Read 14 October 2026The datasheet lists a power adapter in the box, and the user guide describes a power port for the provided adapter.
Rated power input
12 V, 2 A1Maker product pagetp-link.com/us/home-networking/wifi-router/archer-be230Read 14 October 2026Power: 12 V, 2 A (US) and 12 V, 1.5 A (EU). The US figure is stored.
Included adapter output
24W1Maker product pagetp-link.com/us/home-networking/wifi-router/archer-be230Read 14 October 202612 V times 2 A is 24 W (US adapter). The EU adapter is 12 V, 1.5 A.
Power use (typical, claimed)
Not available
Power use (max, claimed)
Not available

Measured

Wi-Fi throughput (measured)
Distance (m)Connected toThroughput (Mbps)
4.572Main unit1,138
15.24Main unit702.3
22.86Main unit205.2
27.432Main unit15.5
Source9Measurementtomsguide.com/computing/routers/tp-link-archer-be3600-reviewRead 14 October 2026Review of the identical Archer BE3600 (sold as Archer BE230 on Amazon). Keysight IxChariot simulating 10 users, Acer Swift Edge 16 Wi-Fi 7 notebook, 3,500 sq ft home. Rows are 15 ft (4.572 m) 1.138 Gbps, 50 ft (15.24 m) 702.3 Mbps, 75 ft (22.86 m) 205.2 Mbps and 90 ft (27.432 m) 15.5 Mbps. The band is not named and the firmware is not stated. The review also gives 1.234 Gbps with the router and the notebook side by side and 1.103 Gbps over a 15 ft wired link, which are not stored.
Fastest Wi-Fi throughput (measured)
1,138Mbps
Wi-Fi throughput through a wall (measured)
1,114Mbps9Measurementtomsguide.com/computing/routers/tp-link-archer-be3600-reviewRead 14 October 2026Notebook in an adjacent room 25 ft from the router. The text prints 1.114 Mbps next to a 990.1 Mbps result for the MSI Roamii BE Lite, so the unit is a typo for Gbps. Stored as 1114 Mbps. Band not named.
Range (measured)
28.956m9Measurementtomsguide.com/computing/routers/tp-link-archer-be3600-reviewRead 14 October 2026Spec table and text: maximum range 95 feet (28.956 m).
Power use under load (measured)
7.7W9Measurementtomsguide.com/computing/routers/tp-link-archer-be3600-reviewRead 14 October 2026During the saturation test with data flowing, the router in Normal power mode used 7.7 watts. The review lists Power-Saving and Ultra Power Saving modes too.
Energy use per day (measured)
195Wh12Measurementdongknows.com/tp-link-archer-be230-reviewRead 14 October 2026Spec table: power consumption per 24 hours about 195 Wh as tested. Firmware 1.0.3 Build 20240612 rel.13057(5553).

Dimensions and weight

Front and side, drawn to scale.

Dimensions
Width272.7Height41.7Depth147mm(10.7 × 1.6 × 5.8 in)2Maker spec sheet (PDF)tp-link.com/us/document/17286Read 14 October 2026Published as 10.7 x 5.8 x 1.6 in (272.7 x 147 x 41.7 mm). Stored as width, depth and height. Tom's Guide gives the same inches with the antennas folded flat and adds 5.0 in for the antennas. Dong Knows Tech prints 13.52 x 9.25 x 3.90 in, which does not fit the datasheet and is not used.
Dimensions with antennas
Not available
Weight
Not available
Wall mountable
Yes3Owner's manualtp-link.com/us/document/46774Read 14 October 2026Section 2.1 shows the router mounted on the wall with two screws 157 mm apart. No bracket is named.10Reviewtomsguide.com/computing/routers/tp-link-archer-be3600-reviewRead 14 October 2026Cutouts let the router be wall-mounted without a bracket.

Certifications

Wi-Fi Alliance certification ID
Not available
FCC ID
Not available
Other certifications
FCC, CE, RoHS1Maker product pagetp-link.com/us/home-networking/wifi-router/archer-be230Read 14 October 2026Certifications: CE, FCC. The datasheet adds RoHS.2Maker spec sheet (PDF)tp-link.com/us/document/17286Read 14 October 2026Certifications: FCC, CE, RoHS.

In the box

In the box
Wi-Fi 7 Router Archer BE230, Power Adapter, RJ45 Ethernet Cable, Quick Installation Guide2Maker spec sheet (PDF)tp-link.com/us/document/17286Read 14 October 2026Package Contents: Wi-Fi 7 Router Archer BE230, Power Adapter, RJ45 Ethernet Cable, Quick Installation Guide.

Warranty

Manufacturer warranty (source market)
2years7Maker product pagetp-link.com/us/support/replacement-warrantyRead 14 October 2026US warranty page: Wi-Fi routers bought on or after 2023-09-01 have a 2 year warranty. Tom's Guide and Staples give 2 years for the Archer BE3600 too.10Reviewtomsguide.com/computing/routers/tp-link-archer-be3600-reviewRead 14 October 2026The two-year warranty includes lifetime support. US market. Staples lists a 2 year warranty for the Archer BE3600 too.
