TV and audio / Soundbars

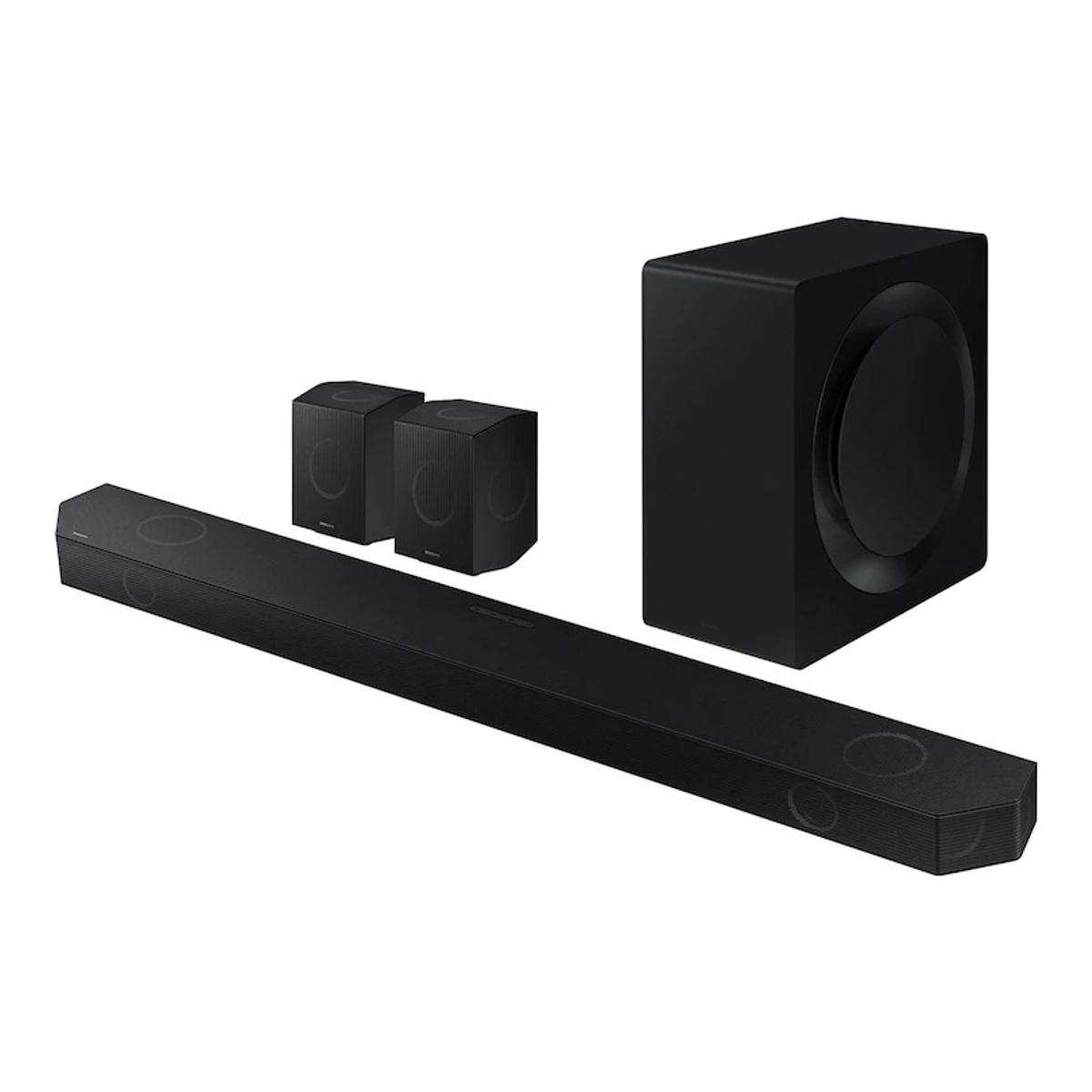

Samsung HW-Q990D

SamsungSoundbar

HW-Q990D

Released March 2024.9Press articletechradar.com/televisions/soundbars/samsungs-new-high-end-dolby-atmos-soundbar-with-120hz-gaming-support-gets-a-huge-price-hikeRead 8 October 2026March 7, 2024 report says US HW-Q990D is available to buy from Samsung and major retailers. Best supported US release month. Last checked 23 October 2026.

System channel configuration
11.1.4
Dolby Atmos
Yes
Separate subwoofer included
Yes
HDMI eARC
Yes

67 of 98 fields known.

Compare with another soundbarDownload JSONDownload CSVGet it from the API

At a glance

Ports

  • 3 HDMI
  • Optical
  • USB-A
  • AC power

All specs

SourceCalculated

Audio system

System channel configuration
11.1.42Maker spec sheet (PDF)content.abt.com/documents/160701/samsung-soundbar-HWQ990D-spec-sheet.pdfRead 8 October 2026Supplied four-enclosure package. Manual sound-mode table gives 11.1.4 in Surround, Game Pro and Adaptive Sound. Standard Atmos/DTS:X output is 7.1.4. Channels are distinct from driver count.
Physical drivers in the package
225Retailer pagecrutchfield.com/p_305HWQ990D/Samsung-HW-Q990D.htmlRead 8 October 2026US product highlights explicitly states 22 built-in speakers. Bar 15, sub 1 and rear 3 per enclosure (6 in total) sum to 22.
Physical drivers in the bar
154Retailer pagecrutchfield.com/p_305HWQ990D/Samsung-HW-Q990D.htmlRead 8 October 2026Exact US SKU in product research. Bar array has six front woofers, three tweeters, four angled wide/side woofers and two up-firing woofers.
Up-firing drivers in the package
45Retailer pagecrutchfield.com/p_305HWQ990D/Samsung-HW-Q990D.htmlRead 8 October 2026
Driver layout
ComponentDriver typeCountDiameter (mm)Orientation
SoundbarWoofer6Not availableFront-firing
SoundbarTweeter3Not availableFront-firing
SoundbarWoofer4Not availableFront wide/side-firing
SoundbarWoofer2Not availableUp-firing
SubwooferWoofer1203.2Not available
Rear speakers (two enclosures)Driver2Not availableFront-firing
Rear speakers (two enclosures)Driver2Not availableSide-firing
Rear speakers (two enclosures)Driver2Not availableUp-firing
Source5Retailer pagecrutchfield.com/p_305HWQ990D/Samsung-HW-Q990D.htmlRead 8 October 2026Physical driver descriptions. Rear rows aggregate both supplied enclosures. Sub 8-inch converted with 25.4 mm/in.
Separate subwoofer included
Yes2Maker spec sheet (PDF)content.abt.com/documents/160701/samsung-soundbar-HWQ990D-spec-sheet.pdfRead 8 October 2026
Included subwoofer connection
Wireless3Owner's manualbhphotovideo.com/lit_files/1126258.pdfRead 8 October 2026
Included subwoofer driver diameter
203.2mm5Retailer pagecrutchfield.com/p_305HWQ990D/Samsung-HW-Q990D.htmlRead 8 October 2026
Rear speakers included
22Maker spec sheet (PDF)content.abt.com/documents/160701/samsung-soundbar-HWQ990D-spec-sheet.pdfRead 8 October 2026
Included rear speaker connection
Wireless3Owner's manualbhphotovideo.com/lit_files/1126258.pdfRead 8 October 2026
Detachable rear speakers
No3Owner's manualbhphotovideo.com/lit_files/1126258.pdfRead 8 October 2026Component list and layout show two separate AC-powered rear enclosures. The soundbar has no detachable end sections.
Compatible optional subwoofers
Not available
Compatible optional rear speakers
Not available
Total RMS audio output power
Not available
Total peak audio output power
Not available
Published frequency response lower limit
Not available
Published frequency response upper limit
Not available

Audio formats

Dolby Atmos
Yes2Maker spec sheet (PDF)content.abt.com/documents/160701/samsung-soundbar-HWQ990D-spec-sheet.pdfRead 8 October 2026
DTS:X
Yes2Maker spec sheet (PDF)content.abt.com/documents/160701/samsung-soundbar-HWQ990D-spec-sheet.pdfRead 8 October 2026
Supported audio formats
Dolby Atmos, Dolby TrueHD, Dolby Digital Plus, Dolby Digital, DTS:X, DTS, DTS-HD High Resolution Audio, DTS Express, LPCM, Dolby MAT, DTS-HD Master Audio2Maker spec sheet (PDF)content.abt.com/documents/160701/samsung-soundbar-HWQ990D-spec-sheet.pdfRead 8 October 2026Overall decoding support. Input-specific limits are documented separately.
Audio formats by connection
ConnectionFormat
HDMI inputDolby Atmos
HDMI inputDTS:X
HDMI eARCDolby Atmos
HDMI ARCDolby Atmos
Source3Owner's manualbhphotovideo.com/lit_files/1126258.pdfRead 8 October 2026HDMI source chapter explicitly supports Dolby Atmos and DTS:X. TV HDMI chapter states ARC/eARC support Atmos. Transport codec, bit depth and connection-specific channel limits are not inferred.
Music file formats
MP3, AAC, OGG, FLAC, WAV, ALAC, AIFF2Maker spec sheet (PDF)content.abt.com/documents/160701/samsung-soundbar-HWQ990D-spec-sheet.pdfRead 8 October 2026Maker AV decoding list. USB music playback is not provided. Network/app route and maximum sample rate are not specified.
Max wired audio sample rate
Not available
Max music file sample rate
Not available
Max wired audio bit depth
Not available
Max music file bit depth
Not available

Connectivity

Ports on the bar
ConnectorCountRole
HDMI2Audio/video input
HDMI1TV output with eARC/ARC
Optical1Digital audio input
USB-A1SERVICE firmware update only
AC power1Soundbar power input
Source3Owner's manualbhphotovideo.com/lit_files/1126258.pdfRead 8 October 2026Product overview connector drawing. SERVICE accepts a USB drive for firmware, not music. Rear speakers and subwoofer each also require AC power.
HDMI ARC
Yes2Maker spec sheet (PDF)content.abt.com/documents/160701/samsung-soundbar-HWQ990D-spec-sheet.pdfRead 8 October 2026
HDMI eARC
Yes2Maker spec sheet (PDF)content.abt.com/documents/160701/samsung-soundbar-HWQ990D-spec-sheet.pdfRead 8 October 2026
HDMI-CEC
Yes2Maker spec sheet (PDF)content.abt.com/documents/160701/samsung-soundbar-HWQ990D-spec-sheet.pdfRead 8 October 2026
HDMI video passthrough
Yes2Maker spec sheet (PDF)content.abt.com/documents/160701/samsung-soundbar-HWQ990D-spec-sheet.pdfRead 8 October 2026
Video passthrough modes
Width (px)Height (px)Refresh rate (Hz)
38402160120
Source3Owner's manualbhphotovideo.com/lit_files/1126258.pdfRead 8 October 2026UHD table: 3840 x 2160 at 120 fps. 8/10-bit RGB and YCbCr 4:4:4, 4:2:2 and 4:2:0. At 12-bit/120 fps only 4:2:2 and 4:2:0. Certified Ultra High Speed HDMI cable required.
HDR passthrough formats
HDR10, HDR10+, Dolby Vision2Maker spec sheet (PDF)content.abt.com/documents/160701/samsung-soundbar-HWQ990D-spec-sheet.pdfRead 8 October 20267Reviewflatpanelshd.com/review.phpRead 8 October 2026Review confirms HDR10/HDR10+ passthrough. Dolby Vision passed when the bar was connected to an LG TV.
VRR passthrough
Yes7Reviewflatpanelshd.com/review.phpRead 8 October 2026Review directly tested a VRR console signal through the soundbar.
ALLM passthrough
Yes7Reviewflatpanelshd.com/review.phpRead 8 October 2026HDMI feature specification lists ALLM passthrough.
HDCP version
Not available
Bluetooth audio input
Yes2Maker spec sheet (PDF)content.abt.com/documents/160701/samsung-soundbar-HWQ990D-spec-sheet.pdfRead 8 October 2026
Bluetooth version
5.25Retailer pagecrutchfield.com/p_305HWQ990D/Samsung-HW-Q990D.htmlRead 8 October 2026
Bluetooth audio codecs
SBC3Owner's manualbhphotovideo.com/lit_files/1126258.pdfRead 8 October 2026Mobile-device connection section explicitly lists SBC at 44.1 and 48 kHz. Does not establish the maximum sample rate of other inputs.
Wi-Fi
Yes2Maker spec sheet (PDF)content.abt.com/documents/160701/samsung-soundbar-HWQ990D-spec-sheet.pdfRead 8 October 2026
Wi-Fi standard
802.11ac4Retailer pagecrutchfield.com/p_305HWQ990D/Samsung-HW-Q990D.htmlRead 8 October 2026Network integration explicitly publishes dual-band 802.11ac.
Wi-Fi bands
2.4 GHz, 5 GHz4Retailer pagecrutchfield.com/p_305HWQ990D/Samsung-HW-Q990D.htmlRead 8 October 2026
Built-in Ethernet speed
Not available

Streaming and control

Streaming protocols
AirPlay 2, Google Cast, Spotify Connect, Tidal Connect2Maker spec sheet (PDF)content.abt.com/documents/160701/samsung-soundbar-HWQ990D-spec-sheet.pdfRead 8 October 2026
Voice assistants
Amazon Alexa2Maker spec sheet (PDF)content.abt.com/documents/160701/samsung-soundbar-HWQ990D-spec-sheet.pdfRead 8 October 2026Built-in Alexa for the US package. Service availability depends on region and account.
Built-in microphone
Yes3Owner's manualbhphotovideo.com/lit_files/1126258.pdfRead 8 October 2026
Microphone mute control
Yes3Owner's manualbhphotovideo.com/lit_files/1126258.pdfRead 8 October 2026Physical Mic On/Off button. Red indicator shows microphone disabled. Electrical isolation is not stated.
Companion apps
SmartThings3Owner's manualbhphotovideo.com/lit_files/1126258.pdfRead 8 October 2026
Companion app platforms
iOS, Android4Retailer pagecrutchfield.com/p_305HWQ990D/Samsung-HW-Q990D.htmlRead 8 October 2026SmartThings links for Apple iOS and Android OS. No platform minimum is inferred.
Multiroom audio
Yes3Owner's manualbhphotovideo.com/lit_files/1126258.pdfRead 8 October 2026Group Play through SmartThings requires supported Samsung audio devices on the same 5 GHz network. TV audio is excluded. Manual recommends no more than four devices.
Remote included
Yes2Maker spec sheet (PDF)content.abt.com/documents/160701/samsung-soundbar-HWQ990D-spec-sheet.pdfRead 8 October 2026

Sound processing

Sound modes
Standard, Surround, Game Pro, Adaptive Sound2Maker spec sheet (PDF)content.abt.com/documents/160701/samsung-soundbar-HWQ990D-spec-sheet.pdfRead 8 October 2026
Automatic room calibration
Yes3Owner's manualbhphotovideo.com/lit_files/1126258.pdfRead 8 October 2026Uses the microphone inside the bar to analyse the listening space and adjust sound automatically.
Room calibration system
SpaceFit Sound Pro2Maker spec sheet (PDF)content.abt.com/documents/160701/samsung-soundbar-HWQ990D-spec-sheet.pdfRead 8 October 2026US sheet names SpaceFit Sound Pro. Manual uses SpaceFit Sound Pro.
Dialogue enhancement
Yes2Maker spec sheet (PDF)content.abt.com/documents/160701/samsung-soundbar-HWQ990D-spec-sheet.pdfRead 8 October 2026
Night mode
Yes2Maker spec sheet (PDF)content.abt.com/documents/160701/samsung-soundbar-HWQ990D-spec-sheet.pdfRead 8 October 2026
Equalizer controls
Bass, Treble, Subwoofer level, 7-band graphic EQ3Owner's manualbhphotovideo.com/lit_files/1126258.pdfRead 8 October 2026Seven bands: 150, 300, 600 Hz, 1.2, 2.5, 5 and 10 kHz. -6 to +6. Graphic EQ works only in Standard mode. Bass and treble are separate controls.
TV speaker integration
Q-Symphony2Maker spec sheet (PDF)content.abt.com/documents/160701/samsung-soundbar-HWQ990D-spec-sheet.pdfRead 8 October 2026Requires a compatible Samsung television. Q-Symphony does not work over Bluetooth.

Power

We could not find any of these 6 fields. Show them
Published operating power
Not available
Published standby power
Not available
Published networked standby power
Not available
Power supply
Not available
Detachable rear battery life
Not available
Detachable rear charge time
Not available

Measured

We could not find any of these 8 fields. Show them
Low-frequency extension (measured)
Not available
High-frequency extension (measured)
Not available
Max sound pressure (measured)
Not available
Frequency response deviation (measured)
Not available
Measured latency
Not available
Operating power (measured)
Not available
Standby power (measured)
Not available
Soundbar weight (measured)
Not available

Dimensions and weight

Front and side, drawn to scale.

Soundbar dimensions
Width1,231.9Height68.6Depth137.2mm(48.5 × 2.7 × 5.4 in)6Maker spec sheet (PDF)content.abt.com/documents/160701/samsung-soundbar-HWQ990D-spec-sheet.pdfRead 8 October 2026US maker sheet p2 publishes rounded inches 48.5 x 2.7 x 5.4. Converted using 25.4 mm/in and rounded to 0.1 mm. Figures are approximate, not extra measurement precision.
Soundbar weight
7,711g(17 lb)6Maker spec sheet (PDF)content.abt.com/documents/160701/samsung-soundbar-HWQ990D-spec-sheet.pdfRead 8 October 2026US maker sheet p2 publishes 17 lb, converted using 453.59237 g/lb and rounded to 1 g. Rounded claim.
Component dimensions and weight
ComponentWidth (mm)Height (mm)Depth (mm)Weight (g)
Subwoofer218.4411.5408.911,703
Left rear speaker127200.7139.73,402
Right rear speaker127200.7139.73,402
Source6Maker spec sheet (PDF)content.abt.com/documents/160701/samsung-soundbar-HWQ990D-spec-sheet.pdfRead 8 October 2026US maker sheet p2 supplies rounded inches/lb. Crutchfield confirms rear weight 7.5 lb PER speaker. Converted and rounded to 0.1 mm and 1 g, without replacing with another regional SKU's metric numbers.
Package dimensions
Width1,308.1Height594.4Depth276.9mm(51.5 × 23.4 × 10.9 in)6Maker spec sheet (PDF)content.abt.com/documents/160701/samsung-soundbar-HWQ990D-spec-sheet.pdfRead 8 October 2026US maker sheet p2 rounded 51.5 x 23.4 x 10.9 in converted using 25.4 mm/in and rounded to 0.1 mm.
Package weight
28,213g(62.2 lb)6Maker spec sheet (PDF)content.abt.com/documents/160701/samsung-soundbar-HWQ990D-spec-sheet.pdfRead 8 October 2026US maker sheet p2 rounded 62.2 lb converted using 453.59237 g/lb and rounded to 1 g.
Wall mountable
Yes3Owner's manualbhphotovideo.com/lit_files/1126258.pdfRead 8 October 2026

In the box

In the box
Soundbar, Wireless powered subwoofer, Two wireless rear speakers, Remote control, Remote batteries, HDMI cable, Wall mount kit, Rubber feet2Maker spec sheet (PDF)content.abt.com/documents/160701/samsung-soundbar-HWQ990D-spec-sheet.pdfRead 8 October 2026
Wall mount hardware included
Yes2Maker spec sheet (PDF)content.abt.com/documents/160701/samsung-soundbar-HWQ990D-spec-sheet.pdfRead 8 October 2026
HDMI cable included
Yes2Maker spec sheet (PDF)content.abt.com/documents/160701/samsung-soundbar-HWQ990D-spec-sheet.pdfRead 8 October 2026
Optical cable included
No3Owner's manualbhphotovideo.com/lit_files/1126258.pdfRead 8 October 2026

General

Series
Q-Series1Maker product pagesamsung.com/us/audio-devices/soundbar/q-series-11-1-4-ch-wireless-dolby-atmos-soundbar-rear-speakers-w-q-symphony-hw-q990d-sku-hw-q990d-zaRead 8 October 2026
Model numbers
HW-Q990D/ZA1Maker product pagesamsung.com/us/audio-devices/soundbar/q-series-11-1-4-ch-wireless-dolby-atmos-soundbar-rear-speakers-w-q-symphony-hw-q990d-sku-hw-q990d-zaRead 8 October 2026US reference package includes the soundbar, a wireless powered subwoofer and two wireless powered rear speakers.
GTIN / EAN
8872768201492Maker spec sheet (PDF)content.abt.com/documents/160701/samsung-soundbar-HWQ990D-spec-sheet.pdfRead 8 October 2026US manufacturer spec sheet p2 explicitly publishes UPC 887276820149 for HW-Q990D/ZA.
Announced
7 January 20248Press releasenews.samsung.com/us/samsung-announces-tv-audio-lineup-ces-2024Read 8 October 2026
Status
Not available
Predecessor
Samsung HW-Q990C9Press articletechradar.com/televisions/soundbars/samsungs-new-high-end-dolby-atmos-soundbar-with-120hz-gaming-support-gets-a-huge-price-hikeRead 8 October 2026TechRadar calls the HW-Q990D the successor to the HW-Q990C.
Successor
Samsung HW-Q990F10Press releasenews.samsung.com/global/samsung-electronics-unveils-new-soundbars-at-ces-2025Read 23 October 2026Samsung's CES 2025 release calls the HW-Q990F the successor to the HW-Q990D.11Reviewtechradar.com/televisions/soundbars/samsung-hw-q990f-reviewRead 23 October 2026TechRadar's review says the HW-Q990F is the successor to the HW-Q990D.
Launch price (US)
Not available
Launch price (EU)
Not available
Markets
US1Maker product pagesamsung.com/us/audio-devices/soundbar/q-series-11-1-4-ch-wireless-dolby-atmos-soundbar-rear-speakers-w-q-symphony-hw-q990d-sku-hw-q990d-zaRead 8 October 2026
Colours
Black1Maker product pagesamsung.com/us/audio-devices/soundbar/q-series-11-1-4-ch-wireless-dolby-atmos-soundbar-rear-speakers-w-q-symphony-hw-q990d-sku-hw-q990d-zaRead 8 October 2026

Warranty

We could not find any of these 1 fields. Show them
Manufacturer warranty (source market)
Not available
