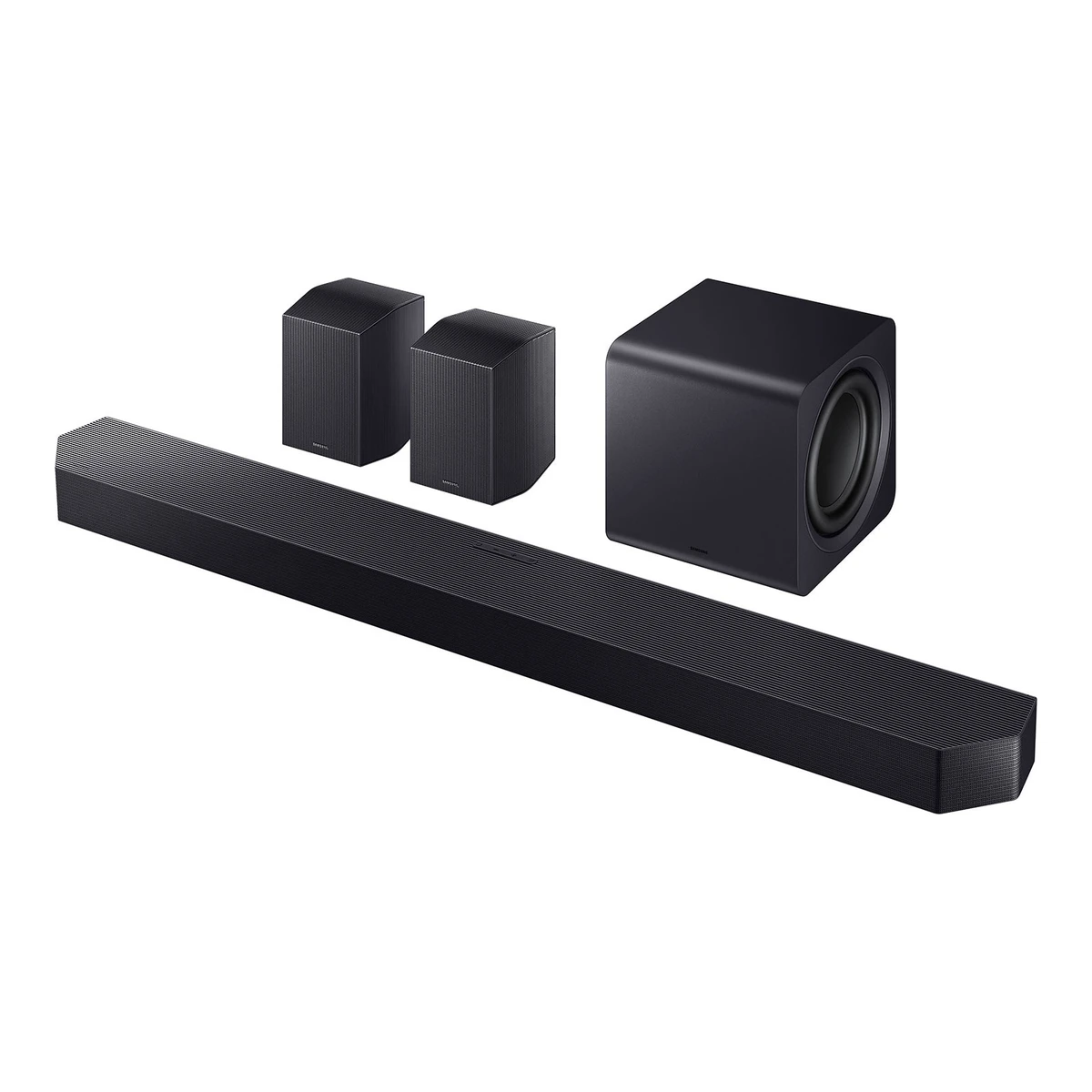

HW-Q990F

Released April 2025.10 Last checked 23 October 2026.

71 of 98 fields known.

At a glance

SourceCalculatedHide missing

System channel configuration: 11.1.42
Physical drivers in the package: 235
Physical drivers in the bar: 154
Up-firing drivers in the package: 45
Driver layout: Component Driver type Count Diameter (mm) Orientation
Subwoofer Active woofer 2 203.2 Opposed
Source5
Separate subwoofer included: Yes2
Included subwoofer connection: Wireless3
Included subwoofer driver diameter: 203.2mm5
Rear speakers included: 22
Included rear speaker connection: Wireless3
Detachable rear speakers: No3
Compatible optional subwoofers: Not available
Compatible optional rear speakers: Not available
Total RMS audio output power: Not available
Total peak audio output power: Not available
Published frequency response lower limit: Not available
Published frequency response upper limit: Not available

Component	Driver type	Count	Diameter (mm)	Orientation
Subwoofer	Active woofer	2	203.2	Opposed

Dolby Atmos: Yes2
DTS:X: Yes2
Supported audio formats: Dolby Atmos, Dolby TrueHD, Dolby Digital Plus, Dolby Digital, DTS:X, DTS, DTS-HD High Resolution Audio, DTS Express, LPCM, DTS-HD Master Audio, Eclipsa Audio2 6 8
Audio formats by connection: Connection Format
HDMI input DTS-HD Master Audio
HDMI eARC DTS-HD Master Audio
HDMI input Dolby Atmos
HDMI input DTS:X
HDMI eARC Dolby Atmos
HDMI ARC Dolby Atmos
Source3 8
Music file formats: MP3, AAC, OGG, FLAC, WAV, ALAC, AIFF2
Max wired audio sample rate: Not available
Max music file sample rate: Not available
Max wired audio bit depth: Not available
Max music file bit depth: Not available

Ports on the bar: Connector Count Role
HDMI 2 Audio/video input
HDMI 1 TV output with eARC/ARC
Optical 1 Digital audio input
USB-A 1 SERVICE firmware update only
AC power 1 Soundbar power input
Source3
HDMI ARC: Yes2
HDMI eARC: Yes2
HDMI-CEC: Yes2
HDMI video passthrough: Yes2
Video passthrough modes: Width (px) Height (px) Refresh rate (Hz)
3840 2160 120
Source3
HDR passthrough formats: HDR10, HDR10+2 5
VRR passthrough: Yes5
ALLM passthrough: Yes5
HDCP version: Not available
Bluetooth audio input: Yes2
Bluetooth version: 5.32
Bluetooth audio codecs: SBC3
Wi-Fi: Yes2
Wi-Fi standard: 802.11ac4
Wi-Fi bands: 2.4 GHz, 5 GHz4
Built-in Ethernet speed: Not available

Connector	Count	Role
HDMI	2	Audio/video input
HDMI	1	TV output with eARC/ARC
Optical	1	Digital audio input
USB-A	1	SERVICE firmware update only
AC power	1	Soundbar power input

Width (px)	Height (px)	Refresh rate (Hz)
3840	2160	120

Streaming protocols: AirPlay 2, Google Cast, Spotify Connect, Tidal Connect, Roon2 5
Voice assistants: Amazon Alexa2
Built-in microphone: Yes3
Microphone mute control: Yes3
Companion apps: SmartThings3
Companion app platforms: iOS, Android4
Multiroom audio: Yes3
Remote included: Yes2

We could not find any of these 8 fields. Show them

Front and side, drawn to scale.

Soundbar dimensions: Width1,232Height70.8Depth138mm(48.5 × 2.8 × 5.4 in)6
Soundbar weight: 7,300g(16.1 lb)6
Component dimensions and weight: Component Width (mm) Height (mm) Depth (mm) Weight (g)
Subwoofer PS-WQ990F 249 251.8 249 8,300
Left rear speaker PS-RQ990F 129.5 201.3 140.4 3,400
Right rear speaker PS-RQ990F 129.5 201.3 140.4 3,400
Source6
Package dimensions: Width1,309Height423Depth296mm(51.5 × 16.7 × 11.7 in)7
Package weight: 23,800g(52.5 lb)7
Wall mountable: Yes3

Component	Width (mm)	Height (mm)	Depth (mm)	Weight (g)
Subwoofer PS-WQ990F	249	251.8	249	8,300
Left rear speaker PS-RQ990F	129.5	201.3	140.4	3,400
Right rear speaker PS-RQ990F	129.5	201.3	140.4	3,400

In the box: Soundbar, Wireless powered subwoofer, Two wireless rear speakers, Remote control, Remote batteries, HDMI cable, Wall mount kit, Rubber feet2
Wall mount hardware included: Yes2
HDMI cable included: Yes2
Optical cable included: No2
