PC parts / SSDs

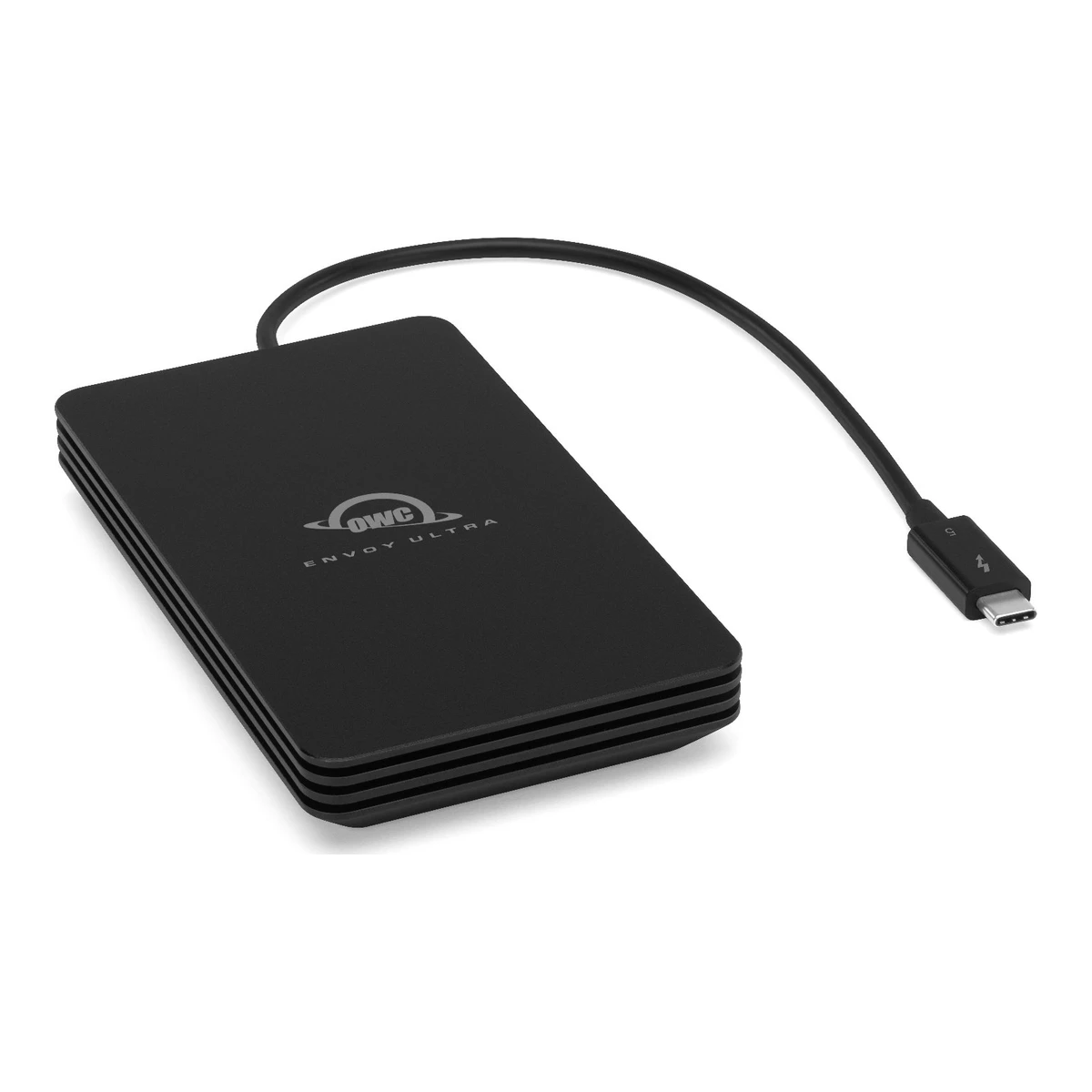

OWC Envoy Ultra

OWCSSD

Envoy Ultra

Released October 2024.6Press releaseowc.com/news/owc-launches-envoy-ultra-thunderbolt-5-ssdRead 15 October 2026Pre-order opened on 2024-09-12 and shipping was to start in late October 2024. The earliest review found, Thunderbolt Laptop, is dated 2024-12-20 and lists the drive at the launch prices. The exact shipping date was not found Last checked 15 October 2026.

Interface
Thunderbolt 5
Form factor
External
Capacity
2 TB, 4 TB, 8 TB
Read speed
6,000MB/s

25 of 63 fields known.

Compare with another SSDDownload JSONDownload CSVGet it from the API

All specs

SourceCalculated

General

Series
Not available
Model numbers
TB5ENVU02, TB5ENVU04, TB5ENVU082Maker product pageeshop.macsales.com/item/OWC/TB5ENVU02Read 15 October 2026OWC's own MacSales store. SKU TB5ENVU02 for the 2TB model, TB5ENVU04 for 4TB and TB5ENVU08 for 8TB. The U suffix sku TB5ENVU02U is a used or open-box listing with the same UPC and a 2 year warranty, so it is not stored
GTIN / EAN
810159621793, 810159621809, 8101596218162Maker product pageeshop.macsales.com/item/OWC/TB5ENVU02Read 15 October 2026UPC 810159621793 for the 2TB (JSON-LD of the product page). 810159621809 is the 4TB and 810159621816 the 8TB3Maker product pageeshop.macsales.com/item/OWC/TB5ENVU04Read 15 October 20264Maker product pageeshop.macsales.com/item/OWC/TB5ENVU08Read 15 October 2026
Announced
12 September 20246Press releaseowc.com/news/owc-launches-envoy-ultra-thunderbolt-5-ssdRead 15 October 2026OWC press release dated 12 September 2024, Woodstock, IL
Status
Available2Maker product pageeshop.macsales.com/item/OWC/TB5ENVU02Read 15 October 2026Structured data on the 2TB page shows InStock on 2026-10-15. The 2TB, 4TB and 8TB pages are all live
Predecessor
Not available
Successor
Not available
Launch price (US)
$399.996Press releaseowc.com/news/owc-launches-envoy-ultra-thunderbolt-5-ssdRead 15 October 20262.0TB at $399.99 and 4.0TB at $599.99 US dollars at launch, no tax stated
Launch price (EU)
Not available
Markets
Not available
Colours
Black2Maker product pageeshop.macsales.com/item/OWC/TB5ENVU02Read 15 October 2026Housing Color: Black. Housing Material: Aluminum
Form factor
External2Maker product pageeshop.macsales.com/item/OWC/TB5ENVU02Read 15 October 2026Portable drive in its own aluminum case with a captive cable, so external. The drive mechanism is a 2.0TB OWC Aura Pro IV PCIe 4.0 NVMe M.2 2280 SSD, and OWC reserves the right to replace it with equivalent or better components
Capacity
2 TB, 4 TB, 8 TB2Maker product pageeshop.macsales.com/item/OWC/TB5ENVU02Read 15 October 2026Spec table: Total Capacity 2048GB, with 1920GB usable and 128GB allocated to real-time data redundancy and error correction. The 4TB lists 4096GB total and 3840GB usable, the 8TB 8192GB total and 7680GB usable. The product is sold as 2.0TB, 4.0TB and 8.0TB, so the marketed 2000, 4000 and 8000 GB are stored3Maker product pageeshop.macsales.com/item/OWC/TB5ENVU04Read 15 October 20264096GB total, 3840GB usable, 256GB allocated to redundancy and error correction4Maker product pageeshop.macsales.com/item/OWC/TB5ENVU08Read 15 October 20268192GB total, 7680GB usable, 512GB allocated to redundancy and error correction6Press releaseowc.com/news/owc-launches-envoy-ultra-thunderbolt-5-ssdRead 15 October 2026Launch capacities 2.0TB and 4.0TB7Press releaseowc.com/ca/news/other-world-computing-introduces-8tb-envoy-ultra-thunderbolt-5-ssdRead 15 October 2026OWC press release dated 5 January 2026 announces the 8TB model, available that day through OWC.com, Amazon and MacSales.com

Interface

Interface
Thunderbolt 51Maker product pageowc.com/solutions/envoy-ultraRead 15 October 2026Page headline: The First and Fastest Thunderbolt 5 Portable SSD. Real-world speeds are given for Thunderbolt 5, Thunderbolt 4, Thunderbolt 3 (Mac only) and USB4, so the drive is rated for Thunderbolt 5 at the top2Maker product pageeshop.macsales.com/item/OWC/TB5ENVU02Read 15 October 2026Host Port Thunderbolt 5 (USB-C) up to 80Gb/s. Maximum data rate is up to 40Gb/s on USB4. Chipset: Thunderbolt JHL9480. Host interface requirements are Thunderbolt 5, Thunderbolt 4, Thunderbolt 3 (Mac only) or USB4
PCIe generation
Not available
PCIe lanes
Not available
NVMe version
Not available
Detachable cable
No1Maker product pageowc.com/solutions/envoy-ultraRead 15 October 2026Built-in Thunderbolt cable. The footnote says a damaged cable is a user serviceable item, available from 20252Maker product pageeshop.macsales.com/item/OWC/TB5ENVU02Read 15 October 2026Captive Cable: (1) Thunderbolt 5 (USB-C), 23.3 cm long

Hardware

Controller
Phison E27T9Reviewmigovi.com/en/owc-envoy-ultra-portable-ssd-performance-reviewRead 15 October 2026Migovi opened a 2TB Envoy Ultra and names the OWC Aura Pro IV inside, with a Phison PS5027-E27T controller, written Phison E27T like the other catalog drives. OWC reserves the right to change the internal components and the 4TB MacSales Aura Pro IV listing agrees. An older 2TB Aura Pro IV used another controller in a 2022 PCWorld review
Flash type
TLC9Reviewmigovi.com/en/owc-envoy-ultra-portable-ssd-performance-reviewRead 15 October 2026Kioxia BiCS6 162-layer 3D TLC
Flash memory
Kioxia BiCS6 TLC9Reviewmigovi.com/en/owc-envoy-ultra-portable-ssd-performance-reviewRead 15 October 2026Kioxia BiCS6 162-layer 3D TLC
Flash layers
1629Reviewmigovi.com/en/owc-envoy-ultra-portable-ssd-performance-reviewRead 15 October 2026162-layer
DRAM cache
Not available
DRAM cache size
Not available
Component sides
Not available

Performance

Sequential read (claimed)
6,000MB/s1Maker product pageowc.com/solutions/envoy-ultraRead 15 October 2026Footnote: up to 6000MB/s sequential read/write (max), tested with a 2.0TB OWC Aura Pro IV equipped Envoy Ultra on a Windows 11 PC with an Intel Core i9-14900HX and 32GB 5600MHz RAM, AJA System Test, 4K-Full resolution, 64GB file size, 16bit RGB codec, single file test. The headline says over 6000MB/s. OWC's footnote says longer write sessions sustain 1350MB/s (2TB) and 1700MB/s (4TB), which has no field
Sequential write (claimed)
6,000MB/s1Maker product pageowc.com/solutions/envoy-ultraRead 15 October 2026Same AJA System Test footnote as read: up to 6000MB/s for the 2TB drive. The page does not state a different figure for the 4TB or 8TB
Random 4K read (claimed)
Not available
Random 4K write (claimed)
Not available

Endurance and reliability

Endurance (TBW)
Not available
MTBF or MTTF (claimed)
Not available
Operating temperature
Min5Max35°C2Maker product pageeshop.macsales.com/item/OWC/TB5ENVU02Read 15 October 2026Ambient temperature operating 5 C to 35 C (41 F to 95 F). Non-operating range of -20 C to 60 C is not stored5Owner's manualeshop.macsales.com/manuals/owc-envoy-ultra-support-manualRead 15 October 2026Operating temperature 5 C to 35 C

Power

We could not find any of these 6 fields. Show them
Power while reading (claimed)
Not available
Power while writing (claimed)
Not available
Max power consumption (claimed)
Not available
Average power in light use (claimed)
Not available
Idle power (claimed)
Not available
Sleep power (claimed)
Not available

Measured

We could not find any of these 9 fields. Show them
Sequential read (measured)
Not available
Sequential write (measured)
Not available
Random 4K read at queue depth 1 (measured)
Not available
Random 4K write at queue depth 1 (measured)
Not available
Write cache size (measured)
Not available
Write speed after the cache (measured)
Not available
3DMark Storage Benchmark
Not available
Highest temperature under load (measured)
Not available
Idle power (measured)
Not available

Cooling and build

Heatsink
Not available
RGB lighting
Not available
Dust and water rating
IP671Maker product pageowc.com/solutions/envoy-ultraRead 15 October 2026Crushproof, dustproof and waterproof IP67 rated. Footnote: waterproof for up to 30 minutes at under 1 meter, and the plug end of the built-in cable is not waterproof2Maker product pageeshop.macsales.com/item/OWC/TB5ENVU02Read 15 October 2026IP Rating row: IP67 (dust-tight, protected against the effects of temporary immersion in water)
Drop test height
Not available

Security and software

We could not find any of these 2 fields. Show them
Security
Not available
Software
Not available

Compatibility

Platforms
macOS, Windows, Linux, ChromeOS, iPadOS1Maker product pageowc.com/solutions/envoy-ultraRead 15 October 2026Page says Macs, PCs, iPad Pros, Chromebooks and Surface devices. The MacSales spec table names macOS, Windows 11, Ubuntu Linux, iPadOS and Chrome OS2Maker product pageeshop.macsales.com/item/OWC/TB5ENVU02Read 15 October 2026Mac OS: macOS 14, 15 and 26. PC: Windows 11. Linux: Yes, latest Ubuntu. Mobile: iPadOS 17, 18 and 26. Other: Chrome OS. The drive ships APFS formatted and other platforms must reformat it. Android is not stored, since the table lists no Android version5Owner's manualeshop.macsales.com/manuals/owc-envoy-ultra-support-manualRead 15 October 2026macOS 14.x or later (Thunderbolt 5 needs 15.3.x), Windows 11, Chrome OS, iPadOS and Ubuntu

Dimensions and weight

Front and side, drawn to scale.

Dimensions
Length130Width75Height20mm(5.1 × 3 × 0.8 in)2Maker product pageeshop.macsales.com/item/OWC/TB5ENVU02Read 15 October 2026Height 2.0 cm, Length 13.0 cm, Width 7.5 cm. The captive cable is not included in the length. Stored as 130 x 75 x 20 mm
Weight
341g(12 oz)2Maker product pageeshop.macsales.com/item/OWC/TB5ENVU02Read 15 October 2026341.0 g (0.75 lbs). The same on the 4TB and 8TB pages. Thunderbolt Laptop lists about 327 g (10.5 oz), so the OWC figure is used

In the box

In the box
OWC Envoy Ultra External Storage Solution, OWC Envoy Ultra Getting Started QR Insert Card, Support Manual for OWC Envoy Ultra (digital), 5 Year OWC Limited Warranty2Maker product pageeshop.macsales.com/item/OWC/TB5ENVU02Read 15 October 2026Includes row: OWC Envoy Ultra External Storage Solution, Getting Started QR Insert Card, digital Support Manual and a 5 Year OWC Limited Warranty. The text is the same on the 2TB, 4TB and 8TB pages
Cables included
Not available

Warranty

Manufacturer warranty (source market)
5years2Maker product pageeshop.macsales.com/item/OWC/TB5ENVU02Read 15 October 2026Includes list says 5 Year OWC Limited Warranty. The US store page names no other warranty for the new product. SHI and Thunderbolt Laptop say 3 years, which OWC's page and support manual do not5Owner's manualeshop.macsales.com/manuals/owc-envoy-ultra-support-manualRead 15 October 20265-Year Limited Warranty, not transferable

Compare with

Pick a SSD to see both side by side. Differences are marked yellow.

More SSD comparisons

Variants

Each variant lists only what differs from the specs above.

Model numberGTINLaunch price (US)Capacity
TB5ENVU02810159621793$399.992 TB
TB5ENVU04810159621809$599.994 TB
TB5ENVU08810159621816$1,699.998 TB

Sources

We read 9 sources for this SSD. The numbers match the markers in the sheet.

  1. Read 15 October 2026Backs 7 fields
  2. Read 15 October 2026Backs 16 fields
  3. Read 15 October 2026Backs 3 fields
  4. Read 15 October 2026Backs 3 fields
  5. Read 15 October 2026Backs 4 fields
  6. Read 15 October 2026Backs 5 fields
  7. Read 15 October 2026Backs 2 fields
  8. Read 15 October 2026Backs 1 field
  9. Read 15 October 2026Backs 4 fields

See a wrong value? Tell us and name the field.
