PC parts / SSDs

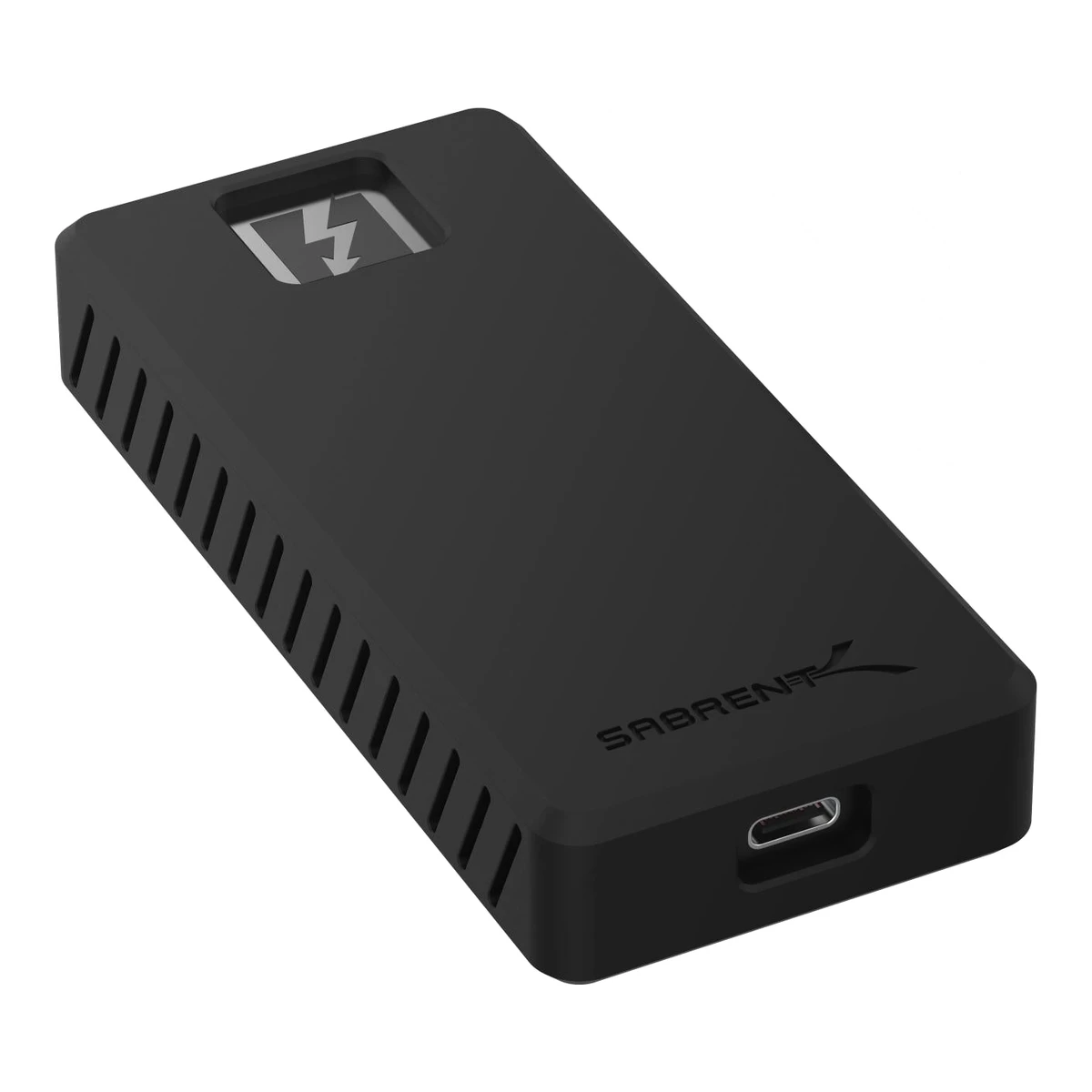

Sabrent Rocket XTRM 5

SabrentSSD

Rocket XTRM 5

Released March 2025.5Maker product pagesabrent.com/products/sb-xtm5-2tb.jsonRead 15 October 2026The 2TB product was created 2025-03-11 and published 2025-03-18 in the store feed, and the Internet Archive has a live copy of the page dated 2025-04-29. The 4TB product page existed from 2024-09 before the drive shipped. Retailer first-available dates seen only in search results point to April or May 2025. 2025-03 is the earliest supported month Last checked 21 October 2026.

Interface
Thunderbolt 5
Form factor
External
Capacity
2 TB, 4 TB
Read speed
Not available

19 of 63 fields known.

Compare with another SSDDownload JSONDownload CSVGet it from the API

All specs

SourceCalculated

General

Series
Not available
Model numbers
SB-XTM5-2TB, SB-XTM5-4TB1Maker product pagesabrent.com/products/sb-xtm5-2tbRead 15 October 2026SKU SB-XTM5-2TB on the 2TB page and SB-XTM5-4TB on the 4TB page. The manual calls the family SB-XTM5-XXX. Sabrent's store has no 1TB page, although the 2024 announcement coverage named 1TB, 2TB and 4TB
GTIN / EAN
840025273856, 8400252730305Maker product pagesabrent.com/products/sb-xtm5-2tb.jsonRead 15 October 2026Sabrent Shopify product feed, variant barcode 8-40025-27385-6 for SB-XTM5-2TB, stored as 840025273856. The 4TB feed at sb-xtm5-4tb.json gives 8-40025-27303-0, stored as 840025273030
Announced
2 August 20248Press articleguru3d.com/story/sabrent-rocket-xtrm5-portable-ssd-with-thunderbolt-5Read 15 October 2026Guru3D, 2 August 2024, reports Sabrent's teaser of the Rocket XTRM5 Thunderbolt 5 portable SSD. Tom's Hardware, TechEBlog and Newsshooter ran the same story on the same day. Sabrent gave no release date. The CrystalDiskMark figures in the story come from a prototype and are not stored
Status
Available1Maker product pagesabrent.com/products/sb-xtm5-2tbRead 15 October 2026The 2TB page is live on 2026-10-15 with an Add to cart button. The 4TB page shows Sold out in the US store, and its store tags mark it out of stock in the US and UK. Both are real models with a SKU and a barcode
Predecessor
Not available
Successor
Not available
Launch price (US)
$369.996Maker product pageweb.archive.org/web/20250429142000/https://sabrent.com/products/sb-xtm5-2tbRead 21 October 2026Sabrent store price $369.99 for the 2TB (SB-XTM5-2TB) on the first archived capture of the page, 2025-04-29, with no compare-at price. The 2TB product was published in the store feed on 2025-03-18 and no earlier capture exists, so the price on that day is unknown. The current store price of $499.99 with a $721.99 compare-at price is not a launch price and is not used. Excl. tax, US store7Maker product pageweb.archive.org/web/20241214184130/https://sabrent.com/products/sb-xtm5-4tbRead 21 October 2026Sabrent store price $599.99 for the 4TB (SB-XTM5-4TB) on the archived capture of 2024-12-14, and the same on later captures up to 2025-06-24, with no compare-at price. The page was live in the store before the drive shipped. The current store price of $779.99 with a $1,169.99 compare-at price is not a launch price and is not used. Excl. tax, US store
Launch price (EU)
Not available
Markets
Not available
Colours
Not available
Form factor
External1Maker product pagesabrent.com/products/sb-xtm5-2tbRead 15 October 2026Sabrent calls it a portable SSD in an aluminum case that connects by cable
Capacity
2 TB, 4 TB1Maker product pagesabrent.com/products/sb-xtm5-2tbRead 15 October 2026Two store pages: 2TB and 4TB. Sabrent does not publish a byte definition. The base is the 2TB model2Maker product pagesabrent.com/products/sb-xtm5-4tbRead 15 October 20264TB page, SKU SB-XTM5-4TB

Interface

Interface
Thunderbolt 51Maker product pagesabrent.com/products/sb-xtm5-2tbRead 15 October 2026Product Highlights: Thunderbolt 5 technology, connects at up to 80Gbps with transfer speeds up to 64Gbps, and is backward compatible with TB3, TB4 and USB4. The page also describes a USB fallback of up to 20Gbps (USB 3.2 Gen 2x2). The manual says USB fallback up to 10Gbps (Gen 2x1). The Thunderbolt version is stored3Owner's manualsabrent.com/cdn/shop/files/SB-XTM5_20-_20Manual_634.pdfRead 15 October 2026Features: connects at up to Thunderbolt 5 speeds (80Gbps) with transfers up to 64Gbps. The Performance modes table lists Thunderbolt 5 at 80 Gbps with potential bandwidth above 6 GB/s. That is a bus figure, not a drive speed claim, so no claimed read or write speed is stored
PCIe generation
46Maker product pageweb.archive.org/web/20250429142000/https://sabrent.com/products/sb-xtm5-2tbRead 21 October 2026Archived Sabrent store page of 2025-04-29, Bring The Thunder block: an 80Gbps connection with enough speed to get the most out of a 64Gbps PCIe 4.0 SSD. The current page and the manual no longer repeat the PCIe generation
PCIe lanes
46Maker product pageweb.archive.org/web/20250429142000/https://sabrent.com/products/sb-xtm5-2tbRead 21 October 2026The page names no lane count. 64Gbps at PCIe 4.0 (16 GT/s per lane) is four lanes, and Guru3D calls 64 Gbps the bandwidth of Gen 4 x48Press articleguru3d.com/story/sabrent-rocket-xtrm5-portable-ssd-with-thunderbolt-5Read 15 October 2026Guru3D names 64 Gbps per direction as the bandwidth of Gen 4 x4, which agrees with the lane count stored. Its guess that a Gen 5 drive sits inside is a pre-launch assumption, and Sabrent's own page says a PCIe 4.0 SSD, so Gen 5 is not stored
NVMe version
Not available
Detachable cable
Yes1Maker product pagesabrent.com/products/sb-xtm5-2tbRead 15 October 2026In the box lists a Thunderbolt 5 cable apart from the drive, and the manual says to plug one end into the drive's USB-C input port

Hardware

We could not find any of these 7 fields. Show them
Controller
Not available
Flash type
Not available
Flash memory
Not available
Flash layers
Not available
DRAM cache
Not available
DRAM cache size
Not available
Component sides
Not available

Performance

We could not find any of these 4 fields. Show them
Sequential read (claimed)
Not available
Sequential write (claimed)
Not available
Random 4K read (claimed)
Not available
Random 4K write (claimed)
Not available

Endurance and reliability

We could not find any of these 3 fields. Show them
Endurance (TBW)
Not available
MTBF or MTTF (claimed)
Not available
Operating temperature
Not available

Power

We could not find any of these 6 fields. Show them
Power while reading (claimed)
Not available
Power while writing (claimed)
Not available
Max power consumption (claimed)
Not available
Average power in light use (claimed)
Not available
Idle power (claimed)
Not available
Sleep power (claimed)
Not available

Measured

We could not find any of these 9 fields. Show them
Sequential read (measured)
Not available
Sequential write (measured)
Not available
Random 4K read at queue depth 1 (measured)
Not available
Random 4K write at queue depth 1 (measured)
Not available
Write cache size (measured)
Not available
Write speed after the cache (measured)
Not available
3DMark Storage Benchmark
Not available
Highest temperature under load (measured)
Not available
Idle power (measured)
Not available

Cooling and build

We could not find any of these 4 fields. Show them
Heatsink
Not available
RGB lighting
Not available
Dust and water rating
Not available
Drop test height
Not available

Security and software

We could not find any of these 2 fields. Show them
Security
Not available
Software
Not available

Compatibility

Platforms
Windows, macOS, Linux3Owner's manualsabrent.com/cdn/shop/files/SB-XTM5_20-_20Manual_634.pdfRead 15 October 2026Supported Operating Systems: Windows 10+, macOS 14.4+, Linux. The table says a PC with Thunderbolt 5 needs Windows 11

Dimensions and weight

Front and side, drawn to scale.

Dimensions
Length104.9Width45Height14.5mm(4.1 × 1.8 × 0.6 in)1Maker product pagesabrent.com/products/sb-xtm5-2tbRead 15 October 2026Page Dimensions block: Lenght [sic] 4.13 in, Width 1.77 in, Height 0.57 in. Converted exactly at 25.4 mm per inch and rounded to 0.1 mm: 104.9 x 45.0 x 14.5 mm. The same on the 2TB and 4TB pages
Weight
95g(3.4 oz)1Maker product pagesabrent.com/products/sb-xtm5-2tbRead 15 October 2026Page Dimensions block: Weight 3.35 oz, which is 94.97 g, stored as 95. The same on the 4TB page. It is not stated whether the optional silicone sleeve is included

In the box

In the box
Rocket XTRM External Thunderbolt 5 NVMe SSD, Thunderbolt 5 cable (50cm)1Maker product pagesabrent.com/products/sb-xtm5-2tbRead 15 October 2026In the box on the page, verbatim: Rocket XTRM External Thunderbolt 5 NVMe SSD and Thunderbolt 5 cable (50cm). The manual names the drive Rocket XTRM 5 External Thunderbolt 5 NVMe SSD. The silicone sleeve is described as optional and is not listed3Owner's manualsabrent.com/cdn/shop/files/SB-XTM5_20-_20Manual_634.pdfRead 15 October 2026Package Contents: Rocket XTRM 5 External Thunderbolt 5 NVMe SSD and Thunderbolt 5 cable (50cm)
Cables included
TypeLength (m)Count
Thunderbolt 5 (USB-C)0.51
Source1Maker product pagesabrent.com/products/sb-xtm5-2tbRead 15 October 2026One Thunderbolt 5 cable of 50 cm. The page and manual do not name the connector at each end. Sabrent's product photo shows a USB-C plug at both ends

Warranty

Manufacturer warranty (source market)
3years4Maker product pagesabrent.com/pages/warranty-policyRead 15 October 2026Warranty by product type table, External Storage (external SSDs, portable SSDs): standard 3 years, 5 years with registration within 90 days. The store page tags read warranty-std 3 Years and warranty-ext 5 Years. The store page generic block says 2-Year Warranty, which conflicts and is not used. The page names no market

Compare with

Pick a SSD to see both side by side. Differences are marked yellow.

More SSD comparisons

Variants

Each variant lists only what differs from the specs above.

Model numberGTINLaunch price (US)Capacity
SB-XTM5-2TB840025273856$369.992 TB
SB-XTM5-4TB840025273030$599.994 TB

Sources

We read 8 sources for this SSD. The numbers match the markers in the sheet.

  1. Read 15 October 2026Backs 12 fields
  2. Read 15 October 2026Backs 2 fields
  3. Read 15 October 2026Backs 4 fields
  4. Read 15 October 2026Backs 1 field
  5. Read 15 October 2026Backs 3 fields
  6. Read 21 October 2026Backs 4 fields
  7. Read 21 October 2026Backs 2 fields
  8. Read 15 October 2026Backs 2 fields

See a wrong value? Tell us and name the field.
