TV and audio / Streaming devices
AmazonStreaming device

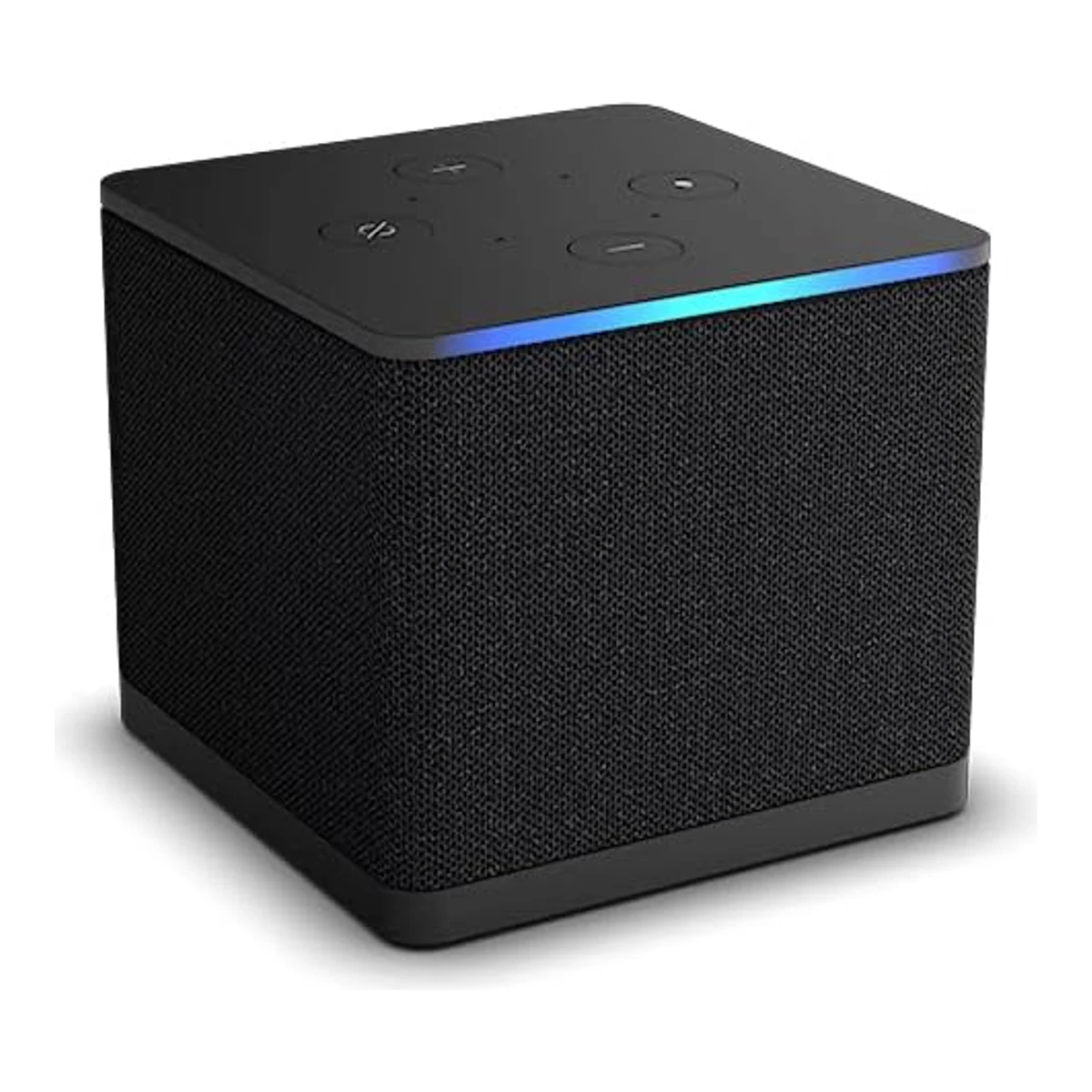

Fire TV Cube (3rd Gen, 2022)
Released October 2022.10Maker product pagedeveloper.amazon.com/docs/device-specs/device-specifications-fire-tv-cube.htmlRead 8 October 2026Release year 2022 in exact third-gen table. October month from maker September 28 event shipping October 25 and original October 25 reviews. US standard retail reference. Last checked 8 October 2026.
- Max output resolution
- 3840 × 2160
- HDR formats
- HDR10, HDR10+, HLG, Dolby Vision
- Operating system
- Fire OS
- Storage
- 16GB
71 of 97 fields known.
At a glance
Ports
- 2 HDMI 2.1
- USB-A 2.0
- Ethernet
- DC power
- Other
General
- Series
- Fire TV Cube2Maker product pageamazon.com/dp/B09BZZ3MM7Read 8 October 2026Technical details heading identifies the third-generation Fire TV Cube.
- GTIN / EAN
- Not available
- Predecessor
- Not available
- Successor
- Not available
- Launch price (EU)
- Not available
- Markets
- Not available
- Colours
- Not available
Video output
- Max output resolution
- 3840 × 2160px2Maker product pageamazon.com/dp/B09BZZ3MM7Read 8 October 2026Output/Input resolution supported row lists 2160p, 1080p and 720p up to 60 fps. 4K Ultra HD output establishes the standard 3840 x 2160 raster. Not a decoder-only value.
- Max output refresh rate
- 60Hz2Maker product pageamazon.com/dp/B09BZZ3MM7Read 8 October 2026Output/Input resolution supported row says up to 60 fps at 2160p, 1080p and 720p. No 120 Hz feature inferred from HDMI 2.1.
- Video output modes
Height (px) Refresh rate (Hz) 2160 60 1080 60 720 60 - HDR formats
- HDR10, HDR10+, HLG, Dolby Vision1Maker product pagedeveloper.amazon.com/docs/device-specs/device-specifications-fire-tv-cube.htmlRead 8 October 2026Exact HDR row lists HDR10, HDR10+, HLG and Dolby Vision. App, content and TV support are required.
- Dolby Vision profiles
- 4-MEL, 5 (up to Level 9), 8 (up to Level 9), 9 (up to Level 5), 101Maker product pagedeveloper.amazon.com/docs/device-specs/device-specifications-fire-tv-cube.htmlRead 8 October 2026Video codecs Dolby Vision row: 4-MEL, 5, 8, 9 and 10. Levels specified only for profiles 5 and 8 (up to 9), and 9 (up to 5). No level borrowed from a Fire TV Stick table. Local-file support depends on the player.
- Automatic frame rate matching
- Not available
- Dynamic range matching
- Not available
Video decoding
- Video codecs
- H.265 / HEVC, H.264 / AVC, AV1, VP9, MPEG-2, MPEG-41Maker product pagedeveloper.amazon.com/docs/device-specs/device-specifications-fire-tv-cube.htmlRead 8 October 2026Exact third-generation decoder table. Does not inherit H.263 or VP8 from older Cubes or Sticks.
- Video decode limits
Codec Profile Level Height (px) Max frame rate (fps) Bit depth (bits) H.265 / HEVC Main 10 5.1 2160 60 Not available H.264 / AVC High 5.1 2160 30 8 H.264 / AVC High 5.1 1080 60 8 AV1 Main 5.1 2160 60 10 VP9 2 Not available 2160 60 Not available MPEG-2 Not available Not available 1080 60 Not available MPEG-4 Not available Not available 1080 60 Not available - DRM systems
- Widevine L1 v11, PlayReady 3.31Maker product pagedeveloper.amazon.com/docs/device-specs/device-specifications-fire-tv-cube.htmlRead 8 October 2026Exact DRM row lists Widevine L1 v11 and PlayReady 3.3. Secure Media Path note applies to video media only. Does not guarantee service 4K availability.
Audio
- Audio formats
- Dolby MAT, Dolby Digital / AC3, Dolby Digital Plus / EAC3, Dolby Atmos (DDP+JOC and AC4), Dolby TrueHD, DTS, DTS-HD (basic profile), MPEG-H, AAC-LC, HE-AAC, HE-AACv2, AAC-ELD, xHE-AAC, FLAC, MIDI, MP3, Vorbis, PCM / WAV, AMR-NB, Opus1Maker product pagedeveloper.amazon.com/docs/device-specs/device-specifications-fire-tv-cube.htmlRead 8 October 2026Audio codecs are input formats and qualified routes. Dolby MAT transcoding applies to streaming apps and HDMI input. MAT input to MAT output is specified for HDMI input. TrueHD, DTS, basic-profile DTS-HD and MPEG-H are passthrough. Other named audio formats are decoder capabilities. PCM/Wave up to 96 kHz, six channels, 16/24-bit is a decoder limit, so output maximum fields remain empty.
- Audio passthrough formats
- Dolby TrueHD (Atmos), DTS, DTS-HD (basic profile), MPEG-H1Maker product pagedeveloper.amazon.com/docs/device-specs/device-specifications-fire-tv-cube.htmlRead 8 October 2026Exact table explicitly names Dolby TrueHD, DTS, DTS-HD basic profile and MPEG-H passthrough. TrueHD Atmos is named in the Dolby row. Compatible player, content and HDMI audio equipment are required. These are current support statements, not guaranteed launch behavior. Full DTS-HD Master Audio support is not claimed.
- Audio channel configurations
- 7.1 surround sound, 2-channel stereo, HDMI audio passthrough up to 5.12Maker product pageamazon.com/dp/B09BZZ3MM7Read 8 October 2026Audio support row names 7.1 surround, stereo and HDMI audio passthrough up to 5.1. It does not identify 7.1 as PCM. Separate current developer passthrough format support is retained without extending this general channel claim.
- Max audio sample rate
- Not available
- Max audio bit depth
- Not available
- Bluetooth audio codecs
- Not available
Processor and memory
- System on chip
- Amlogic POP1-G1Maker product pagedeveloper.amazon.com/docs/device-specs/device-specifications-fire-tv-cube.htmlRead 8 October 2026Processor (SoC) row: Amlogic POP1-G, also named Amlogic AML Popcorn. No generic A311D2 chipset substitution.
- CPU
- 4x ARM Cortex-A73 at 2.2 GHz and 4x ARM Cortex-A53 at 2.0 GHz1Maker product pagedeveloper.amazon.com/docs/device-specs/device-specifications-fire-tv-cube.htmlRead 8 October 2026CPU row: ARM 4xCA73 at 2.2 GHz and ARM 4xCA53 at 2.0 GHz.
- Storage type
- Not available
- Storage expansion methods
- USB external storage6Reviewcomputerbase.de/artikel/audio-video-foto/amazon-fire-tv-cube-3-gen-test.82507Read 8 October 2026Exact review describes USB-A drives for direct media playback and device-formatted app storage. No microSD slot. Capacity and exFAT support not inferred.
Connectivity
- Wi-Fi bands
- 2.4 GHz, 5 GHz, 6 GHz1Maker product pagedeveloper.amazon.com/docs/device-specs/device-specifications-fire-tv-cube.htmlRead 8 October 2026Wi-Fi row explicitly lists 2.4 GHz, 5.0 GHz and 6 GHz tri-band.
- Wi-Fi MIMO
- 2x2 MIMO1Maker product pagedeveloper.amazon.com/docs/device-specs/device-specifications-fire-tv-cube.htmlRead 8 October 2026Wi-Fi row explicitly lists 2x2 MIMO.
- Built-in Ethernet speed
- 100Mbps1Maker product pagedeveloper.amazon.com/docs/device-specs/device-specifications-fire-tv-cube.htmlRead 8 October 2026Ethernet row: 10/100 Mbps built-in Ethernet. Not gigabit and not an optional dongle.
- Optional Ethernet adapter support
- Not available
- Ports
Connector Count Version Role HDMI 1 2.1 Video input HDMI 1 2.1 Video output, ARC input support USB-A 1 2.0 External storage, webcam or compatible controller Ethernet 1 Not available 10/100 Mbps network DC power 1 Not available Power input Other 1 Not available IR extender output
Smart home
- Thread border router
- Not available
- Matter controller
- Not available
Remote control
- Remote model
- Alexa Voice Remote Enhanced2Maker product pageamazon.com/dp/B09BZZ3MM7Read 8 October 2026Included in the box explicitly names Alexa Voice Remote Enhanced. Original supplied remote, excluding Pro bundles and later replacements.
- Remote connection
- Bluetooth2Maker product pageamazon.com/dp/B09BZZ3MM7Read 8 October 2026Alexa Voice Remote Enhanced technical details Technology row specifies Bluetooth 5.0. No infrared radio is inferred for the remote from the Cube IR blaster.
- Remote voice assistants
- Alexa2Maker product pageamazon.com/dp/B09BZZ3MM7Read 8 October 2026Original remote voice button supports Alexa. Alexa+ is a later device software feature, qualified separately.
- Remote TV control
- Power, Volume, Mute, Channel up/down2Maker product pageamazon.com/dp/B09BZZ3MM7Read 8 October 2026Product page Enhanced remote paragraph and QSG page 2 label power, volume, mute and channel buttons. Compatible television, audio equipment or cable-box setup required.
- Remote power
- 2 AAA batteries2Maker product pageamazon.com/dp/B09BZZ3MM7Read 8 October 2026Enhanced remote technical details: two included AAA batteries. No rechargeable internal battery or charging port inferred.
- Remote charging port
- Not available
Software
- Operating system
- Fire OS1Maker product pagedeveloper.amazon.com/docs/device-specs/device-specifications-fire-tv-cube.htmlRead 8 October 2026Exact OS version row says Fire OS 7.
- Operating system at launch
- Fire OS 7 (Android 9)1Maker product pagedeveloper.amazon.com/docs/device-specs/device-specifications-fire-tv-cube.htmlRead 8 October 20262022 identity table states Fire OS 7 and Android Level 28 (Android 9). Android Authority original review ran Fire OS 7.6.1.3. No Fire OS 8 inheritance from 2023 Sticks.
- App store
- Amazon Appstore9Maker product pageaboutamazon.com/news/devices/xbox-gaming-on-amazon-fire-tvRead 8 October 2026How to get started explicitly names Fire TV Cube (3rd Gen) and installing Xbox app via Amazon Appstore.
- Casting protocols
- Miracast1Maker product pagedeveloper.amazon.com/docs/device-specs/device-specifications-fire-tv-cube.htmlRead 8 October 2026Miracast display mirroring with Fire tablet row says Supported. No native AirPlay or Google Cast claim.
- Hands-free voice control
- Yes1Maker product pagedeveloper.amazon.com/docs/device-specs/device-specifications-fire-tv-cube.htmlRead 8 October 2026Far-field Alexa control row says Supported. Four-microphone array is built into this device. No linked Echo is required.
- Mobile remote platforms
- Android, iOS, Other2Maker product pageamazon.com/dp/B09BZZ3MM7Read 8 October 2026Voice support row names free Fire TV app for Android, iOS and Fire OS. Fire OS is represented by other in the existing enum.
- Accessibility features
- VoiceView screen reader, Screen magnifier, Text Banner, Closed captions, Audio Description, Audio Streaming for Hearing Aids (ASHA)2Maker product pageamazon.com/dp/B09BZZ3MM7Read 8 October 2026Accessibility row lists these features. Captions and Audio Description depend on content. ASHA supports select compatible Bluetooth hearing devices, not every hearing aid.
Gaming
- Game services
- Amazon Luna, Xbox Game Pass2Maker product pageamazon.com/dp/B09BZZ3MM7Read 8 October 2026Exact current product page gaming section names Luna and Xbox Game Pass. US availability, subscriptions, accounts, compatible controllers and network required. Xbox support is a later addition, not a launch promise.
- Game controller support
- Xbox Wireless Controller (Bluetooth), Xbox Adaptive Controller, Sony DualSense (Bluetooth), Sony DualShock 4 (Bluetooth)9Maker product pageaboutamazon.com/news/devices/xbox-gaming-on-amazon-fire-tvRead 8 October 2026Exact supported Cube guide names these controllers over compatible Bluetooth. Microsoft account and Game Pass Ultimate required for subscription catalog. Fortnite has a membership-free option. No all-game or all-controller claim.
Power
- Power supply
- External DC adapter3Owner's manuald1ergij2b6wmg5.cloudfront.net/Amazon+Fire+TV+User+Guides/Fire+TV+Cube+Documentation/FireTVCube_Gen3_Online_QSG_US.pdfRead 8 October 2026Page 1 instructions connect included external power adapter to Cube power port and wall outlet. Not USB power.
- Rated power input
- 12 V DC, 1.25 A4Owner's manualdigprjsurvey.amazon.com/csad/help/node/GFAYGLRY3SG69MYNRead 8 October 2026Exact GA5Z9L electrical rating: 12 V DC, 1.25 A. Device input rating. Not a measurement of power consumption or proof of adapter output.
- Included adapter output
- Not available
- Max power consumption (claimed)
- Not available
- Standby power (claimed)
- Not available
Measured
We could not find any of these 4 fields. Show them
- Video playback power (measured)
- Not available
- Idle power (measured)
- Not available
- Standby power (measured)
- Not available
- Boot time (measured)
- Not available
Dimensions and weight
Front and side, drawn to scale.
- Dimensions
- Width86Height77Depth86mm(3.4 × 3 × 3.4 in)2Maker product pageamazon.com/dp/B09BZZ3MM7Read 8 October 2026Device Size row: 86 x 86 x 77 mm. Width and depth are the square footprint, height is vertical, corroborated by the technical diagram. Millimetre figures take precedence over rounded inch figures. Excludes adapter and remote.
- Weight
- 513g(1.1 lb)2Maker product pageamazon.com/dp/B09BZZ3MM7Read 8 October 2026Device Weight row: 513 g. Device only, excludes adapter and remote.
- Remote dimensions
- Width38Height158Depth17mm(1.5 × 6.2 × 0.7 in)2Maker product pageamazon.com/dp/B09BZZ3MM7Read 8 October 2026Enhanced remote Size row: 38 x 158 x 17 mm. Width across buttons, height along buttons, depth thickness.
Certifications
We could not find any of these 2 fields. Show them
- FCC ID
- Not available
- Other certifications
- Not available
In the box
- In the box
- Fire TV Cube (3rd Gen), Alexa Voice Remote Enhanced, Power adapter, 2 AAA batteries, Quick Start Guide2Maker product pageamazon.com/dp/B09BZZ3MM7Read 8 October 2026Exact Included in the box row. HDMI, IR extender and Ethernet cables sold separately. Standard Enhanced remote bundle.
Links
- Product page
- www.amazon.com/dp/B09BZZ3MM72Maker product pageamazon.com/dp/B09BZZ3MM7Read 8 October 2026Exact US standard bundle ASIN B09BZZ3MM7. Remote Pro and protection-plan bundles are excluded from the reference.
- Spec sheet
- developer.amazon.com/docs/device-specs/device-specifications-fire-tv-cube.html1Maker product pagedeveloper.amazon.com/docs/device-specs/device-specifications-fire-tv-cube.htmlRead 8 October 2026Exact table headed Fire TV Cube - 3rd Gen (2022). Older Cube tables on the same page are excluded.
- Manual
- d1ergij2b6wmg5.cloudfront.net/Amazon+Fire+TV+User+Guides/Fire+TV+Cube+Documentation/FireTVCube_Gen3_Online_QSG_US.pdf3Owner's manuald1ergij2b6wmg5.cloudfront.net/Amazon+Fire+TV+User+Guides/Fire+TV+Cube+Documentation/FireTVCube_Gen3_Online_QSG_US.pdfRead 8 October 2026Official US Gen3 quick-start guide linked from exact product page. Three image-only pages rendered and inspected.
- EPREL registration number
- Not available
Warranty
- Manufacturer warranty (source market)
- 1year2Maker product pageamazon.com/dp/B09BZZ3MM7Read 8 October 2026US Warranty and service row: 1-year limited warranty. Purchased extensions and statutory rights excluded.
Compare with
Pick a streaming device to see both side by side. Differences are marked yellow.
Sources
We read 10 sources for this streaming device. The numbers match the markers in the sheet.
- Maker product pageamazon.com/dp/B09BZZ3MM7
- Owner's manualdigprjsurvey.amazon.com/csad/help/node/GFAYGLRY3SG69MYN
- Maker product pageaboutamazon.com/news/devices/xbox-gaming-on-amazon-fire-tv
See a wrong value? Tell us and name the field.
