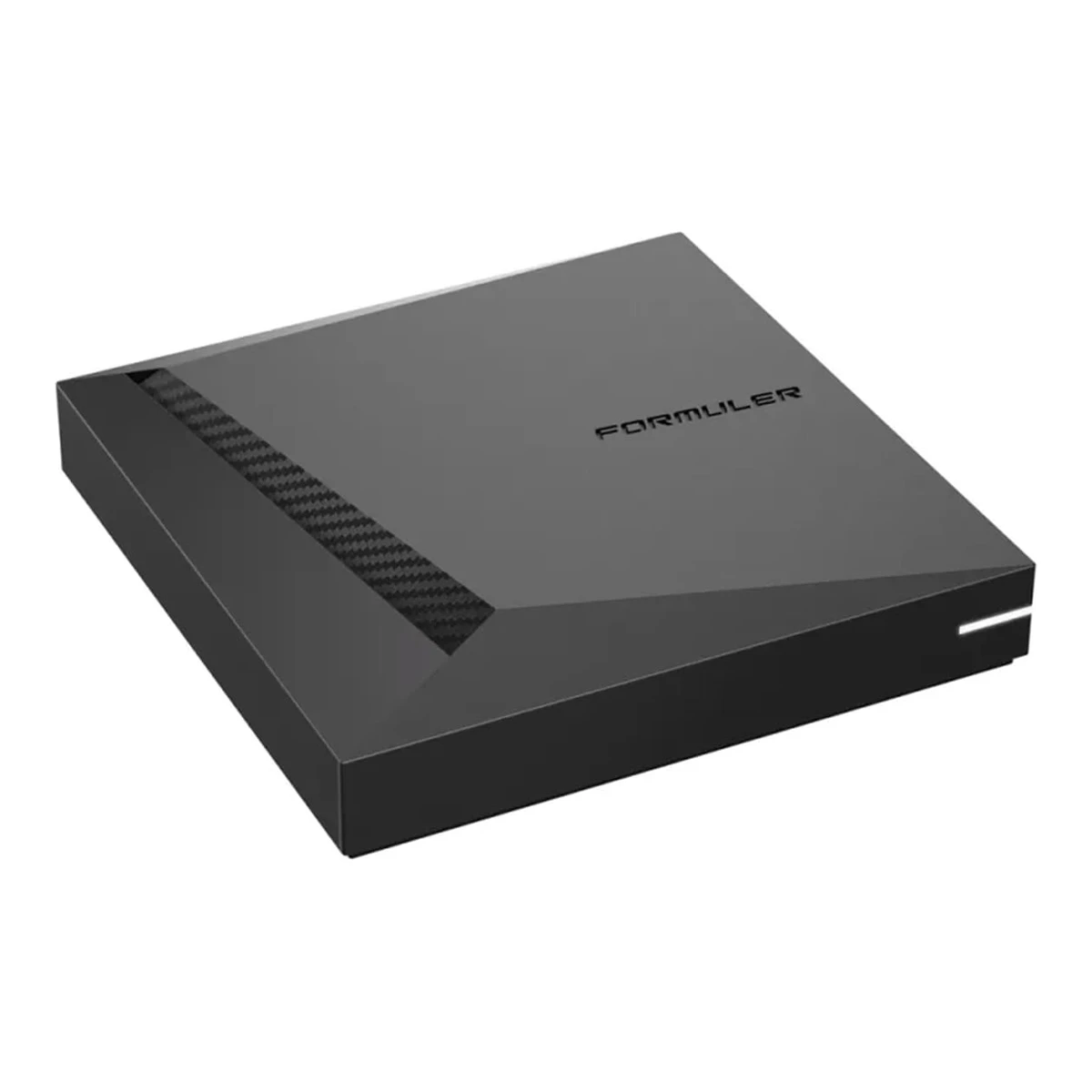

Formuler Z11 Pro Max

FormulerStreaming device

Z11 Pro Max

Released October 2022.4Maker product pageformuler.tv/regulatoryRead 15 October 2026Declaration of Conformity list: Z11 Pro Max (Android OTT), Start of Sales 2022/10. Region is global, no regional split is published. Last checked 16 October 2026.

Max output resolution
3840 × 2160
HDR formats
HDR10, HDR10+, HLG
Operating system
Android
Storage
32GB

56 of 97 fields known.

Compare with another streaming deviceDownload JSONDownload CSVGet it from the API

At a glance

Ports

  • HDMI
  • USB-A USB 3.0
  • USB-A USB 2.0
  • Ethernet
  • microSD
  • Other
  • DC power

All specs

SourceCalculated

General

Series
Z115Press releaseformuler.tv/single-post/introducing-z11-series-and-mytvonline-3Read 15 October 2026Post: the new Z11-series products are the Z11 Pro Max and the Z11 Pro.
Model numbers
Not available
GTIN / EAN
8809604570665, 880960457080112Retailer pagesatking.de/en/formuler-z11-pro-max-bt1-edition-4k-uhd-android-11-ip-receiverRead 15 October 2026BT1 Edition listing: EAN 8809604570665, product number RECFOR028. Swiss Post lists the same EAN. JB Hi-Fi lists 8809604570801 for its BT Edition, so both EANs are stored without a variant row.13Retailer pagejbhifi.com.au/products/formuler-z11-pro-max-4k-android-ott-media-streamer-bt-editionRead 15 October 2026Page data lists gtin 8809604570801 for the Z11 Pro Max BT Edition (GTV-BT1 remote), model code Z11-PRO-MAX-BT, SKU 10084661. It differs from the SatKing and Swiss Post EAN, so this may be an Australian packaging SKU.14Retailer pageshop.post.ch/en/electronics/tv/streaming-boxes/formuler-media-player-iptv-player-z11-pro-max-bt1/p/846499Read 15 October 2026EAN 8809604570665, article number 846499, for Z11 Pro Max BT1.
Announced
24 October 20225Press releaseformuler.tv/single-post/introducing-z11-series-and-mytvonline-3Read 15 October 2026Maker news post of 24 Oct 2022: Today Formuler launches the new Z11-series products, Z11 Pro Max and Z11 Pro. It gives no price.
Status
Available4Maker product pageformuler.tv/regulatoryRead 15 October 2026The Z11 Pro Max is still listed with its declarations beside the 2026 Z12 models.
Predecessor
Not available
Successor
Not available
Launch price (US)
Not available
Launch price (EU)
Not available
Markets
EU, GB, US, AU3Owner's manualdrive.google.com/file/d/1xeCkZsObliEEvRhUXNLoznaKdW3vmn_J/viewRead 15 October 2026The guide carries a RED declaration for the EU and an FCC ID for the US.4Maker product pageformuler.tv/regulatoryRead 15 October 2026The page links a CE, a UKCA and an RCM declaration for the Z11 Pro Max.7Maker spec sheet (PDF)dropbox.com/scl/fi/wrv4u409odfsju11cvoge/Formuler-Z11-Pro-Max-CE-DoC_NewAT.pdfRead 15 October 2026EU declaration.8Maker spec sheet (PDF)dropbox.com/s/auqxet63cr0rxzn/Formuler%20Z11%20Pro%20Max%20UKCA-DoC.pdfRead 15 October 2026UK declaration.9Maker spec sheet (PDF)dropbox.com/s/sruxdgcaweb2nqr/Formuler%20Z11%20Pro%20Max%20RCM_DoC.pdfRead 15 October 2026Australia declaration.
Colours
Black1Maker product pageformuler.tv/z11promaxRead 15 October 2026Tech specs: Color: Black.12Retailer pagesatking.de/en/formuler-z11-pro-max-bt1-edition-4k-uhd-android-11-ip-receiverRead 15 October 2026Color Black.
Form factor
Box1Maker product pageformuler.tv/z11promaxRead 15 October 2026A separate box that connects by its own HDMI cable and a 12 V adapter.

Video output

Max output resolution
3840 × 2160px1Maker product pageformuler.tv/z11promaxRead 15 October 2026Tech specs: Output Resolution: 4K (3840 x 2160).
Max output refresh rate
60Hz1Maker product pageformuler.tv/z11promaxRead 15 October 2026The page's feature tiles list 4K 60fps beside HDR10+, and the decoding line says 4K 60fps. The maker names no output refresh rate in text. Two retailers (JB Hi-Fi, De Schotel) also say 4K at 60fps output.
Video output modes
Width (px)Height (px)Refresh rate (Hz)
3840216060
Source1Maker product pageformuler.tv/z11promaxRead 15 October 2026One row: 4K at 60 Hz from the same tile. Bit depth, chroma and HDR pairing are not published.
HDR formats
HDR10, HDR10+, HLG1Maker product pageformuler.tv/z11promaxRead 15 October 2026Page lists 4K HDR, HDR10+ and HLG. HDR10 is covered by the plain 4K HDR statement and the JB Hi-Fi list (HDR10+, HDR10, HLG). Dolby Vision is not listed.2Maker product pageformuler.tv/specs-1Read 15 October 2026Z11 Pro Max column: HDR10+, HLG.12Retailer pagesatking.de/en/formuler-z11-pro-max-bt1-edition-4k-uhd-android-11-ip-receiverRead 15 October 2026Retailer lists HDR10+ and HLG. No Dolby Vision.13Retailer pagejbhifi.com.au/products/formuler-z11-pro-max-4k-android-ott-media-streamer-bt-editionRead 15 October 2026Retailer lists HDR10+, HDR10, HLG. Other JB Hi-Fi claims (LPDDR4 RAM, HDMI 2.1 CEC, VP9, USB drive expansion) conflict with the maker or are not on the maker's pages and are not stored.
Dolby Vision profiles
Not available
HDMI version
Not available
HDCP version
Not available
HDMI-CEC
Yes10Maker product pagesupport.formuler.tv/kb/article/166-how-to-use-hdmi-cec-on-your-formuler-deviceRead 15 October 2026Helpdesk article lists applicable models as All and the options Enable CEC, Turn off with TV, Turn on with TV and Use TV remote controller. The menu location varies by model. It names the Z11 Pro Max in no list, so the claim rests on All models.
Automatic frame rate matching
Not available
Dynamic range matching
Not available
Upscaling
Not available

Video decoding

Video codecs
AV1, HEVC, H.264, MVC, AVS, MPEG-1, MPEG-2, MPEG-4, VC-1, Real1Maker product pageformuler.tv/z11promaxRead 15 October 2026Tech specs Video decoder: 4K@60fps, AV1, H.265 (HEVC), AVS, H.264 (AVC, MVC), Real, MPEG1/2/4, VC-1. No VP9 is listed, so VP9 is not stored although a retailer names it.
Video decode limits
CodecProfileLevelWidth (px)Height (px)Max frame rate (fps)Bit depth (bits)
AV1Not availableNot available384021606010
HEVCMain 105.1 High tier384021606010
Source1Maker product pageformuler.tv/z11promaxRead 15 October 2026Page: 4K 10-bit 60fps h.265 and 4K 10-bit 60fps AV1. The comparison page adds Main 10 profile at level 5.1 high-tier for the Z11 Pro Max HEVC decoding. No limit is published for H.264 or the other codecs.2Maker product pageformuler.tv/specs-1Read 15 October 2026Z11 Pro Max column: A/V Decoding 4K@60fps 10-bit, Main 10 profile @level 5.1 high-tier. The wording is about HEVC Main 10. The column names no codec, so the codec follows the product page's 4K 10-bit 60fps h.265.
Video containers
TS, MKV, FLV, MOV, AVI, RM, MP415Retailer pagedeschotelshop.nl/en/formuler-z11-pro-max-4k-uhd-iptv-media-playerRead 15 October 2026Technical specifications: Video file formats TS, MKV, FLV, MOV, AVI, RM, MP4. Only this retailer lists them and the maker does not. The page sells the Z11 Pro Max package with the GTV-IR1 remote. Container support is a software feature that the maker does not split by remote edition.
DRM systems
Widevine L1, Widevine L31Maker product pageformuler.tv/z11promaxRead 15 October 2026Tech specs DRM: Widevine L1, L3. The page says Embedded Widevine Level 1 DRM with the footnote 'BT1 Edition Only'. The stored data therefore describes the BT1 edition. The IR1 edition's DRM level is not published, and drm_systems is not a per-variant field, so no IR1 variant is stored.

Audio

Audio formats
MPEG-1 Layer 1/2/3 (2-CH), MPEG-2 Layer 1/2, HE-AAC v1/v21Maker product pageformuler.tv/z11promaxRead 15 October 2026Tech specs Audio decoder: MPEG-1 Layer 1,2,3 (2-CH), MPEG-2 Layer 1,2, HE AAC V1/V2. Decoder, output and passthrough roles are not separated. No Dolby or DTS is listed.
Audio passthrough formats
Not available
Dolby Atmos
Not available
Audio channel configurations
Not available
Max audio sample rate
Not available
Max audio bit depth
Not available
Bluetooth audio output
Not available
Bluetooth audio codecs
Not available

Processor and memory

System on chip
Realtek RTD1319C1Maker product pageformuler.tv/z11promaxRead 15 October 2026Tech specs CPU row names Realtek RTD1319C. The maker lists no separate SoC row.
CPU
Quad-core Arm Cortex-A551Maker product pageformuler.tv/z11promaxRead 15 October 2026The comparison page lists Quad-core (ARM Cortex A55). No clock speed is published.2Maker product pageformuler.tv/specs-1Read 15 October 2026Z11 Pro Max column: Quad-core (ARM Cortex A55).
CPU cores
42Maker product pageformuler.tv/specs-1Read 15 October 2026Z11 Pro Max column: Quad-core.
Max CPU clock
Not available
GPU
ARM Mali-G57 MC11Maker product pageformuler.tv/z11promaxRead 15 October 2026Tech specs: GPU Mali-G57 MC1. The page also says the Mali G57 gives 2x better graphics performance than the Mali G31 of earlier models (Antutu GPU benchmark 2022, a maker claim).5Press releaseformuler.tv/single-post/introducing-z11-series-and-mytvonline-3Read 15 October 2026Post: the all-new Mali G57 GPU.
RAM
4GB1Maker product pageformuler.tv/z11promaxRead 15 October 2026Tech specs: RAM 4GB DDR4 @2666MHz. The De Schotel shop says 2400 MHz and JB Hi-Fi says LPDDR4. The maker value wins, and no memory speed field exists.2Maker product pageformuler.tv/specs-1Read 15 October 2026Z11 Pro Max column: 4GB DDR4.
RAM type
DDR41Maker product pageformuler.tv/z11promaxRead 15 October 2026
Storage
32GB1Maker product pageformuler.tv/z11promaxRead 15 October 2026Tech specs: Storage 32GB eMMC.2Maker product pageformuler.tv/specs-1Read 15 October 2026Z11 Pro Max column: 32GB.
Storage type
eMMC1Maker product pageformuler.tv/z11promaxRead 15 October 2026
Expandable storage
Yes1Maker product pageformuler.tv/z11promaxRead 15 October 2026Tech specs list one Micro SD card slot and the comparison page lists Memory Expansion Micro SD. The maker does not say whether apps, media or both can use the card.2Maker product pageformuler.tv/specs-1Read 15 October 2026Z11 Pro Max column: Memory Expansion Micro SD.
Storage expansion methods
microSD card slot1Maker product pageformuler.tv/z11promaxRead 15 October 2026Comparison page: Memory Expansion Micro SD.2Maker product pageformuler.tv/specs-1Read 15 October 2026Z11 Pro Max column: Memory Expansion Micro SD.

Connectivity

Wi-Fi
Wi-Fi 61Maker product pageformuler.tv/z11promaxRead 15 October 2026Page: 6th generation AX wireless. Tech specs: Wireless AX 2x2.2Maker product pageformuler.tv/specs-1Read 15 October 2026Z11 Pro Max column: Wireless 802.11 ax.
Wi-Fi bands
2.4 GHz, 5 GHz3Owner's manualdrive.google.com/file/d/1xeCkZsObliEEvRhUXNLoznaKdW3vmn_J/viewRead 15 October 2026RF table for the Z11 Pro Max: WLAN 2412-2472 MHz, RLAN 5180-5240 MHz and SRD 5745-5825 MHz. No 6 GHz band.7Maker spec sheet (PDF)dropbox.com/scl/fi/wrv4u409odfsju11cvoge/Formuler-Z11-Pro-Max-CE-DoC_NewAT.pdfRead 15 October 2026The declaration applies ETSI EN 300 328 (2.4 GHz) and EN 301 893 (5 GHz). It lists no 6 GHz standard.
Wi-Fi MIMO
2x2 MIMO1Maker product pageformuler.tv/z11promaxRead 15 October 2026Tech specs: Wireless AX 2x2.
Built-in Ethernet speed
1,000Mbps1Maker product pageformuler.tv/z11promaxRead 15 October 2026Tech specs: Ethernet 1000M (Gigabit).2Maker product pageformuler.tv/specs-1Read 15 October 2026Z11 Pro Max column: Gigabit(1000Mbps).
Optional Ethernet adapter support
Not available
Bluetooth version
5.01Maker product pageformuler.tv/z11promaxRead 15 October 2026Tech specs: BT 5.0.14Retailer pageshop.post.ch/en/electronics/tv/streaming-boxes/formuler-media-player-iptv-player-z11-pro-max-bt1/p/846499Read 15 October 2026Bluetooth-Version 5.0.
Ports
ConnectorCountVersionRoleData speed (Gbps)
HDMI1Not availableVideo and audio outputNot available
USB-A1USB 3.0External storage and accessoriesNot available
USB-A1USB 2.0External storage and accessoriesNot available
Ethernet1Not availableGigabit network1
microSD1Not availableStorage expansionNot available
Other1Not availableIR extensionNot available
DC power1Not availablePower inputNot available
Source1Maker product pageformuler.tv/z11promaxRead 15 October 2026Tech specs Ports: Power Input 1, USB3.0 1, USB2.0 1, HDMI 1, Gigabit LAN 1, Micro SD Card 1, IR Extension 1. The maker names no HDMI version.

Smart home

We could not find any of these 3 fields. Show them
Thread border router
Not available
Matter controller
Not available
Smart home platforms
Not available

Remote control

Remote model
GTV-BT11Maker product pageformuler.tv/z11promaxRead 15 October 2026Page shows the GTV-IR1 and GTV-BT1 remotes. The BT1 edition ships with the GTV-BT1 (JB Hi-Fi, SatKing). The IR1 edition is a separate configuration that is not stored.6Maker product pageformuler.tv/gtv-bt1Read 15 October 2026GTV-BT1 Advanced Bluetooth Voice Remote with Universal TV Control.
Remote connection
Bluetooth, Infrared1Maker product pageformuler.tv/z11promaxRead 15 October 2026Page: hybrid BT Voice Remote with universal infrared programmability for TV control.6Maker product pageformuler.tv/gtv-bt1Read 15 October 2026Bluetooth link to the box. Infrared is the universal TV control.
Remote microphone
Yes1Maker product pageformuler.tv/z11promaxRead 15 October 2026The BT voice remote has Google Assistant.6Maker product pageformuler.tv/gtv-bt1Read 15 October 2026Voice Assistant: use voice to control and search.
Remote voice assistants
Google Assistant1Maker product pageformuler.tv/z11promaxRead 15 October 2026Page remote section lists Google Assistant.6Maker product pageformuler.tv/gtv-bt1Read 15 October 2026The Z11 Pro Max page names Google Assistant. The BT1 page says Voice Assistant without a name.
Remote TV control
Power, Input source, Volume, Menu1Maker product pageformuler.tv/z11promaxRead 15 October 2026Page: universal infrared programmability for TV control, with 5 TV learning keys on the remote.6Maker product pageformuler.tv/gtv-bt1Read 15 October 2026Program the remote with the Formuler Remote app to control TV Power, Source, Volume, Menu and more. The number of TV-enabled keys varies by TV brand.
Remote finder
Not available
Remote backlight
Not available
Remote power
2 AA batteries6Maker product pageformuler.tv/gtv-bt1Read 15 October 20262 AA Batteries.
Remote charging port
Not available

Software

Operating system
Android1Maker product pageformuler.tv/z11promaxRead 15 October 2026Tech specs: Operating System Android 11. The page does not say Android TV.5Press releaseformuler.tv/single-post/introducing-z11-series-and-mytvonline-3Read 15 October 2026Post: Android 11 Operating System.
Operating system at launch
Android 111Maker product pageformuler.tv/z11promaxRead 15 October 20262Maker product pageformuler.tv/specs-1Read 15 October 2026Z11 Pro Max column: Android 11.
App store
Formuler Market and Google Play Store11Maker product pagesupport.formuler.tv/kb/article/99-how-to-install-download-appsRead 15 October 2026Helpdesk article: install apps from the Market app (Home > Market) or from the Google Play Store with your own account, reached through the Market app, or by side-loading. It names the Z nano as the only model without the Play Store.
Casting protocols
Not available
Voice assistants
Not available
Hands-free voice control
Not available
Mobile remote platforms
Not available
Accessibility features
Not available

Gaming

We could not find any of these 2 fields. Show them
Game services
Not available
Game controller support
Not available

Power

Power supply
External DC adapter1Maker product pageformuler.tv/z11promaxRead 15 October 2026Tech specs: Power rating 12VDC / 1A and a Power Adapter in the box.
Rated power input
12 VDC / 1 A1Maker product pageformuler.tv/z11promaxRead 15 October 2026Tech specs: Power rating 12VDC / 1A.3Owner's manualdrive.google.com/file/d/1xeCkZsObliEEvRhUXNLoznaKdW3vmn_J/viewRead 15 October 2026Safety text: POWER RATING 12 VDC, 1.0A.9Maker spec sheet (PDF)dropbox.com/s/sruxdgcaweb2nqr/Formuler%20Z11%20Pro%20Max%20RCM_DoC.pdfRead 15 October 2026Product details: Rating 12VDC 1A from power adapter.
Included adapter output
12W14Retailer pageshop.post.ch/en/electronics/tv/streaming-boxes/formuler-media-player-iptv-player-z11-pro-max-bt1/p/846499Read 15 October 2026Netzteil Nennleistung 12 W, which matches the maker's 12 VDC / 1 A rating.
Max power consumption (claimed)
12W1Maker product pageformuler.tv/z11promaxRead 15 October 2026Tech specs: Power Consumption Max. 12W.
Standby power (claimed)
0.5W1Maker product pageformuler.tv/z11promaxRead 15 October 2026Tech specs: Standby Power Max. 0.5W (Ultra low power). Stored as the published maximum.

Measured

We could not find any of these 4 fields. Show them
Video playback power (measured)
Not available
Idle power (measured)
Not available
Standby power (measured)
Not available
Boot time (measured)
Not available

Dimensions and weight

Front and side, drawn to scale.

Dimensions
Width105Height21Depth105mm(4.1 × 0.8 × 4.1 in)1Maker product pageformuler.tv/z11promaxRead 15 October 2026Tech specs: Length 105mm, Width 105mm, Thickness 21mm. The box lies flat, so thickness is height. Swiss Post lists height 21 mm and width 105 mm.2Maker product pageformuler.tv/specs-1Read 15 October 2026Z11 Pro Max column: 105 x 105 x 21 (mm).14Retailer pageshop.post.ch/en/electronics/tv/streaming-boxes/formuler-media-player-iptv-player-z11-pro-max-bt1/p/846499Read 15 October 2026Height 21 mm, width 105 mm, depth 105 mm. This confirms the maker's orientation.
Weight
Not available
Remote dimensions
Not available
Remote weight
140g(4.9 oz)6Maker product pageformuler.tv/gtv-bt1Read 15 October 2026Maker says it weighs 140 grams and that actual weight may vary based on batteries used. It is not stated whether the batteries are included.

Certifications

FCC ID
2AV9UFZ1053Owner's manualdrive.google.com/file/d/1xeCkZsObliEEvRhUXNLoznaKdW3vmn_J/viewRead 15 October 2026Back page footer: FCC ID 2AV9UFZ105. The guide's RF table names the Z11 Pro Max. fccid.io blocks agents, so the FCC record itself was not opened.
Other certifications
CE RED, UKCA, RCM (Australia)3Owner's manualdrive.google.com/file/d/1xeCkZsObliEEvRhUXNLoznaKdW3vmn_J/viewRead 15 October 2026The guide carries a RED declaration (Directive 2014/53/EU) and an EU importer, Coboplus S.L.U., Madrid.7Maker spec sheet (PDF)dropbox.com/scl/fi/wrv4u409odfsju11cvoge/Formuler-Z11-Pro-Max-CE-DoC_NewAT.pdfRead 15 October 2026EU Radio Equipment Directive 2014/53/EU declaration by Aloys Inc. for Formuler Z11 Pro Max, notified body Phoenix Testlab (NB 0700), issued 23 Oct 2024 rev B.8Maker spec sheet (PDF)dropbox.com/s/auqxet63cr0rxzn/Formuler%20Z11%20Pro%20Max%20UKCA-DoC.pdfRead 15 October 2026UK Radio Equipment Regulations (S.I. 2017 No. 1206) declaration for Formuler Z11 Pro Max, 2 Aug 2022 rev A.9Maker spec sheet (PDF)dropbox.com/s/sruxdgcaweb2nqr/Formuler%20Z11%20Pro%20Max%20RCM_DoC.pdfRead 15 October 2026ACMA supplier's declaration of conformity for the Z11 Pro Max, signed 30/08/22. This is the RCM basis.

In the box

In the box
Z11 Pro Max media receiver, GTV-BT1 remote control, Remote control extender, 2 AA batteries, TV cable (HDMI), Power adapter, Quick setup guide1Maker product pageformuler.tv/z11promaxRead 15 October 2026Page icons: Media Receiver, Remote Control, TV Cable, Remote control Extender, Power Adapter, Quick Setup Guide, Batteries.3Owner's manualdrive.google.com/file/d/1xeCkZsObliEEvRhUXNLoznaKdW3vmn_J/viewRead 15 October 2026What's in the Box: Media Receiver, Remote Control, Remote Control Extender, 2x Batteries, TV Cable, Power Adapter. The guide itself is the booklet.12Retailer pagesatking.de/en/formuler-z11-pro-max-bt1-edition-4k-uhd-android-11-ip-receiverRead 15 October 2026Delivery list: receiver, BT-1 voice remote, silicone case, HDMI cable, 2x AA batteries, power supply, quick guide. The silicone case is not in the maker's list and is not stored.
HDMI cable included
Yes1Maker product pageformuler.tv/z11promaxRead 15 October 2026The box lists a TV Cable. The quick guide icons show an HDMI cable, and SatKing and JB Hi-Fi name an HDMI cable.3Owner's manualdrive.google.com/file/d/1xeCkZsObliEEvRhUXNLoznaKdW3vmn_J/viewRead 15 October 2026Icon labelled TV Cable. Installation step 1 says to connect with an HDMI cable.12Retailer pagesatking.de/en/formuler-z11-pro-max-bt1-edition-4k-uhd-android-11-ip-receiverRead 15 October 2026Delivery list names an HDMI cable.

Warranty

We could not find any of these 1 fields. Show them
Manufacturer warranty (source market)
Not available
